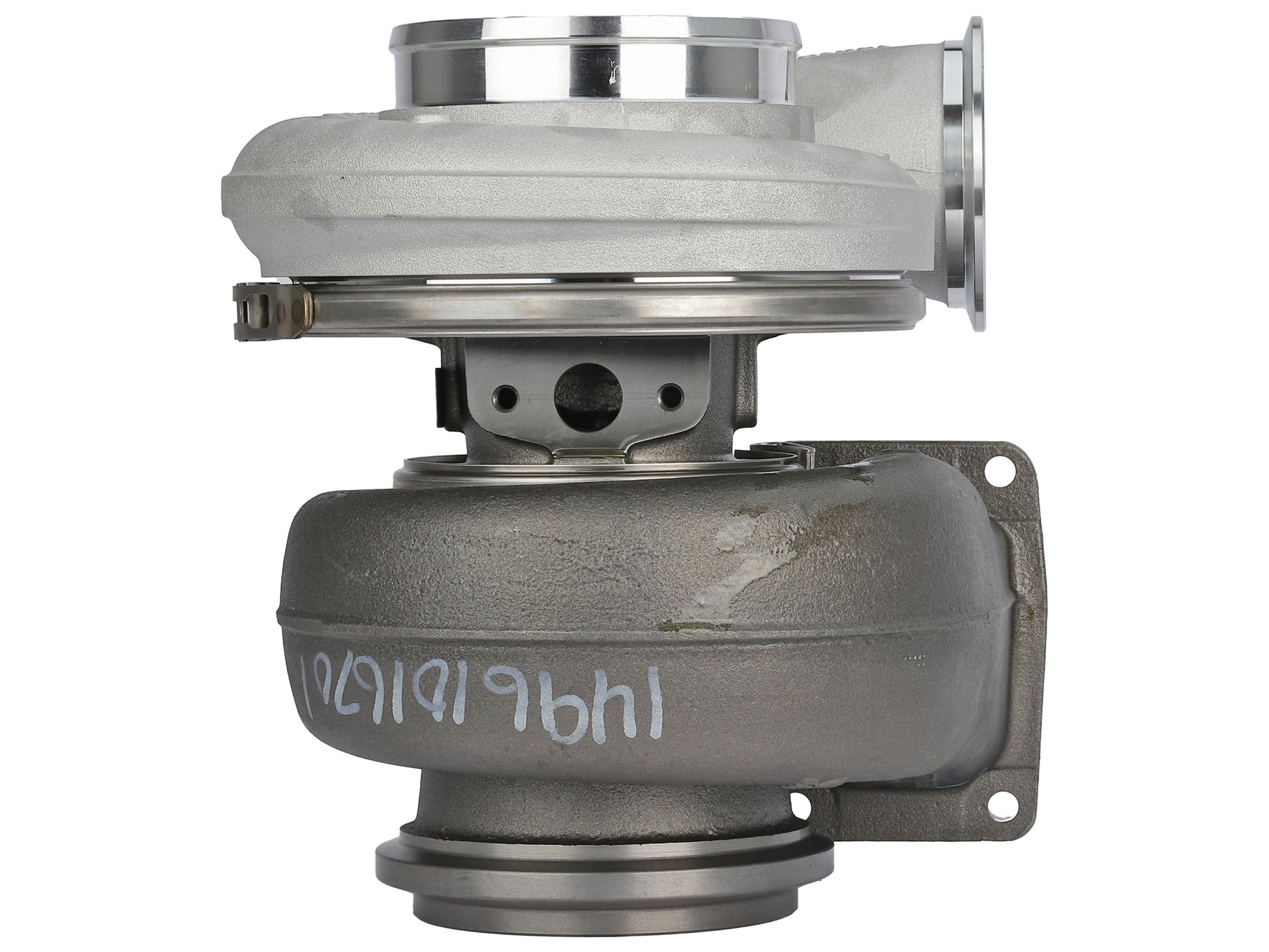

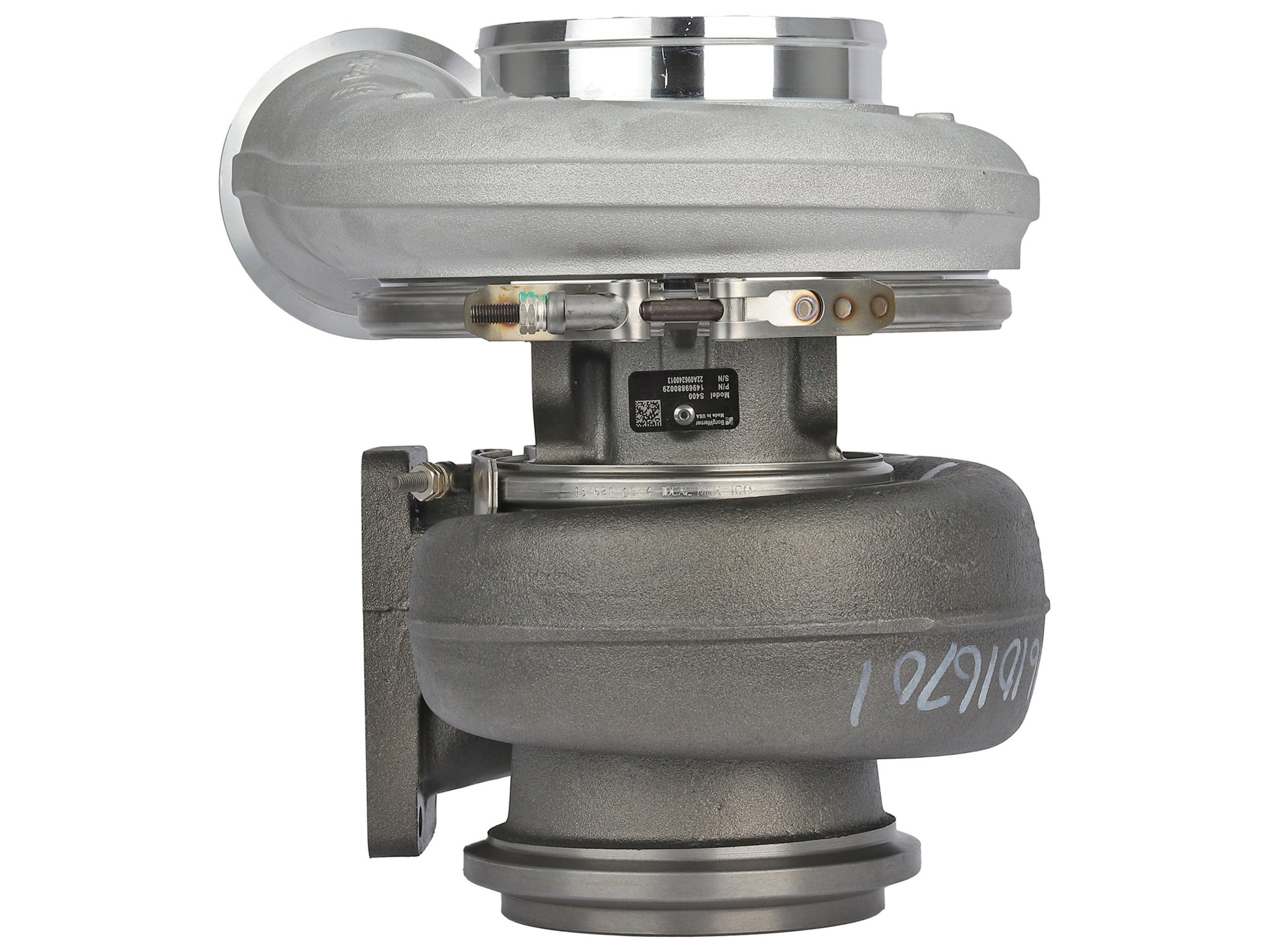

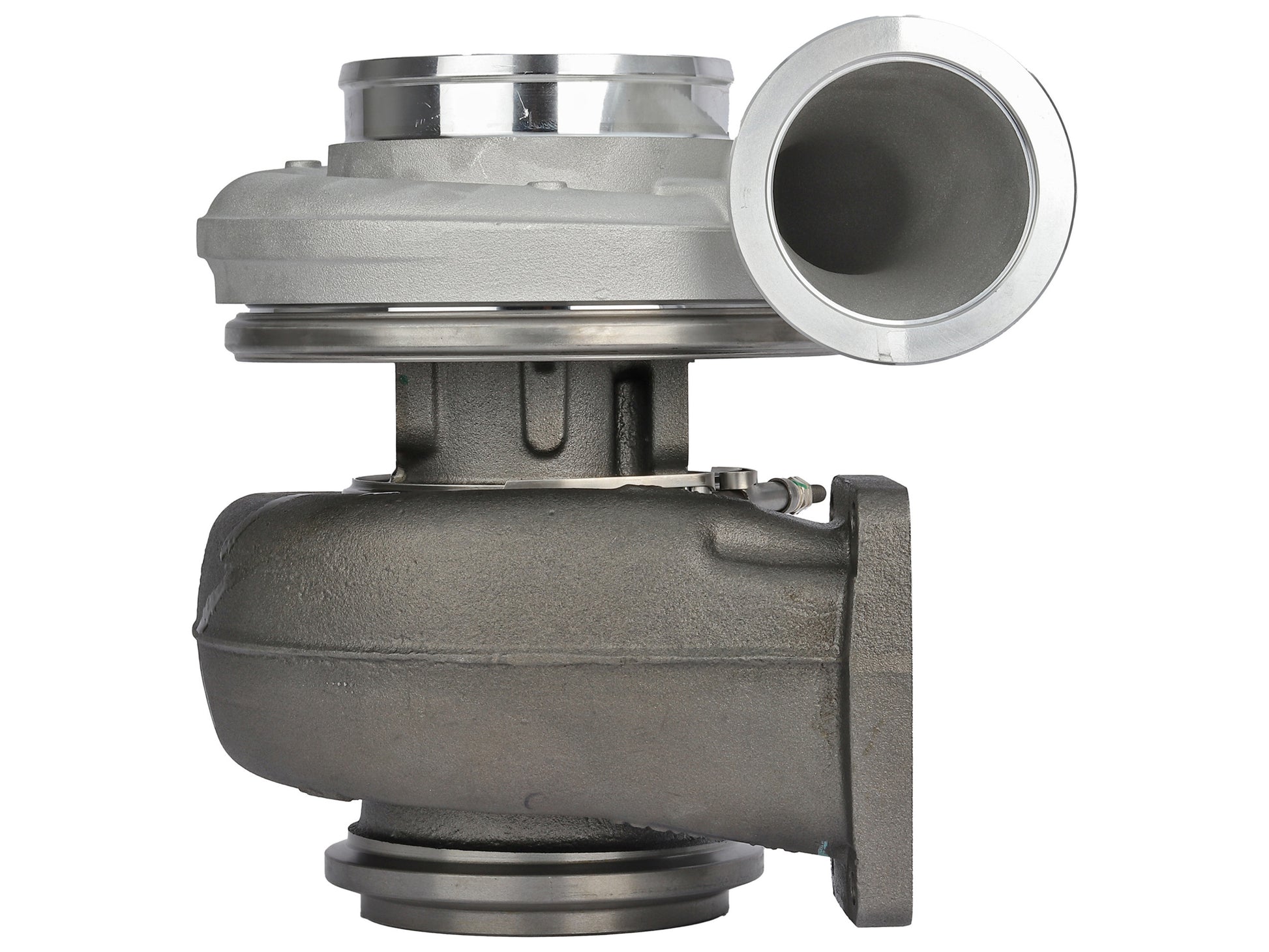

NEW BorgWarner S400SX-E Upgrade Turbo Detroit Diesel Series 60 12.7L 14969880029

BRAND NEW GENUINE BORGWARNER PERFORMANCE UPGRADE TURBOCHARGER

This is a BRAND NEW GENUINE BORGWARNER PERFORMANCE UPGRADE TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

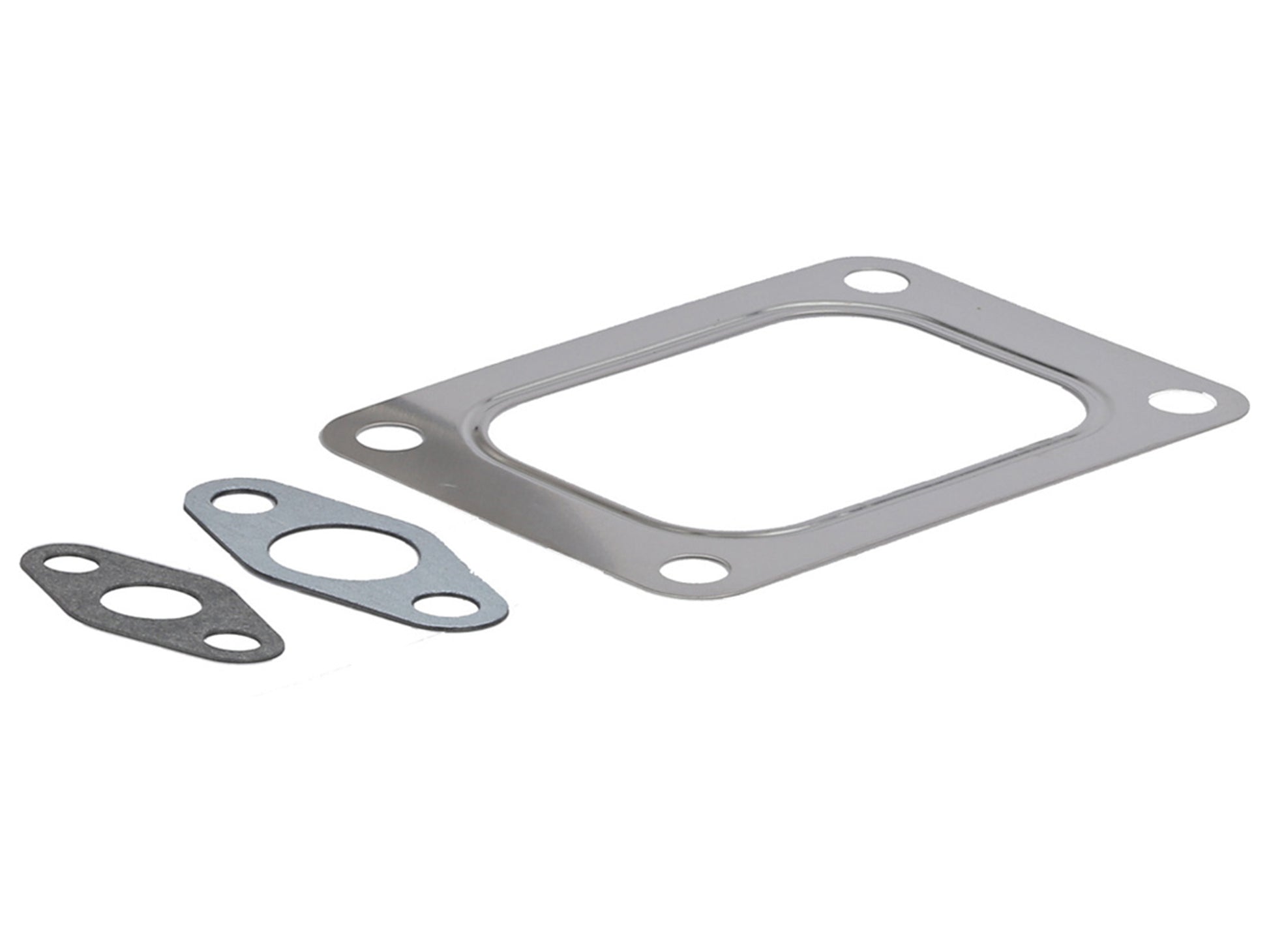

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 14969880029
Interchangeable Number: 1496 988 0029, 1496-988-0029, 14969700029, 1496 970 0029, 1496-970-0029, 171702, 466713-0005, 466713-5005, 466713-5005S, 466713-0006, 466713-5006, 466713-5006S
OEM Number: 23518588, 23518597, 23523197, 2585838C91
Turbo Model: S400SX, S400SX-E
Brand: BorgWarner - 3K - Schwitzer

Engine: Series 60
Engine Manufacturer: DDC-MTU
Displacement: 12.7L, 12700 ccm
Fuel: Diesel

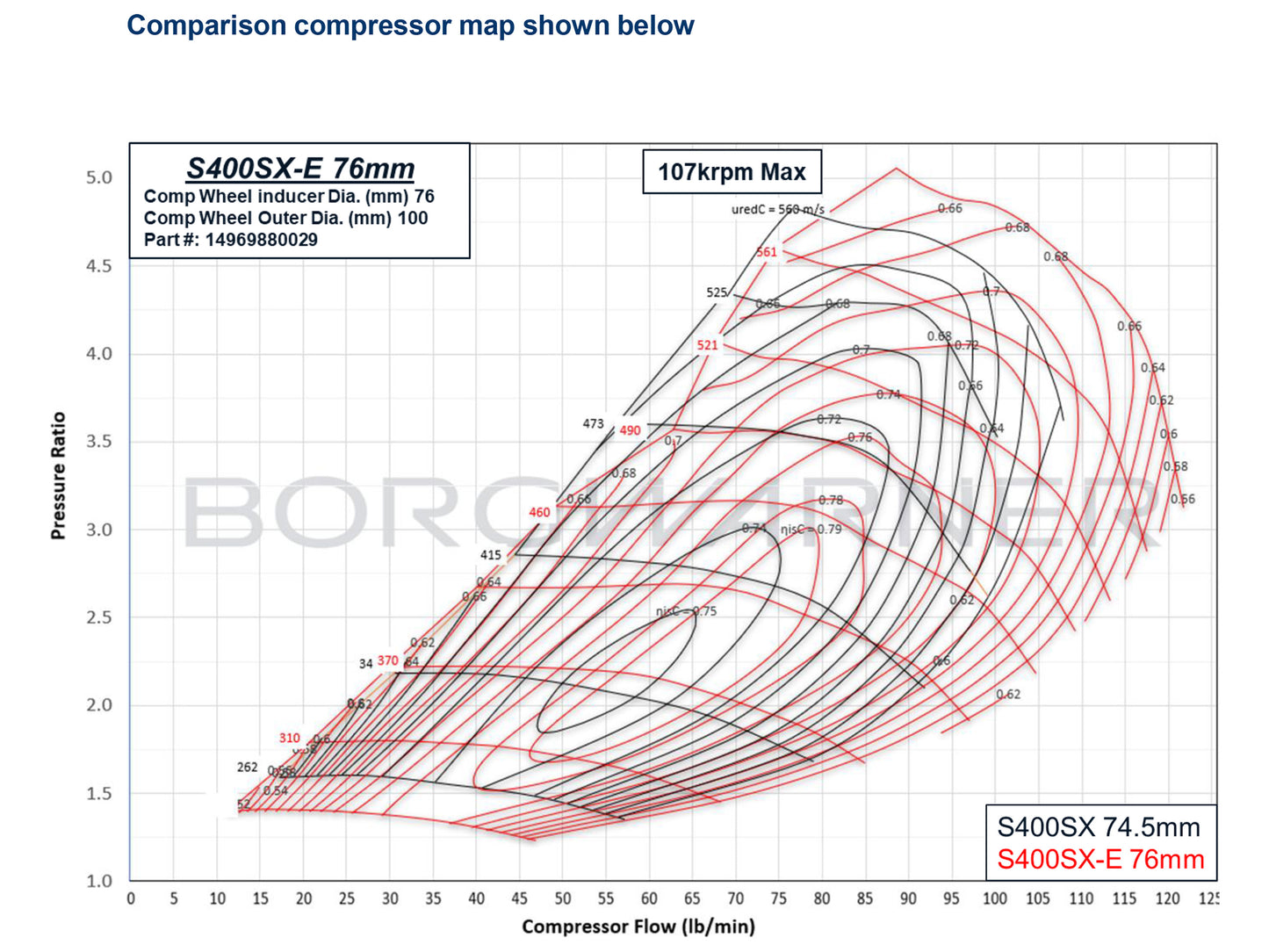

Compressor Wheel: (Inducer Dia. 76 mm (2.99 inch), Outer Dia. 100 mm (3.94 in))
Service Kit (360° Thrust Bearing): 14007110003
Turbine Housing A/R: 1.32
Turbine Housing Flange: T6 Inlet

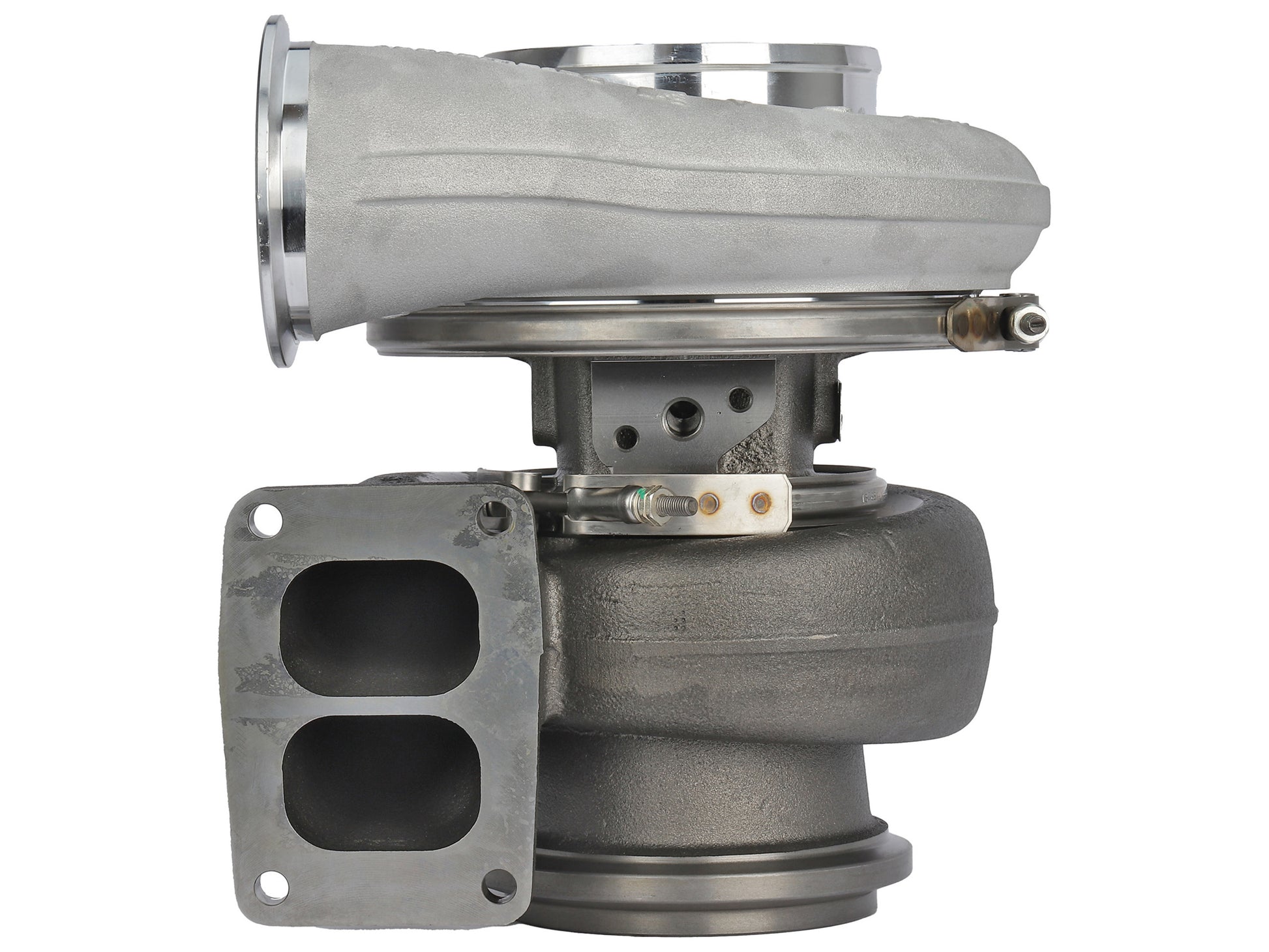

Turbine Housing Inlet Configuration: Volute, Twin Flow

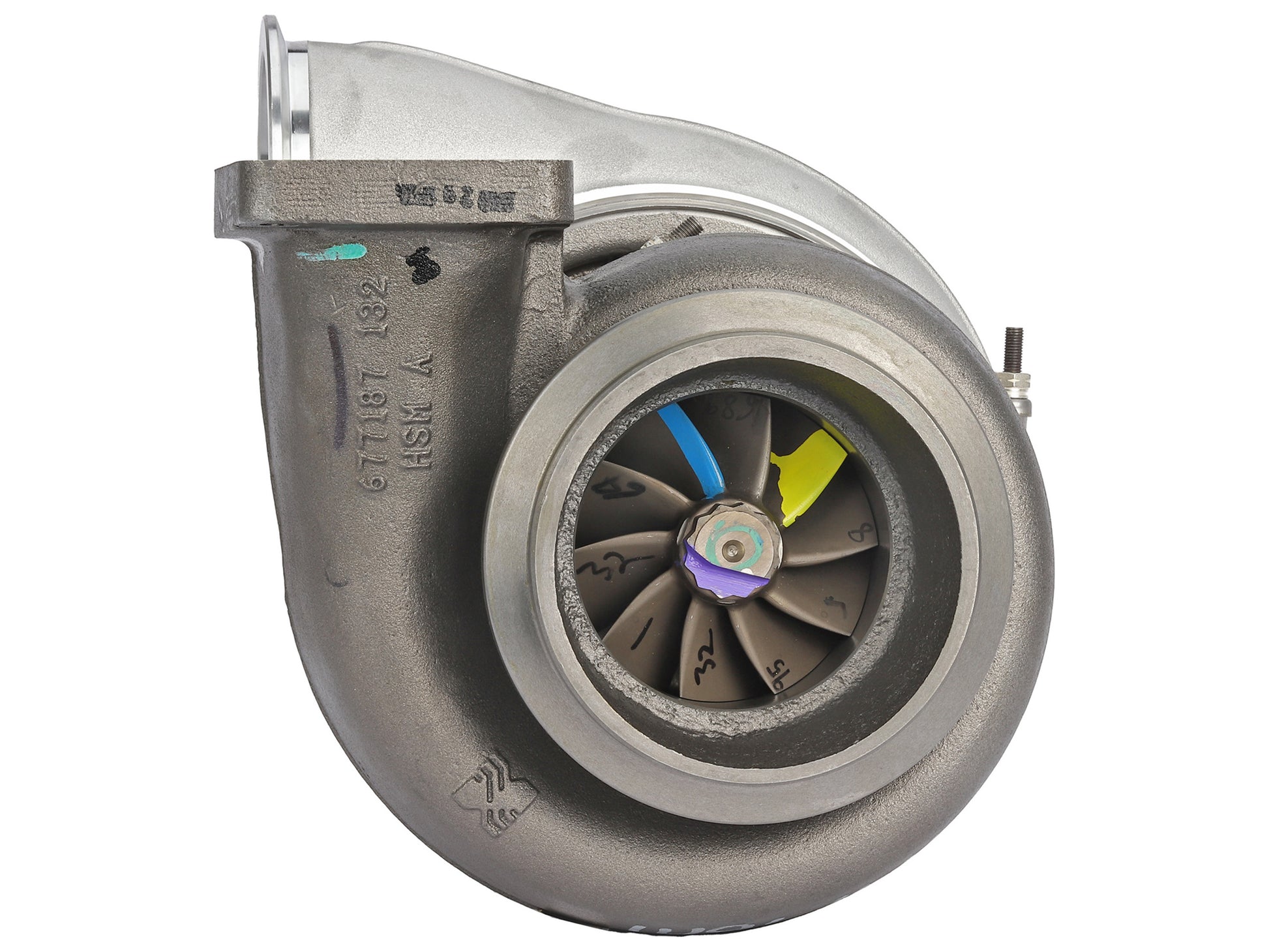

Turbine Wheel: (Exducer Dia. 88.05 mm (3.47 inch), Outer Dia. 95.7 mm (3.77 in))

PRODUCT FEATURES:

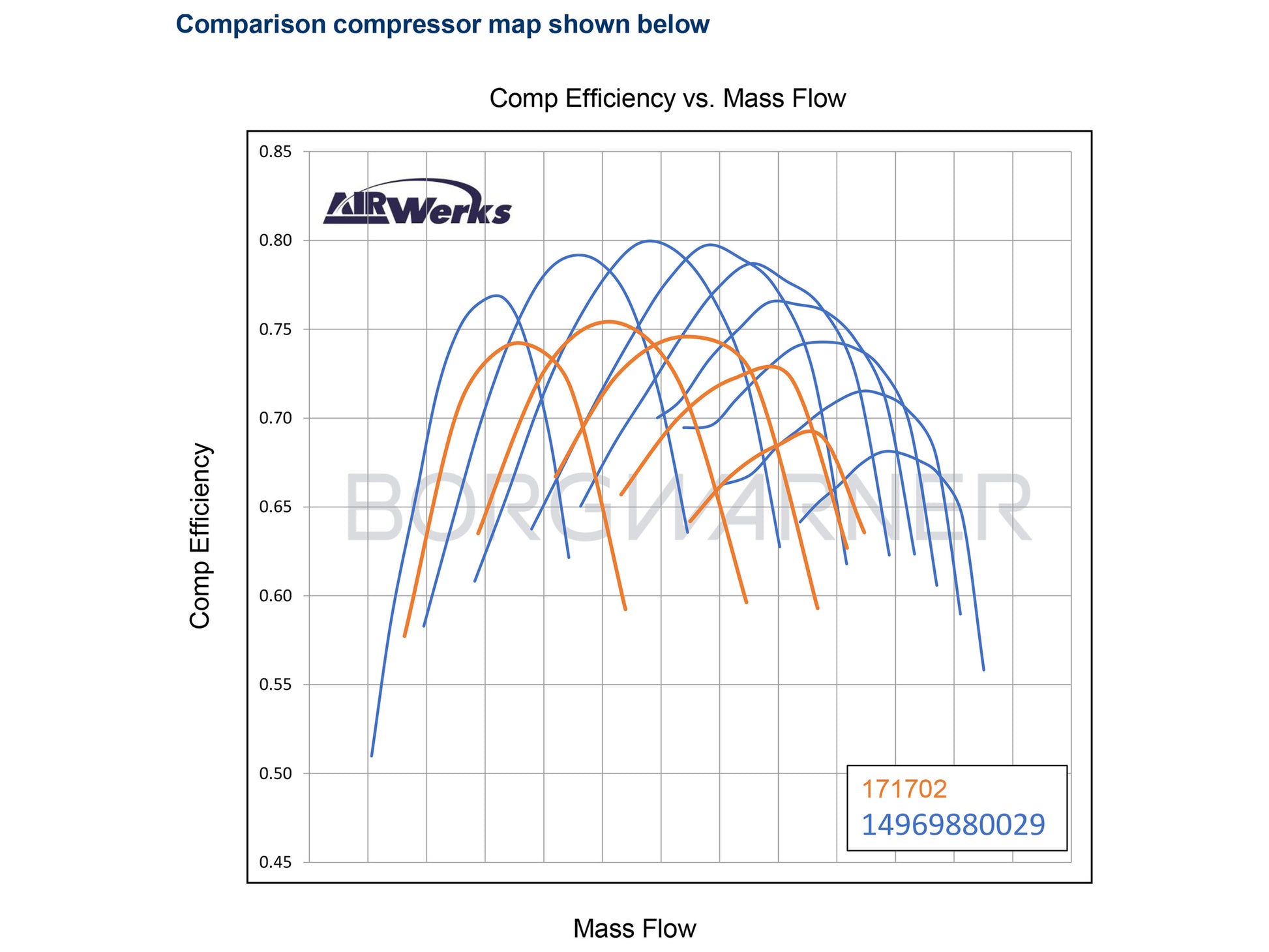

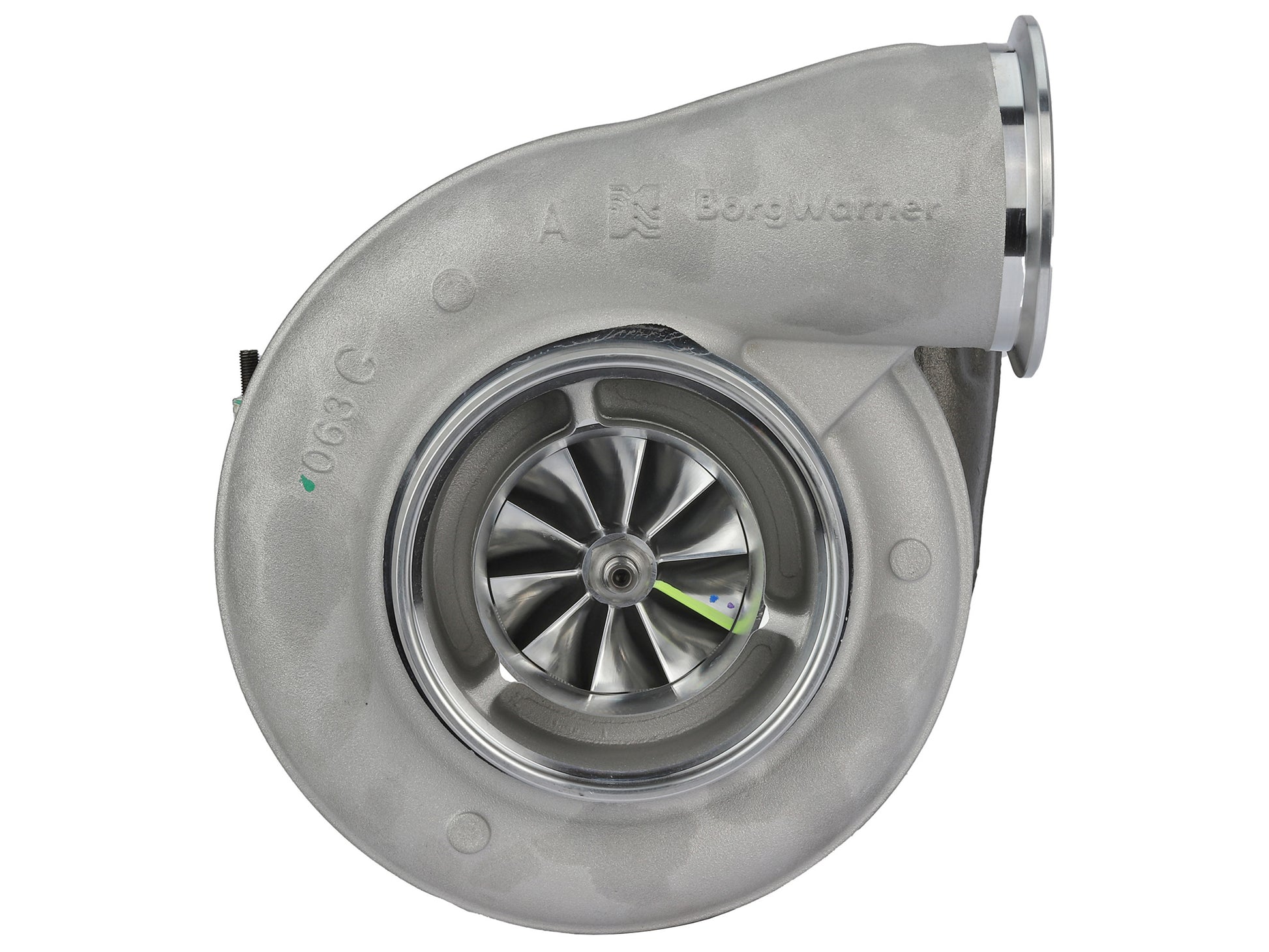

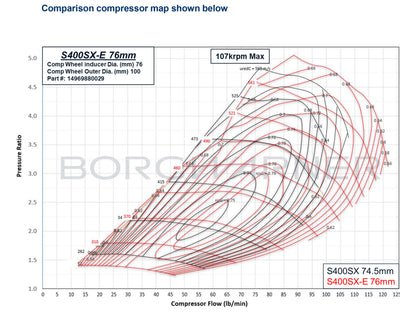

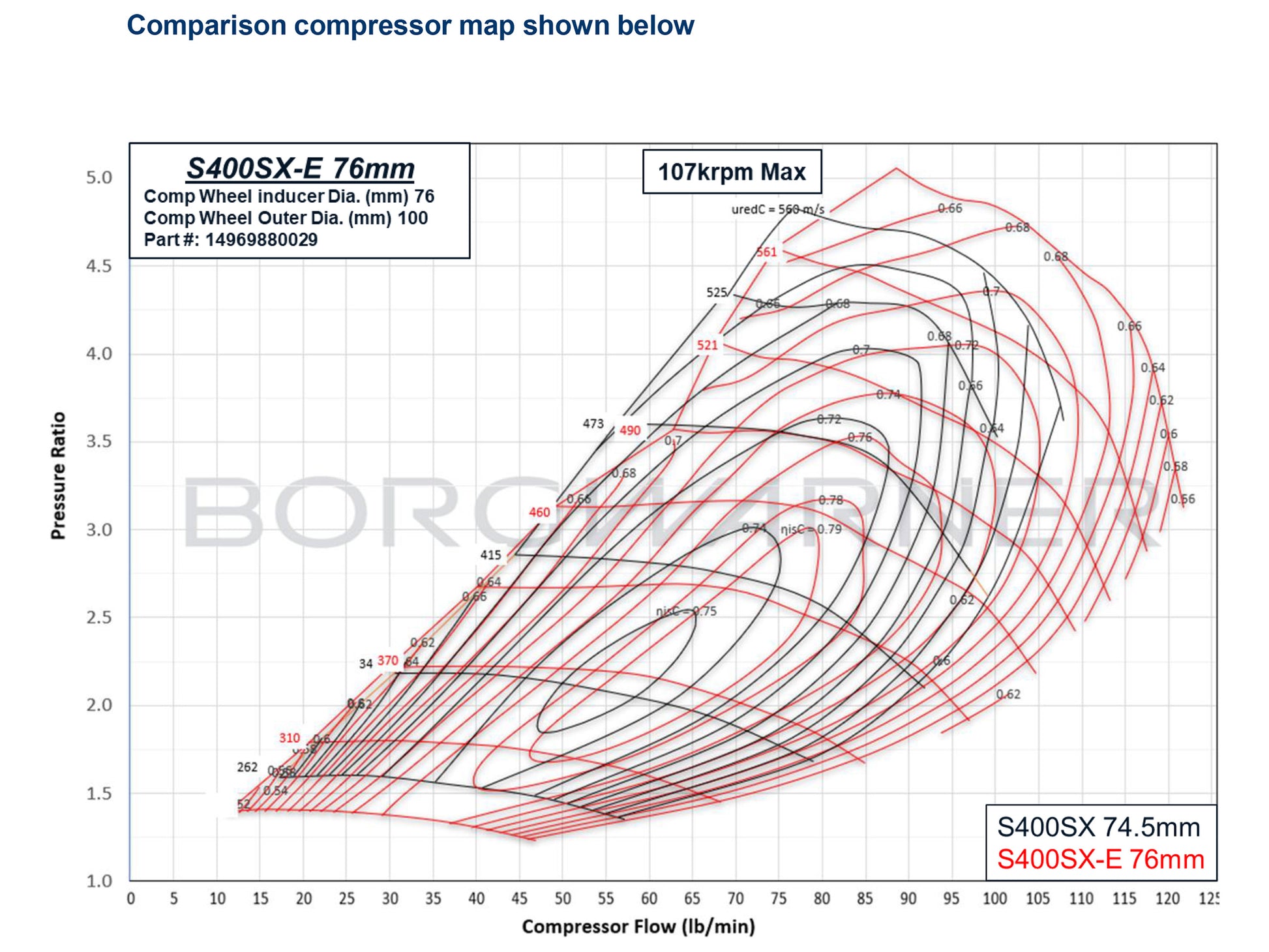

BorgWarner ETTS Aftermarket North America is pleased to announce the release of the AirWerks® S400SX-E turbocharger for performance applications! The "E" series denotes product enhancements which include a Forged Milled Compressor Wheel (FMW), 360 degree thrust bearing system, substantial compressor flow increase and four points of compressor efficiency over the SX version (171702). The compressor is a 10-blade, high-flow, FMW which offers increased tensile strength which improves resistance to failure when compared to billet and cast compressor wheels.

The 14969880029 comes from the factory paired with a 1.32 A/R divided turbine inlet which has a 5.75 marmon connection.

NOTE:

- Upgrade for 171702.
- AirWerks Series.
- Performance turbocharger only.
- Optional TH's available: (14961016100 (1.58 A/R), 14961016101 (1.45 A/R), 14961019007 (1.15 A/R).

Application:
2000-08 Genset with DDC-MTU Series 60 Engine
2000-08 International Harvester Truck with DDC-MTU Series 60 Engine
2000-08 Navistar Truck with DDC-MTU Series 60 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
