NEW Holset HX35W Turbo Industrial Truck Cummins QSB 6.7L Diesel 4033681 4038289
NEW Holset HX35W Turbo Industrial Truck Cummins QSB 6.7L Diesel 4033681 4038289
NEW Holset HX35W Turbo Industrial Truck Cummins QSB 6.7L Diesel 4033681 4038289
NEW Holset HX35W Turbo Industrial Truck Cummins QSB 6.7L Diesel 4033681 4038289
Holset

NEW Holset HX35W Turbo Industrial Truck Cummins QSB 6.7L Diesel 4033681 4038289

SKU: 4033681
Precio habitual $2,450.00

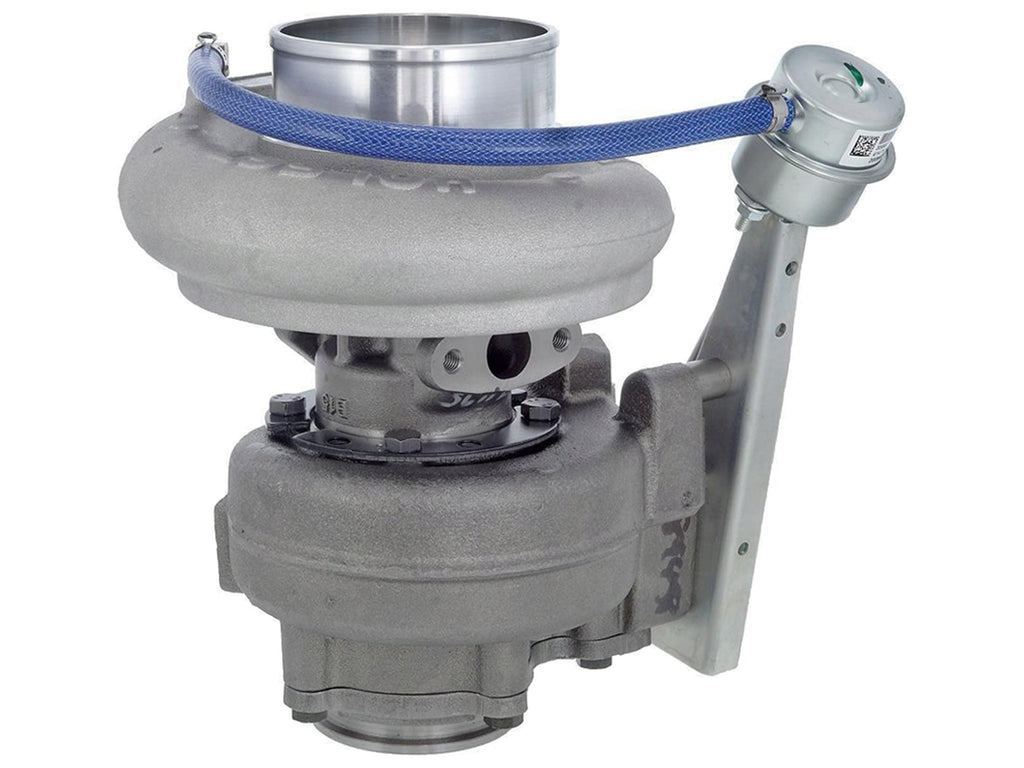

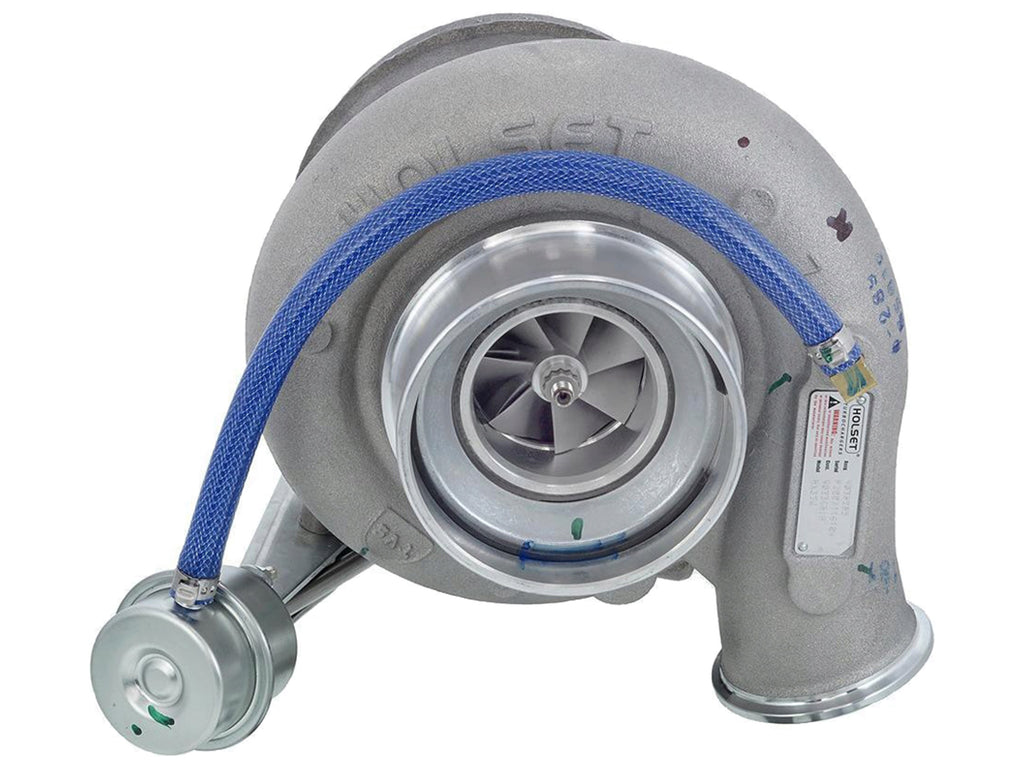

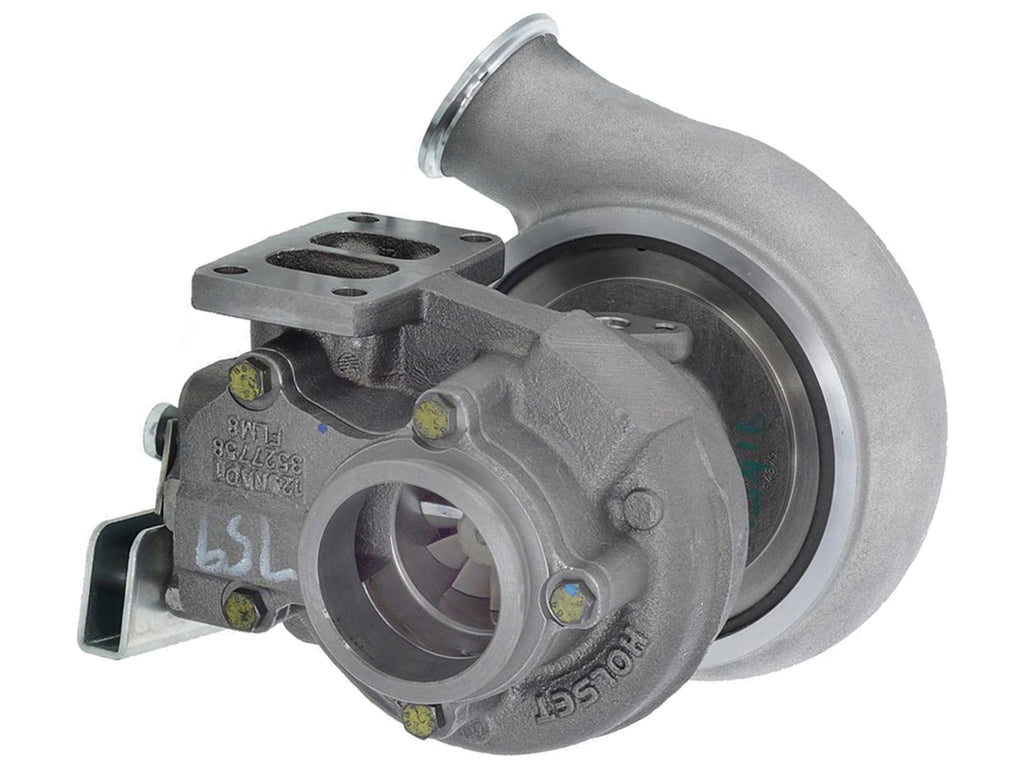

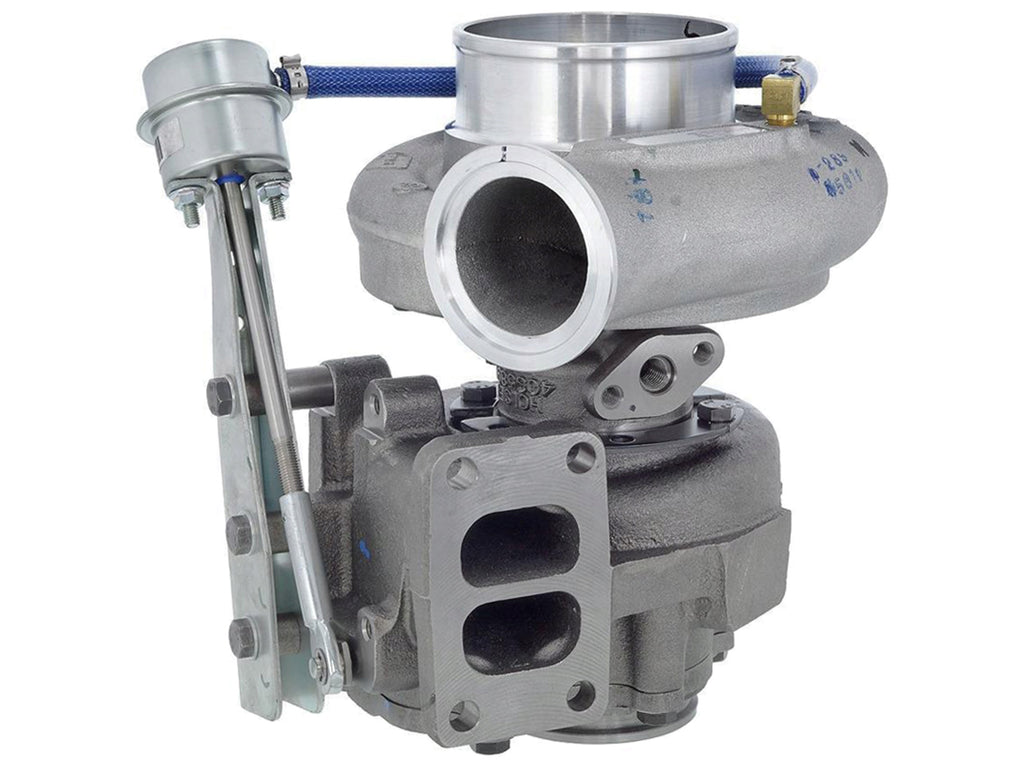

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 4038289
Interchangeable Number: 4033681H, 4038211H, 4038597, 4038597R, 4038597RX, 4038598, 4044890H, 4955156, 4955156NX, 4955156RX, 5452081, 5452081NX, 5452081RX, 5452082, 5452082NX, 5452082RX
OEM Number: 4033681, 4038209, 4038211, 4038287, 4039333, 4041427, 4042667, 4043678, 4044890
Turbo Model: HX35W, HX35W-A77J70GM/A70Q86FE14PB-W
Manufacturer: Holset

Year: 2004-12
Engine: QSB
Engine Manufacturer: Cummins
Displacement: 6.7L, 6700 ccm
Emission Standard: Tier 4
Fuel: Diesel

Angle α (Compressor Housing): 45/330/335°
Angle β (Turbine Housing): 20/180/360°
Actuator Kit (Pneumatic): 4030865H
Back Plate: 3530923 (1154351300, 1800016009)
Bearing Housing: 3532630 (3591575, 4027249, 4027882)(Oil Cooled)(1153035450, 1900011016B)
Bracket Kit: 4030864H
CHRA: 4030868 (4030868H, 4027212, 3538421, 3575215)(1153035900, 1000020136)
Clamp Plate (Turbine): 2839879H
Compressor Housing: 4036745H
Compressor Wheel: 3599649 (3532310)(Ind. 54. mm, Exd. 76.47 mm, Trim 10.51, 7+7 Blades, Super Back)(1153035401, 1200016303)
Gasket (Oil Drain): 3519805H
Gasket (Oil Outlet): 210060 (311585, 148062, 409267-0003, 409267-0002, 210060-0000, 51914)(Paper)
Gasket (Turbine Inlet): 409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006)(Inox Steel)
Gasket (Turbine Outlet): 3535001 (3535001H, 3922789)(Inox Steel)
Gasket Kit: 3545575H
Gasket Kit: 4032496
Heat Shield: 3519302 (1152301340, 406400001)
Repair Kit (Major): 3575169 (3575169H) (1153035750, 5000020021)
Retaining Ring: 3533163H
Turbine Housing: 3529882H
Turbine Wheel: 3519336 (Ind. 70.05 mm, Exd. 59.9 mm, Trim 10.9, 12 Blades)(1152301435, 1100030005)
Turbocharger Kit: 4033681H

Application:
2004-12 Industrial with Cummins QSB Engine
2004-12 Truck with Cummins QSB Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
