New Garrett TB2556 Turbo Massey Ferguson 4.0L Perkins 1004-4THR2 452058-5002
New Garrett TB2556 Turbo Massey Ferguson 4.0L Perkins 1004-4THR2 452058-5002
SKU:452058-5002
Precio habitual
$1,272.00
Precio habitual
Precio de oferta
$1,272.00
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Orders ship Monday-Friday, usually within 24 hours of purchase.
International shipping subject to VAT and/or other import tax calculated during checkout.

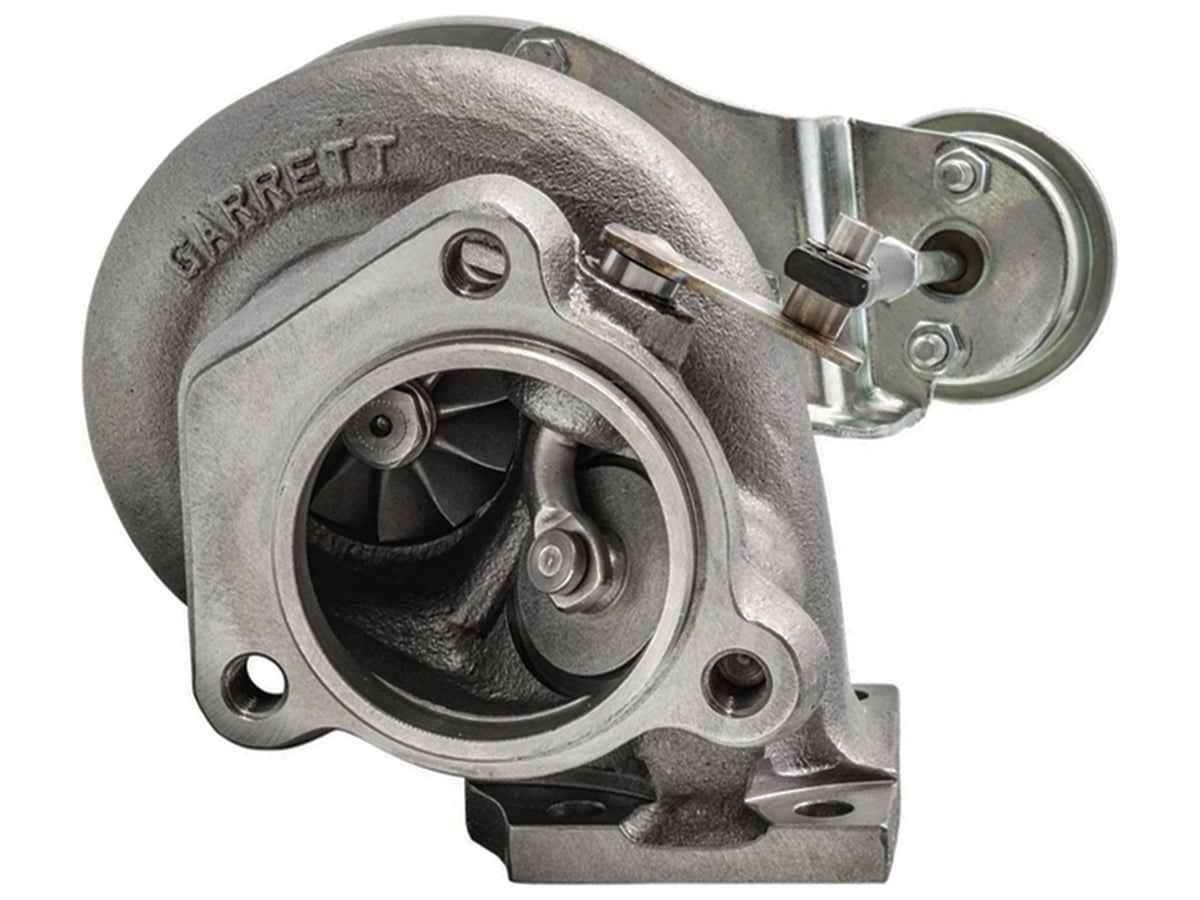

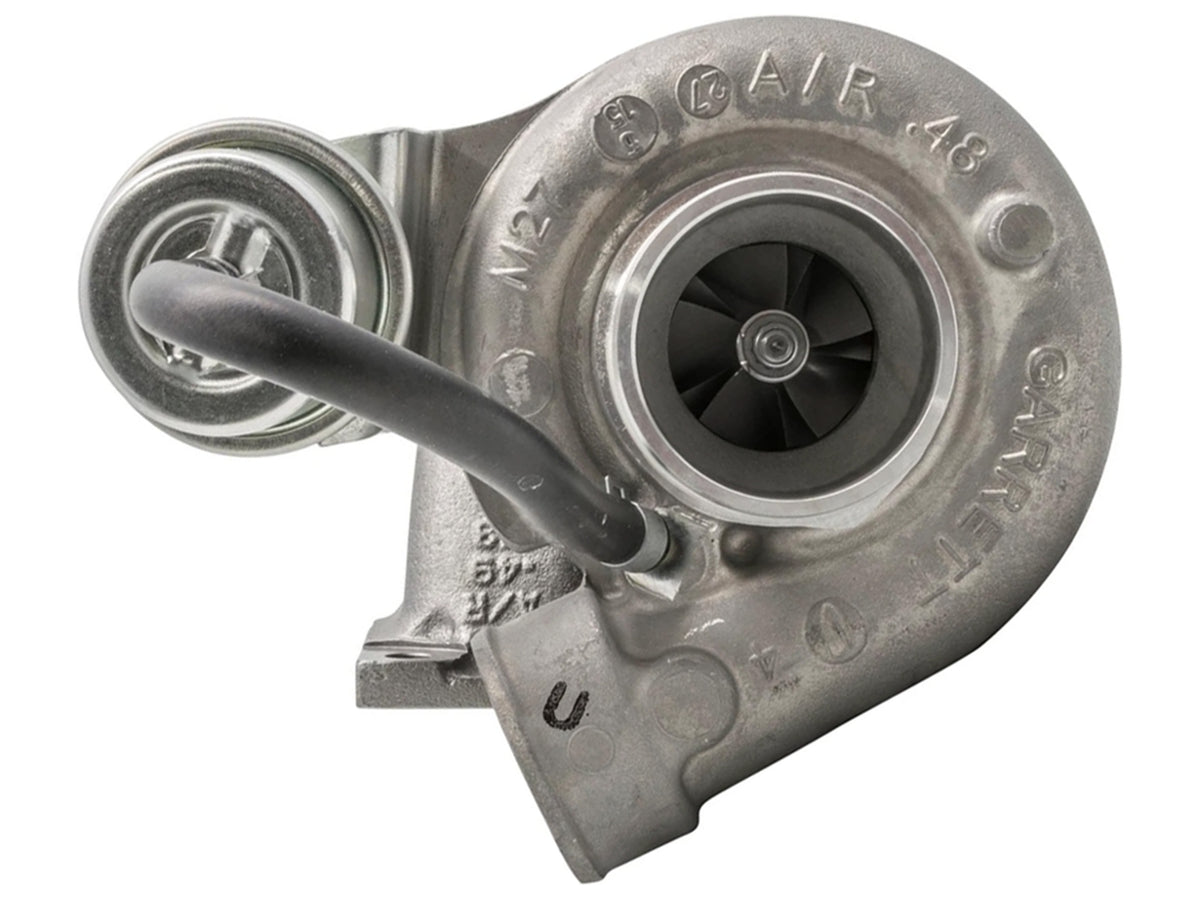

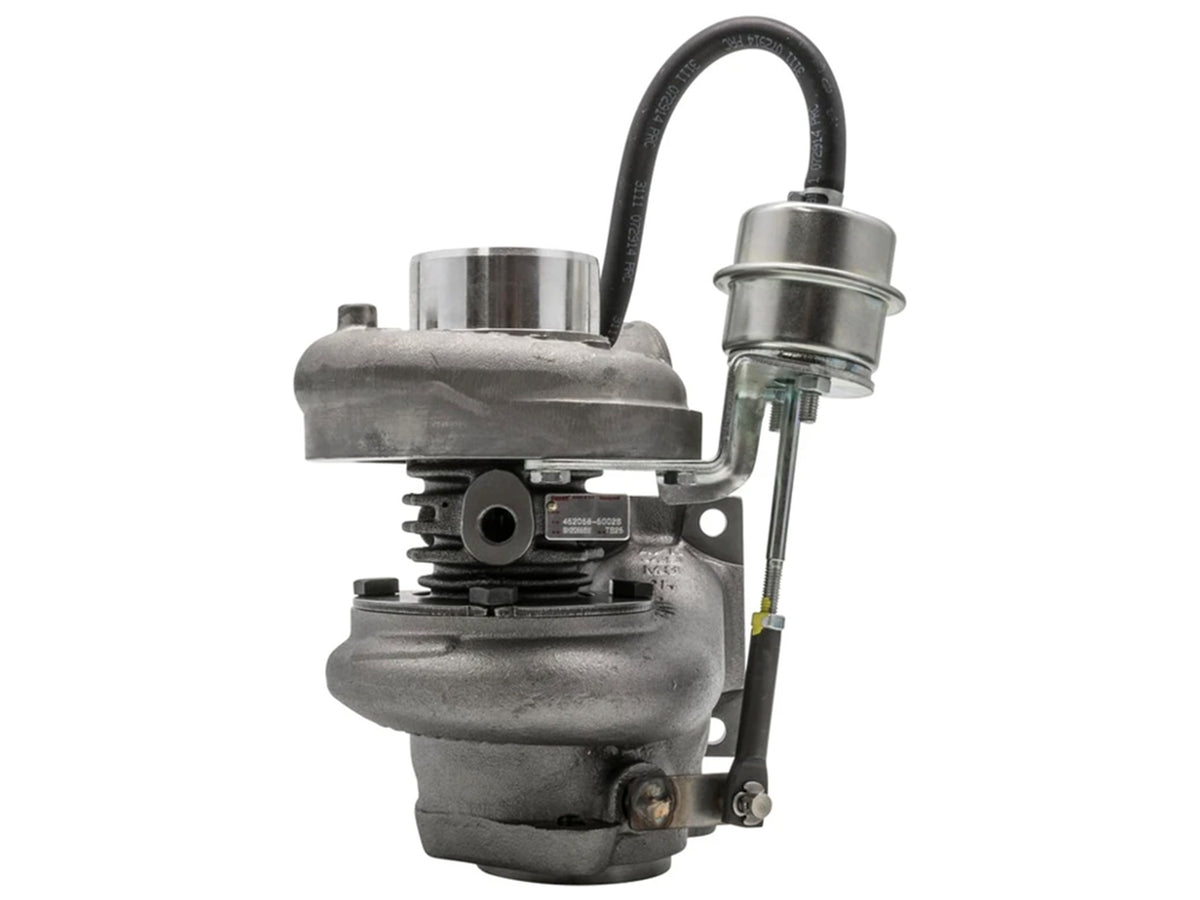

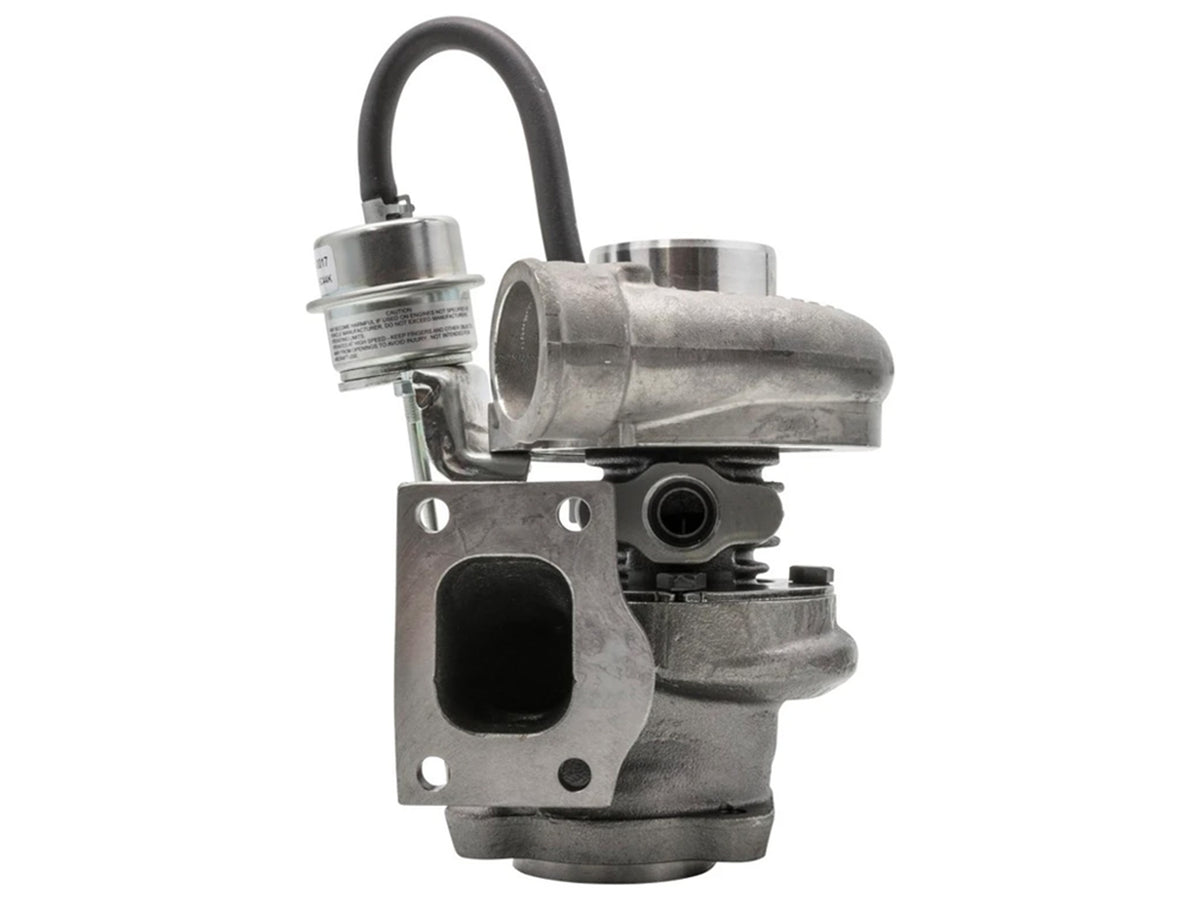

BRAND NEW GENUINE GARRETT TURBOCHARGER
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 452058-5002
Interchangeable Number: 452058-0002, 452058-5002S, 452058-0001, 452058-5001, 452058-5001S
OEM Number: 2674A055, 2674A055W
Turbo Model: TB2556
Brand: Honeywell - Garrett
Engine: 1004-4THR2
Engine Manufacturer: Perkins
Displacement: 4.0L, 3990 ccm, 4 Cylinders
Fuel: Diesel
Power: 98 kW/131 hp
Angle α (Compressor Housing): 205°
Angle β (Turbine Housing): 0°
Actuation: Pressure
Actuator: 432340-0017
Back Plate: 430735-0001/430612-0003 (1100025300)
Bearing Housing: 435349-0016 (Oil Cooled)
CHRA: 443854-0129 (443854-5129S, 443853-0038, 443854-0243)
Compressor Housing: 434288-0005
Compressor Wheel: 446335-0012 (Ind. 38.08 mm, Exd. 53.97 mm, Trim 45, 6+6(10) Blades, Super Back)
Gasket (Oil Outlet): 413709-0001 (Paper)
Gasket (Turbine Inlet): 409039-0001 (210190, 210190-0000, 312617, 132044)(Stainless Steel, Single Port)
Gasket (Turbine Outlet): 210225 (Stainless Steel)
Gasket Kit: 215845
Heat Shield: 443594-0001 (1100025341)
Repair Kit: 709143-0001 (200423-0000, 707903-0002)(1100025761)
Turbine Housing A/R: 0.49
Turbine Housing: 413567-0047
Turbine Wheel: 435406-0003 (Ind. 53 mm, Exd. 41.7 mm, Trim 62, 10 Blades)
Turbo Technology: Wastegate
Application:
1990- Industrial with 4.0L Perkins 1004-4THR2 Diesel Engine
Massey Ferguson Various with 4.0L Perkins 1004-4THR2 Diesel Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
