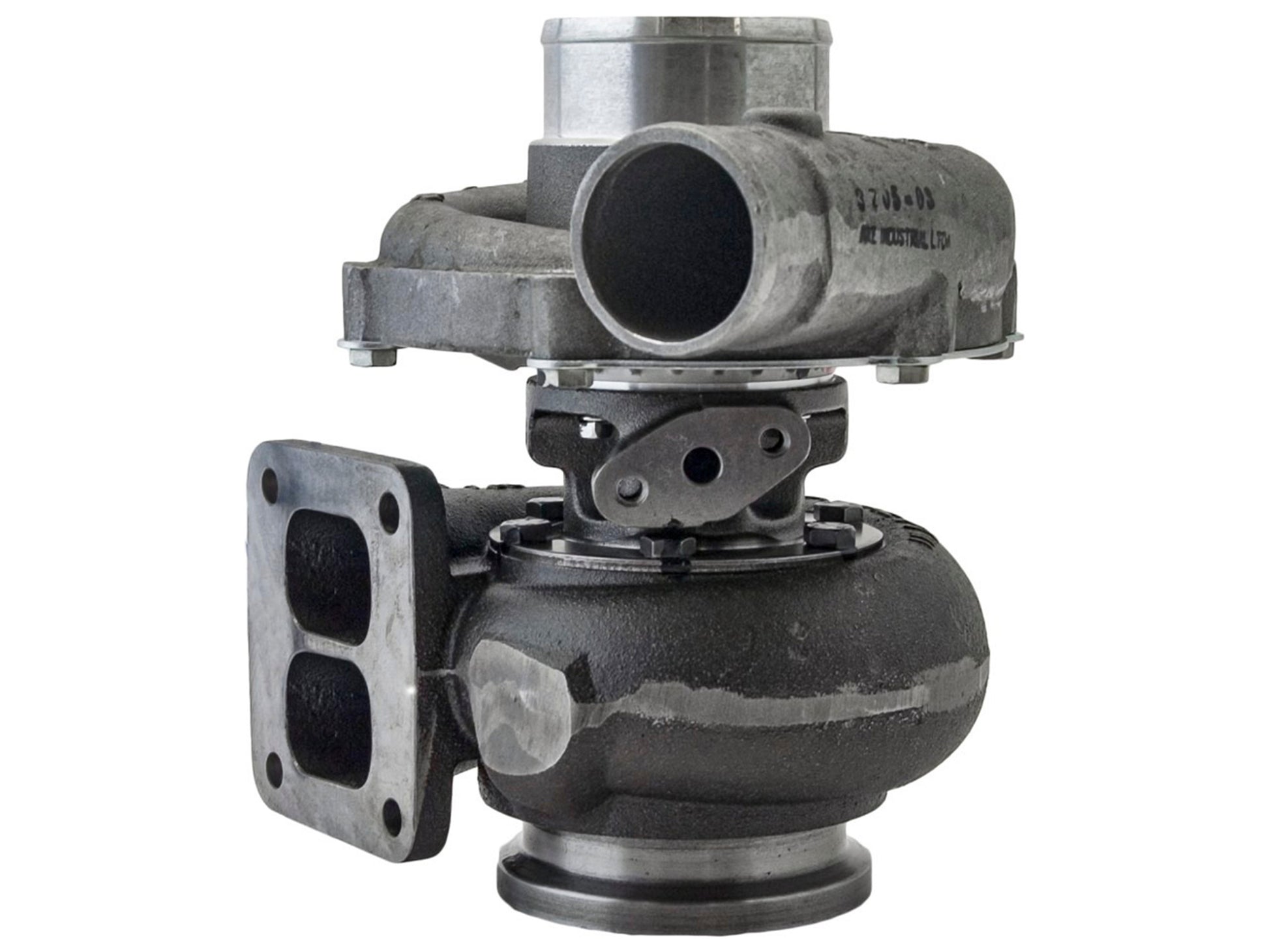

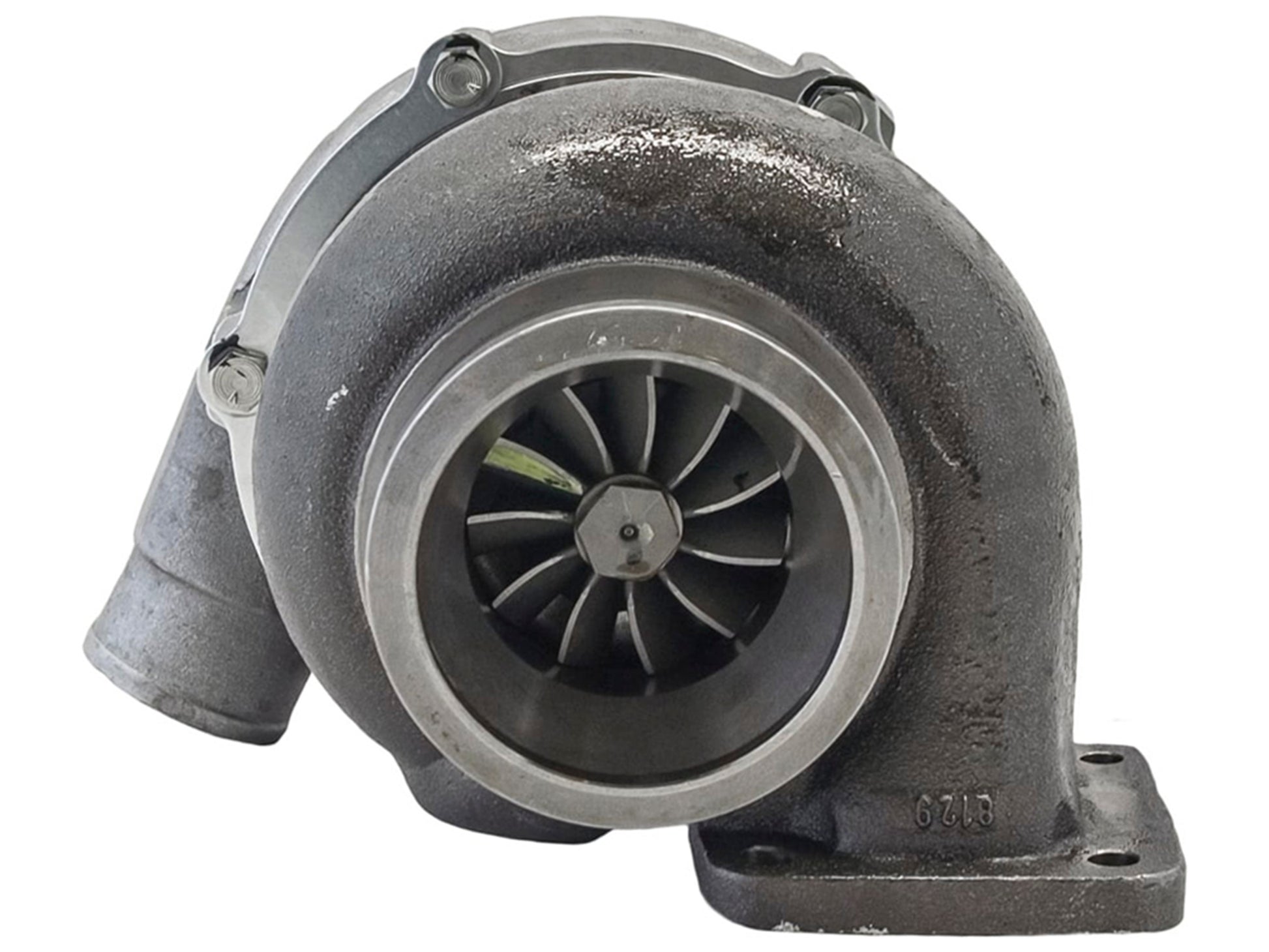

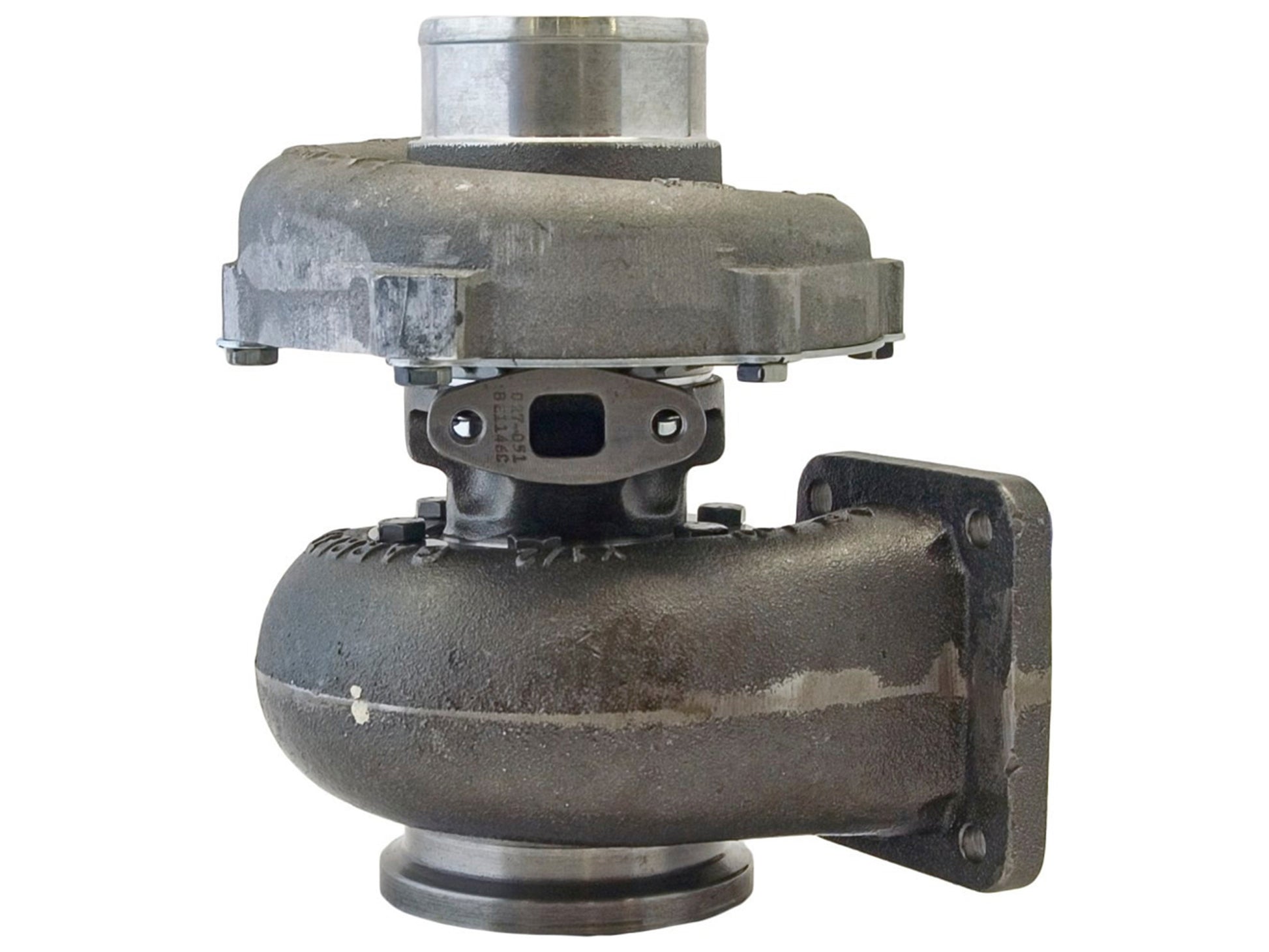

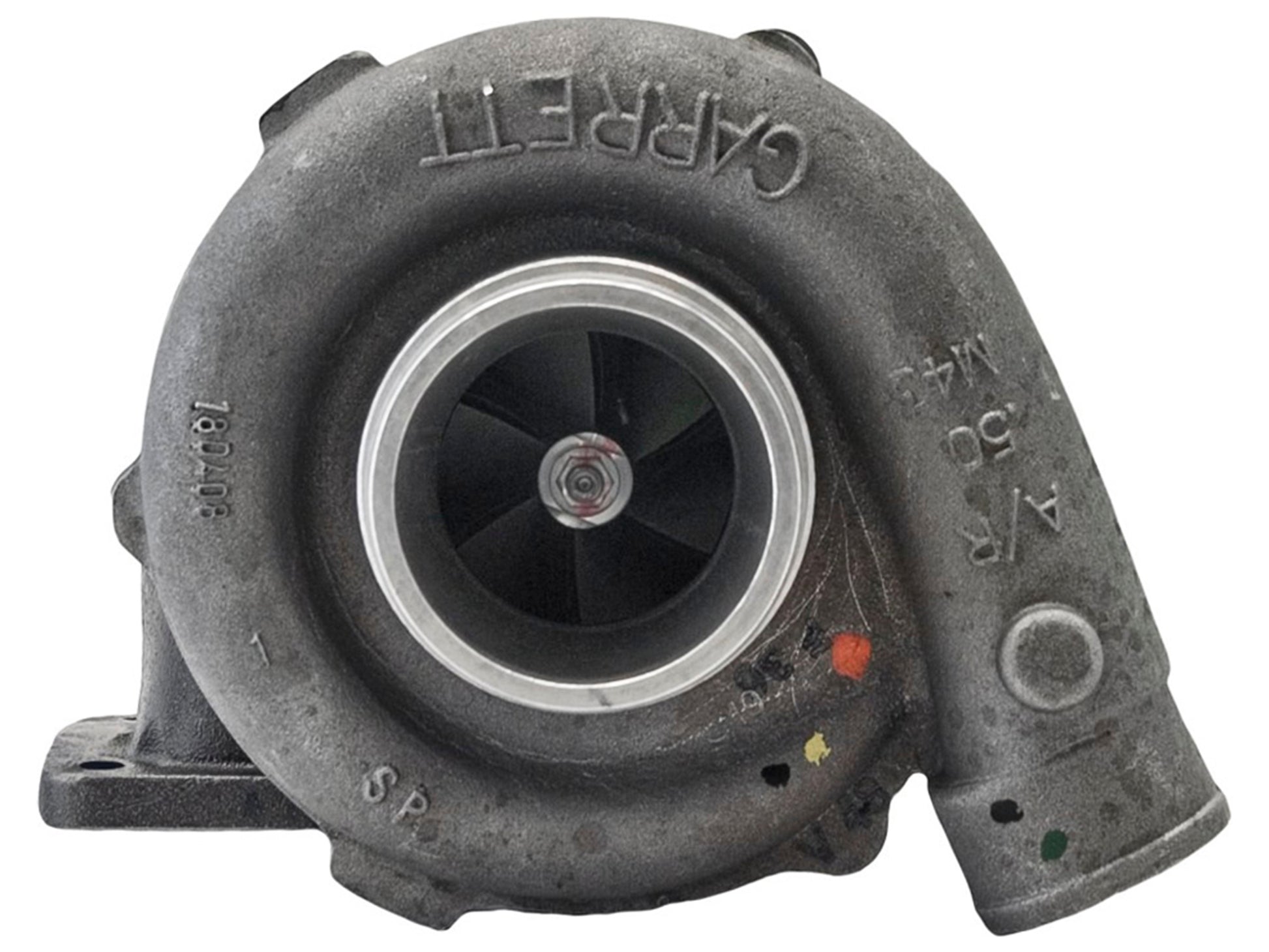

NEW Garrett T04E17 Turbo International Navistar DTA360 DTA360C 5.9L 465225-5006

BRAND NEW GENUINE GARRETT TURBOCHARGER

This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 465225-5006
Interchangeable Number: 465225-0006, 465225-5006S, 465225-0011, 465225-5011, 465225-5011S, 465225-0014, 465225-5014, 465225-5014S, 465225-0018, 465225-5018, 465225-5018S
OEM Number: 1817307C91, 1817529C91, 1817796C91, 1819804C91, 991635C91, 991699C91, 991700C91
Turbo Model: T04E17
Brand: Honeywell-Garrett

Engine: DTA360, DTA360C
Engine Manufacturer: Navistar
Displacement: 5.9L, 5900 ccm, 6 Cylinders
Fuel: Diesel
Power: 198 HP

Back Plate: 408045-0039 (408045-0030, 408045-0031, 408045-0038, 408045-0040, 408045-0061)(1300016001)
Bearing Housing: 430027-0051 (186880, 186882, 407285-0018, 430027-0031, 430027-0035(Oil Cooled)(1900011188)
CHRA: 447450-0063 (447450-5063S, 408105-0307)(171412, 1810478C91, 991533C91)
Compressor Housing: 443705-0003 (1810476C1)
Compressor Wheel: 442476-0011 (Ind. 55 mm, Exd. 75 mm, Trim 54, 6+6 Blades, Super Back)
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 409039-0000 (409039-0001, 210019, 2405022)(1900000006)(Inox Steel)
Gasket (Turbine Outlet): 407294-0001 (210190-0000, 132044, 312617, 310694)(Inox Steel)
Gasket Kit: 318420 (215079)
Heat Shield: 409299-0000 (409299-0001)
Repair Kit: 468265-0000 (468265-0000UK, 3545831)(1100040760, 5000010041)
Turbine Housing A/R: 1.0
Turbine Housing: 442374-0029 (1817362C1)
Turbine Wheel: 446905-0005 (407276-0006, 407276-0019, 410188-0003, 410188-0006, 410188-0037, 446905-0002,446905-0007, 446905-0010, 451309-0003, 451309-0004)(Ind. 74 mm, Exd. 56.6 mm, Trim 10.76, 11 Blades)(1100016090)

Application:
1991- International Truck with Navistar DTA360, DTA360C Engine
1991- International Various with Navistar DTA360, DTA360C Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
