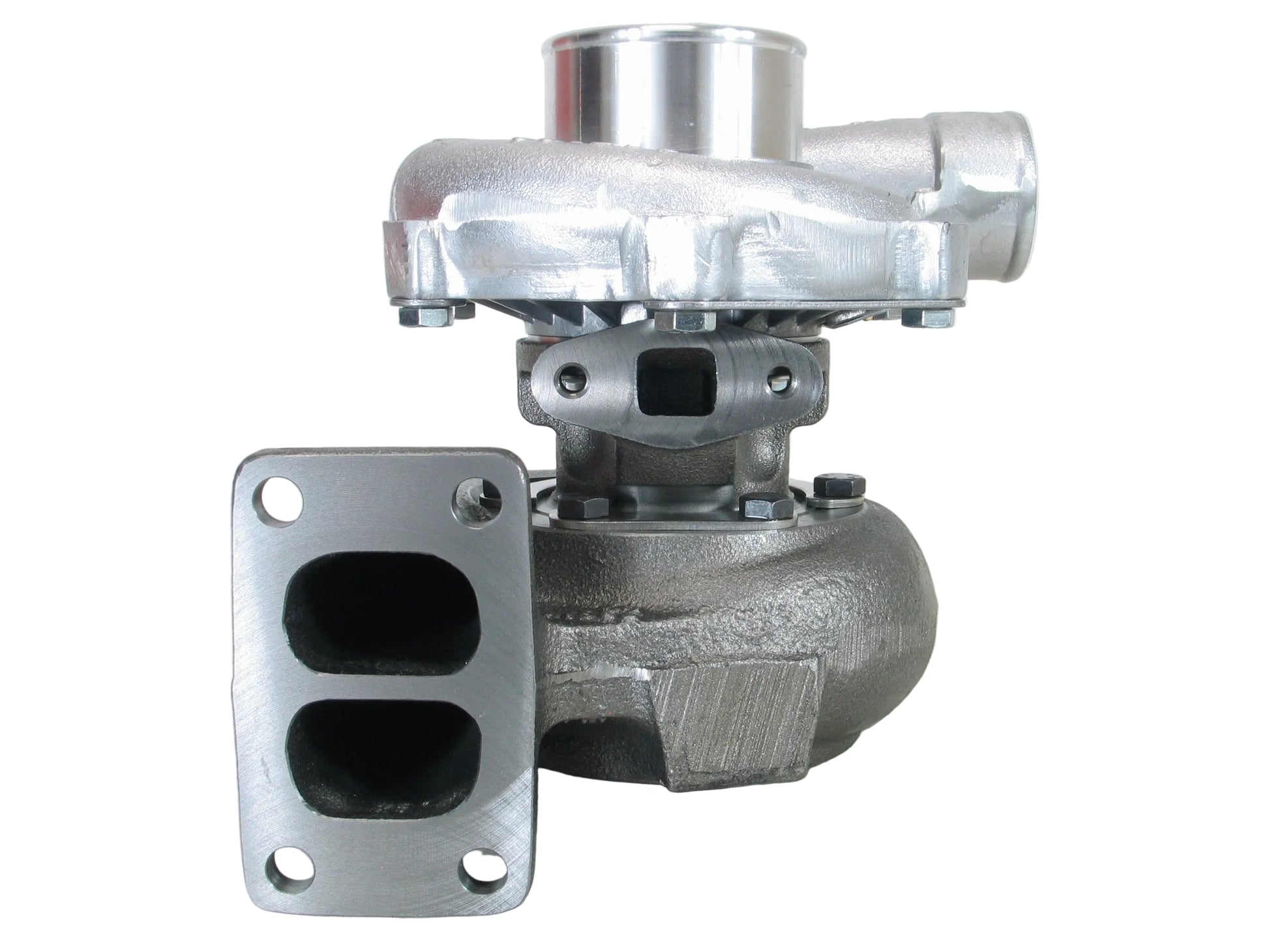

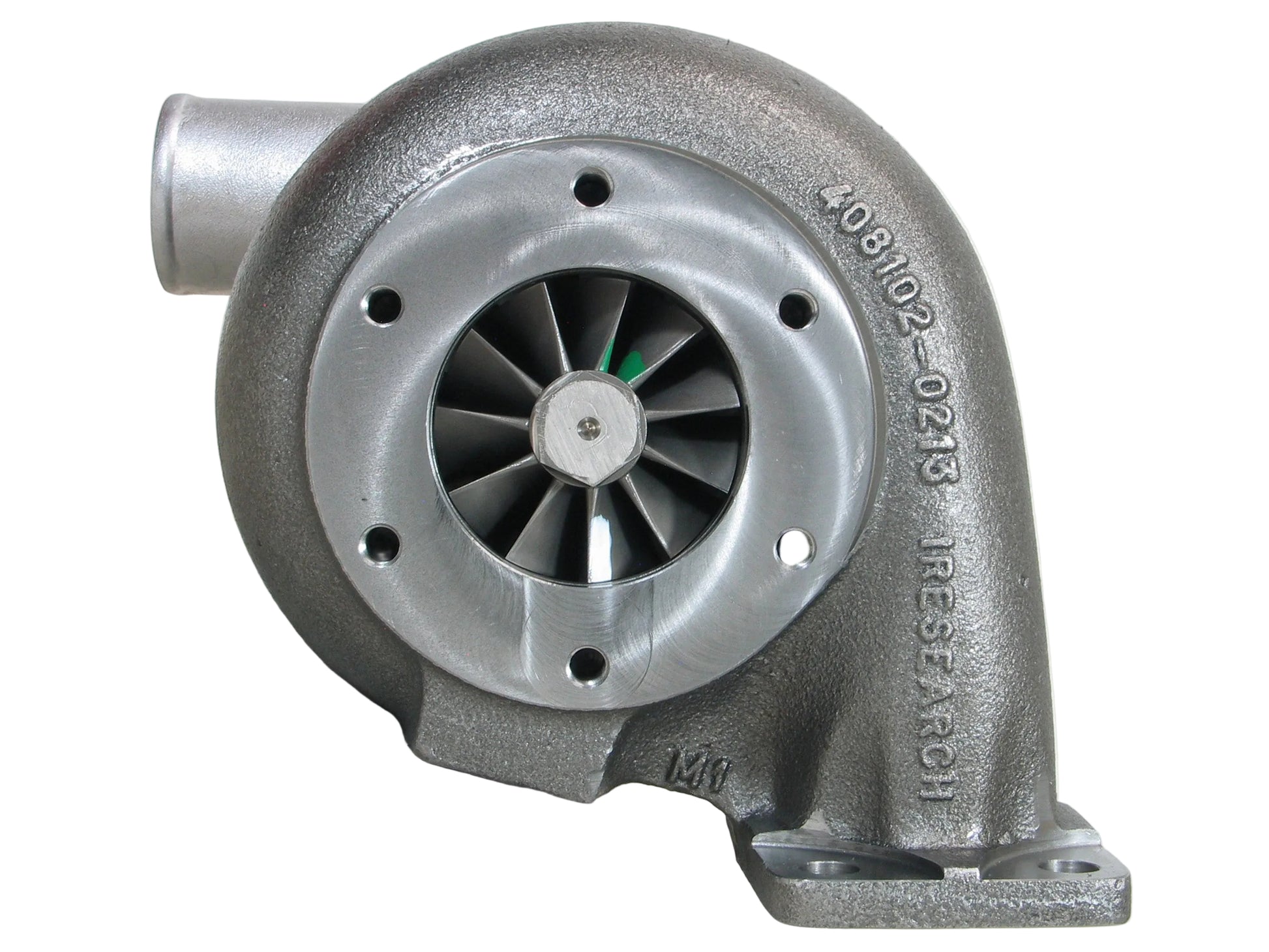

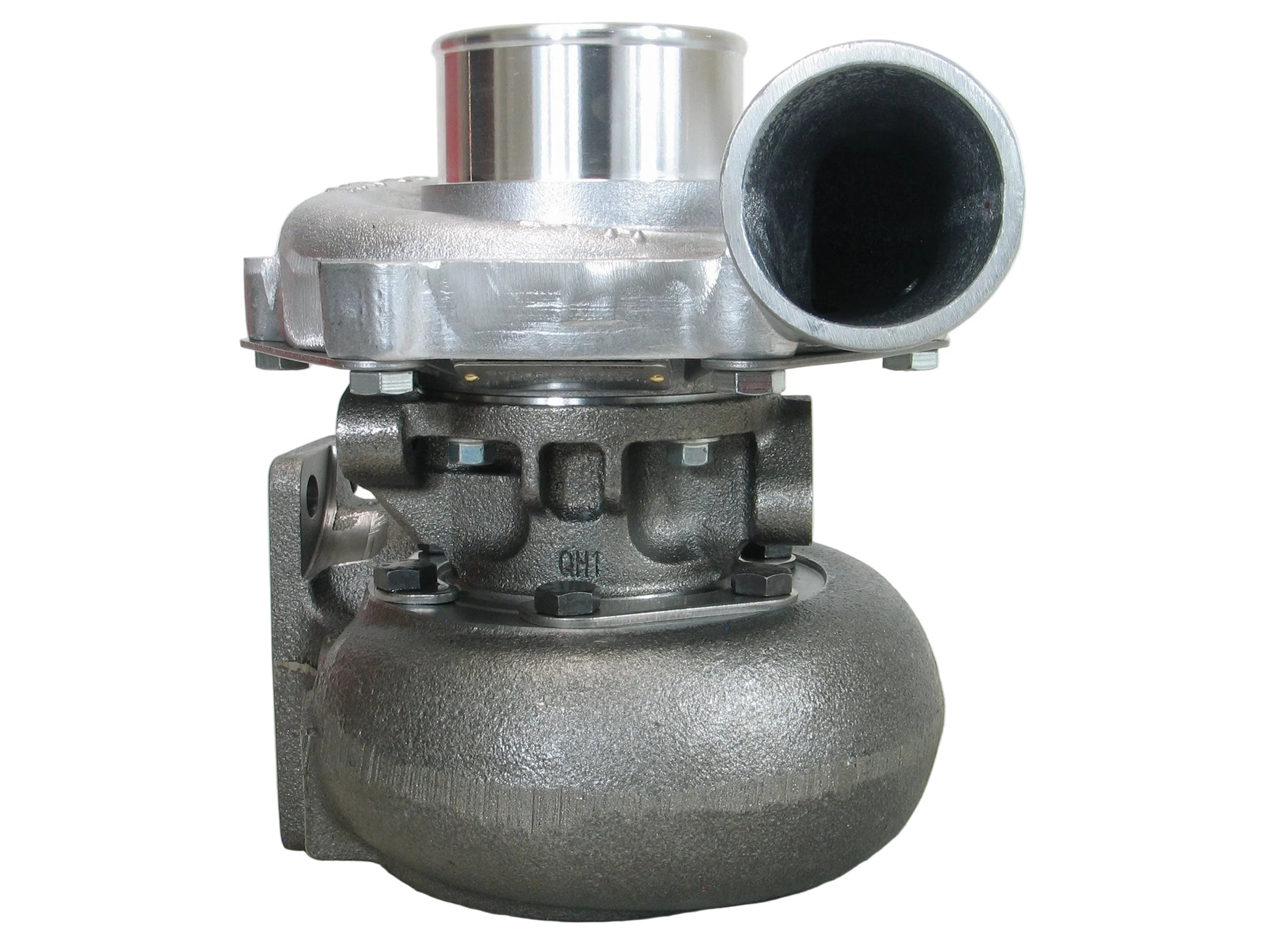

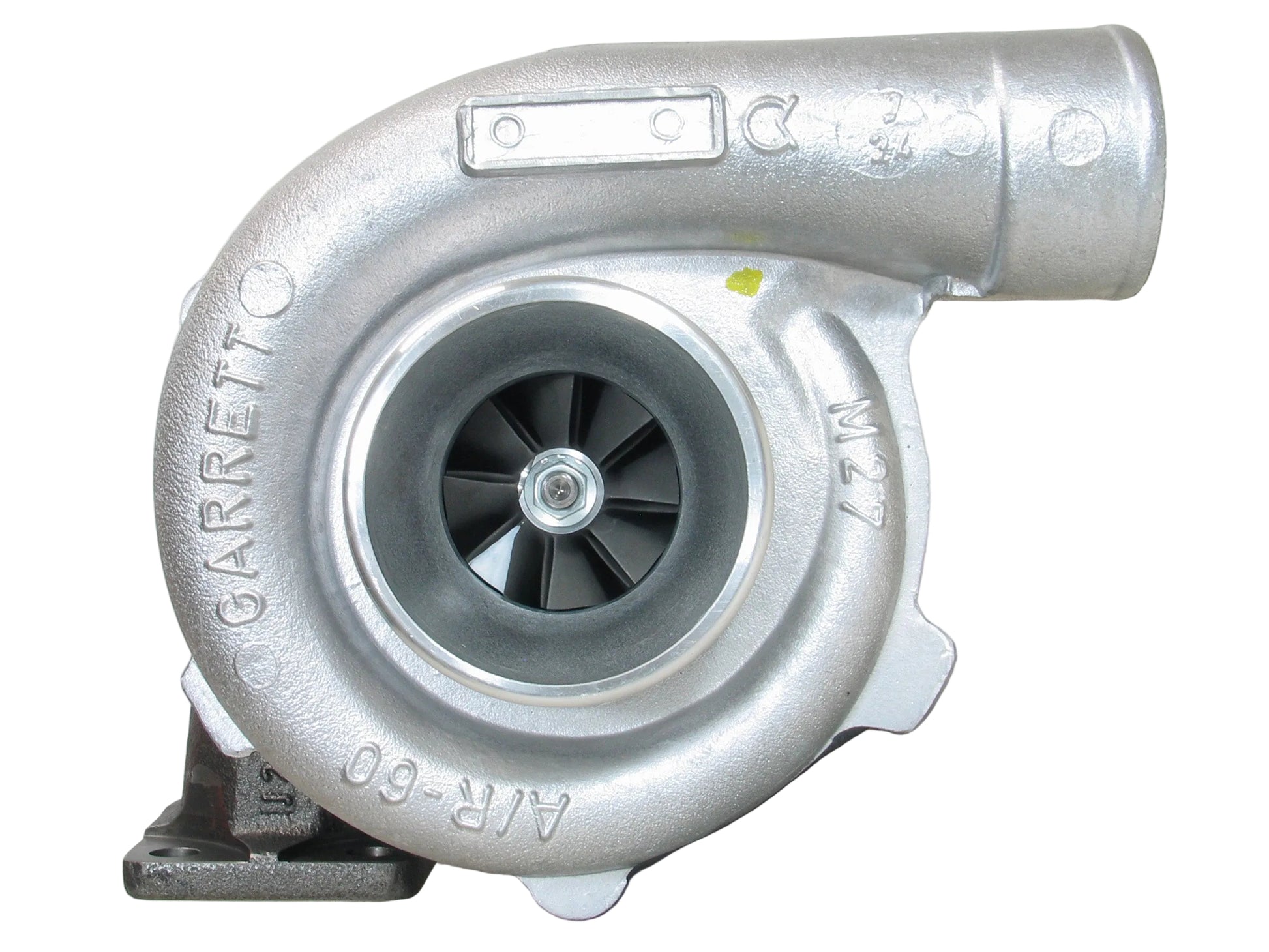

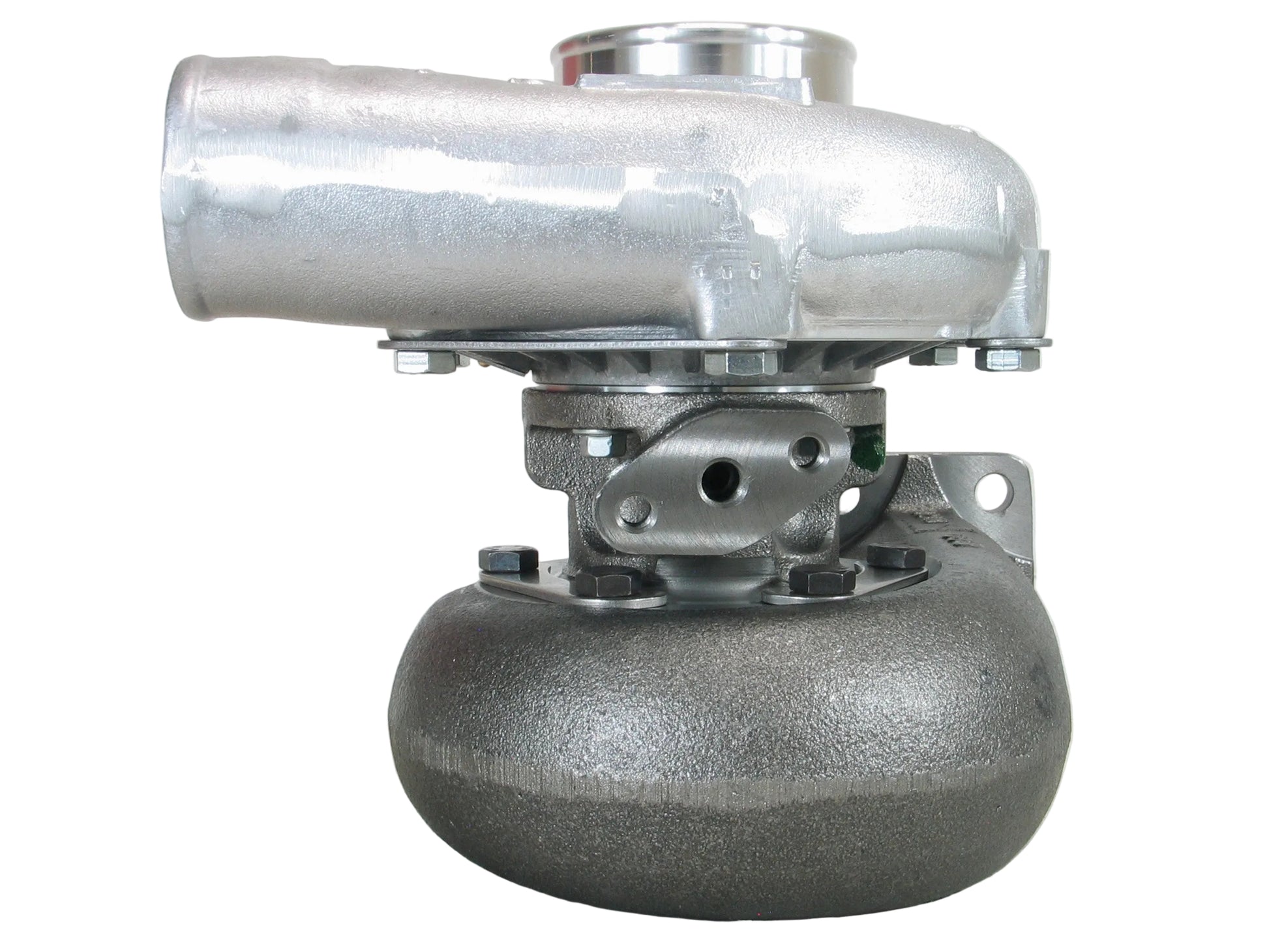

NEW Garrett T04B49 Turbo Iveco Agricultural Tractor 8060.24.000 5.5L 465640-5021
NEW Garrett T04B49 Turbo Iveco Agricultural Tractor 8060.24.000 5.5L 465640-5021
SKU:465640-5021
Precio habitual
$1,095.00
Precio habitual
Precio de oferta
$1,095.00
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Orders ship Monday-Friday, usually within 24 hours of purchase.
International shipping subject to VAT and/or other import tax calculated during checkout.
BRAND NEW GENUINE GARRETT TURBOCHARGER
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 465640-5021
Interchangeable Number: 465640-0005, 465640-0020, 465640-0027
OEM Number: 4718129, 4746533
Turbo Model: T04B49
Brand: Honeywell-Garrett
Engine: 8060.24.000, 8060.25.096/8
Engine Manufacturer: Iveco
Displacement: 5.5L, 5500 ccm, 5.9L
Fuel: Diesel
Power: 120 kW
Speed: 2550 RPM
Angle α (Compressor Housing): 0°
Angle β (Turbine Housing): 0°
Bearing Housing: 430027-0025 (186879, 186881) (1100030450)
Turbine Wheel: 446905-0001/451309-0002 (AR57715, 310094A, 317640, 407276-0005, 410188-0014, 410188-0005, 314655) (Ind. 58.35 mm, Exd. 74.2 mm, Trim 46, 11 Blades) (1100040435)
Compressor Wheel: 409179-0028 (Dia. 70.00 mm, Ind. 43.70 m, Exd. 5.10 mm, Trim 39, 8 blades)
Back Plate: 408045-0034 (408206-0002, 408045-0051, 408045-0006, 4N6863, 104244-0000, 310010, 311708, 197340, AR101787)(1100040360)
Heat Shield: 409299-0000/409299-0001 (311943, 7N0012, 3524773B)
Repair Kit: 468100-0000 (188401-0000, 310063, 3524796, 2W0716, 6N7236) (1100040750)
Turbine Housing: 432752-0053
CHRA: 408105-0281 (408105-5281S)
Compressor Cover: 408173-0518
Turbine Housing A/R: 0.84
Gasket (Turbine Inlet): 409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006)
Gasket (Turbine Outlet): 210315 (Stainless Steel)
Gasket (Oil Outlet): 311496 (210021, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Oil Inlet): 147837 (210023, 55739, 3755739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 210023-0000)(1900000037)
Application:
1983- Iveco Agricultural Tractor with 8060.24.000, 8060.25.096/8 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 465640-5021
Interchangeable Number: 465640-0005, 465640-0020, 465640-0027
OEM Number: 4718129, 4746533
Turbo Model: T04B49
Brand: Honeywell-Garrett
Engine: 8060.24.000, 8060.25.096/8
Engine Manufacturer: Iveco
Displacement: 5.5L, 5500 ccm, 5.9L
Fuel: Diesel
Power: 120 kW
Speed: 2550 RPM
Angle α (Compressor Housing): 0°
Angle β (Turbine Housing): 0°
Bearing Housing: 430027-0025 (186879, 186881) (1100030450)
Turbine Wheel: 446905-0001/451309-0002 (AR57715, 310094A, 317640, 407276-0005, 410188-0014, 410188-0005, 314655) (Ind. 58.35 mm, Exd. 74.2 mm, Trim 46, 11 Blades) (1100040435)
Compressor Wheel: 409179-0028 (Dia. 70.00 mm, Ind. 43.70 m, Exd. 5.10 mm, Trim 39, 8 blades)
Back Plate: 408045-0034 (408206-0002, 408045-0051, 408045-0006, 4N6863, 104244-0000, 310010, 311708, 197340, AR101787)(1100040360)
Heat Shield: 409299-0000/409299-0001 (311943, 7N0012, 3524773B)
Repair Kit: 468100-0000 (188401-0000, 310063, 3524796, 2W0716, 6N7236) (1100040750)
Turbine Housing: 432752-0053
CHRA: 408105-0281 (408105-5281S)
Compressor Cover: 408173-0518
Turbine Housing A/R: 0.84
Gasket (Turbine Inlet): 409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006)
Gasket (Turbine Outlet): 210315 (Stainless Steel)
Gasket (Oil Outlet): 311496 (210021, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Oil Inlet): 147837 (210023, 55739, 3755739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 210023-0000)(1900000037)
Application:
1983- Iveco Agricultural Tractor with 8060.24.000, 8060.25.096/8 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
