Garrett

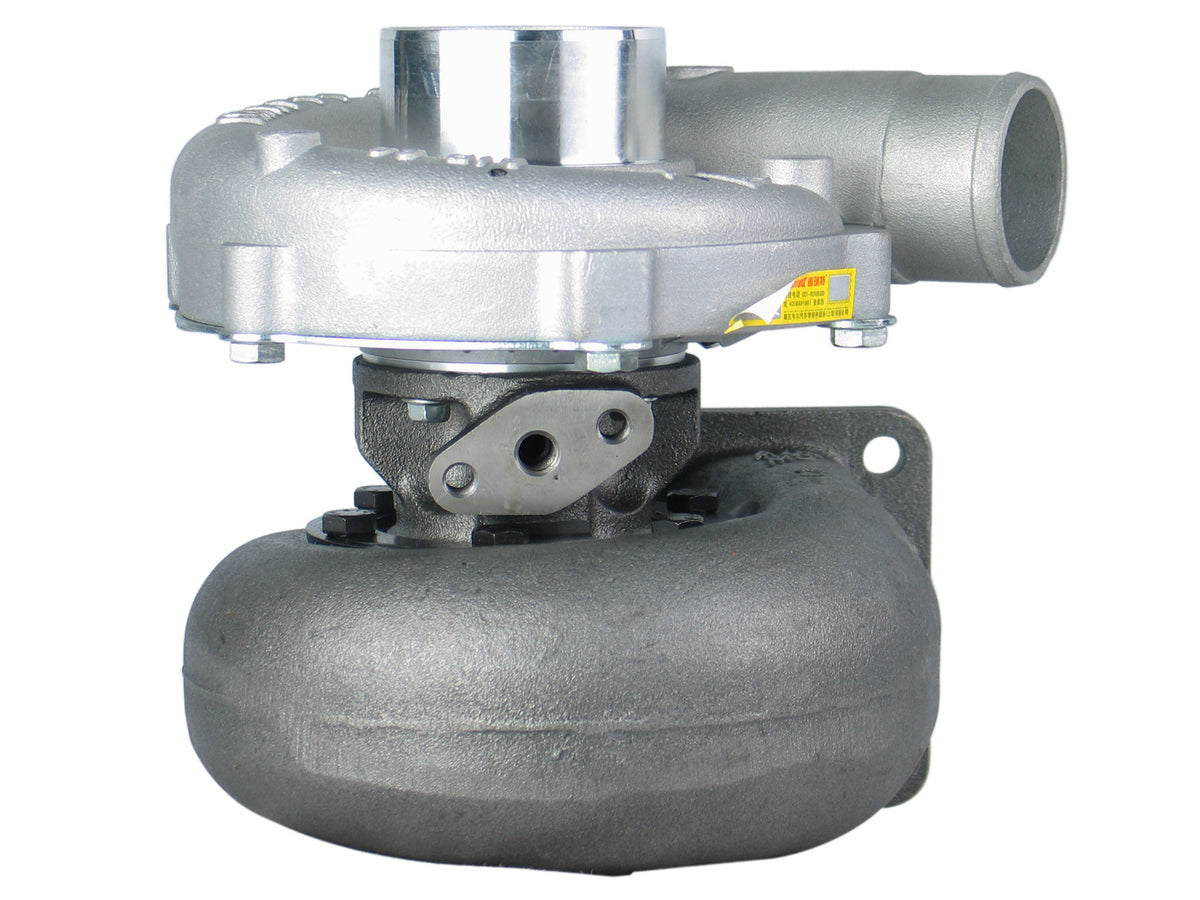

New Garrett T04E08 Turbo Komatsu Construction 4.89L S6D95L Diesel 466704-5203
New Garrett T04E08 Turbo Komatsu Construction 4.89L S6D95L Diesel 466704-5203
SKU:466704-5203
Precio habitual
$1,485.00
Precio habitual
Precio de oferta
$1,485.00
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Orders ship Monday-Friday, usually within 24 hours of purchase.
International shipping subject to VAT and/or other import tax calculated during checkout.
BRAND NEW GENUINE GARRETT TURBOCHARGER
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 466704-5203
Interchangeable Number: 466704-0203, 466704-5203S, 466704-0003, 466704-5003, 466704-5003S, 466704-0103, 466704-5103, 466704-5103S, 466704-0112, 466704-5112, 466704-5112S, 466704-0212, 466704-5212, 466704-5212S
OEM Number: 6222-81-8170, 6222818170, 6222-81-8210, 6222818210, R6222-81-8170, R6222818170, R6222-81-8210, R6222818210
Turbo Model: T04E08
Brand: Honeywell - Garrett
Engine: S6D95L
Engine Manufacturer: Komatsu
Displacement: 4.89L, 4890 ccm, 6 Cylinders
Emission Standard: Euro 5
Fuel: Diesel
Angle α (Compressor Housing): 150°
Angle β (Turbine Housing): 0°
Back Plate: 408045-0040 (408045-0031, 408045-0030, 408045-0038, 408045-0039)
Bearing Housing: 430027-0058 (430027-0038)(ME044066, 318137)(Oil Cooled)(1900011057)
CHRA: 447450-0079 (447450-5079S)(1000010263)
Compressor Housing: 443219-0110
Compressor Wheel: 442293-0009 (443844-0002)(Ind. 48.5 mm, Exd. 75 mm, Trim 42, 6+6 Blades, Billet)(1200016381)
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)(Paper)
Gasket (Turbine Inlet): 407294-0001 (310694, 3901356, 3709861)(312617)(Inox Steel)
Gasket Kit: 215079 (2090010081)
Heat Shield: 409299-0001 (409299-0000)(ME078199)(311943, 7N0012, 3524773B)
Repair Kit: 468265-0000 (468265-0000UK, 3545831)(5000010041)
Turbine Housing A/R: 1.00
Turbine Housing: 410401-0036
Turbine Wheel: 446905-0002 (407276-0006, 407276-0019, 410188-0003, 410188-0006, 410188-0037, 446905-0005, 446905-0007, 446905-0010, 451309-0003, 451309-0004, 155-5236)(Ind. 73.99 mm, Exd. 64.61 mm, Trim 10.79, 11 Blades)(1100016090)
Application:
Komatsu Construction with 4.89L S6D95L Diesel Engine
Komatsu Earth Moving with 4.89L S6D95L Diesel Engine
Komatsu PC300 Hydraulic Excavator with 4.89L S6D95L Diesel Engine
Komatsu Power Shovel with 4.89L S6D95L Diesel Engine
Komatsu Various with 4.89L S6D95L Diesel Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
