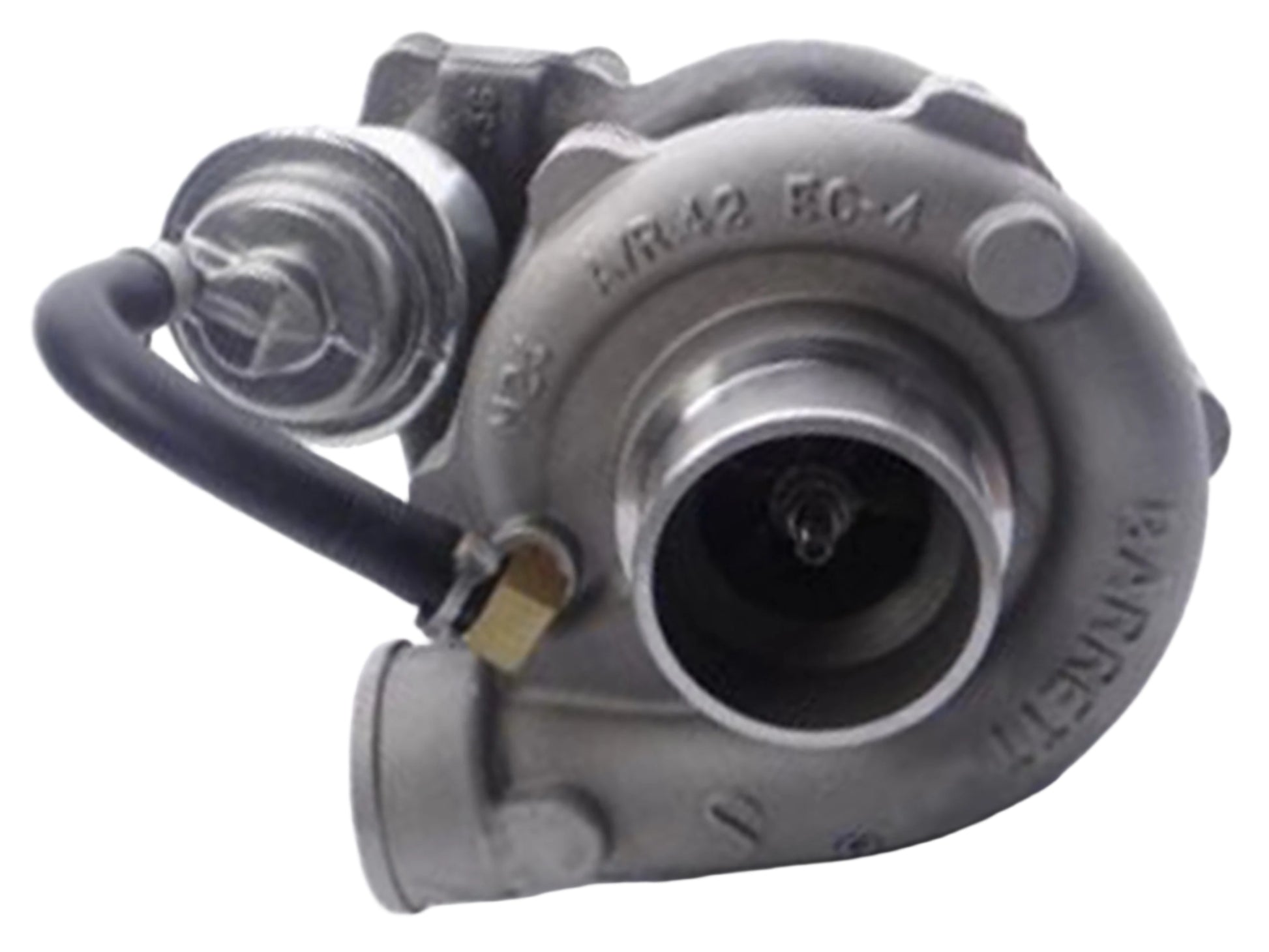

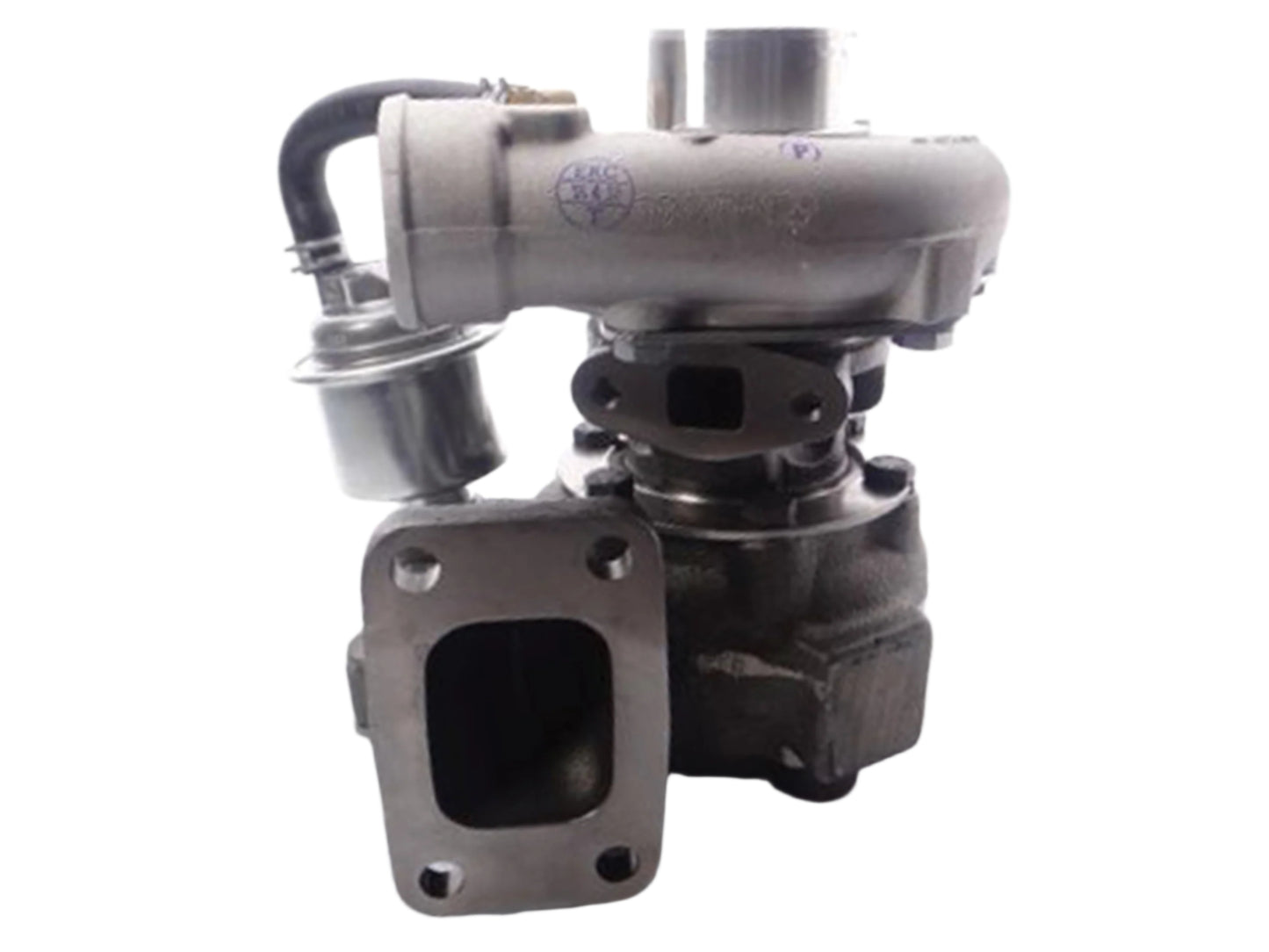

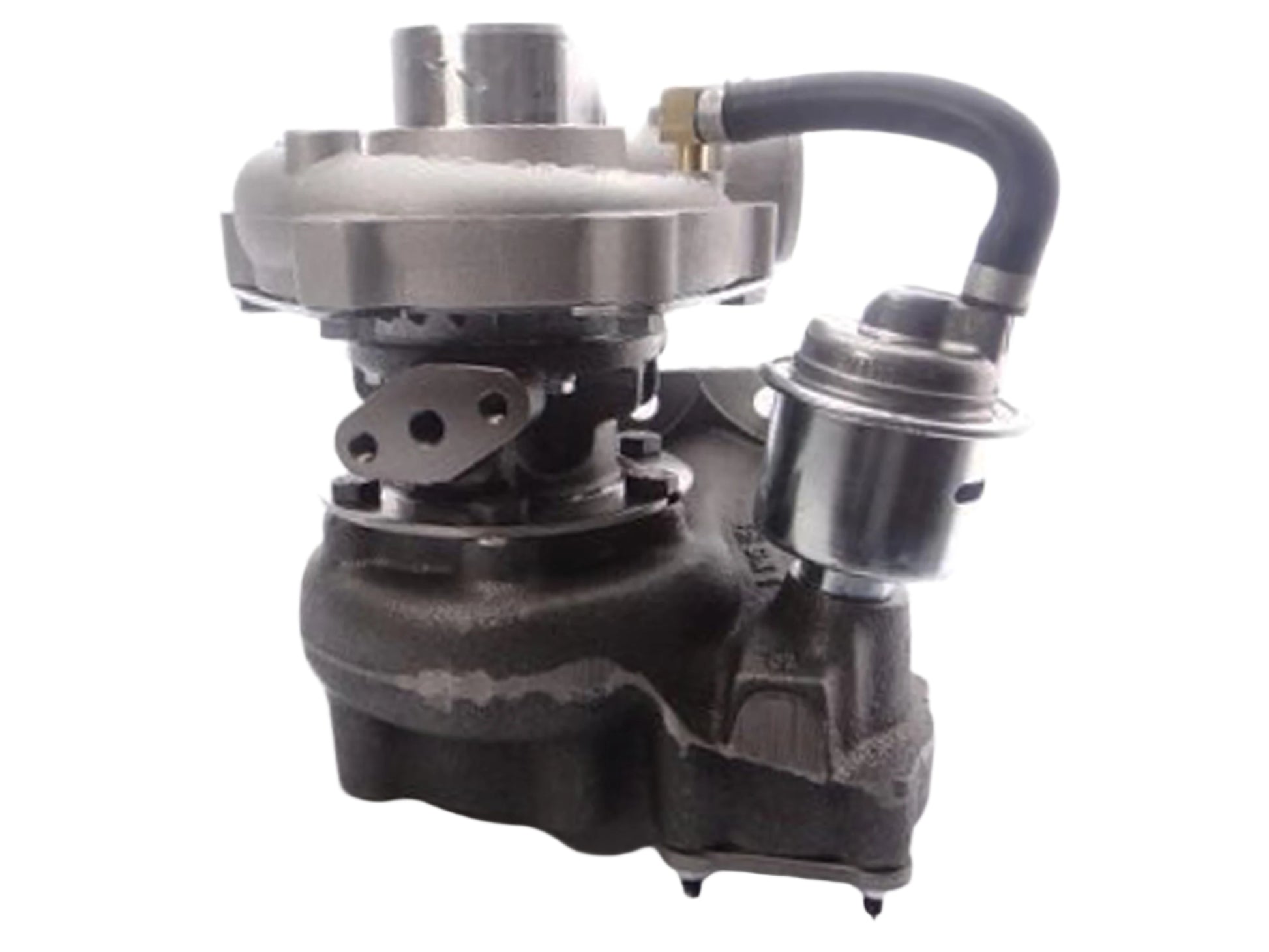

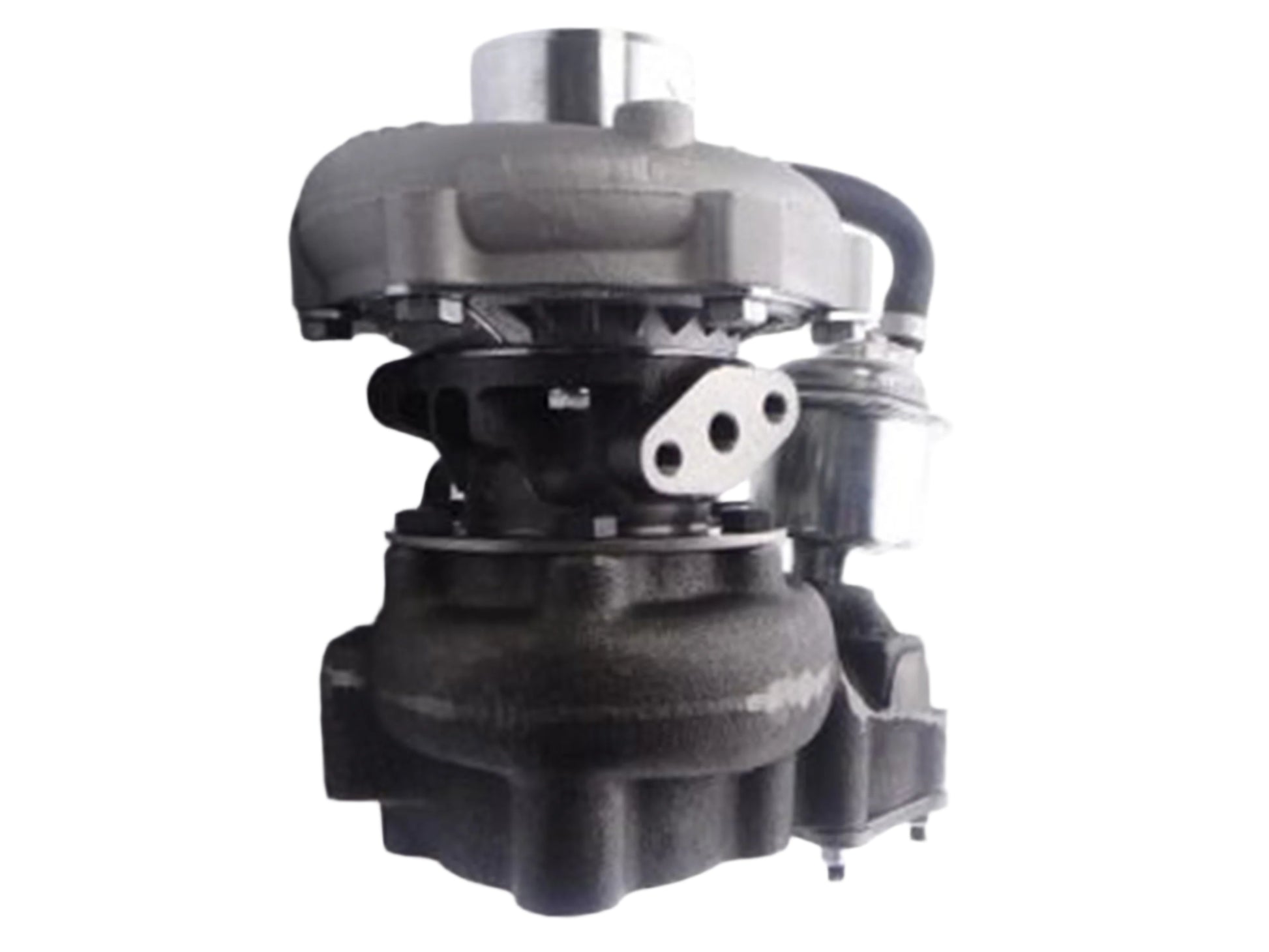

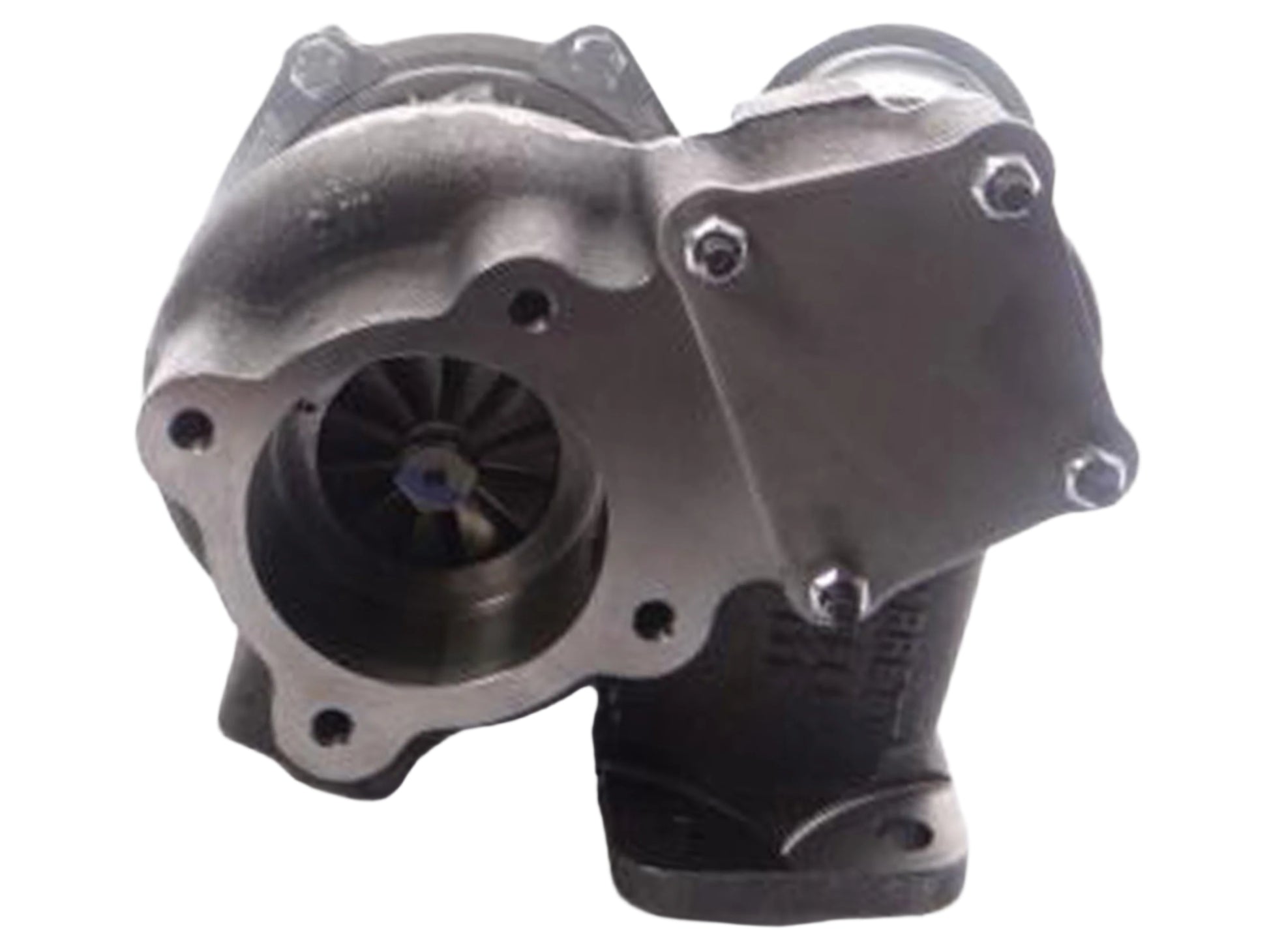

NEW Garrett TA0315 Turbo Perkins Industrial Off-Highway T4.236 3.9L 466778-5001
NEW Garrett TA0315 Turbo Perkins Industrial Off-Highway T4.236 3.9L 466778-5001
SKU:466778-5001
Precio habitual
$1,325.00
Precio habitual
$0.00
Precio de oferta
$1,325.00
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Orders ship Monday-Friday, usually within 24 hours of purchase.
International shipping subject to VAT and/or other import tax calculated during checkout.
BRAND NEW GENUINE GARRETT TURBOCHARGER
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 466778-5001
Interchangeable Number: 466778-0001, 466778-5001S, 466778-0002, 466778-5002, 466778-5002S, 466778-0003, 466778-5003, 466778-5003S, 466778-0004, 466778-5004, 466778-5004S
OEM Number: 2674A102, 2674A104, 2674A104P, 2674A104R, 2674A105
Turbo Model: TA0315
Manufacturer: Honeywell-Garrett
Engine: T4.236, T4.248
Displacement: 3.9L, 3860 cc, 4 Cylinders
Fuel: Diesel
Angle α (Compressor Housing): 180°
Angle β (Turbine Housing): 340°
Actuation: Pressure
Actuator Gasket: 409262-0000
Back Plate: 409629-0001 (409629-0004, 409629-0003, 409629-0006, 409629-0007, 409629-0010, 409629-0016, 409096-0008)(1100030300, 1300016007)
Bearing Housing: 430027-0025 (407285-0031, 186879, 186881)(Oil-Cooled)(1100030450, 1900011104B)
CHRA: 409853-0042 (409853-5042S, 409172-0077)
Compressor Cover: 409589-0440 (409115-0129)
Compressor Wheel: 409096-0008 (103016-0000, 409096-0001)(Ind. 40.51 mm, Exd. 60.09 mm, Trim 5.15, 6+6 Blades, Super Back)(1100030401, 1200030071)
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 409039-0000 (409039-0001, 210019, 2405022)
Gasket (Turbine Outlet): 210225 (Stainless Steel)
Gasket Kit: 215068
Heat Shield: 409627-0000 (409299-0001, 103121-0000)(1100030340)
Repair Kit: 707897-0001 (1100030750)(Dynamic)
Turbine Housing A/R: 0.36
Turbine Housing: 410224-0024
Turbine Wheel: 451310-0001 (103016-0000)(Ind. 65 mm, Exd. 46.2 mm, Trim 8.96, 11 Blades)
Turbo Technology: Wastegate
Wastegate Settings (Lift Rod): 1.27 mm
Wastegate Settings (Pressure): 0.970-1.040 bar
Application:
Perkins Industrial, Off-Highway with T4.236 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 466778-5001
Interchangeable Number: 466778-0001, 466778-5001S, 466778-0002, 466778-5002, 466778-5002S, 466778-0003, 466778-5003, 466778-5003S, 466778-0004, 466778-5004, 466778-5004S
OEM Number: 2674A102, 2674A104, 2674A104P, 2674A104R, 2674A105
Turbo Model: TA0315
Manufacturer: Honeywell-Garrett
Engine: T4.236, T4.248
Displacement: 3.9L, 3860 cc, 4 Cylinders
Fuel: Diesel
Angle α (Compressor Housing): 180°
Angle β (Turbine Housing): 340°
Actuation: Pressure
Actuator Gasket: 409262-0000
Back Plate: 409629-0001 (409629-0004, 409629-0003, 409629-0006, 409629-0007, 409629-0010, 409629-0016, 409096-0008)(1100030300, 1300016007)
Bearing Housing: 430027-0025 (407285-0031, 186879, 186881)(Oil-Cooled)(1100030450, 1900011104B)
CHRA: 409853-0042 (409853-5042S, 409172-0077)
Compressor Cover: 409589-0440 (409115-0129)
Compressor Wheel: 409096-0008 (103016-0000, 409096-0001)(Ind. 40.51 mm, Exd. 60.09 mm, Trim 5.15, 6+6 Blades, Super Back)(1100030401, 1200030071)
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 409039-0000 (409039-0001, 210019, 2405022)
Gasket (Turbine Outlet): 210225 (Stainless Steel)
Gasket Kit: 215068
Heat Shield: 409627-0000 (409299-0001, 103121-0000)(1100030340)
Repair Kit: 707897-0001 (1100030750)(Dynamic)
Turbine Housing A/R: 0.36
Turbine Housing: 410224-0024
Turbine Wheel: 451310-0001 (103016-0000)(Ind. 65 mm, Exd. 46.2 mm, Trim 8.96, 11 Blades)
Turbo Technology: Wastegate
Wastegate Settings (Lift Rod): 1.27 mm
Wastegate Settings (Pressure): 0.970-1.040 bar
Application:
Perkins Industrial, Off-Highway with T4.236 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
