Garrett

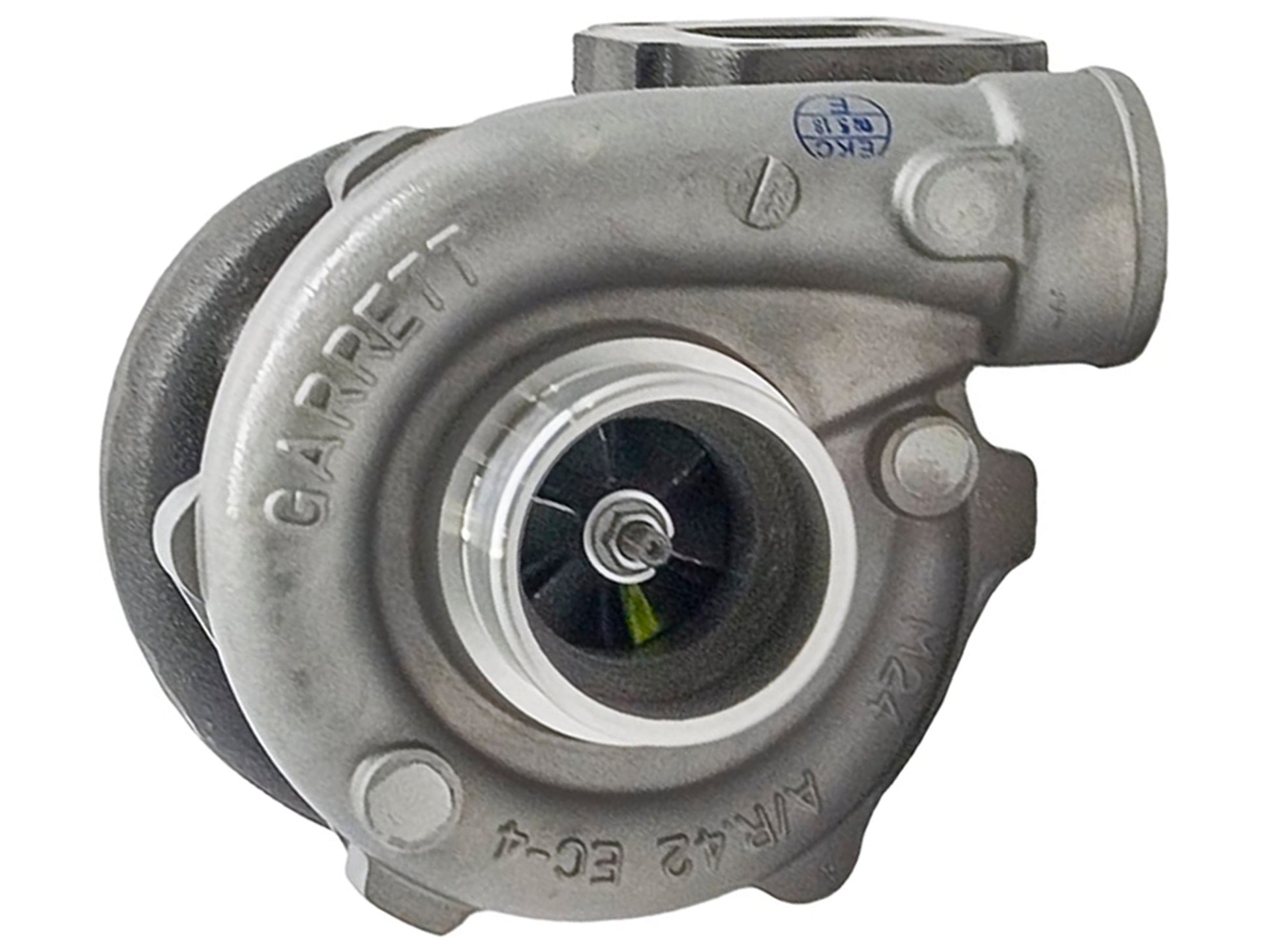

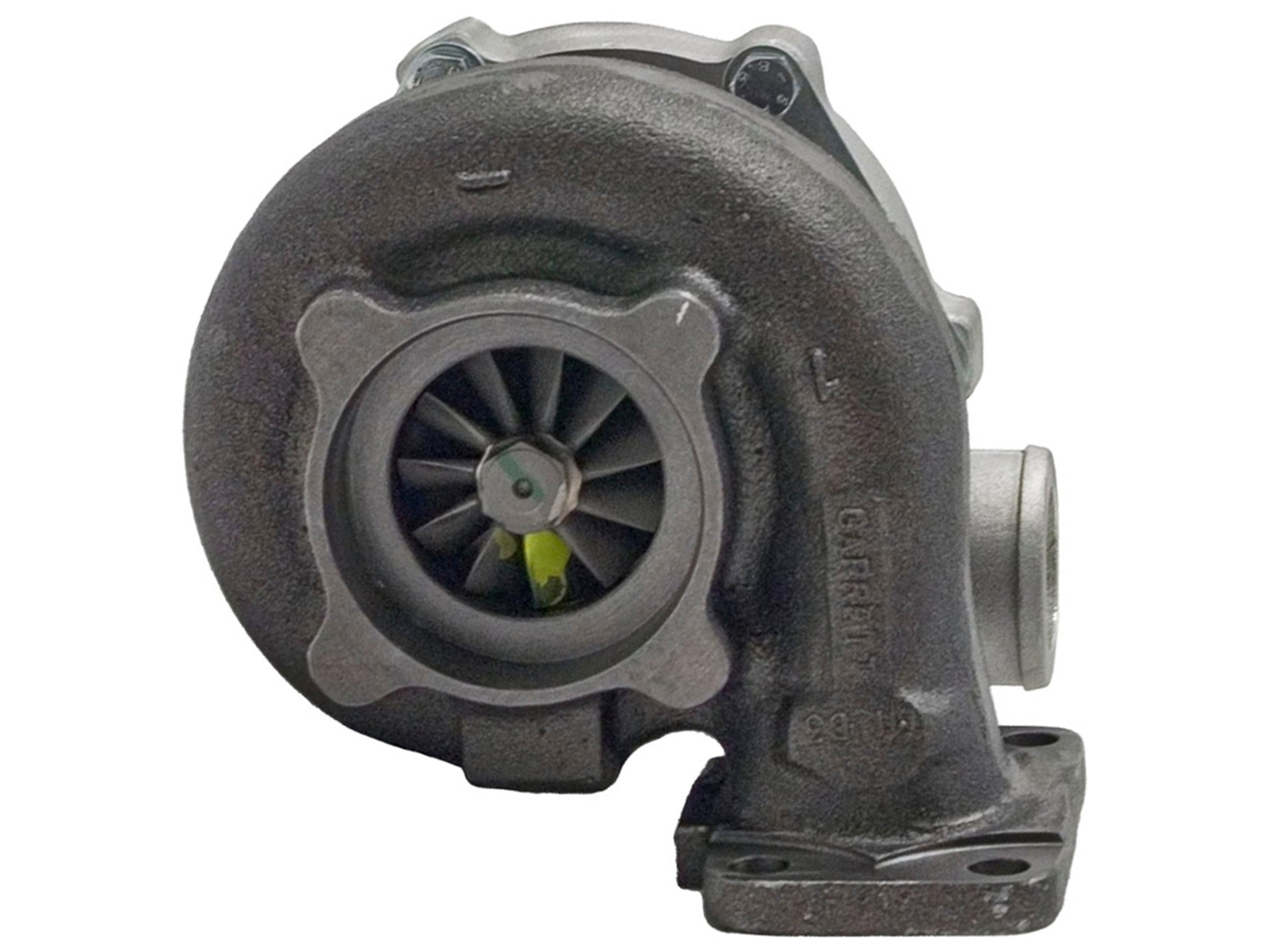

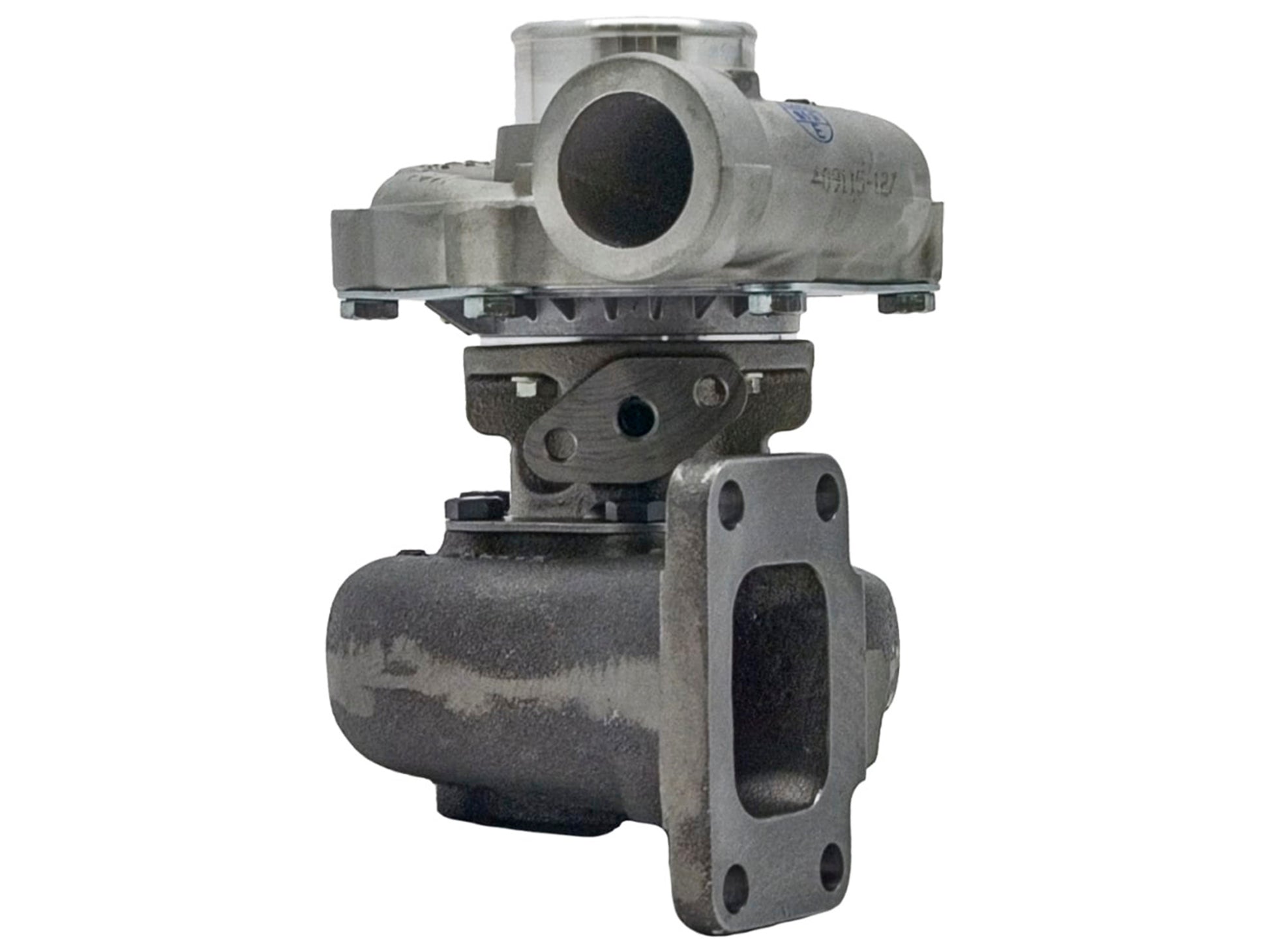

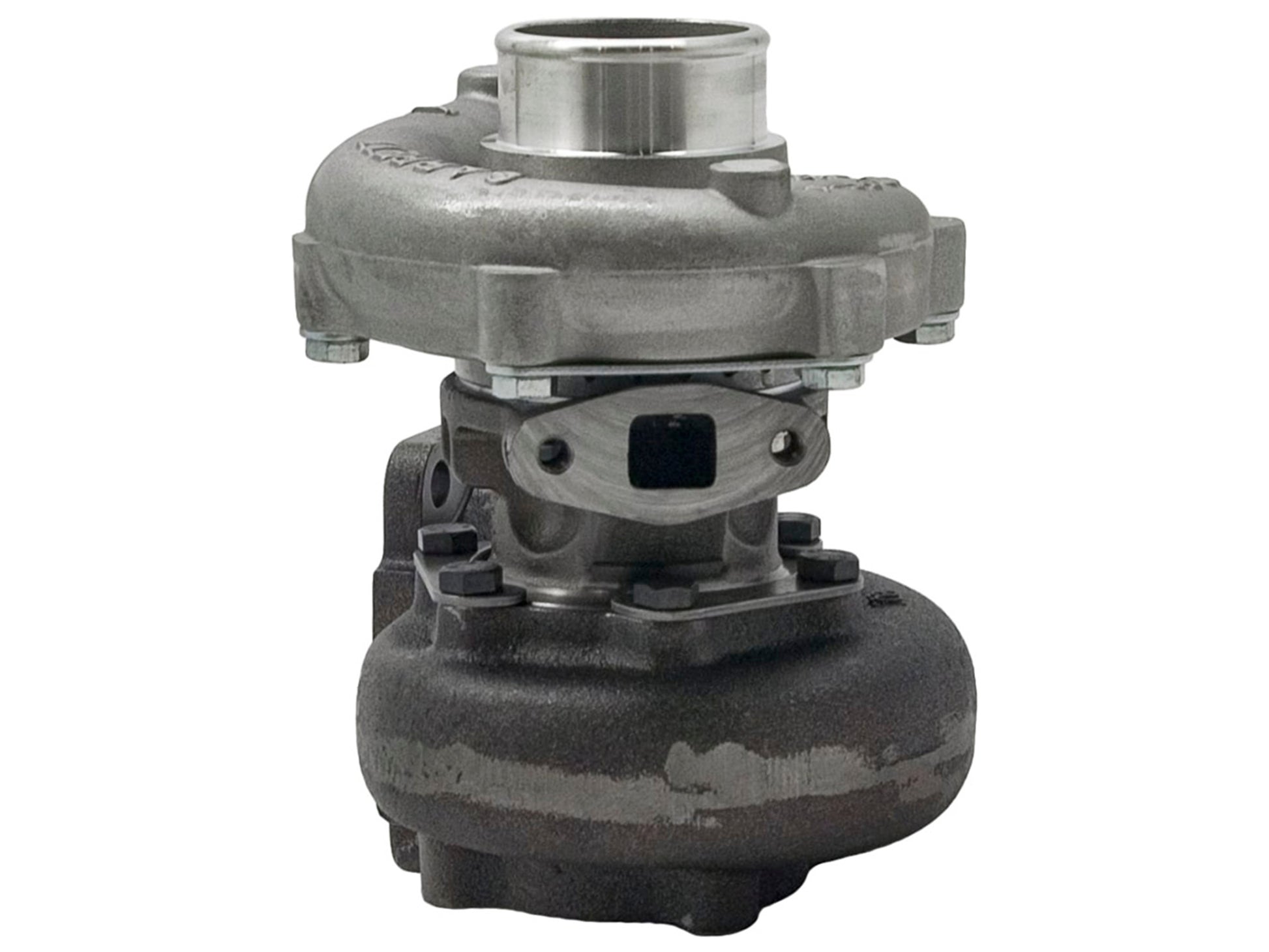

NEW Garrett TA3120 Turbo JCB Power Unit Industrial Perkins T4.40 466854-5001
NEW Garrett TA3120 Turbo JCB Power Unit Industrial Perkins T4.40 466854-5001
SKU:466854-5001
Precio habitual
$895.00
Precio habitual
Precio de oferta
$895.00
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Orders ship Monday-Friday, usually within 24 hours of purchase.
International shipping subject to VAT and/or other import tax calculated during checkout.
BRAND NEW GENUINE GARRETT TURBOCHARGER
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 466854-5001
Interchangeable Number: 466854-0001, 311063, 311063R, 312157, 312172, 312725
OEM Number: 02-200460, 02/200460, 02200460, 2-200460, 2/200460, 2200460, 2674394, 2674A153, 2674A160, 311063, 311063R, 312157, 312157R, 312172, 312172R, 500409, 500\409, 2674394, 2674A153, 2674A153R, 2674A160, 2674A168
Turbo Model: TA3120
Brand: Honeywell-Garrett
Engine: T4.40, 1004.4THR
Displacement: 4.0L, 4000 ccm, 4 Cylinders
Fuel: Diesel
Power: 107 kW
Angle α (Compressor Housing): 180°
Angle β (Turbine Housing): 120°
Back Plate: 409629-0004 (197340)(1100030301, 1300016007)
Bearing Housing: 430027-0025 (312379, 407285-0027, 407285-0038, 430027-0022, 430027-0048)(Oil Cooled)(1100030450, 1900011104B)
CHRA: 409172-0052 (409172-9052S)(6I4203)(1100030901)
Compressor Cover: 409115-0127 (311629)
Compressor Wheel: 409096-0008 (197611)(103016-0000, 409096-0001)(Ind. 40.51 mm, Exd. 60.09 mm, Trim 5.15, 6+6 Blades, Super Back)(1100030401, 1200030071) STOCK
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006)(Inox Steel)
Heat Shield: 409627-0000 (103121-0000, 409627-0001, 311131)(1100030340)
Repair Kit: 468139-0000 (79087623)(1100030765, 5000010041)
Turbine Housing A/R: 0.63
Turbine Housing: 409526-0933
Turbine Wheel: 451314-0001 (Ind. 50.5 mm, Exd. 64 mm, Trim 62, 11 Blades)(1100030439)
Application:
1986- Perkins, JCB Engine & Power Units, Industrial 4.0L T4.40 02/200460 Engine
Perkins Truck with T4.40 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 466854-5001
Interchangeable Number: 466854-0001, 311063, 311063R, 312157, 312172, 312725
OEM Number: 02-200460, 02/200460, 02200460, 2-200460, 2/200460, 2200460, 2674394, 2674A153, 2674A160, 311063, 311063R, 312157, 312157R, 312172, 312172R, 500409, 500\409, 2674394, 2674A153, 2674A153R, 2674A160, 2674A168
Turbo Model: TA3120
Brand: Honeywell-Garrett
Engine: T4.40, 1004.4THR
Displacement: 4.0L, 4000 ccm, 4 Cylinders
Fuel: Diesel
Power: 107 kW
Angle α (Compressor Housing): 180°
Angle β (Turbine Housing): 120°
Back Plate: 409629-0004 (197340)(1100030301, 1300016007)
Bearing Housing: 430027-0025 (312379, 407285-0027, 407285-0038, 430027-0022, 430027-0048)(Oil Cooled)(1100030450, 1900011104B)
CHRA: 409172-0052 (409172-9052S)(6I4203)(1100030901)
Compressor Cover: 409115-0127 (311629)
Compressor Wheel: 409096-0008 (197611)(103016-0000, 409096-0001)(Ind. 40.51 mm, Exd. 60.09 mm, Trim 5.15, 6+6 Blades, Super Back)(1100030401, 1200030071) STOCK
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006)(Inox Steel)
Heat Shield: 409627-0000 (103121-0000, 409627-0001, 311131)(1100030340)
Repair Kit: 468139-0000 (79087623)(1100030765, 5000010041)
Turbine Housing A/R: 0.63
Turbine Housing: 409526-0933
Turbine Wheel: 451314-0001 (Ind. 50.5 mm, Exd. 64 mm, Trim 62, 11 Blades)(1100030439)
Application:
1986- Perkins, JCB Engine & Power Units, Industrial 4.0L T4.40 02/200460 Engine
Perkins Truck with T4.40 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
