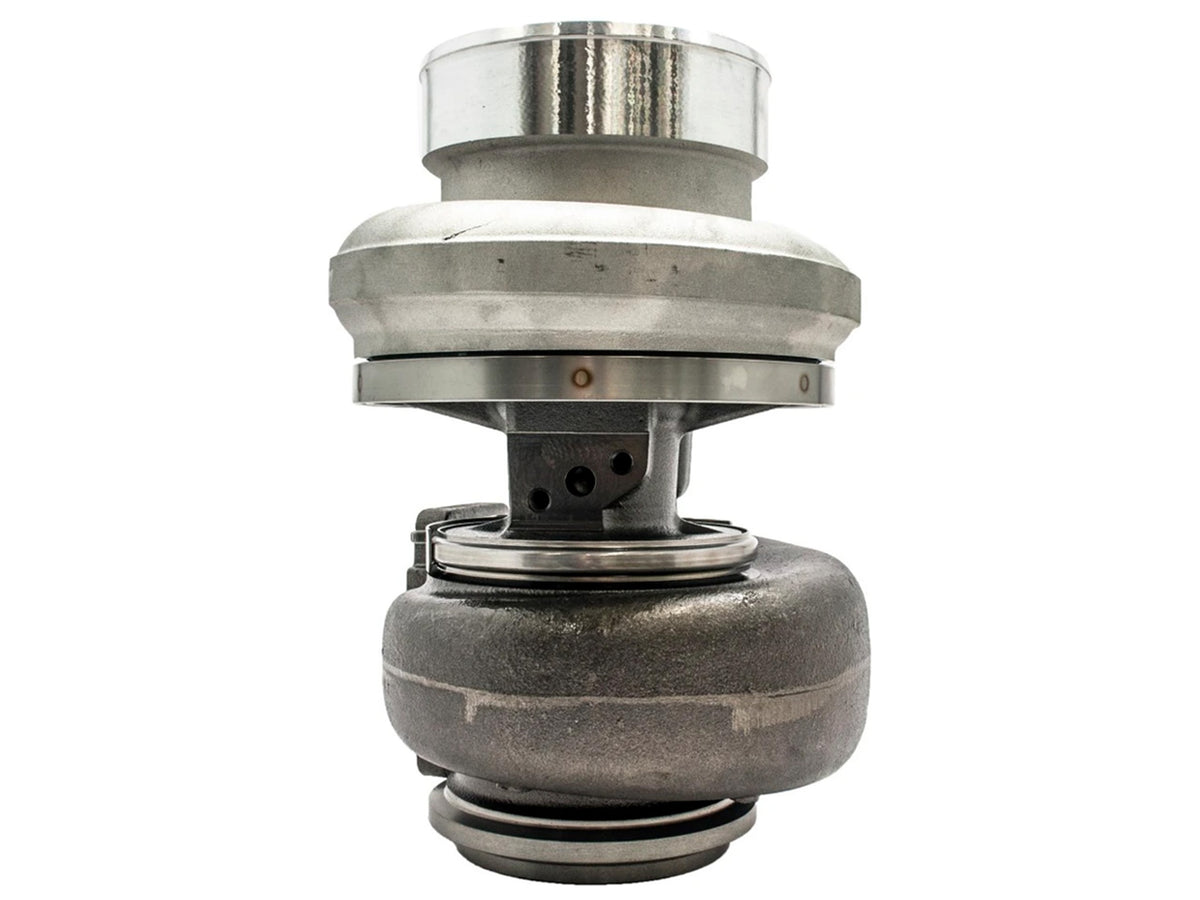

OEM Reman BorgWarner S4AS010 Turbo CAT Earth Moving Truck 14.6L 3406B 478105 496549

OEM REMANUFACTURED BORGWARNER TURBOCHARGER

This is a OEM REMANUFACTURED BORGWARNER TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

NOTE: There is a core charge of $350 which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase and will be fully refunded once your old re-build able core is received.

Cores must be returned within 60 days of the purchase date. Please allow up to 3 business days for us to process your refund.

Fits the following:

Part Number: 496549
Interchangeable Number: 178105, 178105R, 178781R, 194598, 194598R, 194781, 194781R, 196549, 196549R, 312006, 412006, 478105, 494598, 494781
OEM Number: 0R-5728, 0R5728, 7C-0453, 7C0453, 7C-0489, 7C0489, 7C-6712, 7C6712, 7C-7687, 7C7687
Turbo Model: S4AS010
Brand: BorgWarner - 3K - Schwitzer

Engine: 3406, 3406B, 3406C
Engine Manufacturer: Caterpillar
Displacement: 14.6L, 14600 ccm
Fuel: Diesel
Prefix: 3ZJ, 4MG, 5KJ, 7FB, 7XC, 8TC

Angle α (Compressor Housing): 292°
Angle β (Turbine Housing): 82°
Bearing Housing Insert: 197651
Bearing Housing: 199143 (199144, 4P3627)(Oil Cooled)
CHRA: 178222/196537
Compressor Housing: 178307/194007 (7W8425)
Compressor Wheel: 194009
Filter Cup: 183188
Flinger Sleeve: 187251
Gasket (Oil Inlet): 210019 (409266-0004, 210019-0000, 201049, 129119, 409266-0003)(Paper)
Gasket (Oil Outlet): 210018 (3519763, 129120, 210018-0000, 201048, 157602, 3037537)(Paper)
Gasket (Turbine Inlet): 409038-0000 (1S4295, 132040, 52231083002, 210835-0000, 9749, 7M7273, 7H1558, 8N2835)
Gasket Kit: 318417
Heat Shield: 187517 (4W7355)
Journal Bearing: 188985
O-Ring (Black): 151242
Oil Deflector: 143331
Piston Ring (Blue): 310724
Piston Ring (Red): 194798
Repair Kit: 318409
Retaining Ring: 127305/188990
Shaft Nut: 191996
Spacer Sleeve: 187248
Thrust Bearing: 188585
Thrust Ring: 187249
Turbine Housing A/R: 6.15/1.58
Turbine Housing: 194599 (7C0454)
Turbine Wheel: 189553
V-Band Nut: 130665
V-Band: 138374/139677

Application:
1987-01 Caterpillar Earth Moving with 14.6L 3406B Diesel Engine
1987-01 Caterpillar Truck with 14.6L 3406B Diesel Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
