New Garrett GT1546S Turbo Citroen Xsara Picasso 2.0L DW10TD2S Diesel 706977-5002
New Garrett GT1546S Turbo Citroen Xsara Picasso 2.0L DW10TD2S Diesel 706977-5002
SKU:706977-5002
Precio habitual
$800.00
Precio habitual
Precio de oferta
$800.00
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Orders ship Monday-Friday, usually within 24 hours of purchase.
International shipping subject to VAT and/or other import tax calculated during checkout.

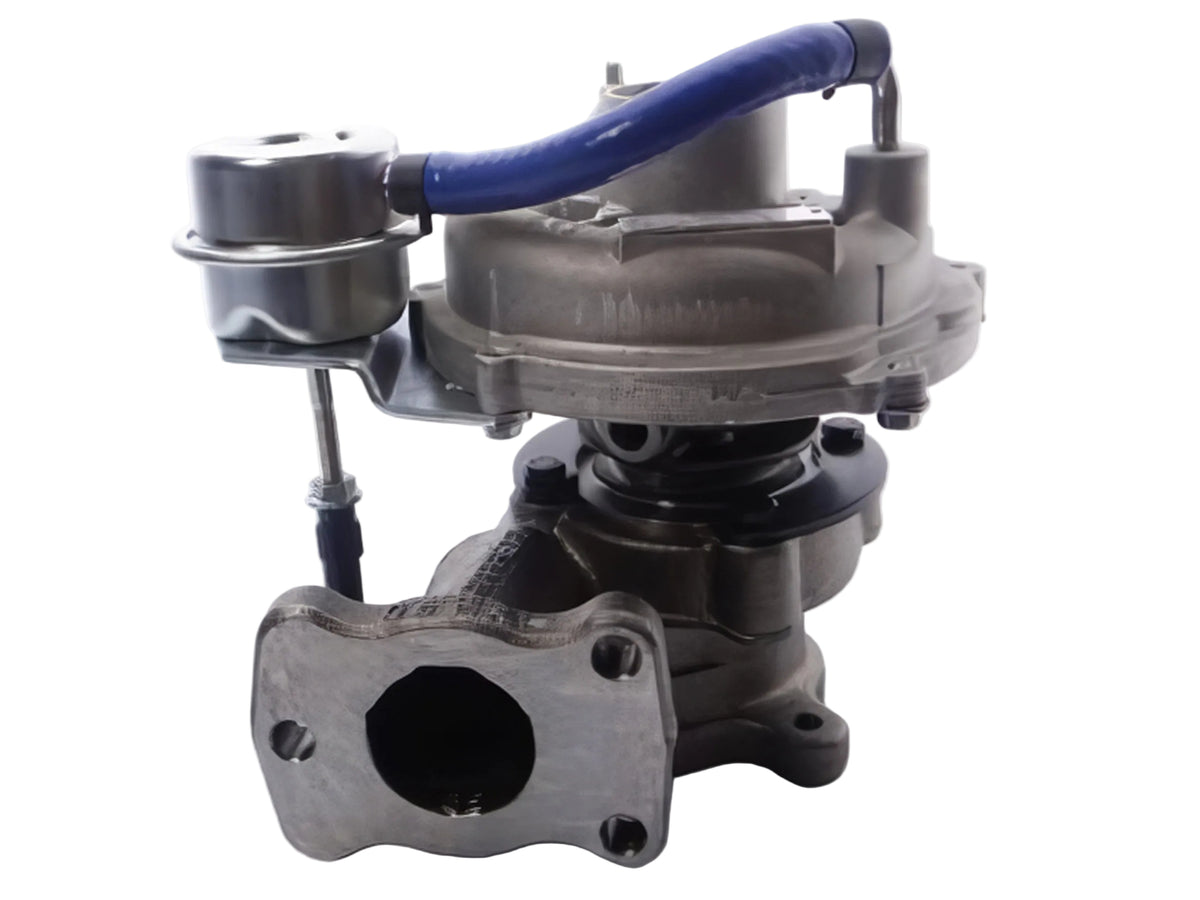

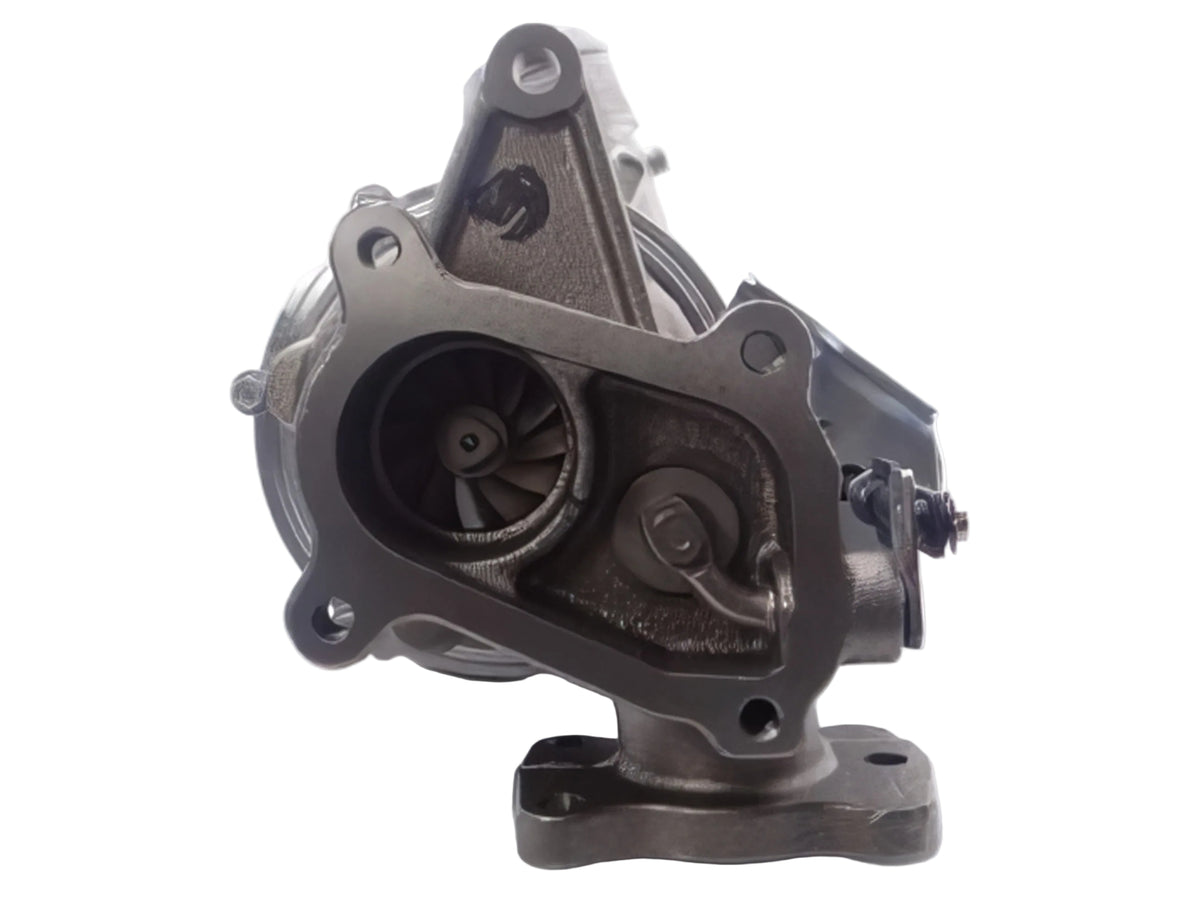

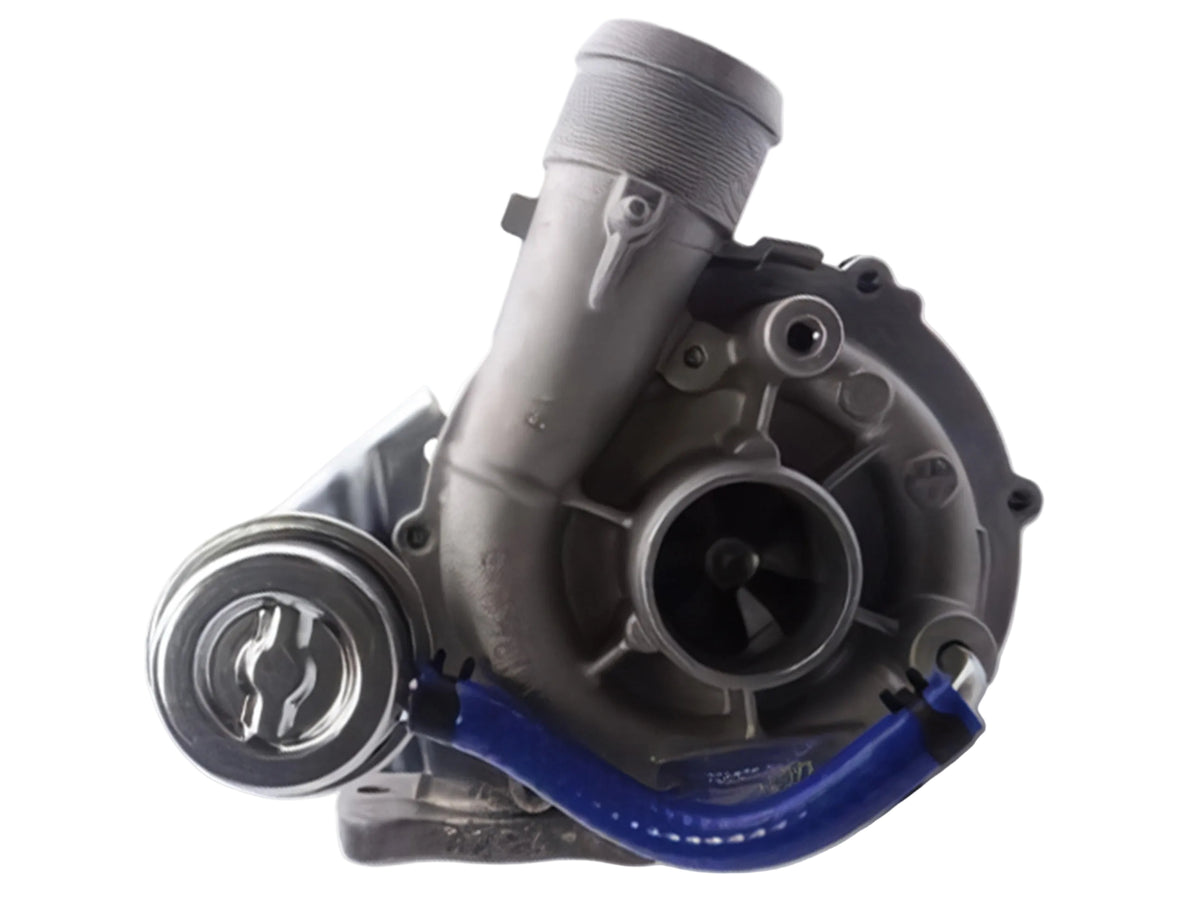

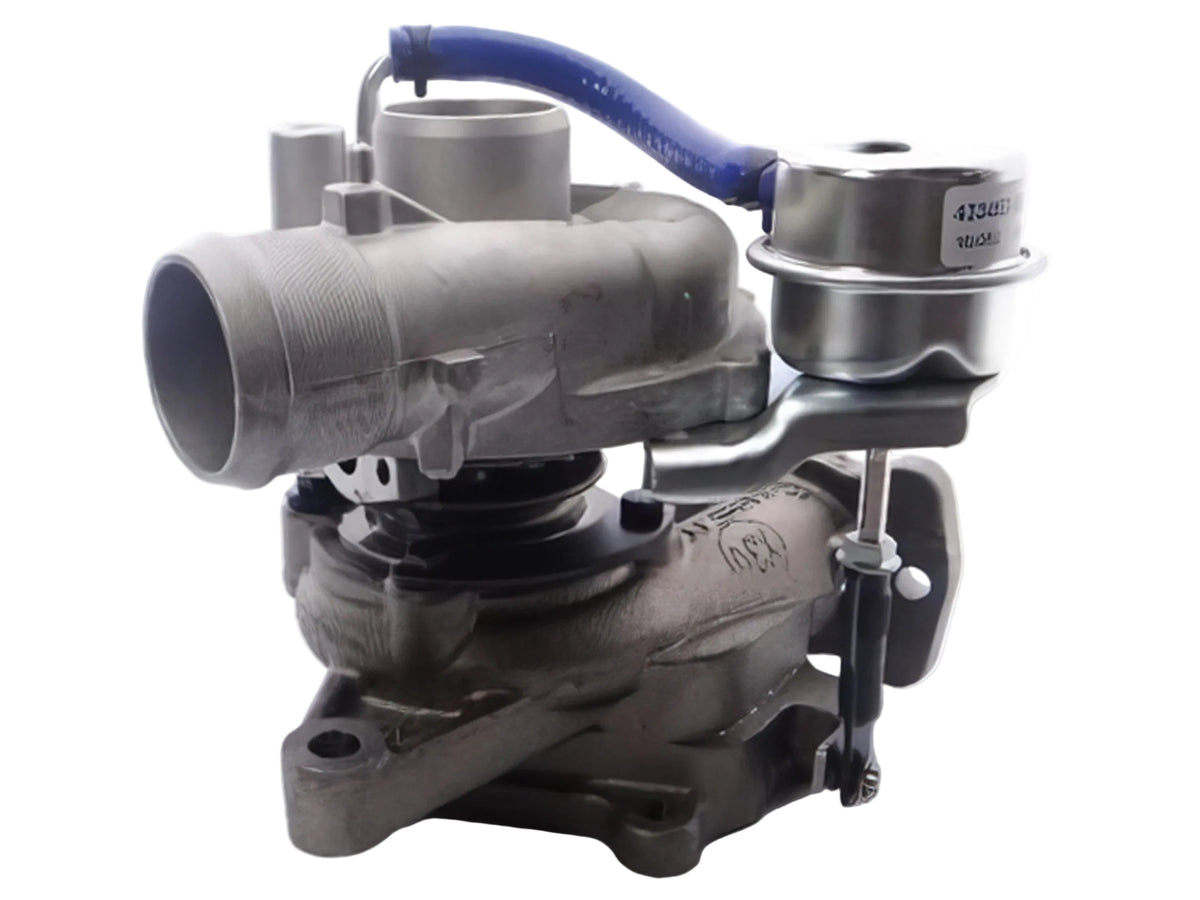

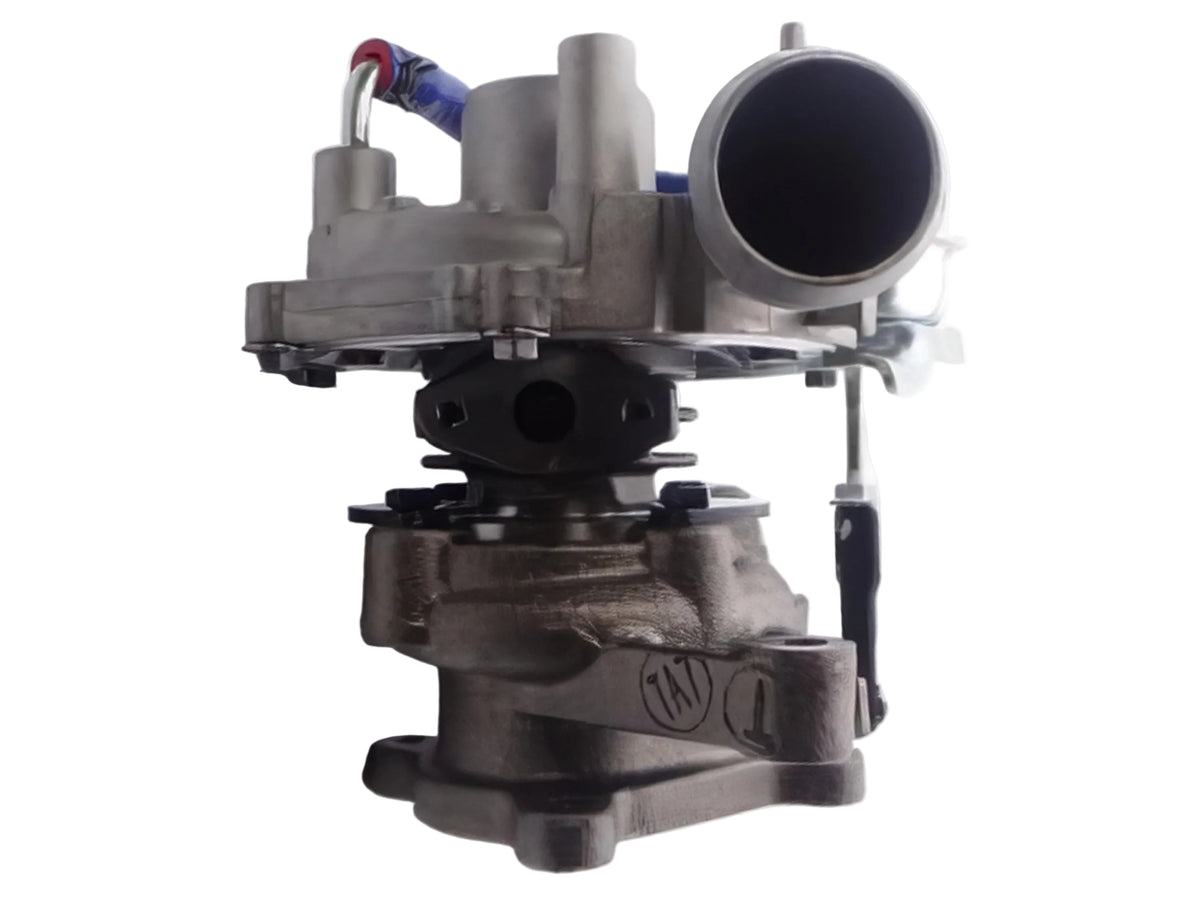

BRAND NEW GENUINE GARRETT TURBOCHARGER
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 706977-5002
Interchangeable Number: 706977-0002, 706977-5002S, 10083, 53039700009, 5303 970 0009, 5303-970-0009, 53039710009, 5303 971 0009, 5303-971-0009, 53039880009, 5303 988 0009, 5303-988-0009, 706977-0001, 706977-5001, 706977-5001S, F41CAY-S0083B, VVP1
OEM Number: 0375C8, 9622526980, 9633382180, 9633382380, 9645247280
Turbo Model: GT1546S
Brand: Honeywell - Garrett
Engine: DW10TD2S
Displacement: 2.0L, 2000 ccm, 4 Cylinders
Emission Standard: Euro 3
Fuel: Diesel
Power: 66 kW/90 hp
Speed: 4000 rpm
Angle α (Compressor Housing): 68°
Angle β (Turbine Housing): 155°
Actuation: Pneumatic
Actuator: 433452-0037 (2061016116)
Back Plate: 436399-0002 (703682-0014)(1102015309, 1300011020)
Bearing Housing: 435793-0002 (Oil Cooled)(433275-0002, 433275-0005, 706490-0002, 713782-0002, 713782-0010)(1900011012)
CHRA: 433289-0124 (433289-5124S, 433289-0122, 433289-0099, 433289-0121, 433289-0123, 433289-0102, 433289-0115)(1102015910, 1000010130)
Compressor Housing: 435791-0090
Compressor Wheel: 436624-0002 (Ind. 34.08 mm, Exd. 46.02 mm, Trim 46.02, 6+6 Blades, Super Back)(1102015412, 100601100153)
Gasket (Oil Outlet): 210243 (Paper)
Gasket (Turbine Inlet): 210371 (Inox Steel)
Gasket (Turbine Outlet): 210372 (Inox Steel)
Gasket Kit: 215011 (1900100186, 2090505170)
Heat Shield: 434684-0001 (1102015343, 2030016026)
Repair Kit: 732252-0001 (1102015782, 5000010067)
Turbine Housing A/R: 0.35
Turbine Housing: 435788-0063
Turbine Wheel: 707669-0006 (434714-0013, 707669-0002, 707669-0005, 707669-0009, 707669-0010)(Ind. 41.96 mm, Exd. 38.30 mm, Trim 5.41, 12 Blades)(1102015438, 1100030101)
Turbo Technology: Wastegate
Wastegate Settings (Lift Shaft): 1.00/3 mm
Wastegate Settings (Pressure): 1.050-1.120/1.240-1.290 bar
Application:
2000- Citroen Xsara Picasso with 2.0L DW10TD2S Diesel Engine
2000- Peugeot 307 HDI with 2.0L DW10TD2S Diesel Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 706977-5002
Interchangeable Number: 706977-0002, 706977-5002S, 10083, 53039700009, 5303 970 0009, 5303-970-0009, 53039710009, 5303 971 0009, 5303-971-0009, 53039880009, 5303 988 0009, 5303-988-0009, 706977-0001, 706977-5001, 706977-5001S, F41CAY-S0083B, VVP1
OEM Number: 0375C8, 9622526980, 9633382180, 9633382380, 9645247280
Turbo Model: GT1546S
Brand: Honeywell - Garrett
Engine: DW10TD2S
Displacement: 2.0L, 2000 ccm, 4 Cylinders
Emission Standard: Euro 3
Fuel: Diesel
Power: 66 kW/90 hp
Speed: 4000 rpm
Angle α (Compressor Housing): 68°
Angle β (Turbine Housing): 155°
Actuation: Pneumatic
Actuator: 433452-0037 (2061016116)
Back Plate: 436399-0002 (703682-0014)(1102015309, 1300011020)
Bearing Housing: 435793-0002 (Oil Cooled)(433275-0002, 433275-0005, 706490-0002, 713782-0002, 713782-0010)(1900011012)
CHRA: 433289-0124 (433289-5124S, 433289-0122, 433289-0099, 433289-0121, 433289-0123, 433289-0102, 433289-0115)(1102015910, 1000010130)
Compressor Housing: 435791-0090
Compressor Wheel: 436624-0002 (Ind. 34.08 mm, Exd. 46.02 mm, Trim 46.02, 6+6 Blades, Super Back)(1102015412, 100601100153)
Gasket (Oil Outlet): 210243 (Paper)
Gasket (Turbine Inlet): 210371 (Inox Steel)
Gasket (Turbine Outlet): 210372 (Inox Steel)
Gasket Kit: 215011 (1900100186, 2090505170)
Heat Shield: 434684-0001 (1102015343, 2030016026)
Repair Kit: 732252-0001 (1102015782, 5000010067)
Turbine Housing A/R: 0.35
Turbine Housing: 435788-0063
Turbine Wheel: 707669-0006 (434714-0013, 707669-0002, 707669-0005, 707669-0009, 707669-0010)(Ind. 41.96 mm, Exd. 38.30 mm, Trim 5.41, 12 Blades)(1102015438, 1100030101)
Turbo Technology: Wastegate
Wastegate Settings (Lift Shaft): 1.00/3 mm
Wastegate Settings (Pressure): 1.050-1.120/1.240-1.290 bar
Application:
2000- Citroen Xsara Picasso with 2.0L DW10TD2S Diesel Engine
2000- Peugeot 307 HDI with 2.0L DW10TD2S Diesel Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
