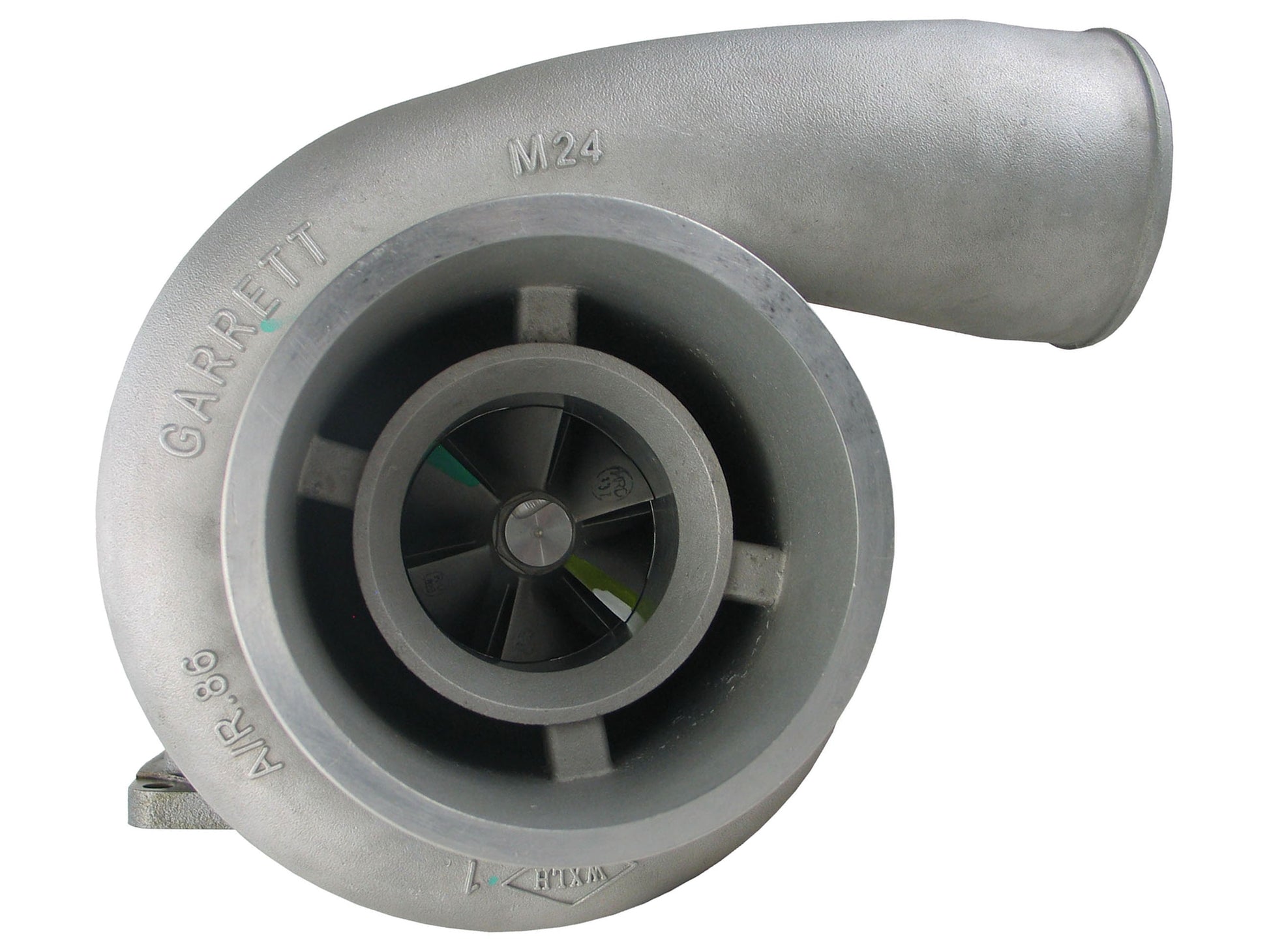

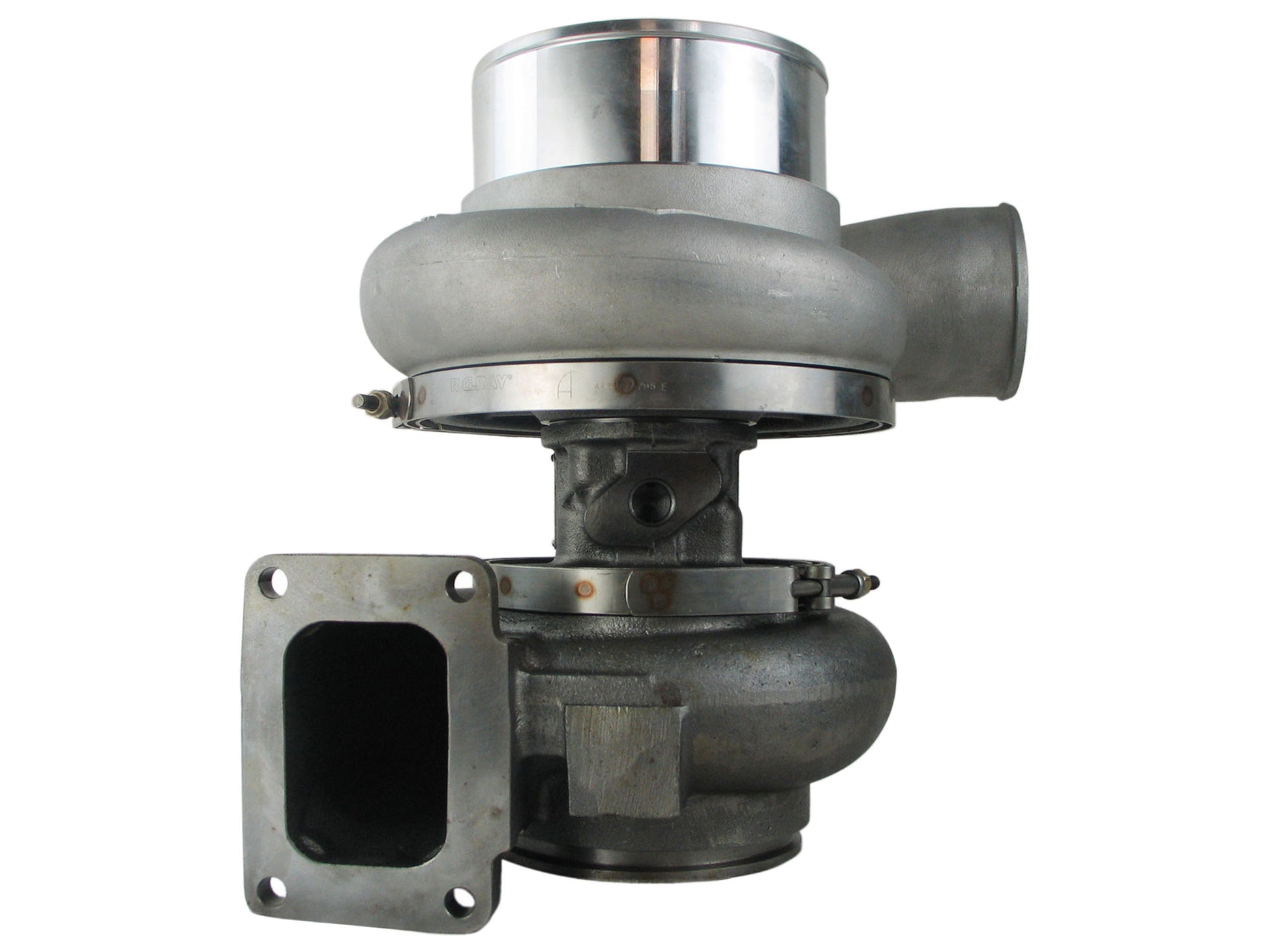

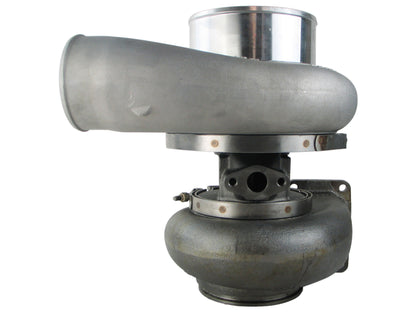

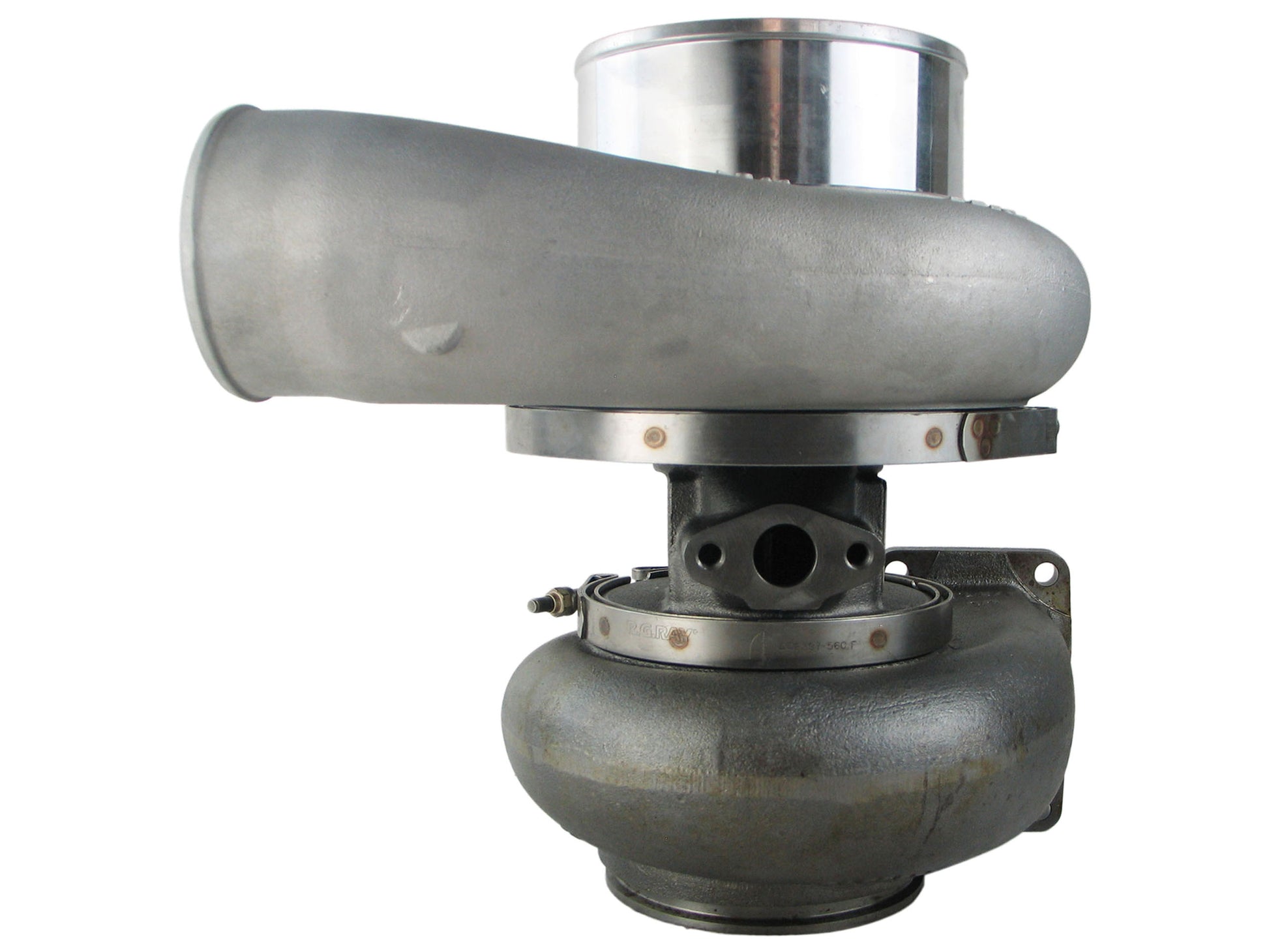

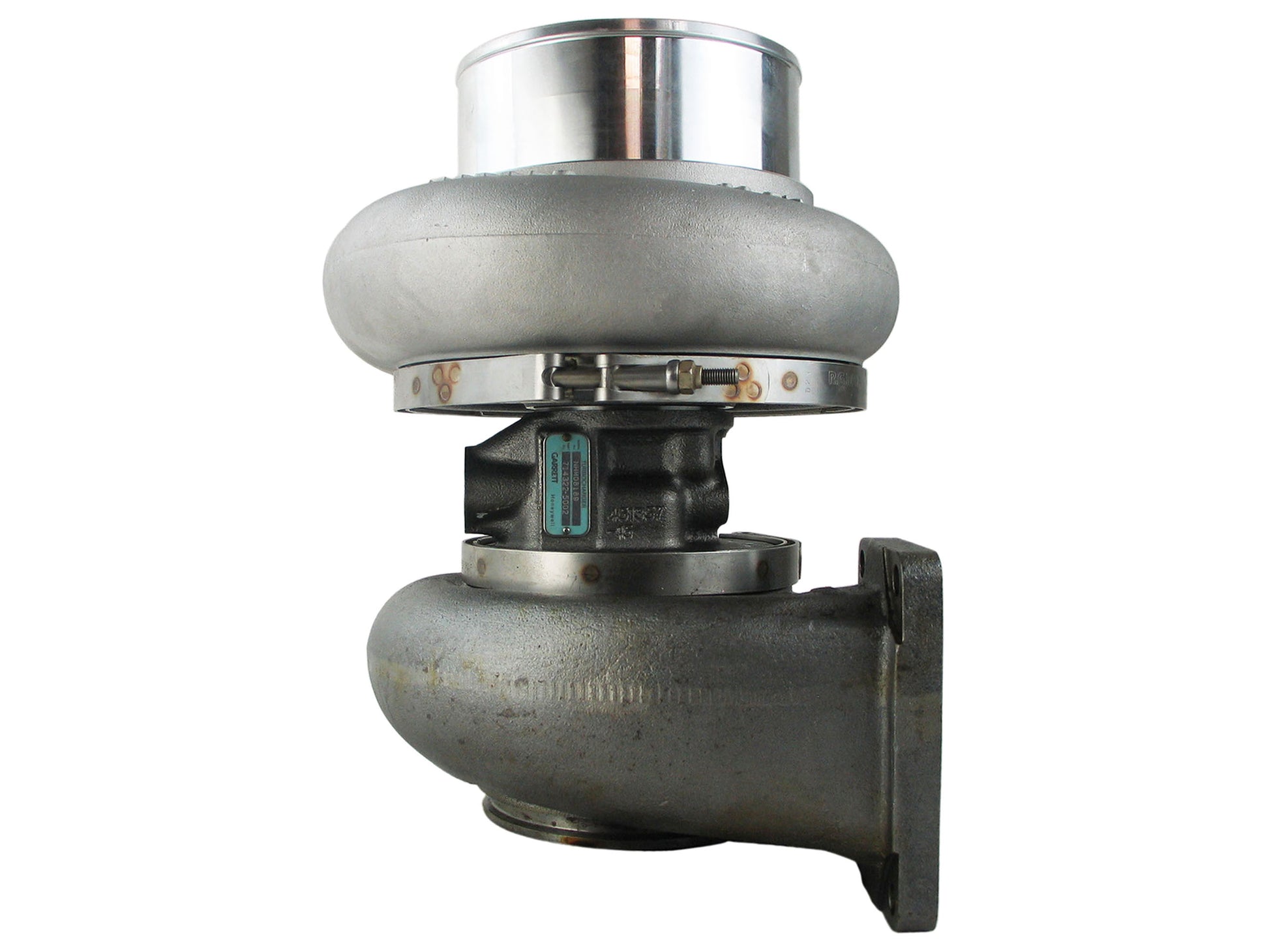

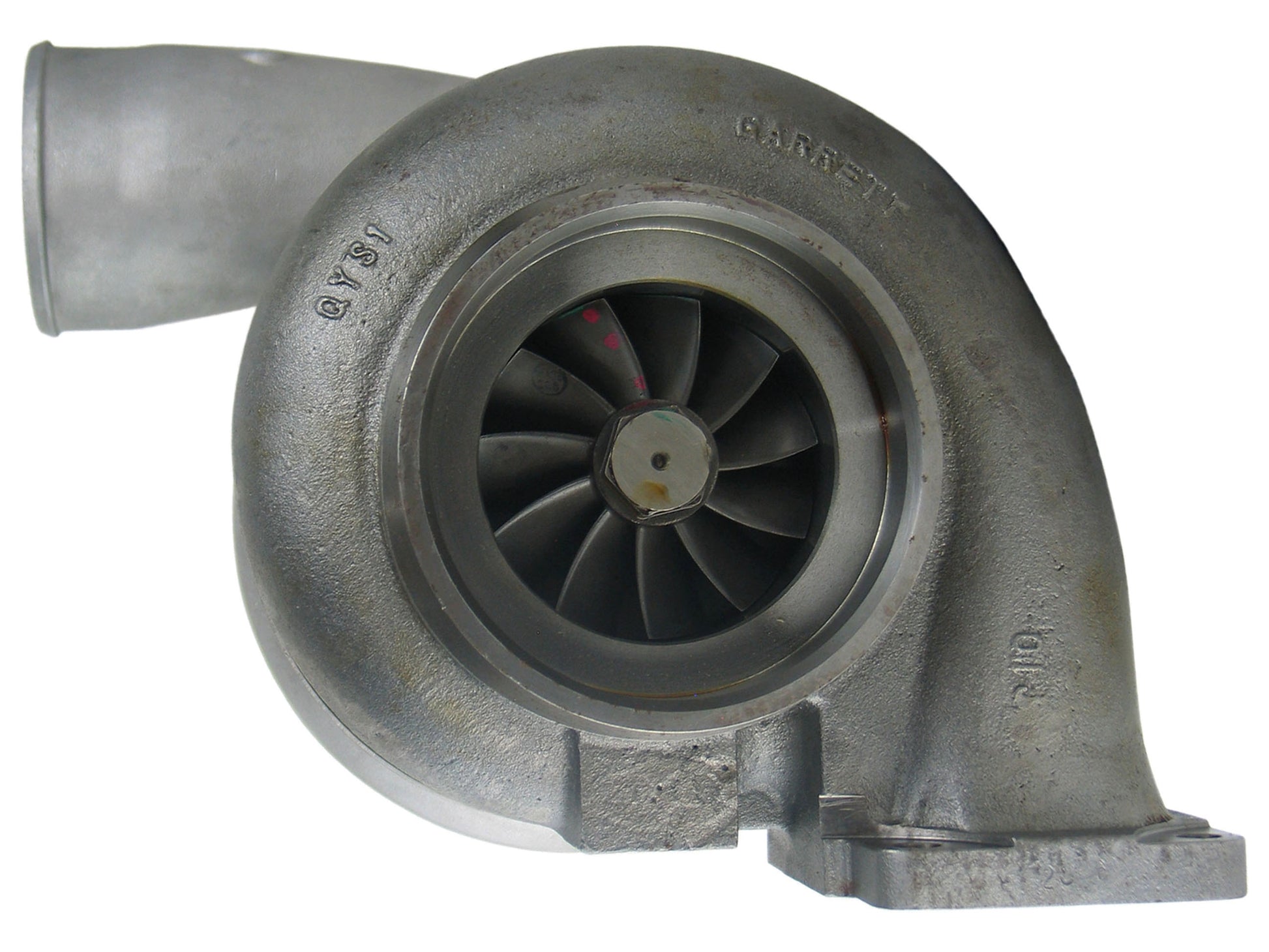

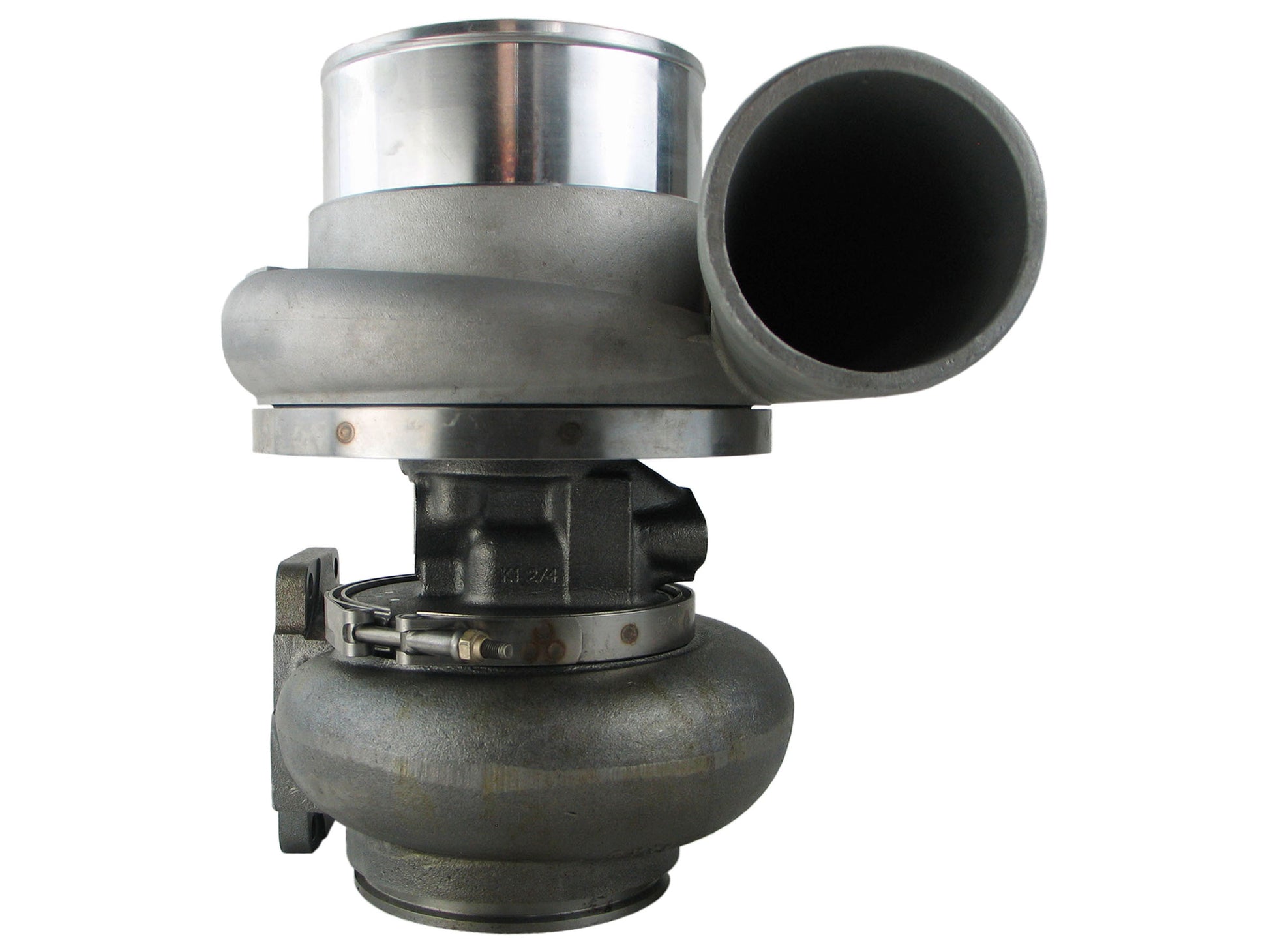

NEW Garrett BTV7506 Turbo Genset Mine Truck Detroit Diesel 12V4000 714322-5005
NEW Garrett BTV7506 Turbo Genset Mine Truck Detroit Diesel 12V4000 714322-5005
SKU:714322-5005
Precio habitual
$2,895.00
Precio habitual
Precio de oferta
$2,895.00
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
BRAND NEW GENUINE GARRETT TURBOCHARGER
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 714322-5005
Interchangeable Number: 714322-0005, 714322-5005S, 471084-0006, 471084-5006, 471084-5006S, 471084-0008, 471084-5008, 471084-5008S, 714322-0002, 714322-5002, 714322-5002S, 714322-0006, 714322-5006, 714322-5006S
OEM Number: 23540088, 5260200805, 5260200905, 5260201005, E23540088
Turbo Model: BTV7506
Manufacturer: Honeywell-Garrett
Year: 2000-
Engine: 12V4000
Engine Manufacturer: MTU, Detroit Diesel
Displacement: 48.0L, 48000 ccm, 12V Cylinders
Fuel: Diesel
Power: 2025 HP
Speed: 1900 RPM
Back Plate: 451361-0001
Bearing Housing: 451358-0006 (Water Cooled)
CHRA: 451491-0016 (451491-5016S, 5260200305)
Compressor Cover: 706505-0002 (23540091)
Compressor Wheel: 448671-0019 (Ind. 74.7 mm, Exd. 102.3 mm, Trim 53, 6+6 Blades, Boreless)
Gasket (Oil Outlet): 210018 (129120)
Gasket (Turbine Inlet): 409038-0001 (7M7273)
Heat Shield: 407967-0003
Repair Kit: 468267-0007 (468267-0006, 468267-0000)
Turbine Housing A/R: 1.08
Turbine Housing: 441881-0037 (5240810101)
Turbine Wheel: 448953-0003 (Ind. 99.1 mm, Exd. 87.9 mm, 11 Blades)
Turbo Technology: Free Floating
Application:
2000- Genset with Detroit Diesel 12V4000 Engine
2010- Mine Truck, Genset (60Hz) with Detroit Diesel 12V4000 Engine
Generator (50Hz) with Detroit Diesel 12V4000 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 714322-5005
Interchangeable Number: 714322-0005, 714322-5005S, 471084-0006, 471084-5006, 471084-5006S, 471084-0008, 471084-5008, 471084-5008S, 714322-0002, 714322-5002, 714322-5002S, 714322-0006, 714322-5006, 714322-5006S
OEM Number: 23540088, 5260200805, 5260200905, 5260201005, E23540088
Turbo Model: BTV7506
Manufacturer: Honeywell-Garrett
Year: 2000-
Engine: 12V4000
Engine Manufacturer: MTU, Detroit Diesel
Displacement: 48.0L, 48000 ccm, 12V Cylinders
Fuel: Diesel
Power: 2025 HP
Speed: 1900 RPM
Back Plate: 451361-0001
Bearing Housing: 451358-0006 (Water Cooled)
CHRA: 451491-0016 (451491-5016S, 5260200305)
Compressor Cover: 706505-0002 (23540091)
Compressor Wheel: 448671-0019 (Ind. 74.7 mm, Exd. 102.3 mm, Trim 53, 6+6 Blades, Boreless)
Gasket (Oil Outlet): 210018 (129120)
Gasket (Turbine Inlet): 409038-0001 (7M7273)
Heat Shield: 407967-0003
Repair Kit: 468267-0007 (468267-0006, 468267-0000)
Turbine Housing A/R: 1.08
Turbine Housing: 441881-0037 (5240810101)
Turbine Wheel: 448953-0003 (Ind. 99.1 mm, Exd. 87.9 mm, 11 Blades)
Turbo Technology: Free Floating
Application:
2000- Genset with Detroit Diesel 12V4000 Engine
2010- Mine Truck, Genset (60Hz) with Detroit Diesel 12V4000 Engine
Generator (50Hz) with Detroit Diesel 12V4000 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
