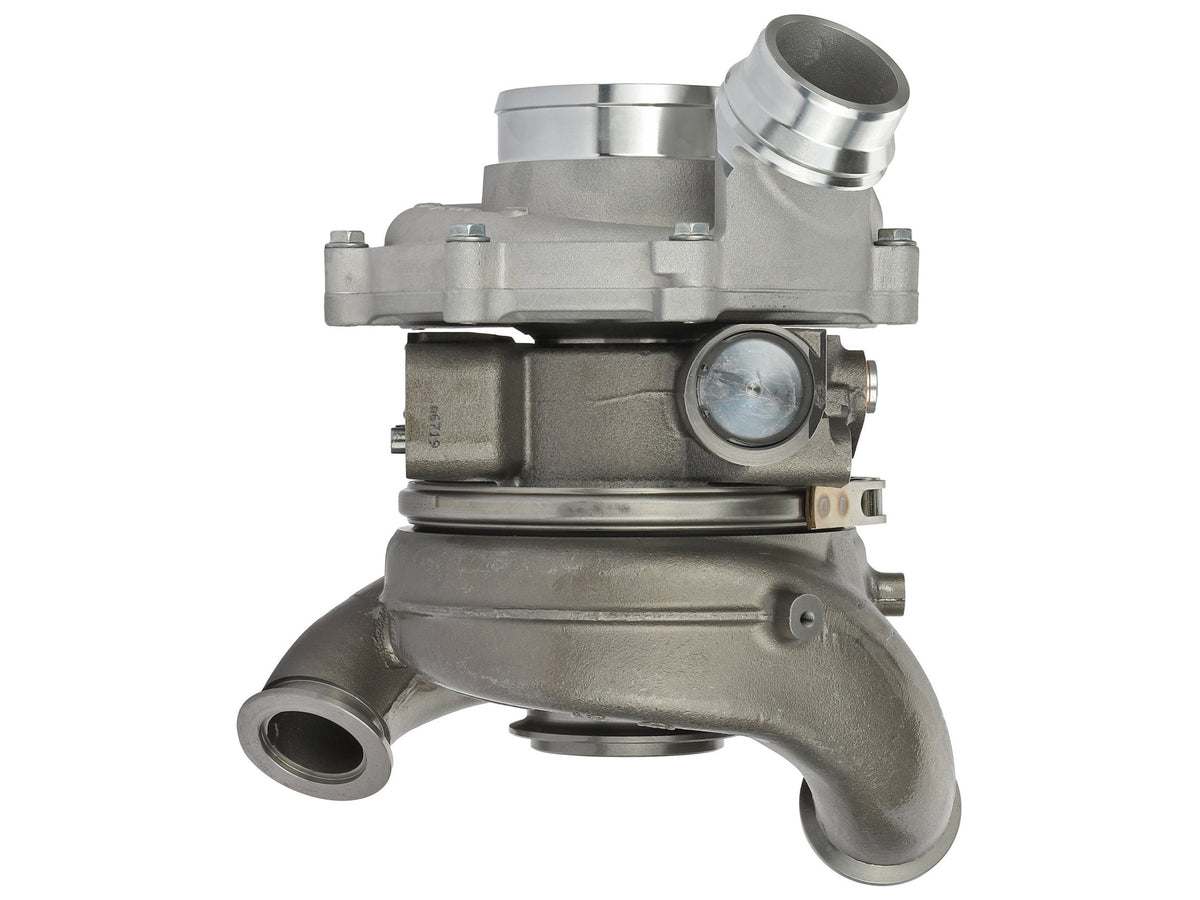

OEM Reman Garrett GT3582VAJLNU Turbo Ford H567 Truck 6.7L Power Stroke 888142-9001

OEM REMANUFACTURED GARRETT TURBOCHARGER

This is a OEM REMANUFACTURED GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

NOTE: There is a core charge of $ 250 which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase and will be fully refunded once your old re-build able core is received.

Cores must be returned within 60 days of the purchase date. Please allow up to 3 business days for us to process your refund.

Fits the following:

Part Number: 888142-9001
Interchangeable Number: 888142-0001, 888142-5001 888142-5001S, 838821-0004, 838821-5004, 838821-5004S, 838821-0010, 838821-5010, 838821-5010S, 838821-0016, 838821-5016, 838821-5016S
OEM Number: FC4Z-6K682-B, FC4Z6K682B, HC4Z-6K682-A, HC4Z6K682A, HC4Z-6K682-C, HC4Z6K682C
Turbo Model: GT3582VAJLNU
Brand: Honeywell - Garrett

Engine: Power Stroke
Engine Manufacturer: FoMoCo (Ford Motor Company)
Displacement: 6.7L, 8 Cylinders
Emission Standard: US10
Fuel: Diesel
Power: 334 hp
Speed: 2800 rpm

Actuation: Electro-hydraulic
Turbo Technology: VNT
VGT Actuator Valve Solenoid Kit: 792593-0001

Retrofit Kit: DKT1516TURKIT
Coolant Pipe: 1
Gasket: 1
Pedestal Oil Filter: 1
Pedestal to Turbo Gasket: 1
Pedestal: 1

NOTE:

- 888142-5001: This turbocharger is based on the newest revision turbo and is equal to Ford part number HC4Z-6K682-C.
- FC4Z-6K682-B: This turbocharger is internally oil fed/oil drained. If the turbocharger you are removing is oil fed externally via an oil feed line running from the pedestal to the top of the turbocharger or if the turbocharger you are replacing has part number is FC4Z-6K682-B on it, you will need an additional DKT1516TURKIT retrofit kit (sold separately).

Application:
2016- Ford H567 (F-650, F-750) Truck with 6.7L Power Stroke Diesel Engine
2016-19 Ford Chassis Cab (Non Pick-Up) with 6.7L Power Stroke Diesel Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
