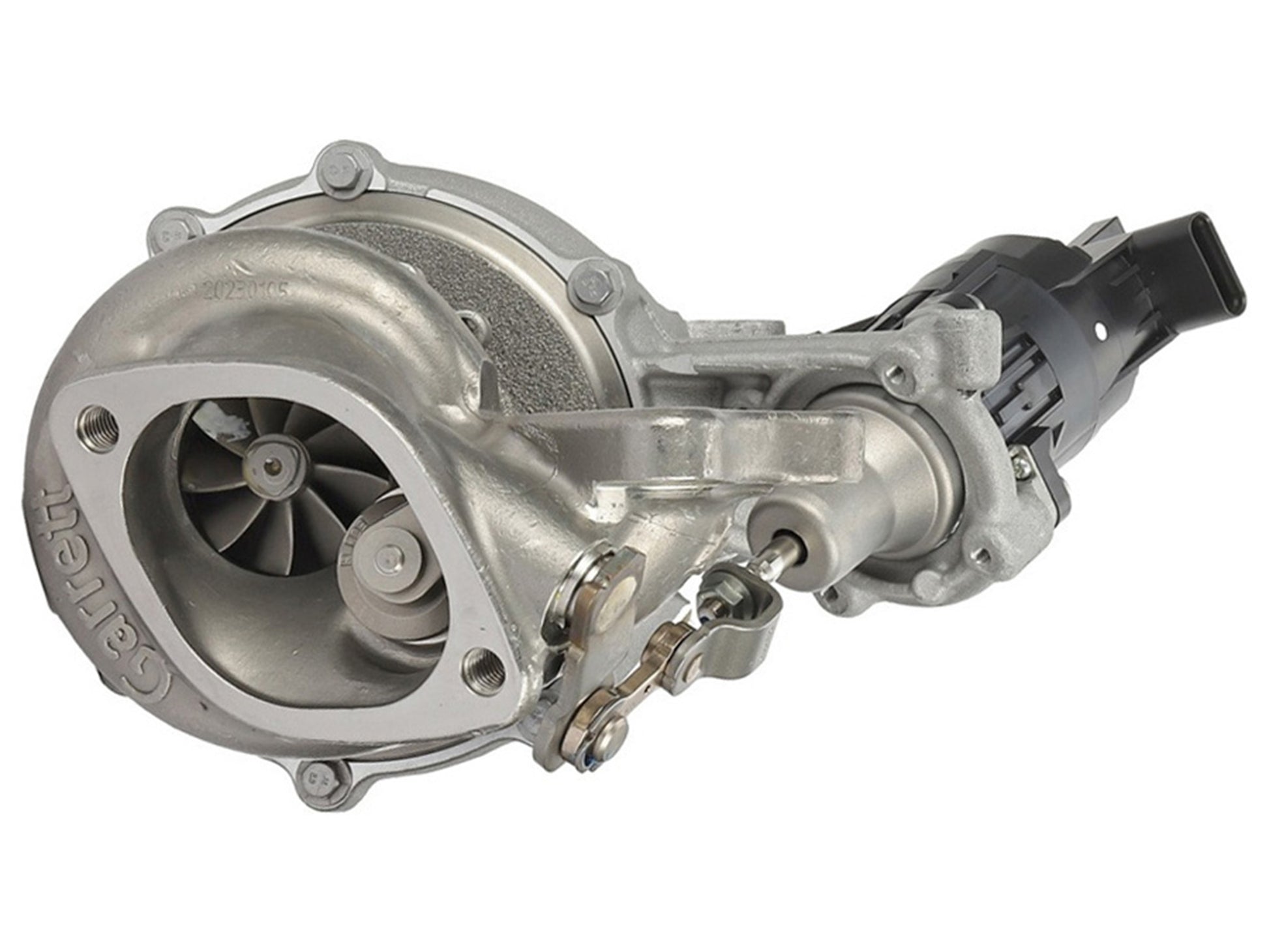

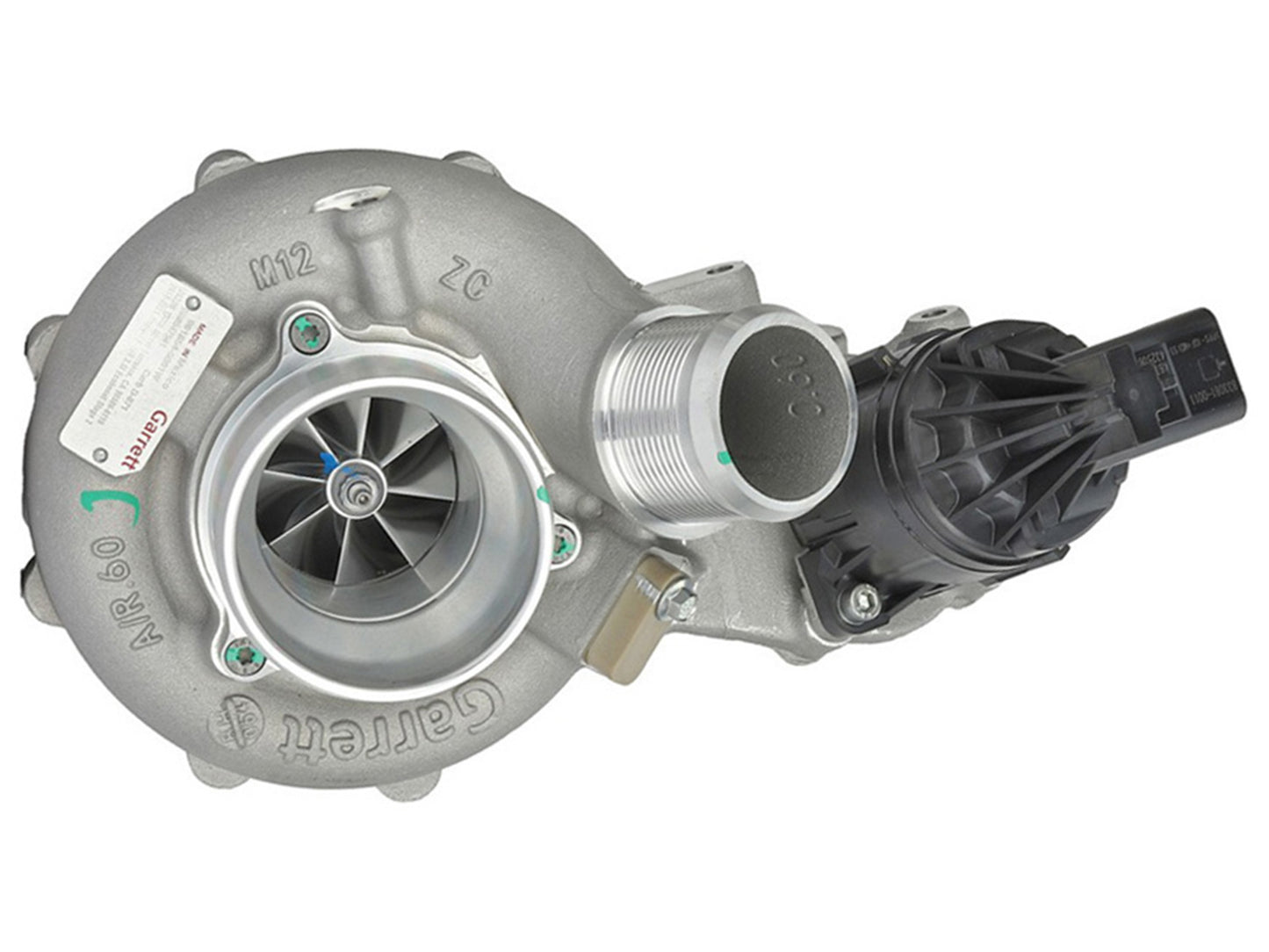

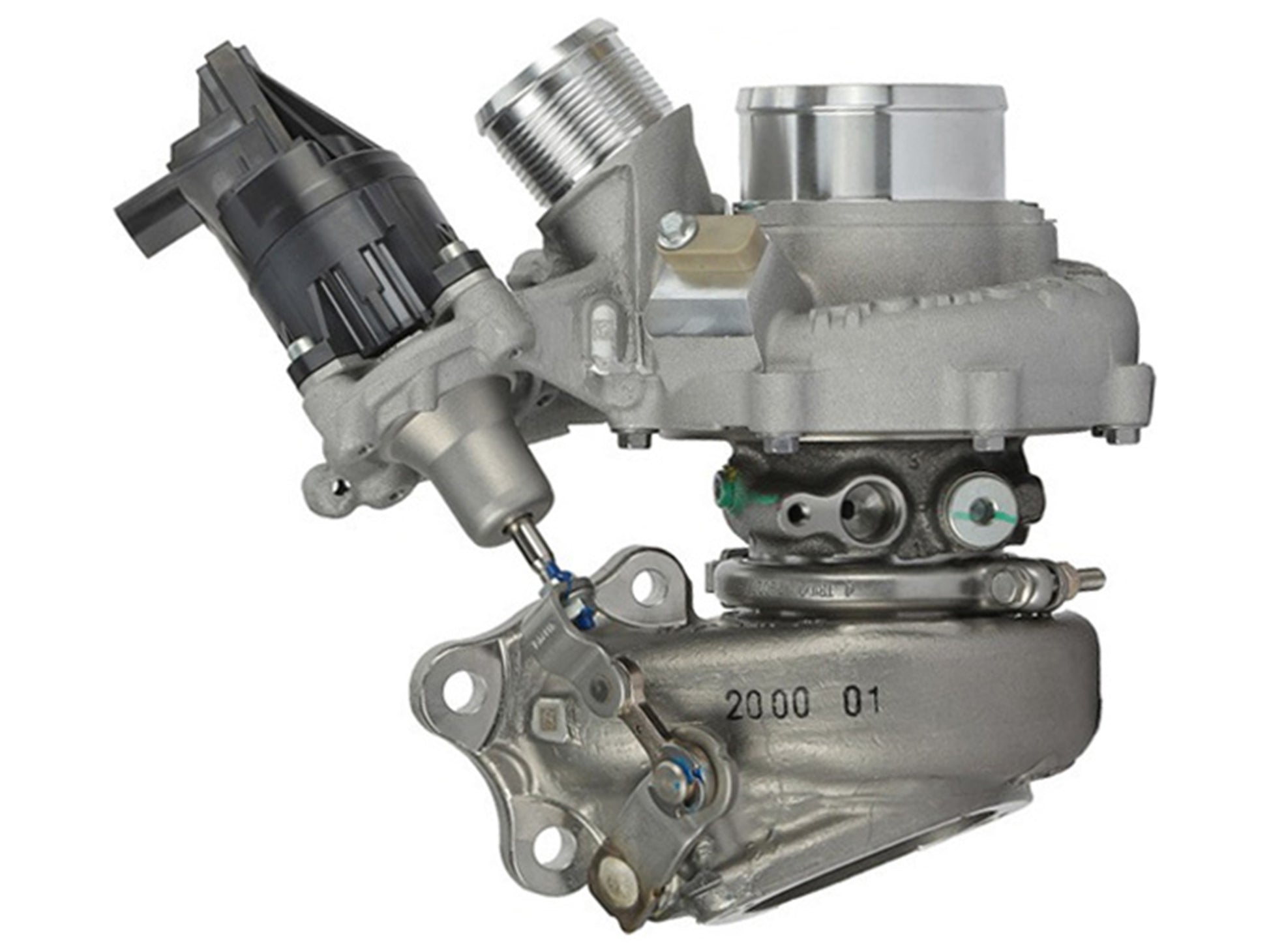

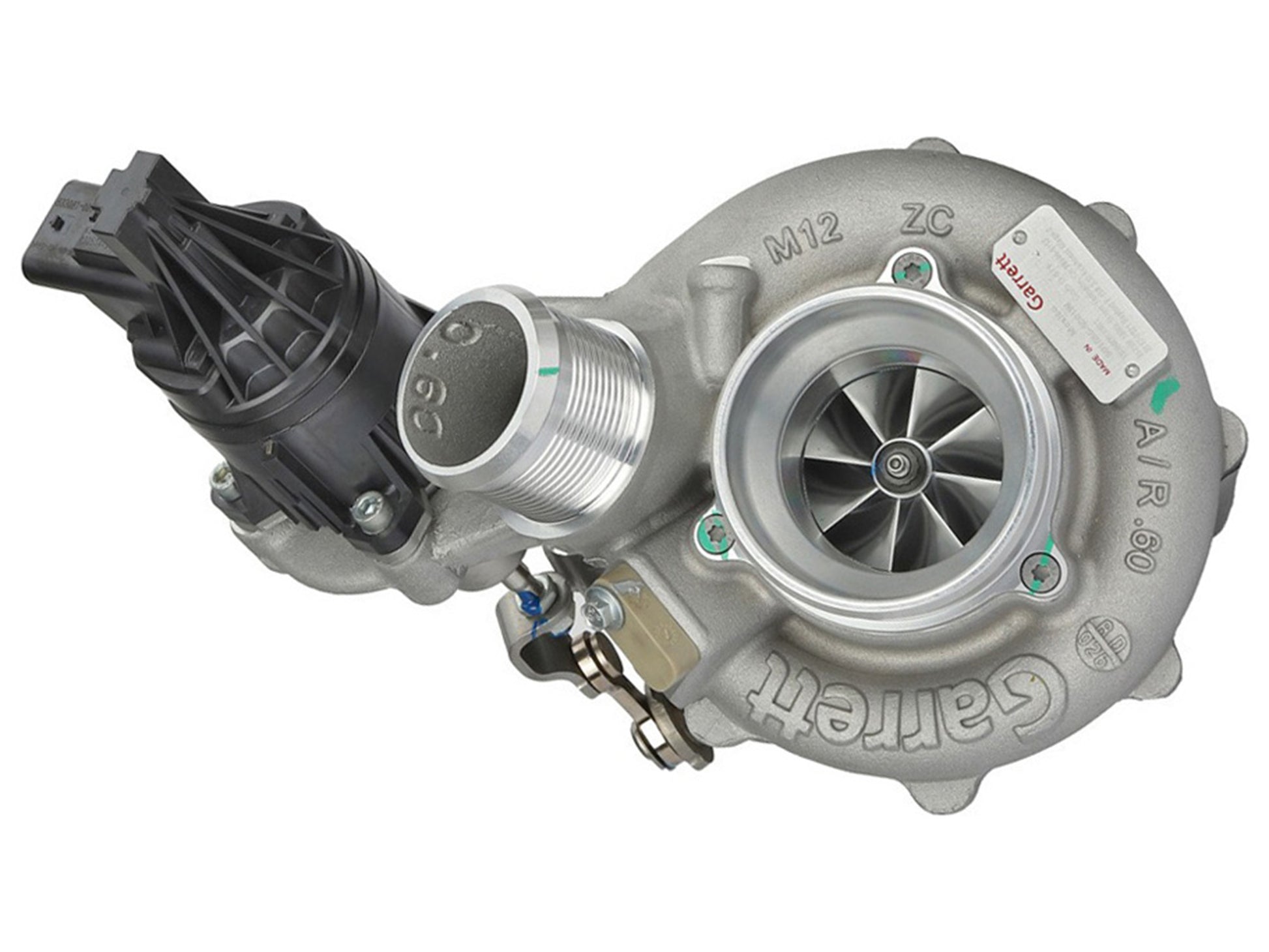

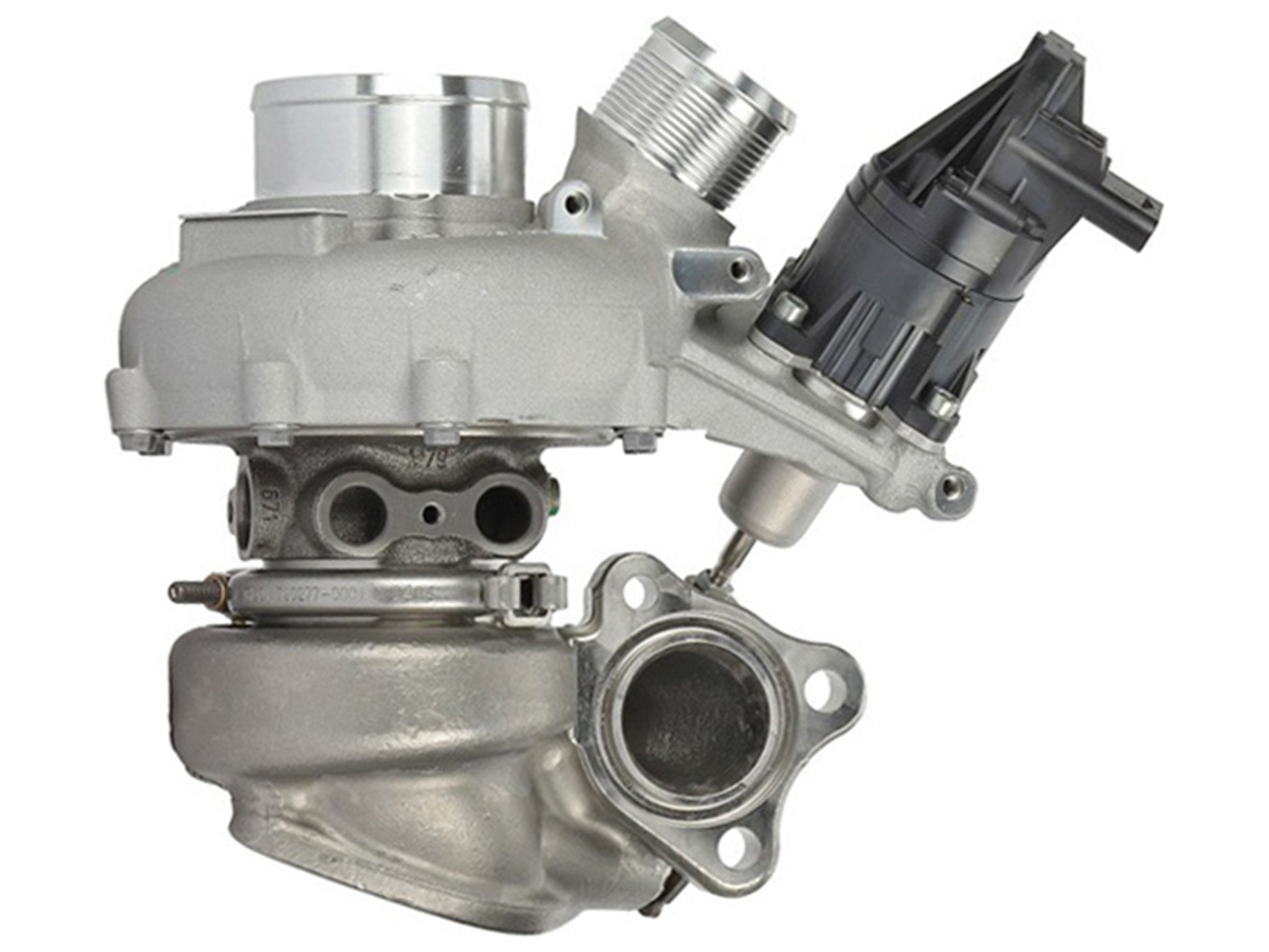

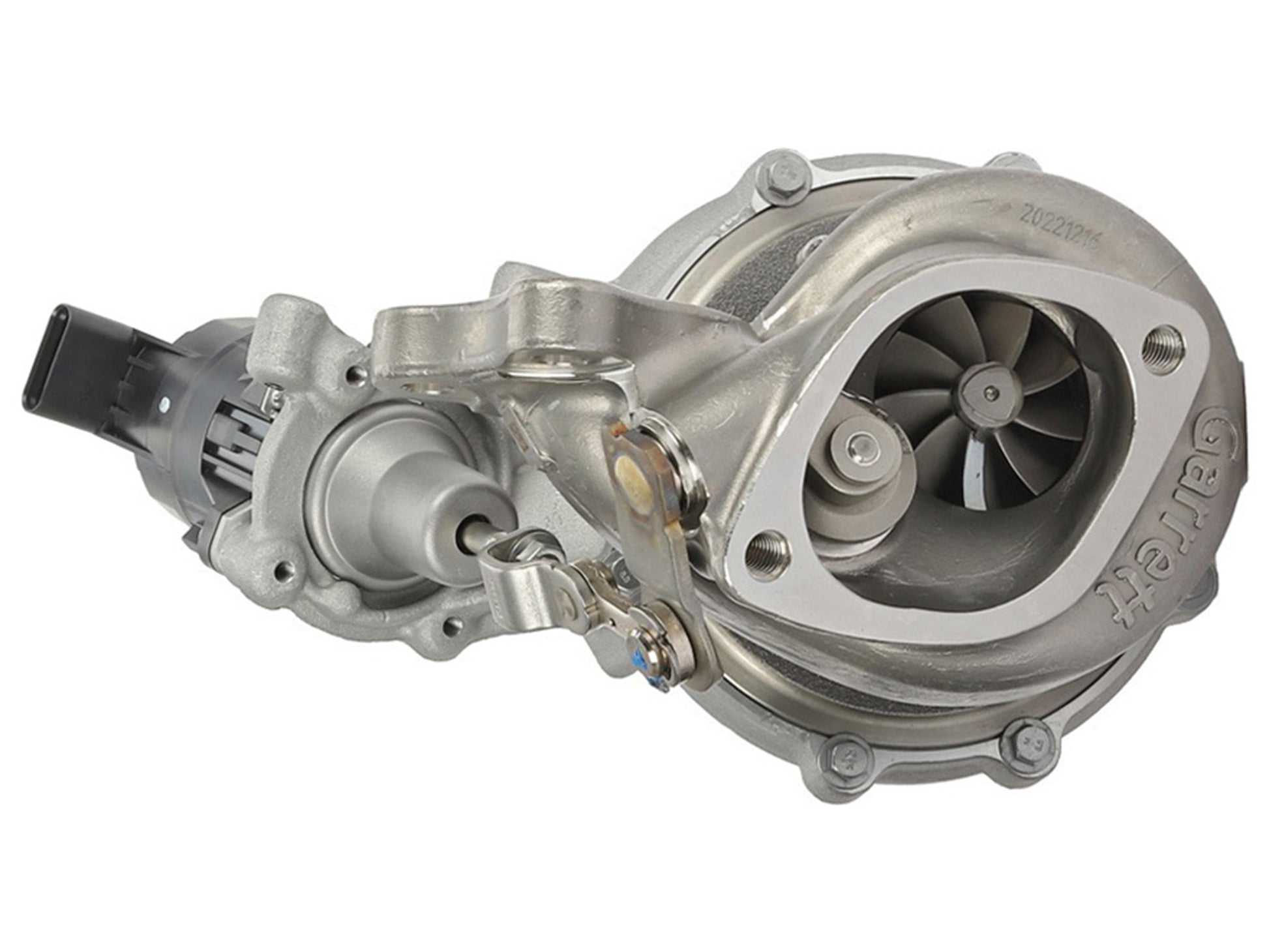

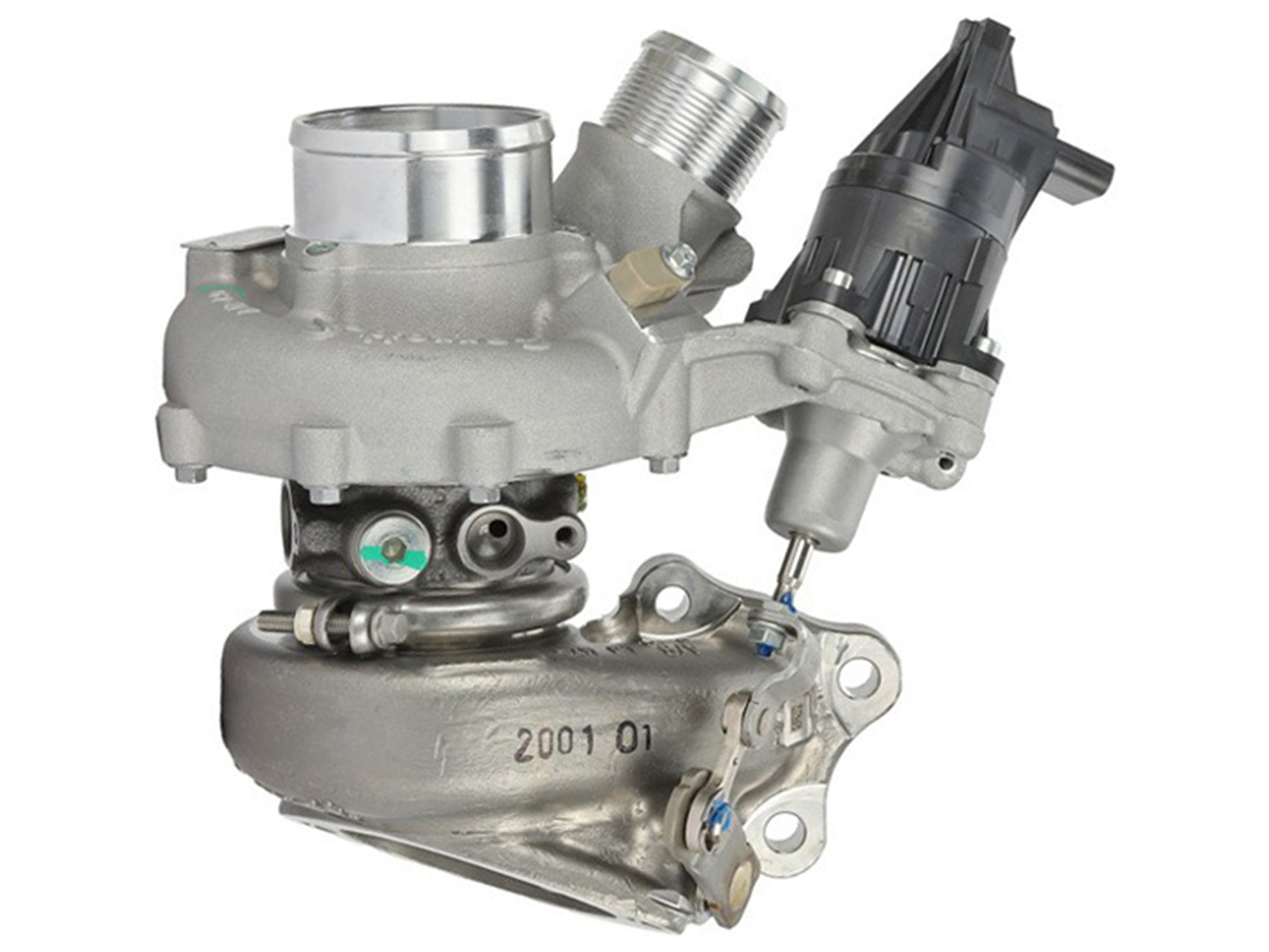

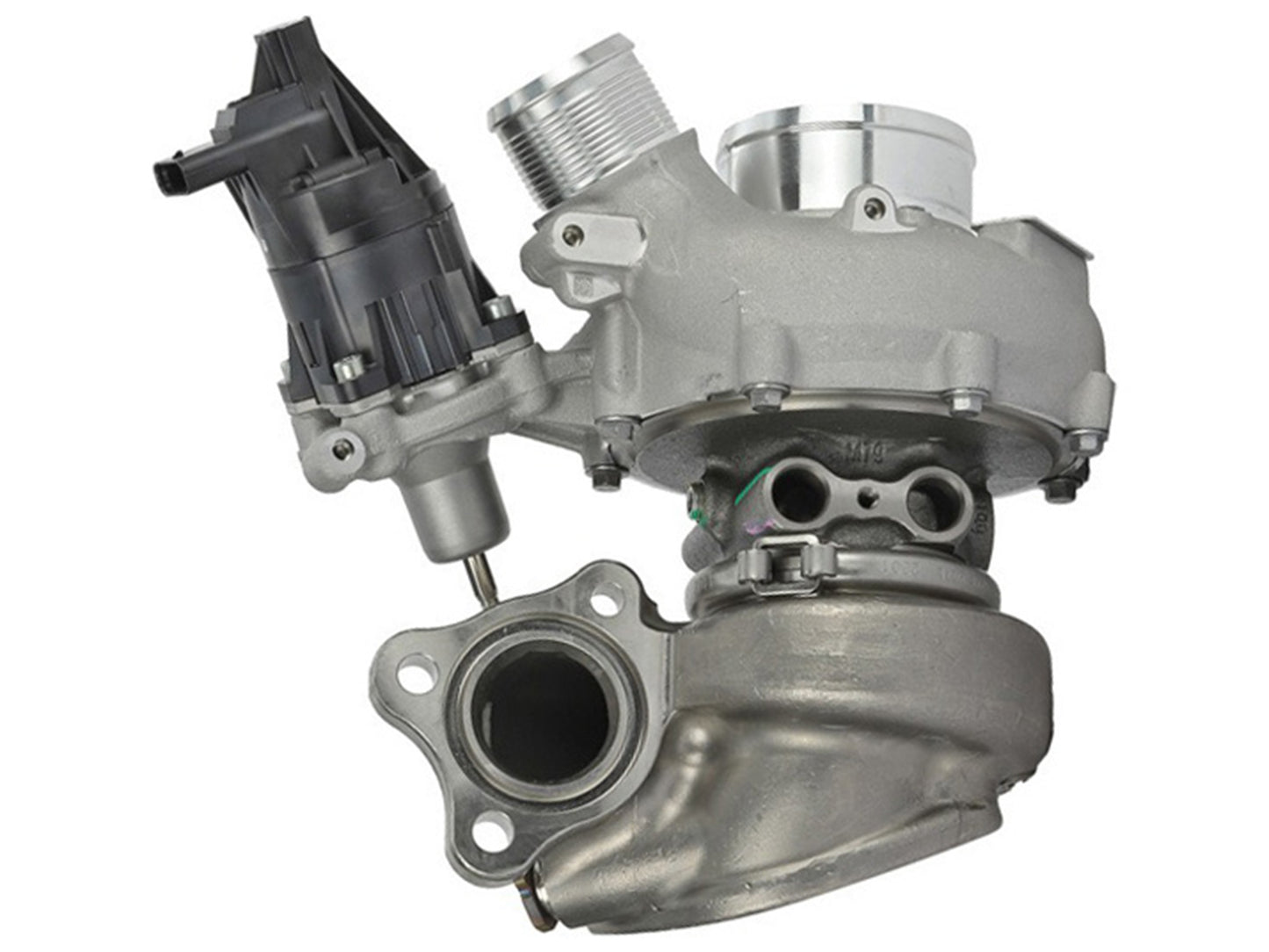

NEW OEM Garrett GT2260S Turbo Ford F-150 Raptor Truck EcoBoost 3.5L 911984-5003

BRAND NEW GENUINE GARRETT TURBOCHARGER

This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 911984-5003
Interchangeable Number: 911984-0003, 911984-5003S, 901654-0001, 901654-5001, 901654-5001S, 901654-5001W, 901655-0001, 901655-5001, 901655-5001S, 901655-5001W
OEM Number: JL7Z-6K682-A, JL7Z6K682A, JL7Z-6K682-B, JL7Z6K682B
Turbo Model: GT2260S
Manufacturer: Garrett

Year: 2017-21
Engine: EcoBoost
Displacement: 3.5L
Fuel: Diesel
Power: 700+ BHP*

Actuation: Electric
Bearing: Journal
Compressor A/R: 0.60
Compressor Wheel: (Ind. 45 mm, Exd. 60 mm, Trim 57)
Turbine A/R: 0.45
Turbine Wheel: (Ind. 50 mm, Exd. 46 mm, Trim 84)

NOTE: This turbocharger kit includes 901654-5001 and 901655-5001.

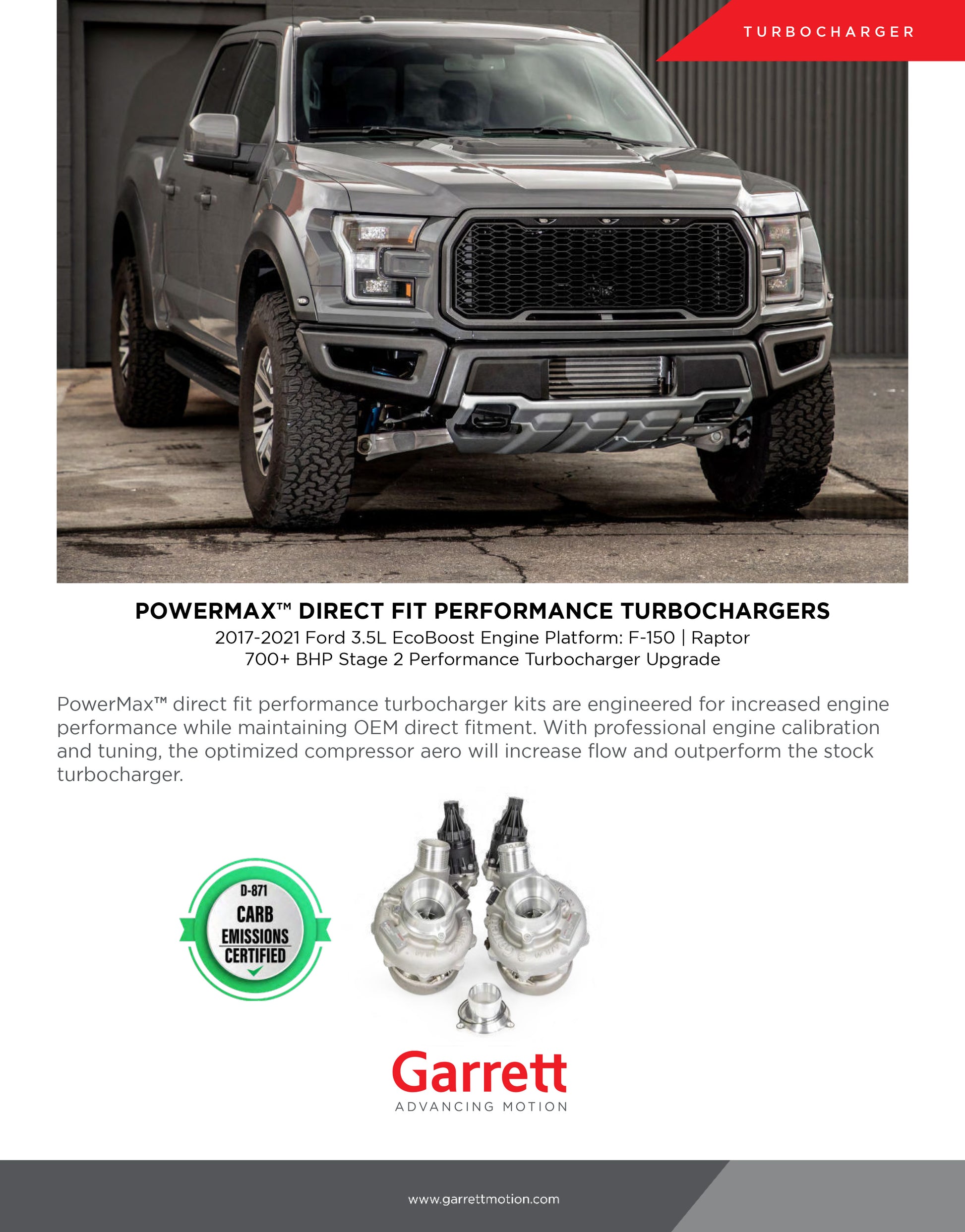

POWERMAX™ DIRECT FIT PERFORMANCE TURBOCHARGERS:

- 2017-21 Ford 3.5L EcoBoost Engine Platform: F-150, F-150 Raptor
- 700+ BHP Stage 2 Performance Turbocharger Upgrade

PowerMax™ direct fit performance turbocharger kits are engineered for increased engine performance while maintaining OEM direct fitment. With professional engine calibration and tuning, the optimized compressor aero will increase flow and outperform the stock turbocharger.

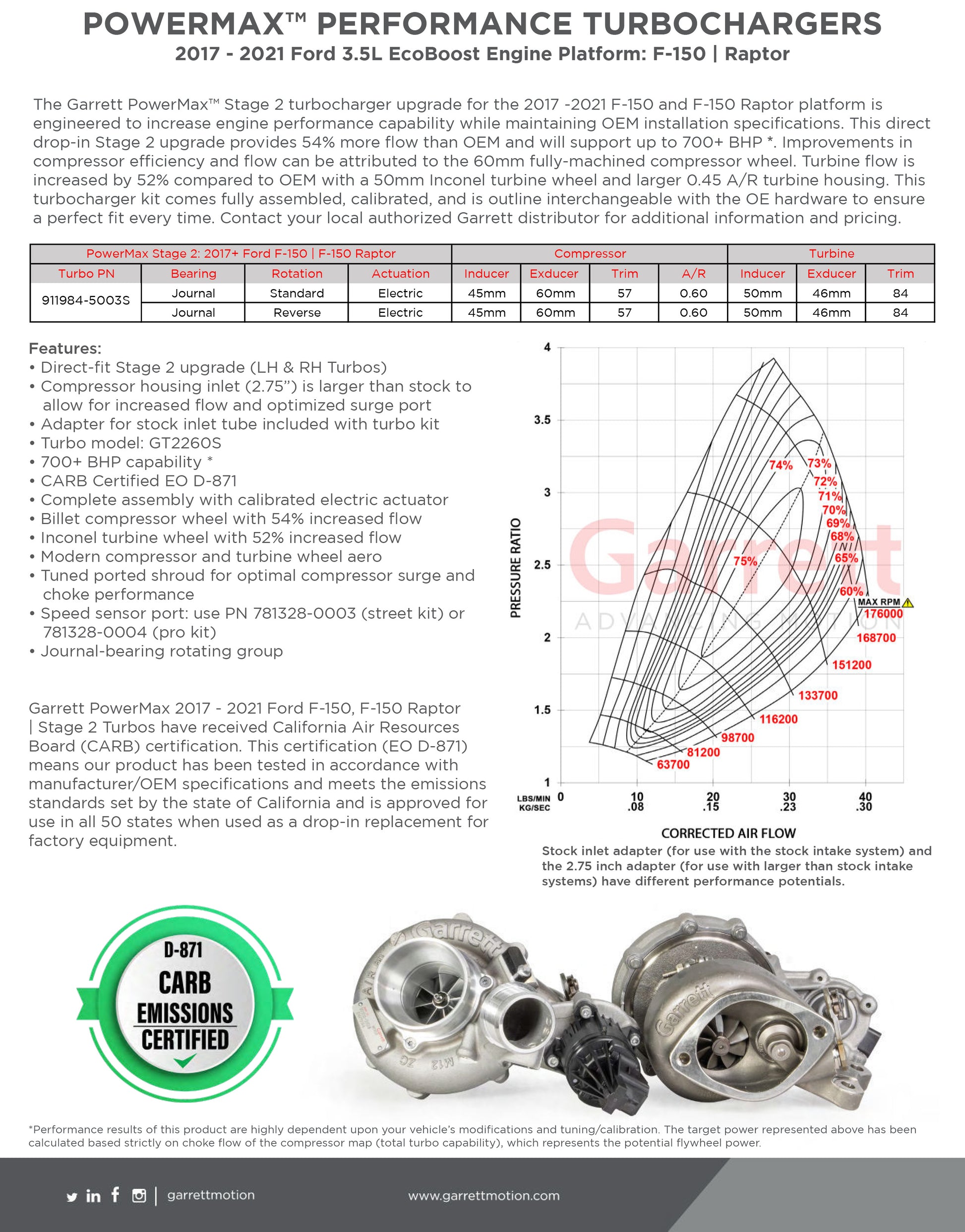

The Garrett PowerMax™ Stage 2 turbocharger upgrade for the 2017-21 F-150 and F-150 Raptor platform is engineered to increase engine performance capability while maintaining OEM installation specifications. This direct drop-in Stage 2 upgrade provides 54% more flow than OEM and will support up to 700+ BHP*. Improvements in compressor efficiency and flow can be attributed to the 60 mm fully-machined compressor wheel. Turbine flow is increased by 52% compared to OEM with a 50 mm Inconel turbine wheel and larger 0.45 A/R turbine housing. This turbocharger kit comes fully assembled, calibrated, and is outline interchangeable with the OE hardware to ensure a perfect fit every time.

FEATURES:

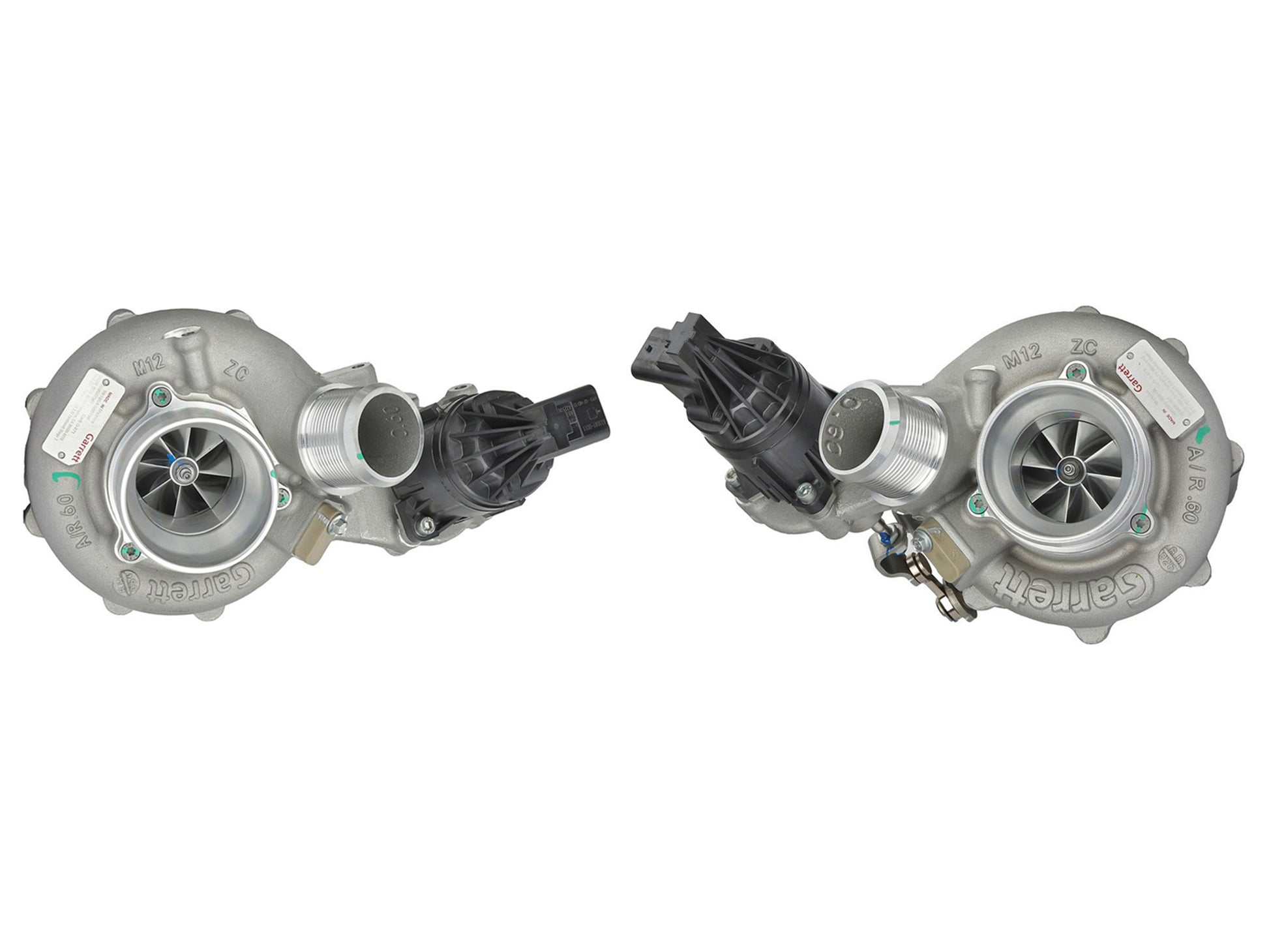

- Direct-fit Stage 2 upgrade (LH & RH Turbos).
- Compressor housing inlet (2.75”) is larger than stock to allow for increased flow and optimized surge port.

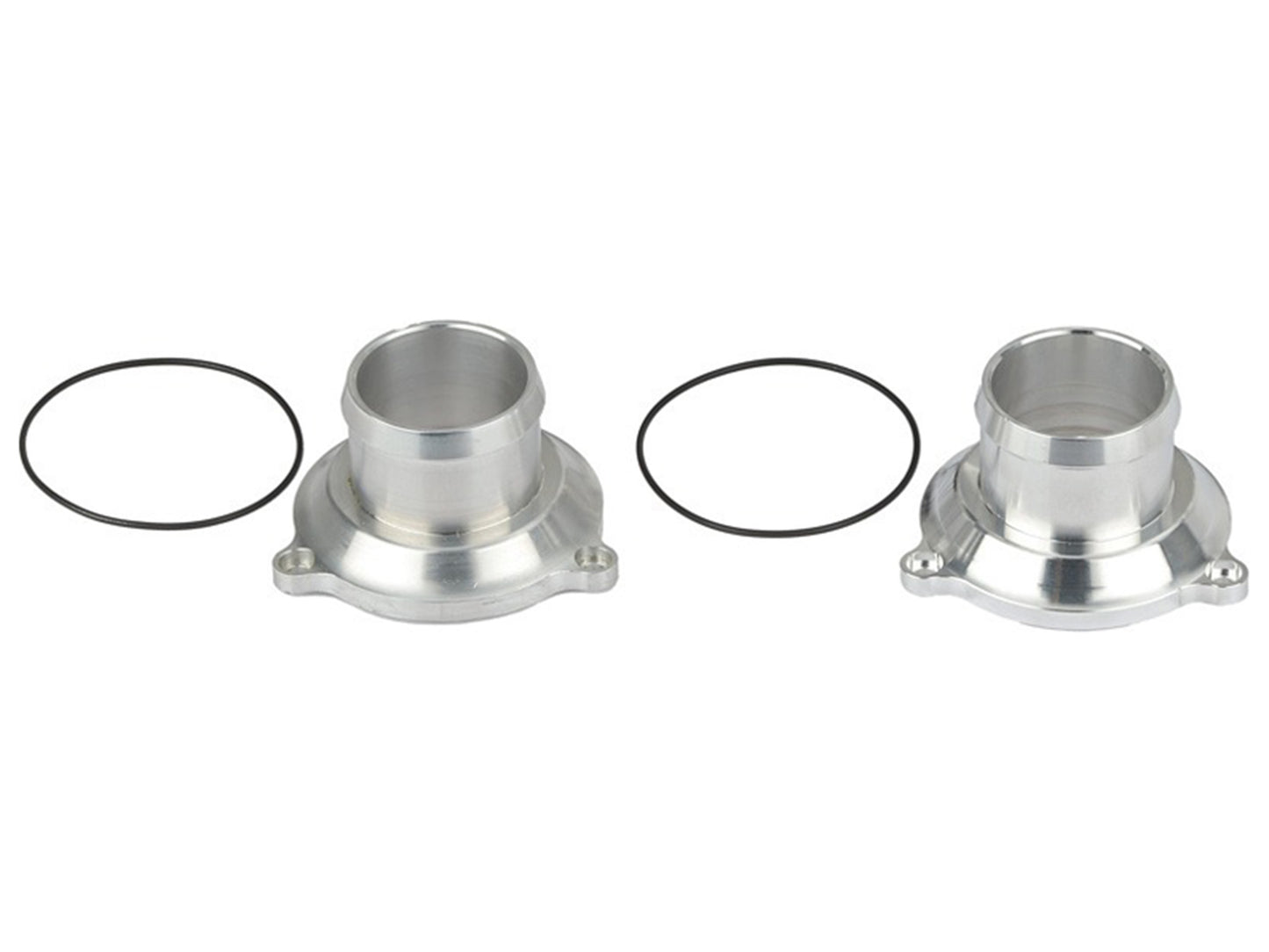

- Adapter for stock inlet tube included with turbo kit.
- Turbo model: GT2260S.
- 700+ BHP capability*.
- CARB Certified EO D-871.
- Complete assembly with calibrated electric actuator.
- Billet compressor wheel with 54% increased flow.
- Inconel turbine wheel with 52% increased flow.
- Modern compressor and turbine wheel aero.
- Tuned ported shroud for optimal compressor surge and choke performance.
- Speed sensor port: use P/N 781328-0003 (street kit) or 781328-0004 (pro kit).
- Journal-bearing rotating group.

Garrett PowerMax™ 2017-21 Ford F-150, F-150 Raptor Stage 2 turbos have received California Air Resources Board (CARB) certification. This certification (EO D-871) means our product has been tested in accordance with manufacturer/OEM specifications and meets the emissions standards set by the state of California and is approved for use in all 50 states when used as a drop-in replacement for factory equipment.

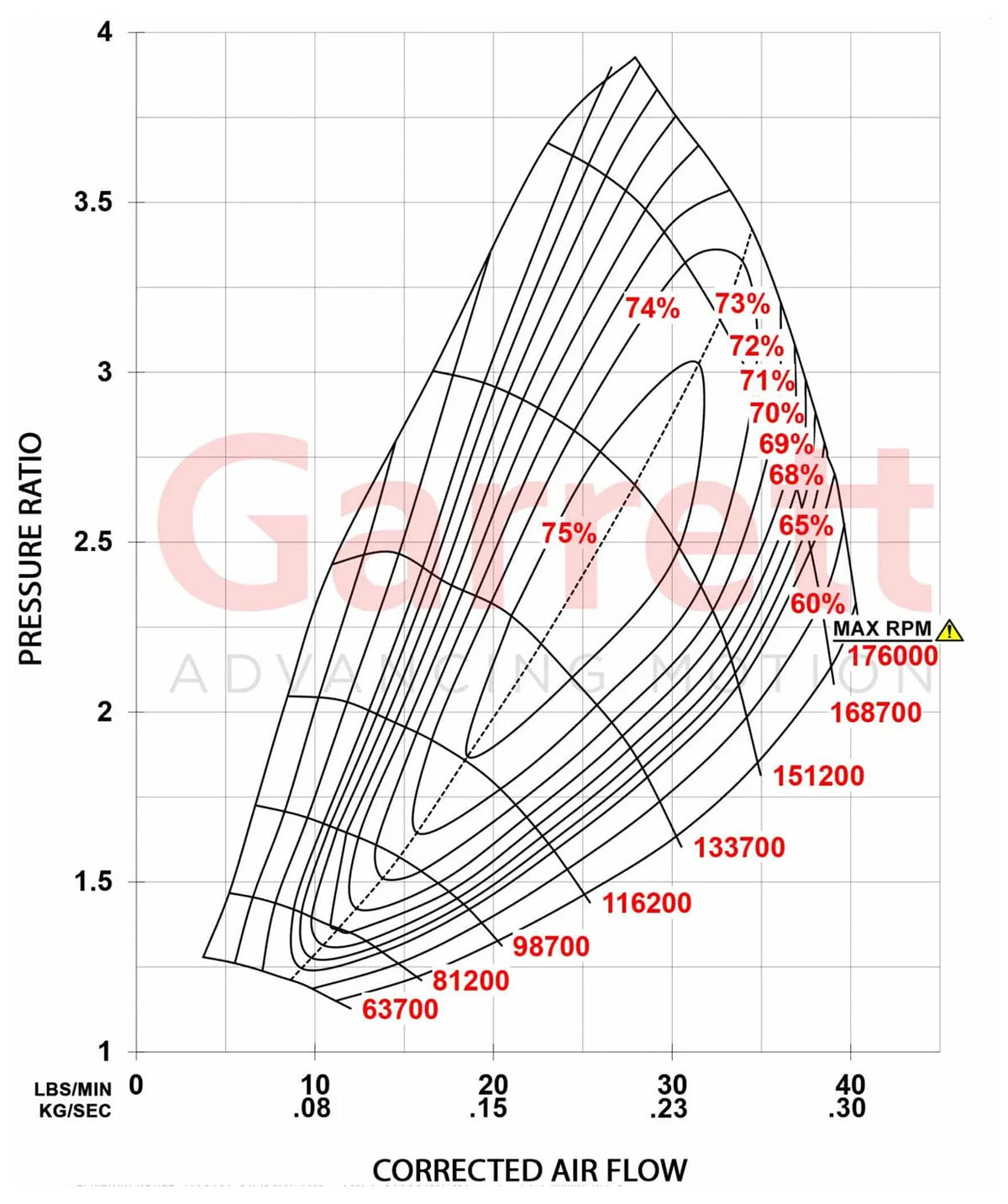

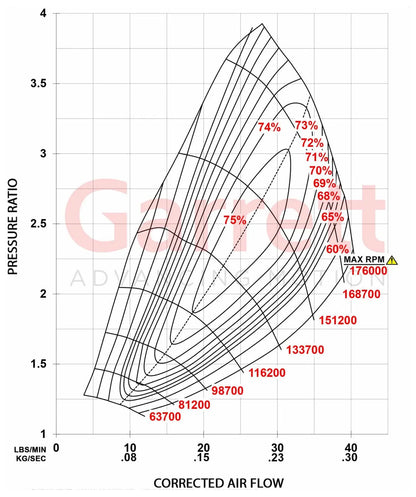

*Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The target power represented above has been calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel power.

Application:
2017-21 Ford F-150, F-150 Raptor Truck with EcoBoost Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
