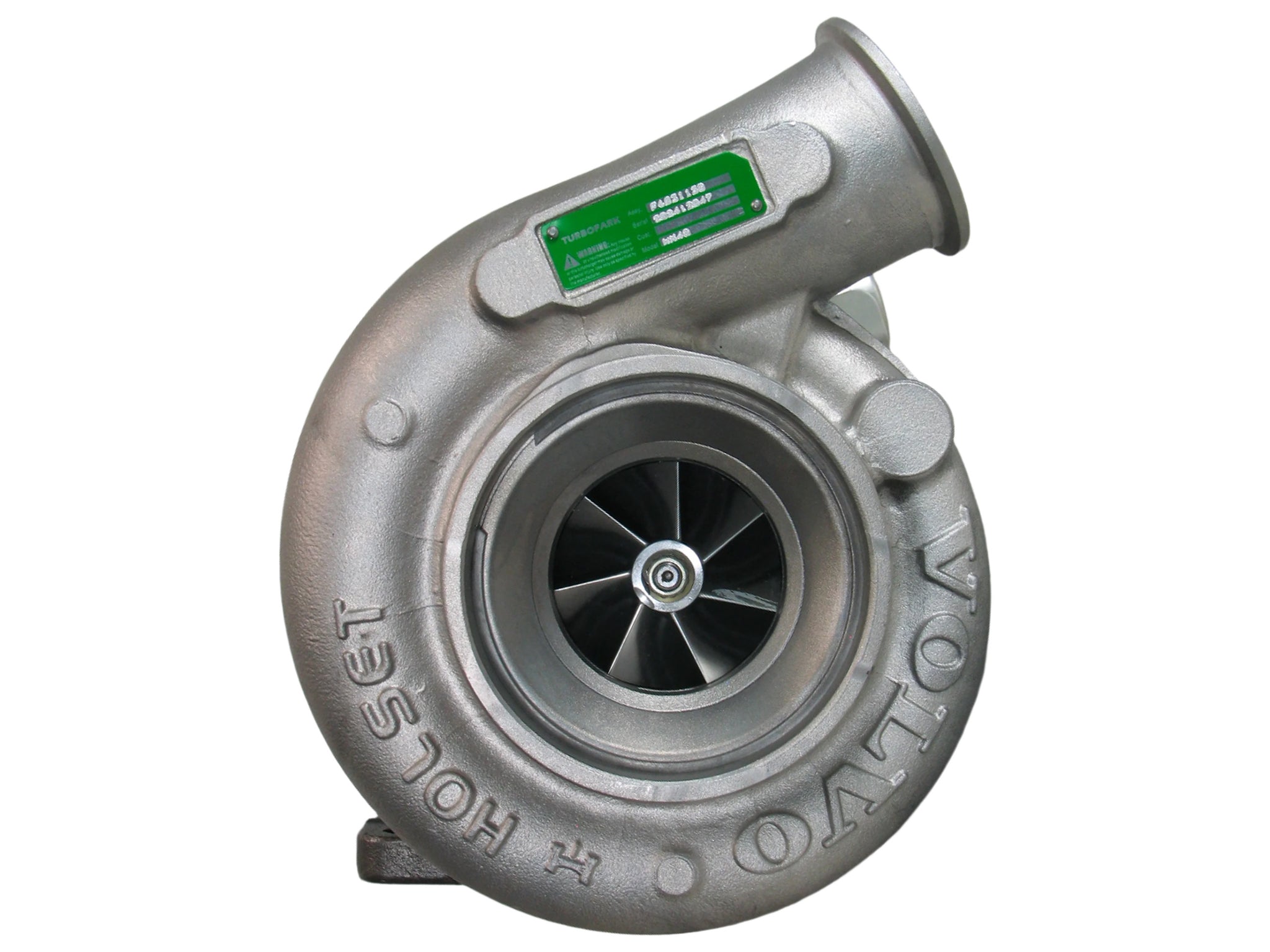

HX40W Turbo Volvo Construction Equipment Truck MD9 Diesel Engine 4031130
HX40W Turbo Volvo Construction Equipment Truck MD9 Diesel Engine 4031130
SKU:F4031130
Precio habitual
$1,650.00
Precio habitual
$0.00
Precio de oferta
$1,650.00
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Orders ship Monday-Friday, usually within 24 hours of purchase.
International shipping subject to VAT and/or other import tax calculated during checkout.
TURBOTURBOS REMANUFACTURED TURBOCHARGER
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 4043806
Interchangeable Number: 403113000, 4031130H, 4031130HX
OEM Number: 11129541, 11129601, 4031130, 4034101, 4043808, 5553198, 9011129541, 9011129601, E9011129541, E9011129601, VOE11129601
Turbo Model: HX40W
Engine: MD9
Engine Manufacturer: Volvo
Fuel: Diesel
Angle α (Compressor Housing): 86°
Angle β (Turbine Housing): 224°
Actuator Kit (Pneumatic): 4030861 (4030861H)
Back Plate: 3530923 (1154351300, 1800016009)
Bearing Housing: 4030886 (3537112, 3593878, 4038197)(Oil Cooled)
CHRA: 4030874 (4030874H, 4032651, 4031325, 4032695, 4027949)
Compressor Wheel: 4035380 (4035879, 4035380H, 4044562)(Ind. 60 mm, Exd. 84.9 mm, Trim 5.84, 7+7 Blades, Super Back)
Gasket (Oil Outlet): 210060 (409267-0003, 409267-0002, 129120, 201048, 3500682, 3709738, 3519763, 9738, 9988, 1S4810, 210060-0000, 51914, 148062, 311585, 210018-0000)(1900000025)
Gasket (Top Turbine Cover): 3537960
Gasket (Turbine Inlet): 409039-0000 (210022-0000)
Gasket Kit: 3545575 (3800196H, 1900100057)
Heat Shield: 3519304 (3519302)(1152301340, 2030016031)
Repair Kit (Major): 4027448H (4027448, 3575169, 4032051)(1153035751, 5000020021)
Turbine Housing: 4044008H
Turbine Wheel: 4039489 (3596226, 4050572)(Ind. 76 mm, Exd. 64 mm, Trim 10.16, 10 Blades)
Turbocharger Kit: 4031130H/4031130HX
Application:
Volvo Construction Equipment, Truck with MD9 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 4043806
Interchangeable Number: 403113000, 4031130H, 4031130HX
OEM Number: 11129541, 11129601, 4031130, 4034101, 4043808, 5553198, 9011129541, 9011129601, E9011129541, E9011129601, VOE11129601
Turbo Model: HX40W
Engine: MD9
Engine Manufacturer: Volvo
Fuel: Diesel
Angle α (Compressor Housing): 86°
Angle β (Turbine Housing): 224°
Actuator Kit (Pneumatic): 4030861 (4030861H)
Back Plate: 3530923 (1154351300, 1800016009)
Bearing Housing: 4030886 (3537112, 3593878, 4038197)(Oil Cooled)
CHRA: 4030874 (4030874H, 4032651, 4031325, 4032695, 4027949)
Compressor Wheel: 4035380 (4035879, 4035380H, 4044562)(Ind. 60 mm, Exd. 84.9 mm, Trim 5.84, 7+7 Blades, Super Back)
Gasket (Oil Outlet): 210060 (409267-0003, 409267-0002, 129120, 201048, 3500682, 3709738, 3519763, 9738, 9988, 1S4810, 210060-0000, 51914, 148062, 311585, 210018-0000)(1900000025)
Gasket (Top Turbine Cover): 3537960
Gasket (Turbine Inlet): 409039-0000 (210022-0000)
Gasket Kit: 3545575 (3800196H, 1900100057)
Heat Shield: 3519304 (3519302)(1152301340, 2030016031)
Repair Kit (Major): 4027448H (4027448, 3575169, 4032051)(1153035751, 5000020021)
Turbine Housing: 4044008H
Turbine Wheel: 4039489 (3596226, 4050572)(Ind. 76 mm, Exd. 64 mm, Trim 10.16, 10 Blades)
Turbocharger Kit: 4031130H/4031130HX
Application:
Volvo Construction Equipment, Truck with MD9 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
