HX35W Turbo Komatsu PC220 Excavator Cummins 6B 6BTAA 6BTA5.9 5.9L Diesel 4038471
HX35W Turbo Komatsu PC220 Excavator Cummins 6B 6BTAA 6BTA5.9 5.9L Diesel 4038471
SKU:F4038471
Precio habitual
$795.00
Precio habitual
$0.00
Precio de oferta
$795.00
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Orders ship Monday-Friday, usually within 24 hours of purchase.
International shipping subject to VAT and/or other import tax calculated during checkout.

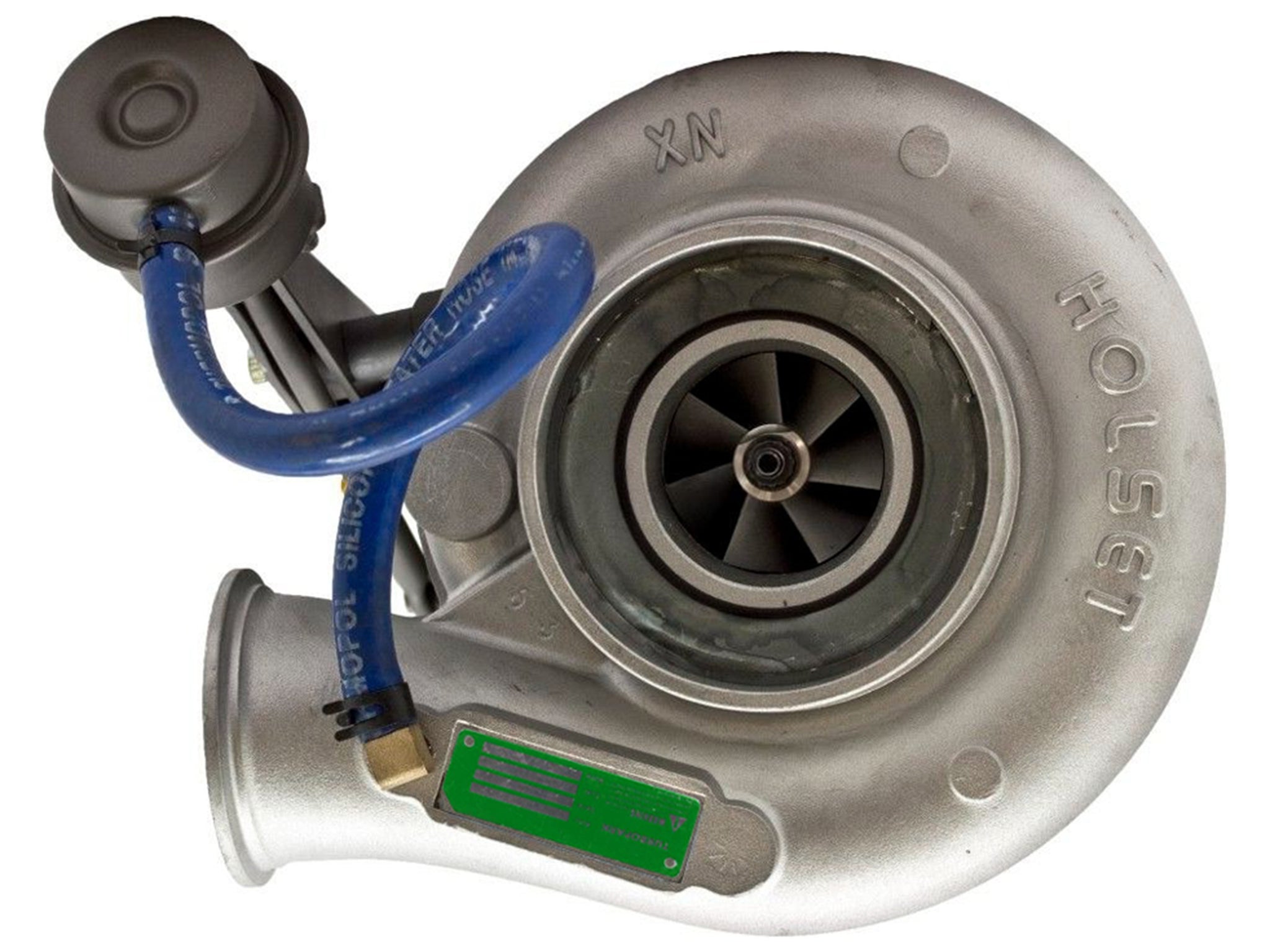

TURBOTURBOS REMANUFACTURED TURBOCHARGER
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 4038471
Interchangeable Number: 3595159, 3595160, 3597111, 3598036, 4025331, 4025331NX, 4025331RX, 4033072H, 4035375, 403537600, 403537600H, 4035376H, 4036105, 4038470, 4038473, 4089136, 4089136NX, 4089136RX, 4089746NX, 4089746RX, 5328624
OEM Number: 4033072, 4035376, 4036106, 4038479, 4039147, 4089746, 4089954, 6738-81-8190, 6738818190, 6738-81-8191, 6738818191, 6738-81-8192, 6738818192
Turbo Model: HX35W, HX35W-E7735L/E12PB11
Engine: 6B, 6BTAA, 6BTA5.9-C169, SAA6D102E-2
Engine Manufacturer: Cummins, KCEC
Displacement: 5.9L, 5900 ccm, 6 Cylinders
Fuel: Diesel
Angle α (Compressor Housing): 160°
Angle β (Turbine Housing): 20°
Actuator Kit (Pneumatic): 4030123H/4031488H
Bearing Housing: 3532632/4027869
Bracket Kit: 4027137H
CHRA: 4027883 (4027883H)
Clamp Plate (Turbine): 2839879H
Compressor Wheel: 3599639 (Ind. 50 mm, Exd. 83 mm, 8+8 Blades)
Gasket (Oil Drain): 3519805H
Gasket (Oil Outlet): 210060 (311585, 148062)(Paper)
Gasket (Turbine Inlet): 409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006)
Gasket (Turbine Outlet): 3535001H
Gasket Kit: 3545575H
Heat Shield: 3519304 (3519302)(1152301340)
Repair Kit (Major): 3575169 (3575169H)(1153035750)
Retaining Ring: 3533163H
Seal Plate: 3530923 (1154351300)
Turbine Housing: 3532299H
Turbine Wheel: 3519336 (Ind. 70 mm, Exd. 59.9 mm, 12 Blades)(1152301435)
Turbocharger Kit: 4035376H
NOTE: Interchangeable with 5328623 but with the orientation of the compressor housing adjusted.
Application:
2001-04 Komatsu PC220 Excavator with 5.9L Cummins 6B, 6BTAA, 6BTA5.9-C169 Diesel Engine
2001-04 Komatsu PC220 Excavator with 5.9L SAA6D102E-2 Diesel Engine
2001-04 Komatsu PC270 Excavator with 5.9L Cummins 6BTA5.9-C169 Diesel Engine
2001-04 Komatsu PC270 Excavator with 5.9L SAA6D102E-2 Diesel Engine
2001-04 Komatsu Wheel Loader with 5.9L Cummins 6BTAA Diesel Engine
Hyundai R210W-9S, R260LC-9S Excavator
Komatsu Industrial with 5.9L Cummins 6BTAA Diesel Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 4038471
Interchangeable Number: 3595159, 3595160, 3597111, 3598036, 4025331, 4025331NX, 4025331RX, 4033072H, 4035375, 403537600, 403537600H, 4035376H, 4036105, 4038470, 4038473, 4089136, 4089136NX, 4089136RX, 4089746NX, 4089746RX, 5328624
OEM Number: 4033072, 4035376, 4036106, 4038479, 4039147, 4089746, 4089954, 6738-81-8190, 6738818190, 6738-81-8191, 6738818191, 6738-81-8192, 6738818192
Turbo Model: HX35W, HX35W-E7735L/E12PB11
Engine: 6B, 6BTAA, 6BTA5.9-C169, SAA6D102E-2
Engine Manufacturer: Cummins, KCEC
Displacement: 5.9L, 5900 ccm, 6 Cylinders
Fuel: Diesel
Angle α (Compressor Housing): 160°
Angle β (Turbine Housing): 20°
Actuator Kit (Pneumatic): 4030123H/4031488H
Bearing Housing: 3532632/4027869
Bracket Kit: 4027137H
CHRA: 4027883 (4027883H)
Clamp Plate (Turbine): 2839879H
Compressor Wheel: 3599639 (Ind. 50 mm, Exd. 83 mm, 8+8 Blades)
Gasket (Oil Drain): 3519805H
Gasket (Oil Outlet): 210060 (311585, 148062)(Paper)
Gasket (Turbine Inlet): 409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006)
Gasket (Turbine Outlet): 3535001H
Gasket Kit: 3545575H
Heat Shield: 3519304 (3519302)(1152301340)
Repair Kit (Major): 3575169 (3575169H)(1153035750)
Retaining Ring: 3533163H
Seal Plate: 3530923 (1154351300)
Turbine Housing: 3532299H
Turbine Wheel: 3519336 (Ind. 70 mm, Exd. 59.9 mm, 12 Blades)(1152301435)
Turbocharger Kit: 4035376H
NOTE: Interchangeable with 5328623 but with the orientation of the compressor housing adjusted.
Application:
2001-04 Komatsu PC220 Excavator with 5.9L Cummins 6B, 6BTAA, 6BTA5.9-C169 Diesel Engine
2001-04 Komatsu PC220 Excavator with 5.9L SAA6D102E-2 Diesel Engine
2001-04 Komatsu PC270 Excavator with 5.9L Cummins 6BTA5.9-C169 Diesel Engine
2001-04 Komatsu PC270 Excavator with 5.9L SAA6D102E-2 Diesel Engine
2001-04 Komatsu Wheel Loader with 5.9L Cummins 6BTAA Diesel Engine
Hyundai R210W-9S, R260LC-9S Excavator
Komatsu Industrial with 5.9L Cummins 6BTAA Diesel Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
