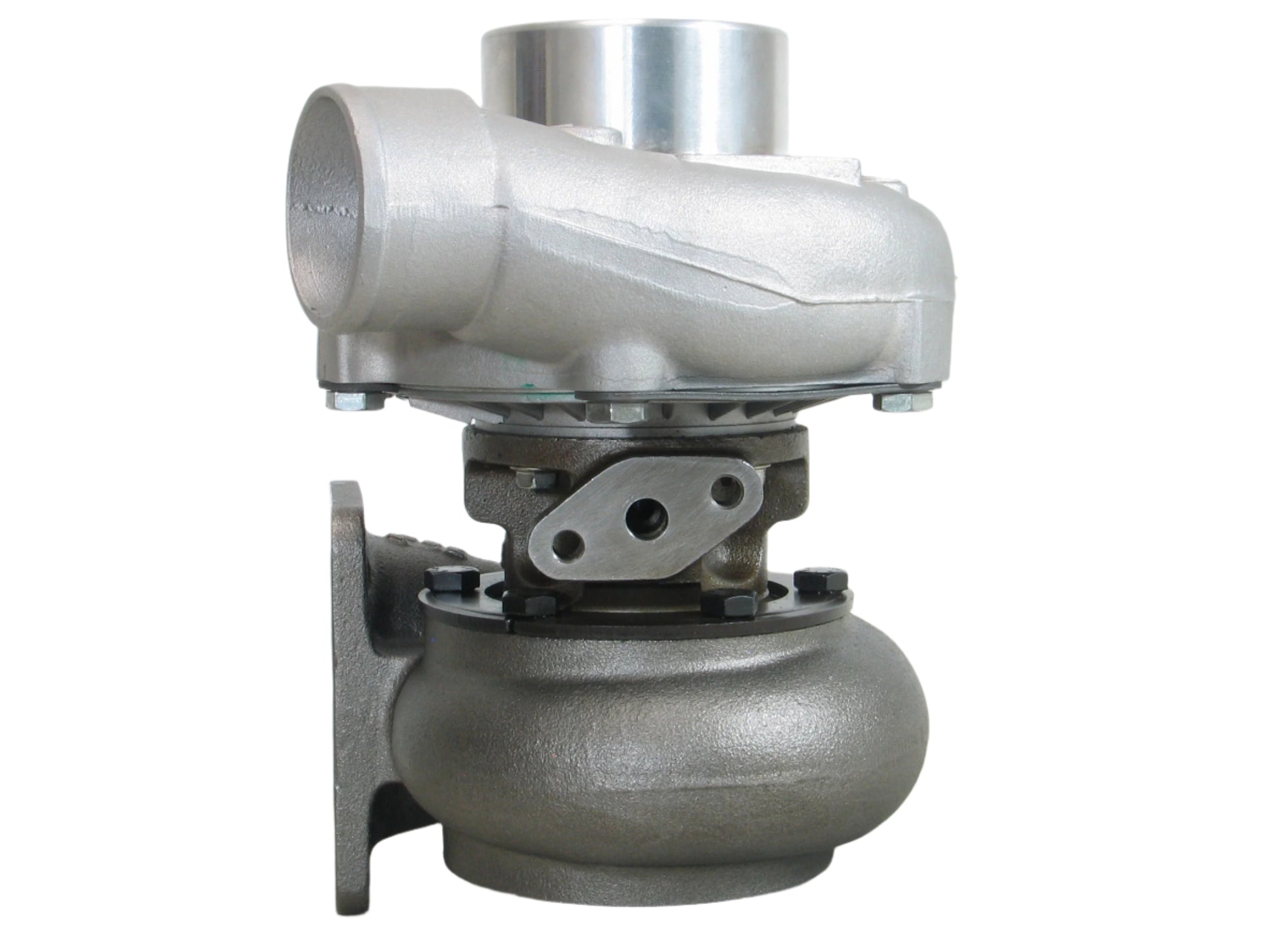

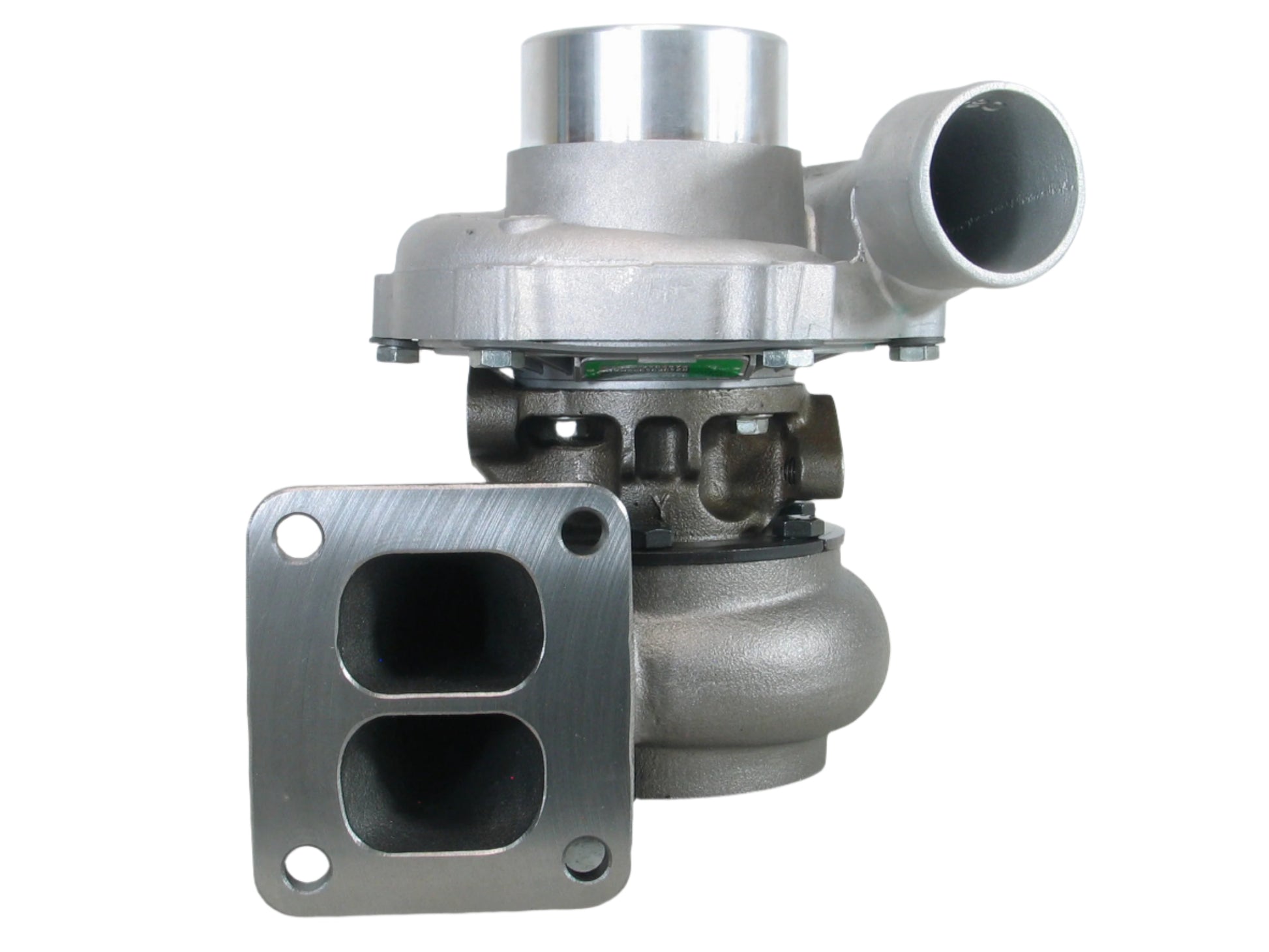

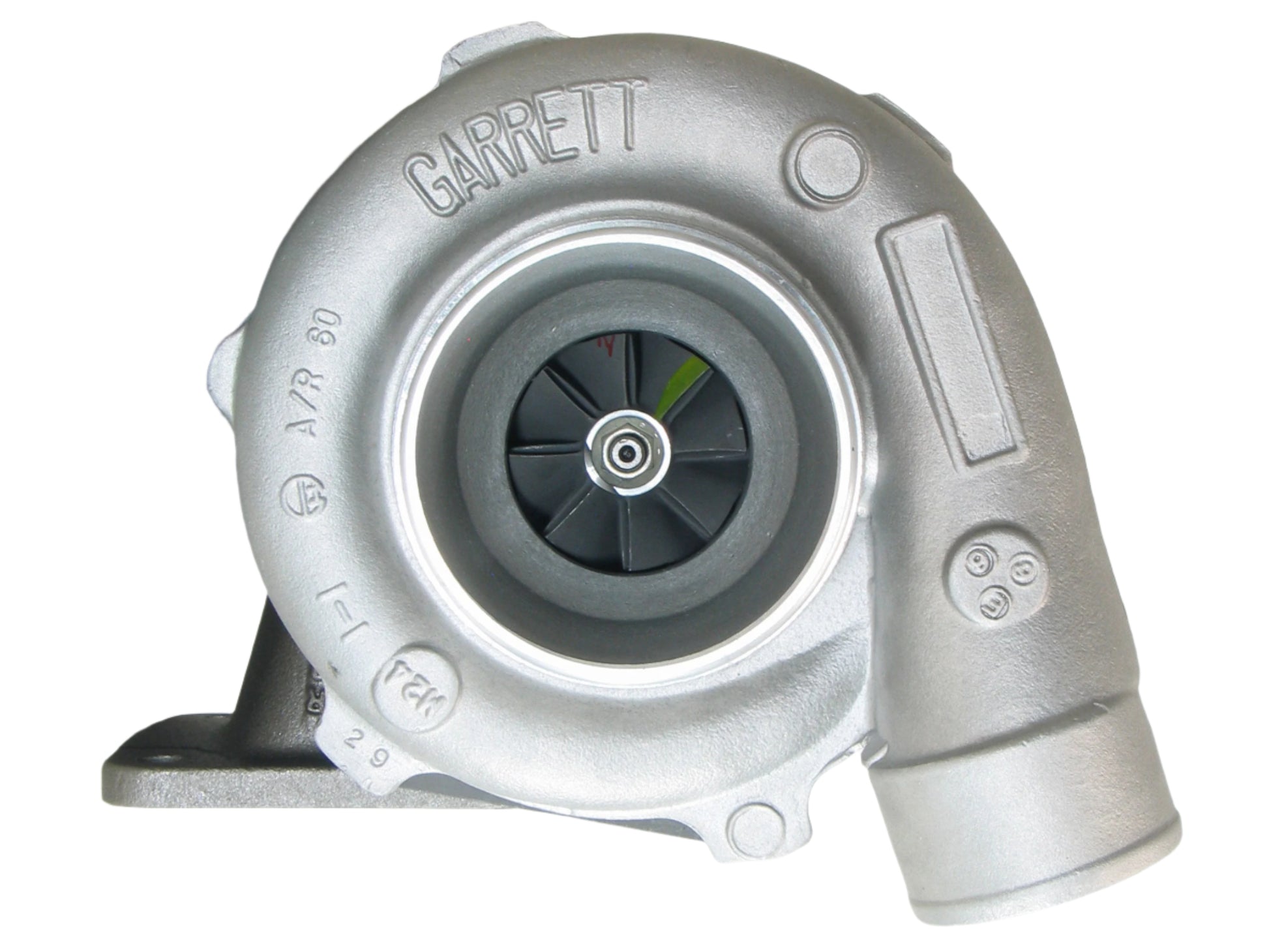

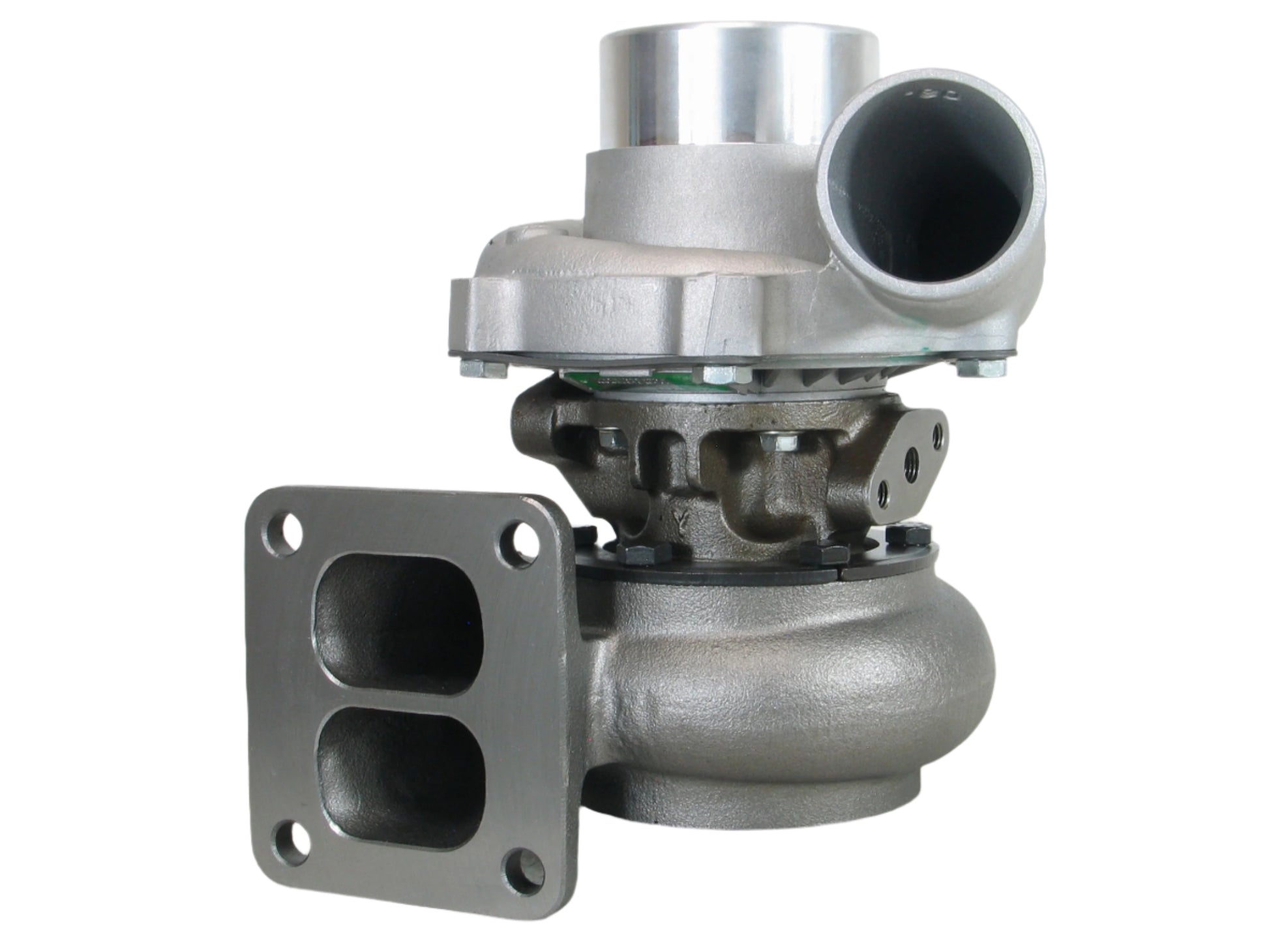

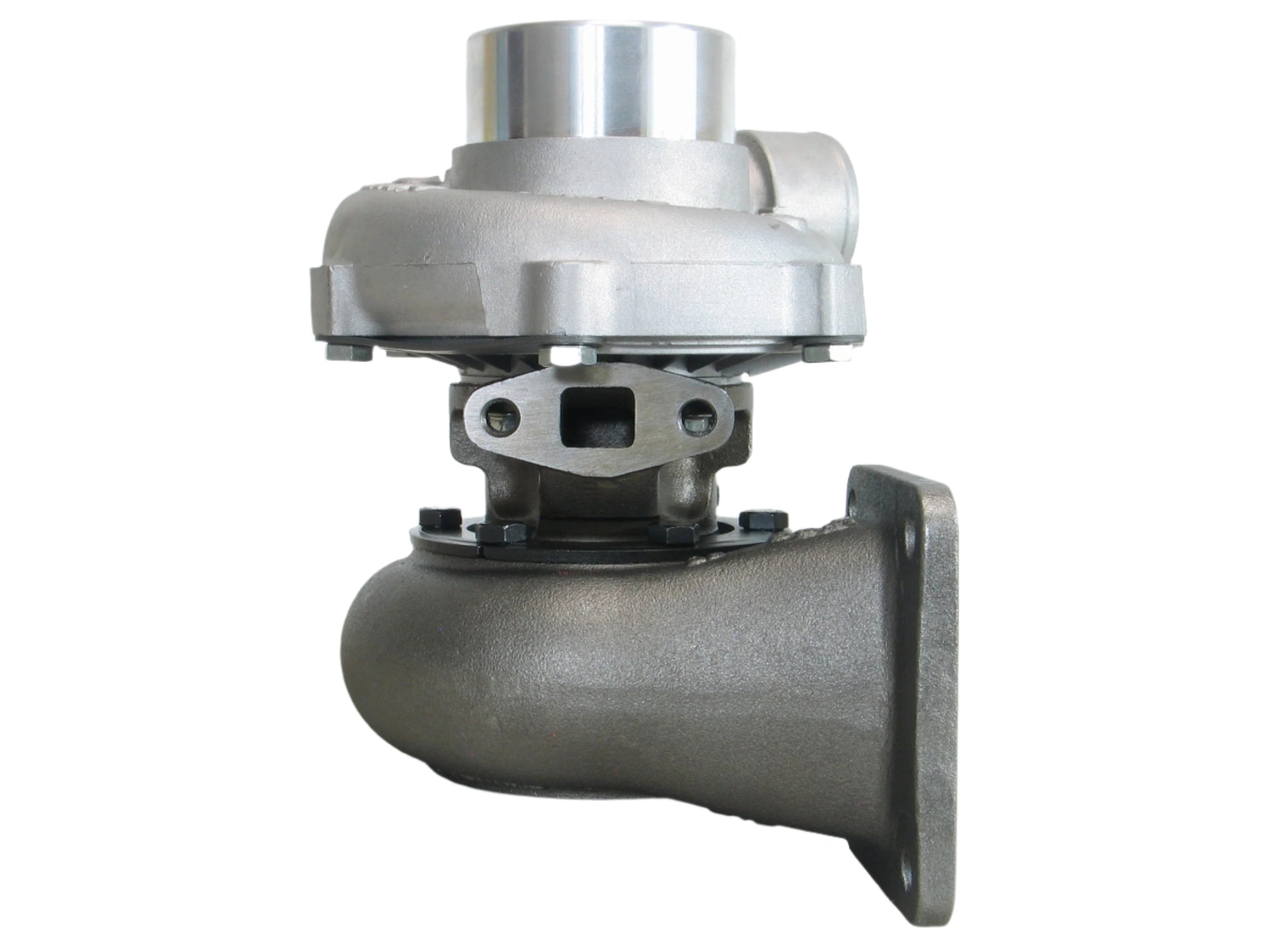

T04B59 Turbo Komatsu PC200-5 Earth Moving S6D95 4.89L Diesel Engine 465044-5251

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

NOTE: There is a core charge of $200 which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase and will be fully refunded once your old re-build able core is received.

Cores must be returned within 60 days of the purchase date. Please allow up to 3 business days for us to process your refund.

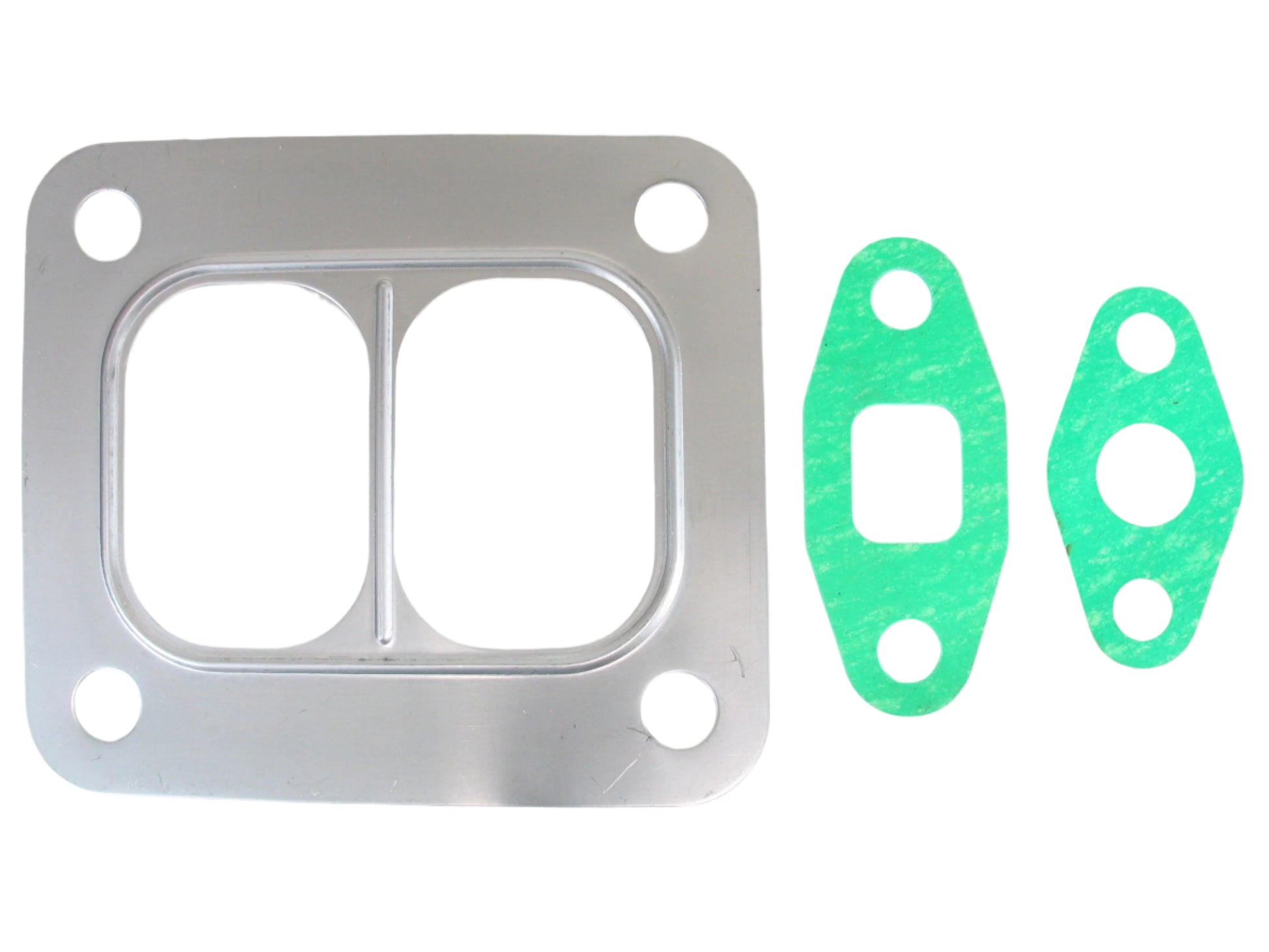

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 465044-5251
Interchangeable Number: 465044-0251, 465044-5251S, 465044-0051, 465044-5051, 465044-5051S, 465044-0151, 465044-5151, 465044-5151S, 318100
OEM Number: 6207-81-8210, 6207818210
Turbo Model: T04B59

Year: 1991-04
Engine: S6D95, S6D95L
Displacement: 4.89L, 4890 ccm, 6 Cylinders
Emission Standard: Euro V
Fuel: Diesel
Power: 110 kW/147 HP
Speed: 3000 RPM

Angle α (Compressor Housing): 300°
Angle β (Turbine Housing): 270°
Back Plate: 408045-0041 (197340)
Bearing Housing: 430027-0038 (317328, 407285-0027, 430027-0048)(Oil Cooled)
CHRA: 447450-0084 (447450-5084S)
Compressor Cover: 408274-0029

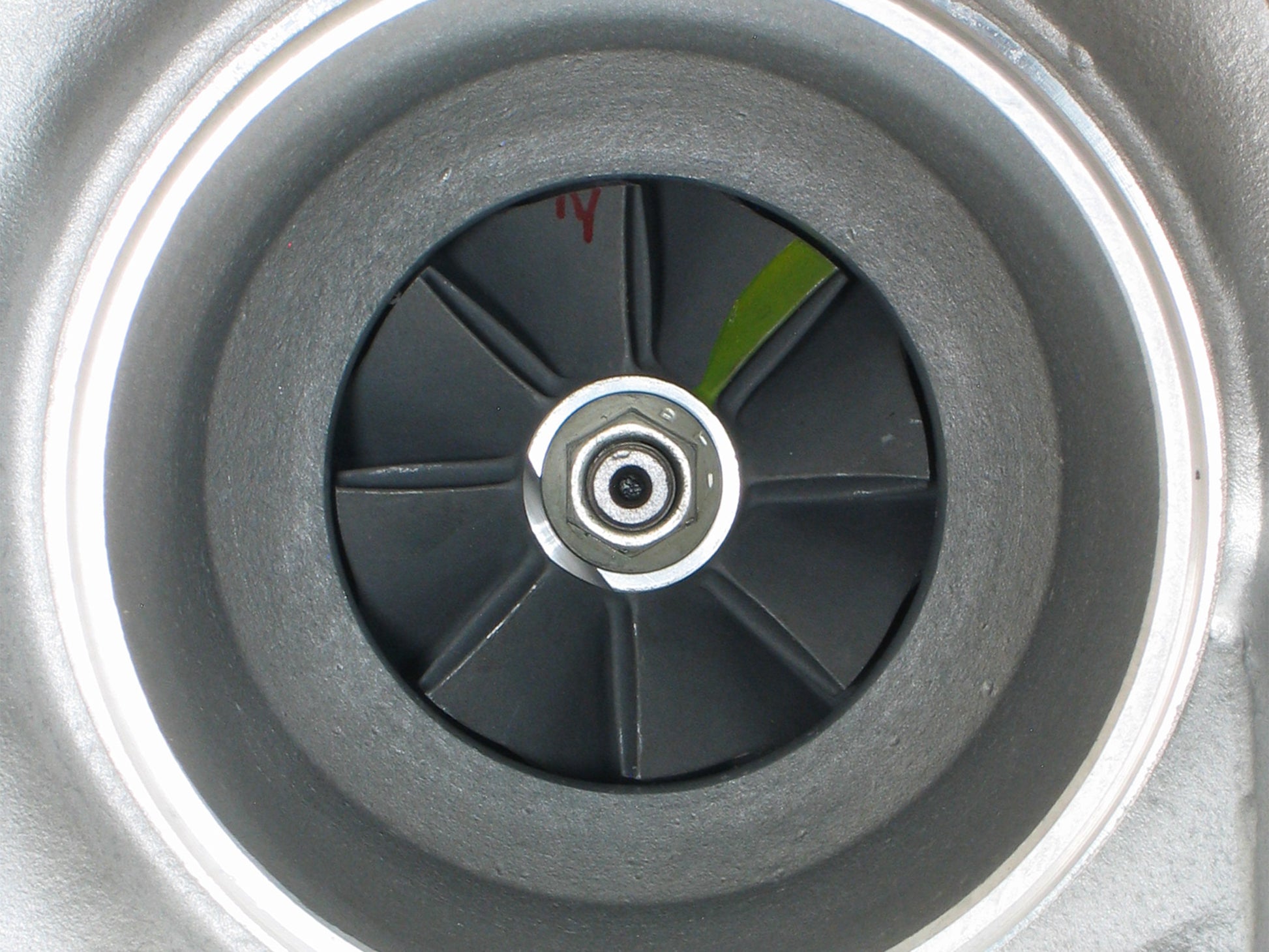

Compressor Wheel: 409179-0026 (312870)(Ind. 70 mm, Exd. 43.7 mm, Trim 39, 8+8 Blades)
Flange: T4
Gasket (Oil Inlet): 147837 (210023, 55739, 3755739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 210023-0000)(1900000037)
Gasket (Oil Outlet): 311496 (210021, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 310694 (407294-0001)
Gasket Kit: 215079
Heat Shield: 409299-0000/409299-0001 (311943, 7N0012, 3524773B)
Repair Kit: 468100-0000 (188401-0000, 310063, 3524796, 2W0716, 6N7236)(1100040750)
Turbine Housing A/R: 0.48
Turbine Housing: 410401-0022

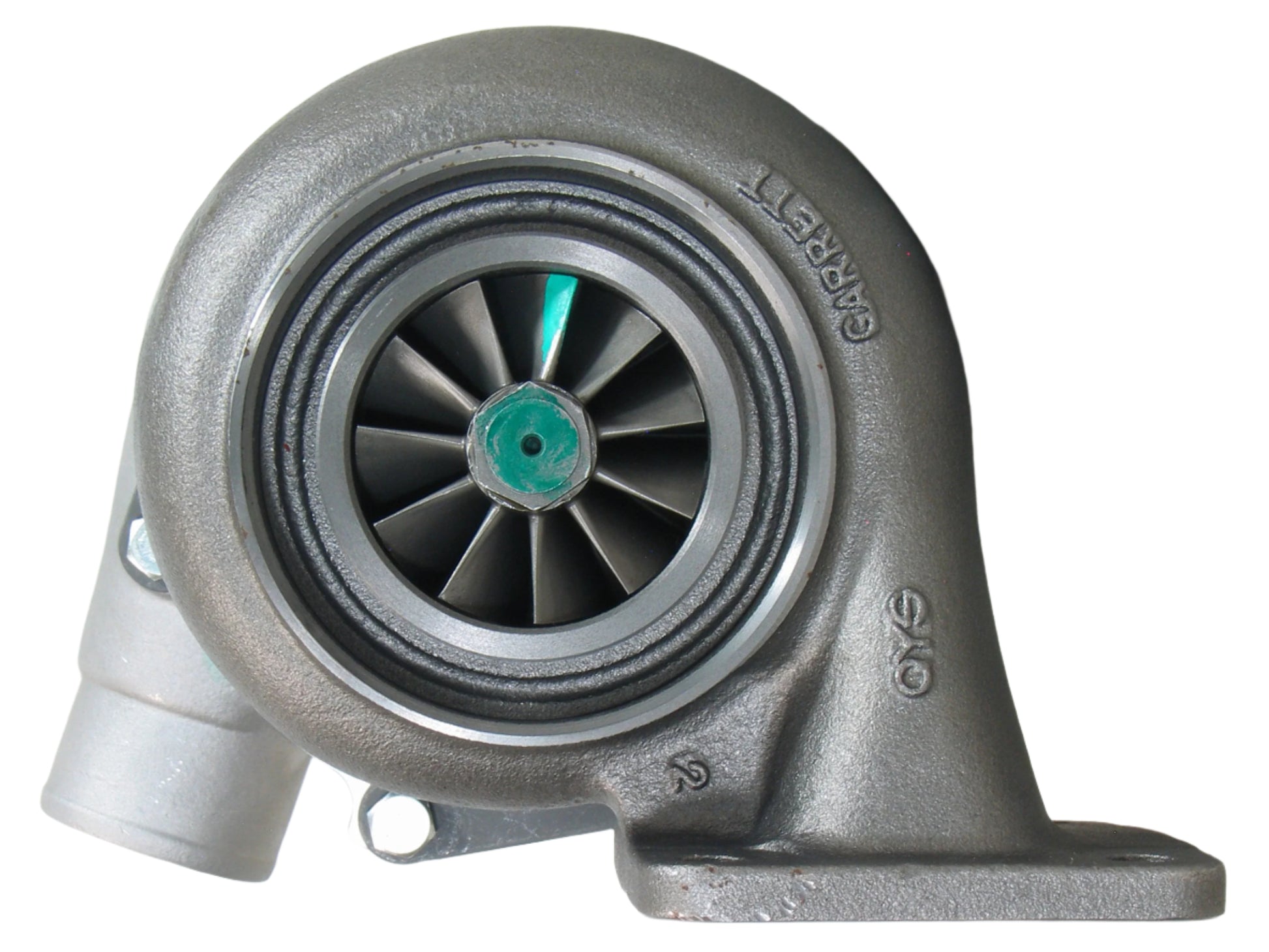

Turbine Wheel: 446905-0001/451309-0002 (407276-0005, 410188-0014, 410188-0005, 314655)(Ind. 58.35 mm, Exd. 74.2 mm, Trim 46, 11 Blades)(1100040435)
Turbo Technology: Free Floating

Application:
1991-04 Komatsu Construction Equipment with S6D95, S6D95L Engine
1991-04 Komatsu PC220-5 Earth Moving with S6D95, S6D95L Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
