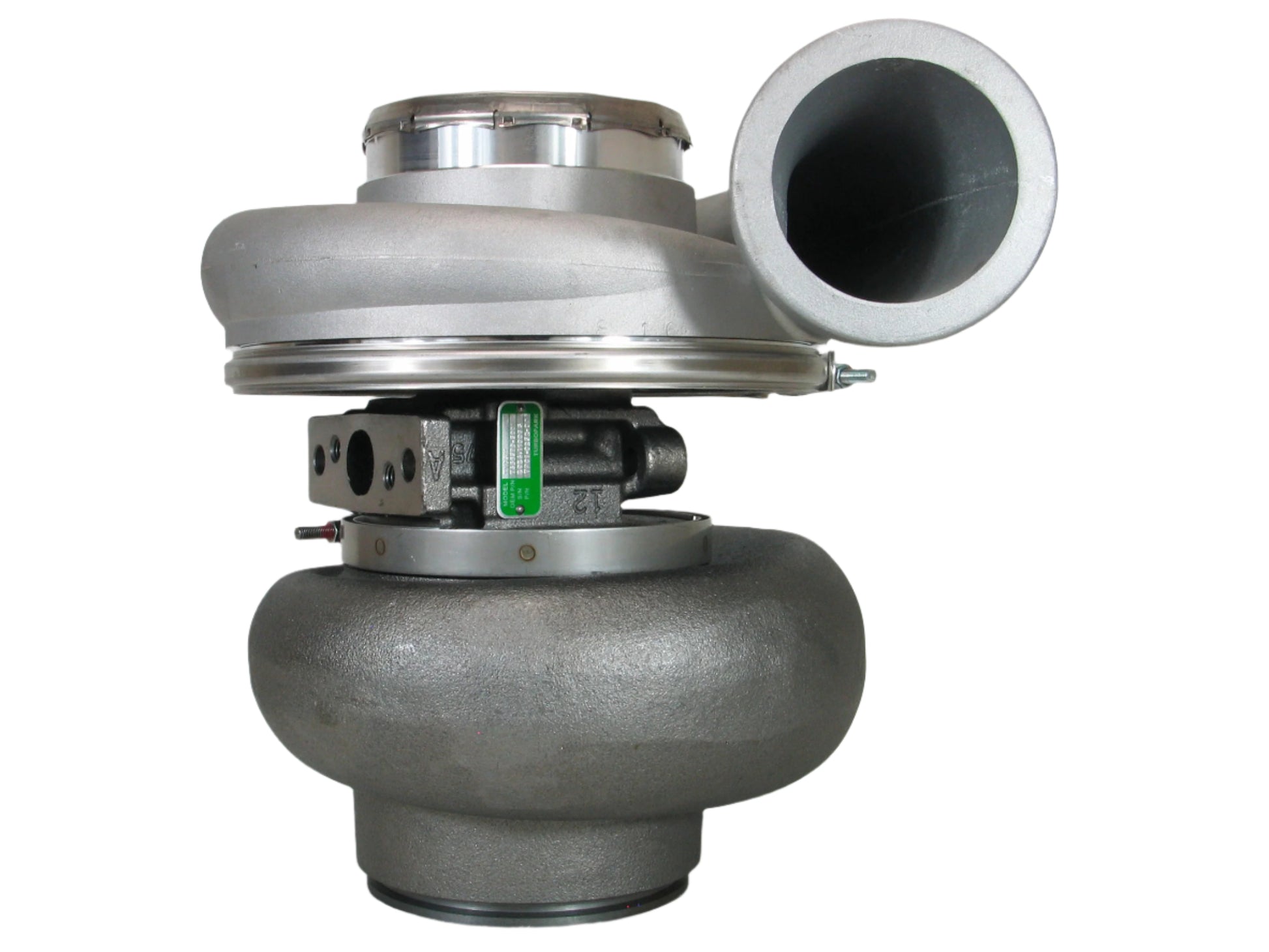

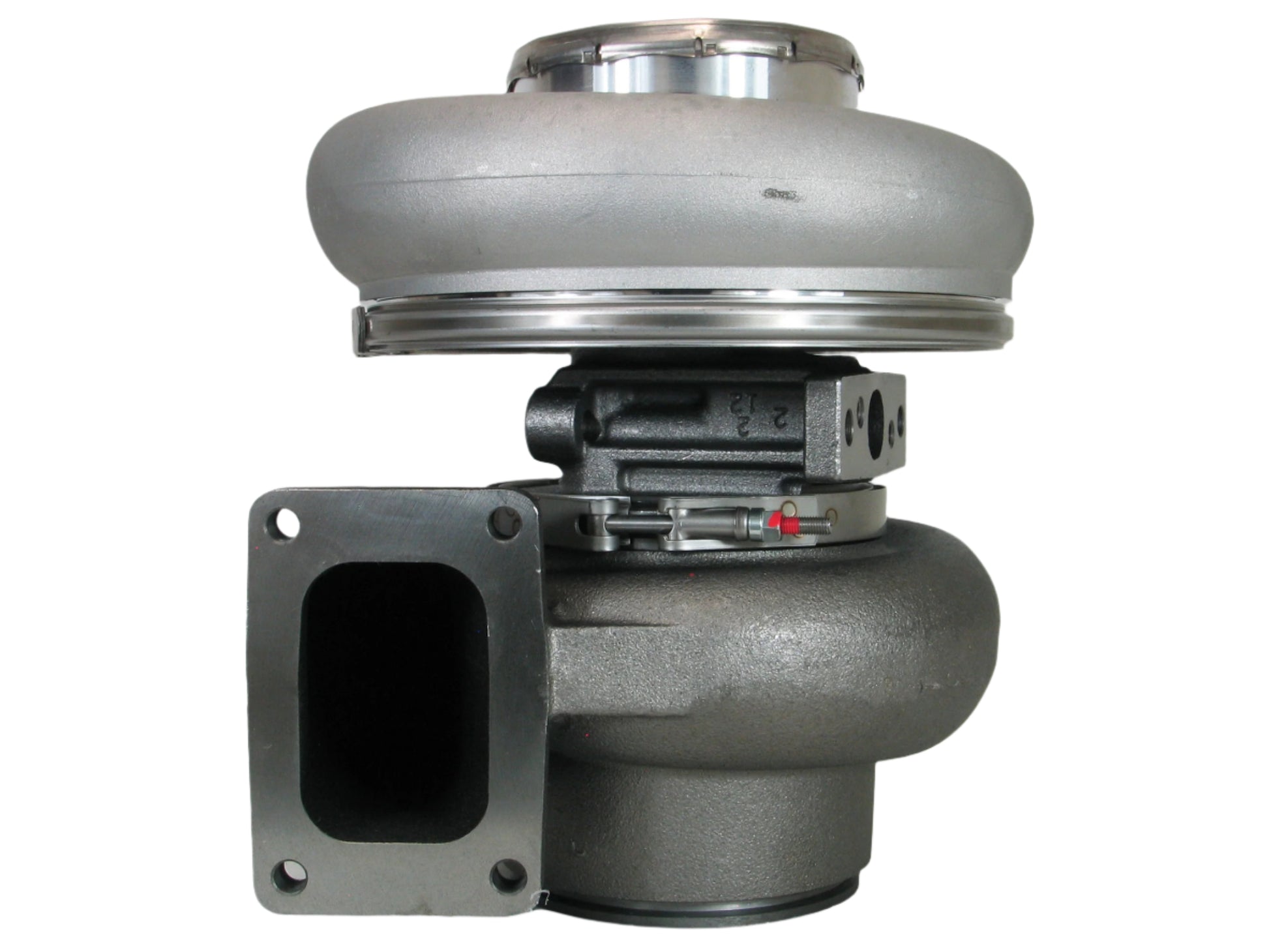

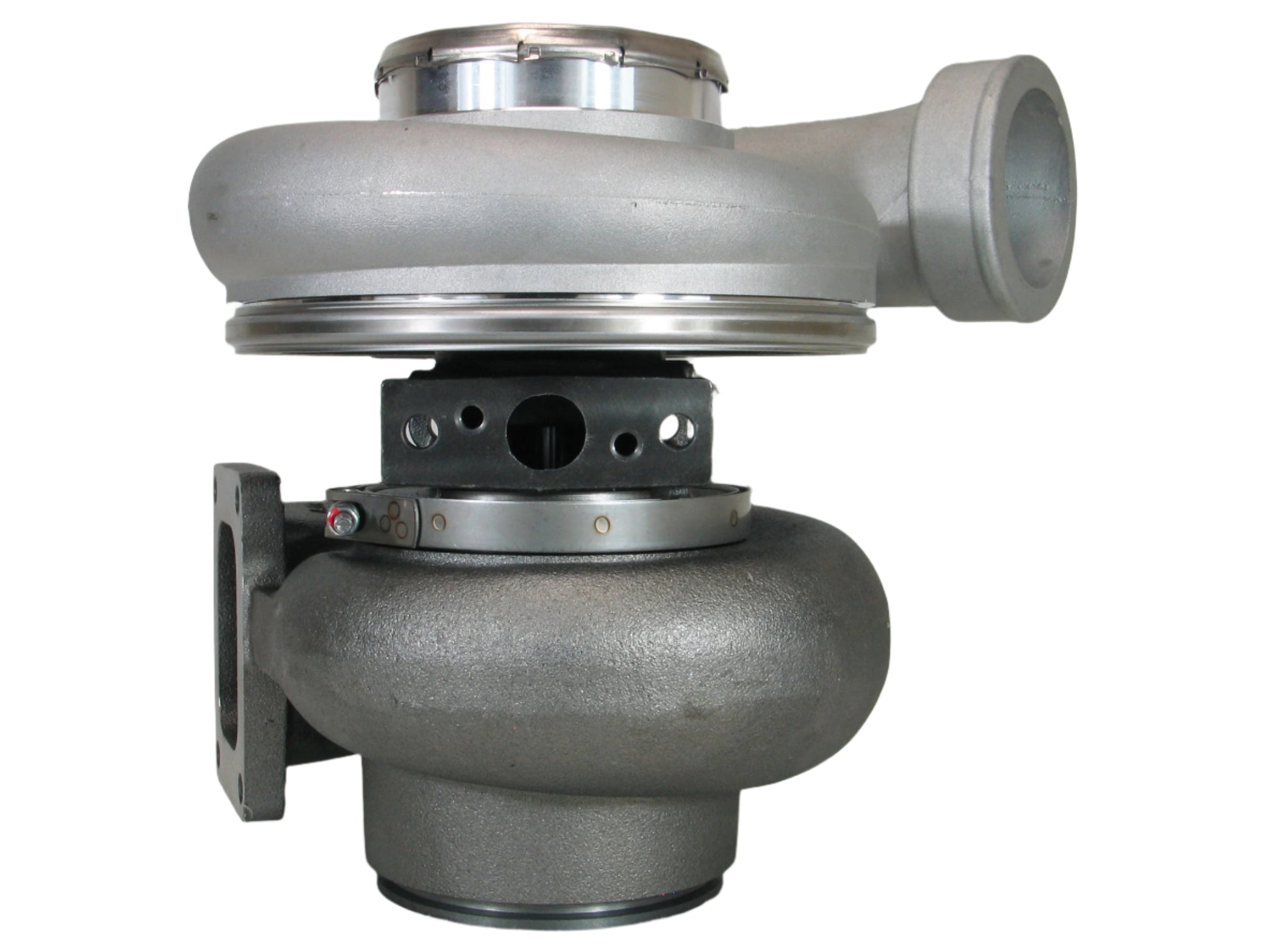

NEW TV8511 Turbo Industrial Truck Detroit Diesel 8V92TAB 12.9L 466570-5001

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

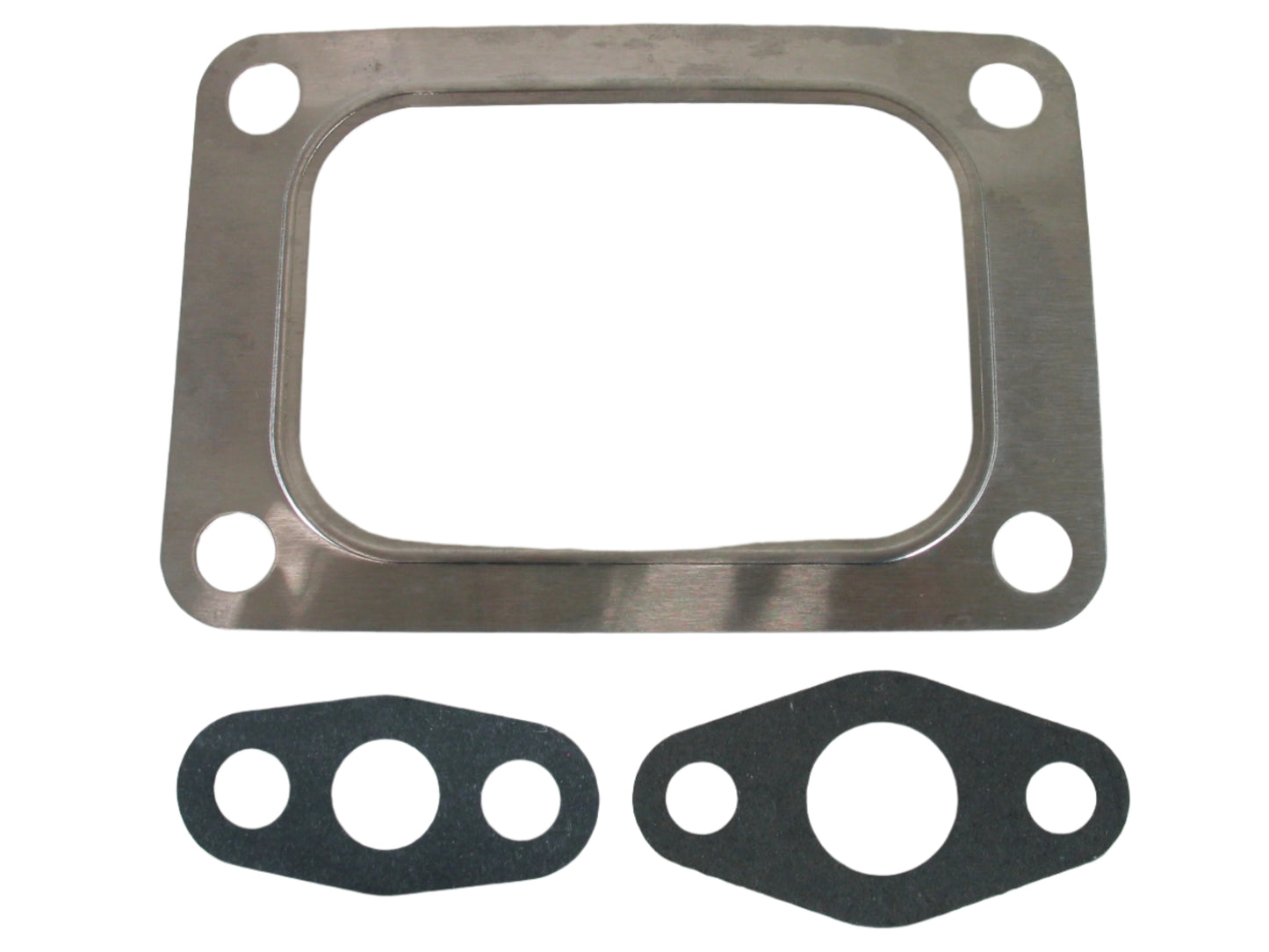

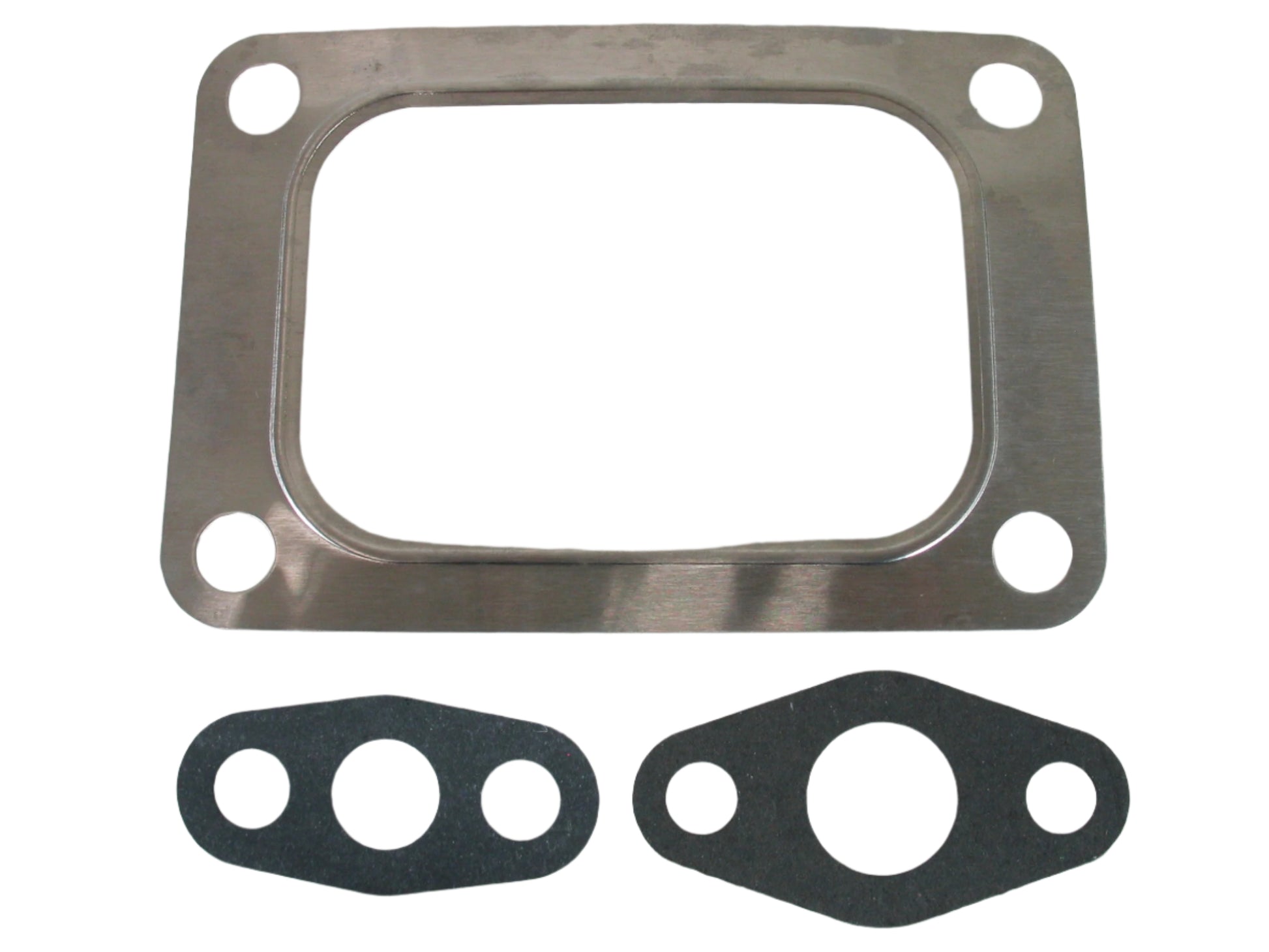

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 466570-5001
Interchangeable Number: 466570-0001, 466570-5001S, 466570-0002, 466570-5002, 466570-5002S
OEM Number: 08927027, 8927027
Turbo Model: TV8511

Engine: 8V92TAB
Engine Manufacturer: MTU, Detroit Diesel
Displacement: 12.9L, 12061 ccm, V8 Cylinders
Fuel: Diesel
Power: 475 HP

Angle α (Compressor Housing): 67°
Angle β (Turbine Housing): 42°
Back Plate: 442732-0001 (8928658)
Bearing Housing: 442028-0001 (8925742)
CHRA: 442032-0014 (442032-5014S, 23501290)

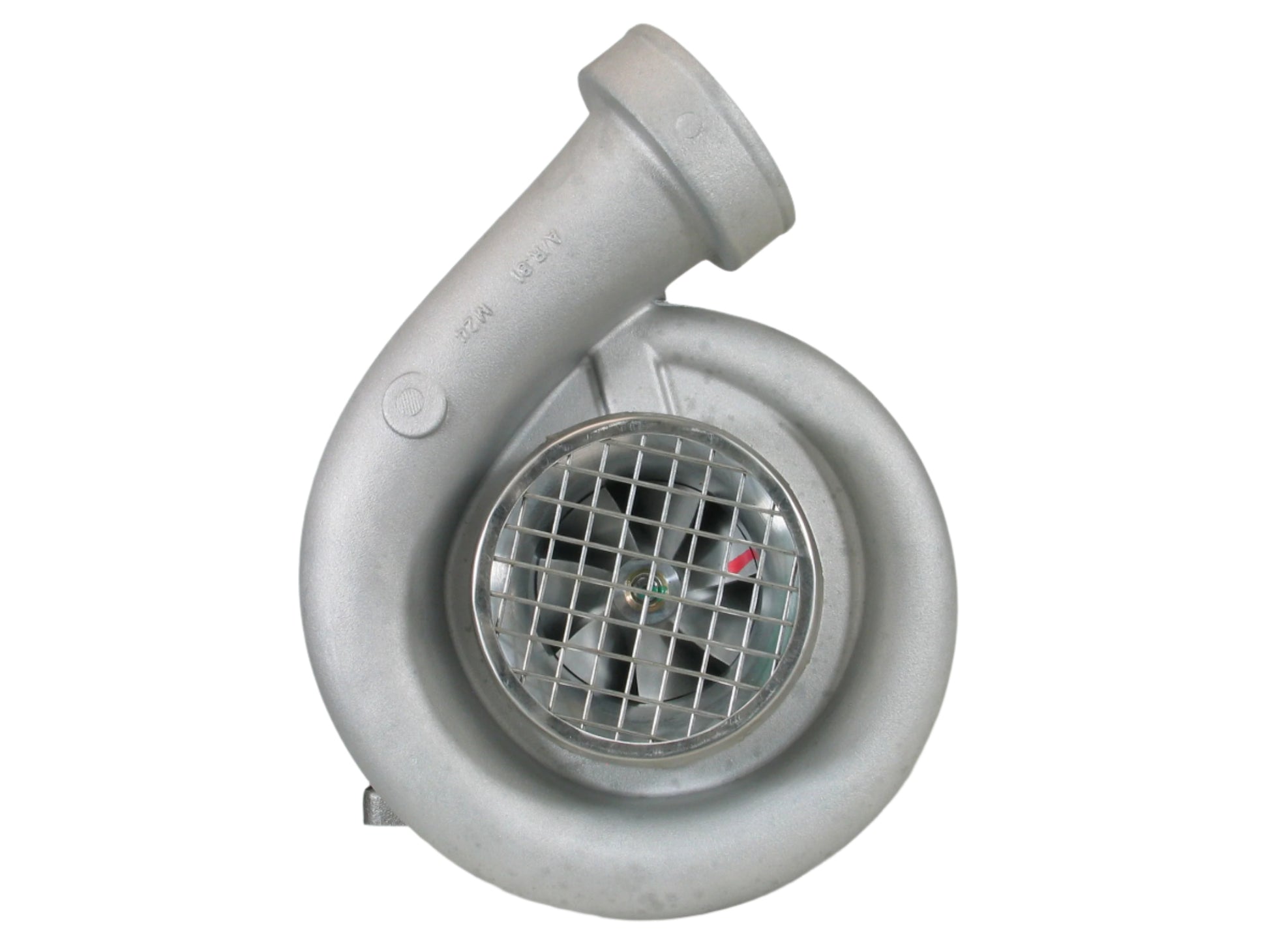

Compressor Cover: 442825-0002 (23501530)

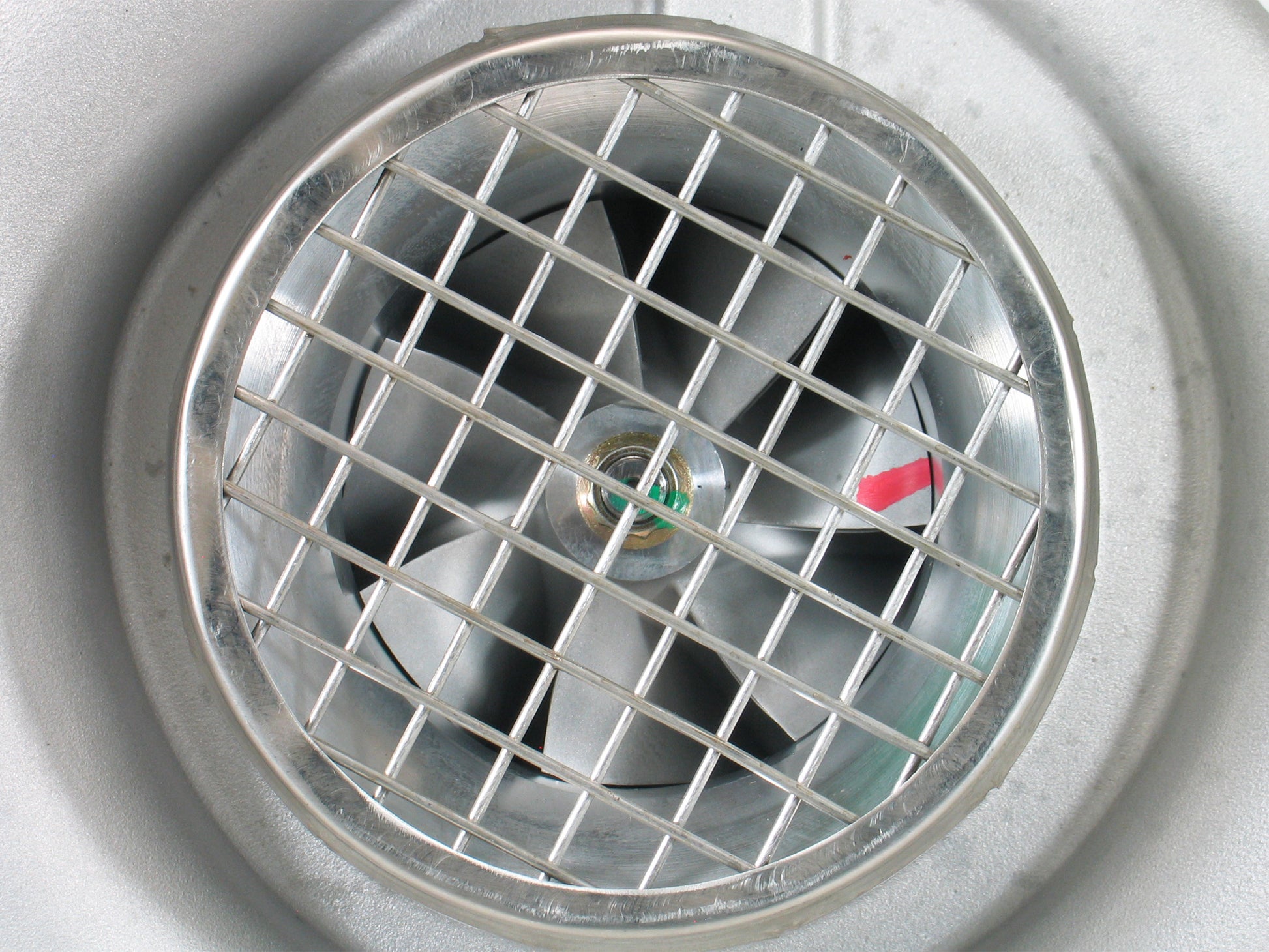

Compressor Wheel: 441831-0001 (23501536)(Ind. 85.38 mm, Exd. 117.6 mm, Trim 56/55, 7+7 Blades, Super Back)
Gasket (Oil Inlet): 210023 (147837, 147837, 55739, 3519762, 3500681, 3709737, 3755739, 409026-0001, 409036-0000, 409266-0001)(1900000037)
Gasket (Oil Outlet): 210021(148062, 311496, 3519807, 409037-0000, 413671-0000)(1900000027)
Gasket (Turbine Inlet): 407294-0001 (310694, 312617)
Repair Kit: 468267-0000 (1101678752)
Turbine Housing A/R: 1.39

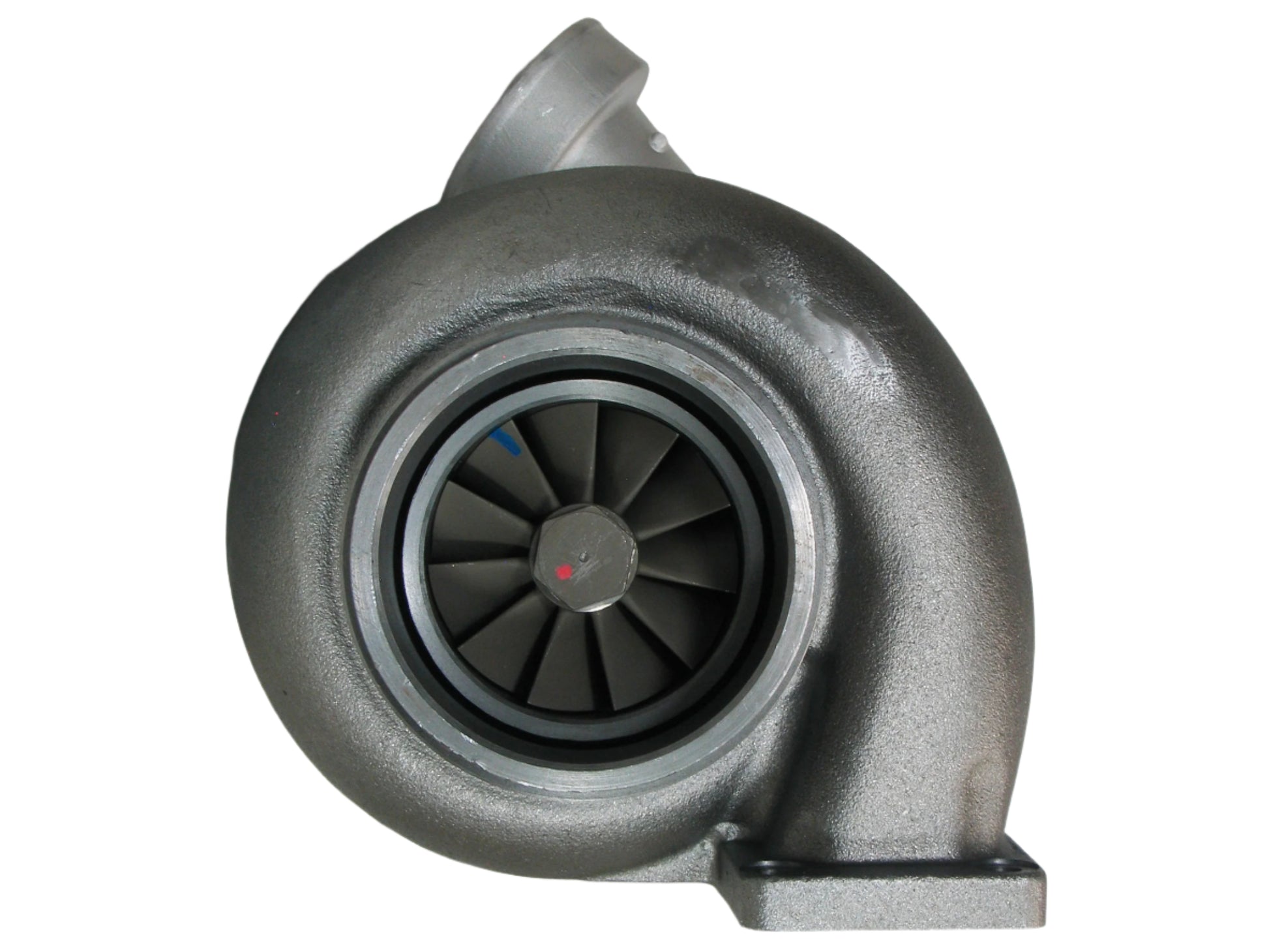

Turbine Housing: 443109-0003 (23501533)
Turbine Wheel: 442029-0017 (442029-0014, 183011-0000)(23501293, 8925762, 08925762)(Ind. 95.91 mm, Exd. 107.25 mm, 11 Blades)(1101083435)

Application:
Industrial, Truck with Detroit Diesel 8V92TAB Engine

TurboTurbos Part Number: TP01-0252-39

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
