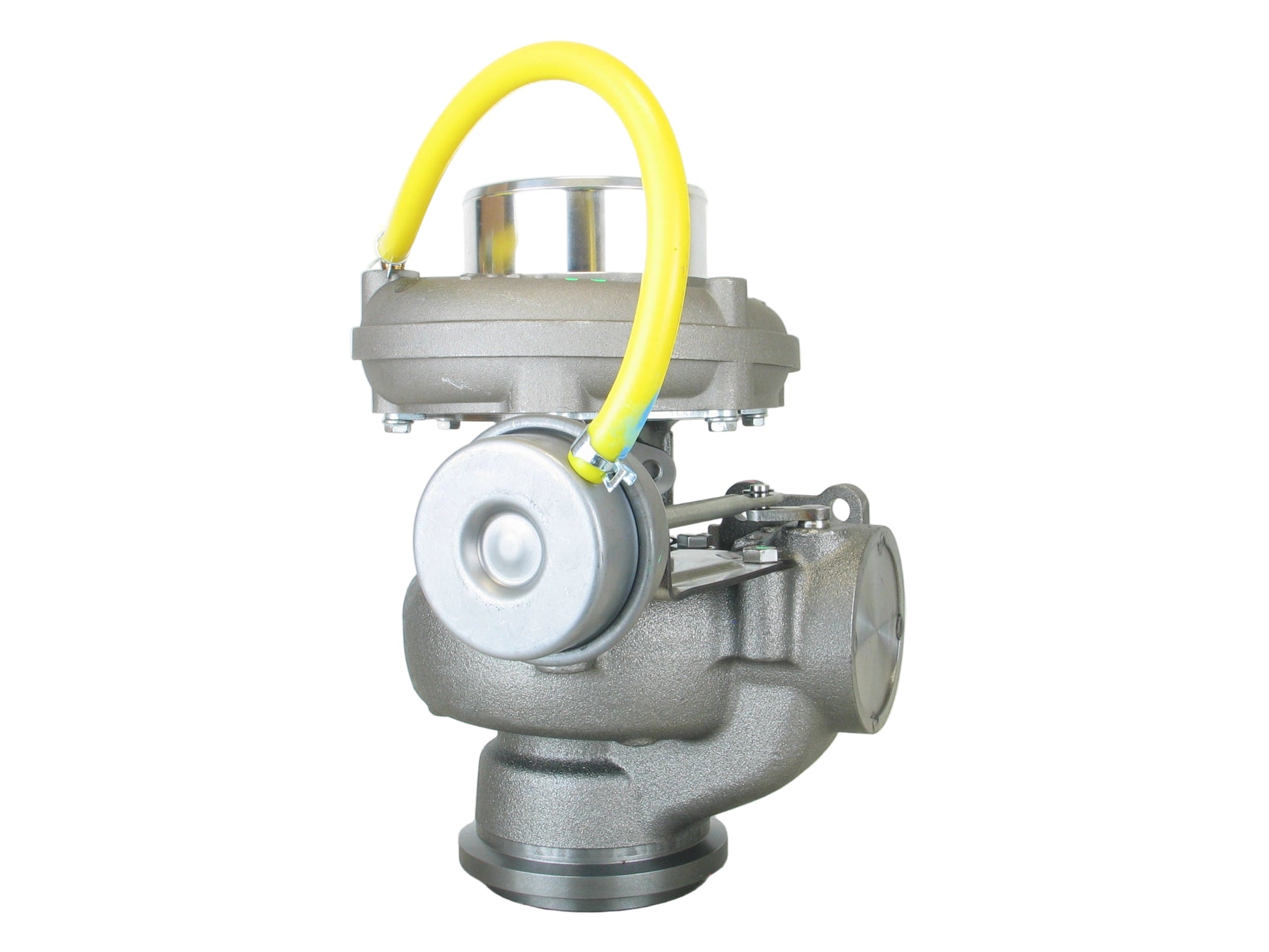

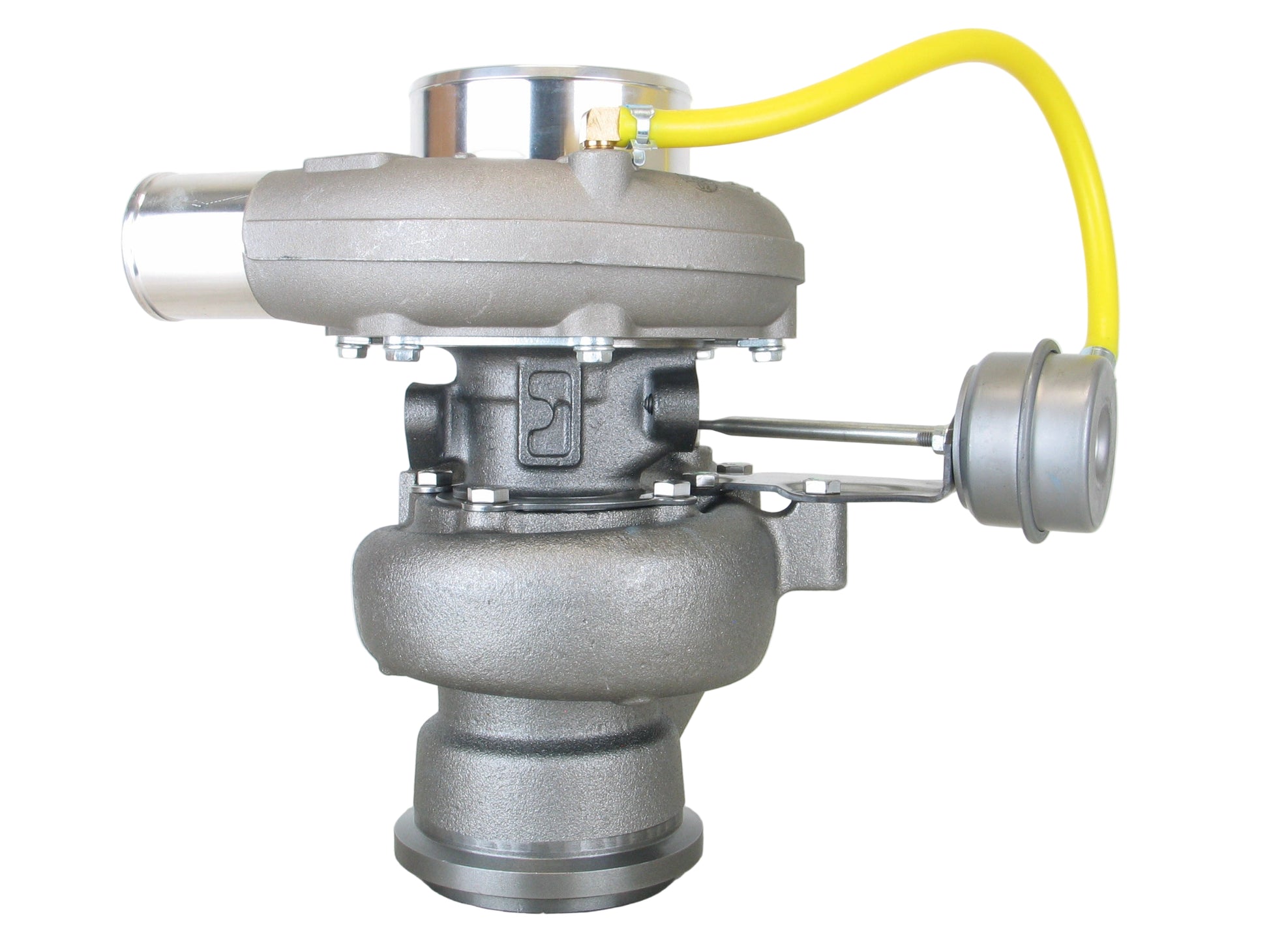

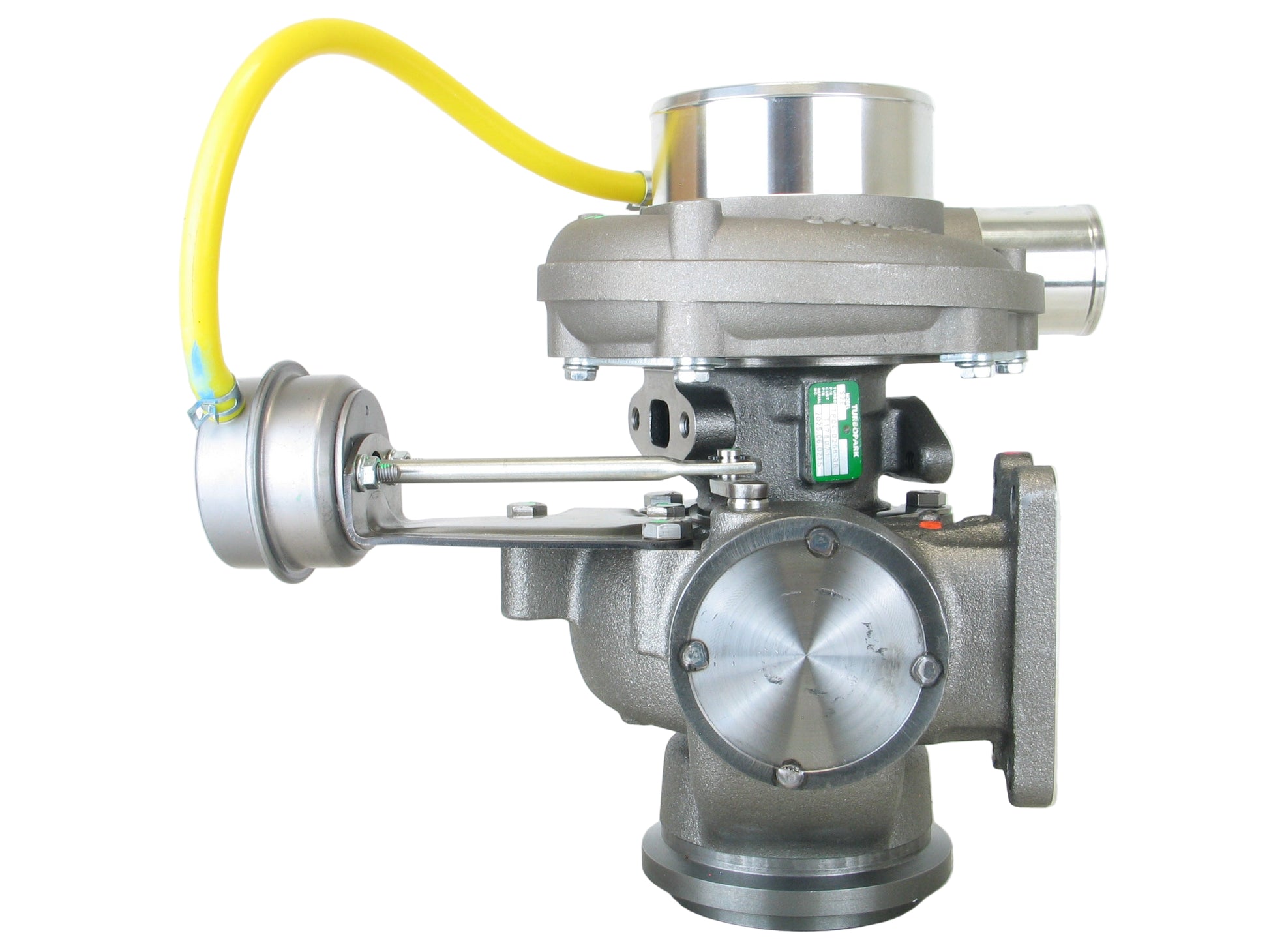

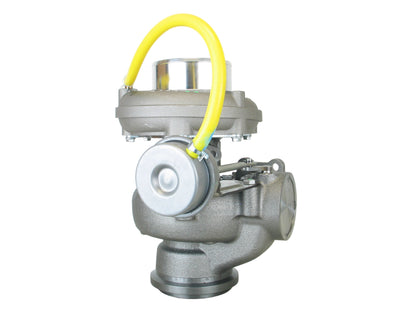

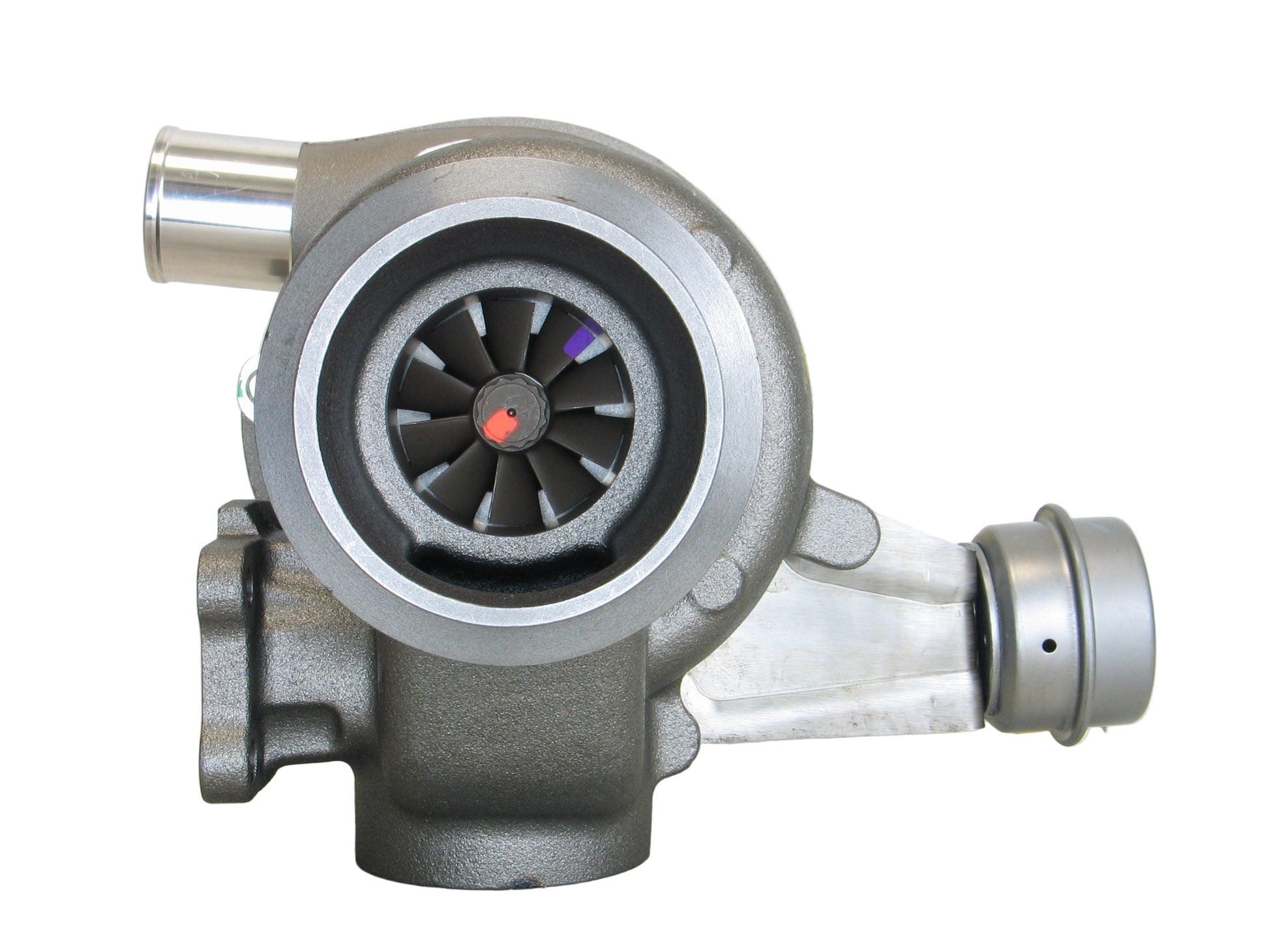

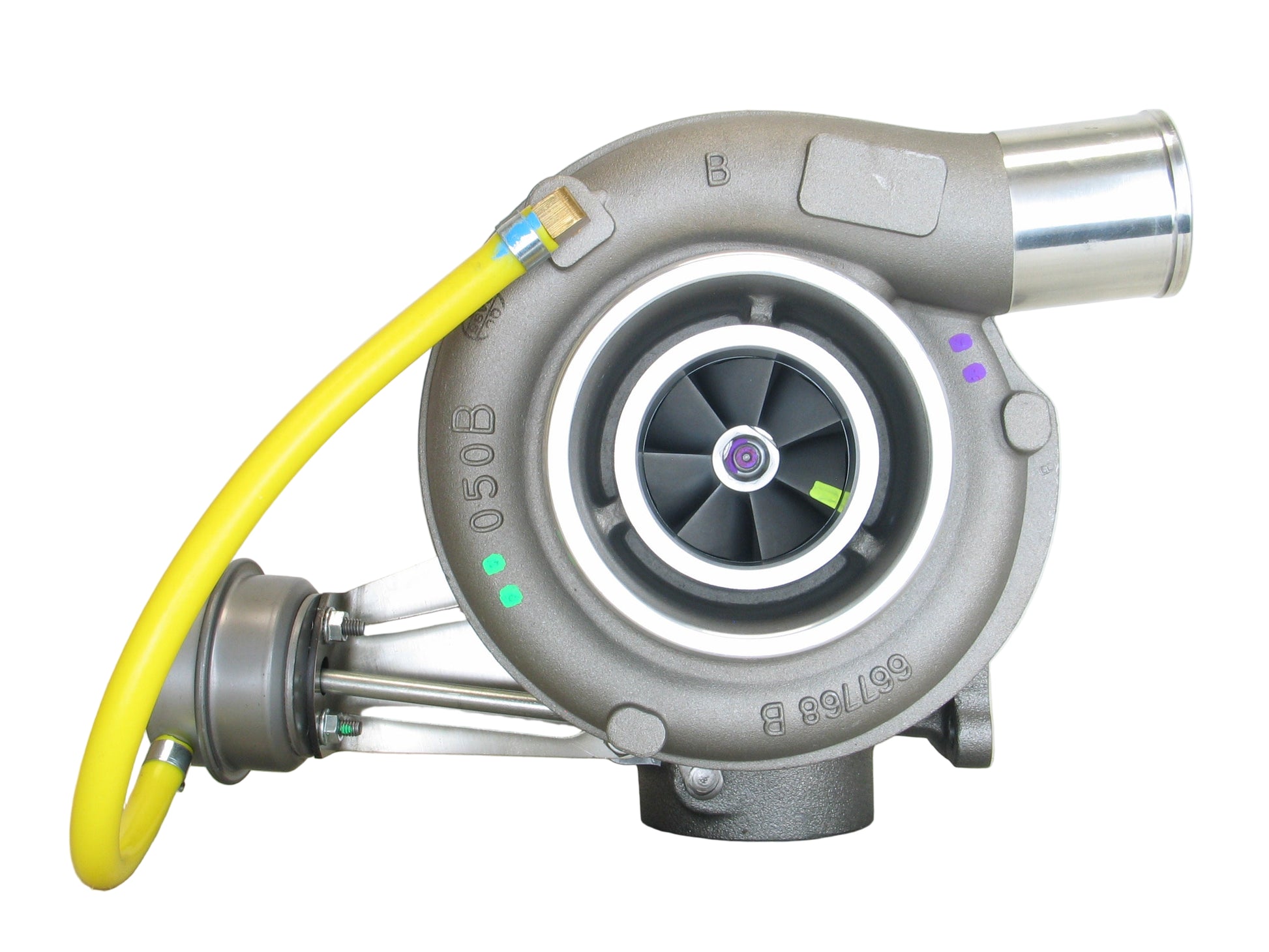

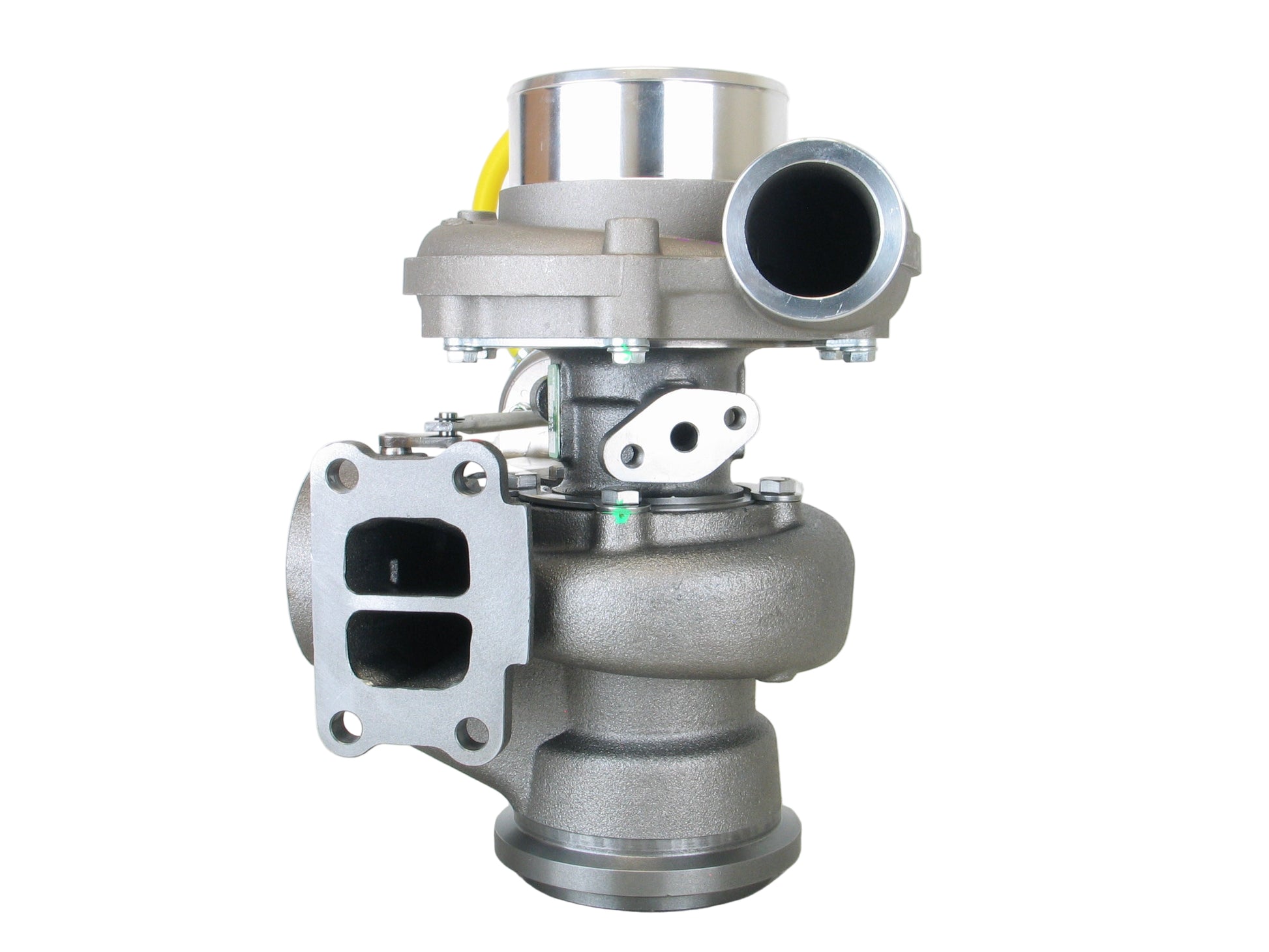

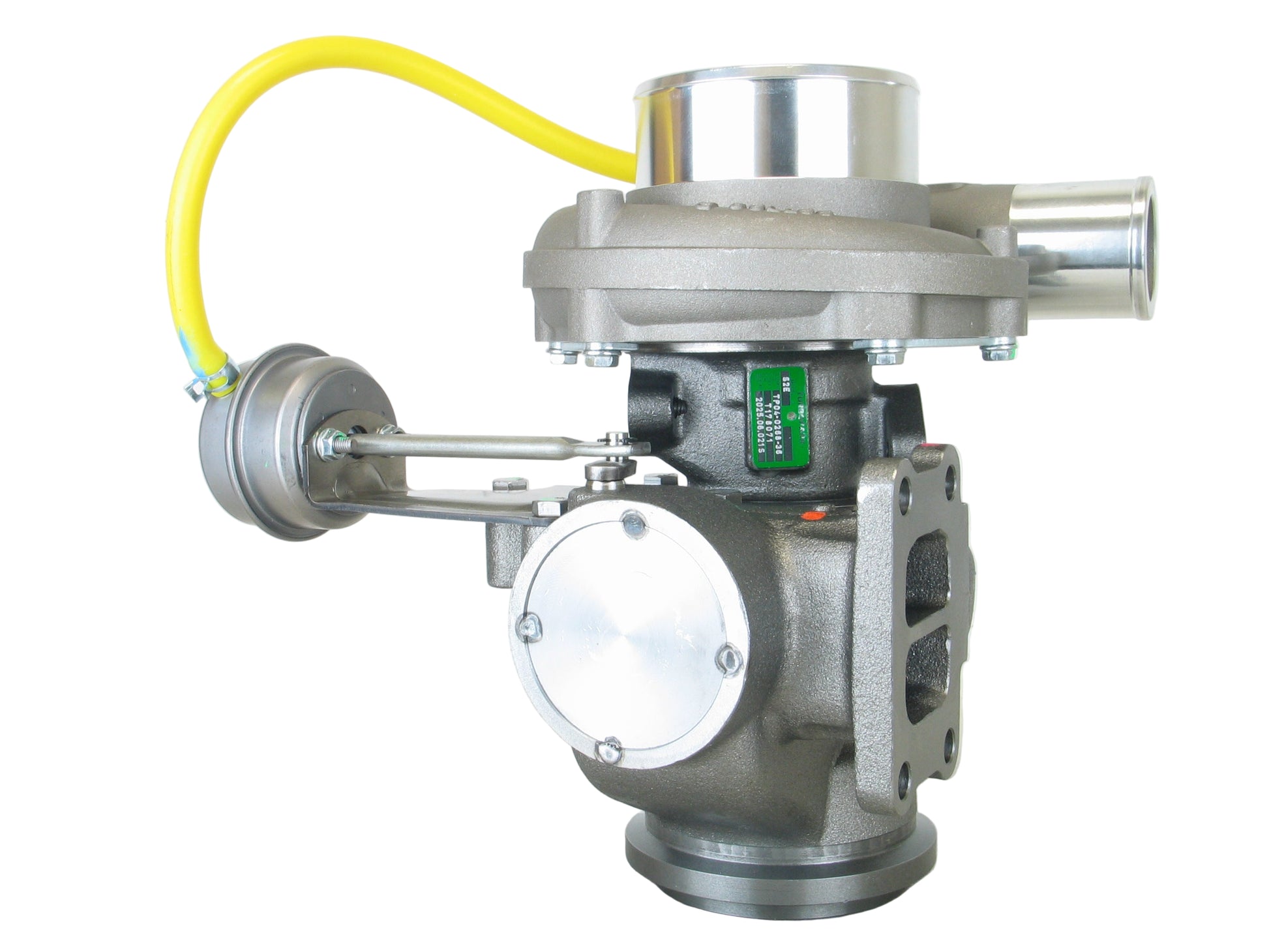

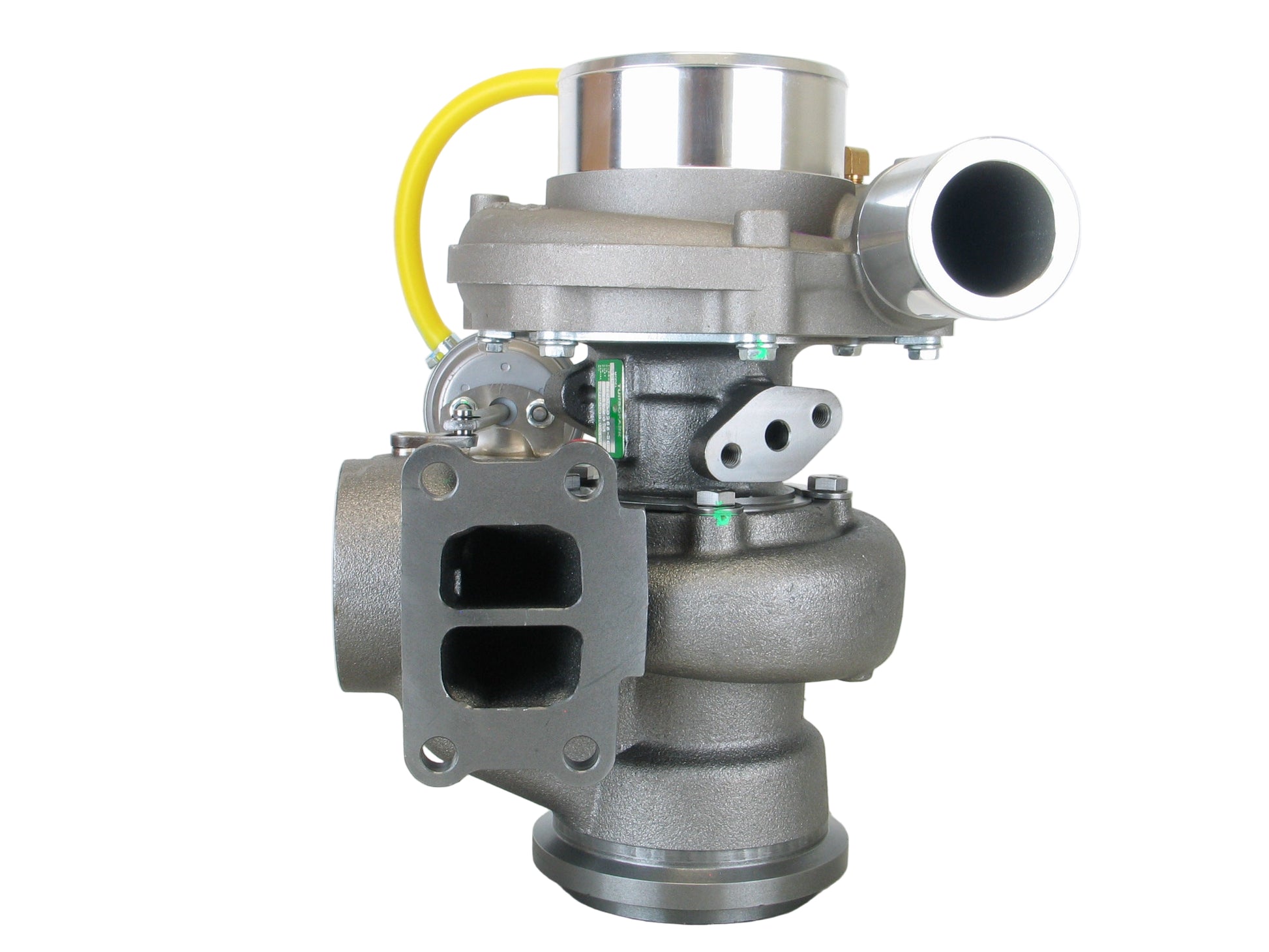

BRAND NEW TURBOTURBOS TURBOCHARGER
This is a BRAND NEW TURBOTURBOS TURBOCHARGER. This is an exact, direct fit replacement turbo.

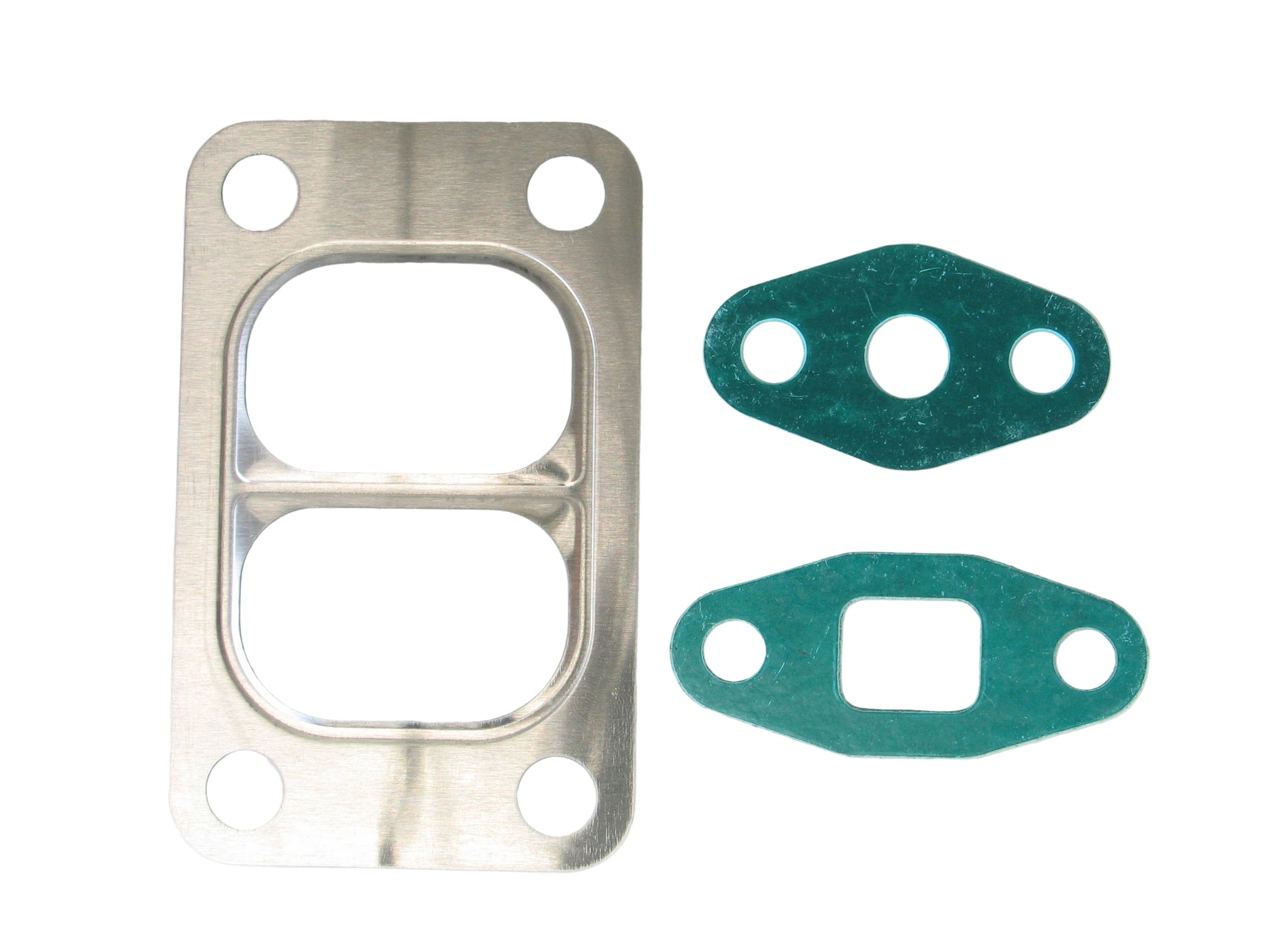

NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 178071
Interchangeable Number: 166085, 166085R, 166145, 166145R, 166214, 166214R, 166812, 166812R, 166813, 166813R, 178071R, 199425, 199425R, 199712, 199712R, 466085, 466145, 466214, 466812, 466813, 478071, 499425, 499712
OEM Number: 0R-6244, 0R6244, 0R-6353, 0R6353, 0R-6729, 0R6729, 103-2083, 1032083, 103-2084, 1032084, 4P-5855, 4P5855, 4R-9147, 4R9147, 6I-0173, 6I0173, 6I-0174, 6I0174, 6I-3539, 6I3539
Turbo Model: S2EG070
Engine: 3116
Engine Manufacturer: Caterpillar
Displacement: 6.6L
Fuel: Diesel
Power: 168/187 kW, 225/250 HP
Speed: 2200 RPM
Angle α (Compressor Housing): 115/245/270°
Angle β (Turbine Housing): 158°
Actuator: (2061016764)
Back Plate: 197340 (166537)
Bearing Housing: 199759 (168652, 199719)(Oil Cooled)
CHRA: 199280 (178244, 178244R, 199280R, 199716, 199716R, 178259, 478244, 499716, 4P2763)(0R6257, 0R6351, 0R6764, 1061725, 4P2763, 6I0175)
Compressor Housing: 178291
Compressor Wheel: 166835
Gasket Kit: 318420 (1P0451)
Heat Shield: 194149 (2030016078)
Repair Kit: 318381 (168987, 318379)(5000030002)
Turbine Housing: 199658
Turbine Wheel: 167423
Application:
1992-03 Caterpillar Earth Moving with 3116 Engine
1992-03 Caterpillar Truck with 3116 Engine
TurboTurbos Number: TP04-0268-36
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
