Holset

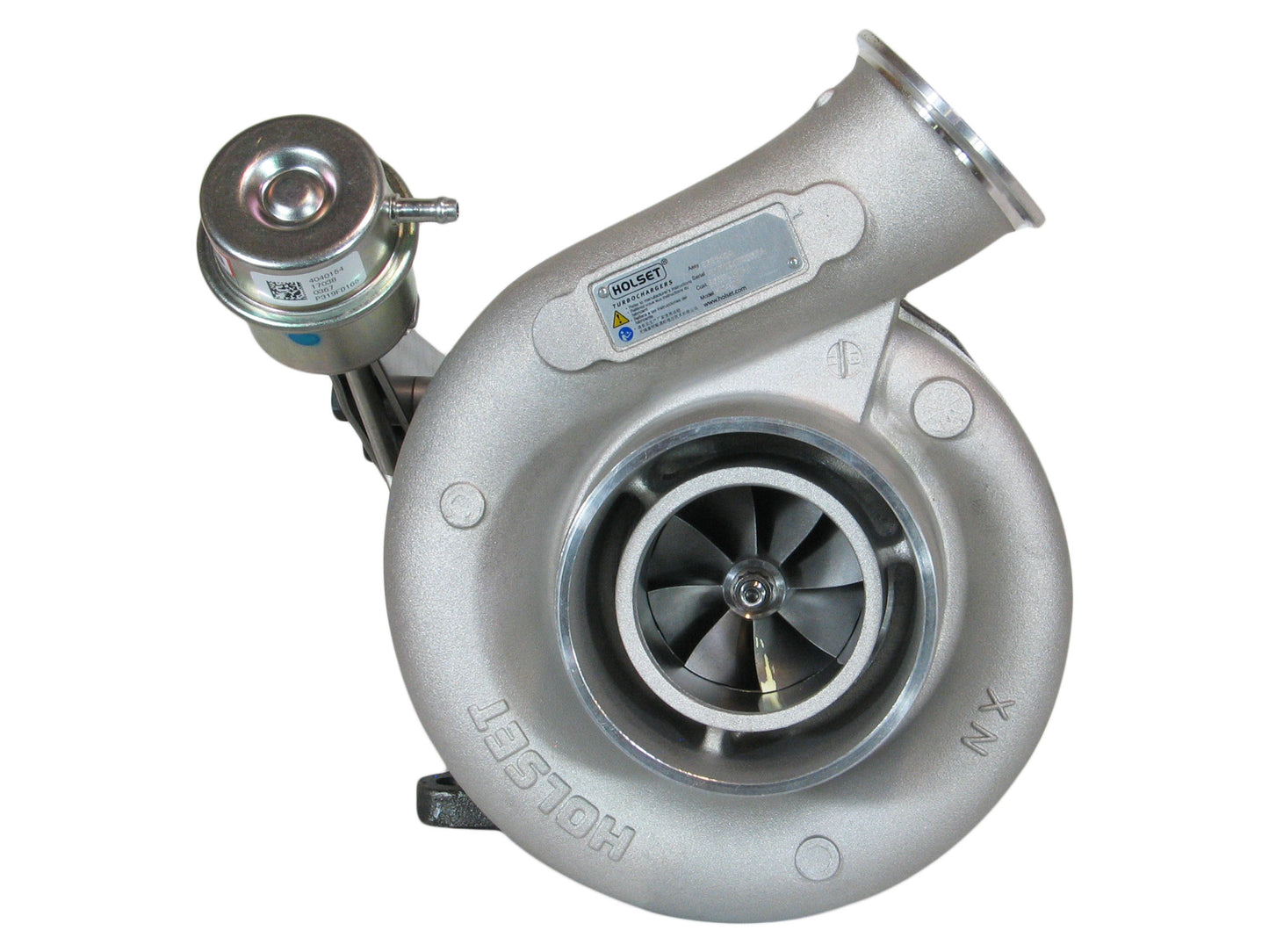

NEW OEM Holset HX40W Turbo Truck Bus Industrial Cummins 6CTA 6CTAA 8.3L 3536404
NEW OEM Holset HX40W Turbo Truck Bus Industrial Cummins 6CTA 6CTAA 8.3L 3536404
SKU:3536404
Regular price
$1,295.00
Regular price
$0.00
Sale price
$1,295.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Orders ship Monday-Friday, usually within 24 hours of purchase.
International shipping subject to VAT and/or other import tax calculated during checkout.
BRAND NEW GENUINE HOLSET TURBOCHARGER
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 3536404
Interchangeable Number: 3529466, 3530994, 3532222, 3533010, 3535632H, 3535665H, 3537202, 3537288H, 3537567H, 3537568, 3537569H, 3594289, 3594290H, 3599331, 3599332H, 4042265, 4042266H
OEM Number: 2841205, 3529467, 3530384, 3530386, 3530723, 3531388, 3532223, 3532741, 3532965, 3532966, 3532967, 3533004, 3533011, 3533012, 3533372, 3533373, 3533374, 3533376, 3533901, 3533902, 3533905, 3533906, 3533908, 3533917, 3534298, 3534470, 3535002, 3535579, 3535612, 3535615, 3535616, 3535632, 3535665, 3537203, 3537287, 3537288, 3537289, 3537567, 3537569, 3537672, 3539312, 3590407, 3593565, 3594290, 3599332, 3797849, 3802613, 3802619, 3802784, 3802865, 3802866, 4042266, 4089300, 4089953, 5328975, 5329696, 6582437
Turbo Model: HX40W, HX40W-L8294L/JB19JD8
Manufacturer: Holset
Year: 1995-03
Engine: 6CTA, 6CTA Euro 2, 6CTAA
Engine Manufacturer: Cummins
Emission Standard: Euro 2
Displacement: 8.3L
Fuel: Diesel
Power: 300 HP
Angle α (Compressor Housing): 90/197/300/302/315°
Angle β (Turbine Housing): 15/143/222/360°
Back Plate: 3530923
Bearing Housing: 3532632
Bracket Kit: 4027123H
CHRA: 3538681 (4027354, 4027354H)
Clamp Plate (Turbine): 2839879H
Compressor Housing: 3532422H
Compressor Wheel: 3599591
Flange: T4
Gasket (Oil Drain): 3519805H
Gasket Kit: 3545575H
Heat Shield: 3519302
Repair Kit (Major): 3575169 (3575169H)
Retaining Ring: 3533163H
Turbine Wheel: 3522879
Turbocharger Kit: 3537288H
NOTE: This turbo can replace 4035253 (T3 flange) but need flange adapter. It can also replace 3530994 (3530995, 3530995H, 3802256, 3802256RX) by adjusting the orientation.
Application:
1995-03 Truck with Cummins 6CTA, 6CTA Euro 2 Engine
1995-98 Truck with Cummins 6CTA Engine
Bus with Cummins 6CTA, 6CTAA Engine
Fire Truck with Cummins 6CTAA Engine
Gen Set with Cummins 6CTA, 6CTAA Engine
Industrial with Cummins 6CTA, 6CTAA Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 3536404
Interchangeable Number: 3529466, 3530994, 3532222, 3533010, 3535632H, 3535665H, 3537202, 3537288H, 3537567H, 3537568, 3537569H, 3594289, 3594290H, 3599331, 3599332H, 4042265, 4042266H
OEM Number: 2841205, 3529467, 3530384, 3530386, 3530723, 3531388, 3532223, 3532741, 3532965, 3532966, 3532967, 3533004, 3533011, 3533012, 3533372, 3533373, 3533374, 3533376, 3533901, 3533902, 3533905, 3533906, 3533908, 3533917, 3534298, 3534470, 3535002, 3535579, 3535612, 3535615, 3535616, 3535632, 3535665, 3537203, 3537287, 3537288, 3537289, 3537567, 3537569, 3537672, 3539312, 3590407, 3593565, 3594290, 3599332, 3797849, 3802613, 3802619, 3802784, 3802865, 3802866, 4042266, 4089300, 4089953, 5328975, 5329696, 6582437
Turbo Model: HX40W, HX40W-L8294L/JB19JD8
Manufacturer: Holset
Year: 1995-03
Engine: 6CTA, 6CTA Euro 2, 6CTAA
Engine Manufacturer: Cummins
Emission Standard: Euro 2
Displacement: 8.3L
Fuel: Diesel
Power: 300 HP
Angle α (Compressor Housing): 90/197/300/302/315°
Angle β (Turbine Housing): 15/143/222/360°
Back Plate: 3530923
Bearing Housing: 3532632
Bracket Kit: 4027123H
CHRA: 3538681 (4027354, 4027354H)
Clamp Plate (Turbine): 2839879H
Compressor Housing: 3532422H
Compressor Wheel: 3599591
Flange: T4
Gasket (Oil Drain): 3519805H
Gasket Kit: 3545575H
Heat Shield: 3519302
Repair Kit (Major): 3575169 (3575169H)
Retaining Ring: 3533163H
Turbine Wheel: 3522879
Turbocharger Kit: 3537288H
NOTE: This turbo can replace 4035253 (T3 flange) but need flange adapter. It can also replace 3530994 (3530995, 3530995H, 3802256, 3802256RX) by adjusting the orientation.
Application:
1995-03 Truck with Cummins 6CTA, 6CTA Euro 2 Engine
1995-98 Truck with Cummins 6CTA Engine
Bus with Cummins 6CTA, 6CTAA Engine
Fire Truck with Cummins 6CTAA Engine
Gen Set with Cummins 6CTA, 6CTAA Engine
Industrial with Cummins 6CTA, 6CTAA Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
