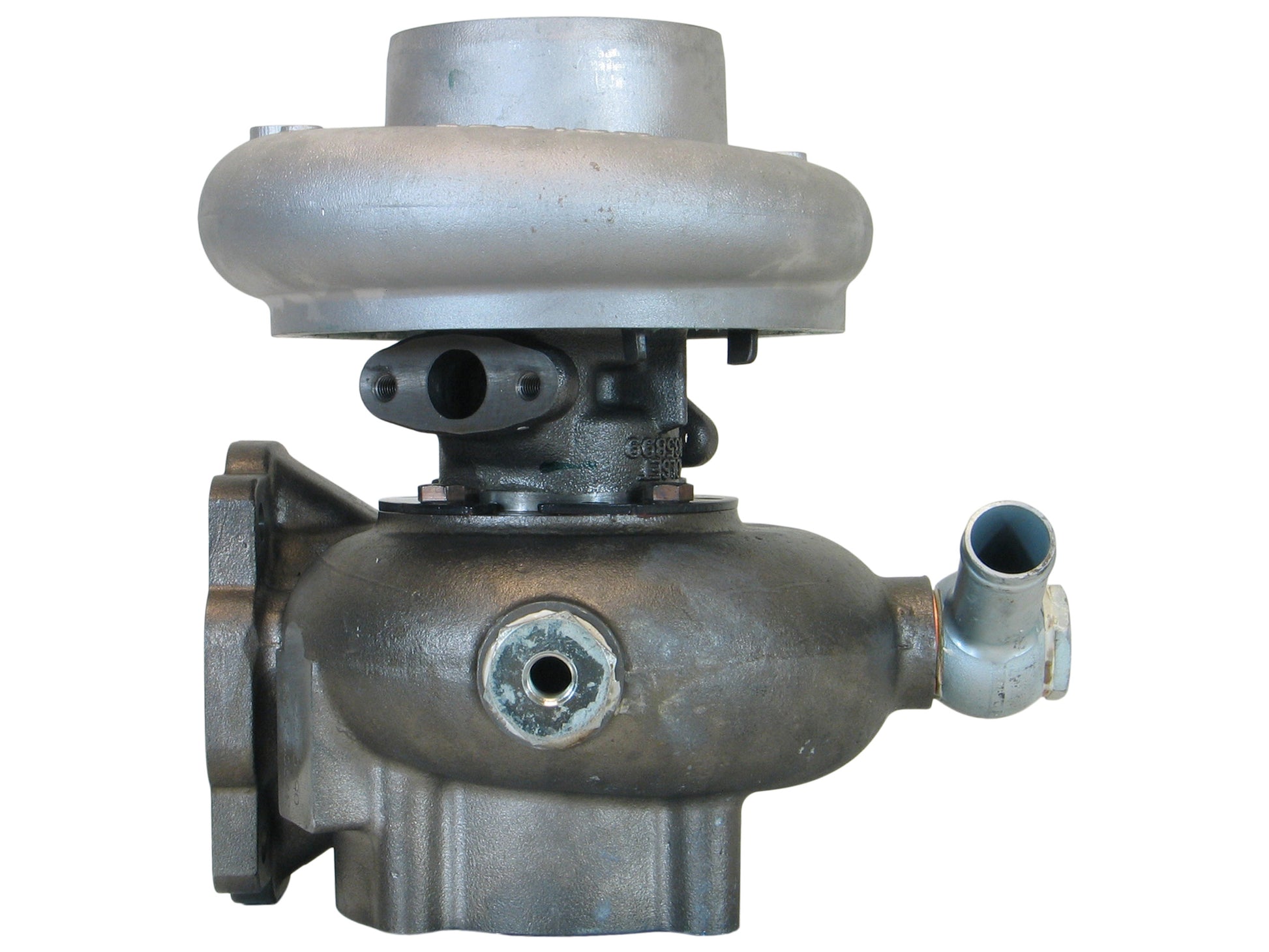

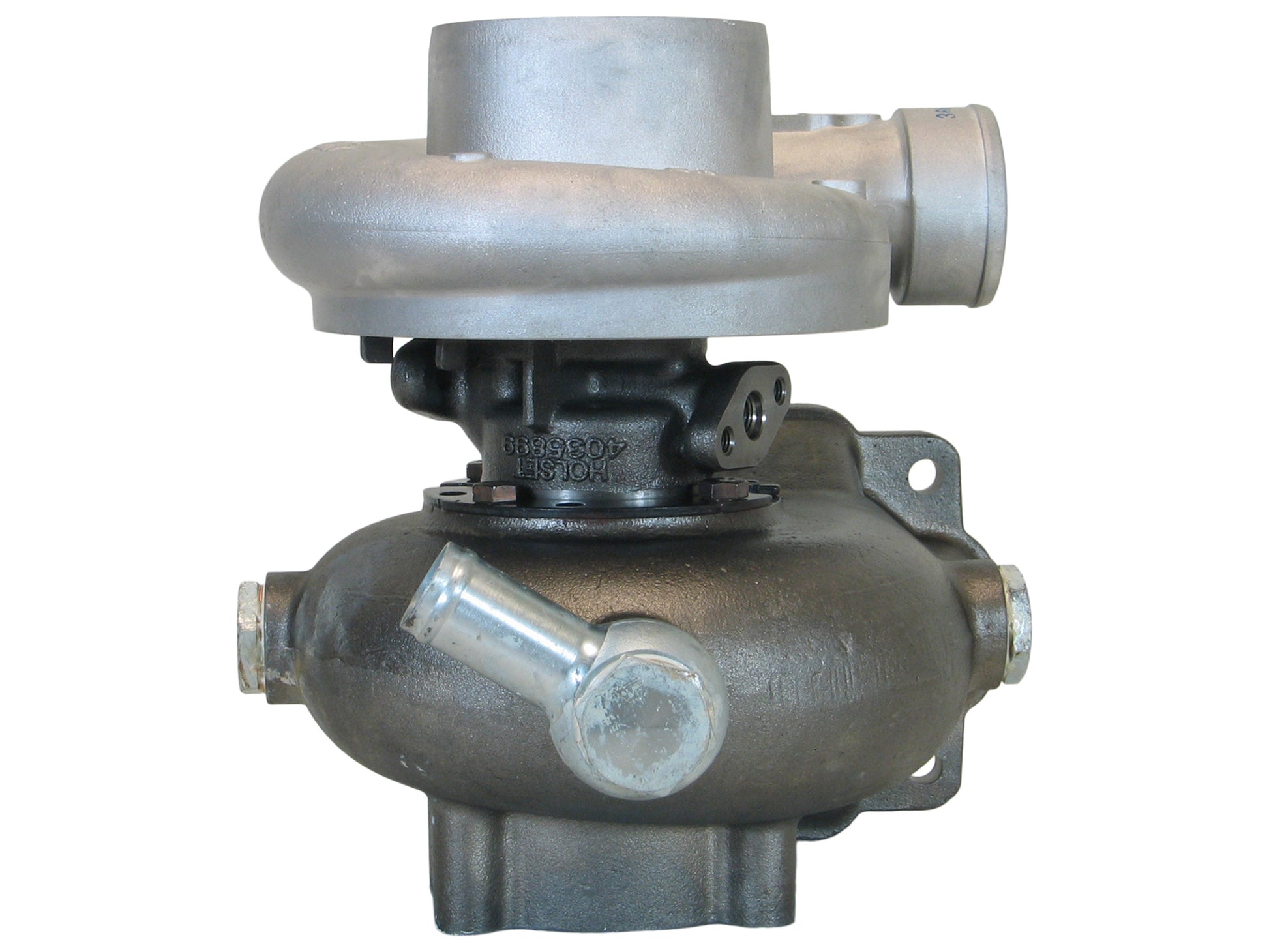

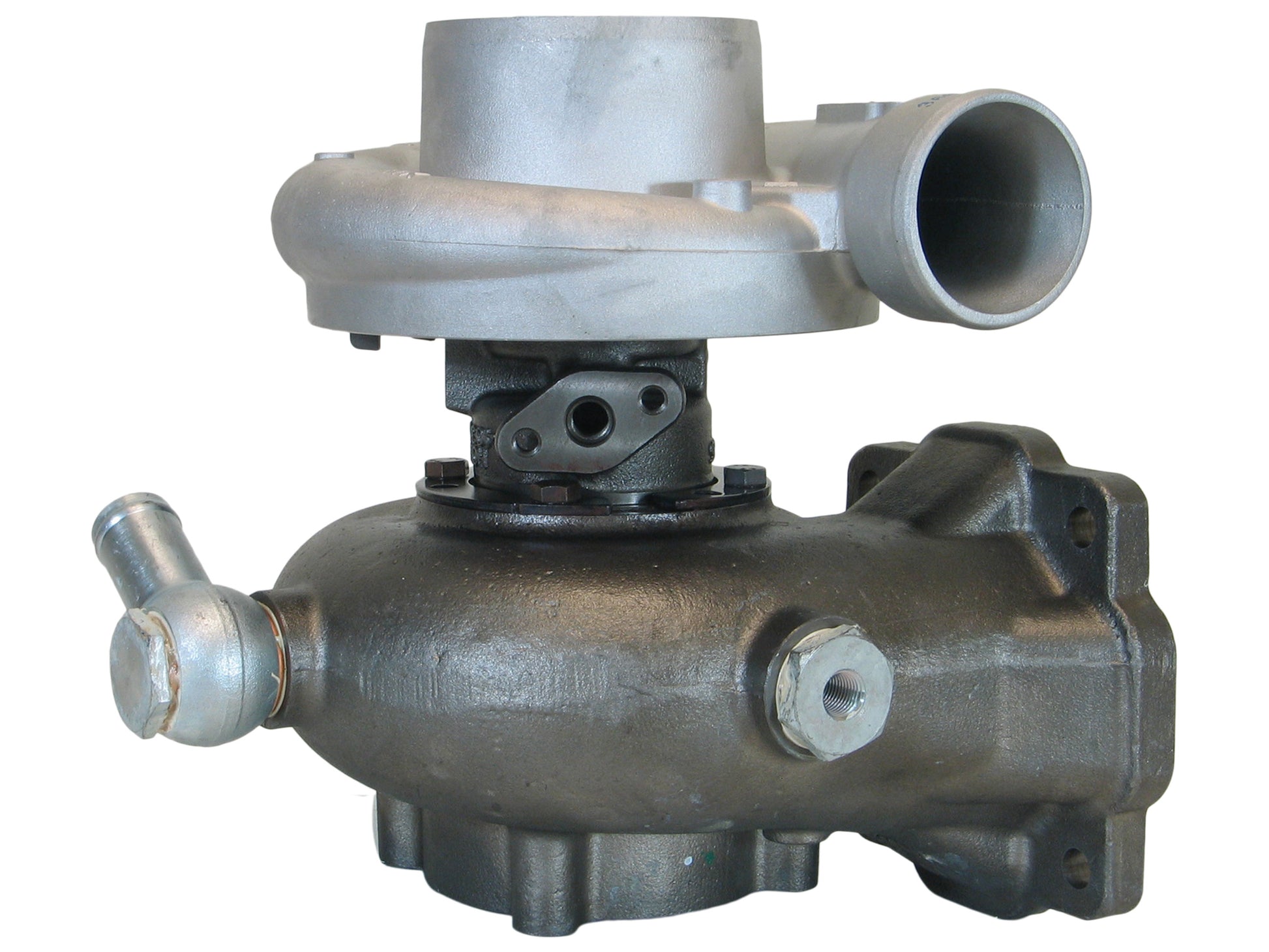

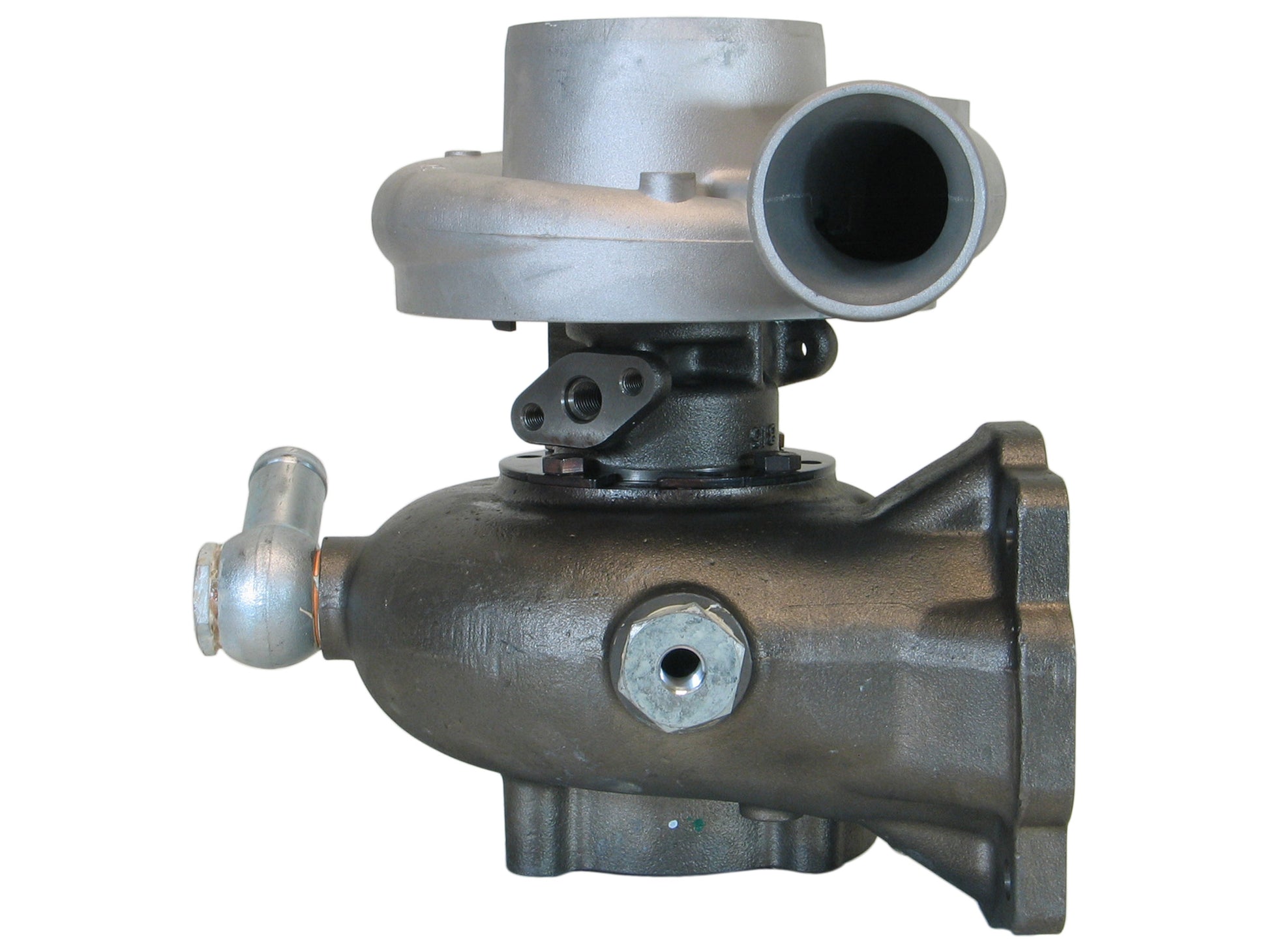

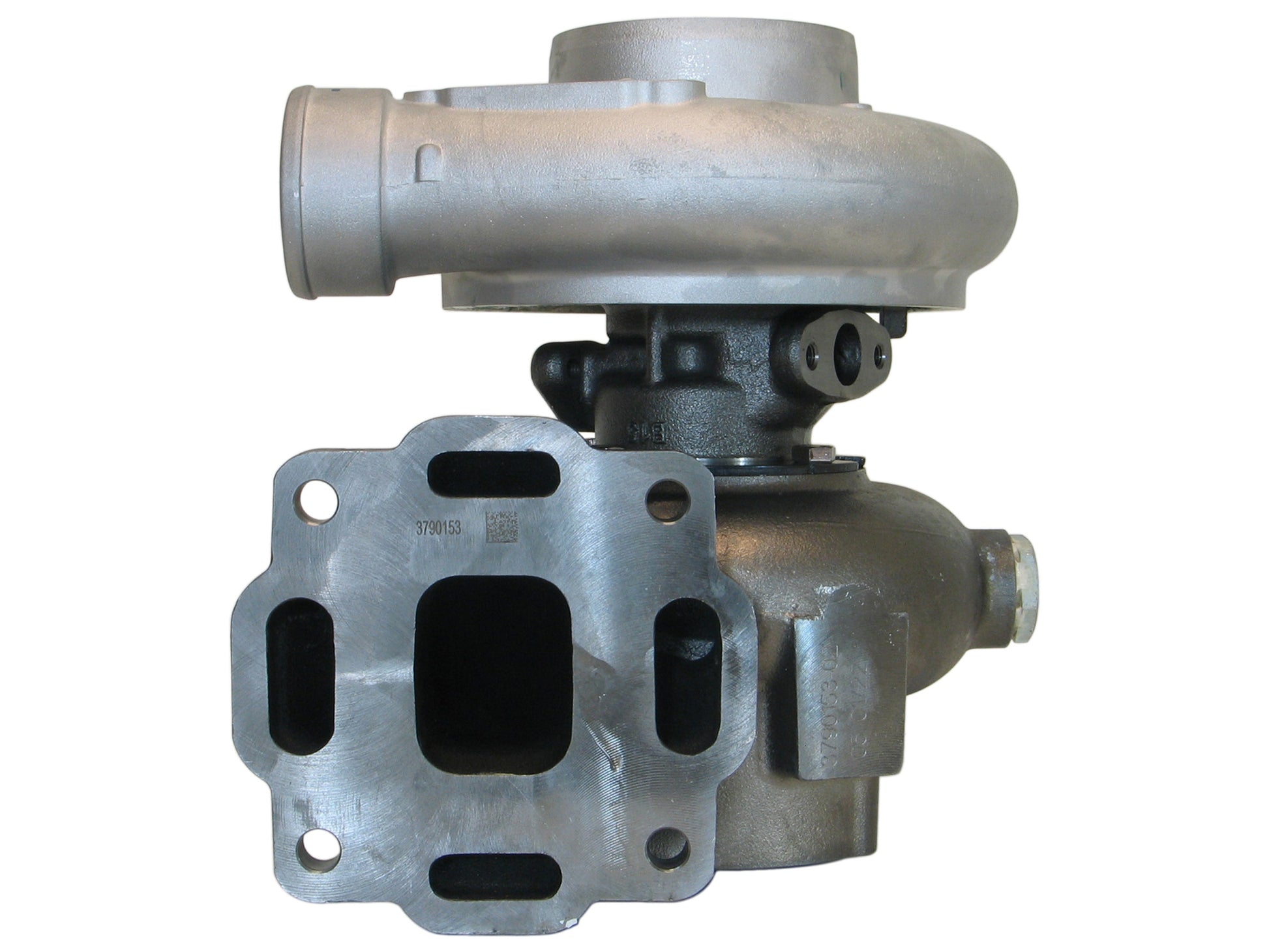

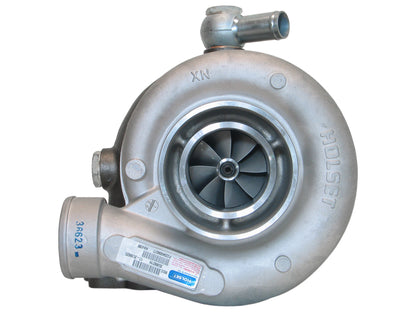

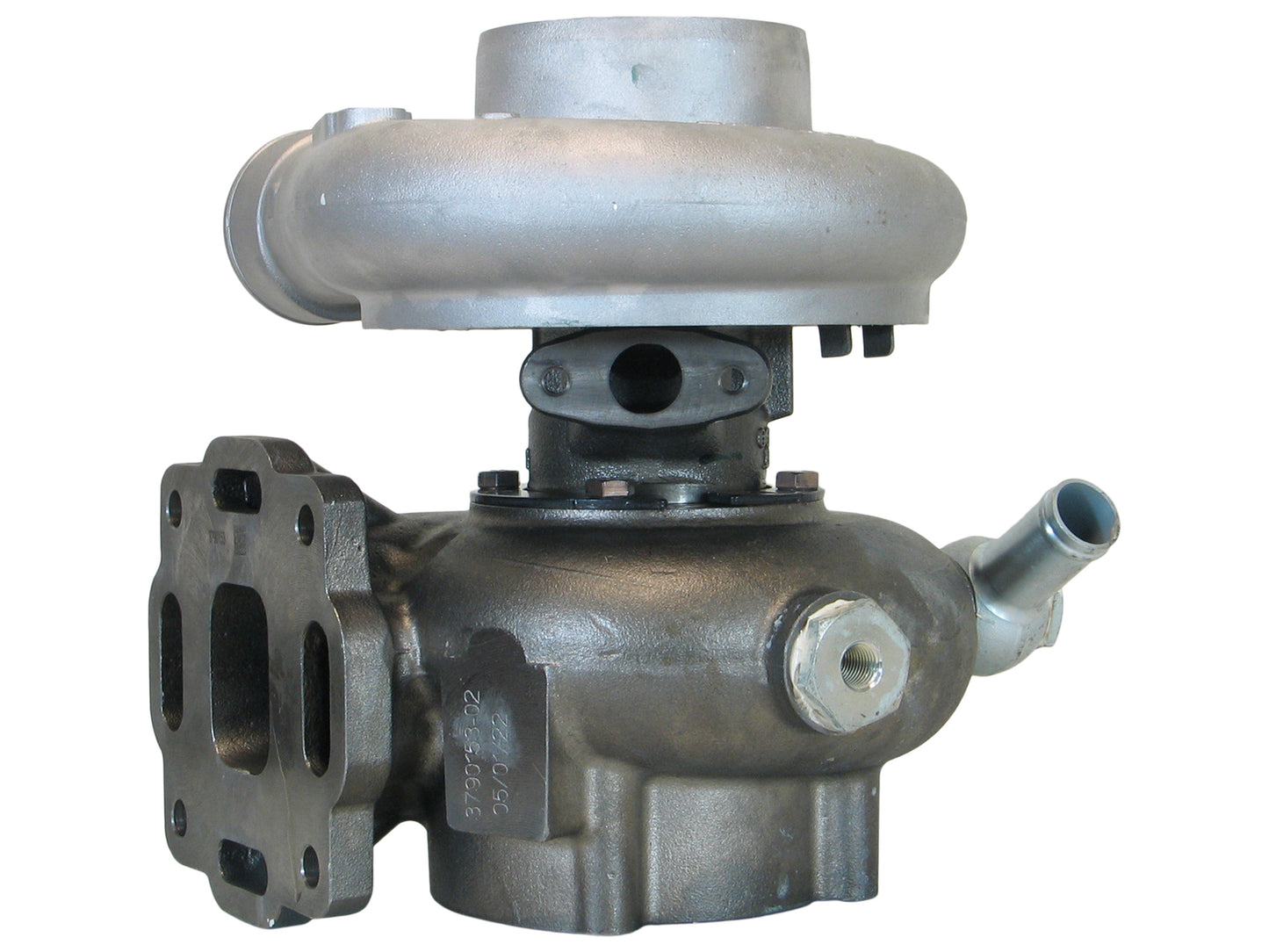

NEW Holset HX40 Turbo Marine Cummins 6BTAM 5.9L Diesel Engine 3536621 3536620SKU: 3536620
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 3536620
Interchangeable Number: 3536621, 3536621H
OEM Number: 3802829, 380282900, 3802829NX, 3802829RX
Serial Number: P1210086017
Turbo Model: HX40, HX40-L8294T/J16S3, HX40M
Engine Manufacturer: Cummins
Displacement: 5.9L, 5900 ccm, 6 Cylinders
Power: 355 HP
Angle α (Compressor Housing): 241°
Angle ß (Turbine Housing): 189°
Back Plate: 3530923 (3530923H, 353092300)(1154351300)
Bearing Housing: 3532632 (3599943, 4027754, 4035136, 3532631)(84.50 mm)(Oil Cooled)
CHRA: 4027283 (4027283H)

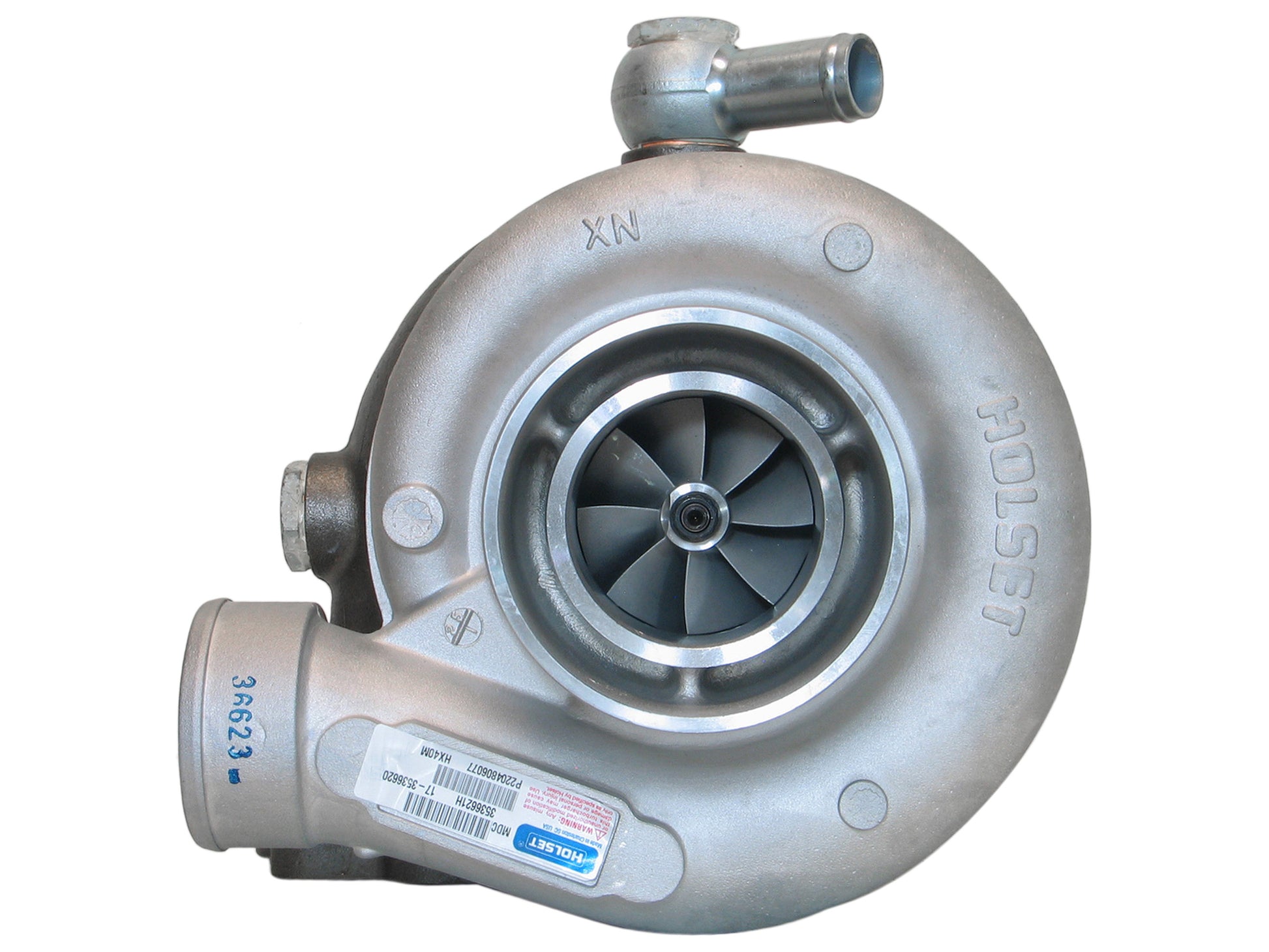

Compressor Wheel: 3599591 (3525358, 3537151)(Ind. 60.93 mm, Exd. 81.22, 8+8 Blades, Super Back)

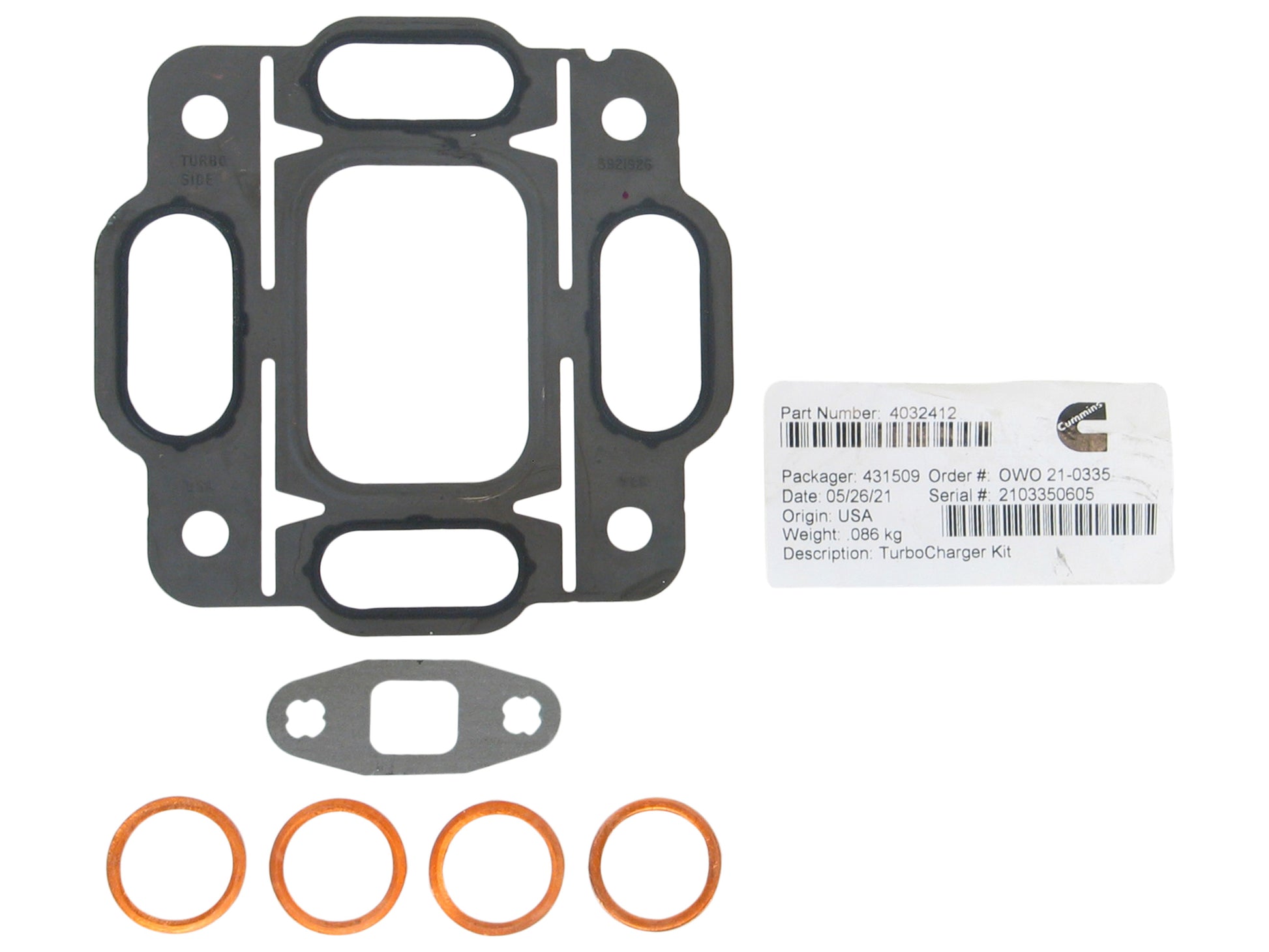

Gasket (Oil Inlet): 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 210849 (8027510)(Stainless Steel)
Gasket (Turbine Outlet): 210850 (Inox Steel)
Heat Shield: 3519302 (3519302H, 351930200)(1152301340)
Repair Kit: 3575169 (1153035750)

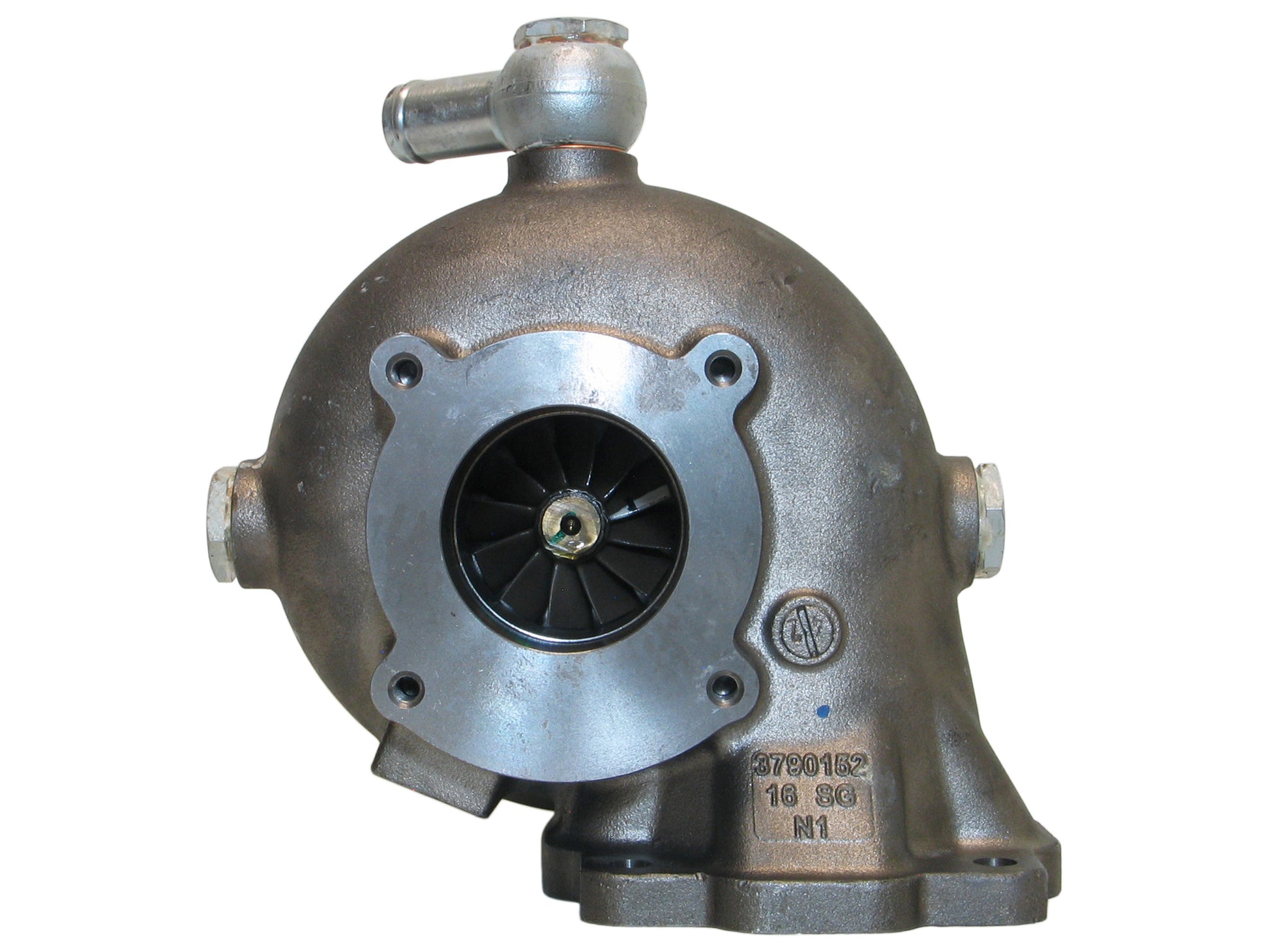

Turbine Housing: (Water Cooled)

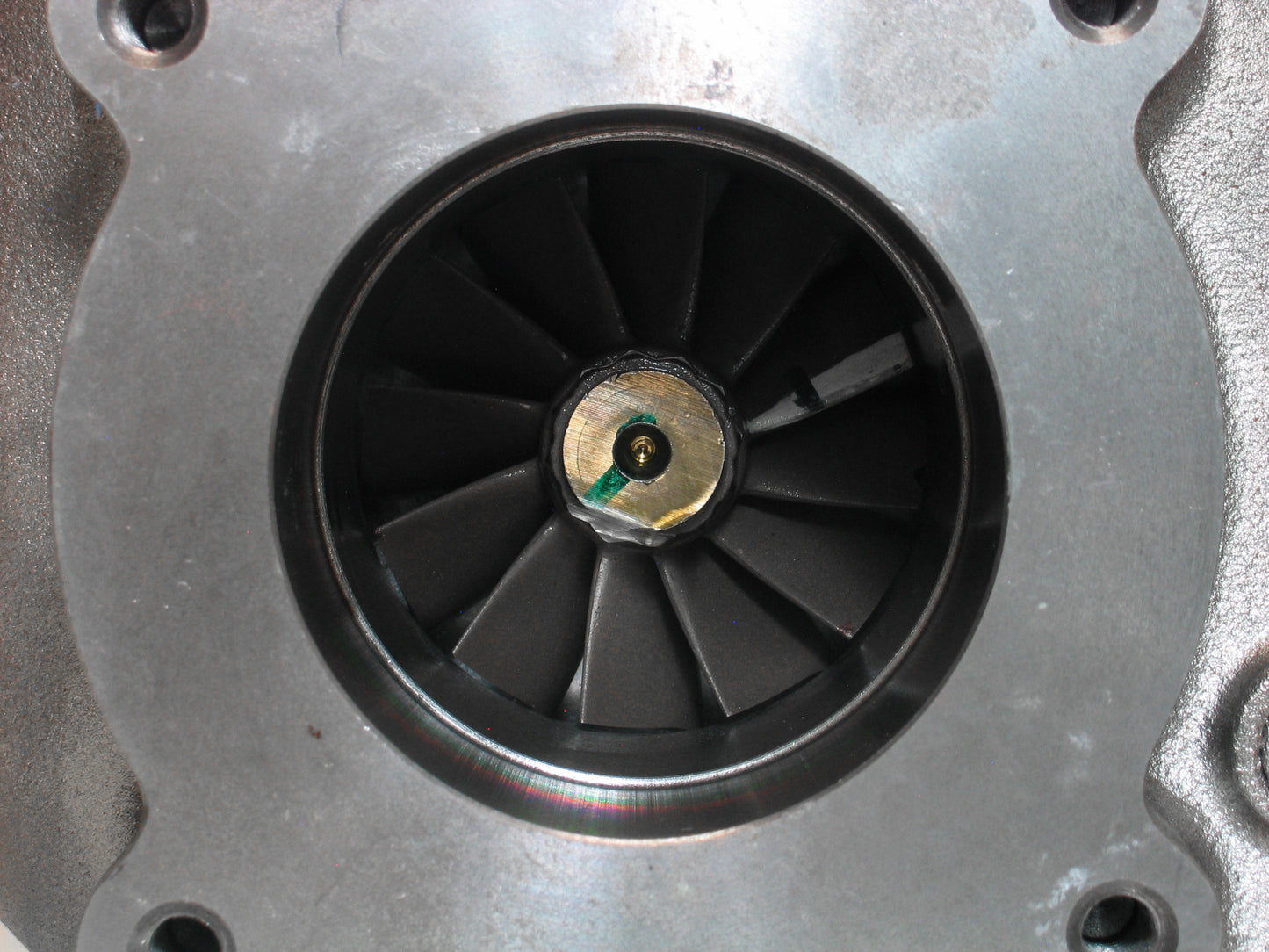

Turbine Wheel: 3536624 (3525687)(Ind. 75.92 mm, Exd. 61.59 mm, Trim 10.96, 12 Blades, Super Back)
1995-06 Marine with Cummins 6BTAM Engine

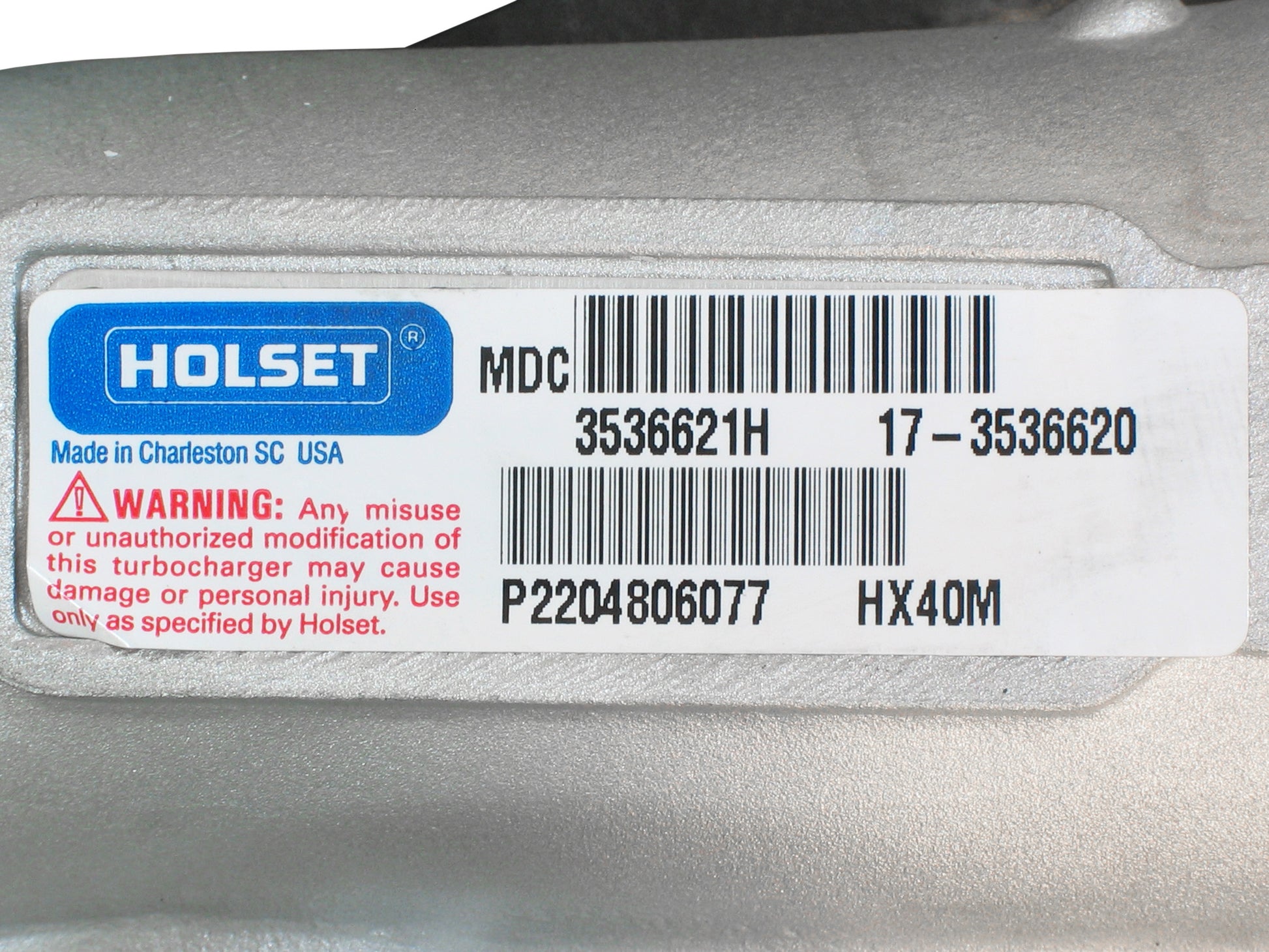

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
