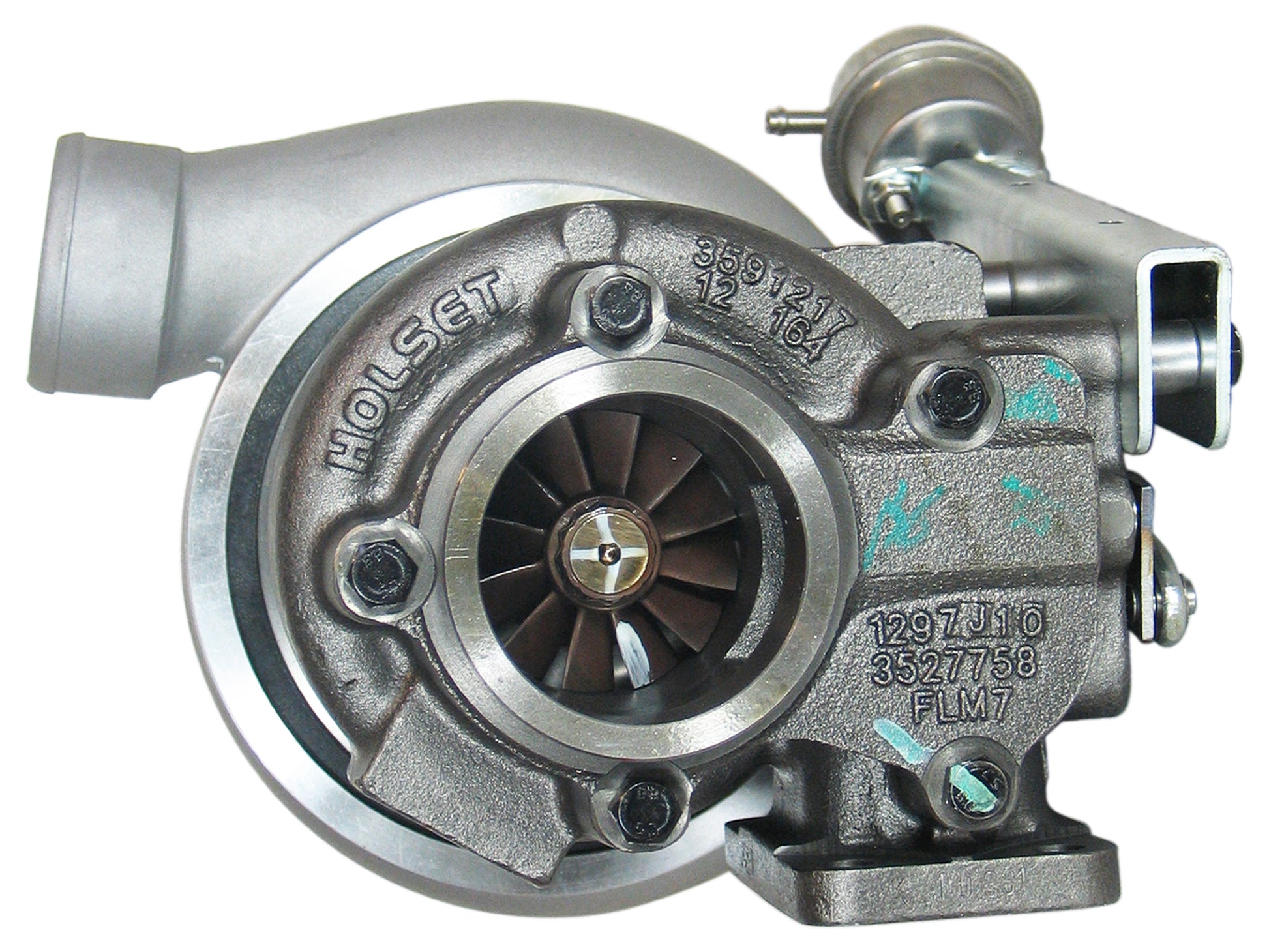

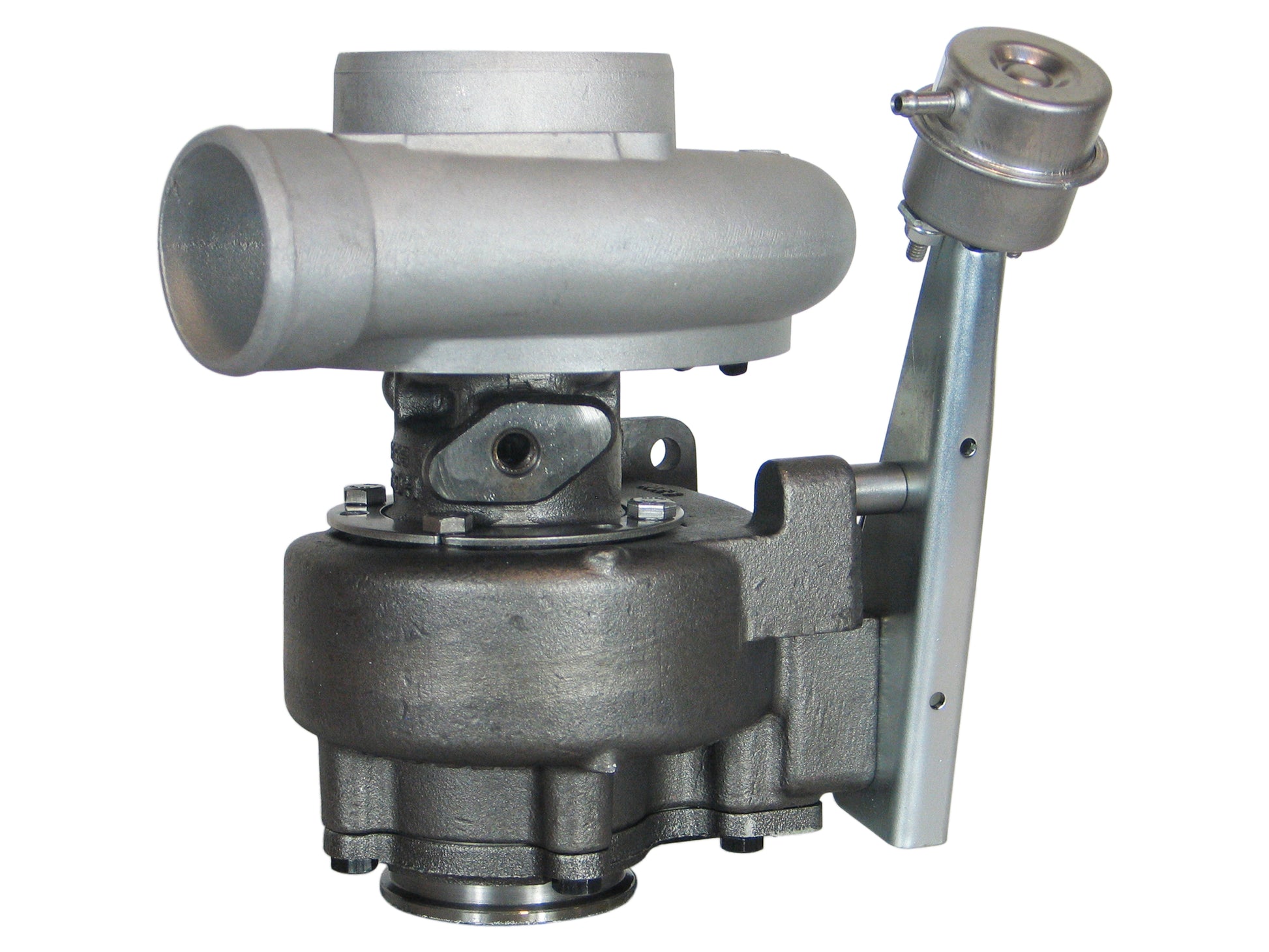

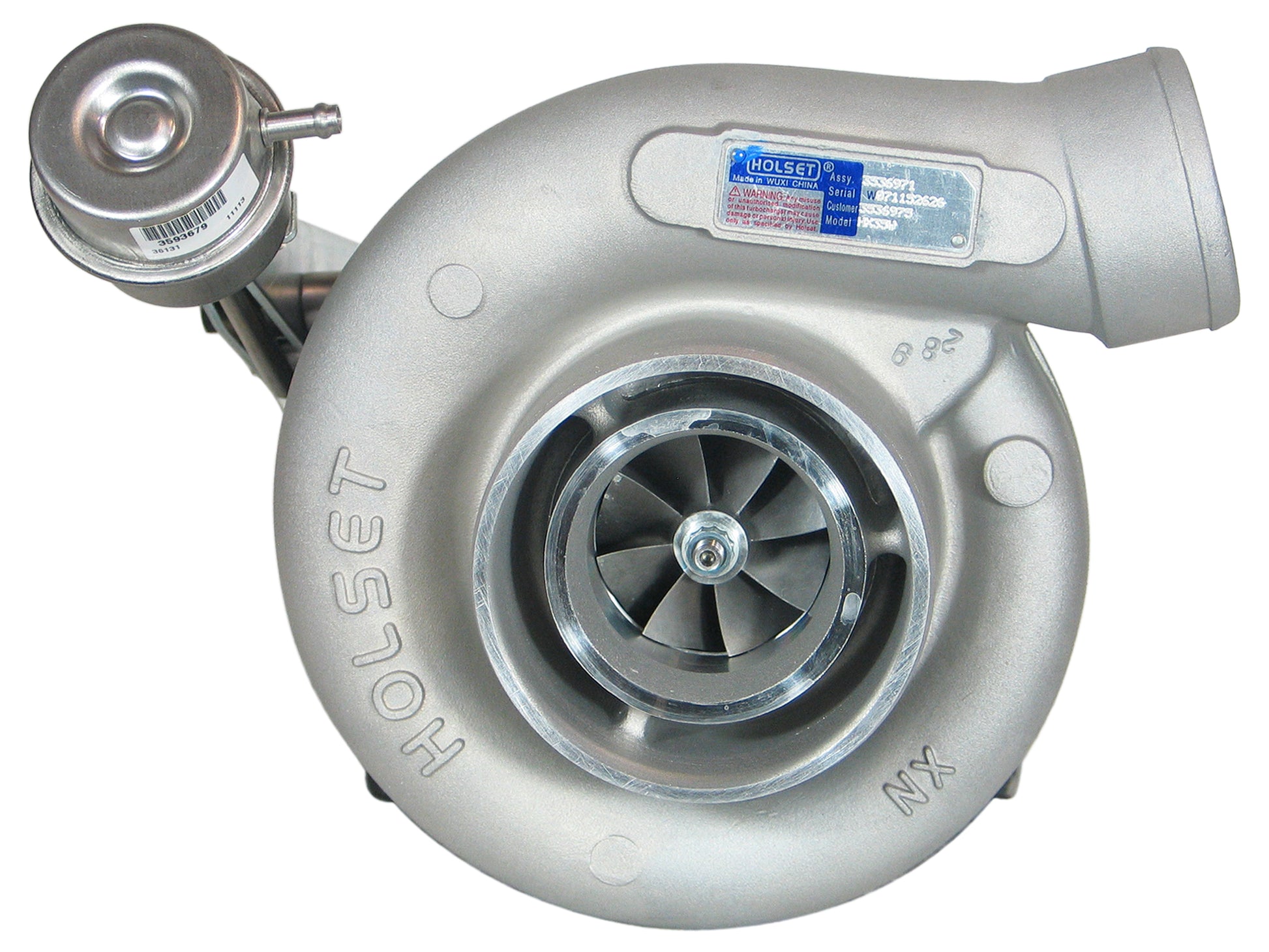

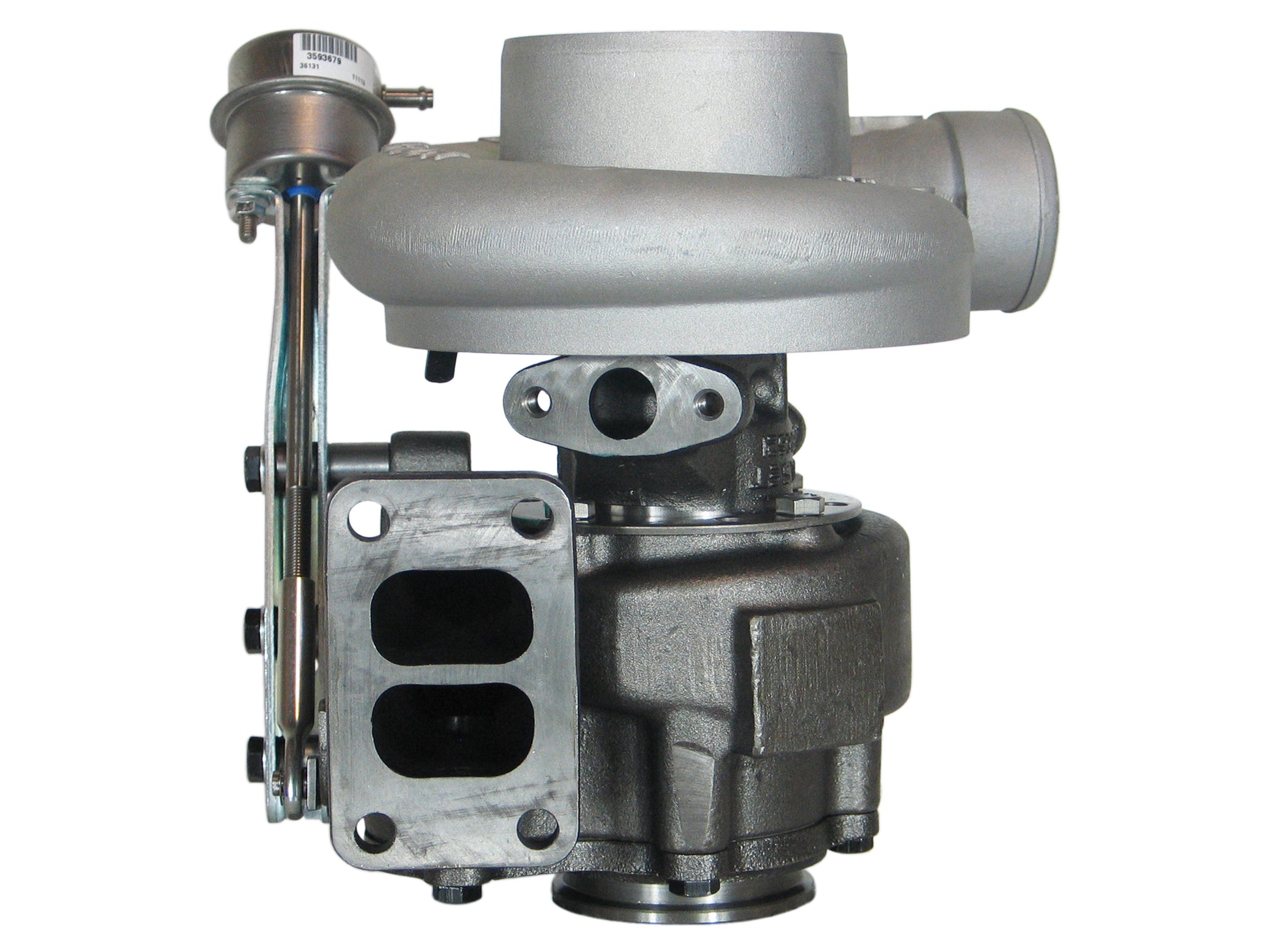

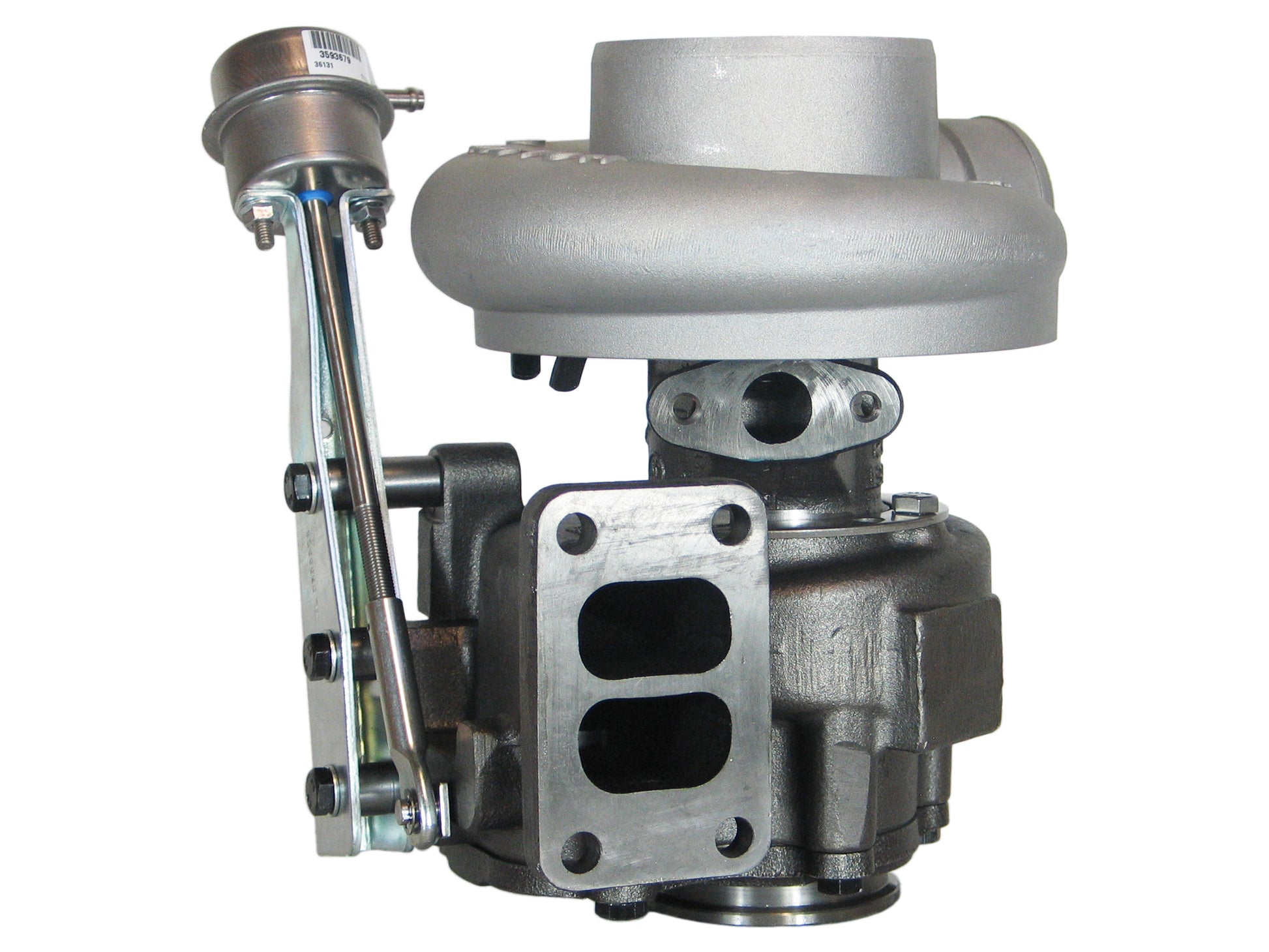

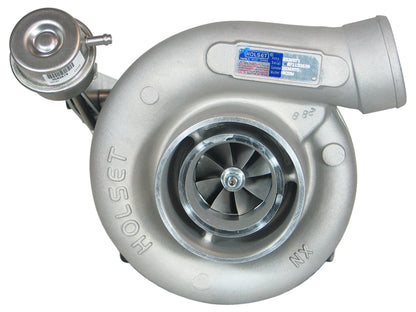

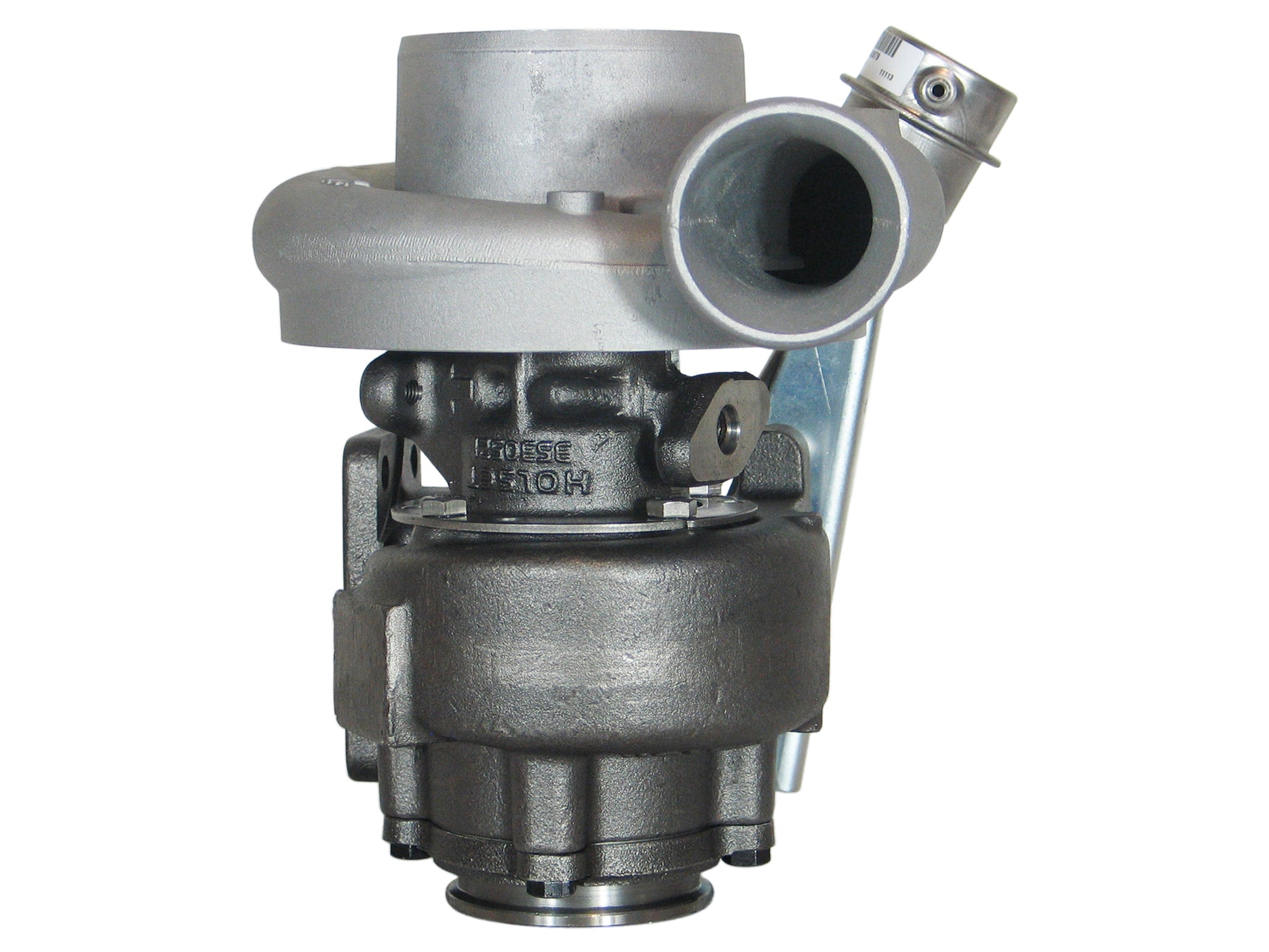

NEW Holset HX35W Turbo Industrial Off Highway Cummins 6BTA Diesel Engine 3536971

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

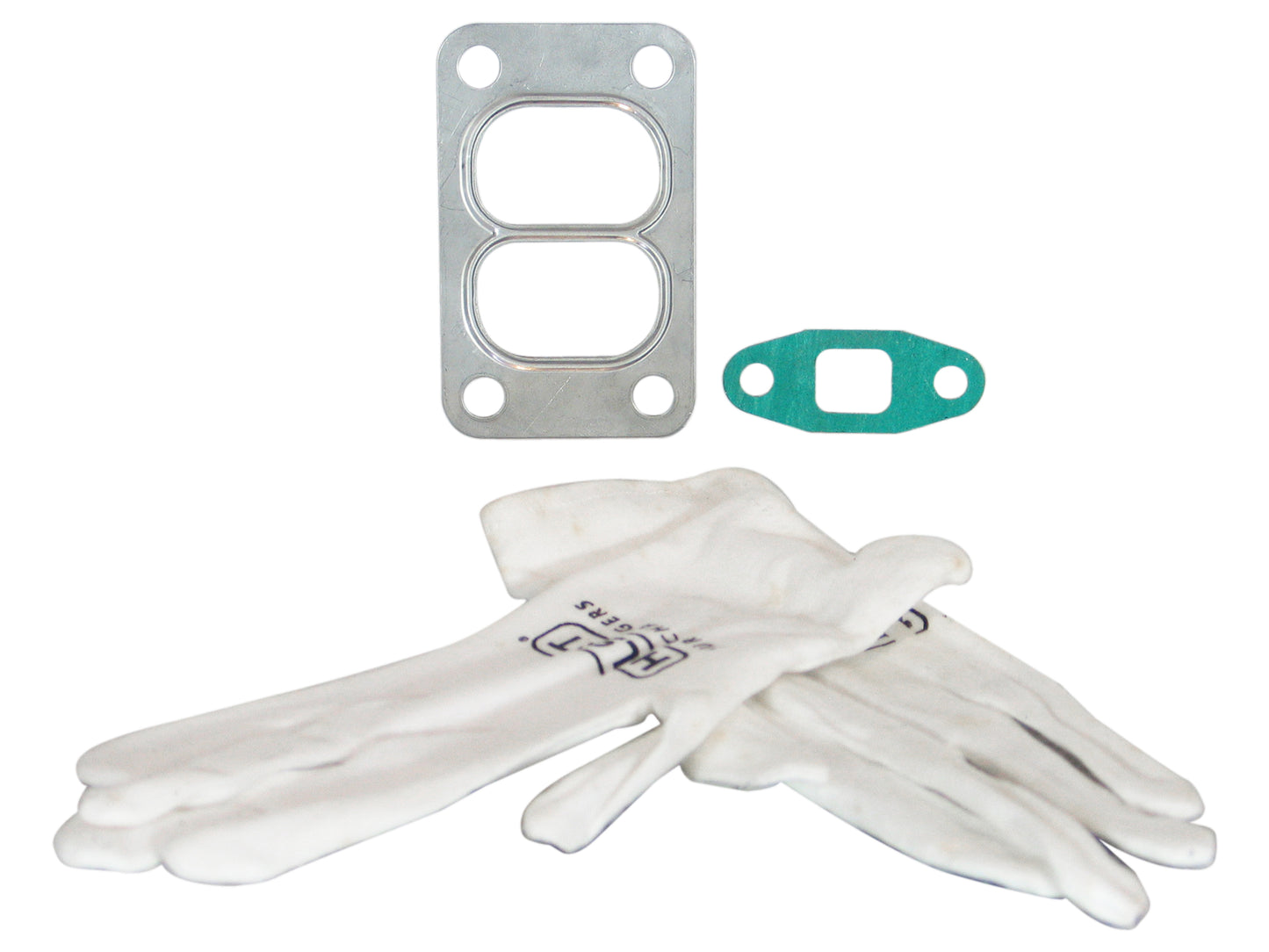

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 3536971
Interchangeable Number: 3536972H
OEM Number: 3536972, 3536973, 3536974, 3536975, 3536976, 3802767, 500395274
Turbo Model: HX35W, HX35W-L8264T/E12PB11
Manufacturer: Holset

Year: 1995-
Engine: 96 6BTA
Engine Manufacturer: Cummins
Fuel: Diesel

Angle α (Compressor Housing): 206/310/320/329/340°
Angle β (Turbine Housing): 5/20/165/180°

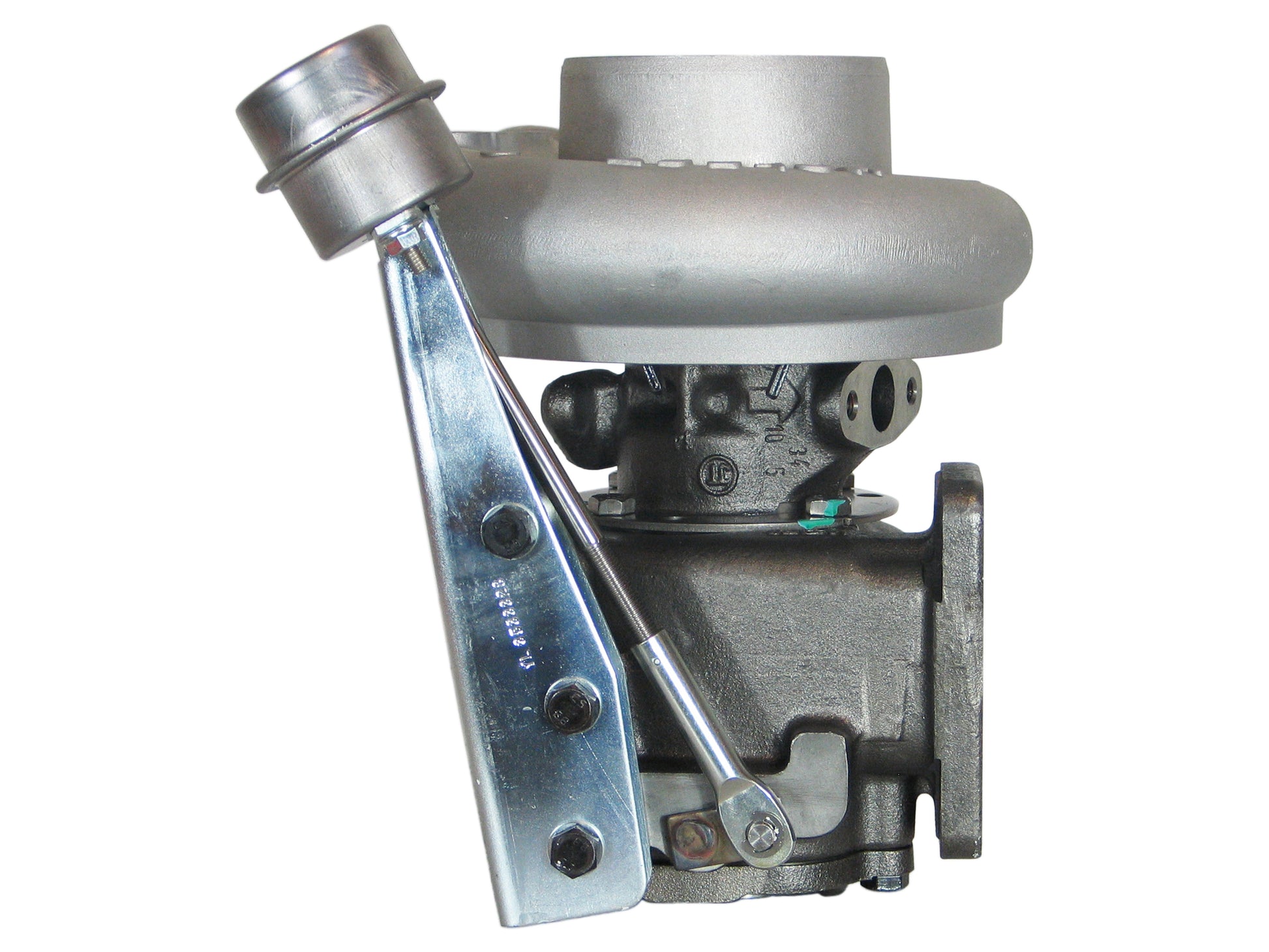

Actuator: 3593679
Bearing Housing: 4032032/4027443 (84.50 mm)
CHRA: 3537817
Compressor Cover: 3535813
Compressor Wheel: 3537168/3599594 (3537147, 3599638)(6735818031) (Ind. 53.88 mm, Exd. 83.03 mm, 8+8 Blades)(1152301400)
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Heat Shield: 3519304 (3519302)(1152301340)
Repair Kit: 3575169 (1153035750)
Seal Plate: 3530923 (1154351300)
Turbine Housing: 4030380

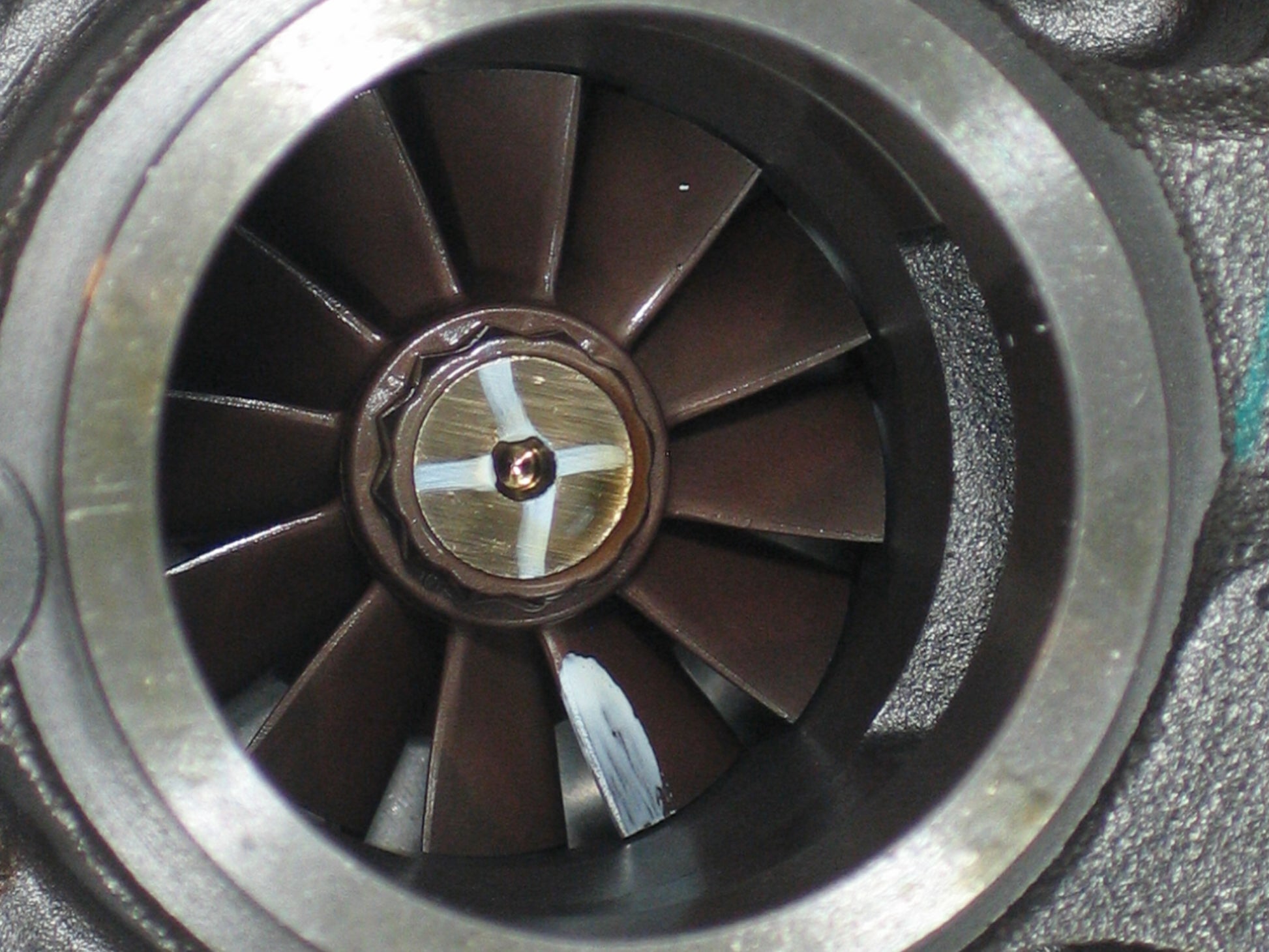

Turbine Wheel: 3519336/3595832 (Ind. 70 mm, Exd. 60 mm, 11 Blades) (1152301435)

Application:
1995- Industrial, Off Highway with Cummins 6BTA Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
