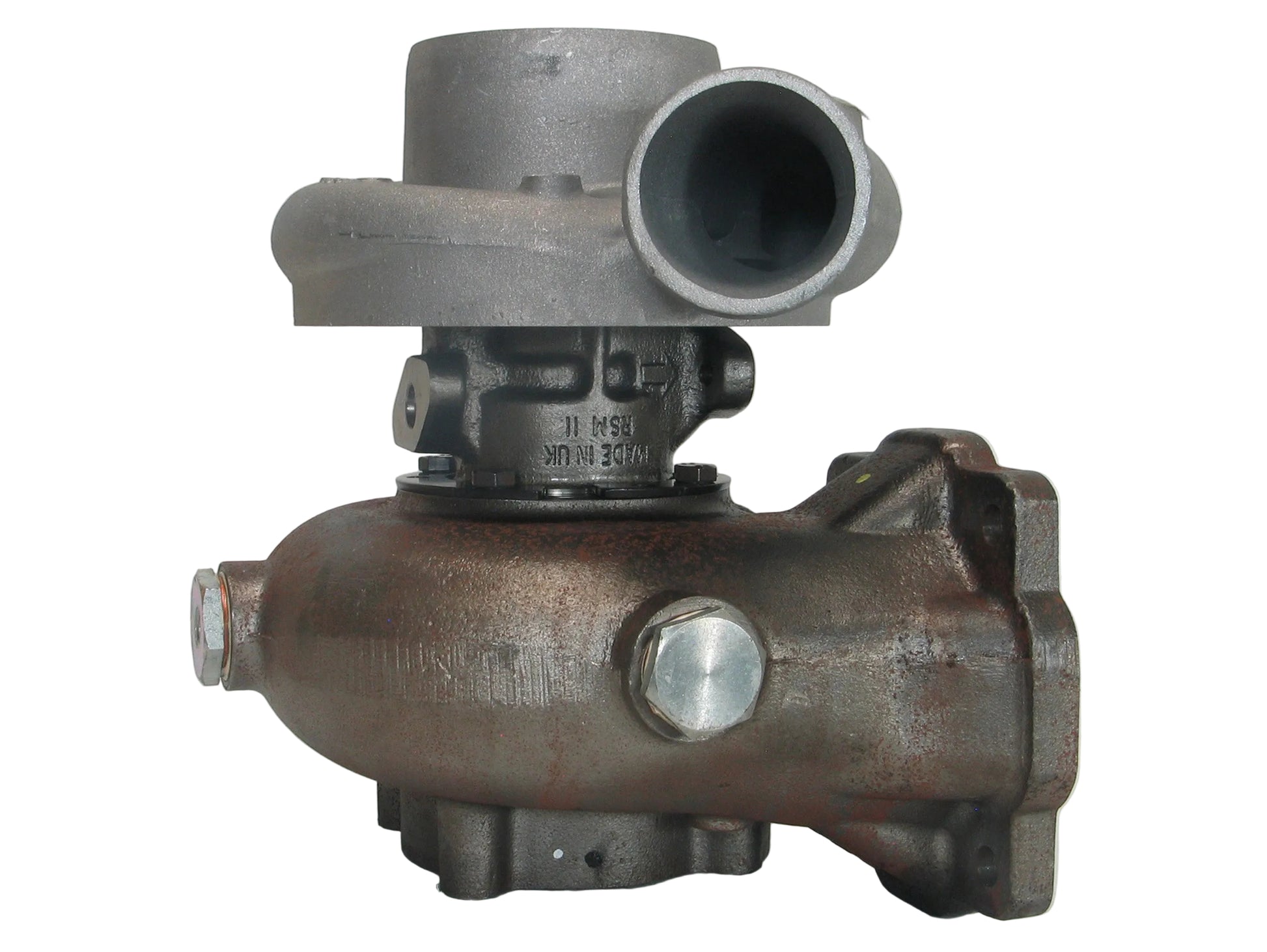

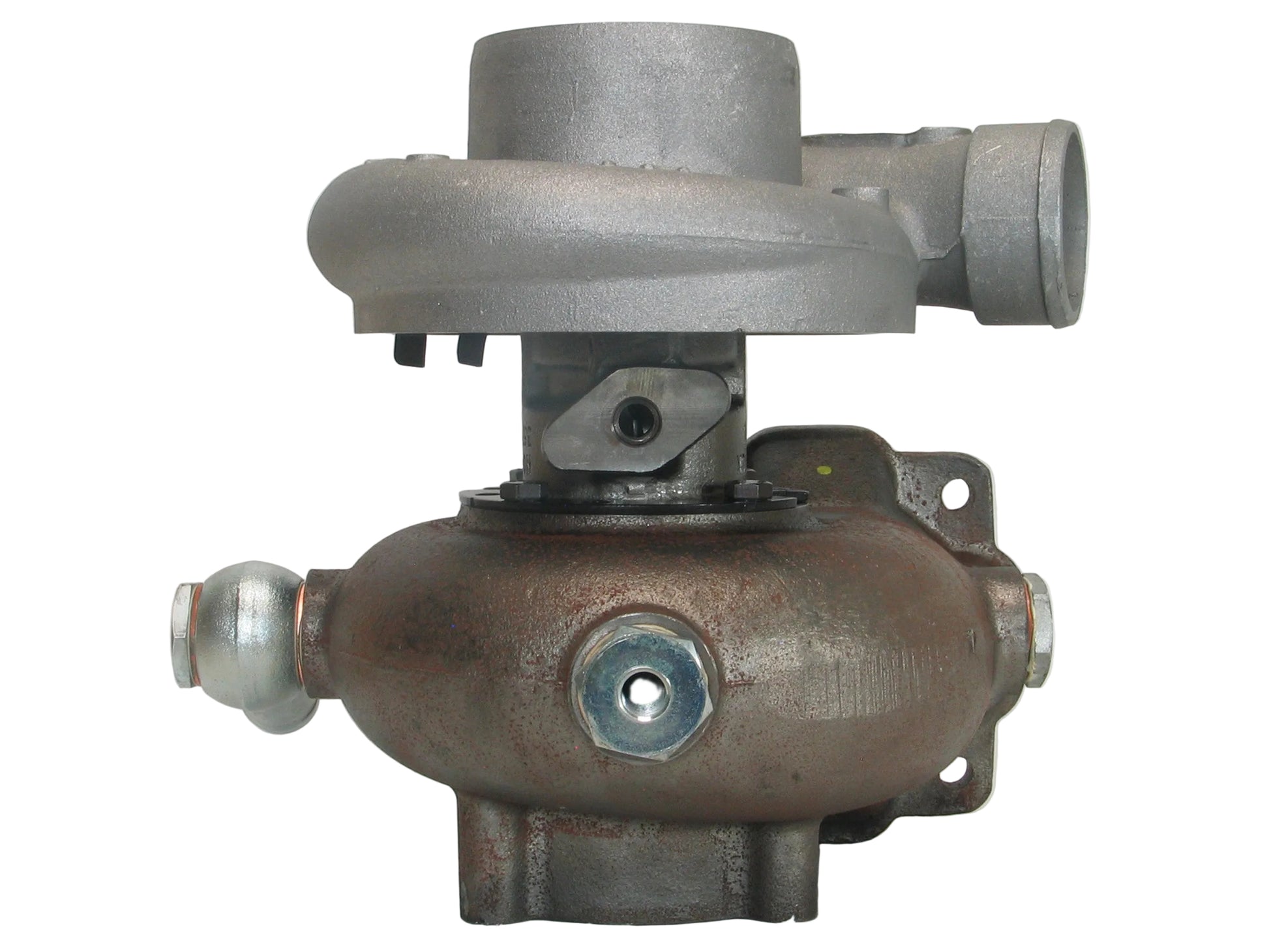

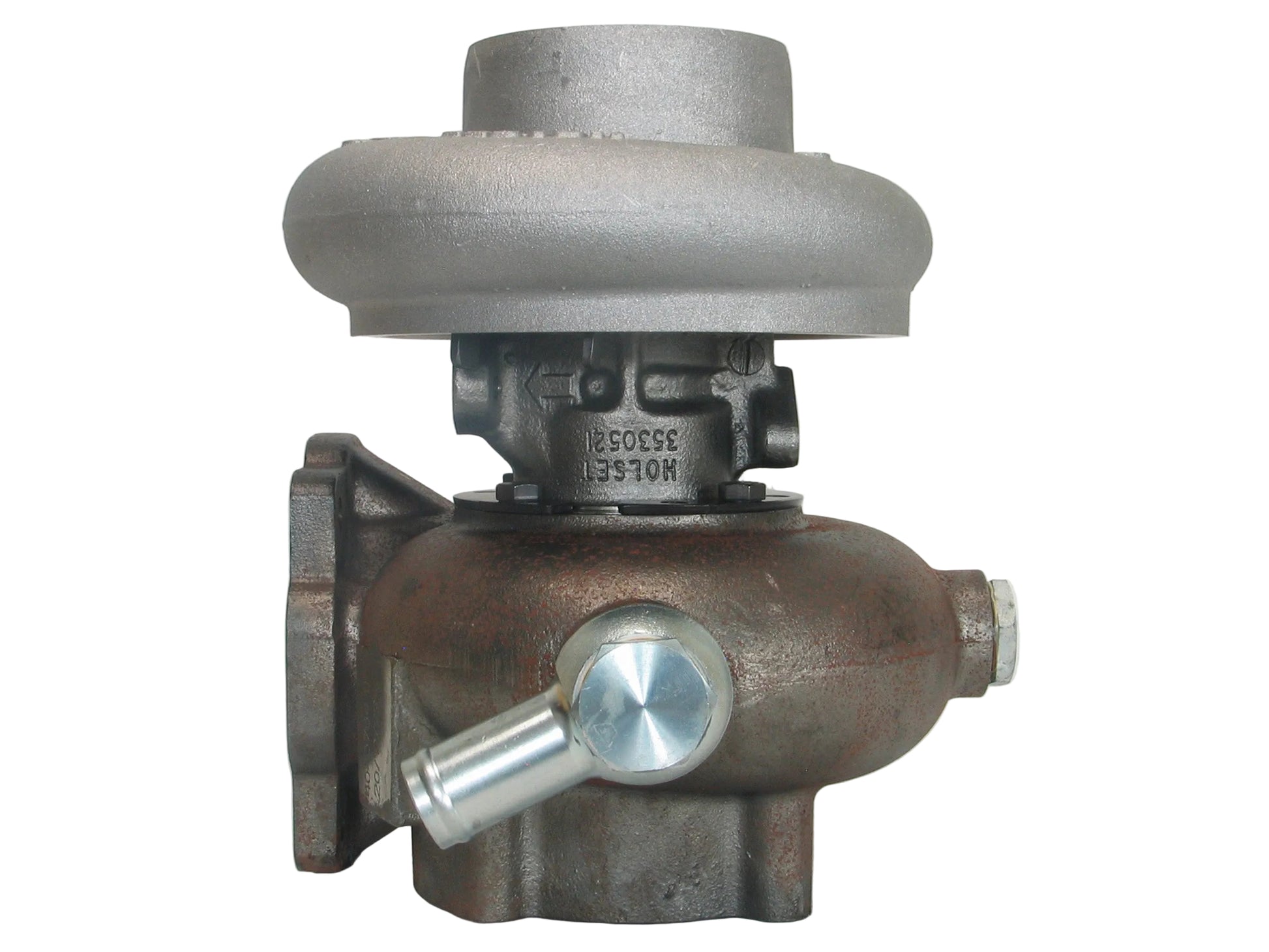

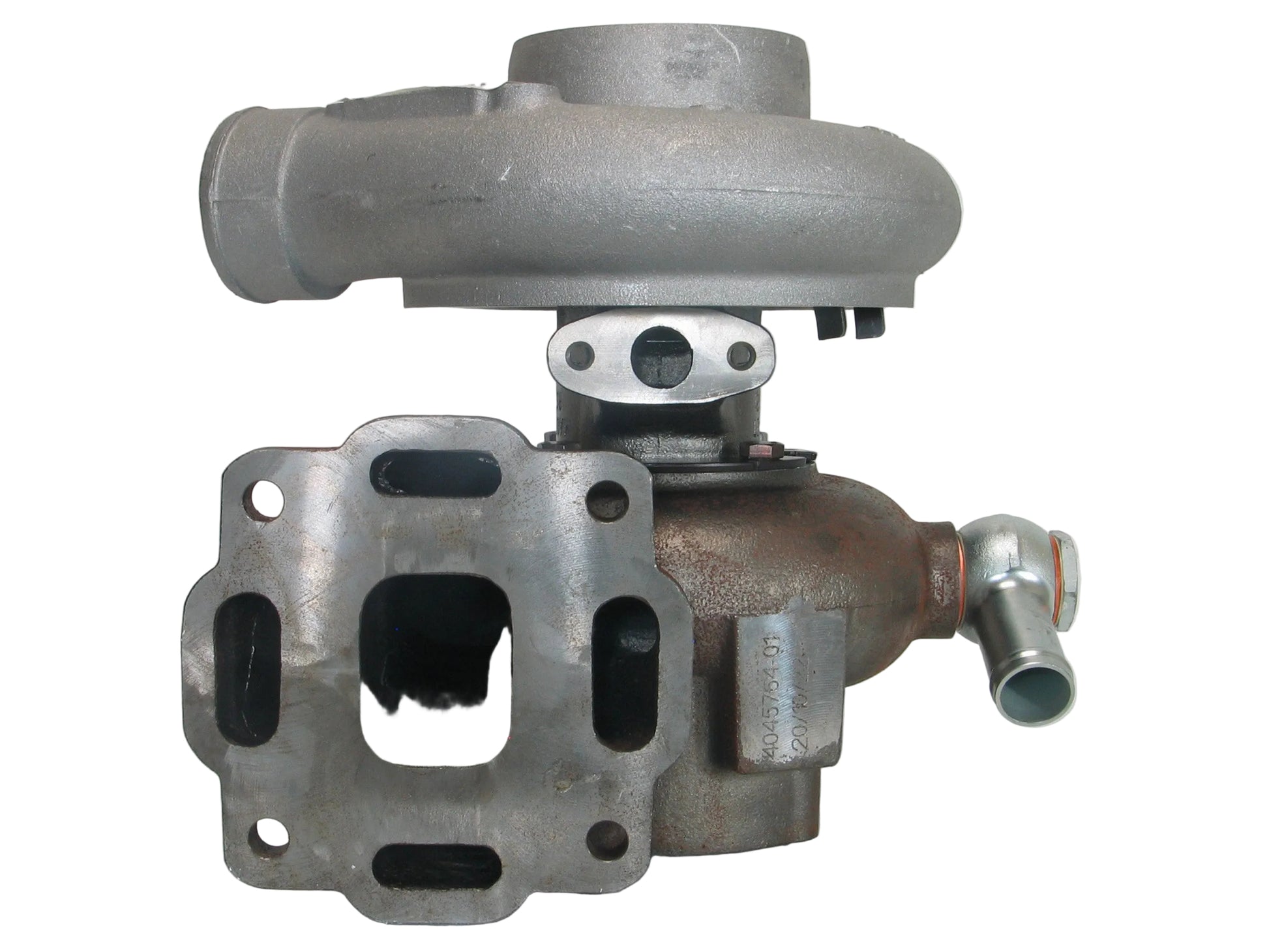

NEW Holset HX35M Turbo Marine Cummins 6BTM 6BTM-260 5.9L Diesel 3538453 3538452

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 3538452
Interchangeable Number: 3538453H, 3802915RX
OEM Number: 3538453, 3538454, 3802915
Turbo Model: HX35, HX35-L8264T/J12S5, HX35M
Manufacturer: Holset

Year: 1996-09
Engine: 6BTM, 6BTM-260
Engine Manufacturer: Cummins
Displacement: 5.9L, 5900 ccm, 6 Cylinders
Fuel: Diesel
Power: 260 HP

Angle α (Compressor Housing): 200/246/200°
Angle β (Turbine Housing): 360/301/0°
Back Plate: 3530923 (404400001)(1154351300, 1800016009)
Bearing Housing: 3532632 (3532631, 3539694, 3599943, 4027754, 4035136, 4036549)(Oil Cooled)(400350002, 1900011016)
CHRA: 4027086 (4027086H)
Clamp Plate (Turbine): 2839879H

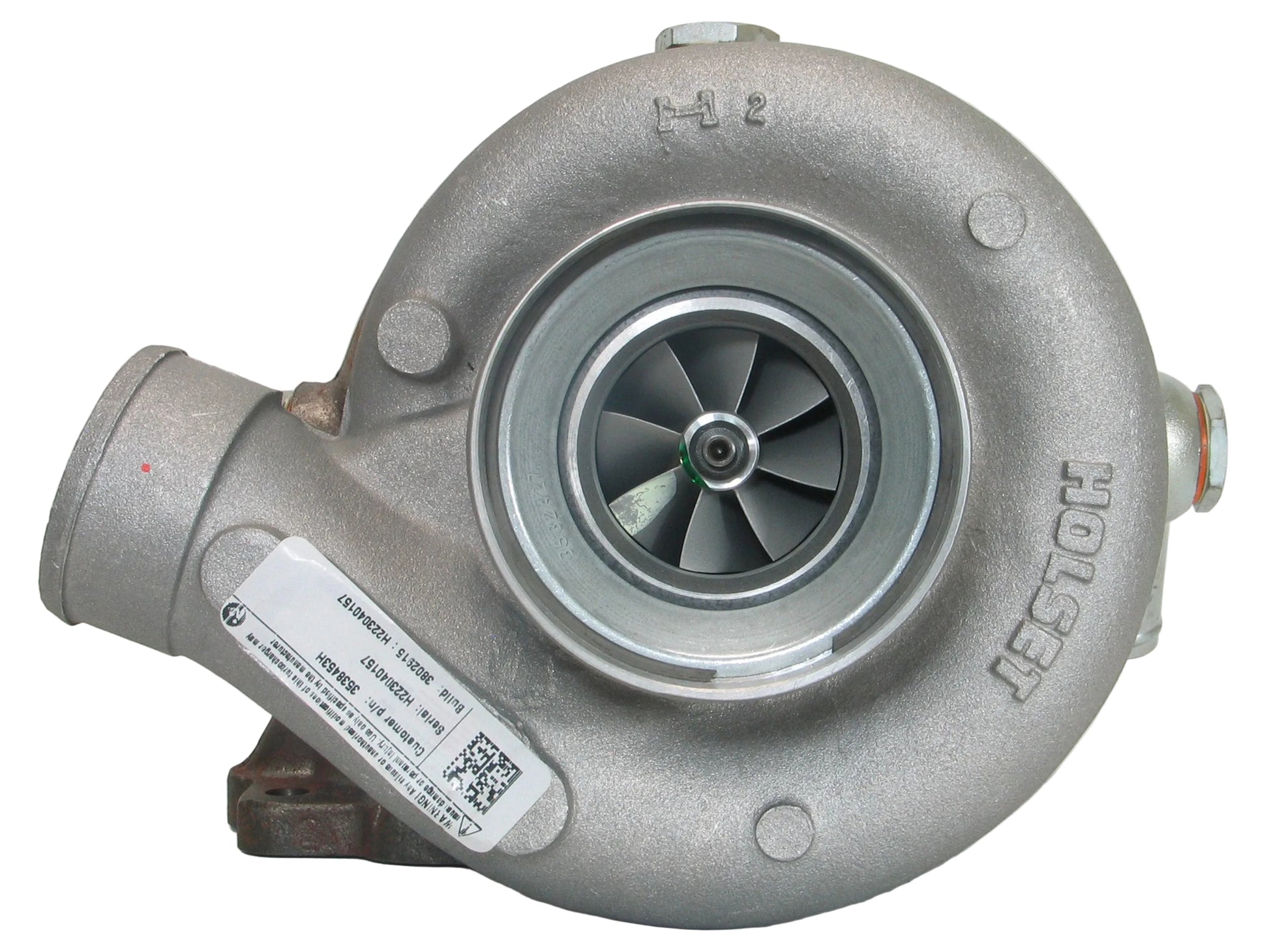

Compressor Wheel: 3599594 (3599646, 4036126)(Ind. 53.8 mm, Exd. 82.04 mm, 8+8 Blades, Super Back)(402020012, 1200016158)
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Outlet): 210850 (392196100)(Inox Steel)

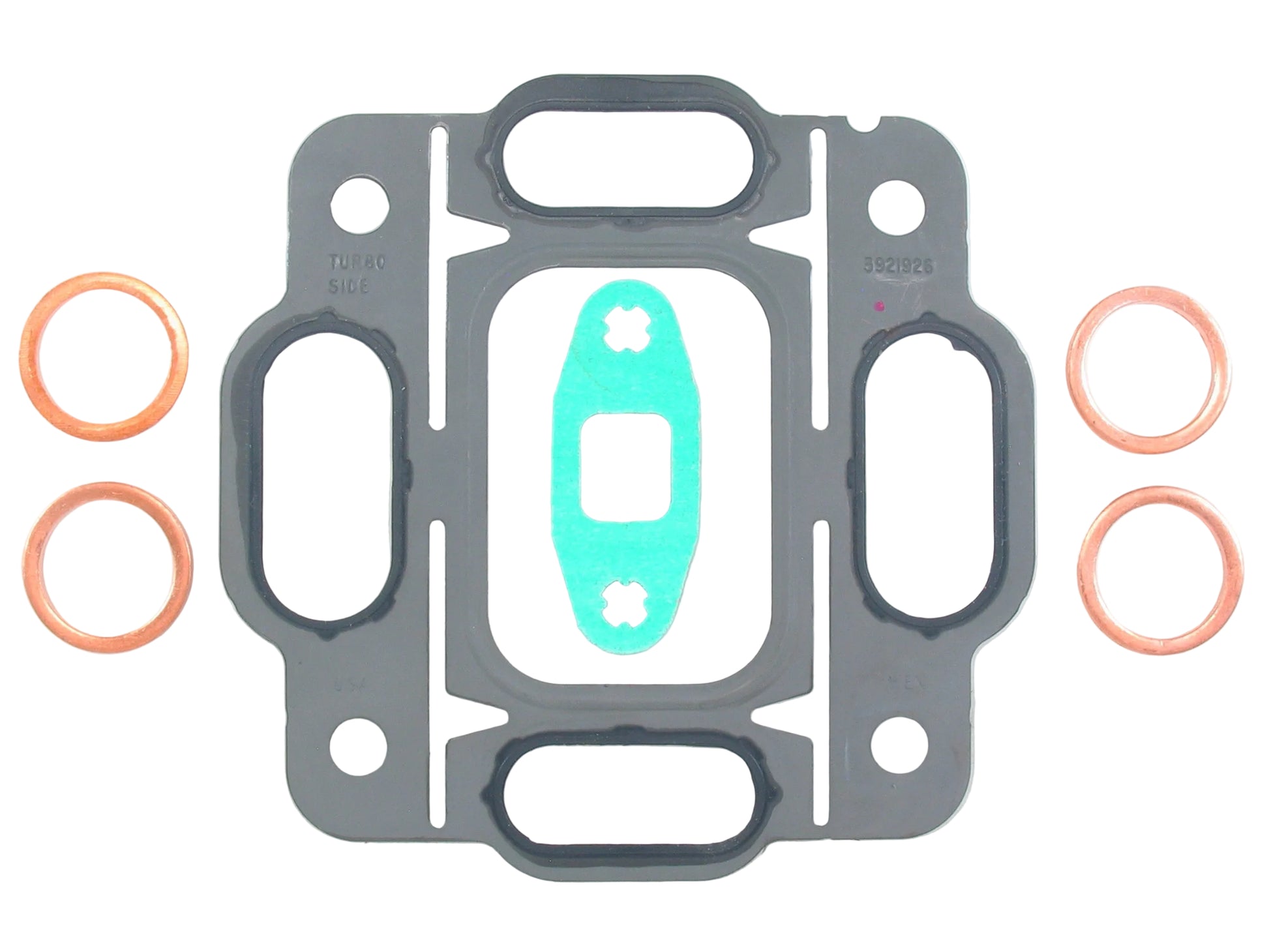

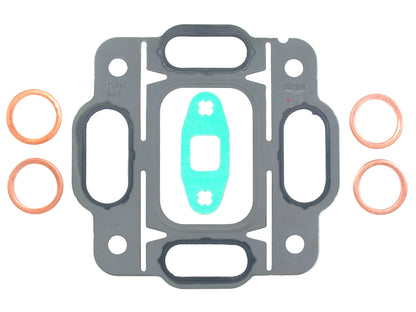

Gasket Kit: 4032412H
Heat Shield: 3519302 (3519304)(406400001)(1152301340, 2030016031)
Repair Kit (Major): 3575169 (1153035750, 5000020021)
Repair Kit (Minor): 5451883H
Retaining Ring: 3533163H
Turbine Housing Fitting Kit: 5451885H

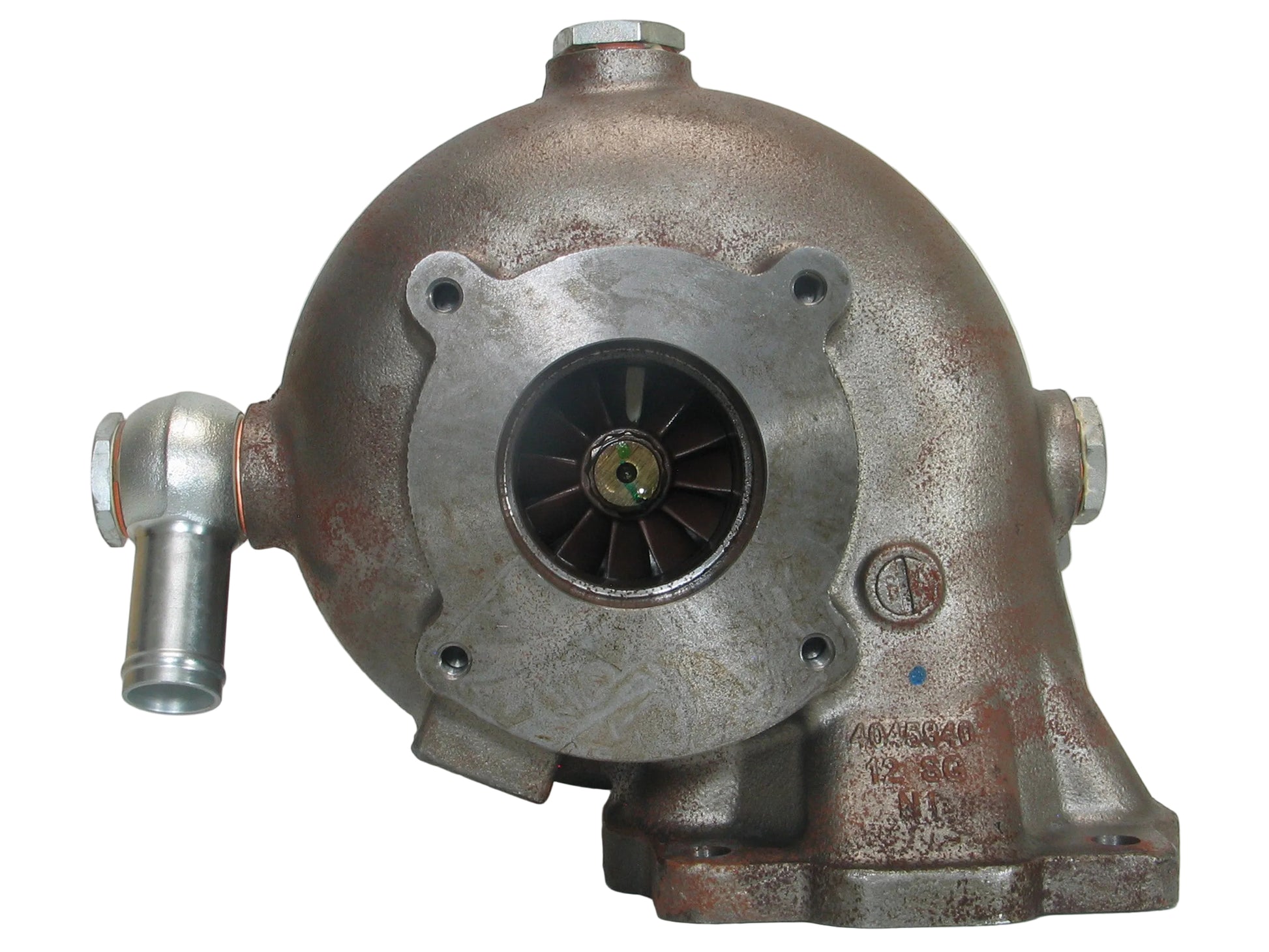

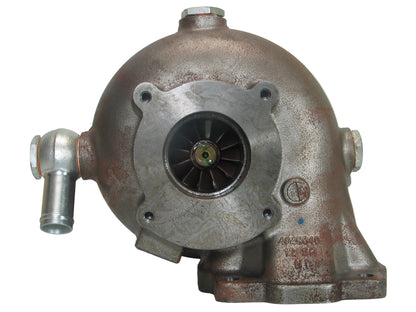

Turbine Housing: 4045764H
Turbine Housing: Water Cooled

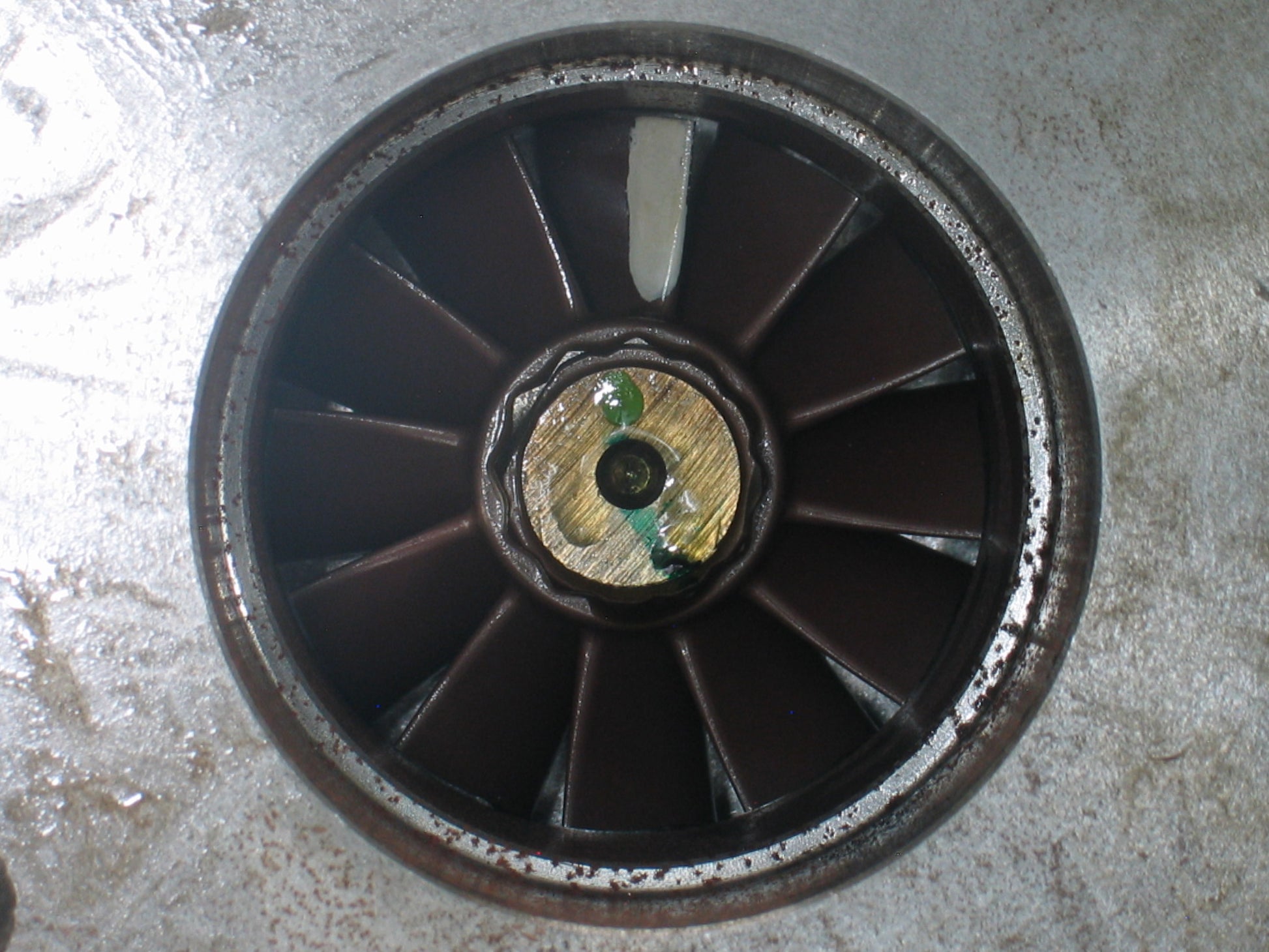

Turbine Wheel: 3503798 (Ind. 70 mm, Exd. 56.99 mm, Trim 10.9, 12 Blades)
Turbocharger Kit: 3538453H

Application:
1996-09 Marine with Cummins 6BTM Engine
Marine with Cummins 6BTM-260 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
