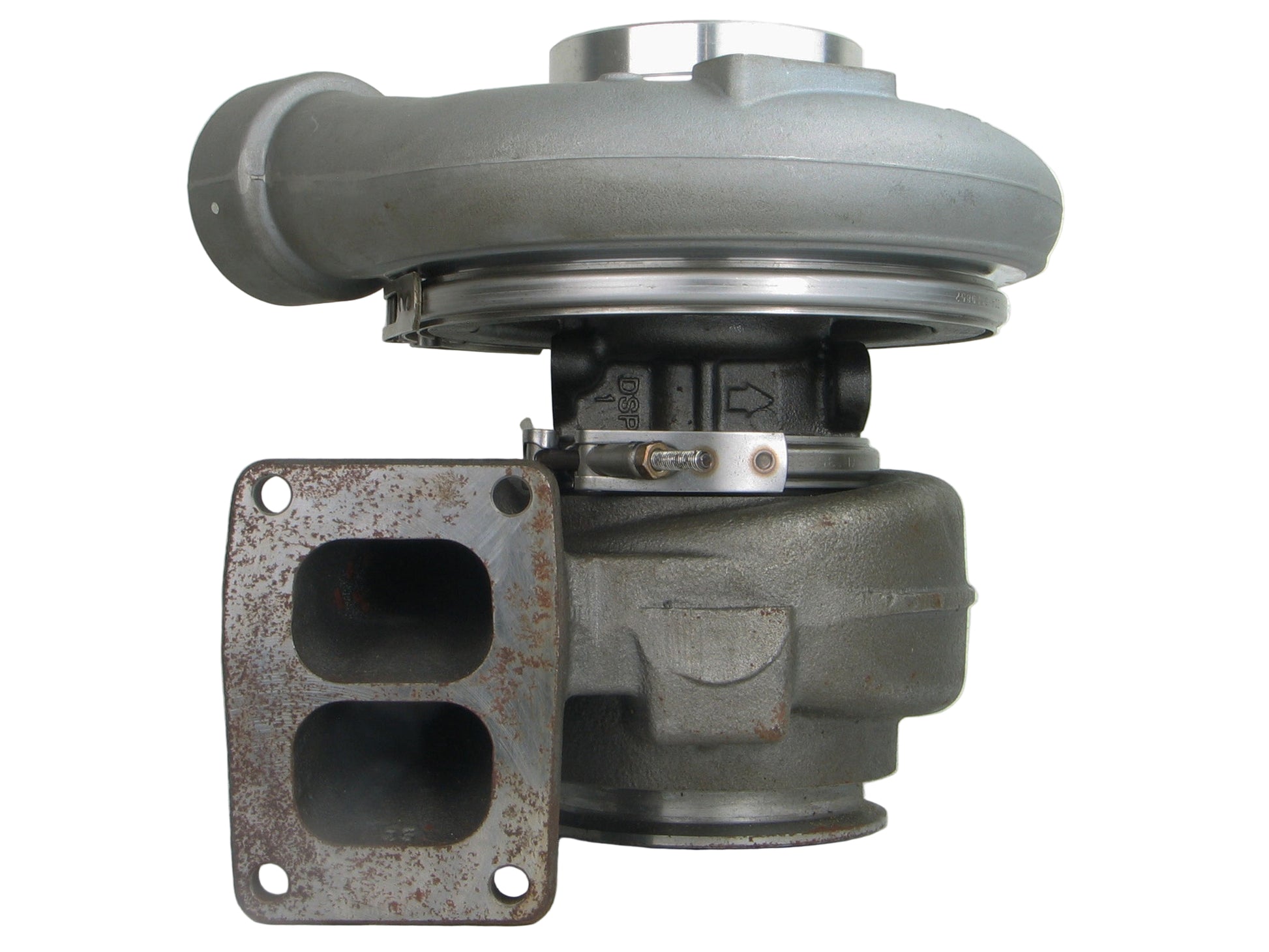

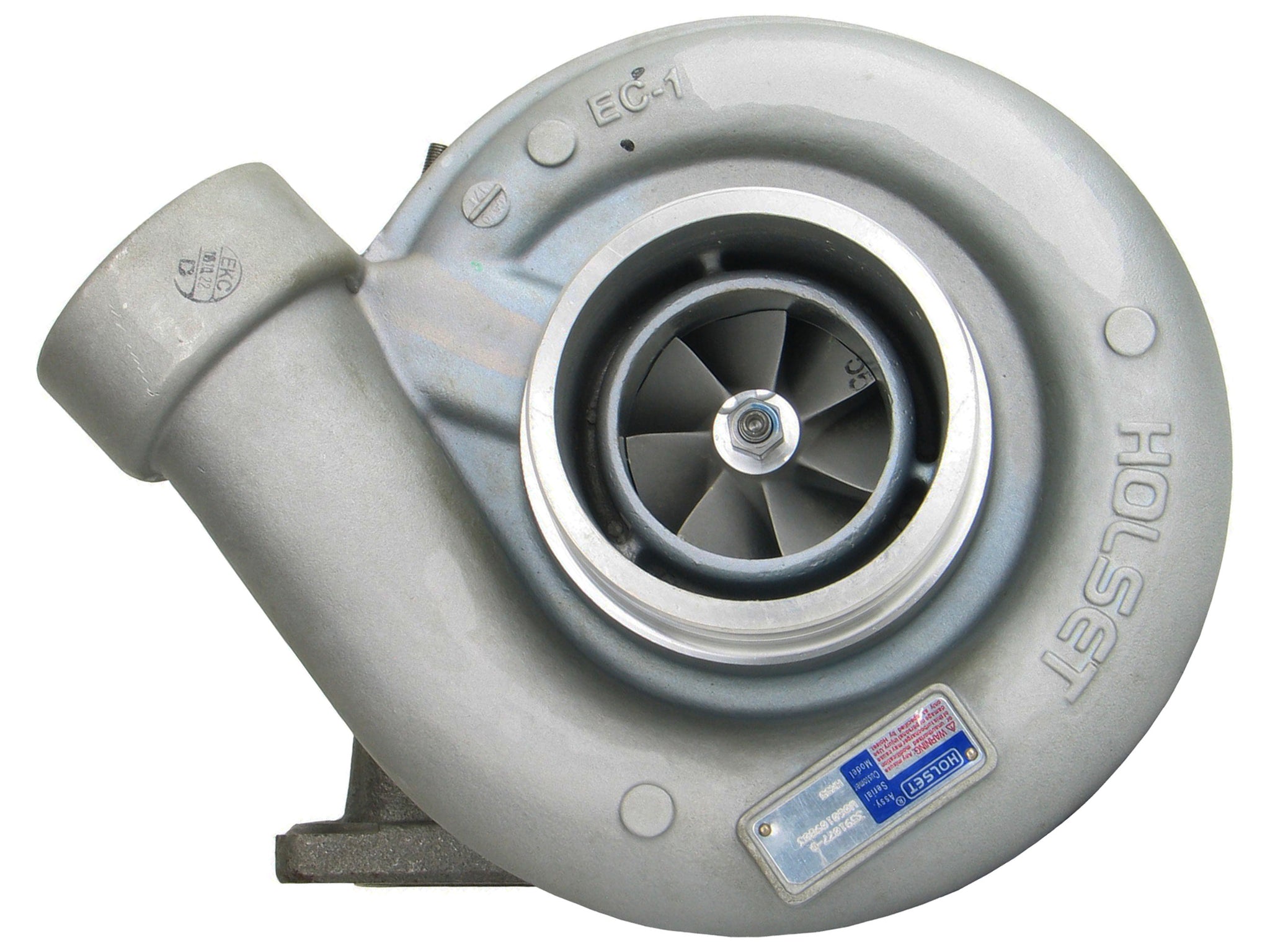

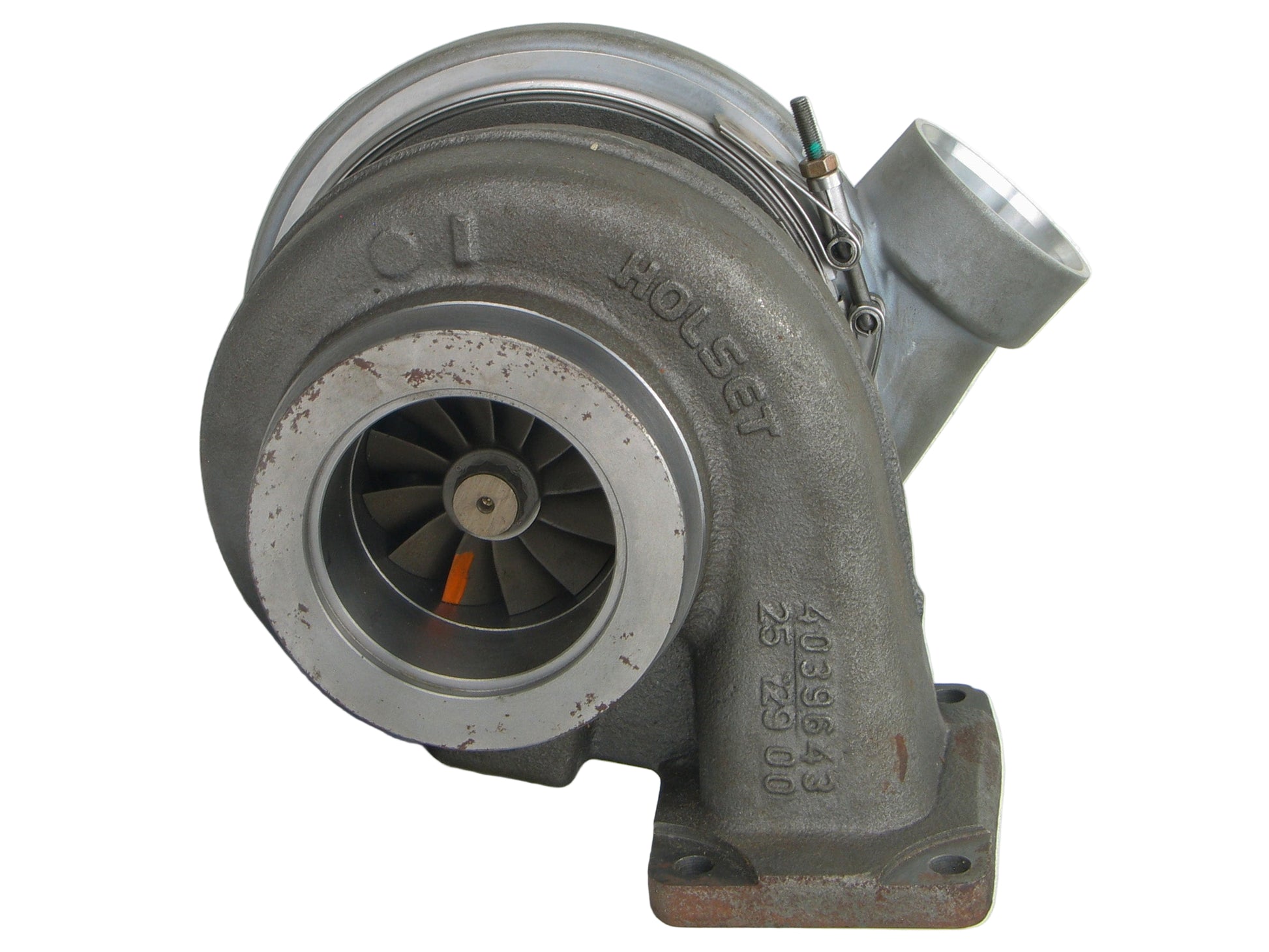

NEW OEM Holset HX55 Turbo Volvo Truck FH12 FL12 FM12 D12C 11.95L Diesel 3591077

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 3591077
Interchangeable Number: 14879700052, 1487 970 0052, 1487-970-0052, 14879880052, 1487 988 0052, 1487-988-0052, 3531858, 3532692, 3533544, 3533545, 3533546, 3537840, 3537840-D, 3537913, 3538716, 3538716-D, 3575237, 3591077-D, 3591078, 3591949, 3597666, 3964637, 3964870, 4037181, 4037181-D, 4049337H, 4049337HX, 4049338, 452101-0001, 452101-5001, 452101-5001S, 452101-0002, 452101-5002, 452101-5002S, 452164-0001, 452164-5001, 452164-5001S, 452164-0002, 452164-5002, 452164-5002S, 452164-0003, 452164-5003, 452164-5003S, 452164-0004, 452164-5004, 452164-5004S, 452164-0005, 452164-5005, 452164-5005S, 452164-0006, 452164-5006, 452164-5006S, 452164-0008, 452164-5008, 452164-5008S, 712922-0001, 712922-5001, 712922-5001S, 712922-0002, 712922-5002, 712922-5002S, 712922-0006, 712922-5006, 712922-5006S, 712922-0008, 712922-5008, 712922-5008S, 712922-0009, 712922-5009, 712922-5009S, 712922-0017, 712922-5017, 712922-5017S
OEM Number: 1676089, 1677098, 1677725, 1677726, 20381330, 20382330, 20459353, 20516531, 20742476, 21031702, 3165219, 3169592, 40006281, 4049337, 425720, 425777, 8112637, 8112637-7, 81126377, 8112921, 8113219, 8113407, 8113801, 8148731, 8148873, 8148987, 8170971, 85000237, 85000376, 85000535, 85000879, 908113219
Serial Number: W060807595
Turbo Model: HX55, HX55-E9861E/T25VB15A
Manufacturer: Holset

Year: 1993-
Engine: 12C 380, D12, D12A 340, D12A 380, D12A 420, D12A Euro 2, D12A Euro 3, D12A, D12C 340, D12C 380, D12C 420, D12C 460, D12C Euro 3, D12C, D380 Euro 3, DALC 380/420
Displacement: 11.95L, 11950 ccm, 6 Cylinders
Fuel: Diesel
Power: 385-425 HP

Angle α (Compressor Housing): 130°
Angle β (Turbine Housing): 180°
Back Plate: 3528096 (1153055300)
Bearing Housing: 3590231/4039258
CHRA: 4027027 (4027027H)(1153055902)
Compressor Cover: 3591065
Compressor Wheel: 4041666 (Ind. 65 mm, Exd. 99 mm, 7+7 Blades)
Gasket (Oil Inlet): 147837 (210023)
Gasket (Oil Outlet): 210060 (2475013)
Gasket (Turbine Inlet): 409038-0000 (132040, 52231083002)
Gasket Kit: 3580526H
Heat Shield: 3529846/3533038 (1153055340)
Repair Kit (Major): 3580762 (3580762H, 3575181)(1153055750)
Turbine Housing: 4039644
Turbine Housing: 4039644H
Turbine Wheel: 3533543 (3533543H, 4038182)(Ind. 86 mm, Exd. 80 mm, 12 Blades)(1153055435)
Turbocharger Kit: 4049337H/4049337HX

Application:
1993-05 Volvo FH12 340 Truck with D12A 340 Engine
1993-05 Volvo FH12 380 Truck with D12A 380 Engine
1993-05 Volvo FH12 420 Truck with D12A 420 Engine
1993-95 Volvo FH12, FL12, FM12 Truck with D12C Engine
1995- Volvo A40 Articulated Hauler with D12A Engine
1995- Volvo FH12, FL12 Truck with D12A Engine
1995- Volvo Powertrain Truck with D12A Engine
1995-98 Volvo FL12 340 Truck with D12A 340 Engine
1995-98 Volvo FL12 380 Truck with D12A 380 Engine
1995-98 Volvo FL12 420 Truck with D12A 420 Engine
1997- Volvo NH12 340 Truck with D12A 340 Engine
1997- Volvo NH12 380 Truck with D12A 380 Engine
1997- Volvo NH12 420 Truck with D12A 420 Engine
1997- Volvo NH12 460 Truck with D12C 460 Engine
1998-01 Volvo FH12, FM12, Truck with D12C Engine
1998-05 Volvo FH12 460 Truck with D12C 460 Engine
1998-08 Volvo FM12 340 Truck with D12C 340 Engine
1998-08 Volvo FM12 380 Truck with D12C 380 Engine
1998-08 Volvo FM12 420 Truck with D12C 420 Engine
1998-08 Volvo FM12 460 Truck with D12C 460 Engine
Volvo 4X2, 6X4, NH12 Truck with D12C 380 Engine
Volvo F12 Truck with D12A Euro 2 Engine
Volvo FH12 Truck with D12C 420 Engine
Volvo FH12, FH16 Truck with D12A Euro 2 Engine
Volvo FH380 420 Truck with DALC 380/420 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
