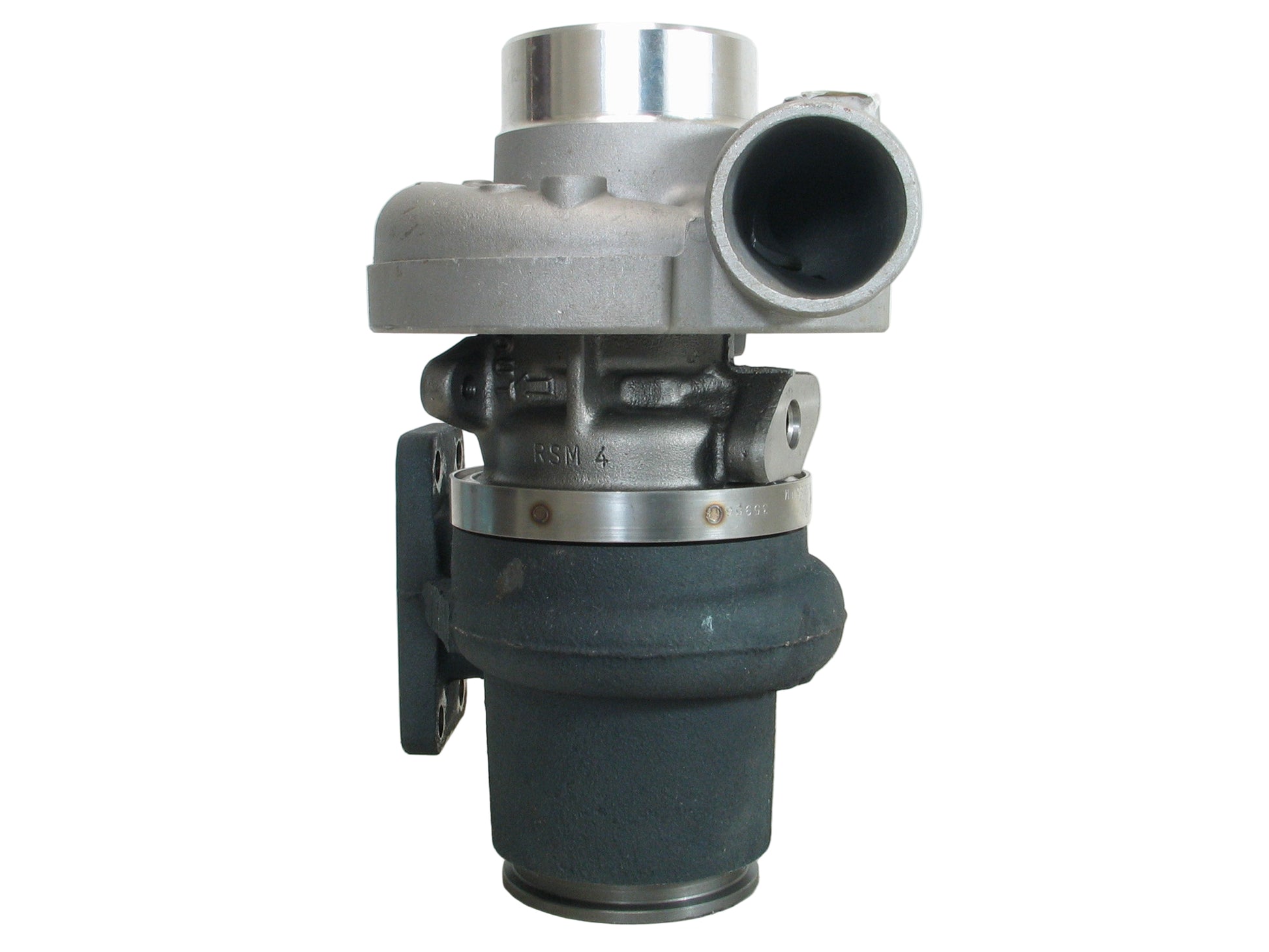

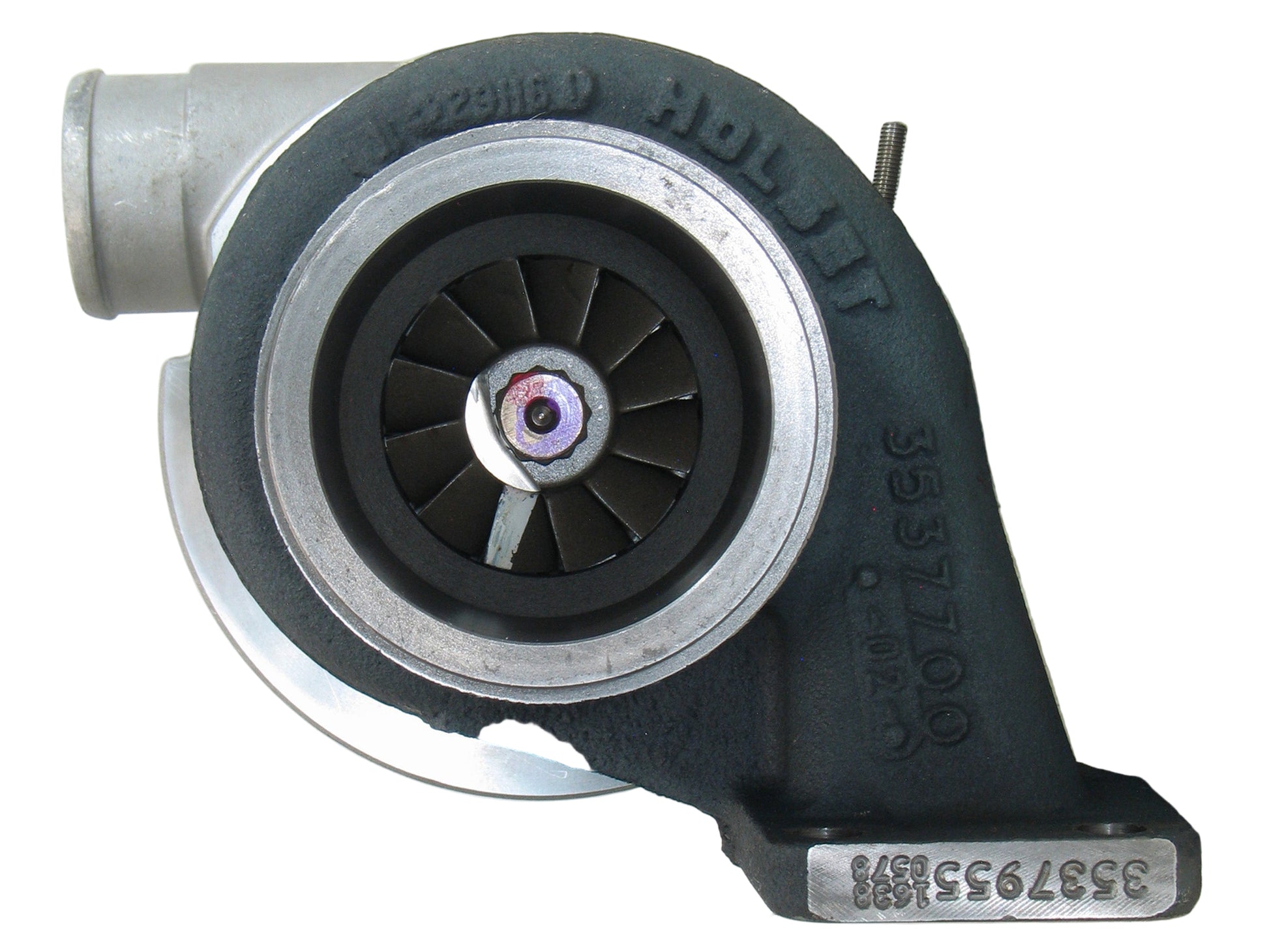

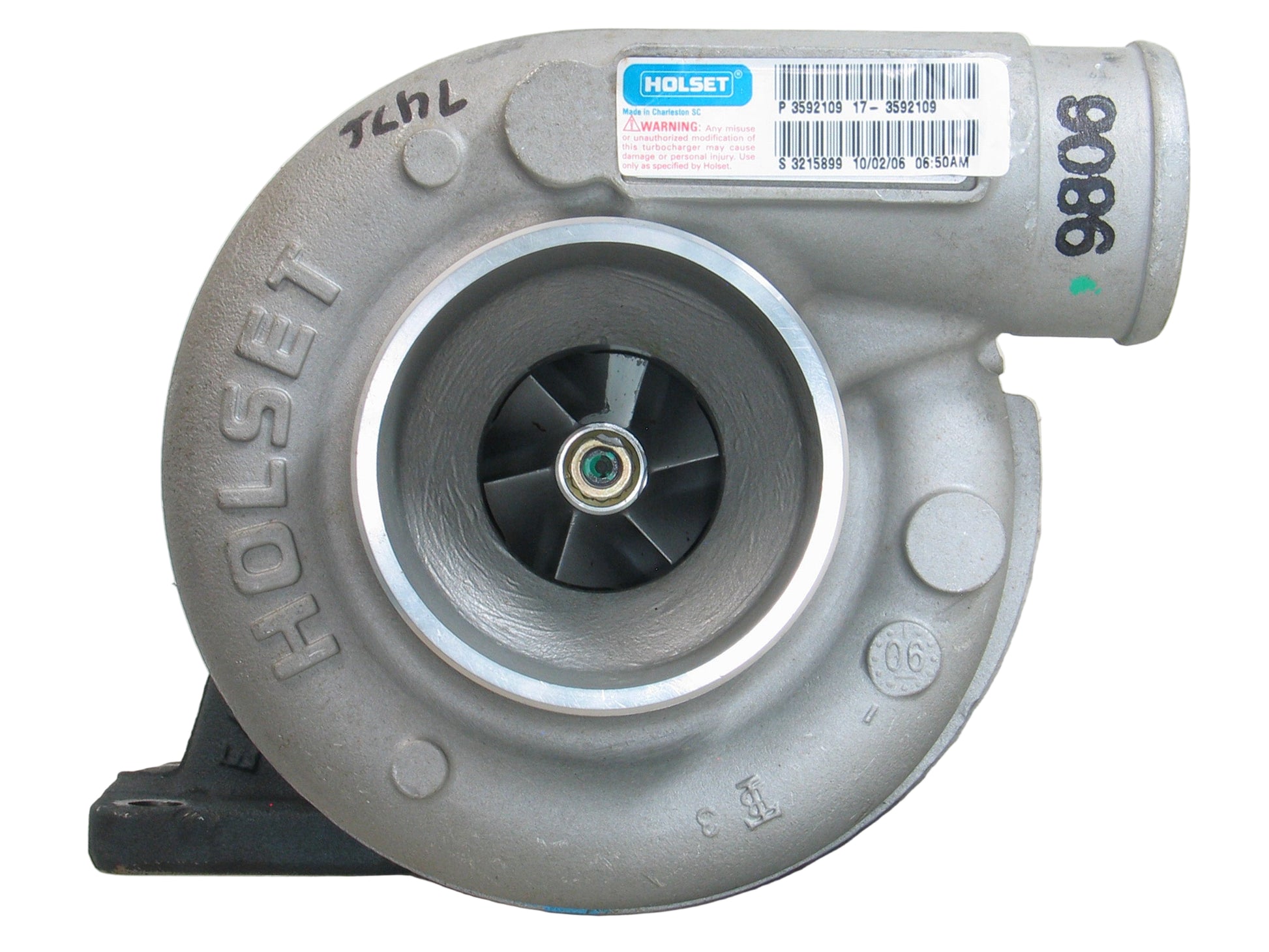

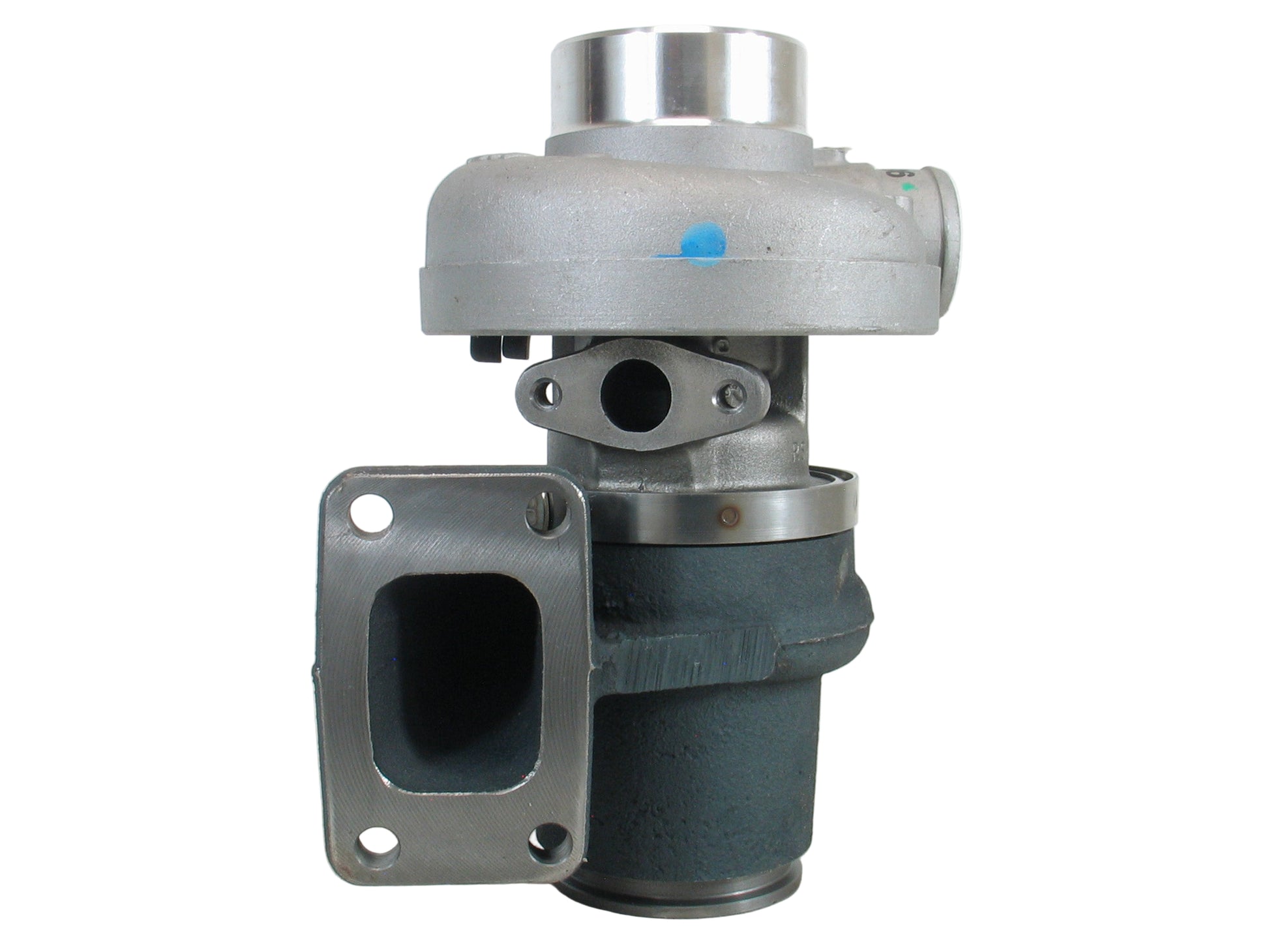

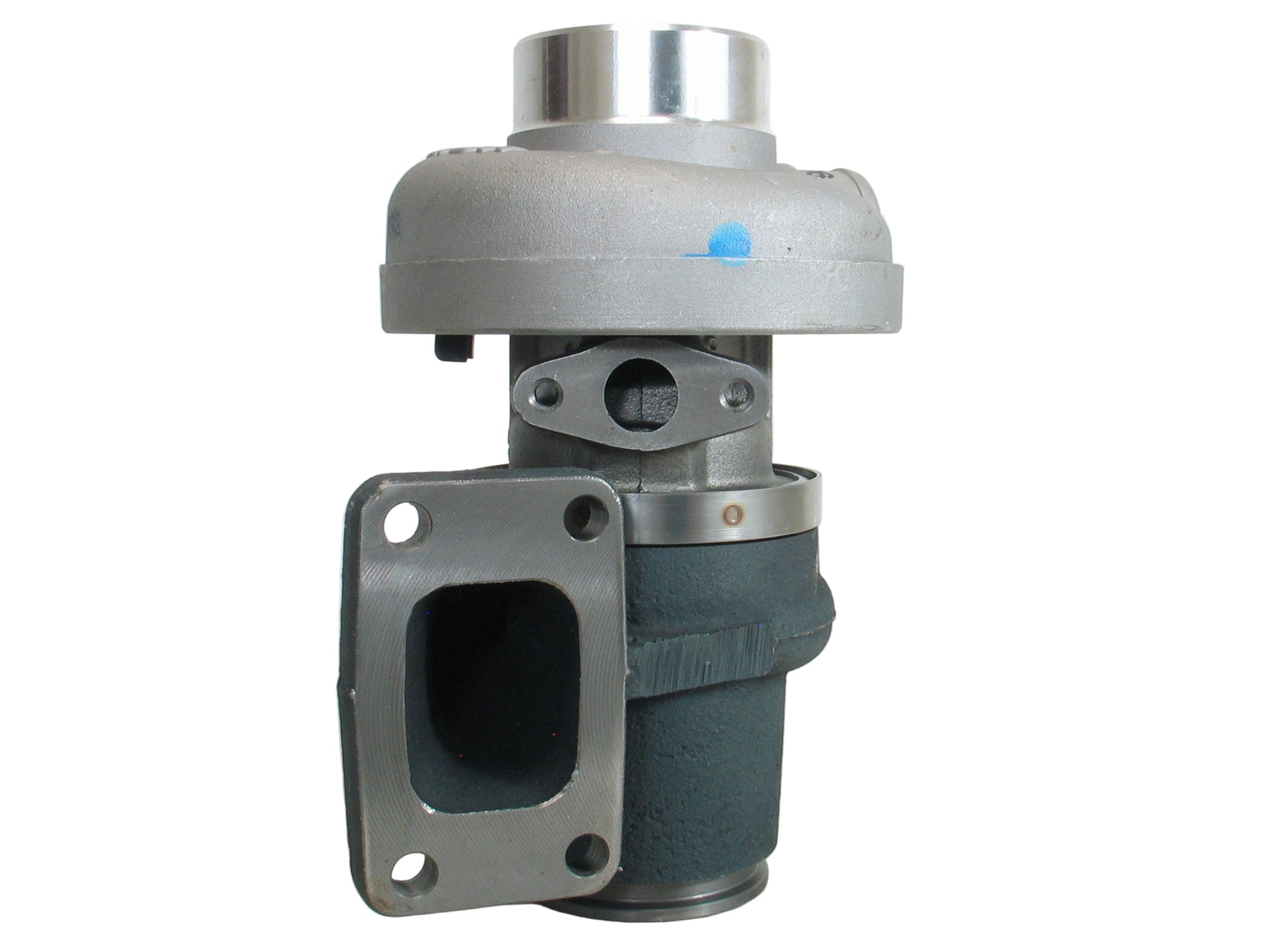

NEW OEM Holset HX30 Turbo Industrial Cummins 4BTA Diesel Engine 3592110 3592109

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

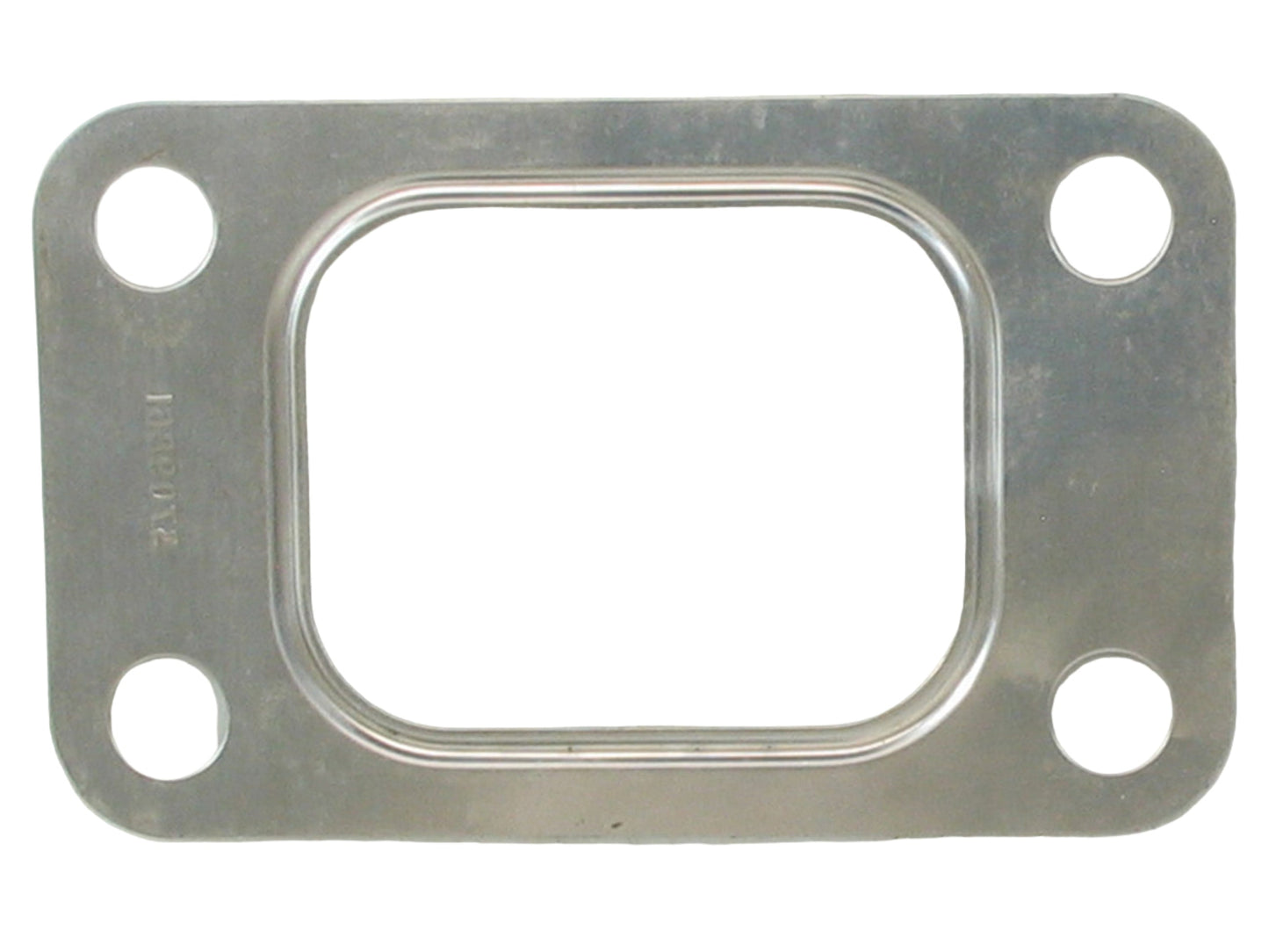

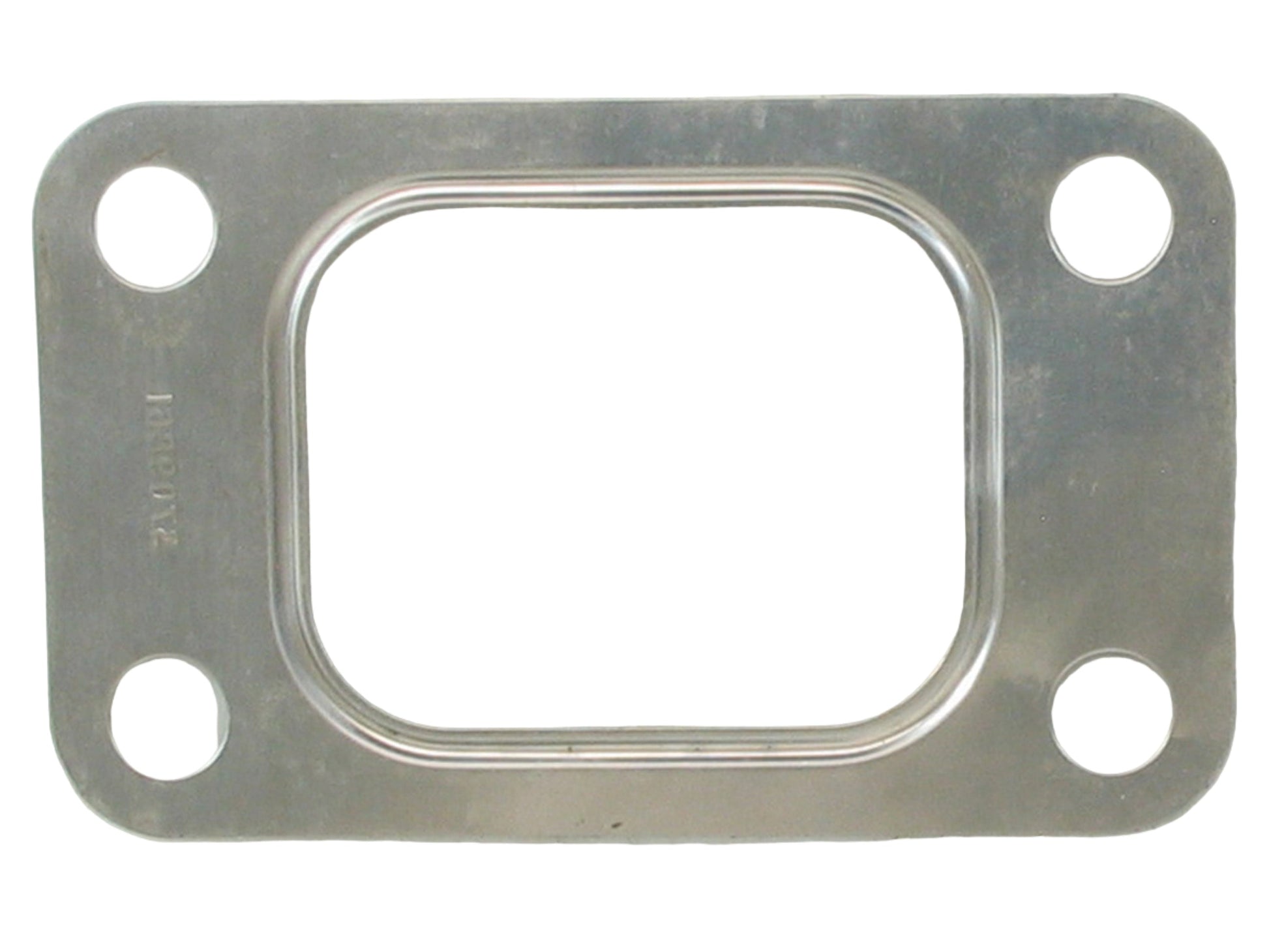

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 3592109
Interchangeable Number: 3537886, 3538249, 3592110H, 380290800, 3802908NX, 3802908RX
OEM Number: 2837303, 2843653, 3537887, 3537888, 3537889, 3538308, 3591365, 3592110, 3592111, 3592112, 3592113, 3802848, 3802908, J592109, J592110, J592111, J592112, J592113, J802908, JC537886, JR802908
Turbo Model: HX30, HX30-Q6819A/B06JX33
Manufacturer: Holset

Engine: 4BTA
Engine Manufacturer: Cummins
Fuel: Diesel
Power: 90 HP

Angle α (Compressor Housing): 201°
Angle β (Turbine Housing): 360°
Back Plate: 3530923 (1800016009)
Bearing Housing: 4030799 (3539227)(Oil Cooled)(1153030450, 1900011237)
CHRA: 3593410 (3580919, 3593410H, 4032115, 4032374, 3580234, 4027211)(1153030900, 1000020141)
Compressor Cover: 3539806
Compressor Wheel: 3599693 (Ind. 40 mm, Exd. 69.01 mm, Trim 9.65, 6+6 Blades, Super Back)(1153030400, 1200016426)
Heat Shield: 3519304 (1153030340, 2030016049)
Repair Kit: 3575205 (1153030750, 5000020029)
Turbine Housing: 3537955
Turbine Wheel: 3539805 (Ind. 65.07 mm, Exd. 52.01 mm, Trim 11, 12 Blades)(1153035436, 1100016201)

Application:
Industrial with Cummins 4BTA Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
