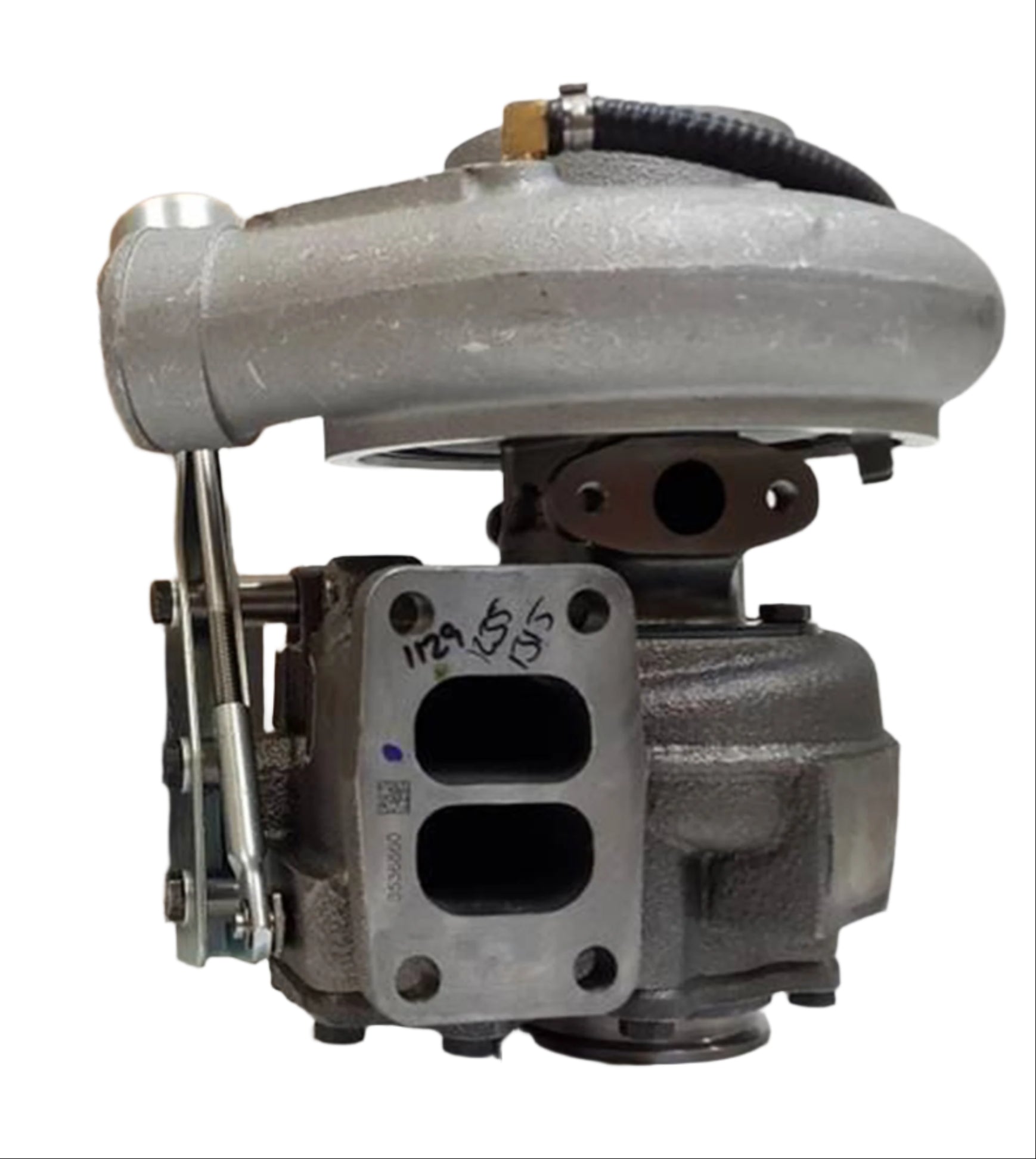

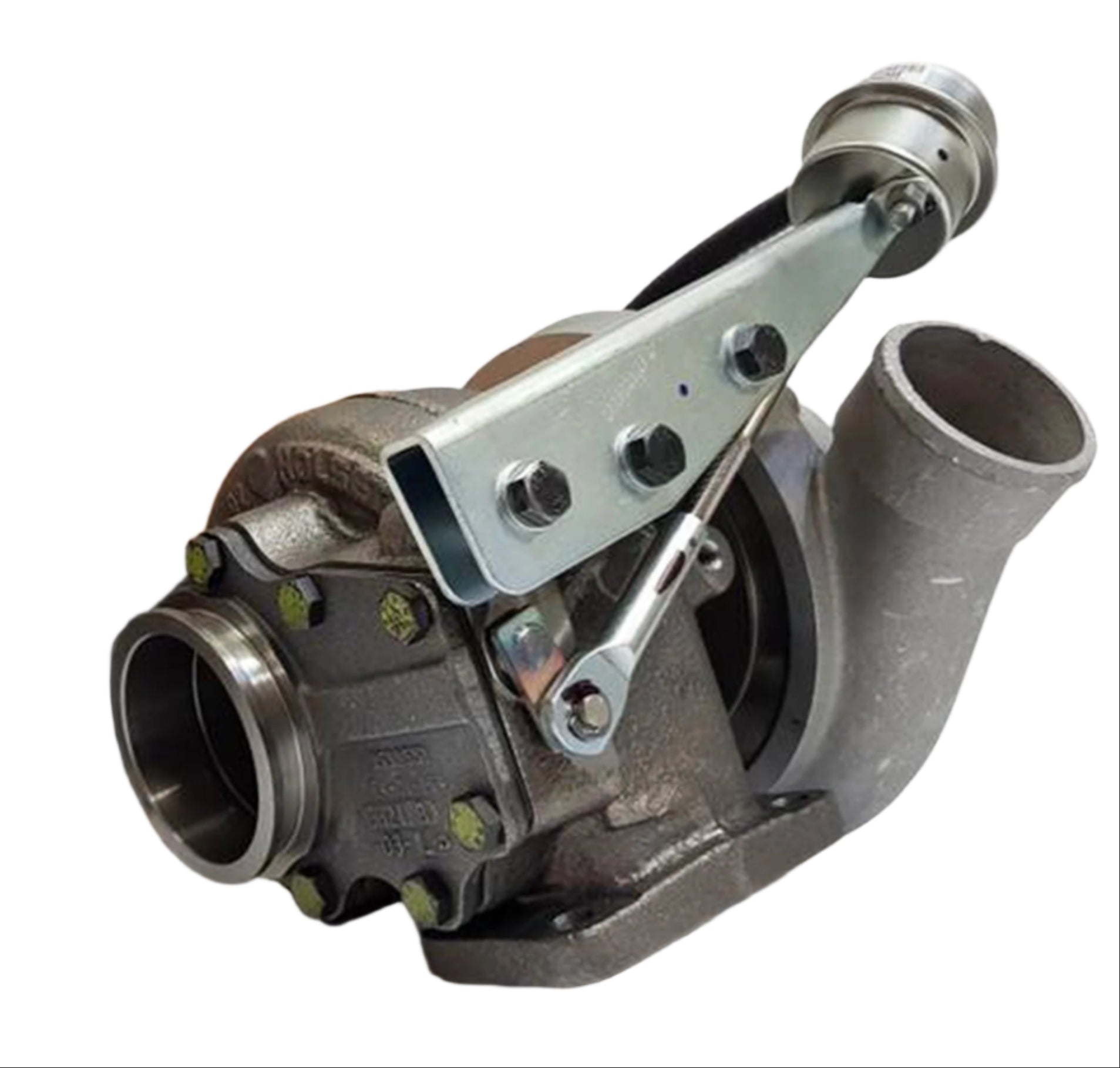

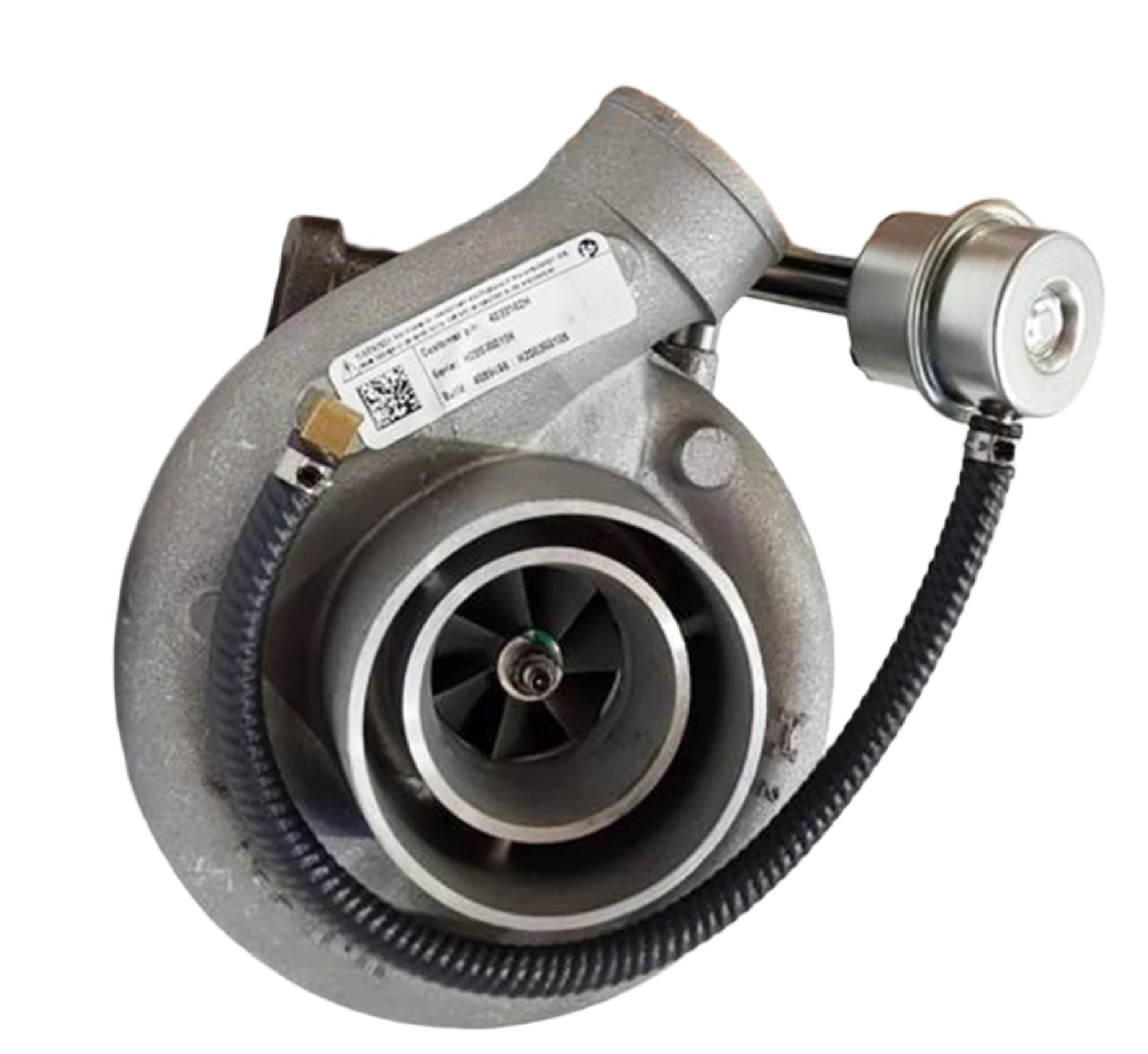

NEW Holset HX35W Turbo Ottawa Truck Fuel Pump Cummins 6BTE 6BTE 3599725 4033162SKU: 4033162
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 3599725
Interchangeable Number: 3599727, 3599729, 3599830, 4033162H, 4033162H, 4033162HX, 4089466NX, 4089466RX
OEM Number: 02/911655, 2/911655, 02-911655, 2-911655, 02911655, 2911655, 3599726, 3599726, 3599728, 3599730, 4033162, 4033162, 4036398, 4036629, 4089466, 4089466
Turbo Model: HX35W-E7745T/E14PB11, HX35W
Engine: 6B Tier 2B, 6B, 6BTAA, 6BTE Tier 2, 6BTE
Engine Manufacturer: Cummins
Displacement: 5.9L, 5900 ccm
Power: 155 HP
Angle α (Compressor Housing): 206/285/310/329/340°
Angle β (Turbine Housing): 5/20/165/180°
Actuator: 3533948 (4030277)
Back Plate: 3530923 (1154351300, 1800016009)
Bearing Housing: 3532630 (3591575, 4027249, 4027882)(79.5 mm)(Oil Cooled)(1900011016B)
CHRA: 4027436 (1000020142)
Compressor Cover: 3599984
Compressor Wheel: 3599650 (3599594)(Ind. 51.76 mm, Exd. 76.2 mm, Trim 5.15, 7+7 Blades, Super Back)(1200016437)
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006)
Gasket (Turbine Outlet): 210226 (2405066)(Stainless Steel)
Gasket Kit: 3545575 (1900100057)
Heat Shield: 3519304 (3519302)(1152301340, 2030016031)
Repair Kit: 3575169 (1153035750, 5000020021)
Turbine Housing (Wastegate): 4030700
Turbine Housing: 3536860
Turbine Wheel: 3519336 (3595832)(Ind. 70.05 mm, Exd. 59.94 mm, Trim 10.99, 12 Blades)(1152301435, 1100030005)
2002- Fuel Pump with Cummins 6BTAA, 6BTE Engine
2002- Komatsu with Cummins 6BTAA, 6BTE, 6B Engine
2002- Ottawa Truck with Cummins 6BTE, 6BTE Tier 2 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
