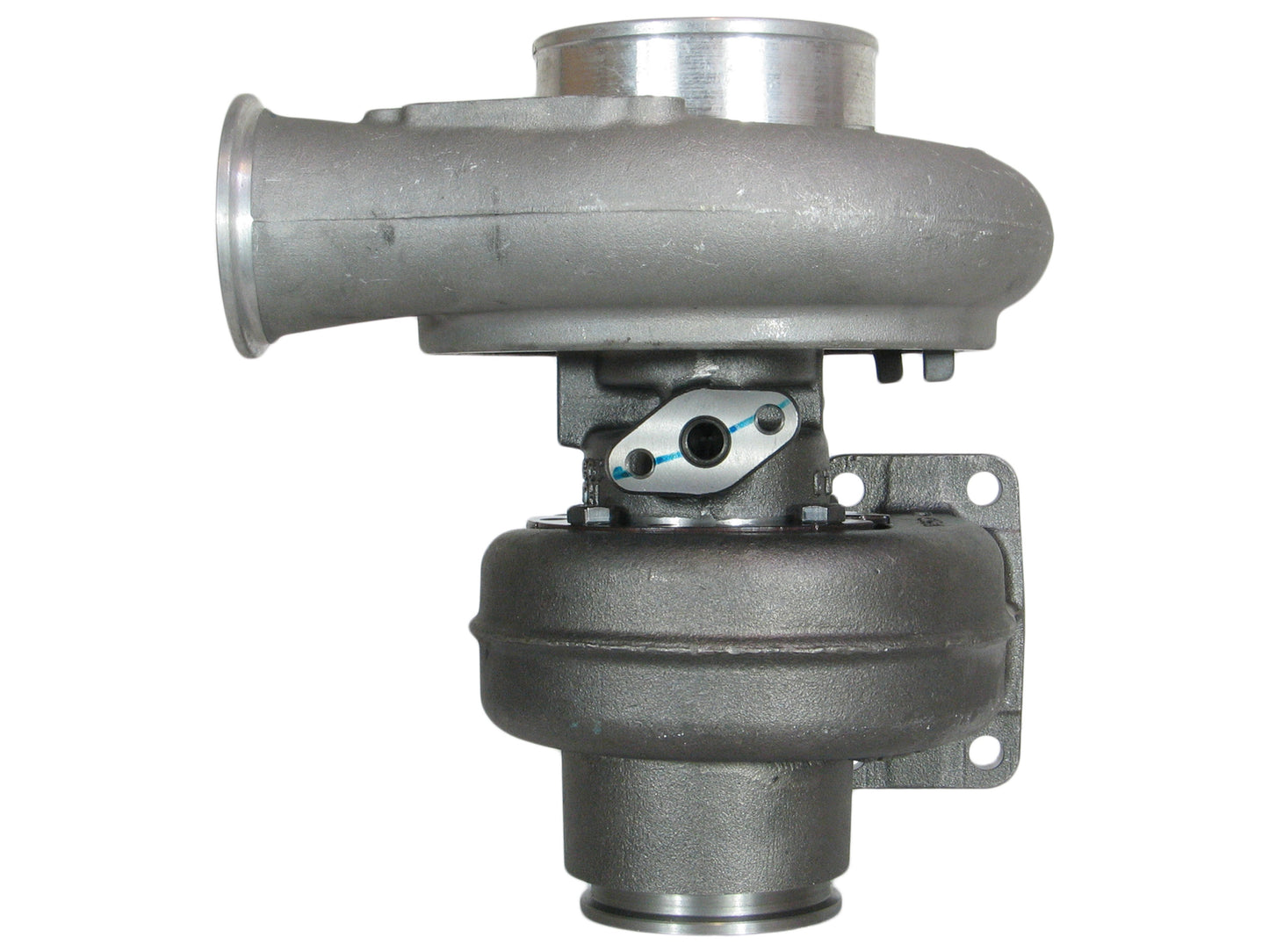

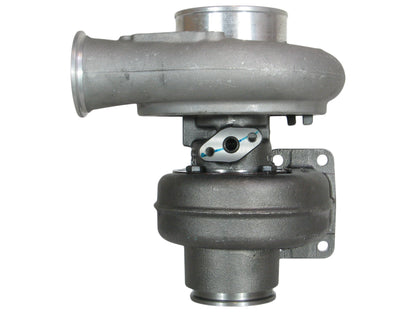

NEW OEM Holset HX35 Turbo Komatsu Wheel Loader Excavator Cummins KCEC 4038475SKU: 4038475
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 4038475
Previous Version: 4035373, 3595158, 3595157
OE Number: 4089711, 6738828220, 6738-82-8220, 4087911
Description: Komatsu WA380 Wheeled Loader, PC200-6 Excavator, PC220-6, Machine Moving TERRA, Industrial Ratings, GD405, GD555 Grader, DCA125ESK Genset, Cummins, WA200-250, PC200
Applications: 2001-04 Komatsu Wheeled Loader, Generator, Excavator with Cummins 6BTAA, KCEC Engine
Manufacturer Part Number: 3596668, 3598702, 4039243, 4038480, 4035374, 4038481, 3599109, 4036172
Displacement: 5.9L, 5900 ccm
Turbo Model: HX35-A77J65GM/A70Q86FE12DD, HX35
Engine: KCEC, 6BTAA, KCEC (Komatsu Cummins Engine Co.), S6D102E
Engine Manufacturer: Cummins
Angle α (compressor housing): 45/160/235/360°
Angle β (turbine housing): 5/20°
Bearing Housing: 3532632/4027869
Turbine Wheel: 3519336 (Ind. 70.0 mm, Exd. 59.9 mm, 12 Blades)(1152301435)
Comp. Wheel: 3599639 (Ind. 50. mm, Exd. 83. mm, 8+8 Blades)
Seal Plate: 3530923 (1154351300)
Heat shield Number: 3519304 (3519302)(1152301340)

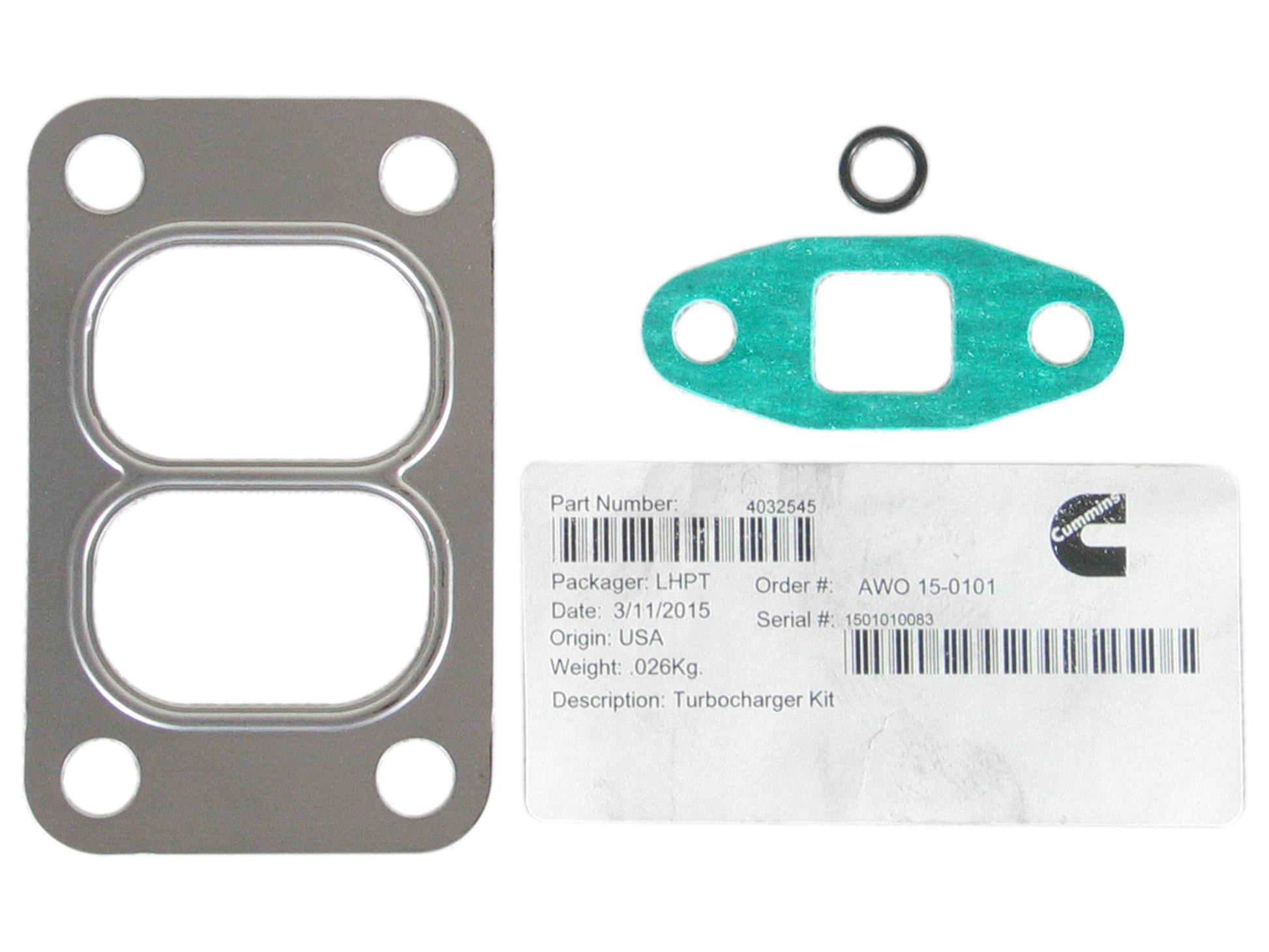

Repair Kit: 3575169 (1153035750)
Gasket (turbine inlet): 409039-0000 (Inox Steel)(409039-0001, 210019, 2405022, 312617, 2405022, 7C7431)(1900000006)
Gasket (oil outlet): 210060 (Paper)(311585, 148062)

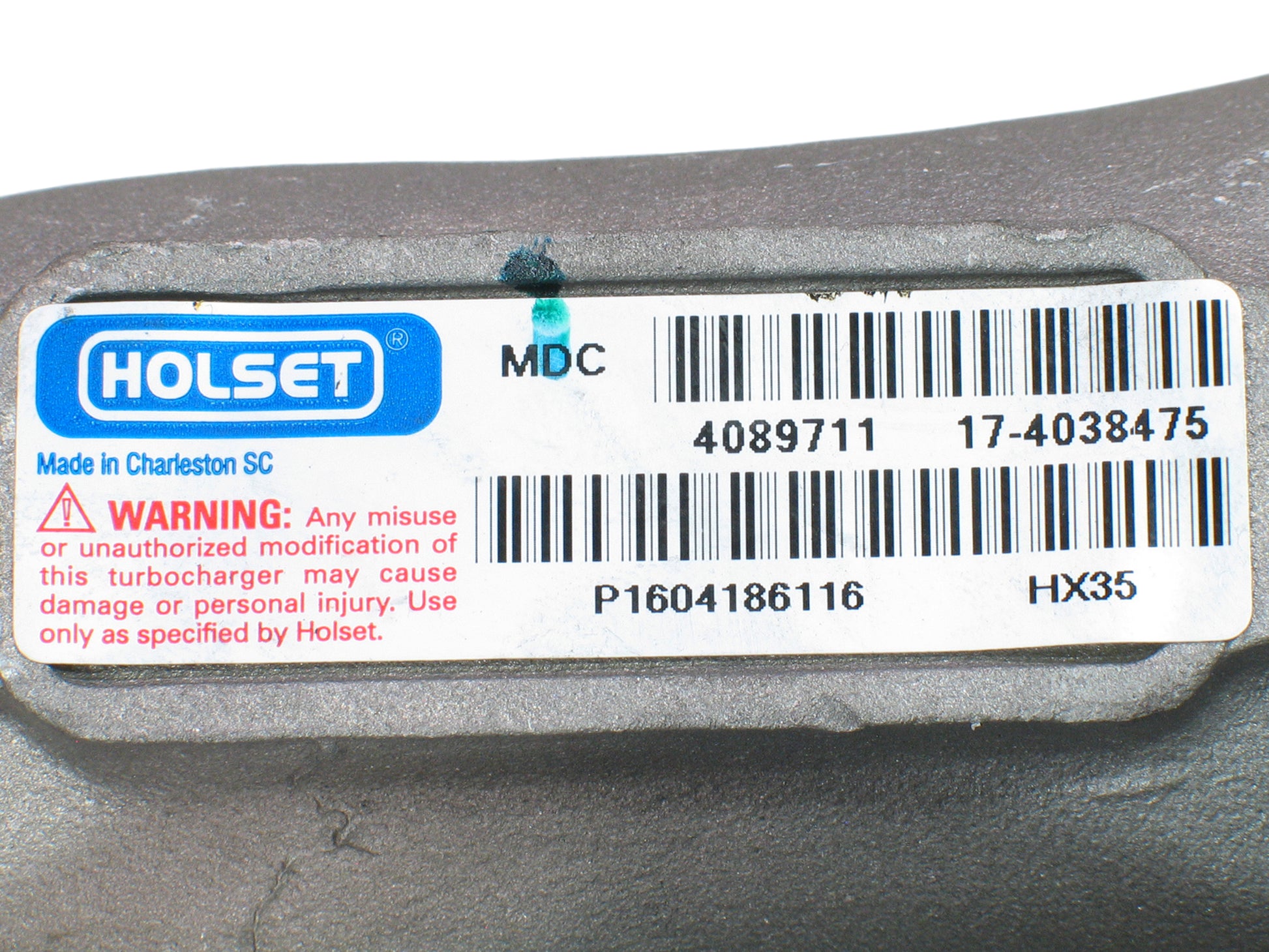

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
Any questions or concerns, please feel free to email or call us.
For our Warranty / Return Policy, please see our Policies at the top of the website.
Ask us about this product:
Core Rebate Offer
Although it is not required, we would like to request that you return your old assembled core back to us. We may rebate up to 10% of the purchase price depending on the condition of your core.
A return shipping label will be provided upon request. Cores must be returned within 60 days of the purchase date. Please allow up to 3 business days for us to process your refund.
Core Charge / Deposit Policy
Not all items include a Core Charge or Core Deposit Policy. Please read item description carefully to see if item includes one.
There is a core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.
This item requires an additional refundable amount in addition to the purchase price. We cannot ship your part until the core deposit is paid. We will refund the core deposit back to you once we receive your old re-build able core.
Cores must be returned within 60 days of the purchase date. Please allow up to 3 business days for us to process your refund.
