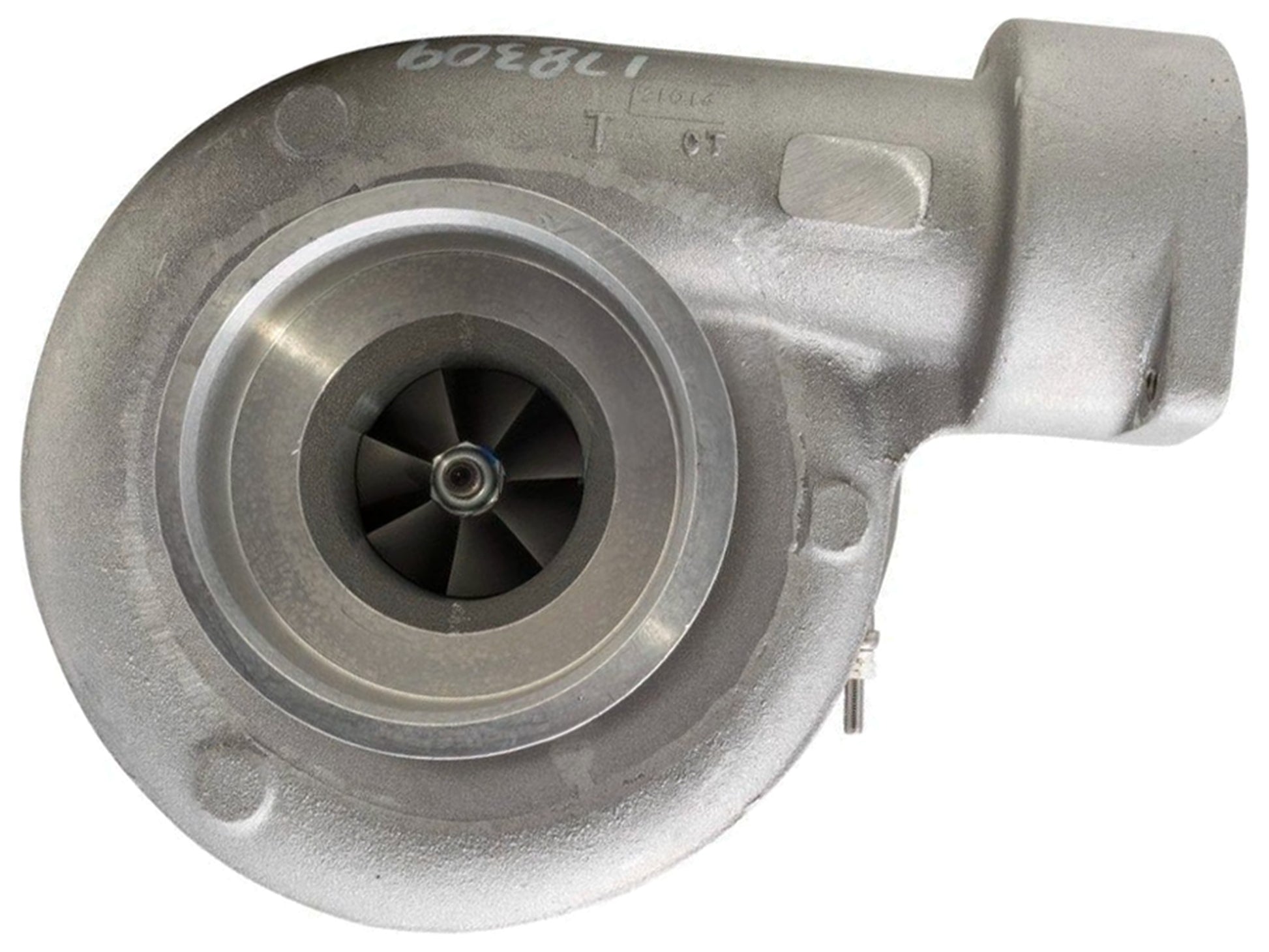

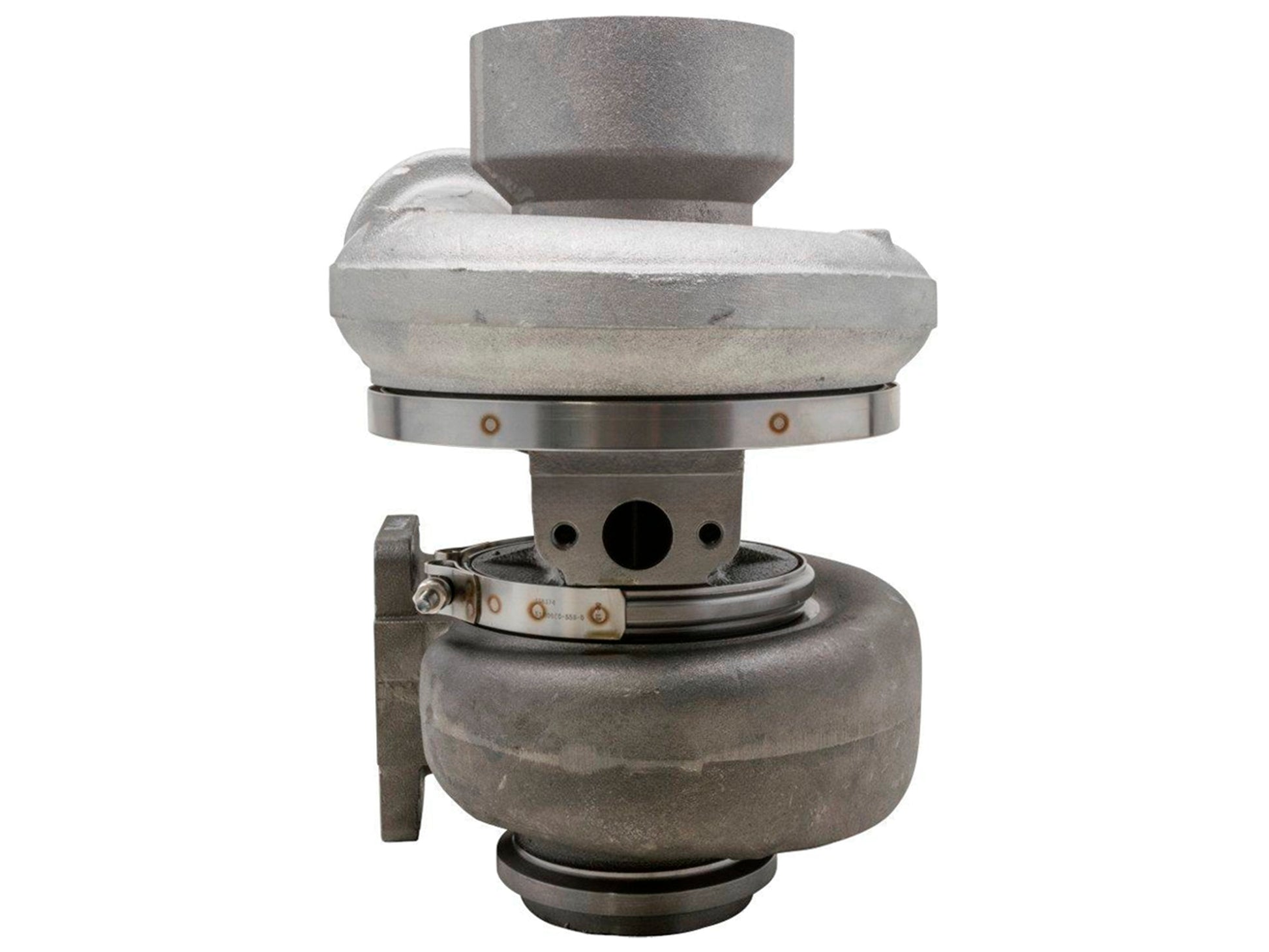

Remanufactured BorgWarner S4DS Turbo CAT Truck 3306 3306B 10.3L Diesel 478107

OEM REMANUFACTURED BORGWARNER TURBOCHARGER

This is a OEM REMANUFACTURED BORGWARNER TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

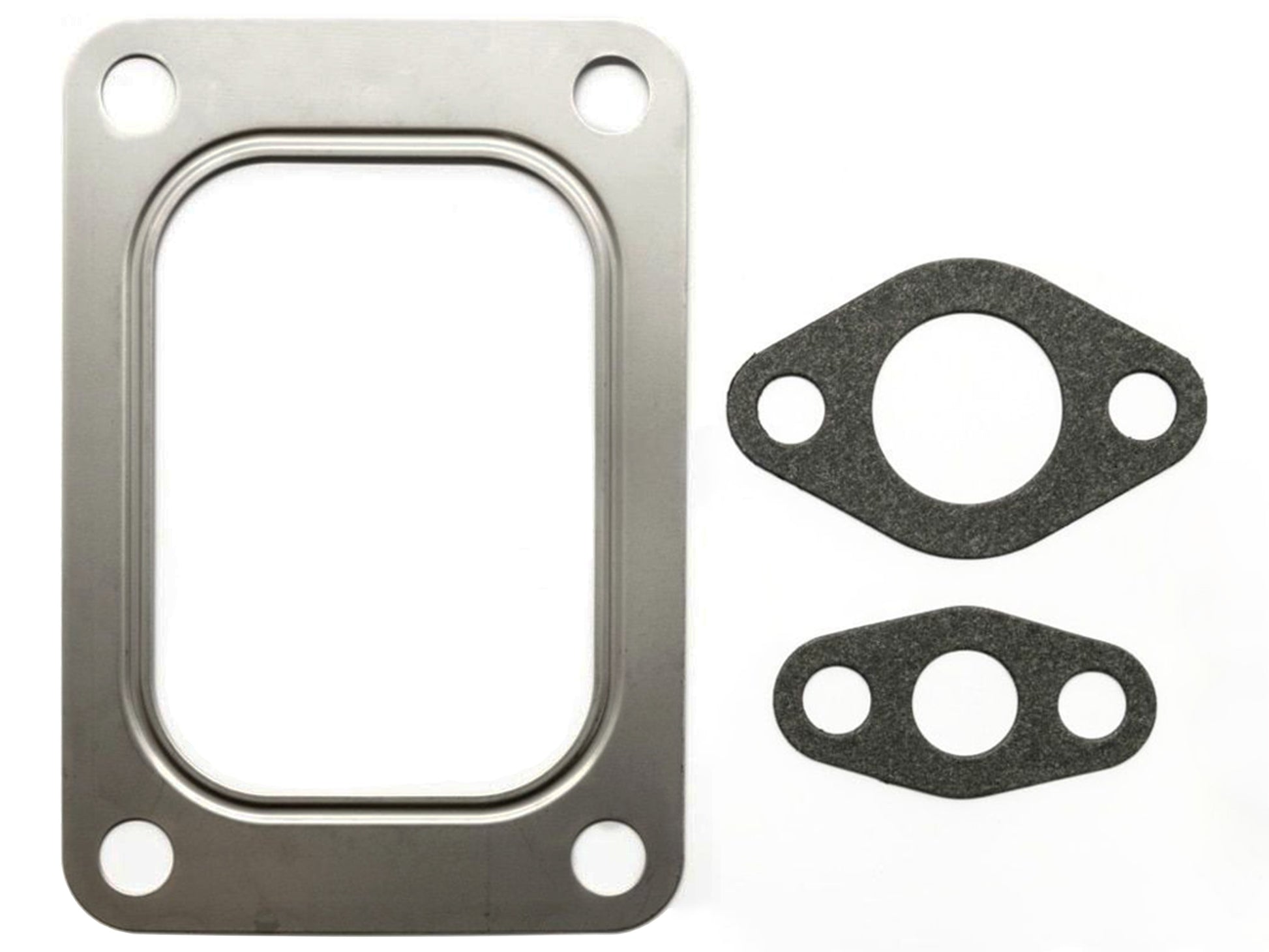

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 478107
Interchangeable Number: 169490, 178107, 196557, 312637
OEM Number: 0R-5721, 0R5721, 7C-7587, 7C7587
Serial Number: 63Z3057-22741, 63Z22742-UP, 63Z00001-22741
Turbo Model: S4DS, S4DS014, S4DS 014 S4DS
Manufacturer: BorgWarner - 3K - Schwitzer, BWTS USA

Year: 1986-12
Engine: 3306, 3306B
Engine Manufacturer: Caterpillar
Displacement: 10.3L
Fuel: Diesel

Angle α (Compressor Housing): 0°
Angle β (Turbine Housing): 45°
Back Plate: 197651 (51135, 142066, 5S4556, 52321523000, 52321523001, 49162-22500, 1250403300, 143044-0000)
Bearing Housing: 196661 (194031)(199144, 196534, 7C7611, 4P3627, 7C0067)(Oil Cooled)
CHRA: 196540 (0R5723, 7C7601, 6I1697, 178224, 312736)
Compressor Cover: 194634 (7C0639)
Compressor Wheel: 194312 (194634)(7C0639, 7W8845)(Ind. 58.94 mm, Exd. 86.40 mm, Trim 10.66, 6+6 Blades)
Gasket (Oil Inlet): 129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 52231586500, 129120)(1900000035)
Gasket (Oil Outlet): 210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763) (1900000025)
Gasket (Turbine Inlet): 409038-0000 (9749, 1S4295, 202873, 205396, 3500683, 132040, 210017-0000)(1900000003)
Heat Shield: 187517 (4W7355)
Repair Kit: 318405 (318408, 166047, 318409)(1252419750)
Turbine Housing: 194916 (7C3375)
Turbine Wheel: 191609 (7W8844)(Ind. 72 mm, Exd. 83.43 mm, 10 Blades)

Application:
1986-12 Caterpillar Truck with 3306, 3306B Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
