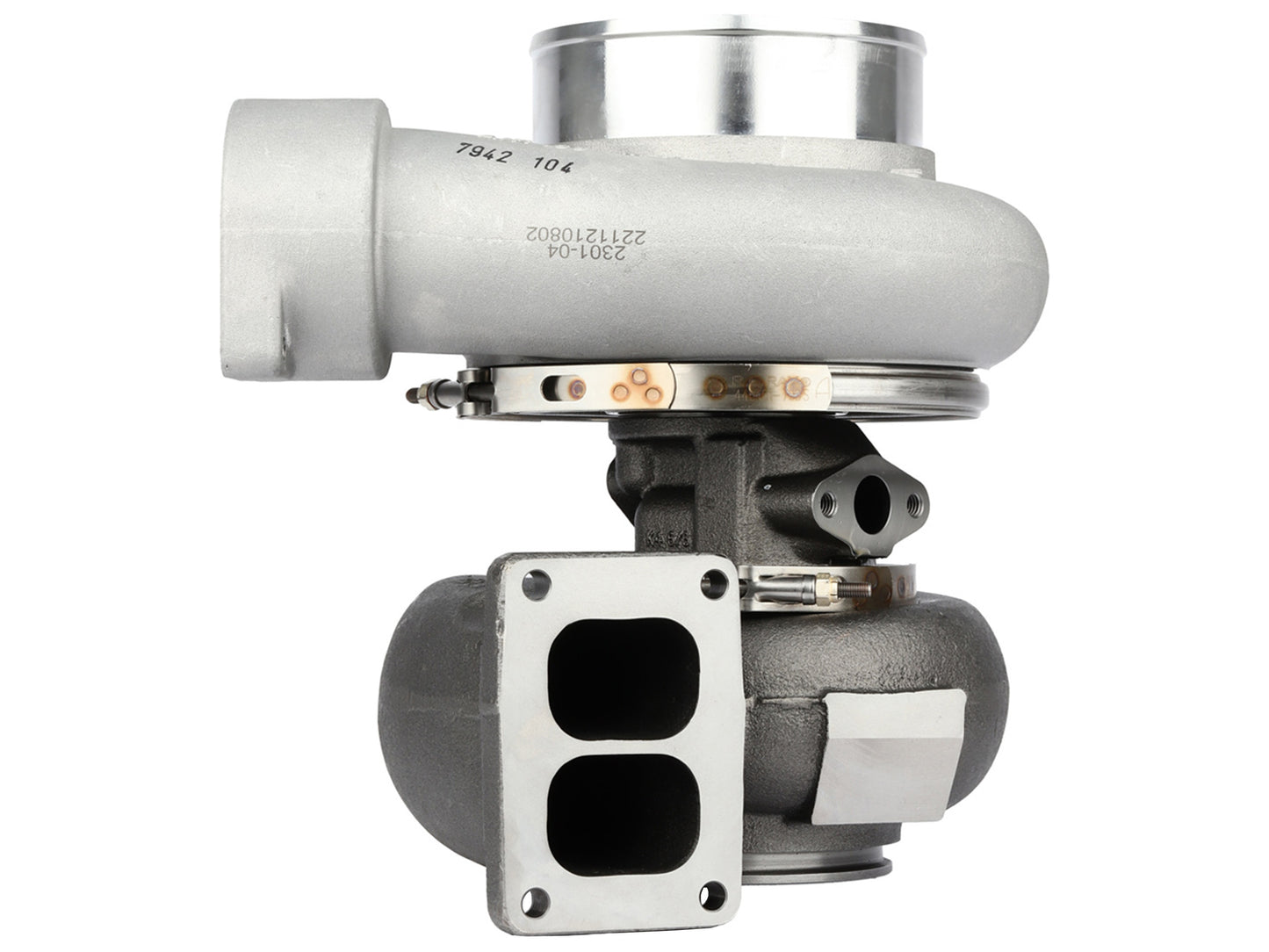

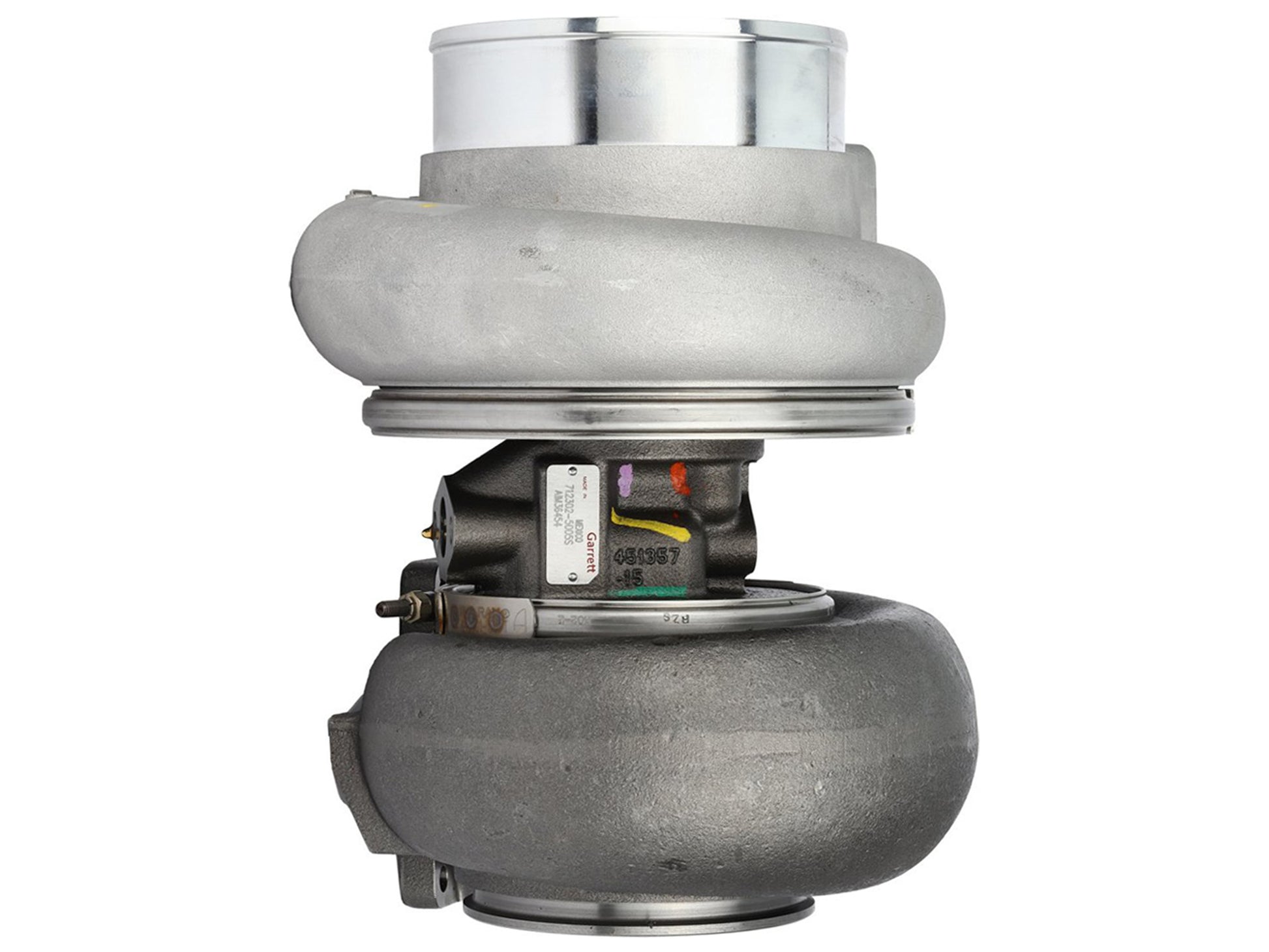

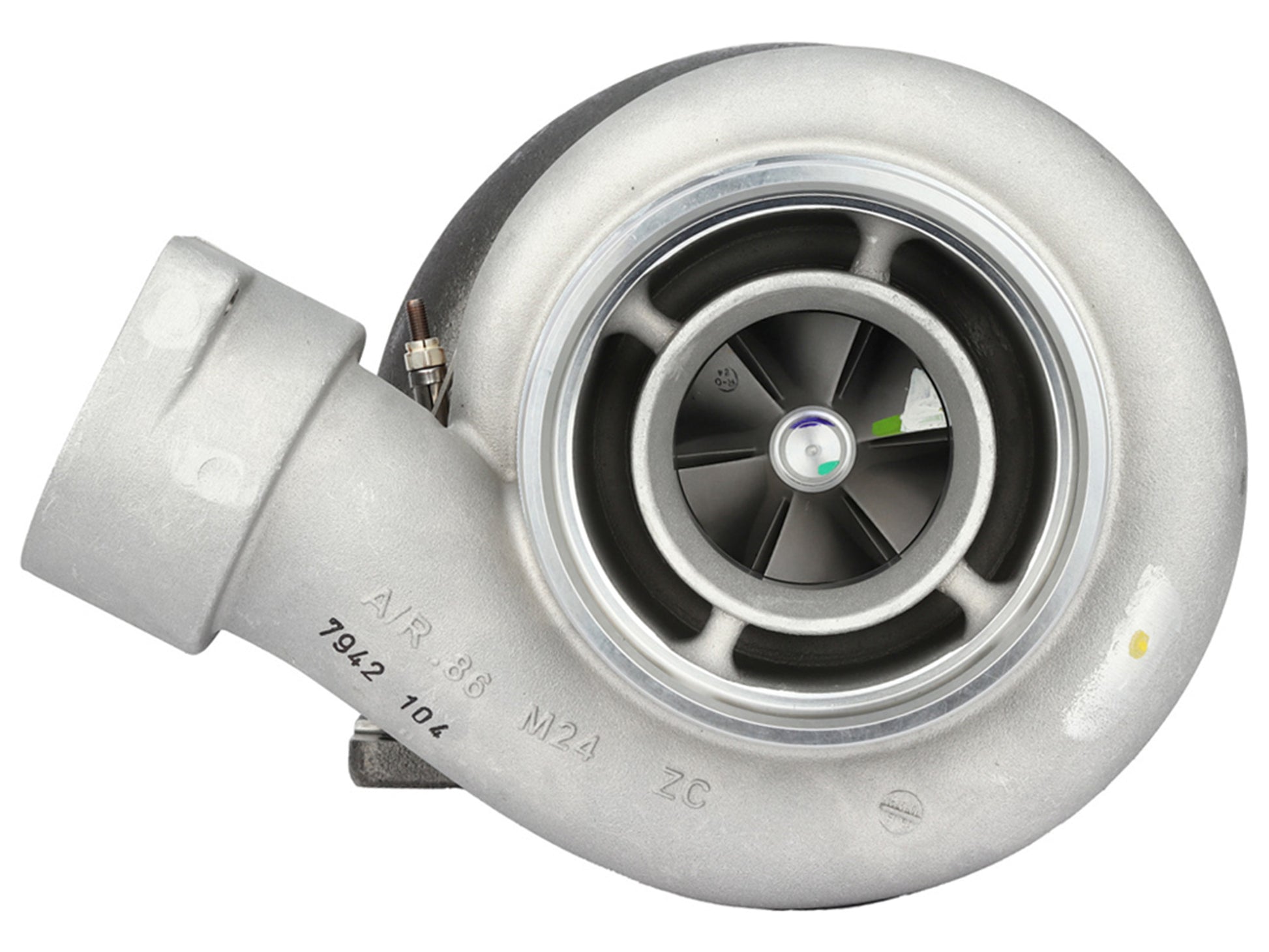

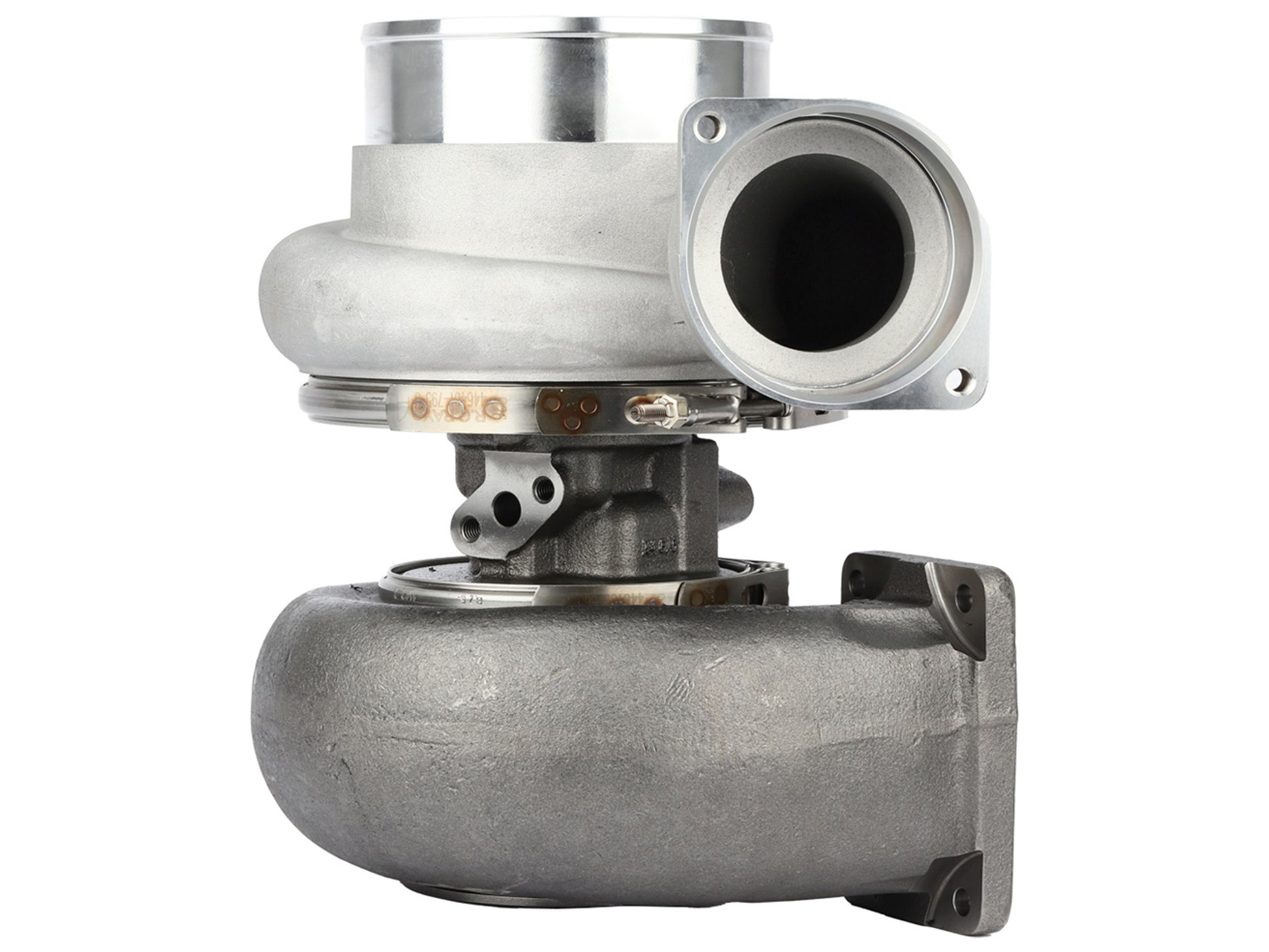

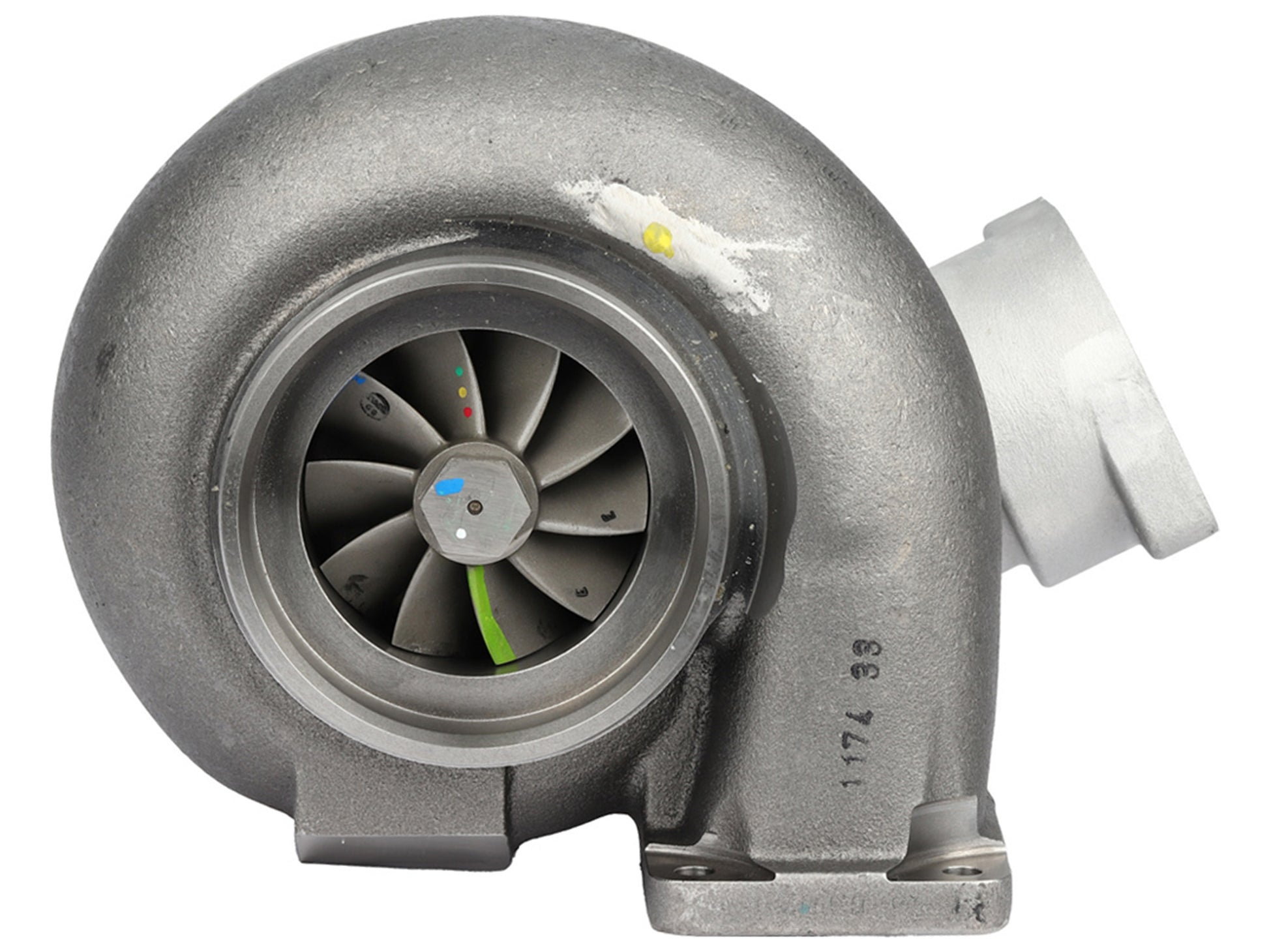

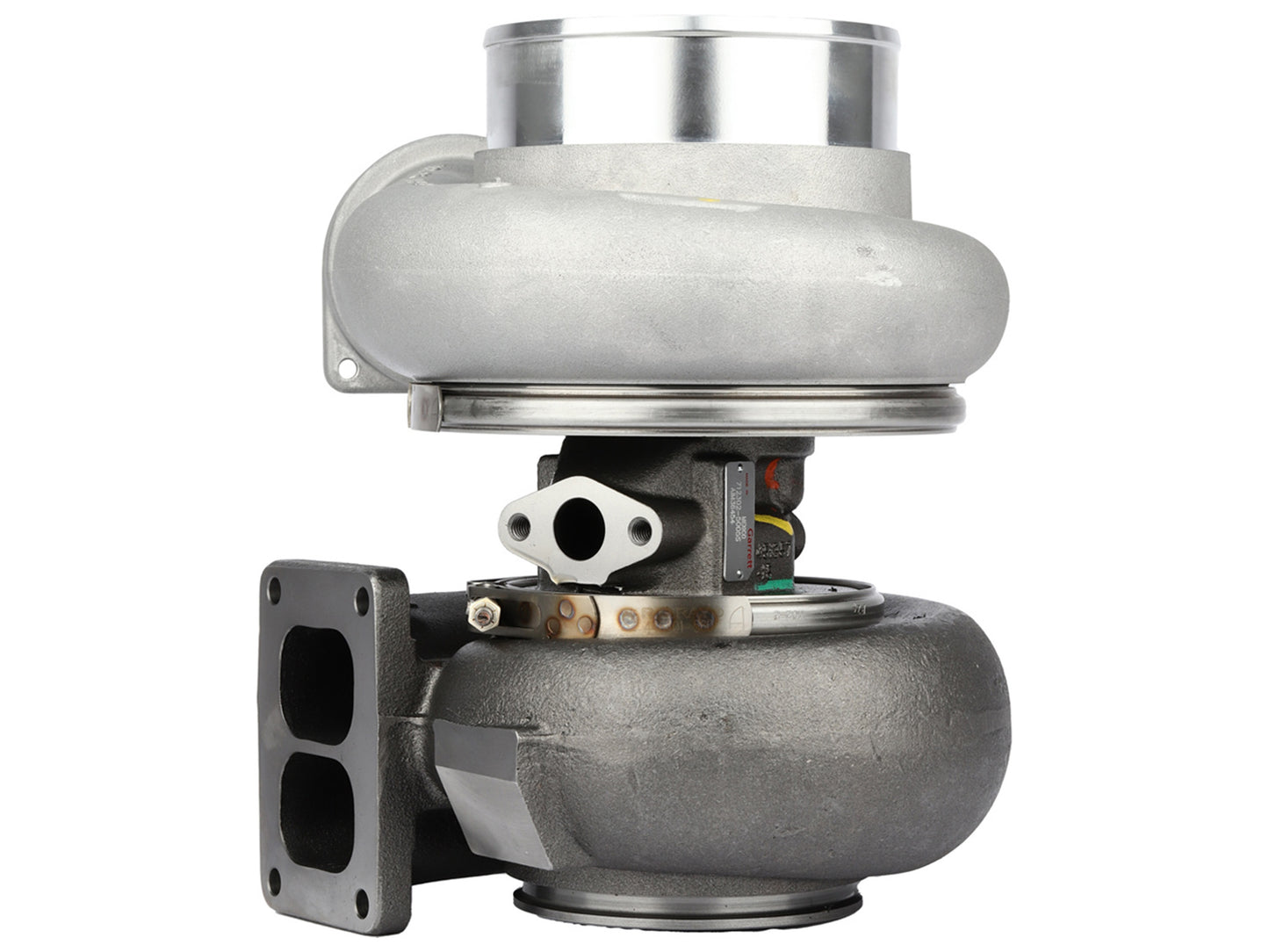

NEW Garrett GT5002 Turbo CAT Earth Moving Tractor 3406 3406C 14.6L 712302-5005

BRAND NEW GENUINE GARRETT TURBOCHARGER

This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 712302-5005
Interchangeable Number: 712302-0005, 712302-5005S, 167053
OEM Number: 0R9899, 0R-9899, 1795922, 179-5922
Serial Number: 11N1-17536, 11N17416-UP, 1XJ00001-UP, 2KR00001-UP, 2SR00001-UP, 2XS00001-UP, 41Z17172-UP, 41Z17175-29103, 41Z1-UP, 41Z20592-UP, 41Z22034-UP, 41Z23559-UP, 4SN00001-UP, 5TJ00001-UP, 63X00001-UP, 6RN00001-UP, 6YZ00001-UP, 70V35205-99999, 7LN00001-UP, 7TK00001-UP, 7XM00001-UP, 8HB00001-UP, 9CM00001-UP, 9EM00001-UP, TXC1-UP, TXC502-UP, TXC772-UP, TXC780-UP, TXJ1-UP
Turbo Model: GT5002, GTA500201B, S4DSL031
Manufacturer: Honeywell-Garrett

Year: 2001-
Engine: 3400, 3406, 3406C
Displacement: 14.6L
Fuel: Diesel
Power: 456 HP

Angle α (Compressor Housing): 346°
Angle β (Turbine Housing): 278°
Back Plate: 710269-0001 (710269-0003)
Bearing Housing: 706666-0004 (Oil Cooled)
CHRA: 712371-0011 (712371-0039, 712371-5039S, 712371-0200, 712371-5011S, 202-4081, 10R1090, 1922830, 2024081)
Compressor Cover: 712301-0001 (712301-0004)(1789573)
Compressor Wheel: 451936-0008 (726400-0003, 448671-0020)(Ind. 76.48 mm, Exd. 102.2 mm, 6+6 Blades, Boreless)
Gasket (Oil Inlet): 129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 52231586500, 129120)(1900000035)
Gasket (Oil Outlet): 210018 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 52231586500, 129120)(1900000035)
Gasket (Turbine Inlet): 132040 (9749, 1S4295, 202873, 205396, 3500683, 210017-0000, 409038-0000, 52231083002)(1900000004)
Heat Shield: 707843-0001
Repair Kit: 468267-0011 (1102050750)
Turbine Housing: 446464-0046 (1489104, 148-9104)
Turbine Wheel: 451938-0001 (Ind. 90.67 mm, Exd. 99.2 mm, Trim 67, 10 Blades, Boreless)

Application:
2001- Caterpillar Earth Moving with 3406 Engine
Caterpillar Landfill Compactor 826C, 826G, 4Q-1700, 4Q-1795 with 3406 Engine
Caterpillar Track-Type Pipelayer 583R with 3406C Engine
Caterpillar Track-Type Tractor D8N, D8R with 3406C Engine
Caterpillar Wheel Loader 980G, 980X with 3406 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
