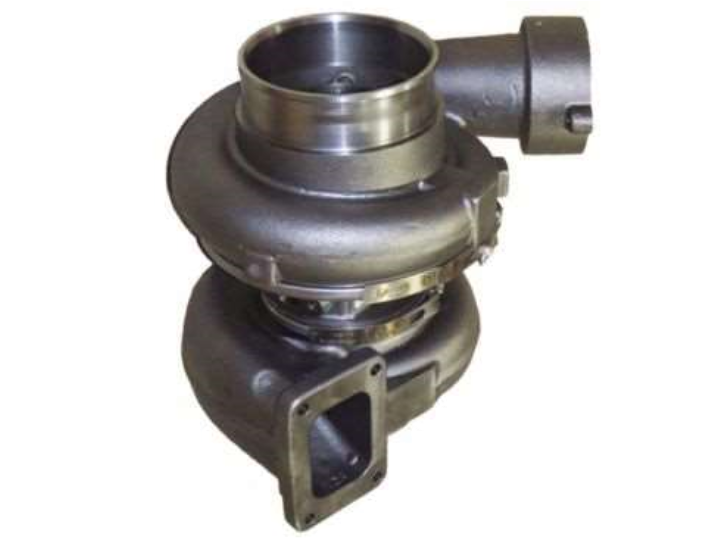

NEW OEM Garrett GTA5518B Turbo CAT Industrial 3508B 3516B 2454339 739443-5003

BRAND NEW GENUINE GARRETT TURBOCHARGER

This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 739443-5003
Interchangeable Number: 739443-0003, 739443-5003, 739443-0008, 739443-5008, 739443-5008S
OEM Number: 2454339, 245-4339, 10R2206, 10R-2206
Serial Number: 1FZ1209-UP, 1FZ2202-UP, 1HZ2736-UP, 1HZ2763-UP, 2JW415-UP, 4GM743-99999, 6HN1718-UP, 6PN889-UP, 7RN1918-UP
Turbo Model: GTA5518B
Manufacturer: Honeywell-Garrett

Year: 2005-
Engine: 3508B, 3516B, PP3516, SR4, SR4B, PM3508, PM3516
Fuel: Diesel
Prefix: 23Z, 3PS, 68Z, 69Z, 70Z, 95Y, 96Y, 24Z, 3RS, 3WS, 49Y, 50Y, 65Z, 66Z, 67Z, 25Z, 27Z, 29Z, 3SS, 3XS, 71Z, 72Z, 73Z, GZX, 1TW, 2BM, 3DM, 3DW, 4GM, 5PS, 6PN, 7SM, DPN, S2A, S2B, S2D, S2E, TTA, TTB, 1PW, 2EZ, 2GW, 4TN, 6WN, 7HM, 8EM, 8RM, BRN, S2G, S2H, S2J, S2K, S2L, S2N, E3W, E3X, E3Y, LLB, MKH, MRG, SLM, T3R, TTC, TTE, TTF, TTG, 1NW, 2FW, 2JW, 3CW, 4BW, 6HN, 7RN, 8CN, 8KN, 9AN, BCK, CDE, E6P, PBR, S2P, S2R, S2S, S2T, S2W, S2X, YAP, YAR, YAT, YAW, YBT, YBW, ZAP, ZAR, ZBP, ZBR, B5G, E3P, E3Z, JTS, PAG, SBJ, SFJ, TKS, TTD, TTH, TTJ, BLM, BPD, KEN, NAM, NBR, PPS, 5KW, 8NW, 99Z, BCW, BPJ, CAL, CAW, CMC, CMD, CMJ, CNB, CNF, FDN, FDR, FDX, GAR, GZR, GZS, LLF, MGC, PTN, ZAD

Back Plate: 706668-0005
Bearing Housing: 706666-0004 (Oil Cooled)
CHRA: 712371-0083 (712371-0083)(2464718)
Compressor Cover: 709557-0014 (Cast Iron)
Compressor Wheel: 449207-0022 (Ind. 88 mm, Exd. 117.7 mm, 7+7 Blades)
Gasket (Oil Inlet): 129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035)
Gasket (Oil Outlet): 210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(Paper)(1900000025)
Heat Shield: 710891-0001
Turbine Housing: 711469-0003 (2464719)
Turbine Wheel: 451941-0002 (451941-0005)(Ind. 111.45 mm, Exd. 101.54 mm, 10 Blades)(Boreless)

Application:
2005- Caterpillar Generator Set with 3508B, 3516B, PP3516, SR4, PM3508, PM3516 Engine
2005- Caterpillar Generator with SR4, SR4B Engine
2005- Caterpillar Industrial, Various with 3508B, 3516B Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
