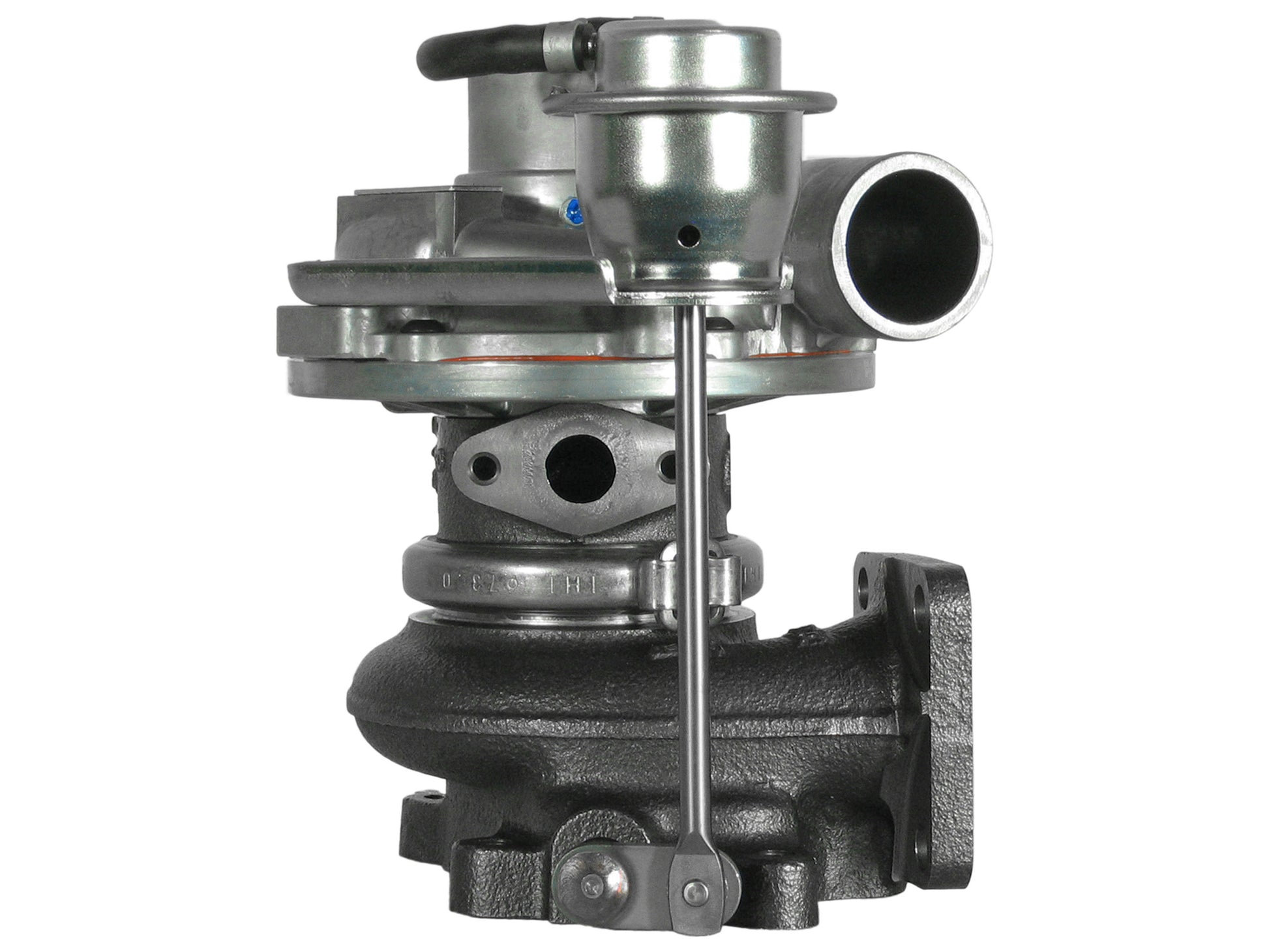

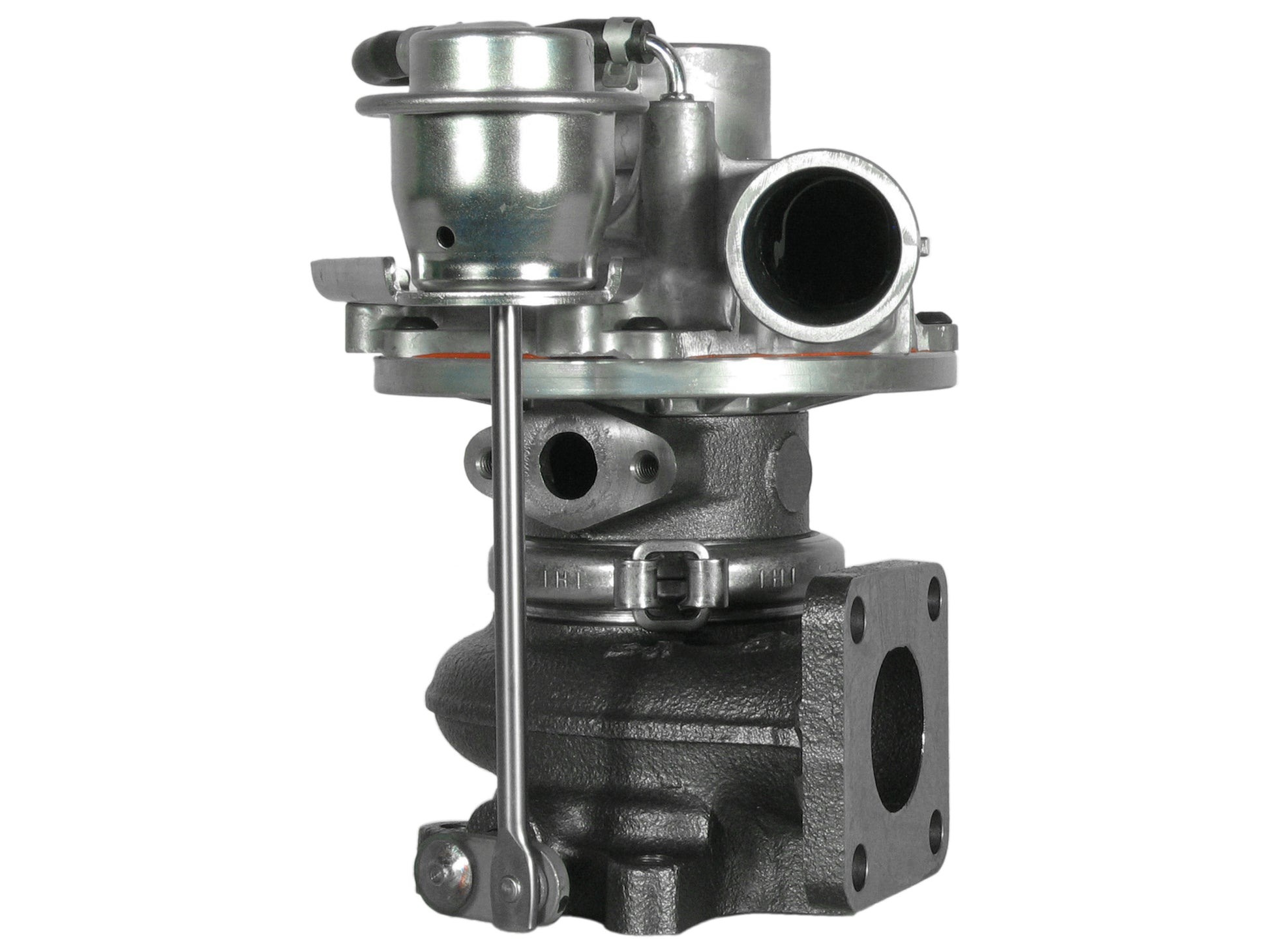

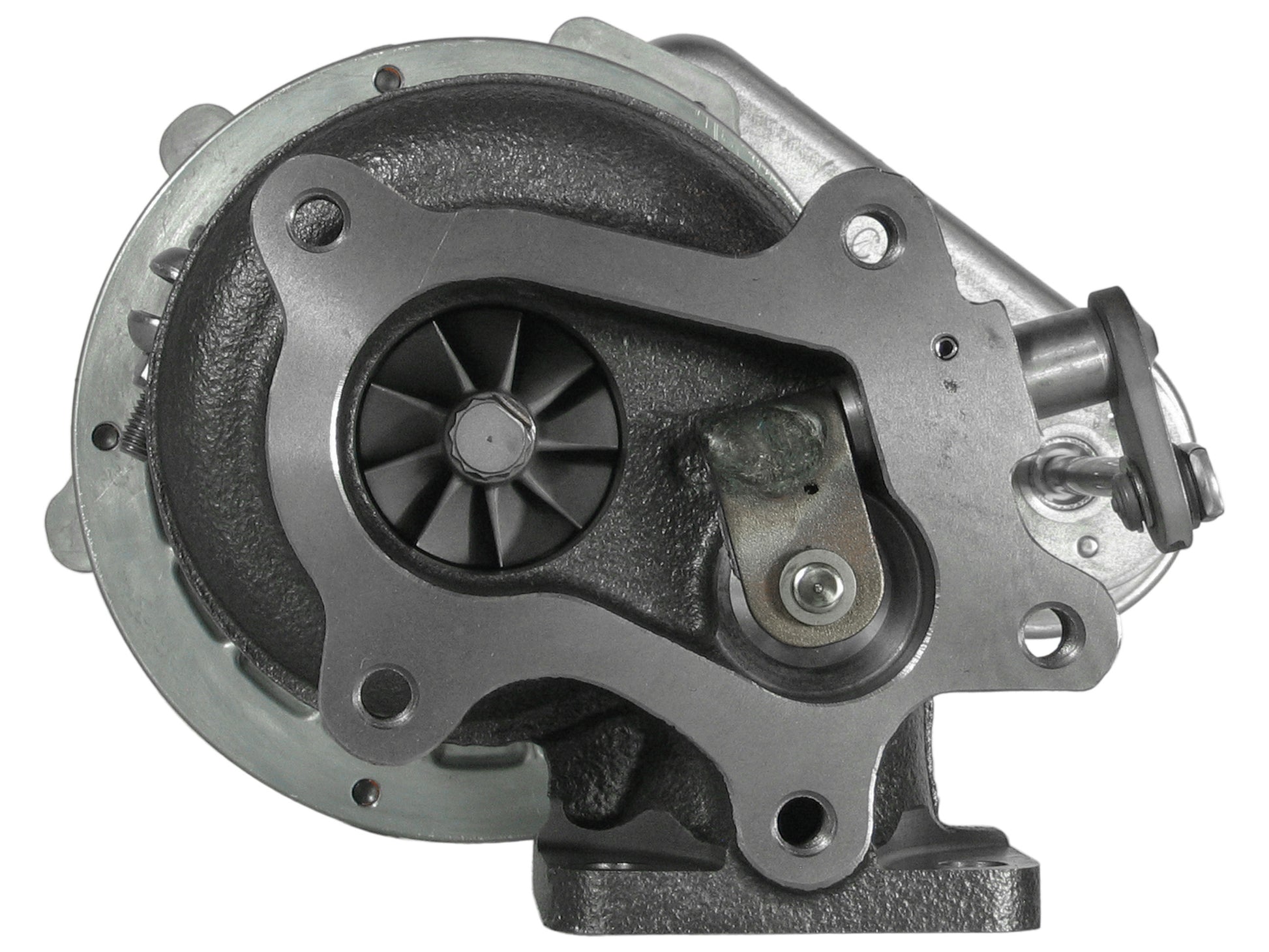

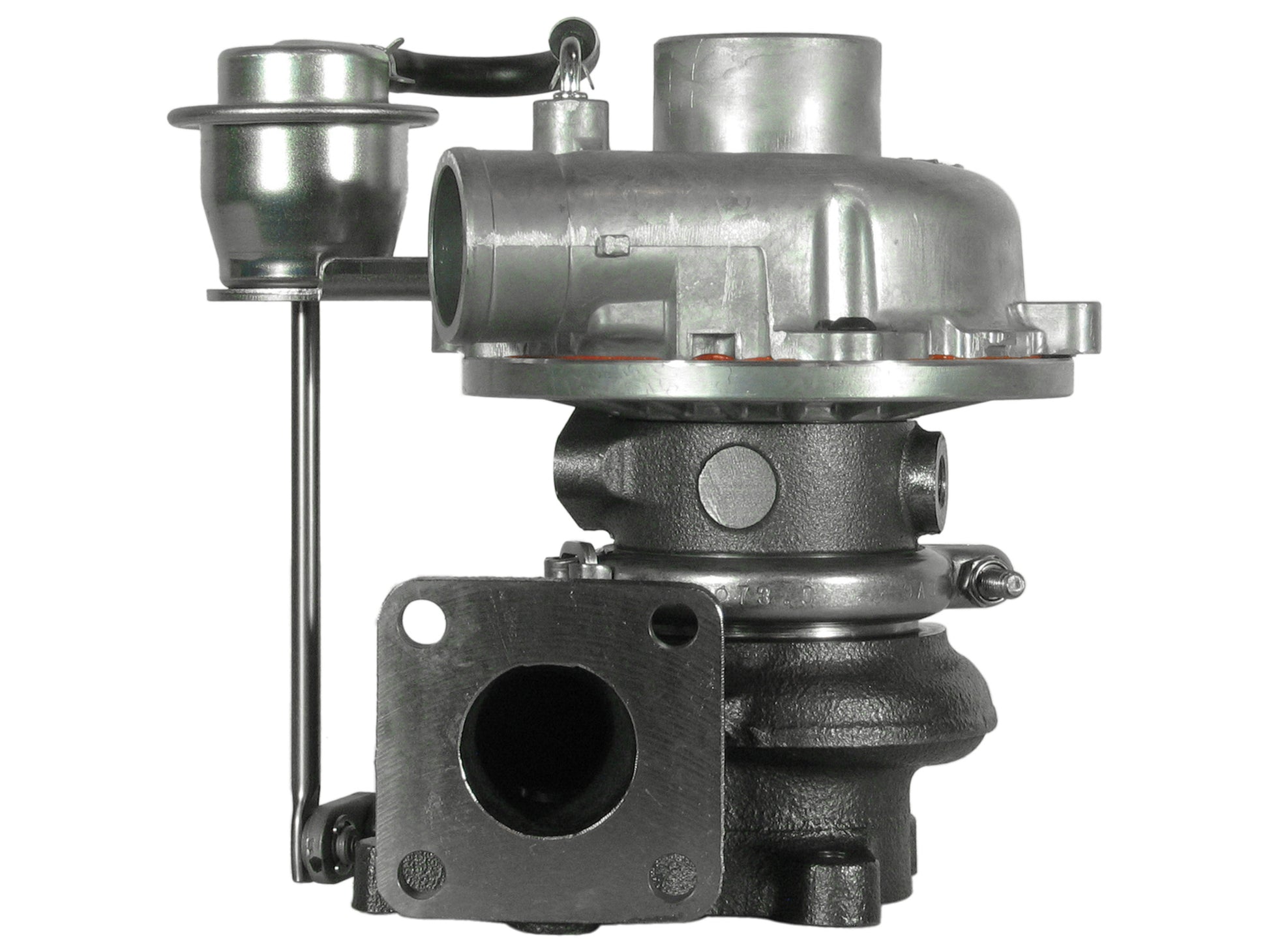

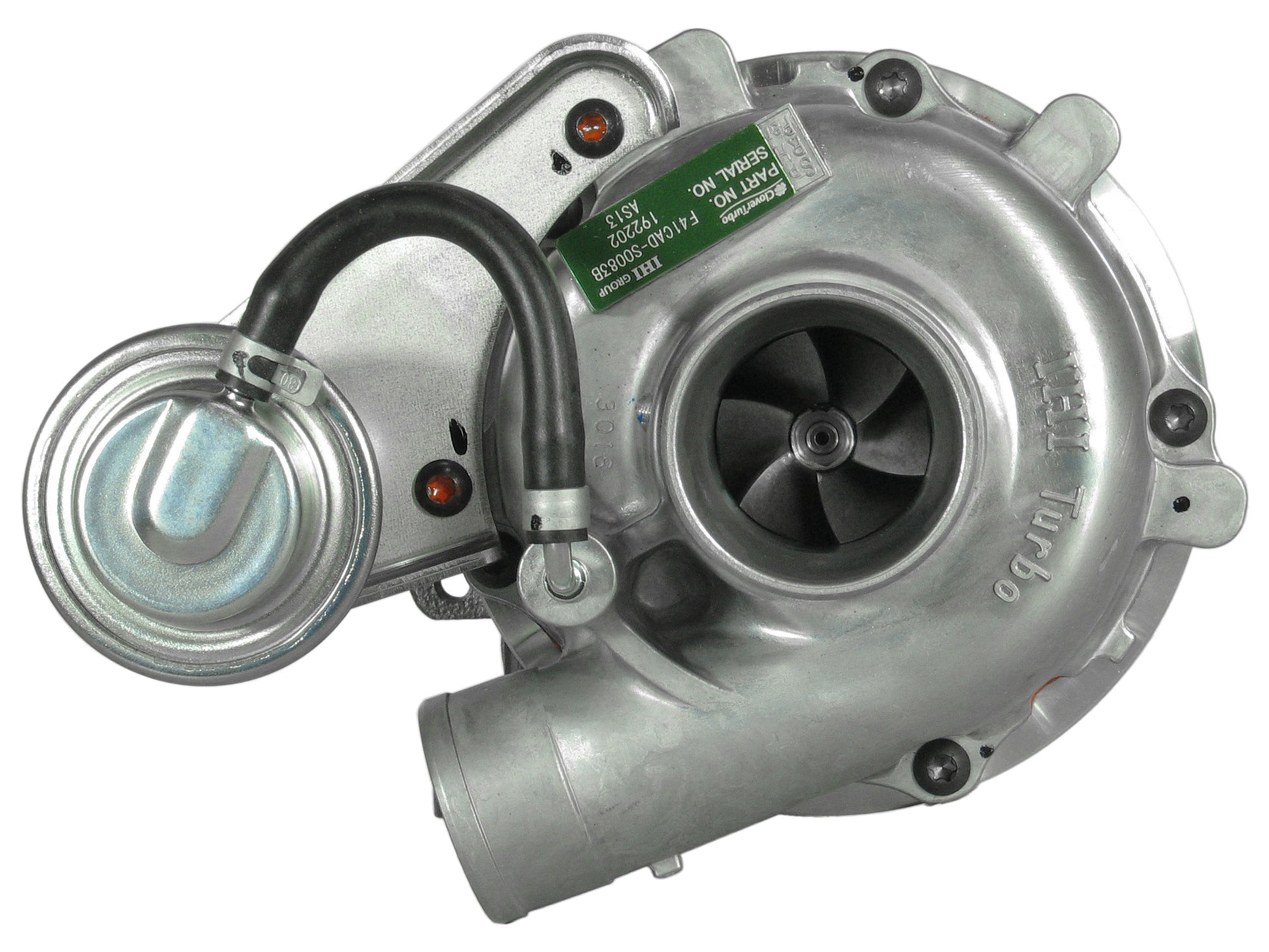

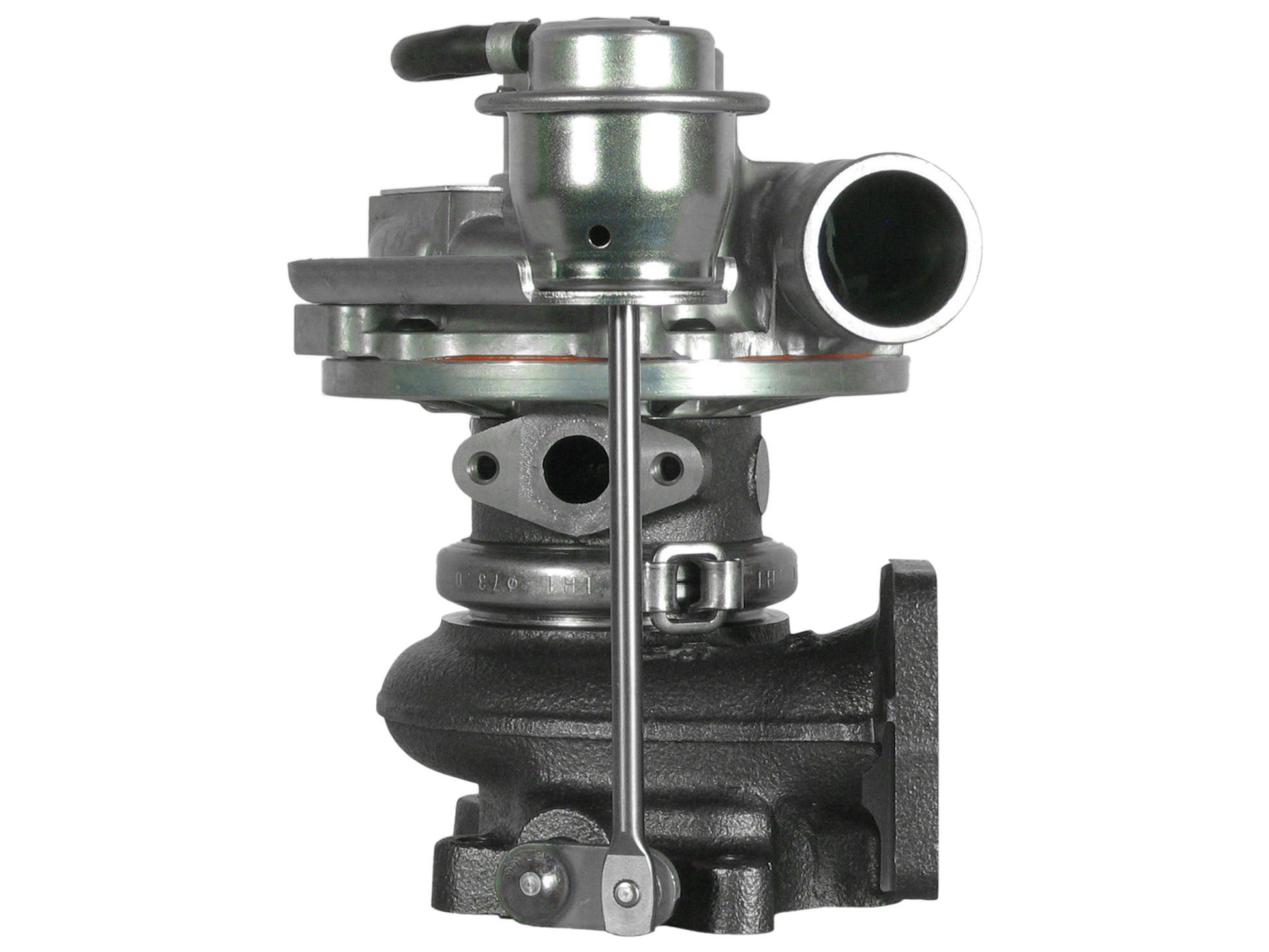

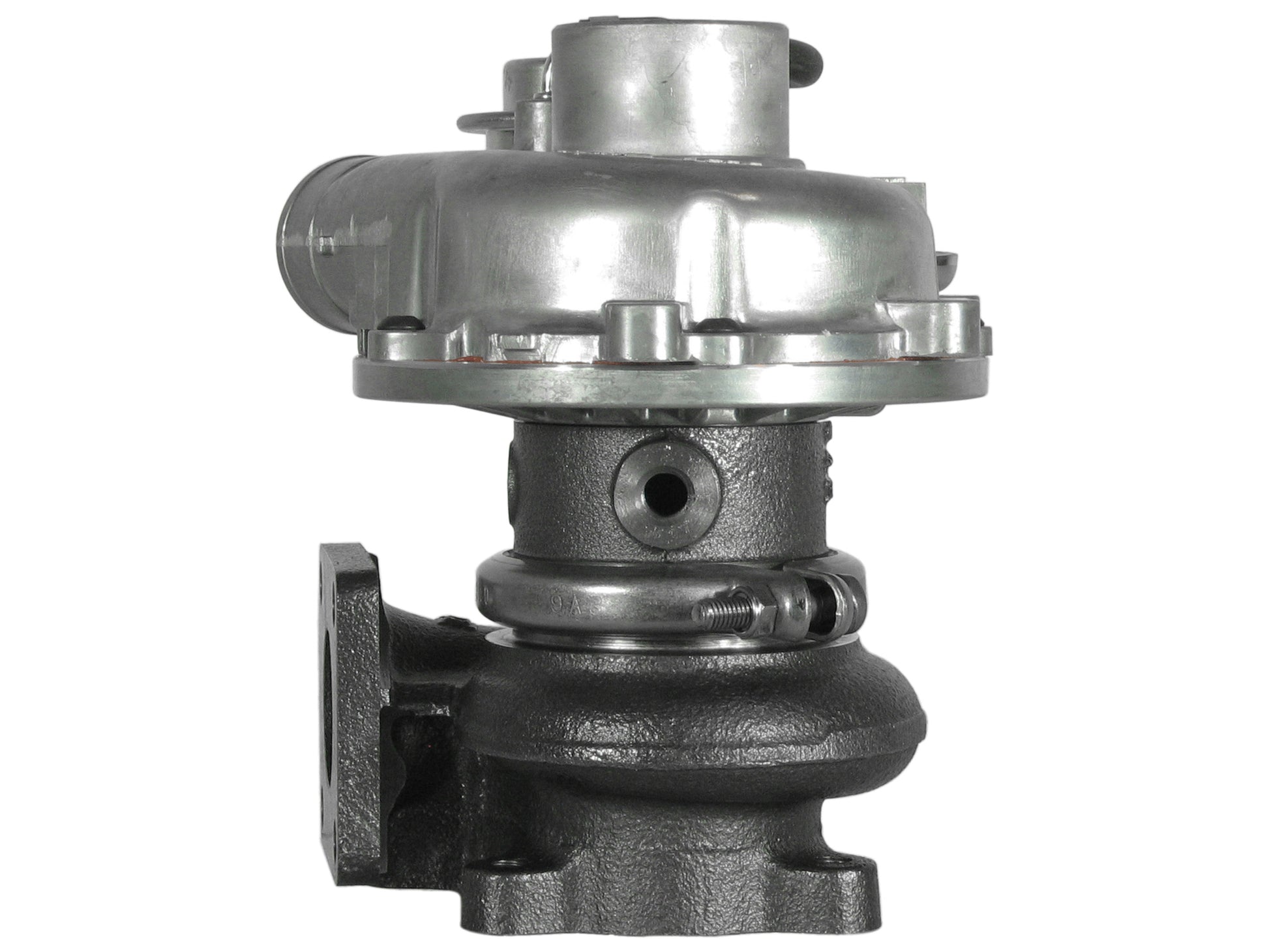

NEW OEM IHI RHF4 Turbo Shibaura Agricultural Industrial N844L-T VB420083 AS13SKU: AS13
This is a BRAND NEW GENUINE IHI TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: VB420083
Short Spec.: AS13
Interchangeable Number: F41CAD-S0083B, F41CAD-S0083G, V*420083, VA420083, VB420093, VC420083, VD420083
OEM Number: 135756190, 13575-6190, 3801341, 4T-511, 4T511,
Turbo Model: RHF4, RHF4-46001P10NHBRL342CCZ
Manufacturer: IHI Turbo - CloverTurbo
Engine: D2-75, N844L-T
Angle α (Compressor Housing): 80°
Angle ß (Turbine Housing): 152°
Back Plate: (1300016149)
Bearing Housing: (Oil Cooled)(1900011259)
CHRA: F41CAD-S0083C/NZ870564 (1450040900, 1000040161)
Compressor Wheel: (Ind. 31.14 mm, Exd. 45.97 mm, 5+5 Blades, Super Back)(1200016519)
Gasket (Oil Outlet): 210636 (210019)(2485006)(Paper)
Gasket (Turbine Inlet): 210385 (2445130, 2258533)(Stainless Steel)
Gasket (Turbine Outlet): 210393 (2445136)(Inox Steel)
Heat Shield: (2030016050)
Repair Kit: SF33F40C106NS/NH449813 (5000080027)
Turbine Housing A/R: 10
Turbine Wheel: (Ind. 46.4 mm, Exd. 35.43 mm, 9 Blades)(1100016372)
Shibaura Agricultural, Industrial with N844L-T Engine
Volvo Penta Marine with D2-75 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
Any questions or concerns, please feel free to email or call us.
