HC5A Turbo Industrial Cummins KT-19 KT1150 KT38 KTA19 KTA38 19.0L 3594085
HC5A Turbo Industrial Cummins KT-19 KT1150 KT38 KTA19 KTA38 19.0L 3594085
SKU:F3594085
Regular price
$1,495.00
Regular price
Sale price
$1,495.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Orders ship Monday-Friday, usually within 24 hours of purchase.
International shipping subject to VAT and/or other import tax calculated during checkout.

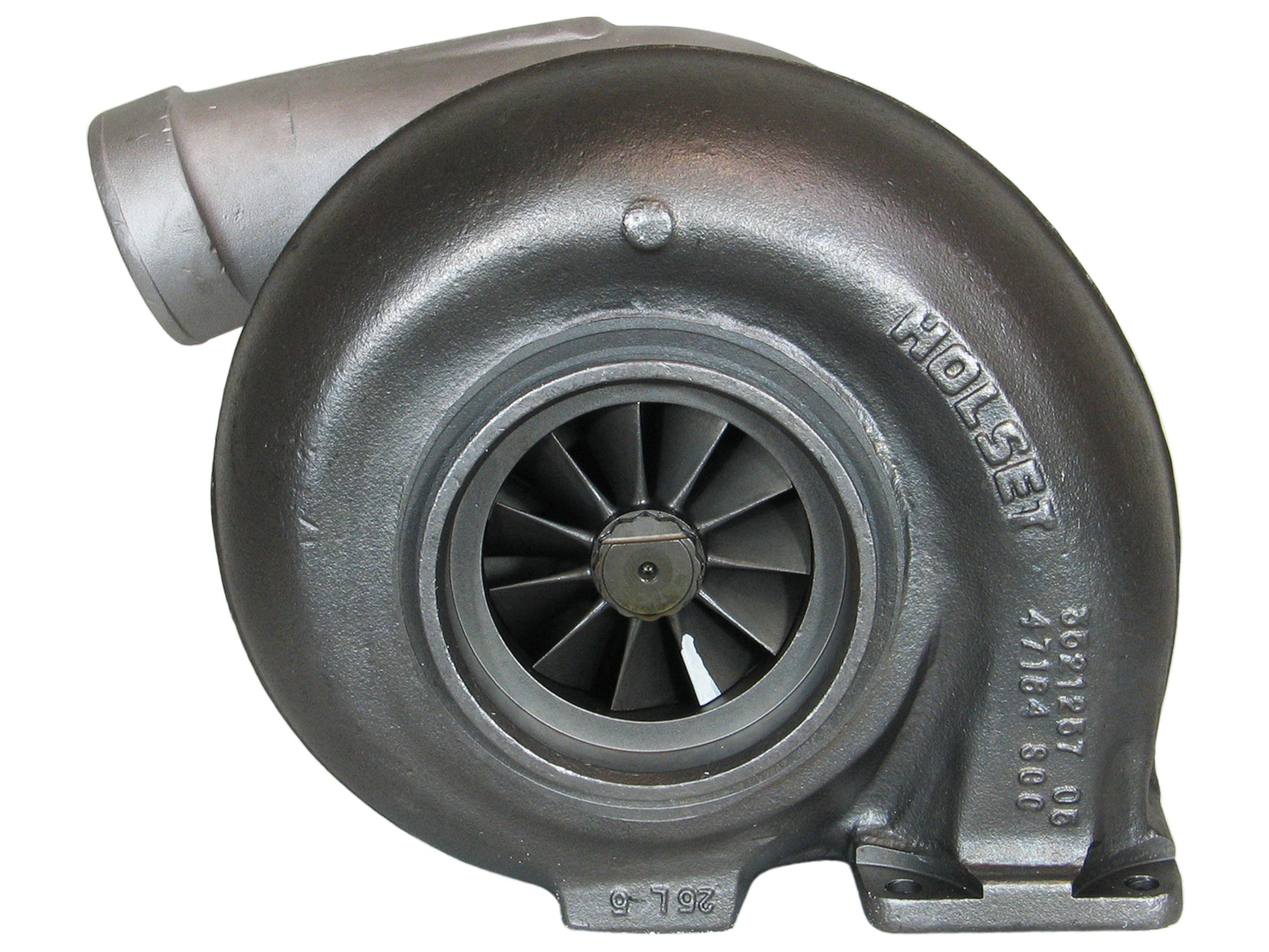

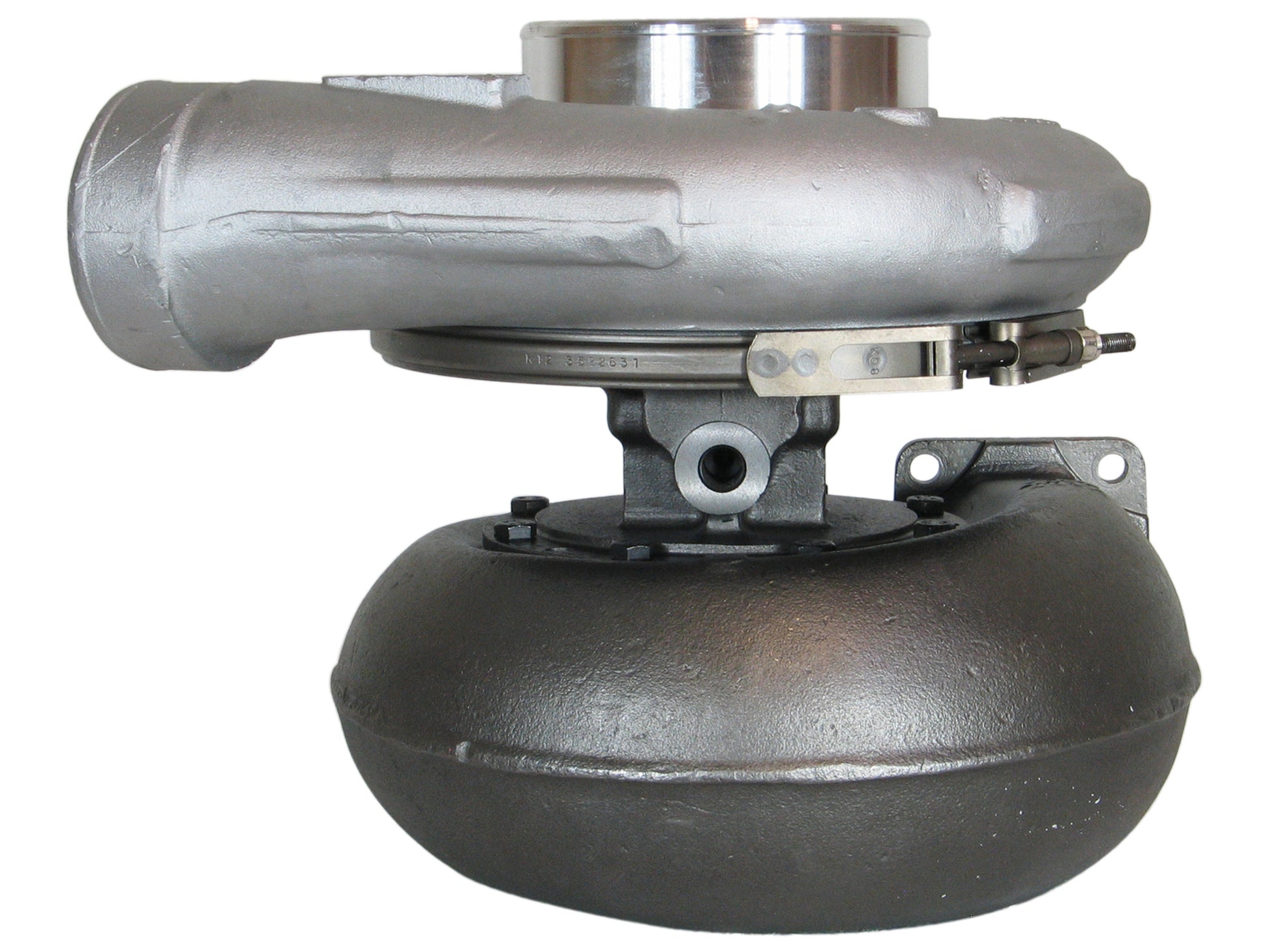

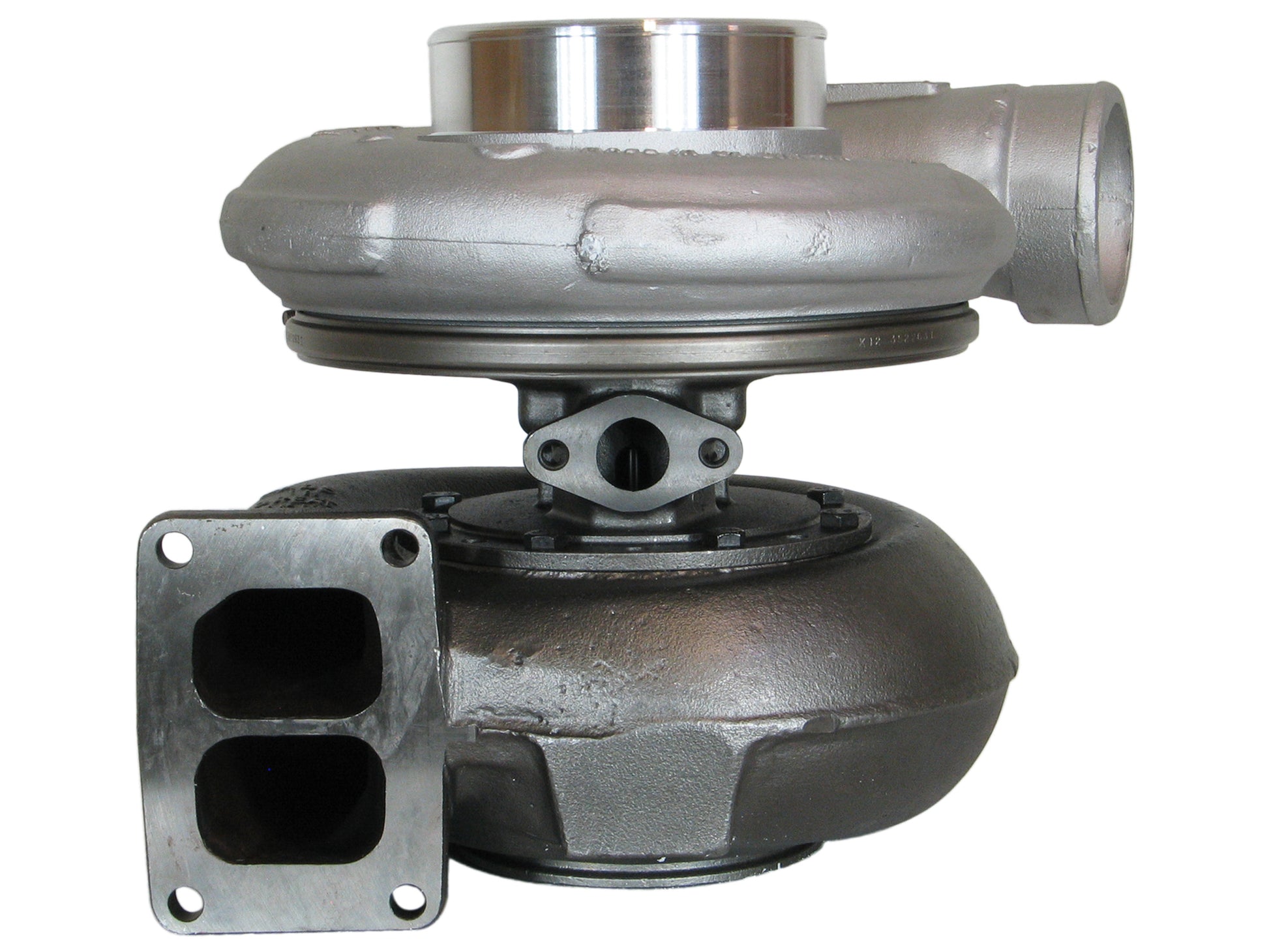

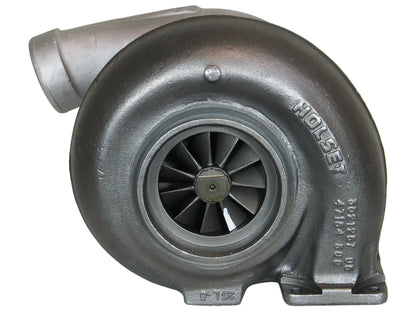

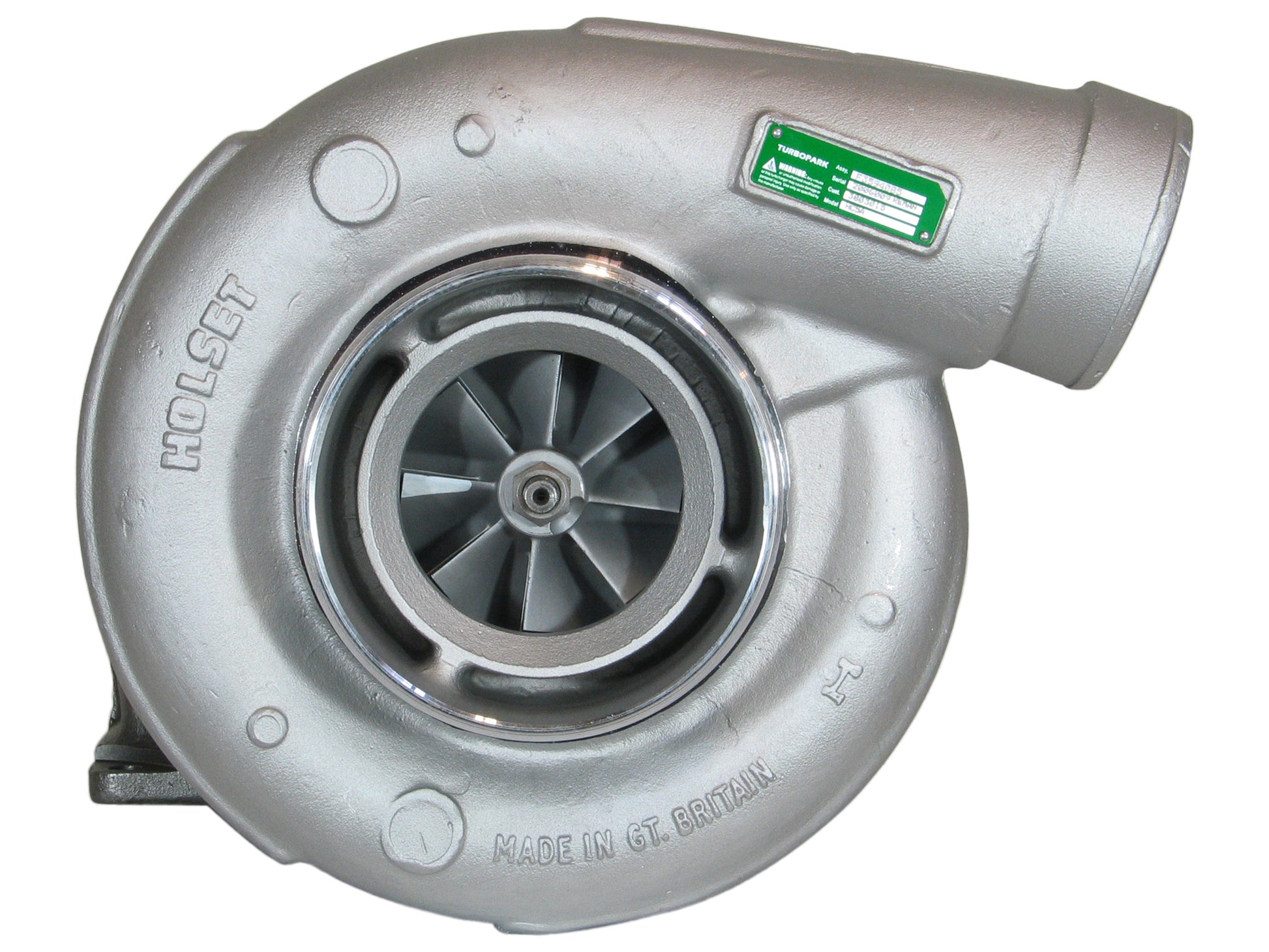

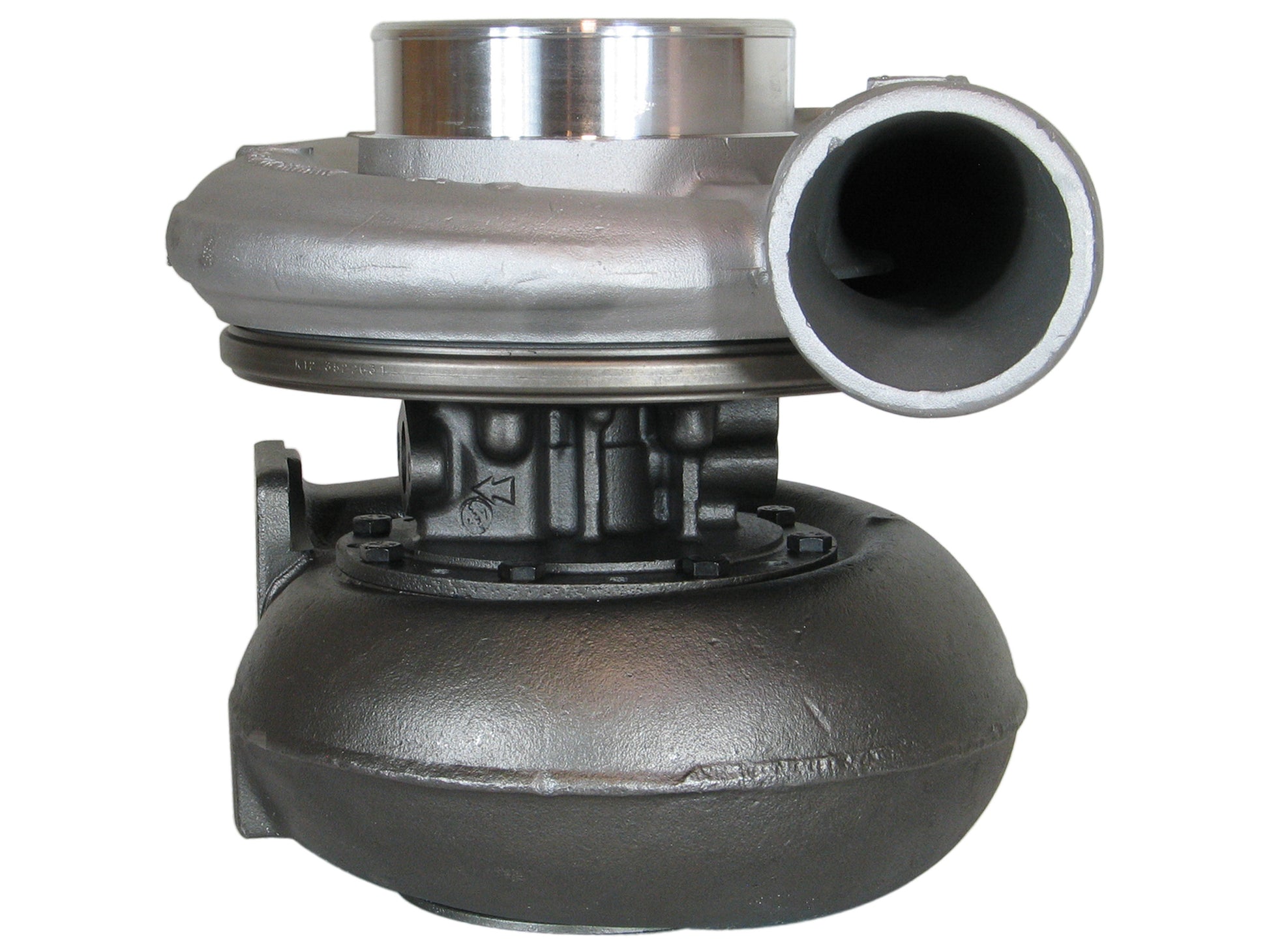

TURBOTURBOS REMANUFACTURED TURBOCHARGER
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 3594085
Interchangeable Number: 3525504
OEM Number: 3525505, 3525506, 3525507, 3592523, 3594086, 3594087, 3594088, 3594089, 3803015, 3803103, 503525504
Turbo Model: HC5A, HC5A-2731U/B40D3
Year: 2000-
Engine: KT-19, KT1150, KT38, KTA19, KTA38
Engine Manufacturer: Cummins
Displacement: 19.0L, 1900 ccm
Fuel: Diesel
Power: 450-525/925-1050 HP
Angle α (Compressor Housing): 19/201/247/249.5°
Angle β (Turbine Housing): 22.5/67.5/360°
Back Plate: 3524862 (352486200)
Bearing Housing: 3595036
CHRA: 3594216
Compressor Cover: 3525546
Compressor Wheel: 3523553 (352355300)
Gasket (Turbine Inlet): 311698 (Inox Steel)
Gasket Kit: 4032509
Heat Shield: 3536588 (1153080340)
Repair Kit: 3545647 (3575236)(1152105750)
Turbine Housing: 3534201
Turbine Wheel: 3521033 (Ind. 129 mm, Exd. 95.4 mm, 11 Blades)(1152105435)
Application:
2000- Industrial with Cummins KT-19, KT1150, KT38, KTA19, KTA38 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 3594085
Interchangeable Number: 3525504
OEM Number: 3525505, 3525506, 3525507, 3592523, 3594086, 3594087, 3594088, 3594089, 3803015, 3803103, 503525504
Turbo Model: HC5A, HC5A-2731U/B40D3
Year: 2000-
Engine: KT-19, KT1150, KT38, KTA19, KTA38
Engine Manufacturer: Cummins
Displacement: 19.0L, 1900 ccm
Fuel: Diesel
Power: 450-525/925-1050 HP
Angle α (Compressor Housing): 19/201/247/249.5°
Angle β (Turbine Housing): 22.5/67.5/360°
Back Plate: 3524862 (352486200)
Bearing Housing: 3595036
CHRA: 3594216
Compressor Cover: 3525546
Compressor Wheel: 3523553 (352355300)
Gasket (Turbine Inlet): 311698 (Inox Steel)
Gasket Kit: 4032509
Heat Shield: 3536588 (1153080340)
Repair Kit: 3545647 (3575236)(1152105750)
Turbine Housing: 3534201
Turbine Wheel: 3521033 (Ind. 129 mm, Exd. 95.4 mm, 11 Blades)(1152105435)
Application:
2000- Industrial with Cummins KT-19, KT1150, KT38, KTA19, KTA38 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
