T04B91 Turbo Caterpillar 215B Excavator 3304 Diesel Engine 7N4651 409410-5006SKU: F409410-5006
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

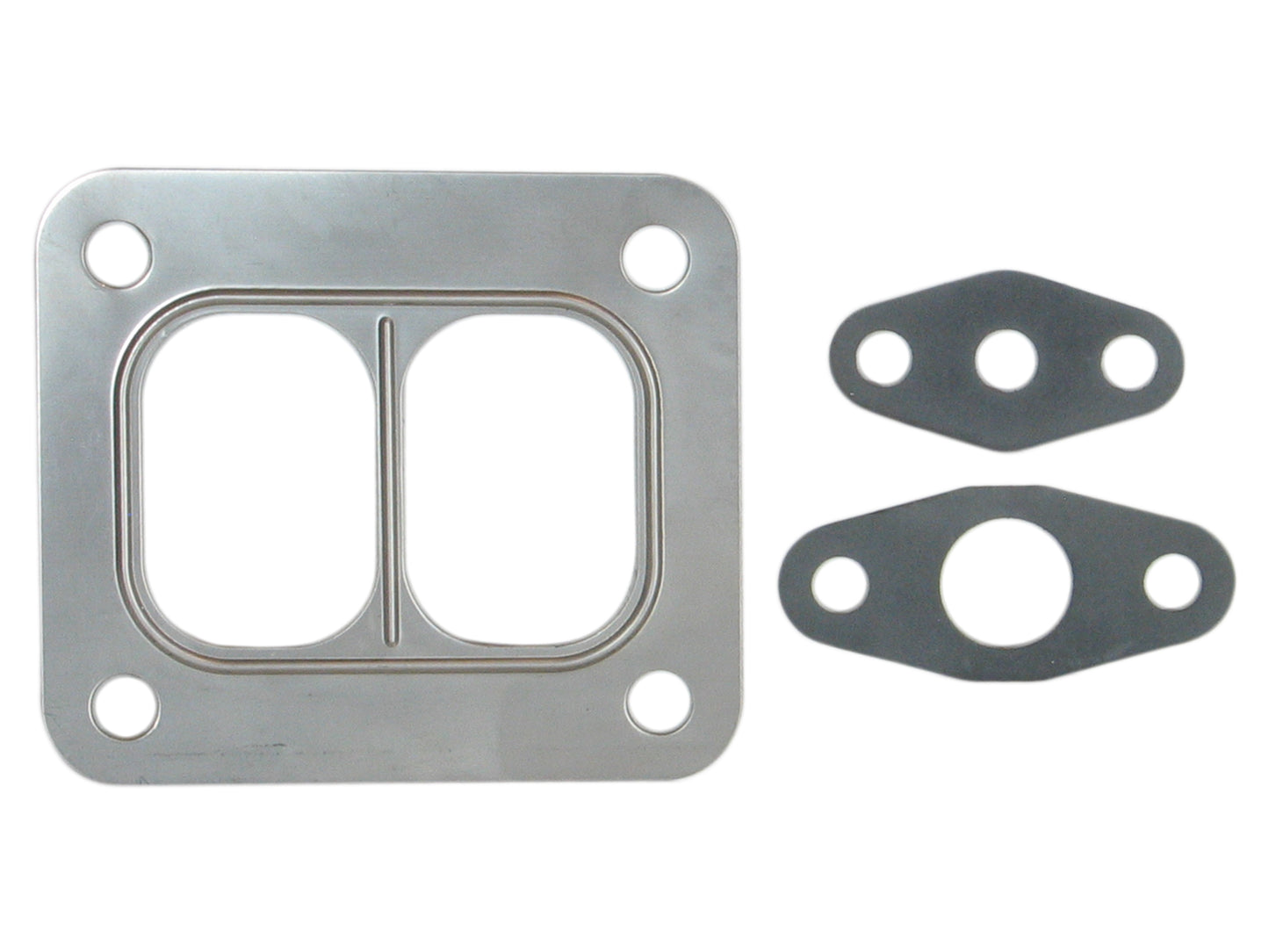

NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 409410-5006
Interchangeable Number: 409410-0006, 409410-5006S, 409410-0004, 409410-5004, 409410-5004S, 409410-0005, 409410-5005, 409410-5005S, 409410-0007, 409410-5007, 409410-5007S, 409410-0008, 409410-5008, 409410-5008S, 409410-0010, 409410-5010, 409410-5010S, 409410-0012, 409410-5012, 409410-5012S
OEM Number: 7N4651, 4N6858, 4N6859, 0R5796, 7N1709, 7N2342, 1W5160, 2W8139, 7C2175, 7N-4651, 4N-6858, 4N-6859, 0R-5796, 7N-1709, 7N-2342, 1W-5160, 2W-8139, 7C-2175
Turbo Model: T04B91
Engine: 3304, 3304DIT, 3304-Industrial, 3304T DITAJWAC GS, 35146 DITAJWAC GS
Displacement: 7.0L, 7000 ccm, 4 Cylinders
Power: 125 HP
Prefix 120G: 11W, 4HD, 87V
Prefix 130G: 12W, 74V, 7GB
Prefix 215B: 4FC, 9YB
Prefix 215C: 4HG
Prefix 215D: 9TF
Prefix 219: 5CF
Prefix 219D: 5XG
Prefix 225: 76U
Prefix 225B: 2ZD, 3YD
Prefix 225D: 6RG
Prefix 229: 1AG
Prefix 3304: 04B, 10E, 3TC, 4XB, 6YB, 83Z
Prefix 3304B: 10E, 1YF, 3TC, 4XB, 83Z, 9HK, 64Z
Prefix 518: 50S, 55U, 94U, 95U
Prefix 518C: 1CL, 9HJ
Prefix 561H: 6NL
Prefix 930R, 930T: 17B, 57Z
Prefix 936: 33Z, 45Z, 4SB
Prefix 936E: 33Z, 45Z, 4SB, 4TK, 8AJ, 9MK
Prefix 950: 81J
Prefix 950B, 950E: 22Z, 31R, 63R, 65R
Prefix 963: 06Z, 11Z, 18Z, 21Z, 29S, 48Z
Prefix CB-534: 2EG
Prefix D330C: 04B
Prefix D4E: 29X, 2CB, 2DJ, 76W, 77W, 7PB
Prefix D4H: 4NK, 7PK, 8PJ, 9GJ
Prefix D5H: 1DD, 1YD, 2SD, 3MD, 4KD, 7EG, 7NC, 8RC, 8RJ, 9HC
Prefix E240: 1FG
Prefix FB518: 8ZC
Prefix G936: 3HD, 4ND, 8ED
Prefix IT28B: 1HF, 5SD
Prefix: 9GD, 9HD, 9JD, 9KD, 9LD, 9MD, 9ND, 9PD, 9RD, 9WD, 9XD, 9YD, 9ZD, MGC, 1EG, 1NG, 1PG, 99Z, 9BD, 9CD, 9DD, 9ED, 9FD
Angle α (Compressor Housing): 150°
Angle ß (Turbine Housing): 15°
Back Plate: 408045-0051 (311708C, 4N6863)(408206-0002, 408045-0006, 408045-0034, 310010, 311708, 104244-0000)(Dynamic)(1100040360)
Bearing Housing: 430027-0051 (430027-0035, 430027-0031)(2P**35)
CHRA: 408077-0102 (408077-5102S, 4N6860, 4N4780, 0R5888)
Compressor Cover: 408173-0008 (4N6862)
Compressor Wheel: 409179-0018 (4N6861)(Ind. 48.35 mm, Exd. 70 mm, Trim 50, 8+8 Blades, S-Trim, Stepped Back)(1100040400)
Gasket (Oil Inlet): 210023 (55739, 147837, 3500681, 3519762, 3709737, 3755739, 409026-0001, 409036-0000, 409266-0001, 210023-0000)(1900000037)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 409037-0000, 413671-0000)(1900000027)
Gasket (Turbine Inlet): 407294-0001 (312617, 303031063)(Inox Steel)
Heat Shield: 409299-0001 (7N**12)
Repair Kit: 468100-0000 (3524796, 310063, 188401-0000)(6N7236, 2W0716)(1100040750)
Turbine Housing A/R: 1.52
Turbine Housing: 408667-0022 (7N1687)
Turbine Wheel: 451309-0003 (1555236)(446905-0007)(Ind. 74.5 mm, Exd. 64.7 mm, 11 Blades)(1100040436)
1973- Caterpillar 120G-Grader with 3304-Industrial, 3304T DITAJWAC GSS Engine
1973- Caterpillar 963, 950B with 3304-Industrial, 3304T DITAJWAC GSS Engine
1973- Caterpillar Earth Moving
1973- Caterpillar Excavator 215, 215B, 215C, 215D, 219, 219D, 225, 225B, 225D, 229, E240, EL240
1973- Caterpillar Generating Set with 35146 DITAJWAC GS Engine
1973- Caterpillar Generator Set with 3304, 3304B, SR4 Engine
1973- Caterpillar Generator with SR4 Engine
1973- Caterpillar Industrial with SR4, 3304, 3304B, D330C Engine
1973- Caterpillar Machine with 3304 Engine
1973- Caterpillar Motor Grader 120G, 130G, 12G, 130G, 140G
1973- Caterpillar Paving Compactor CP-643, CP-653, CS-643, CS-653
1973- Caterpillar Track-Type Loader 963, 963
1973- Caterpillar Track-Type Skidder D4HTSK III, D5HTSK II, 54H
1973- Caterpillar Track-Type Tractor 4S, 5A, 5P, 5S, 140, 141, 143, 5, D4E, D4H, D4H III, D4H XL, D5H, D5H XL, 55
1973- Caterpillar Wheel-Type Loader 936, 936E, 936F, 950B, 950E, G936
1973- Caterpillar Wheel-Type Skidder FB518, 518, 518C
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
