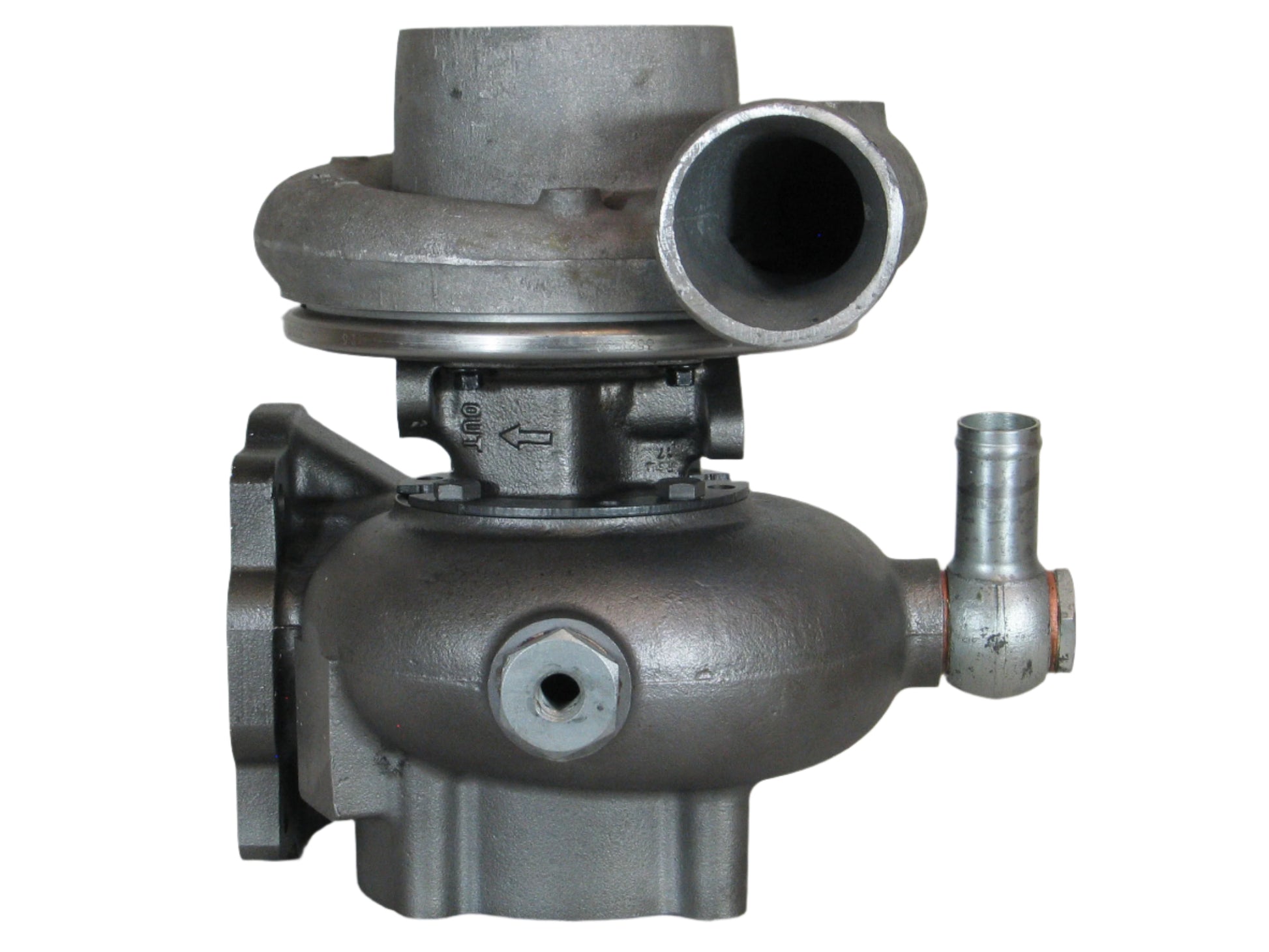

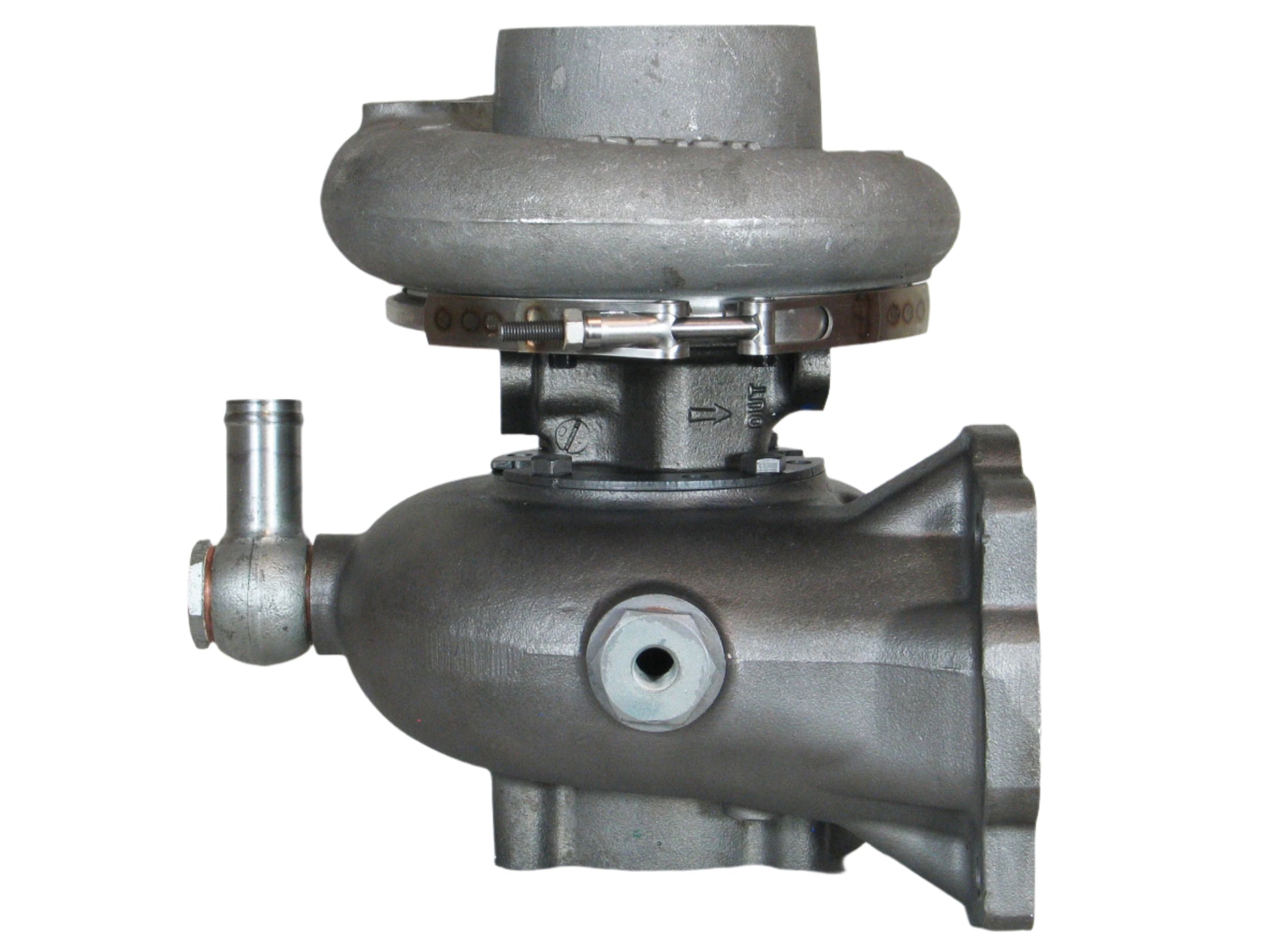

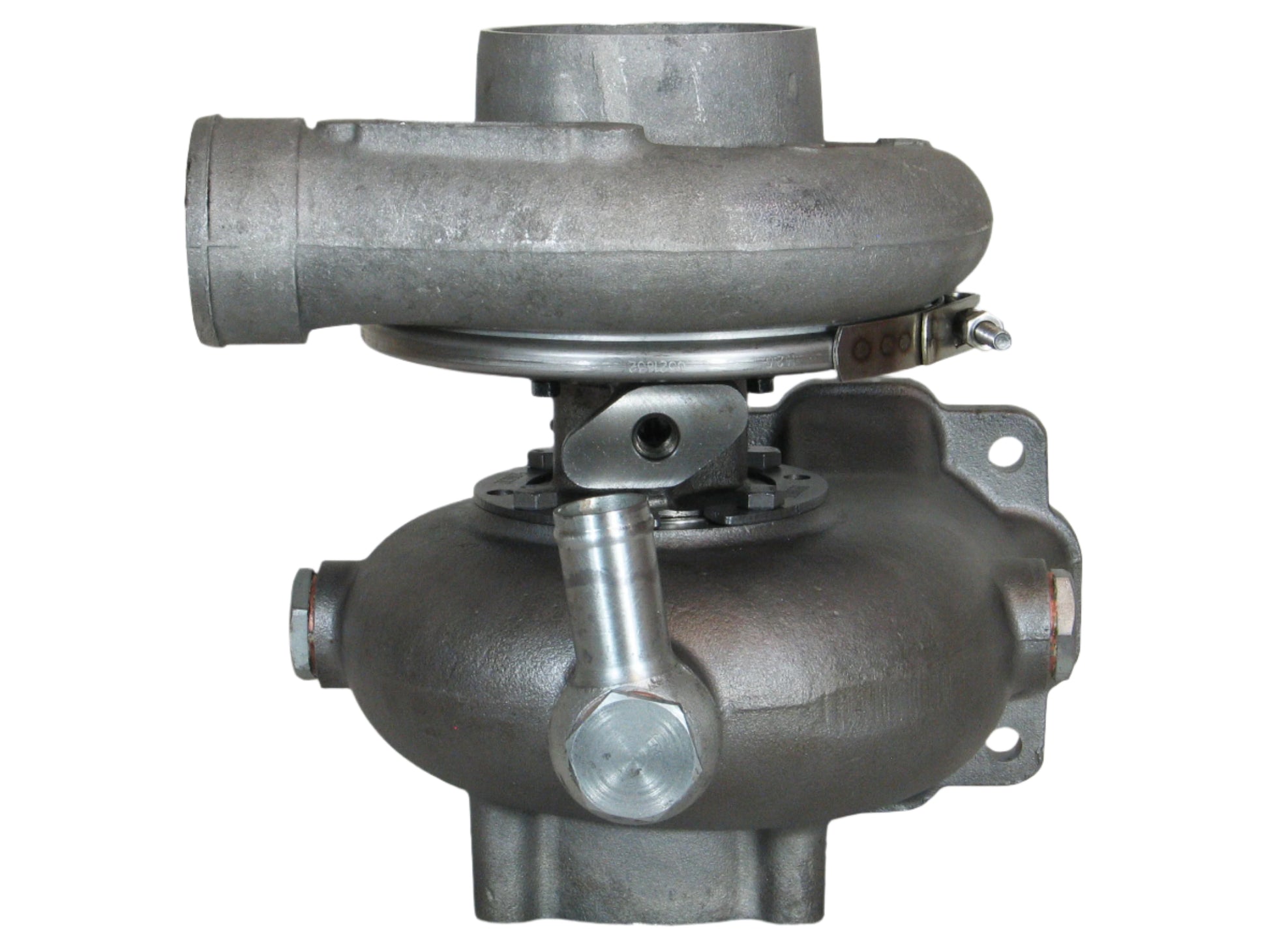

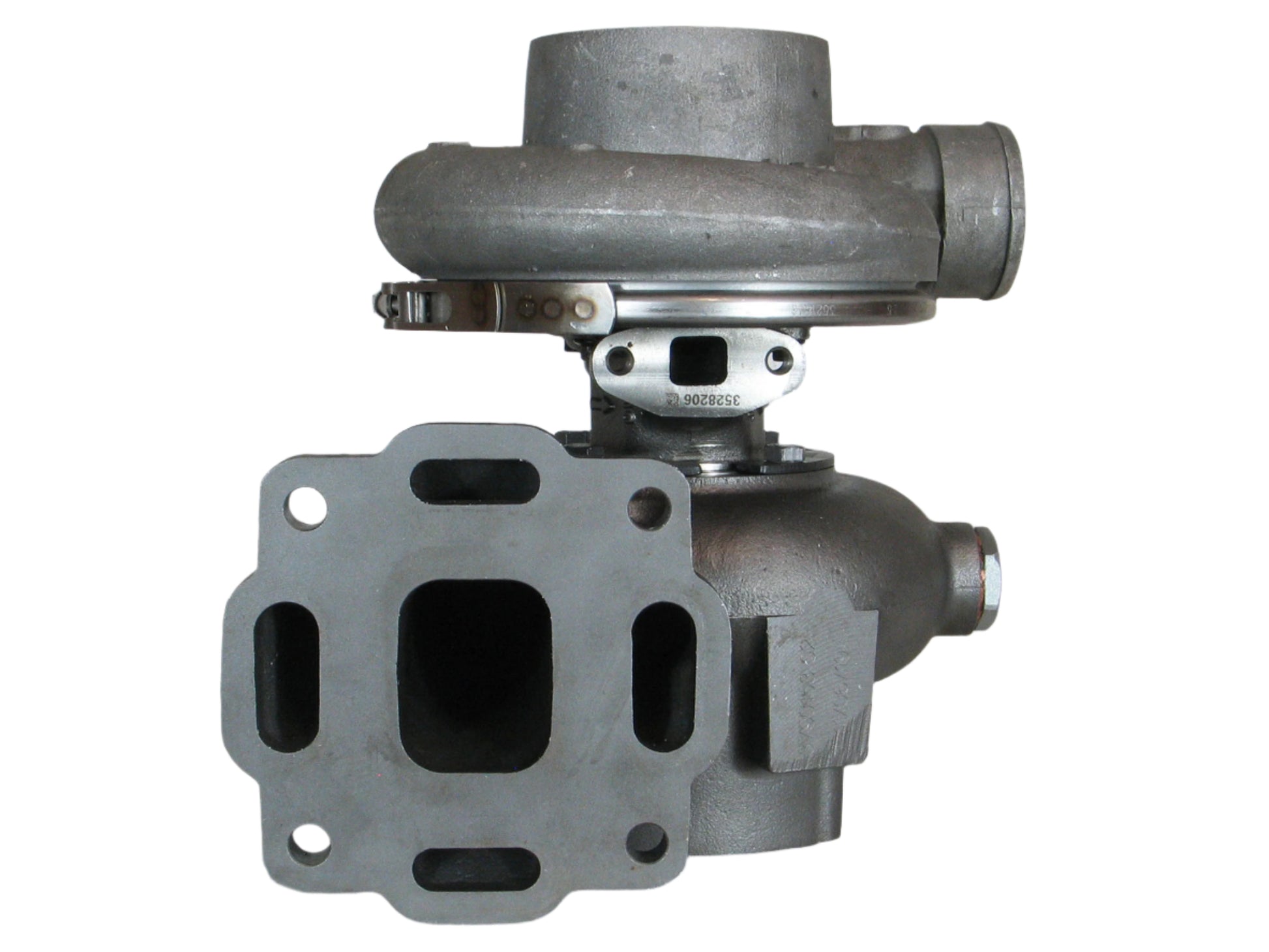

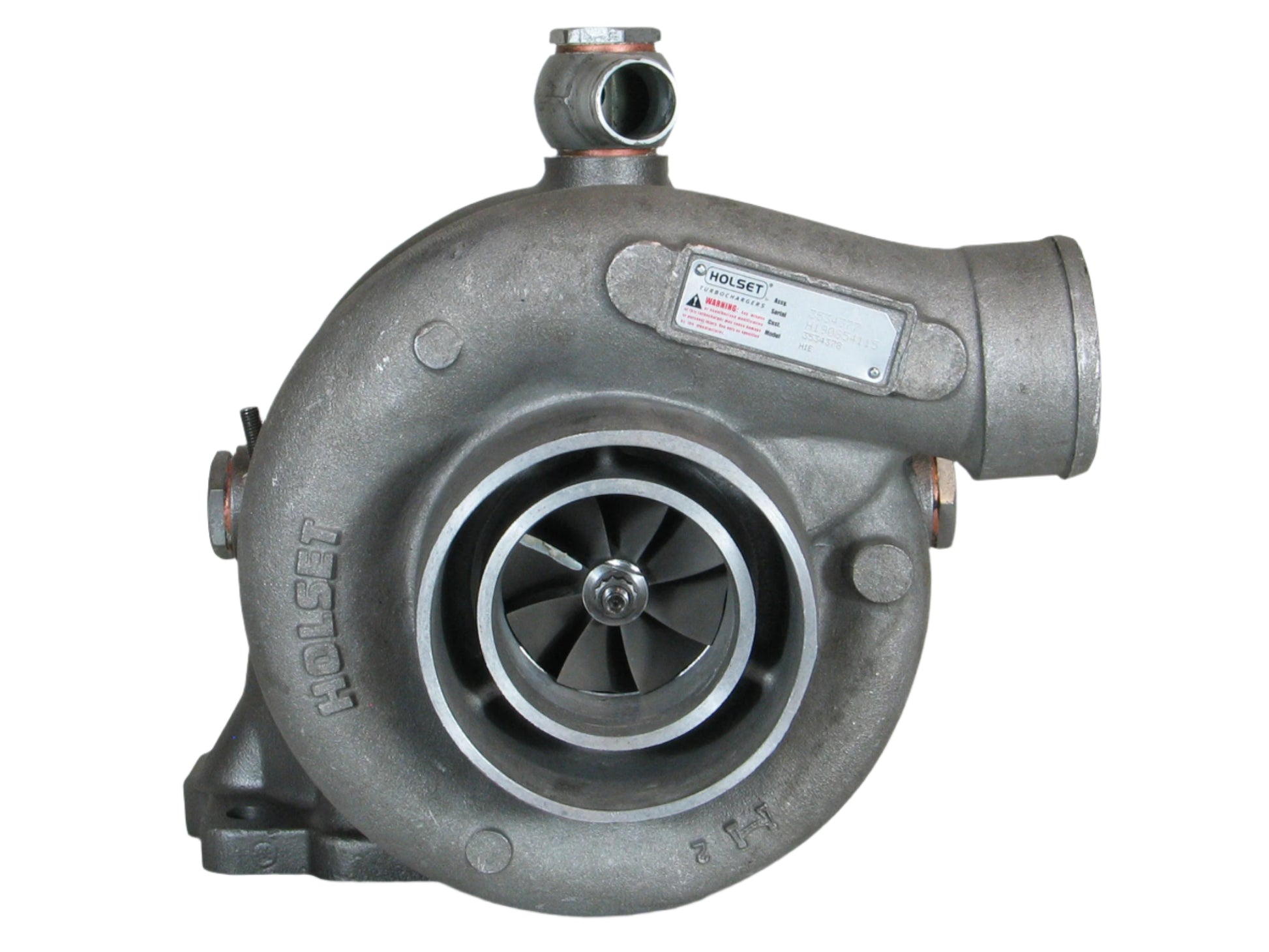

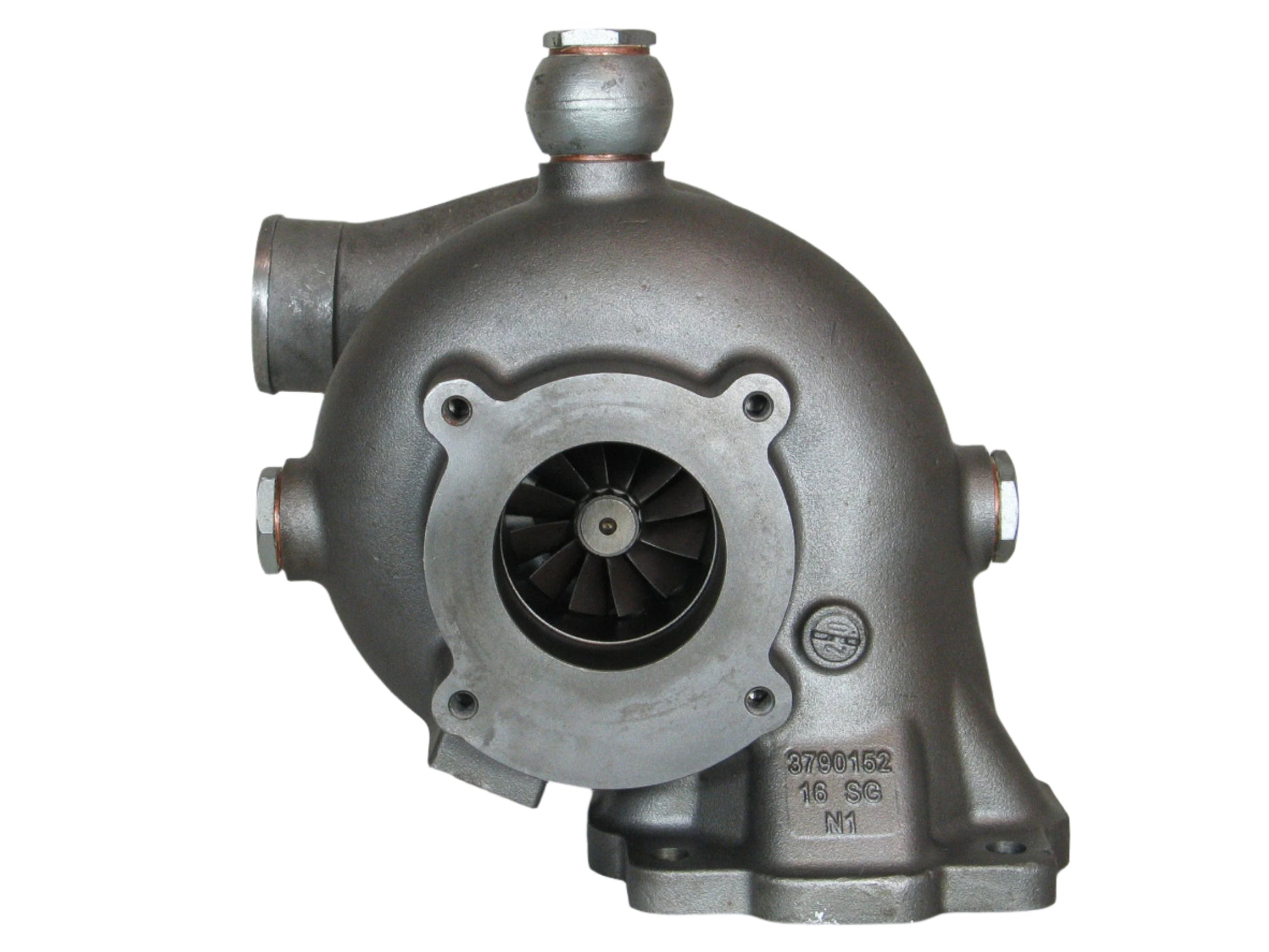

NEW Holset H1E Turbo Marine Cummins 6BT 5.9L Diesel Engine 3534378H 3534377SKU: N3534377
This is a NEW HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
NOTE: This turbo has been previously used for testing purposes.
Fits the following:
Part Number: 3534377
Interchangeable Number: 3526625, 3526626, 3533738, 3533739, 3534378, 3534378, 3534378H, 3802306
OEM Number: 3802591, 3802537
Turbo Model: H1E, H1EM, H1E-8294AX/J16S3
Engine Manufacturer: Cummins
Displacement: 5.9L, 5900 ccm
Power: 300/330 HP
Angle a (Compressor Housing): 301°
Angle ß (Turbine Housing): 241°
Back Plate: 3522801 (167543)
Bearing Housing: 3530591 (3530592)(1152301450)
Compressor Cover: 3525359
Compressor Wheel: 3599642 (Ind. 60 mm, Exd. 83 mm, 8+8 Blades)(1152301401)
Gasket (Oil Inlet): 210850 (392196100)(Inox Steel)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 210849 (3921926, 3916300, 3905033)(Stainless Steel)(Marine)
Heat Shield: 3519302 (3519304, 167550)(1152301340)
Repair Kit: 3545652 (4027309)(3802148, 318393)(1152301750)
Turbine Housing (Water Cooled): 3525691

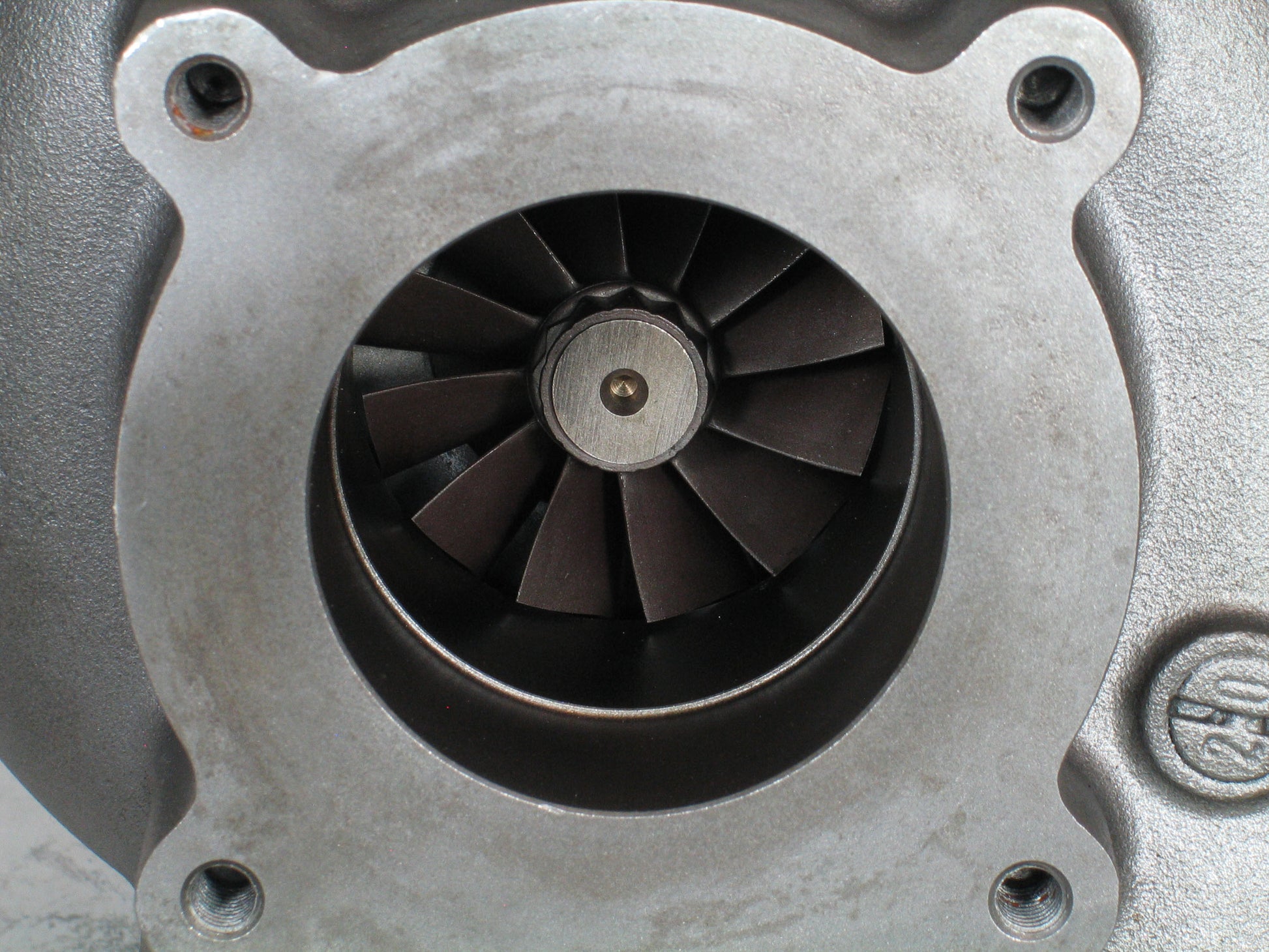

Turbine Wheel: 3525687 (Ind. 75 mm, Exd. 62 mm, 12 Blades)
1987-10 Marine with Cummins 6BT Engine

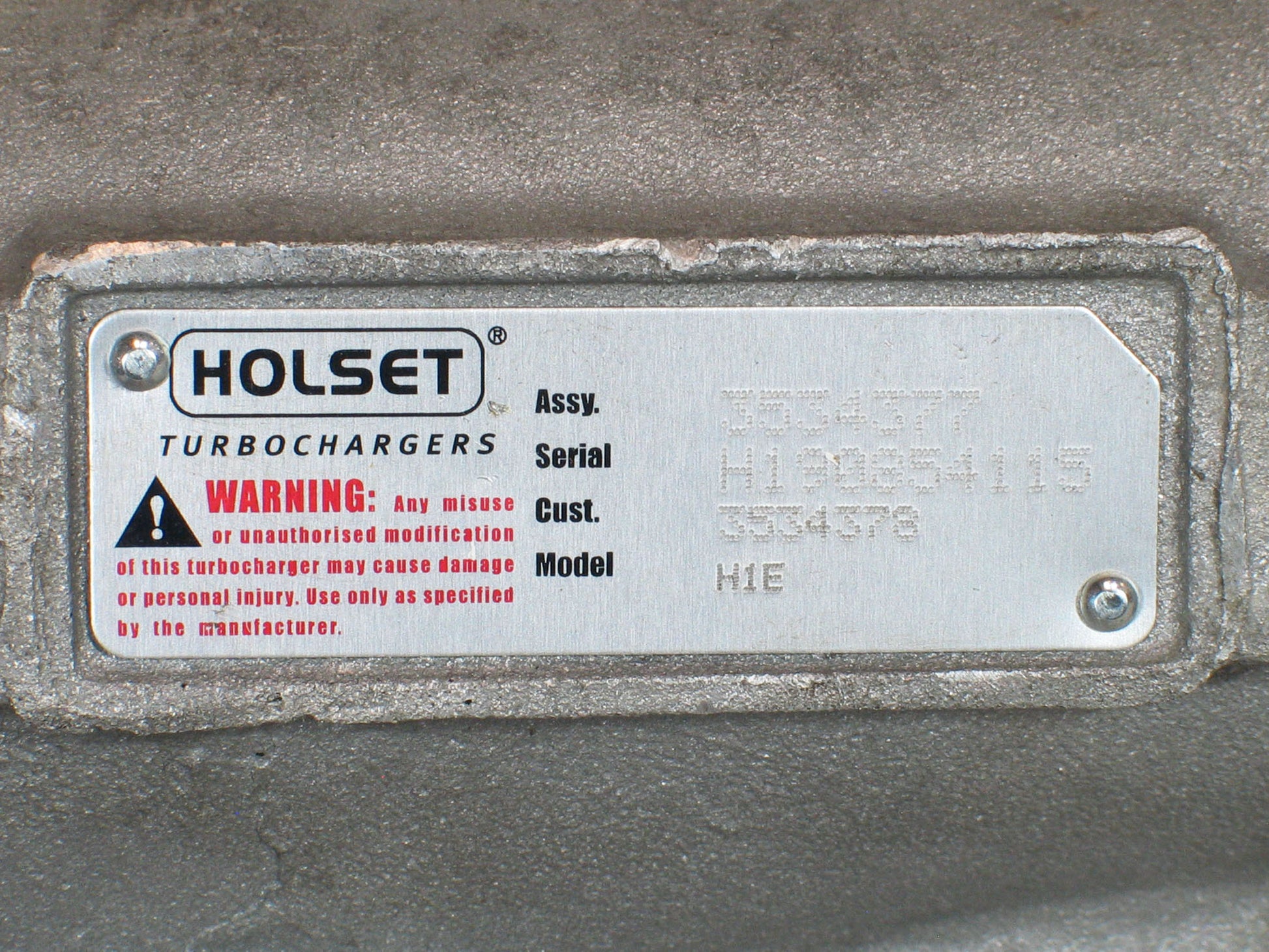

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
