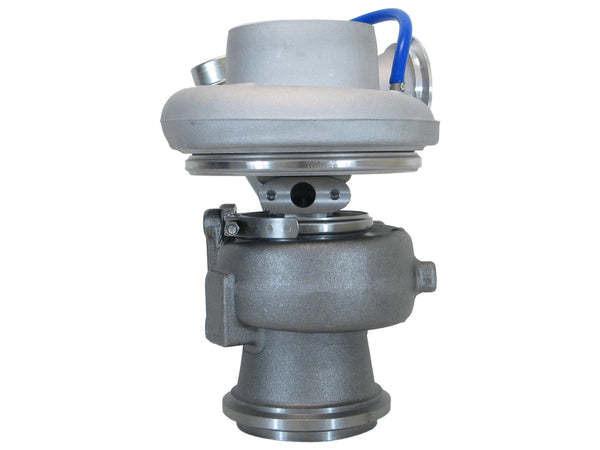

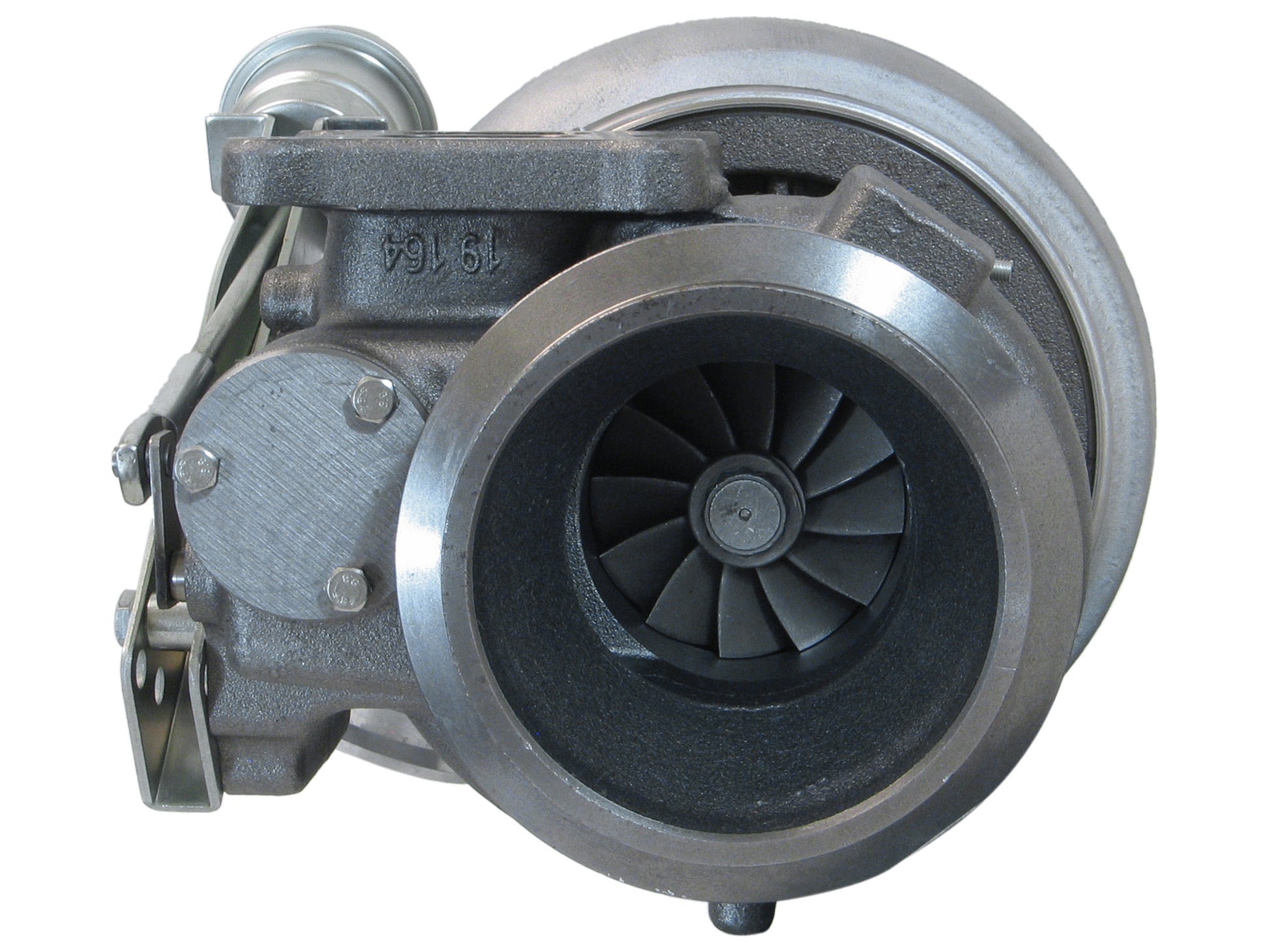

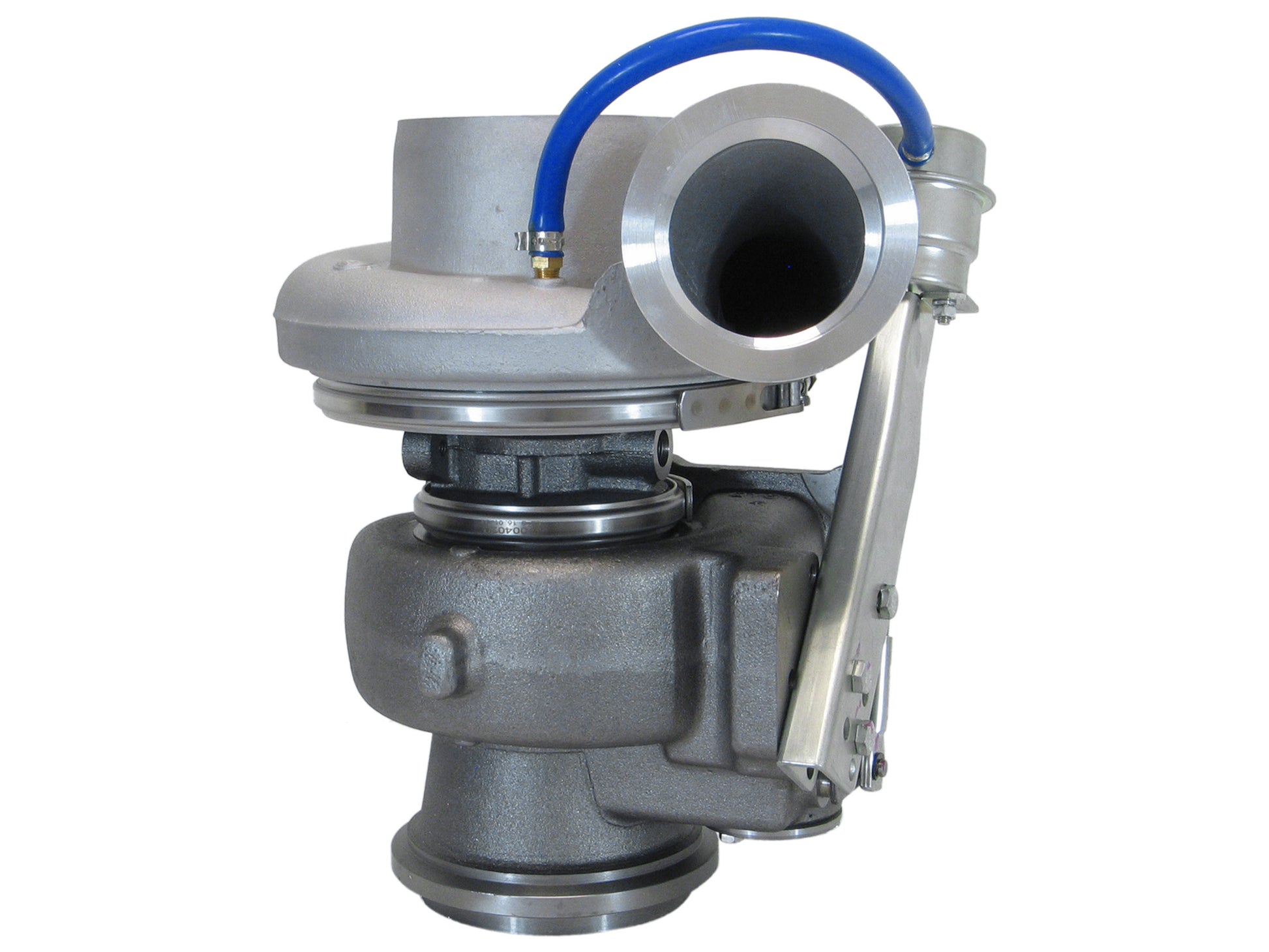

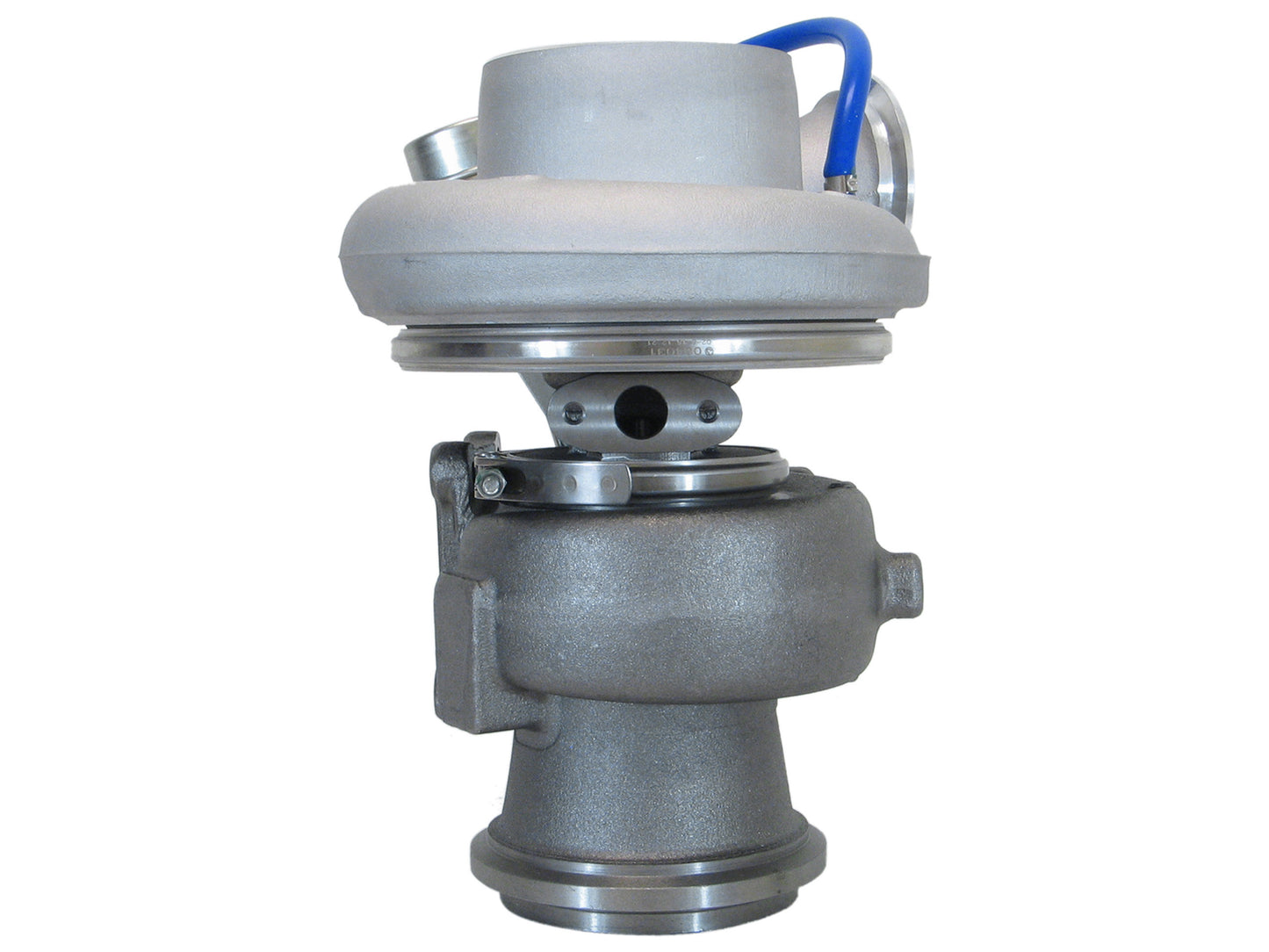

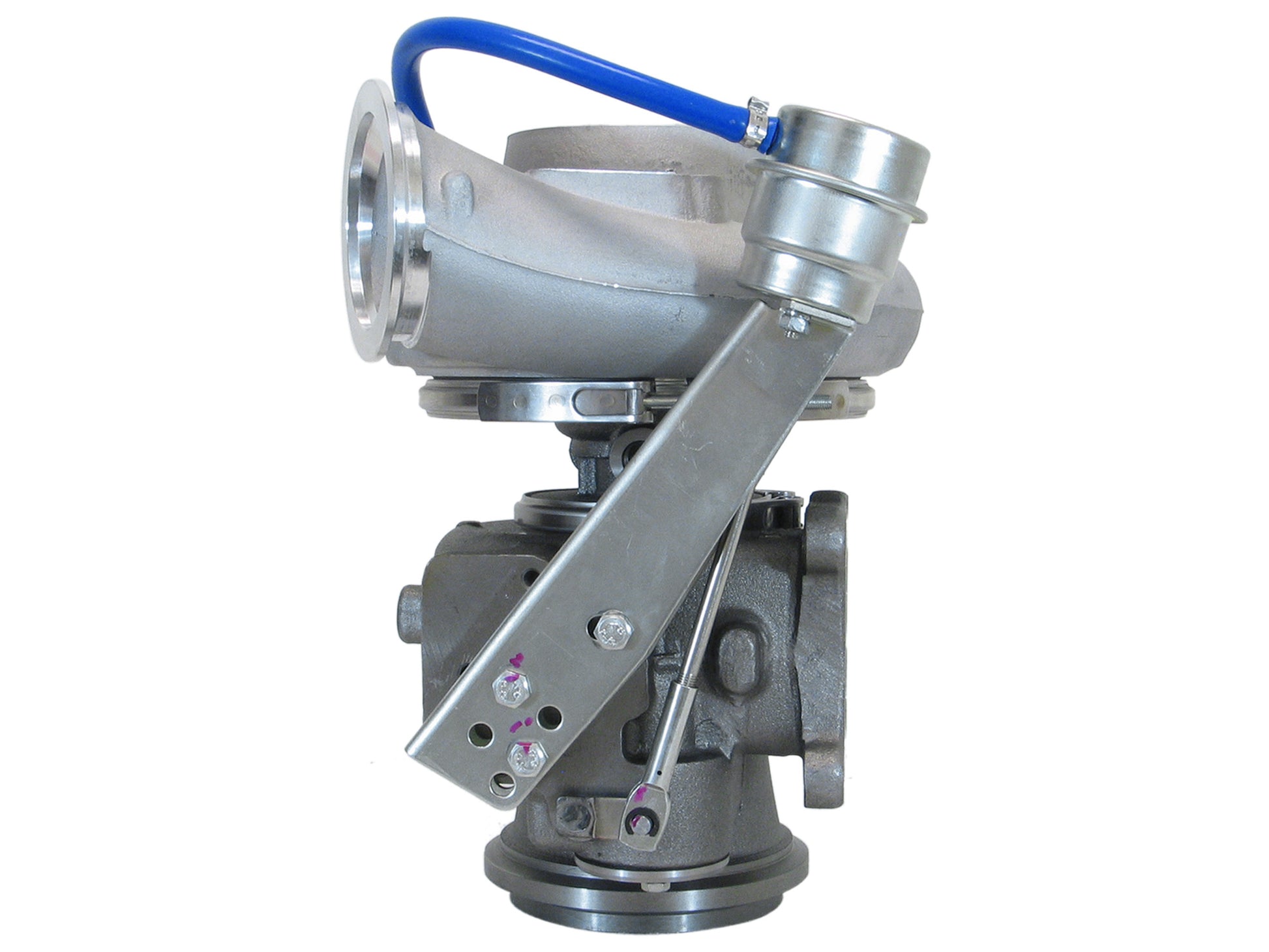

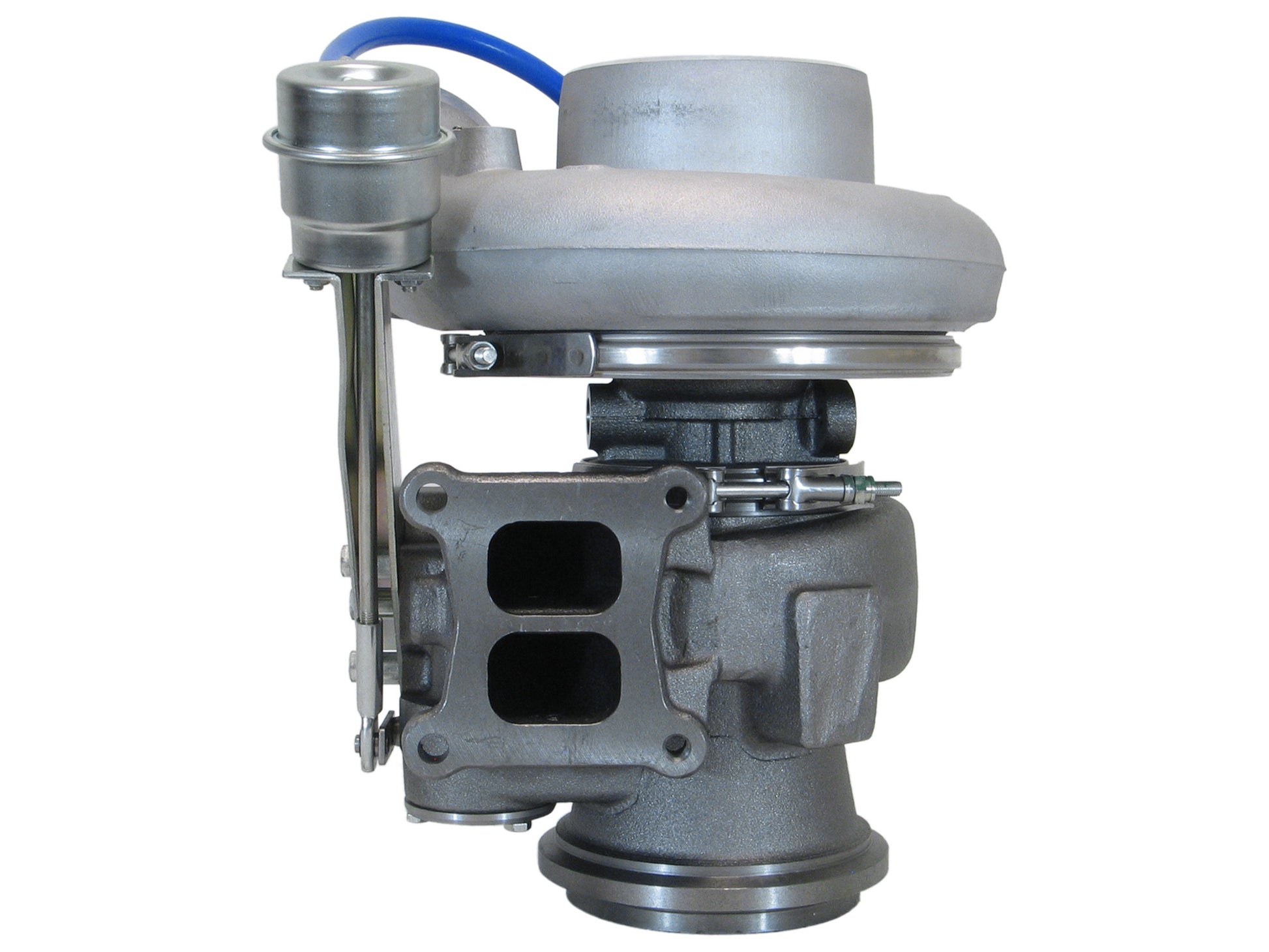

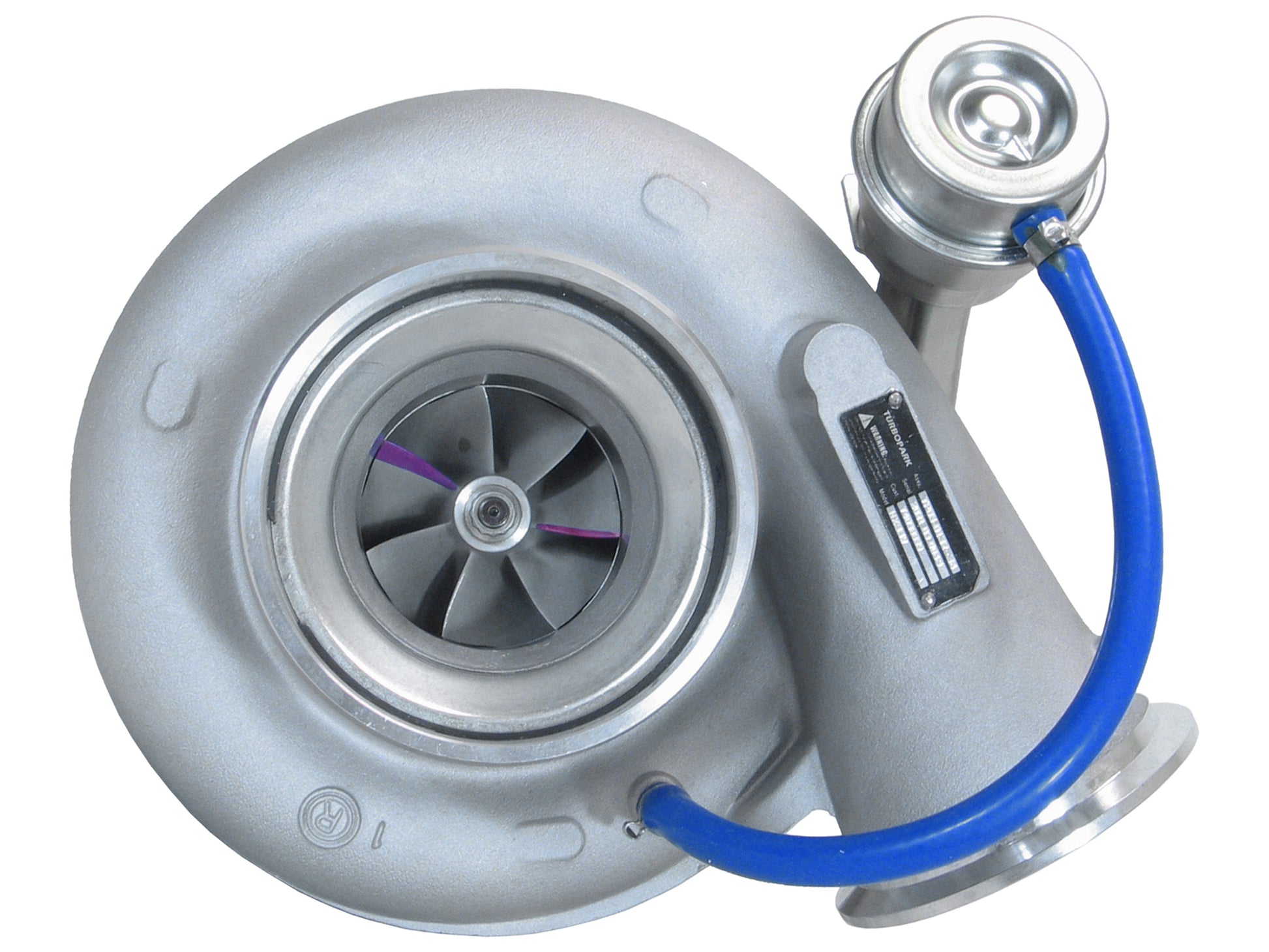

NEW HX55W Turbo Industrial Various Cummins QSM 2/3 Tier 3 4089859 4037627

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

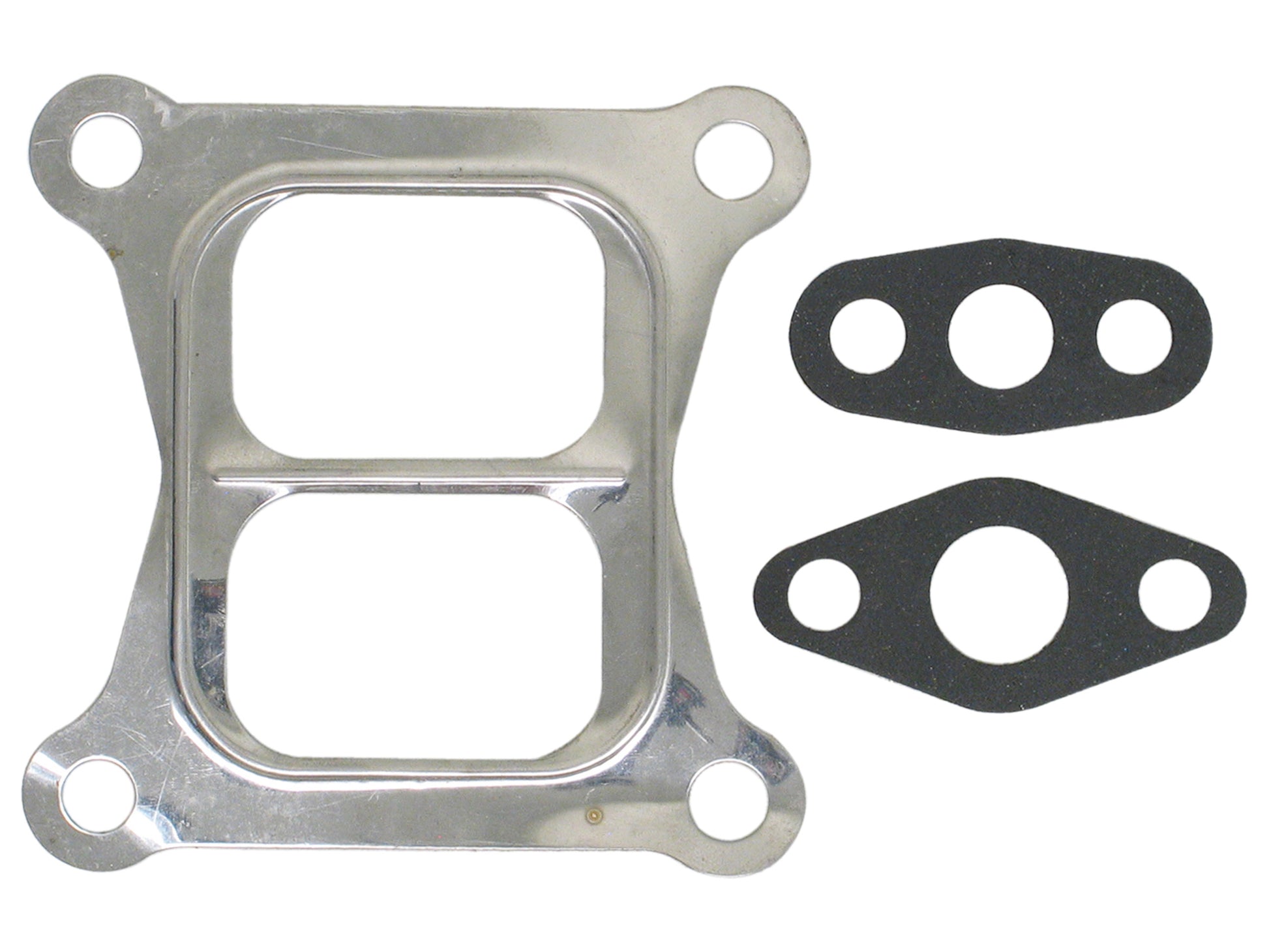

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 4037627
Interchangeable Number: 4037628H
OEM Number: 4037628, 4089859, 408985900
Turbo Model: HX55W-C98K72RU/C86L90PH19J-W2, HX55W

Year: 2003-
Engine: ISM, M11, QSM 2/3 Tier 3, QSM11
Engine Manufacturer: Cummins
Fuel: Diesel

Angle α (Compressor Housing): 330°
Angle β (Turbine Housing): 270°
Actuator: 4037623 (4030835)
Back Plate: 3528096 (1153055300)
Bearing Housing: 3535575 (353557500, 3535704)(Oil Cooled)
CHRA: 4032690 (4032690H, 3768413)
Compressor Cover: 4036914
Compressor Wheel: 4035887 (3596135)(4036317)(Ind. 71 mm, Exd. 99.01 mm, Trim 51, 6+6 Blade)
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210060 (311585, 148062, 409267-0003, 409267-0002, 210060-0000, 51914)(Paper)
Gasket (Turbine Inlet): 409039-0000 (409039-0001, 210019, 2405022, 210847)(1900000006)(Inox Steel)
Gasket (Turbine Outlet): 210245 (Inox Steel)
Gasket Kit: 4032517
Heat Shield: 3529846 (3533038)(1153055340)
Repair Kit: 3580762 (3575181, 3533038)(1153055750, 5000020023)
Turbine Housing: 3592774
Turbine Wheel: 3535983 (Ind. 85.8 mm, Exd. 76.95 mm, 12 Blades)(1153055436)

Application:
2003- Industrial, Various with Cummins QSM 2/3 Tier 3 Engine

TurboTurbos Part Number: TP05-0132-36

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
