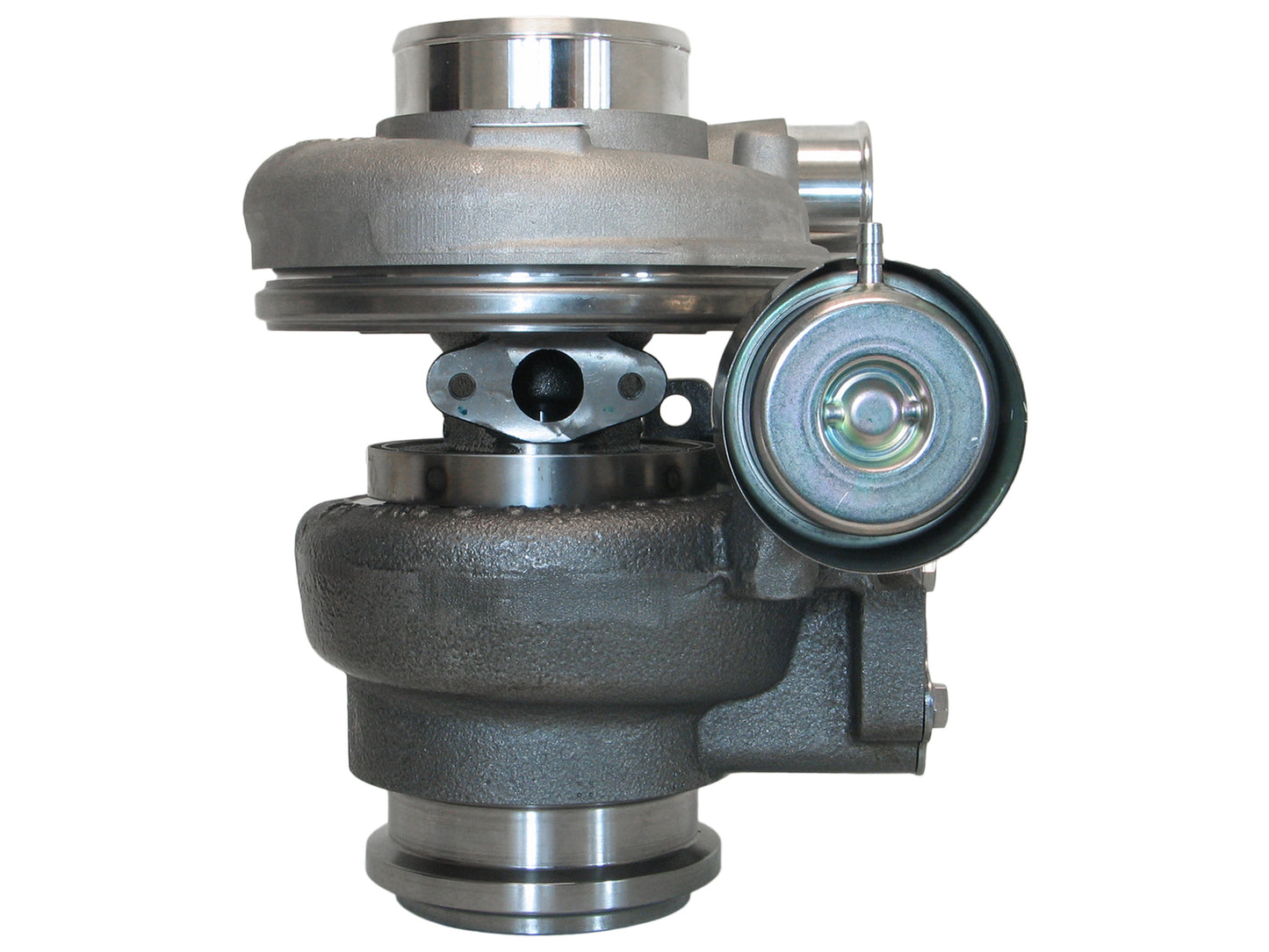

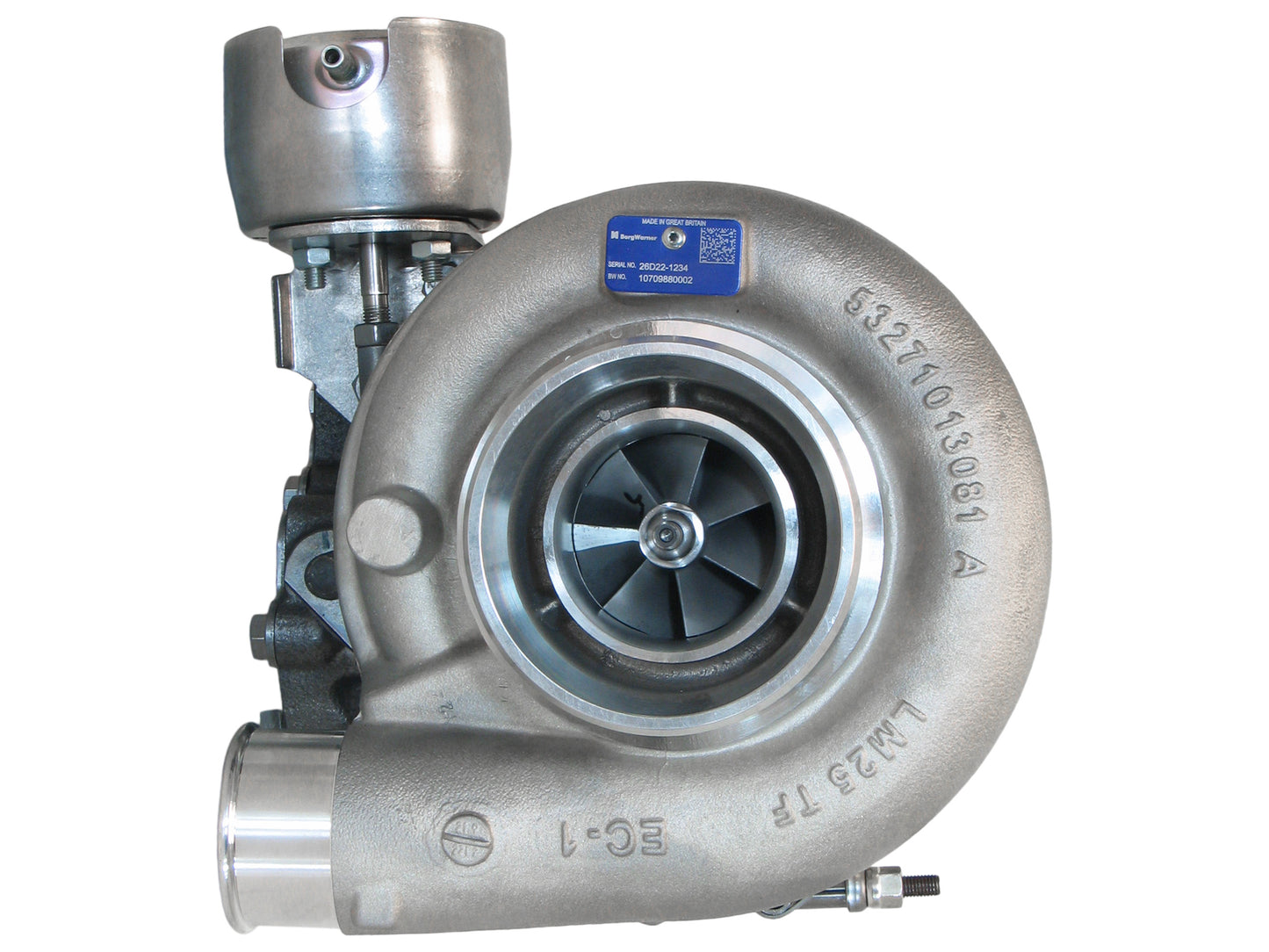

NEW BorgWarner B2 Turbo CAT Tractor Scraper Loader Paver C6.6 Acert 10709880002

BRAND NEW GENUINE BORGWARNER TURBOCHARGER

This is a BRAND NEW GENUINE BORGWARNER TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 10709880002
Interchangeable Number: 1070-988-0002, 1070 988 0002, 10701970002, 1070 197 0002, 1070-197-0002, 10701970003, 1070-197-0003, 1070 197 0003, 10709880003, 1070-988-0003, 1070 988 0003
OEM Number: 10R-9580, 10R9580, 2674A256, 2674A266, 315-9810, 3159810
National Stock Number: 2950-01-574-8044, CV178542
Serial Number: 28J11-1709, C6E1-UP, C7F1-UP, C8F1-UP, C8P1-UP, C8S1-UP, GNN1-UP, MAN1-UP, P7F1-UP, P8F1-UP
Turbo Model: B2, B2-3067NRAKB0.70DK1
Manufacturer: BorgWarner - 3K - Schwitzer, BWTS UK

Year: 2005-11
Engine: 1106D, 1106D (Vista), C6.6, C6.6 Acert, C6.6 ATAAC
Displacement: 5.99L, 5990 ccm
Fuel: Diesel
Power: 168 kW/229 HP
Speed: 2200 RPM

Angle α (Compressor Housing): 0°
Angle β (Turbine Housing): 0°
Actuator: 58201104280 (2061016835)
Back Plate: 12001523000 (12001523001, 1800016062)
Bearing Housing: 12001501005 (Oil Cooled)(1900011214B)
CHRA: 12707100001 (1270-710-0001)(1000070037)
Compressor Cover: 53271013304
Compressor Wheel: 10771232003 (Ind. 51.8 mm, Exd. 78.6 mm, Trim 5.1, 7+7 Blades)(1200016512)
Gasket Kit: 215615
Heat Shield: 12001652000 (2030016105)
Repair Kit: 12007110000 (1332002750, 5000030125)
Turbine Housing: 10701009001 (12701009004)
Turbine Wheel: 168431 (Ind. 69.6 mm, Exd. 55.95 mm, Trim 10.57, 10 Blades)(1100016216)

Application:
2005-11 Perkins Agricultural Tractor with 1106D Engine
Caterpillar 12M, 120M Motor Grader with C6.6 Acert Engine
Caterpillar 613G Wheel Tractor-Scraper with C6.6 ATAAC Engine
Caterpillar 924H, 924HZ, 928H, 928HZ, 930H Wheel Loader with C6.6 Acert Engine
Caterpillar 953D Shiphold, Port Handling with C6.6 Acert Engine
Caterpillar AP600D, AP655D, BG600D, BG655D Asphalt Paver with C6.6 Acert Engine
Caterpillar CP-56, CP-64, CP-74, CP-76, CS-56, CS-64, CS-74, CS-76 Vibratory Soil Compactor with C6.6 Acert Engine
Caterpillar D6K, D6K LGP, D6K XL, D6N Track-Type Tractor with C6.6 Acert Engine
Caterpillar Industrial with C6.6 Engine
Caterpillar M316D, M318D, M322D Wheel Excavator with C6.6 Acert Engine
Caterpillar PL61 Pipe-layer with C6.6 Acert Engine
Caterpillar Tractor with C6.6 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
