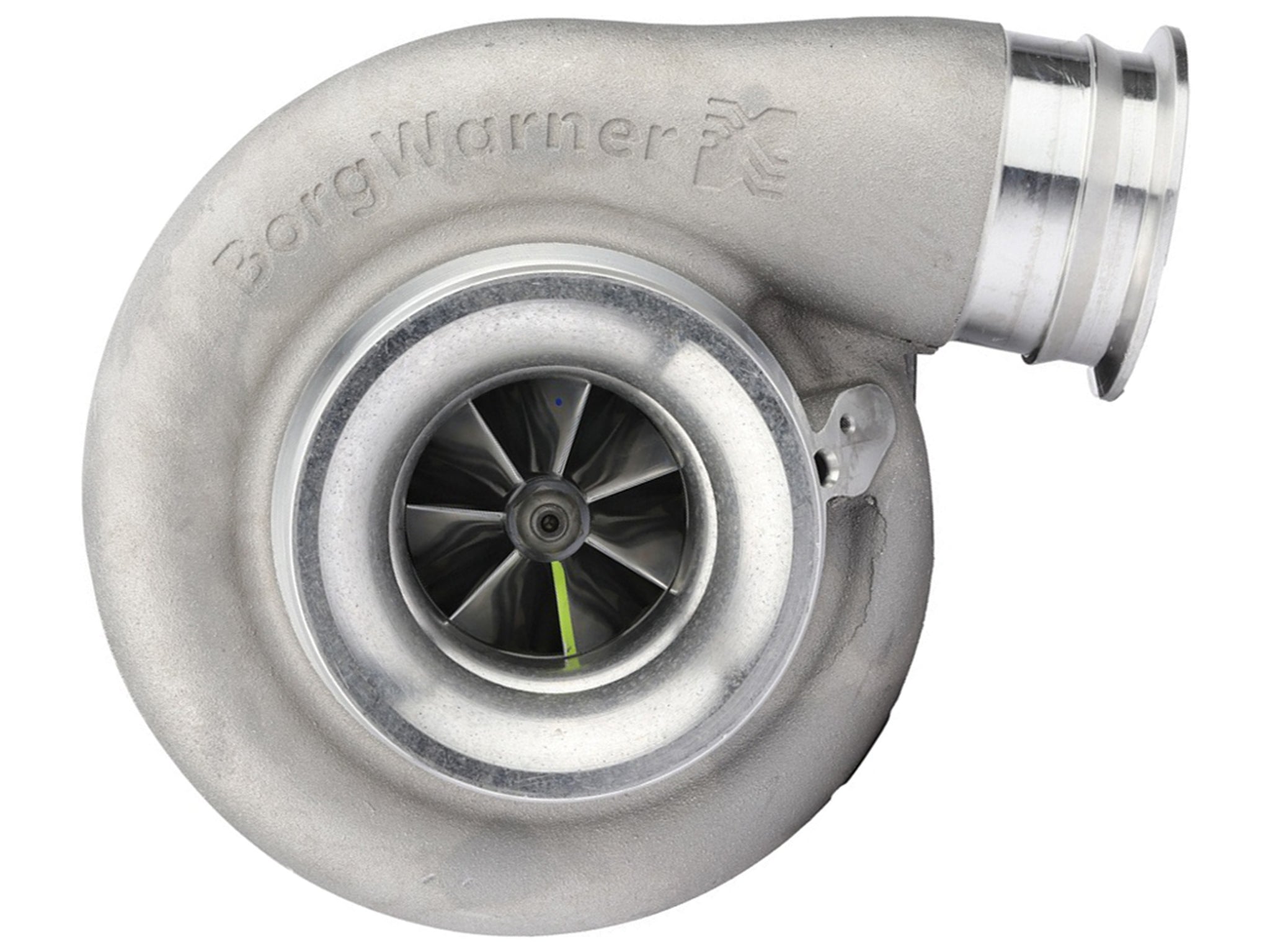

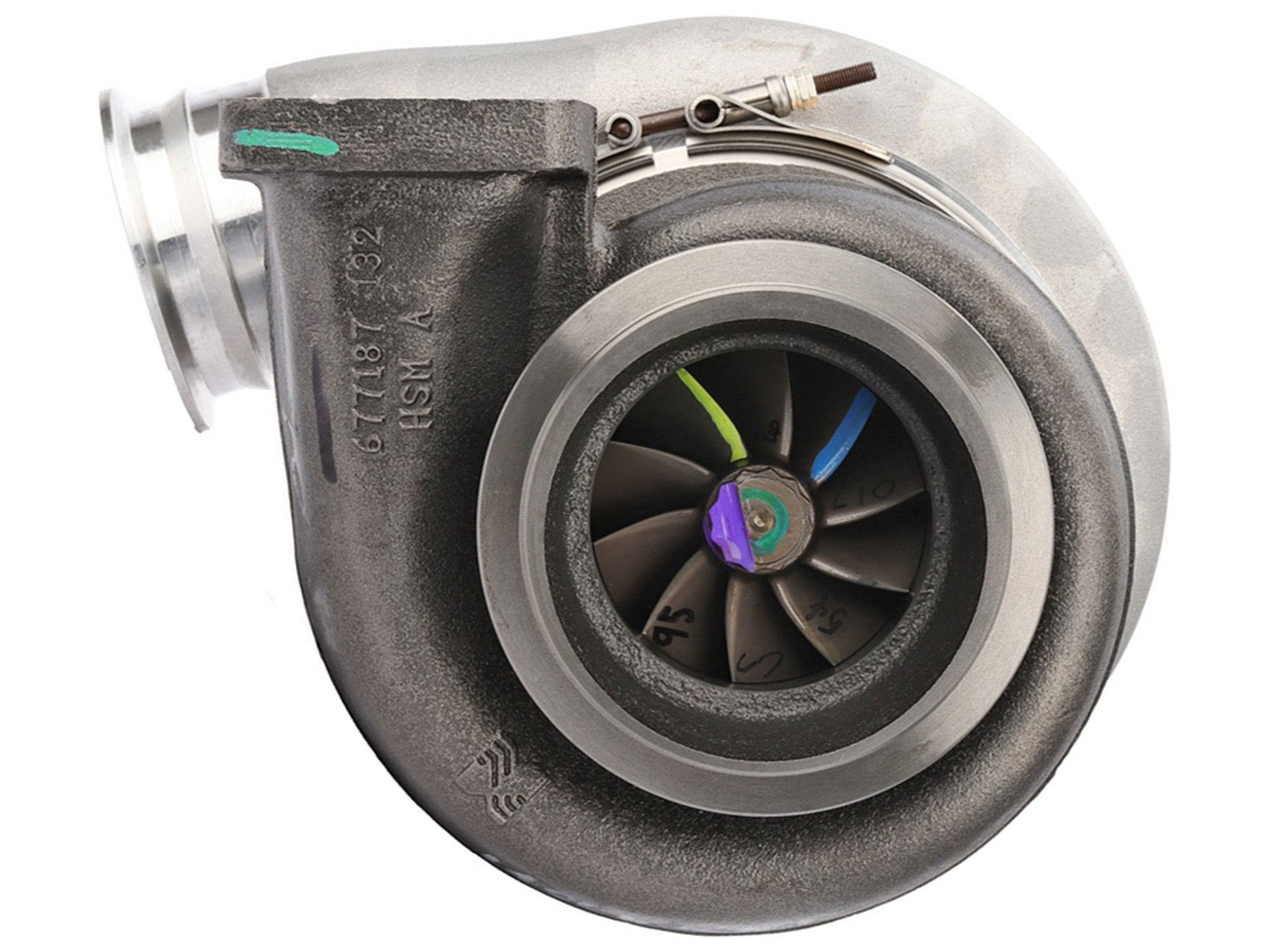

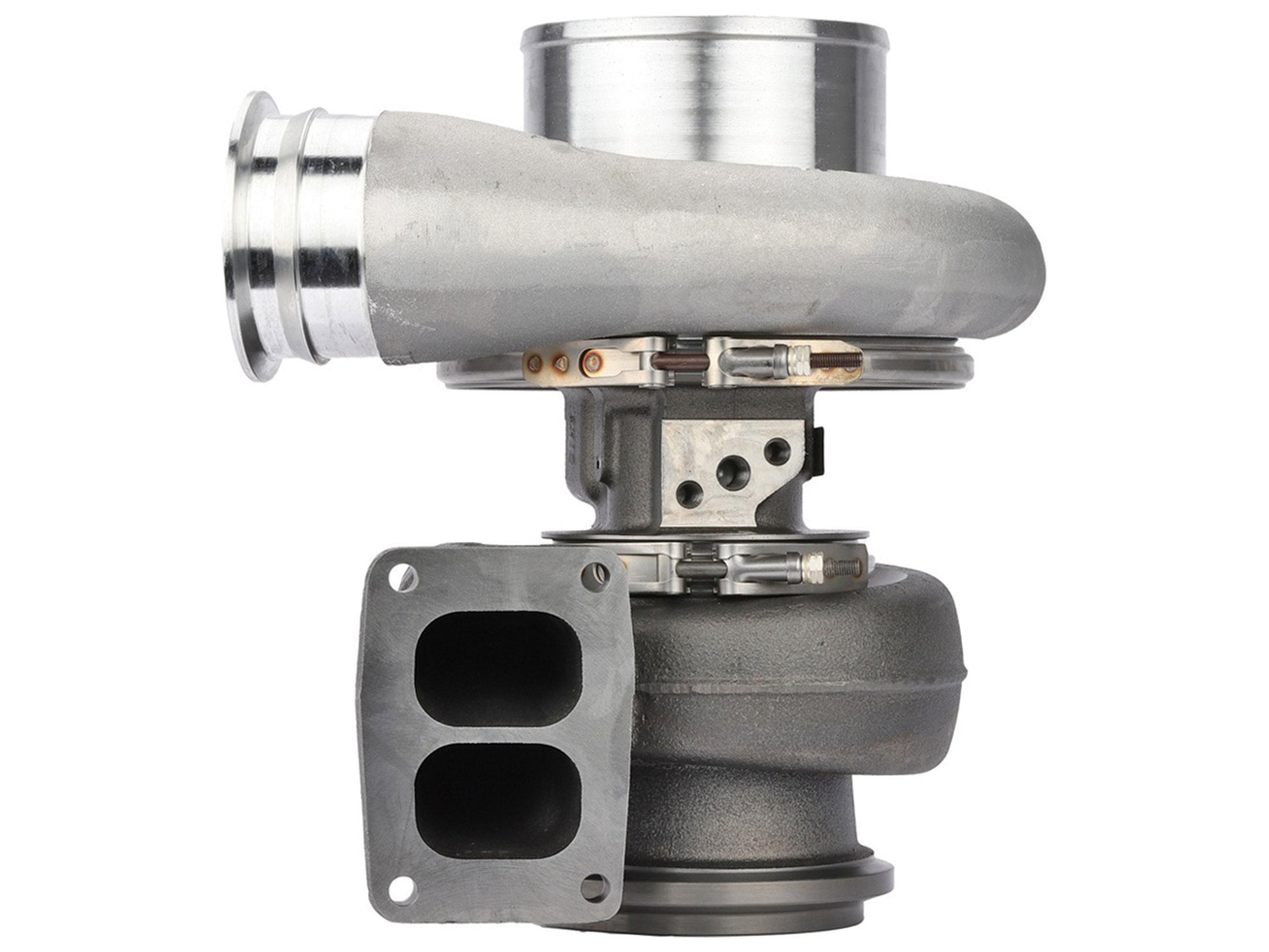

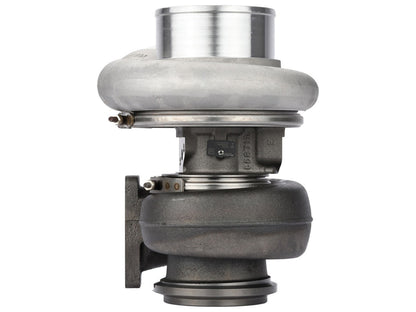

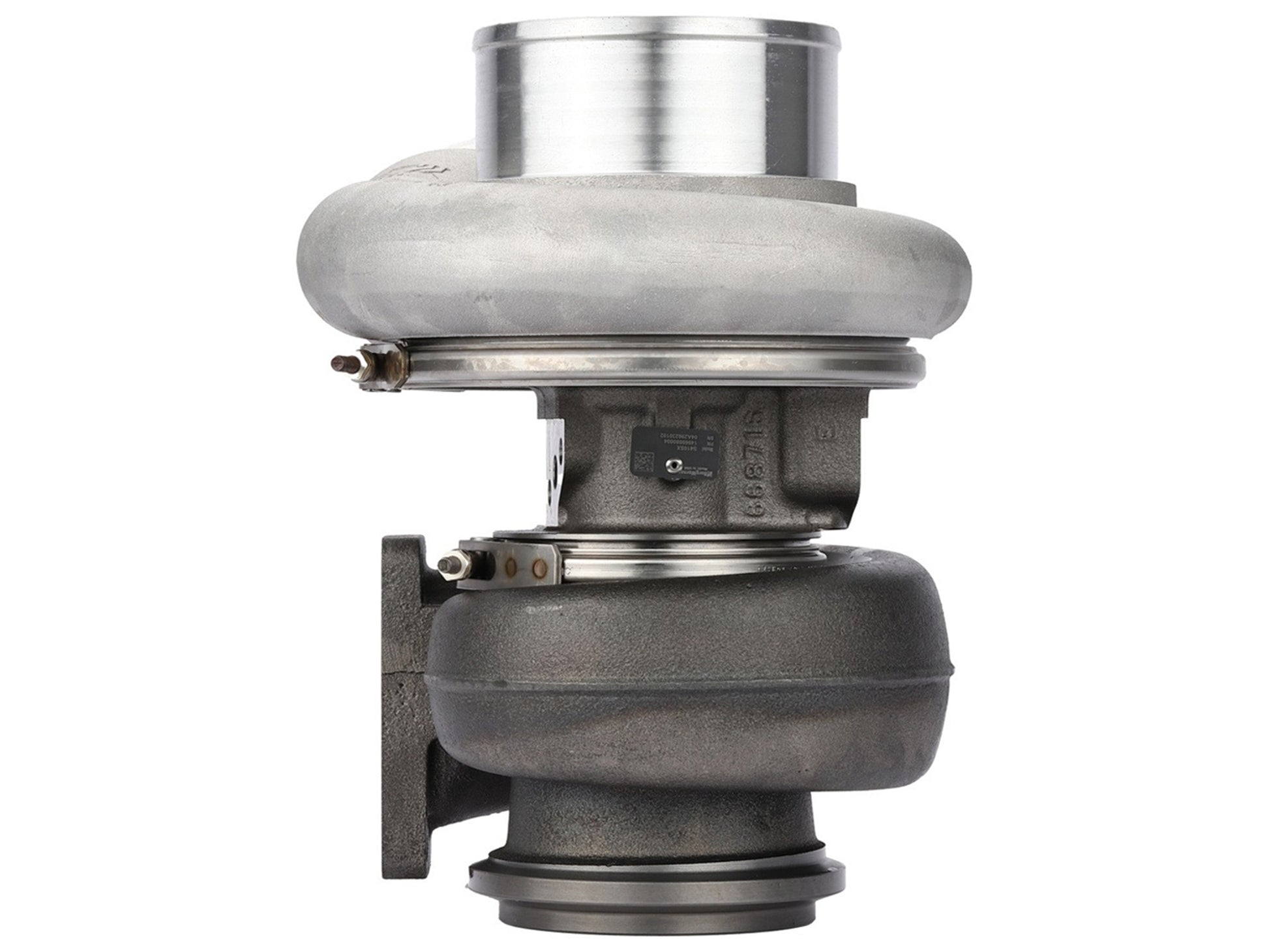

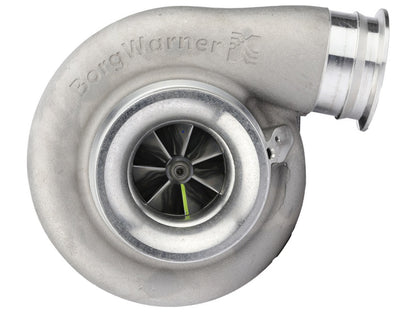

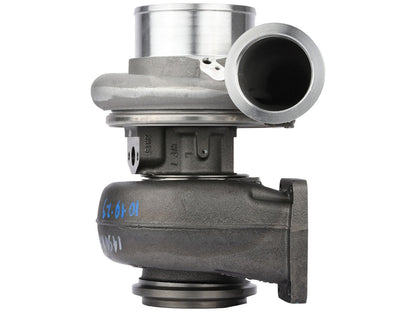

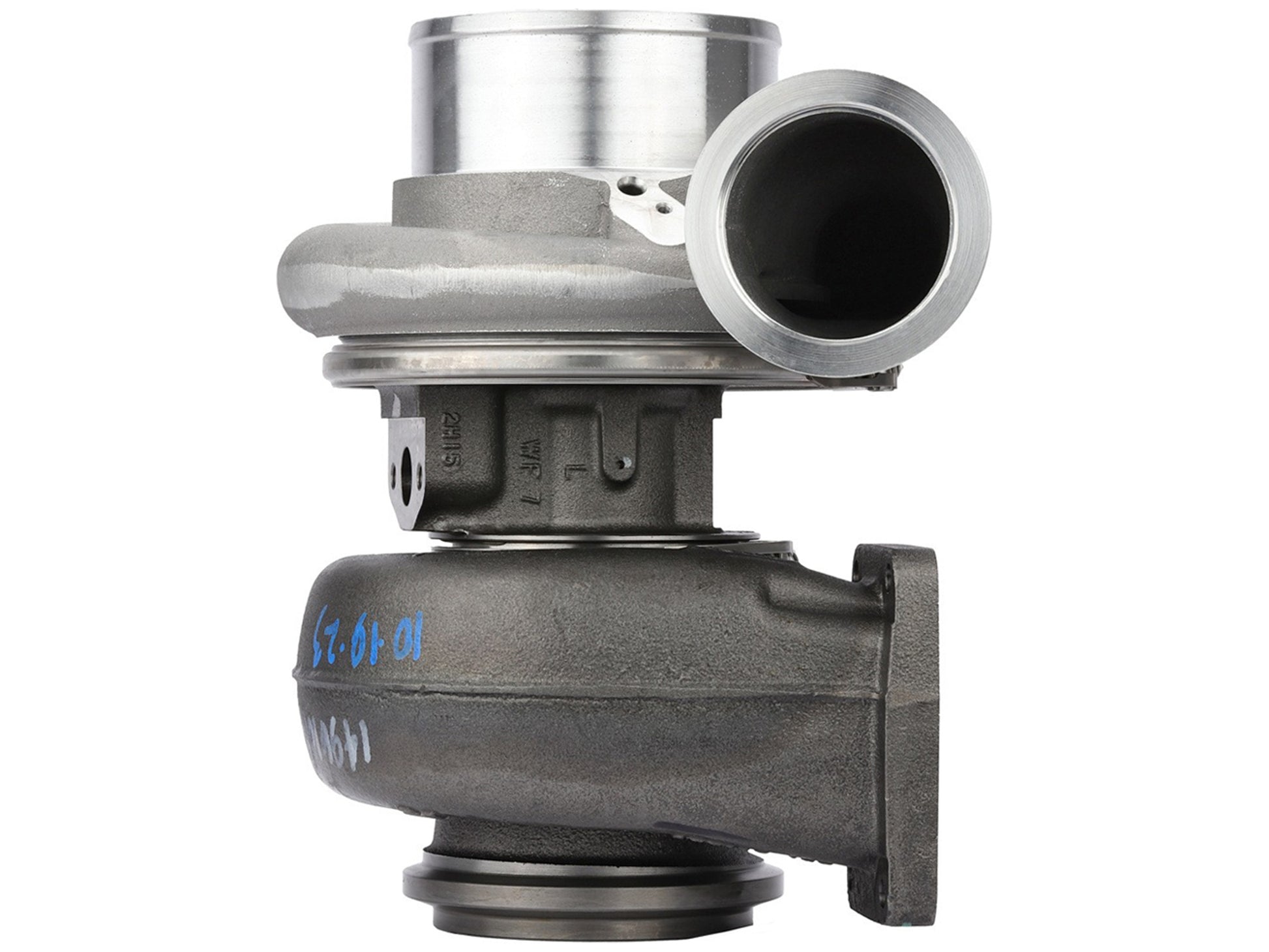

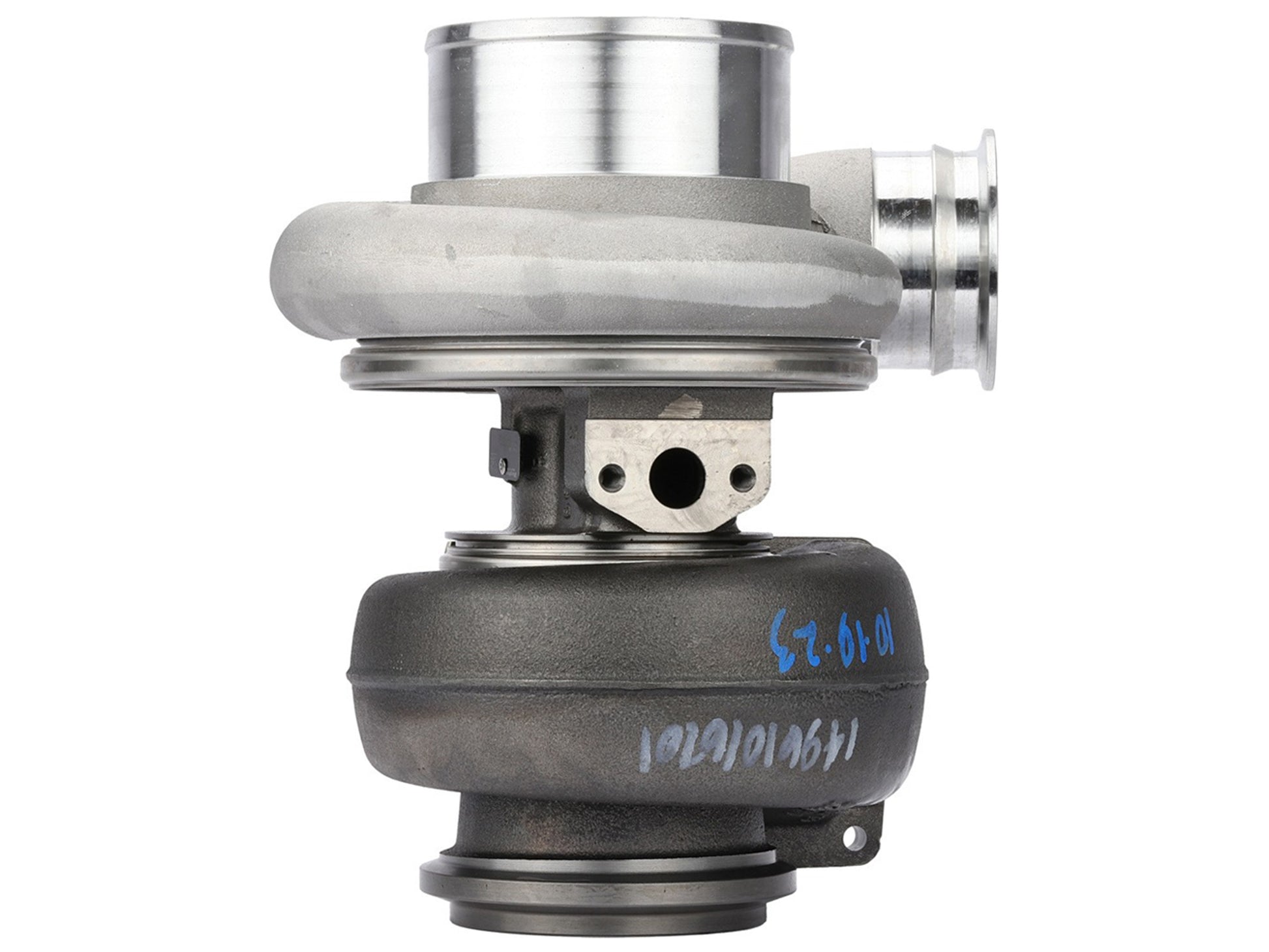

NEW OEM BorgWarner S410SX Performance Turbo Twin Flow 15.0L Diesel 14969880004

BRAND NEW GENUINE BORGWARNER TURBOCHARGER

This is a BRAND NEW GENUINE BORGWARNER TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

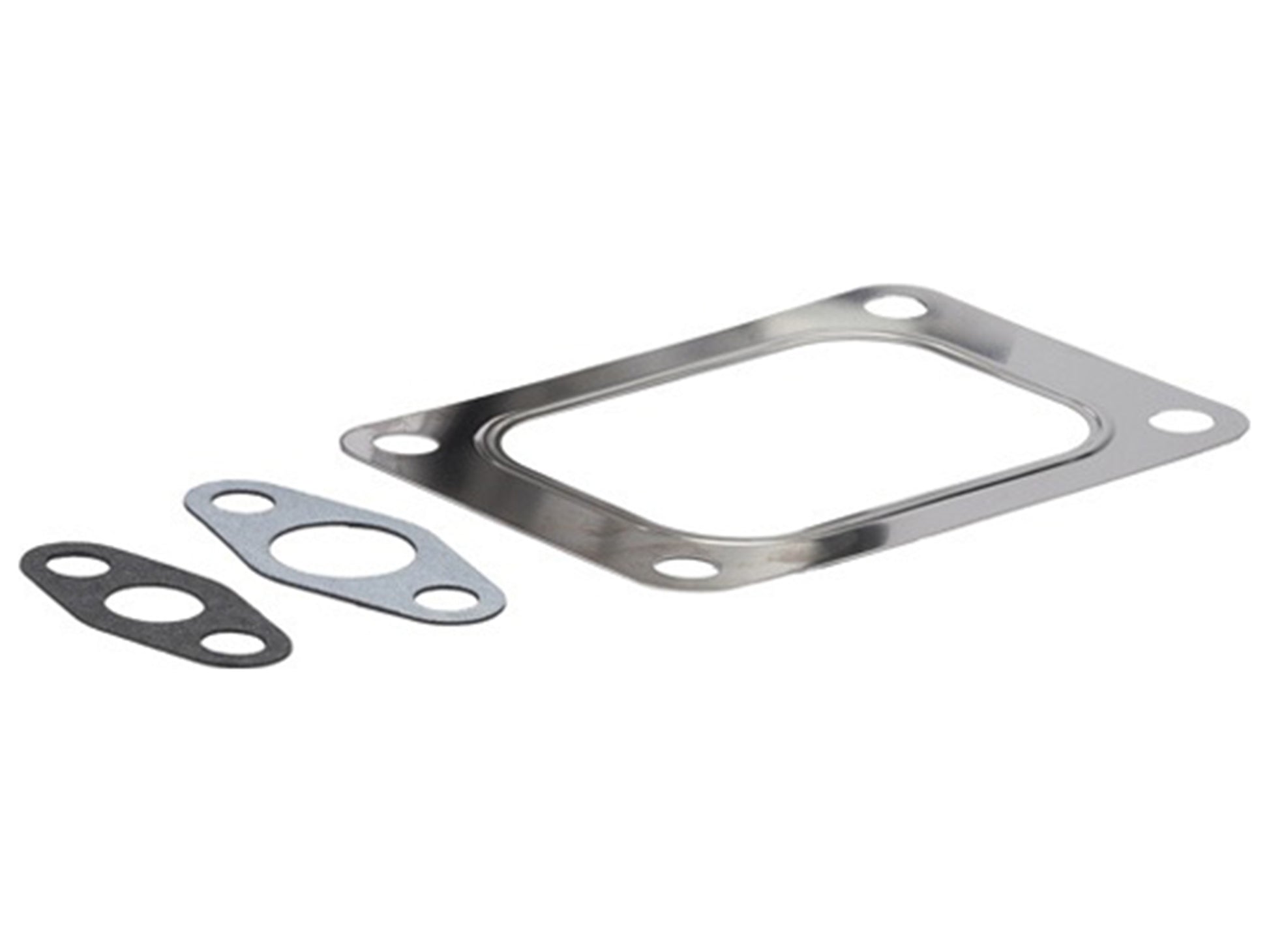

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

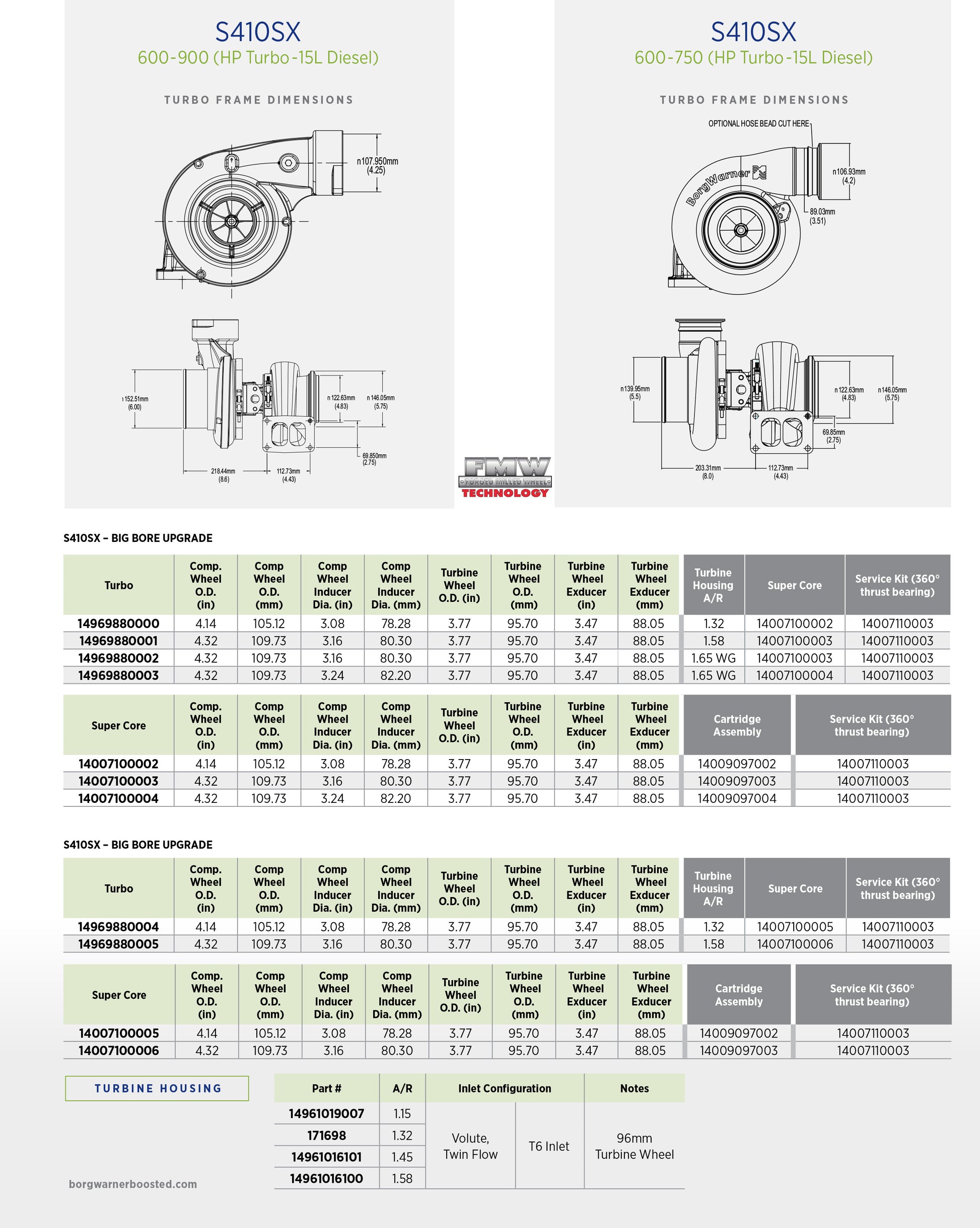

Part Number: 14969880004
Interchangeable Number: 1496 988 0004, 1496-988-0004
Turbo Model: S410SX, S410SX-105S74/96TM1 1.32VTF
Manufacturer: BorgWarner - 3K - Schwitzer, BWTS USA

Year: 2014-05
Fuel: Diesel
Displacement: 15.0L
Power: 600-900 HP

Bearing Housing: 1405151000 (1405-151-0000)
CHRA: 14009097002 (1400-909-7002)
Compressor Cover Configuration: V-Band Outlet
Compressor Housing: 14051015000 (1405-101-5000)
Compressor Wheel Inducer Diameter: 78.28 mm (3.08 in)
Compressor Wheel Outside Diameter: 105.12 mm (4.14 in)
Compressor Wheel Technology: Forged Milled
Service Kit (360° Thrust Bearing): 14007110003 (1400-711-0003)
Supercore: 14007100005 (1400-710-0005)
Turbine Housing A/R: 1.32
Turbine Housing Configuration: Non-Wastegated

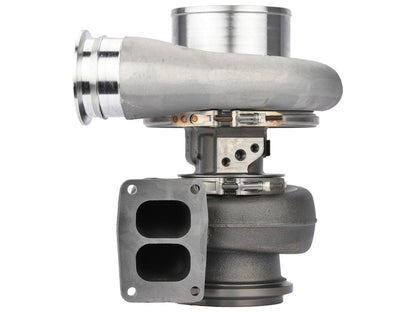

Turbine Housing Flange: T6 Inlet
Turbine Housing Inlet Configuration: Volute, Twin Flow
Turbine Housing: 171698
Turbine Wheel Exducer: 88.05 mm (3.47 in)
Turbine Wheel Outer Diameter: 95.7 mm (3.77 in)
Turbine Wheel: 172017

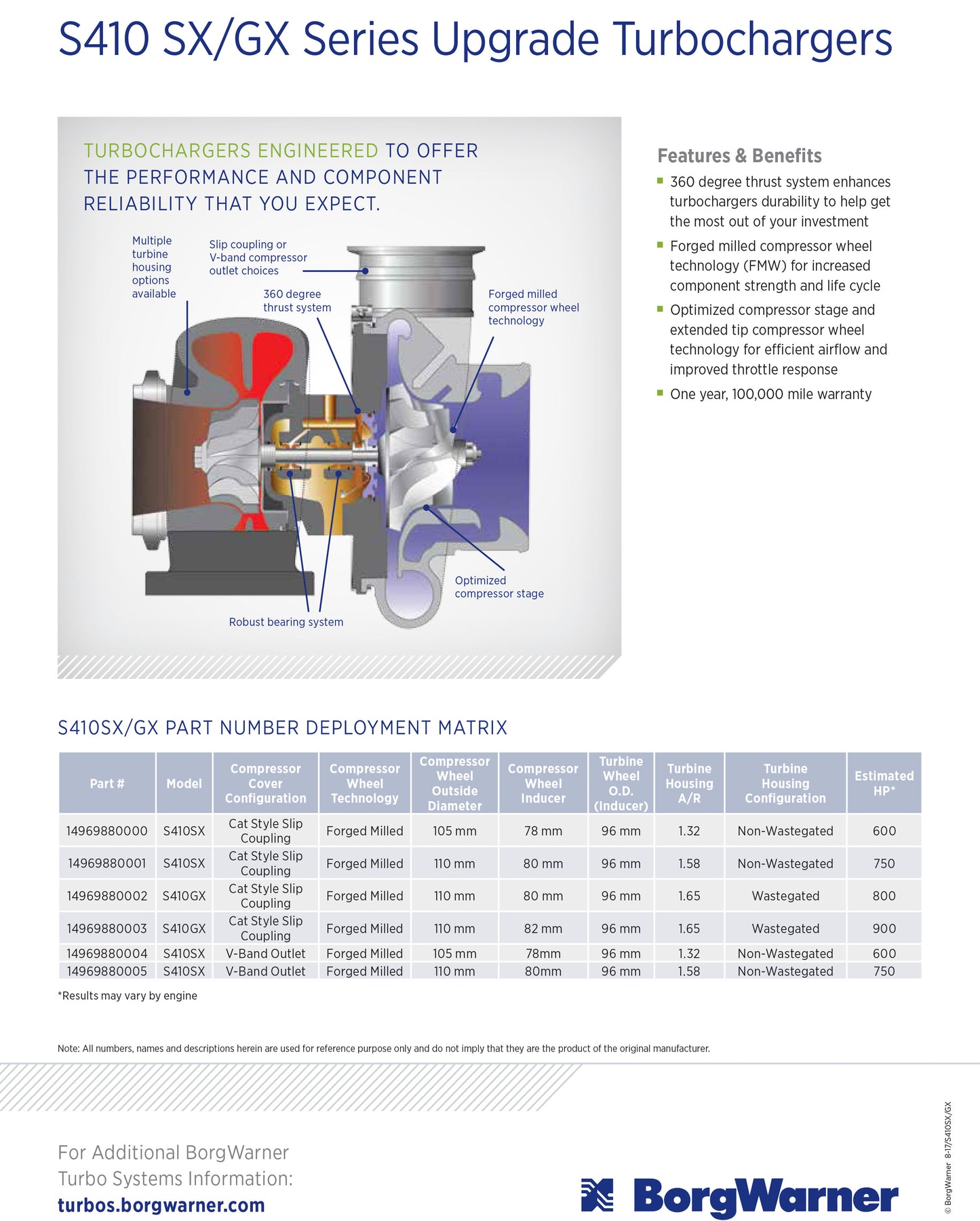

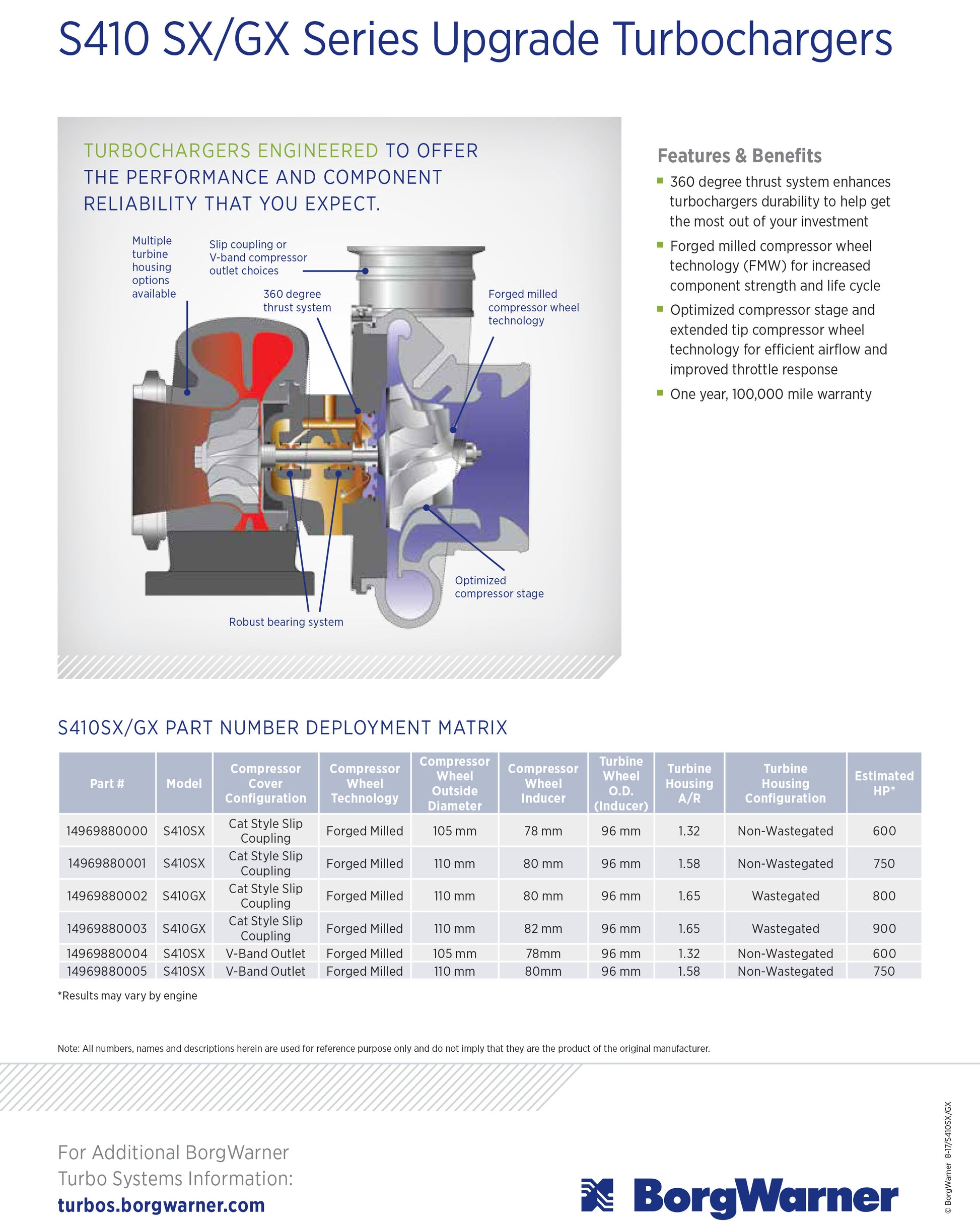

FEATURES:

- 360 degree thrust system enhances turbochargers durability to help get the most out of your investment.
- Forged milled compressor wheel technology (FMW) for increased component strength and life cycle.
- Optimized compressor stage and extended tip compressor wheel technology for efficient airflow and improved throttle response.

NOTE:

- AirWerk Series.
- Performance turbocharger only.

Application:
2014-05 Various

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
