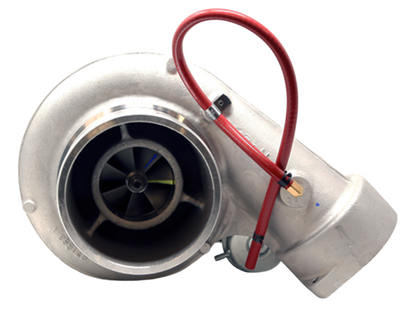

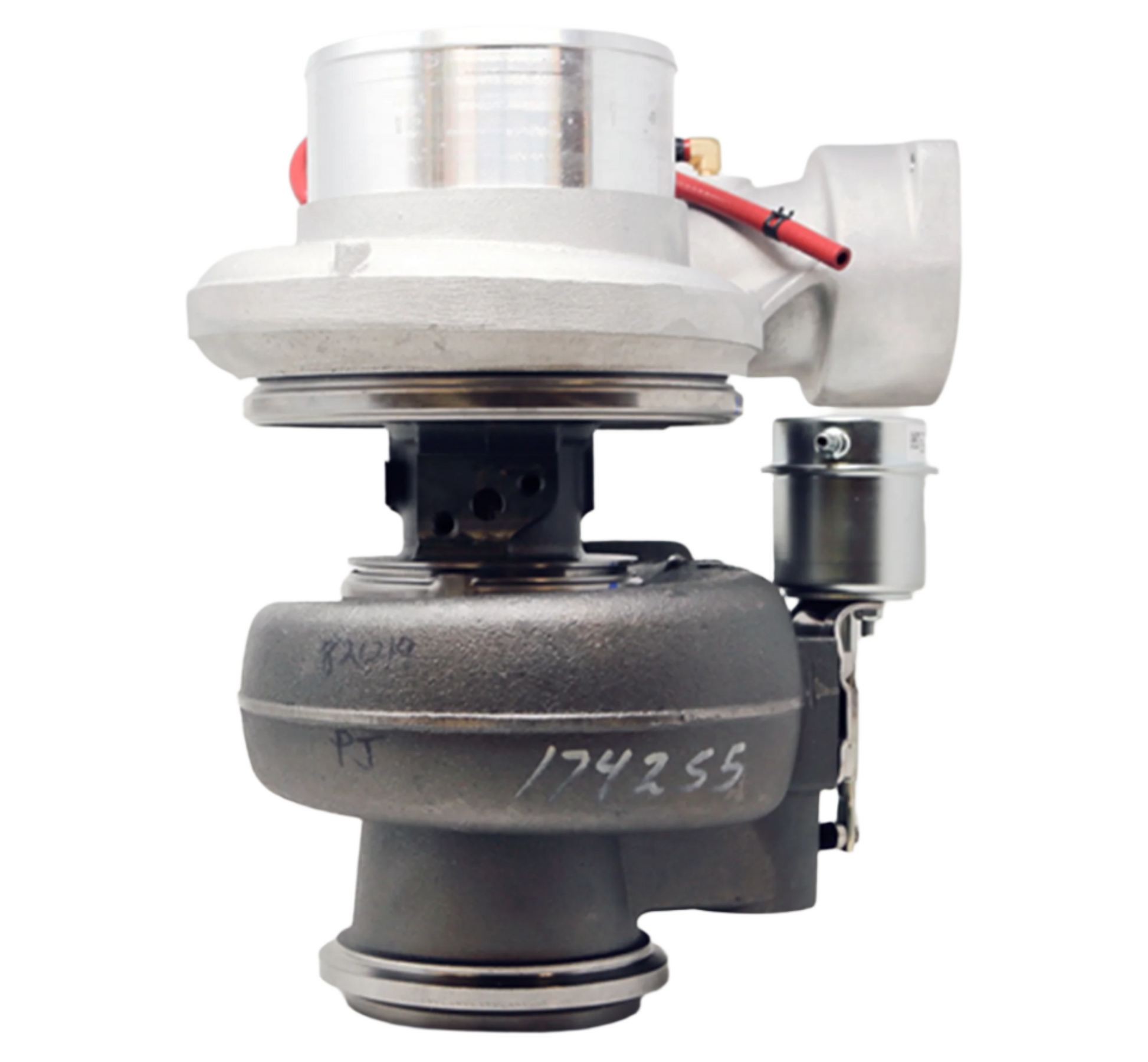

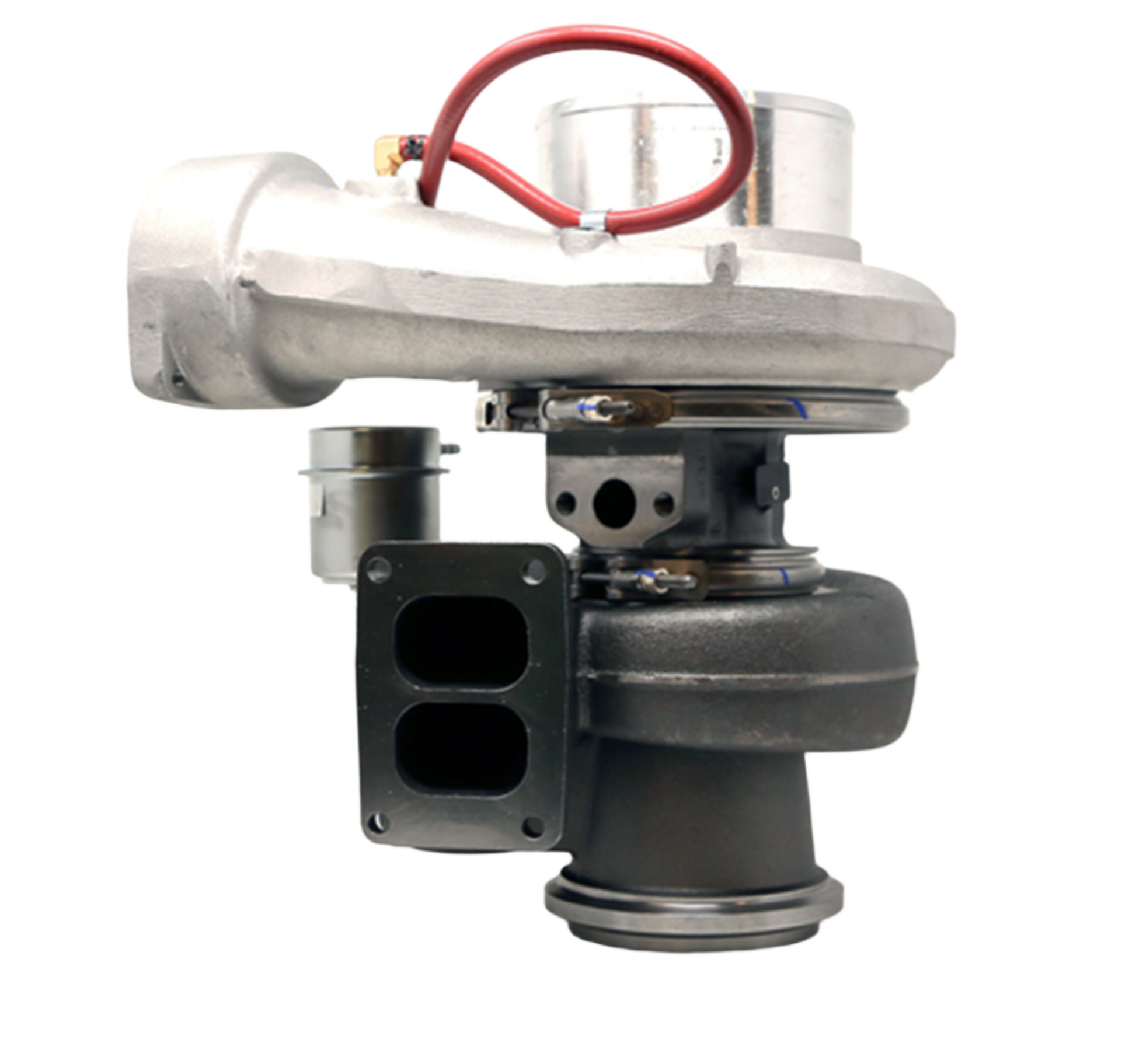

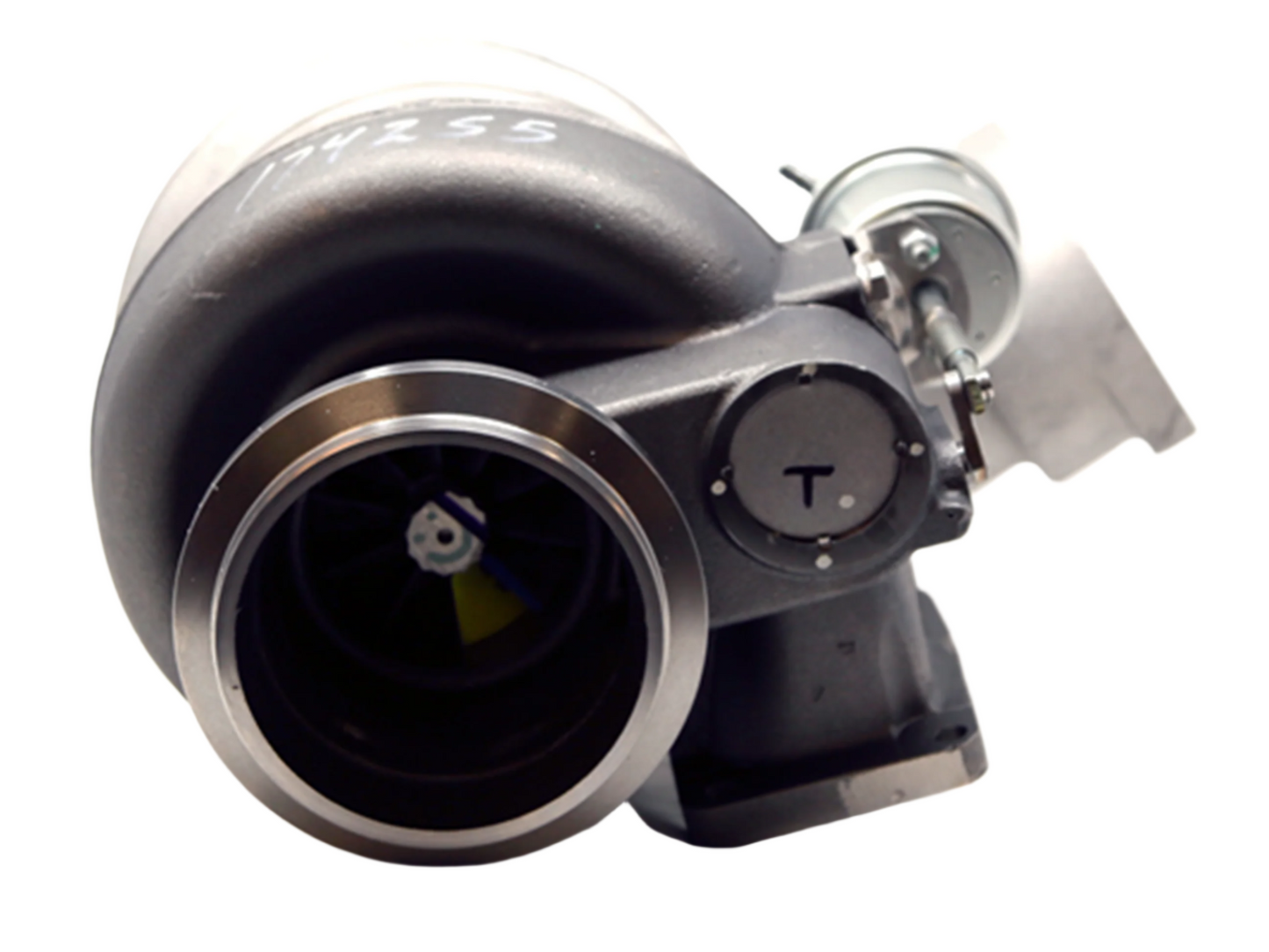

NEW OEM BorgWarner S410G Turbo CAT Truck 3406C 3406E C15 14.59L 14.64L 174259

BRAND NEW GENUINE BORGWARNER TURBOCHARGER

This is a BRAND NEW GENUINE BORGWARNER TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

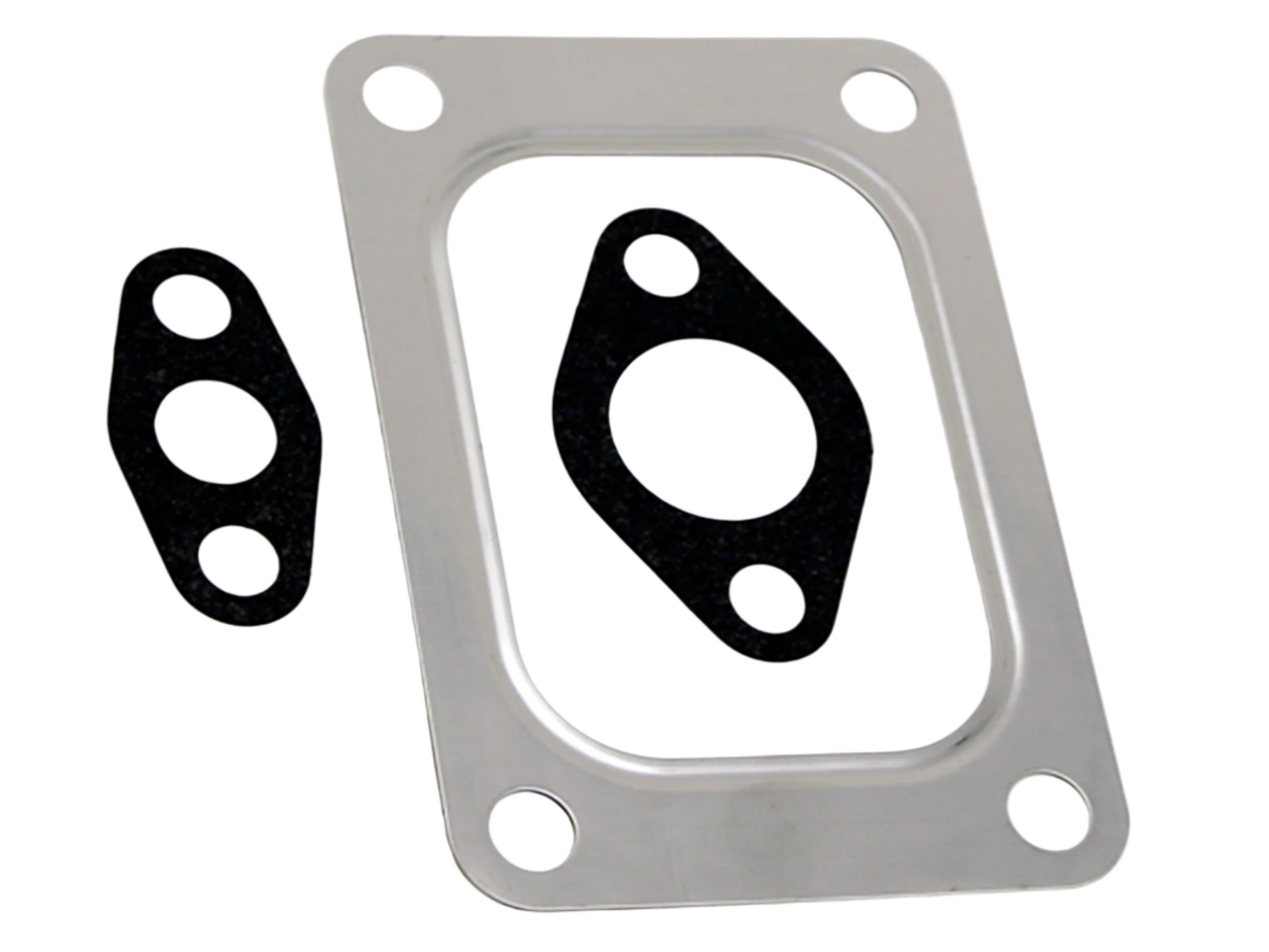

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 174259
Interchangeable Number: 466445-0003, 466445-5003, 466445-5003S, 466445-0012, 466445-5012, 466445-5012S, 466445-0017, 466445-5017, 466445-5017S, 466445-0018, 466445-5018, 466445-5018S, 466445-0021, 466445-5021, 466445-5021S, 466445-0022, 466445-5022, 466445-5022S, 466445-0023, 466445-5023, 466445-5023S, 466445-0024, 466445-5024, 466445-5024S, 471066-0001, 471066-5001, 471066-5001S, 471119-0001, 471119-5001, 471119-5001S, 704604-0006, 704604-5006, 704604-5006S
OEM Number: 0R-6988, 0R6988, 0R-7087, 0R7087, 0R-7199, 0R7199, 0R-7202, 0R7202, 0R-7922, 0R7922, 124-3034, 1243034, 131-2427, 1312427, 132-3651, 1323651, 141-8938, 1418938, 176-7716, 1767716
Turbo Model: S410G, BTG7506
Manufacturer: BorgWarner - 3K - Schwitzer, BWTS USA

Year: 1994-01
Engine: 3406C, 3406E, C15
Engine Manufacturer: Caterpillar
Displacement: 14.59/14.64L
Fuel: Diesel
Power: 315/320/325 kW, 425/435 HP
Speed: 1800 RPM
Prefix: 6NZ, 9NZ

Back Plate: 167783
Bearing Housing: 174246
CHRA: 174248 (169062, 161-6780, 10R-0510, 0R7287, 451686-0006)
Compressor Cover: 447992-0047/447297-0043 (196-3843)
Compressor Wheel (Hipped): 171691 (Ind. 74.57 mm, Exd. 105.3 mm, Trim 53, 7+7 Blades, Billet)
Gasket Kit: 318417
Heat Shield: 167790
Repair Kit: 318396 (318397)(1253400750)
Turbine Housing: 447990-0028 (1274261)
Turbine Wheel: 169346 (Ind. 81.74 mm, Exd. 91.44 mm, 10 Blades)

NOTE: Complete replacement turbo. Internal parts not interchangeable.

Application:
1994-01 Caterpillar Truck with 14.64L 3406E Engine
1994-01 Caterpillar Truck with 3406C, 3406E, C15 Engine
1999-01 Caterpillar Truck with 14.59L 3406C, 3406E Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
