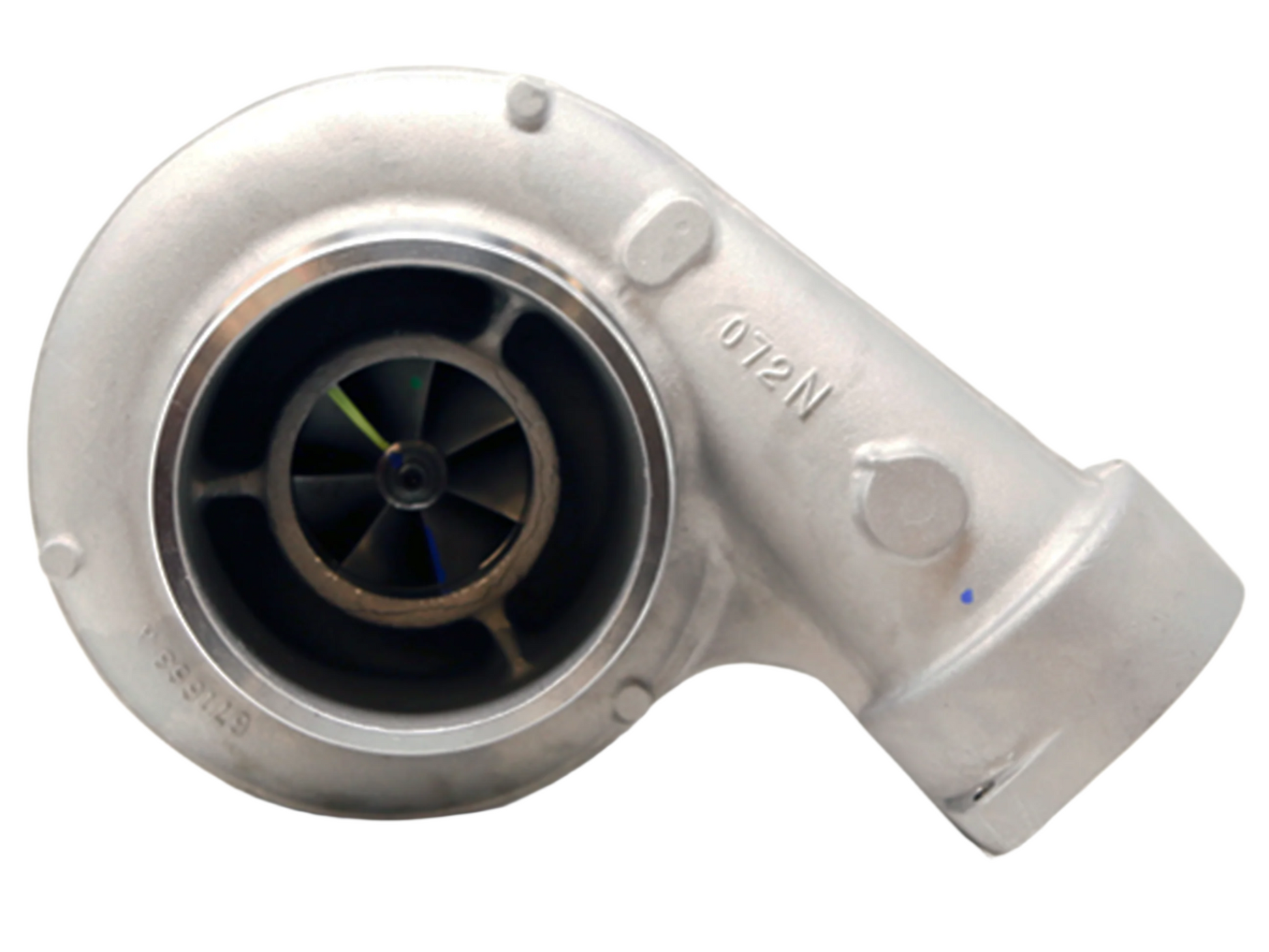

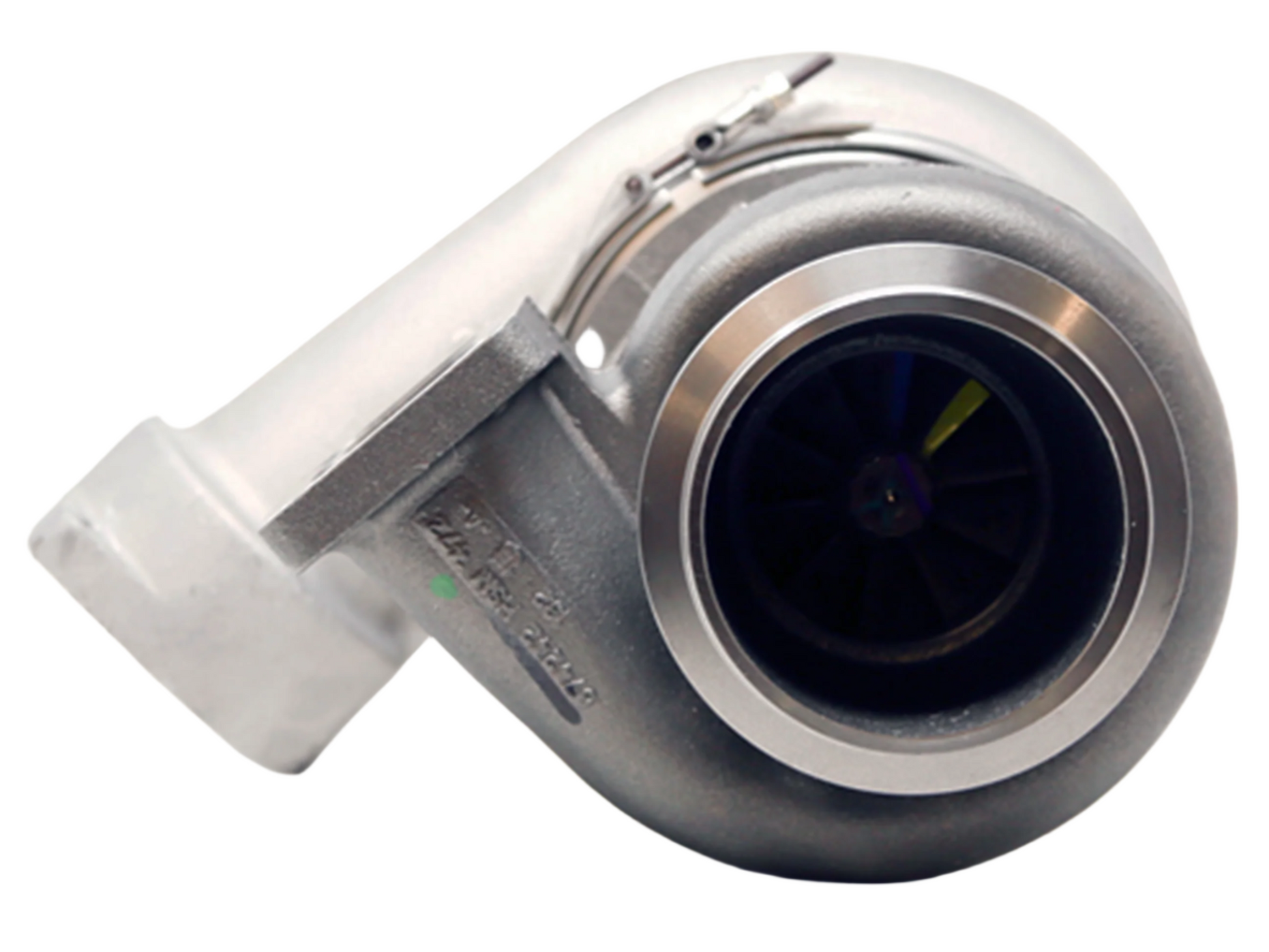

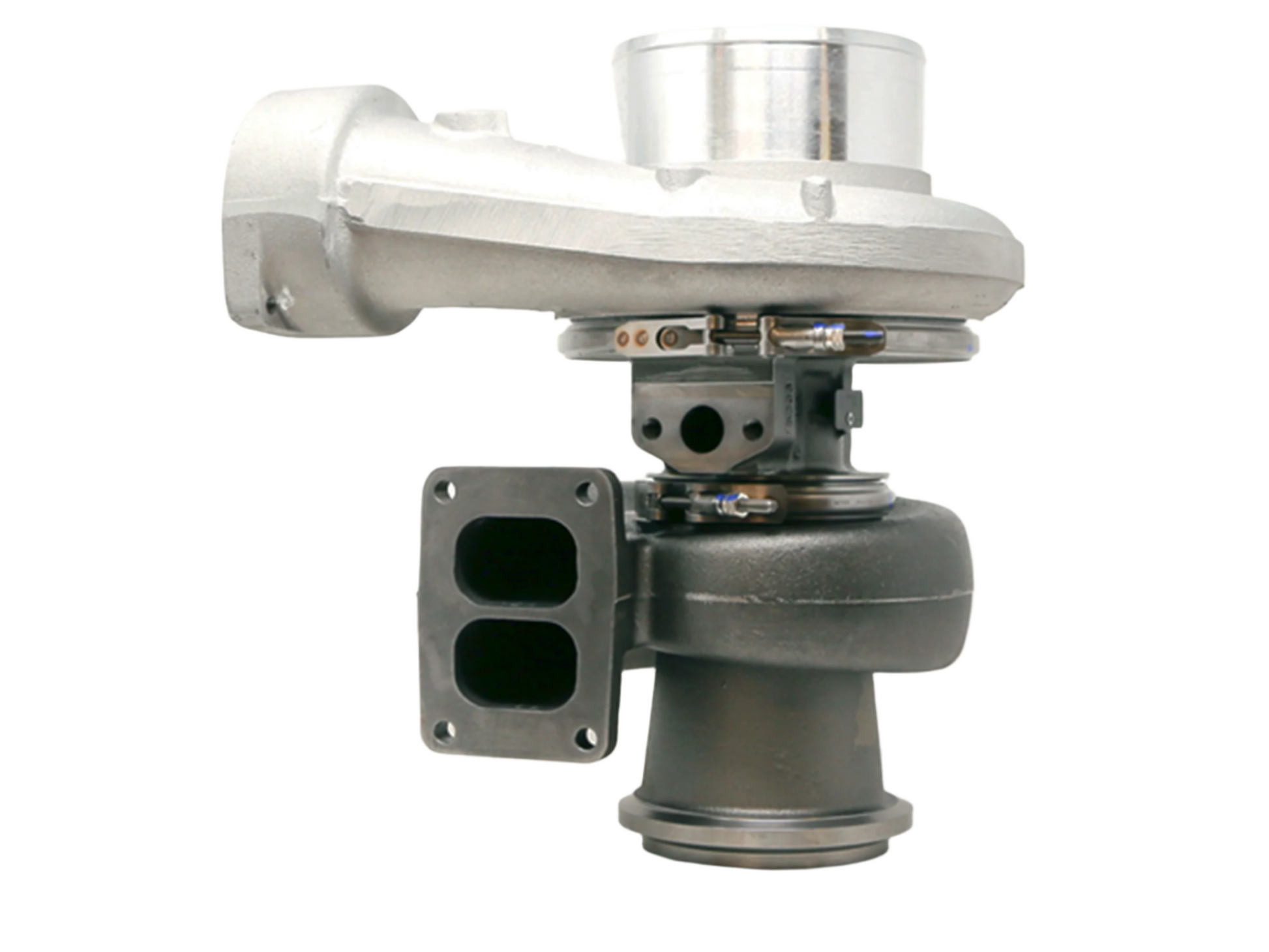

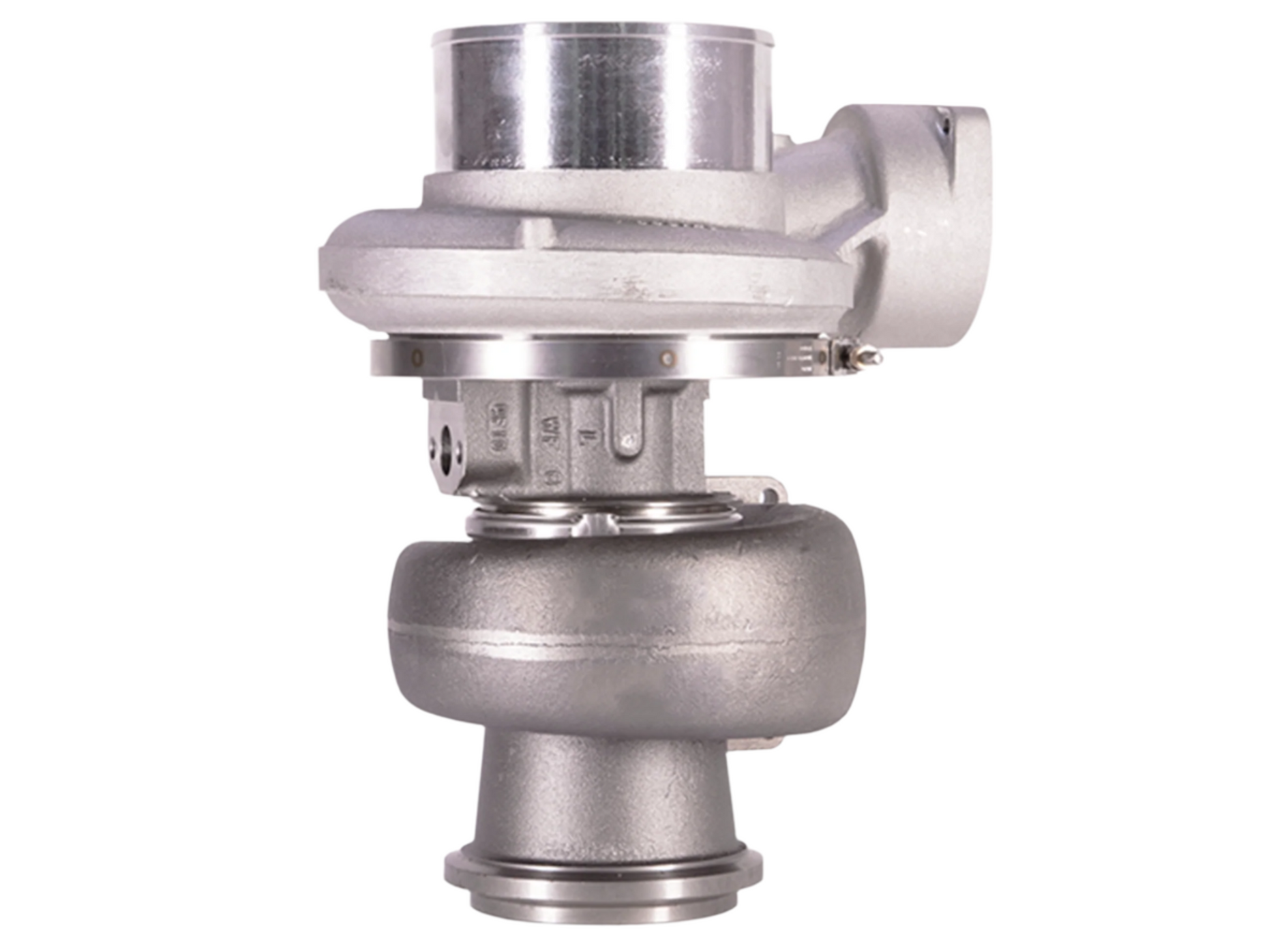

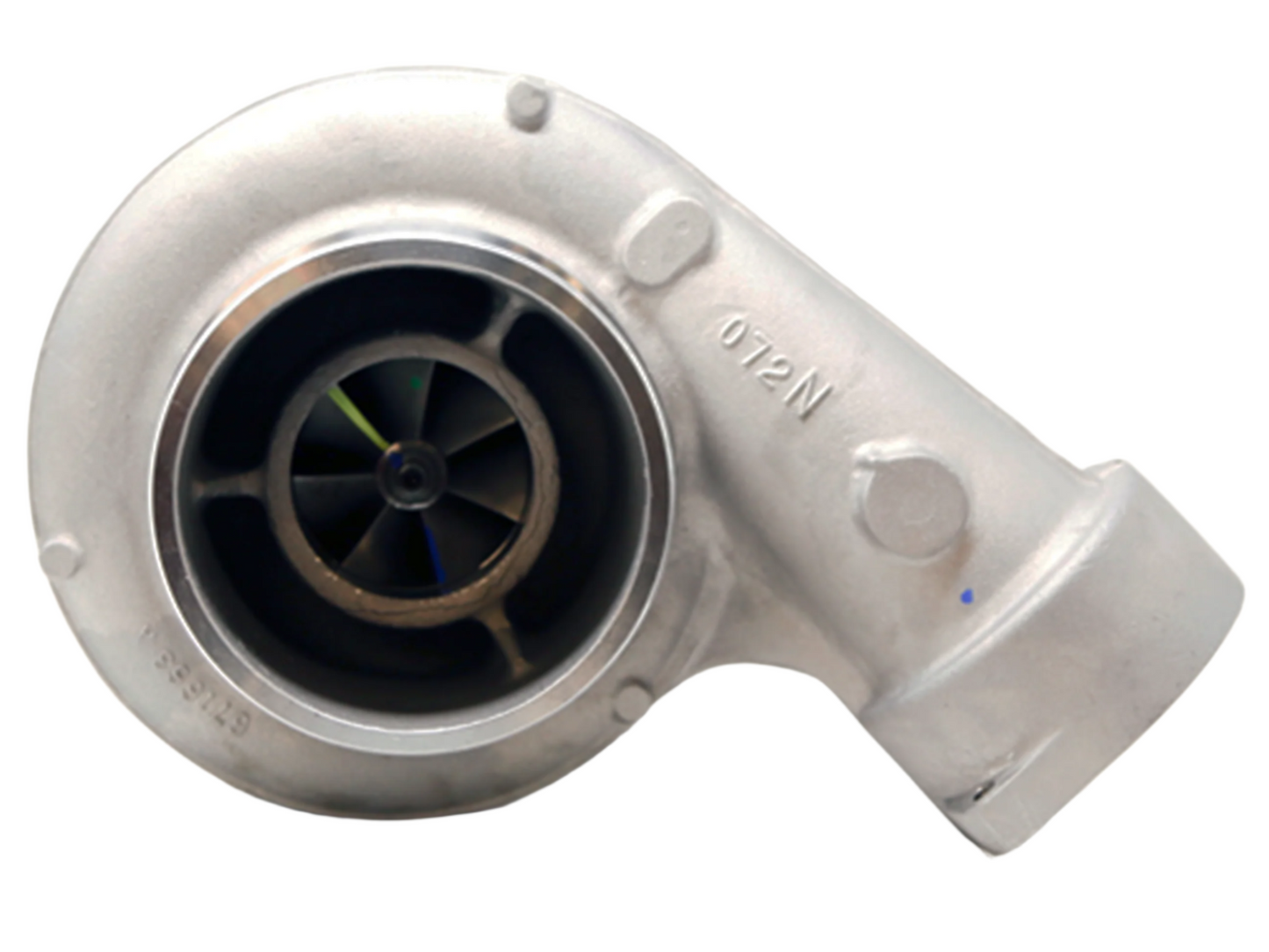

NEW OEM BorgWarner S410 Turbo CAT Truck 3406E 14.64L Diesel Engine 174269SKU: 174269
This is a BRAND NEW GENUINE BORGWARNER TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

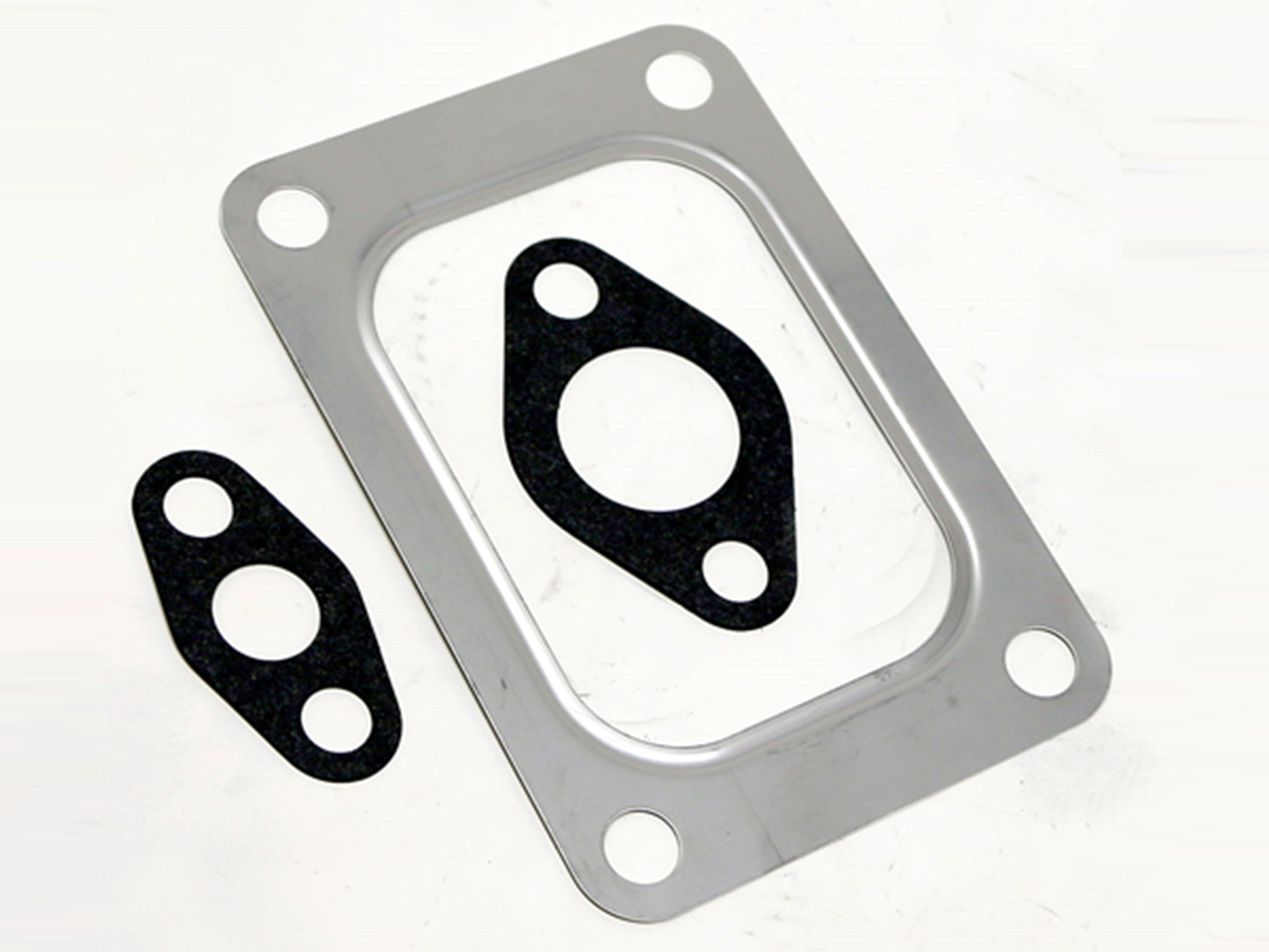

NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 174269
Interchangeable Number: 169060, 170083, 466423, 466423-0001, 466423-5001, 466423-5001S, 466423-0003, 466423-5003, 466423-5003S, 466423-0004, 466423-5004, 466423-5004S, 466423-0005, 466423-5005, 466423-5005S
OEM Number: 0R-6694, 0R6694, 0R-6935, 0R6935, 0R-6984, 0R6984, 0R-7142, 0R7142, 0R-7200, 0R7200, 0R-7284, 0R7284, 116-9574, 1169574, 124-3030, 1243030, 136-7619, 1367619, 141-8936, 1418936, 160-5550, 1605550, 6I-4574, 6I4574
Turbo Model: S410, S410S019
Manufacturer: BorgWarner - 3K - Schwitzer, BWTS USA
Engine Manufacturer: Caterpillar
Displacement: 14.64L, 14640 ccm
Power: 280 kW/375 HP, 305 kW/410 HP, 325 kW/435 HP
Speed: 1800 RPM
Angle α (Compressor Housing): 302°
Angle ß (Turbine Housing): 72.5°
Back Plate: 167783
Bearing Housing: 174246
CHRA: 174248 (451686-0006, 169062)
Compressor Cover: 174258
Compressor Wheel (Hipped): 171691 (Ind. 74.57 mm, Exd. 105.3 mm, Trim 53, 7+7 Blades, Billet)
Gasket Kit: 318417
Heat Shield: 167790
Repair Kit: 318396 (318397)(1253400750)
Turbine Housing (with Wastegate): 146697
Turbine Wheel: 169346 (Ind. 81.74 mm, Exd. 91.44 mm, 10 Blades)
NOTE: Internal parts not interchangeable.
1996-07 Caterpillar Truck with 3406E Engine
1998-04 Caterpillar with 3406E Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
