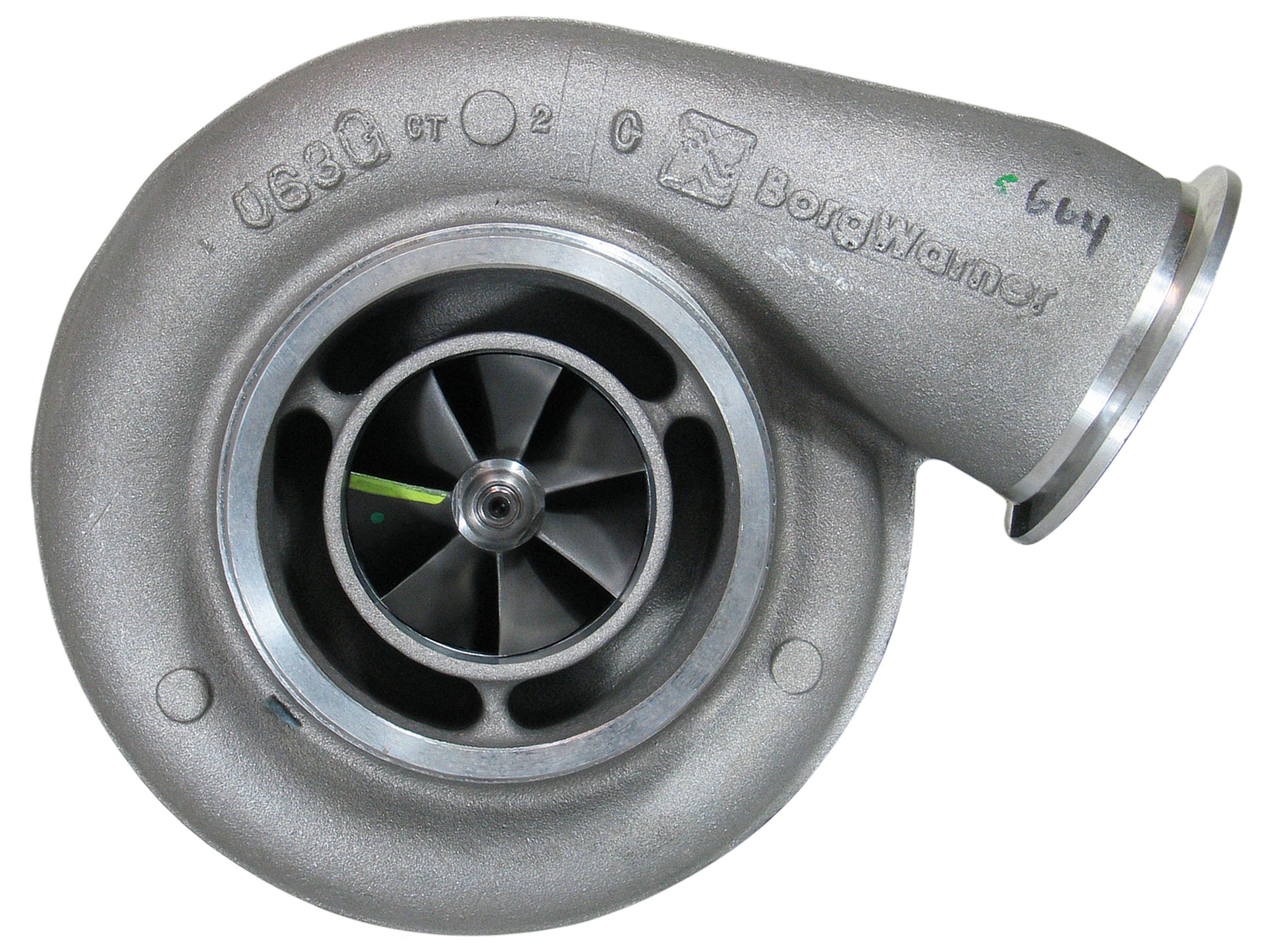

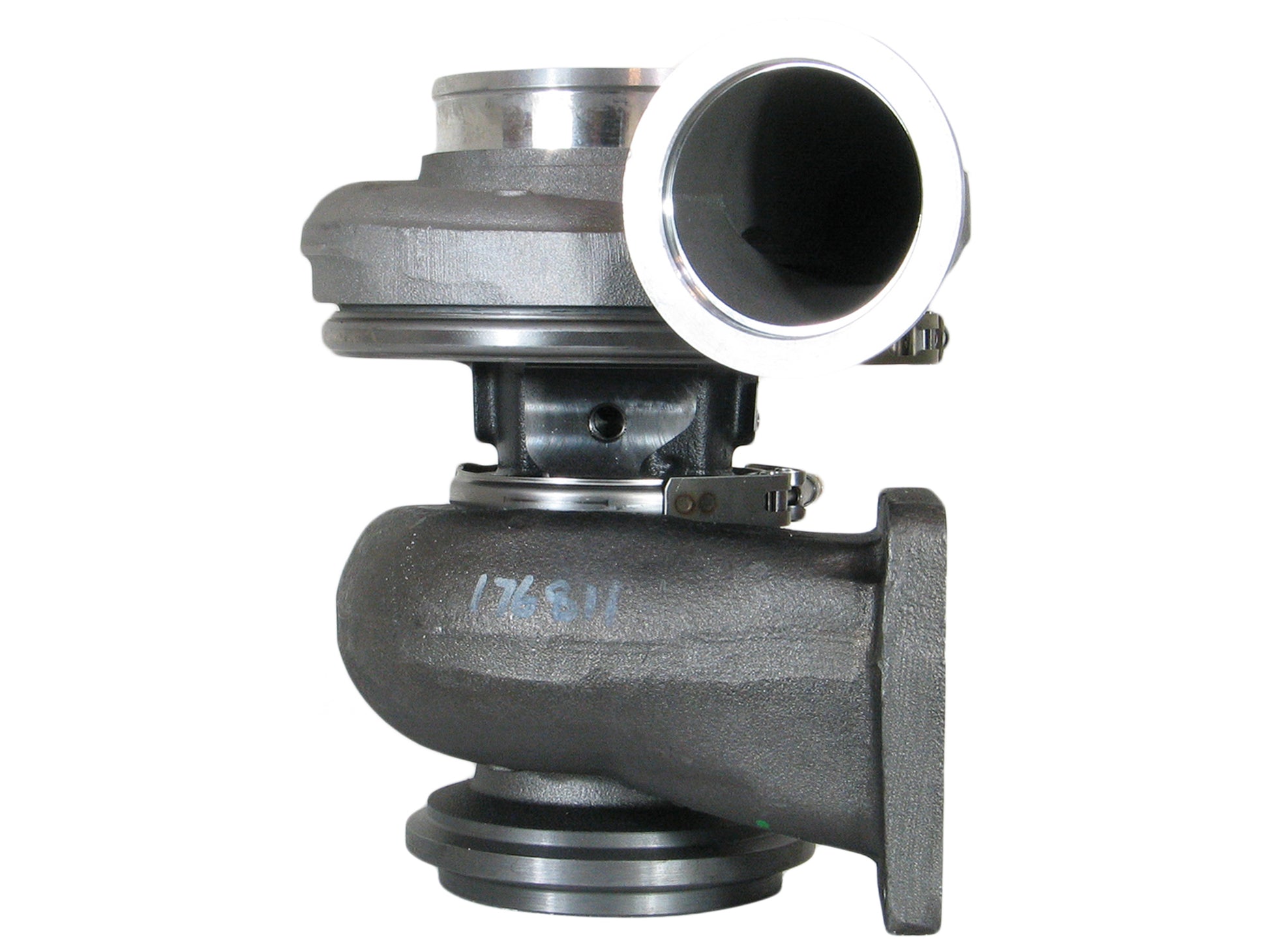

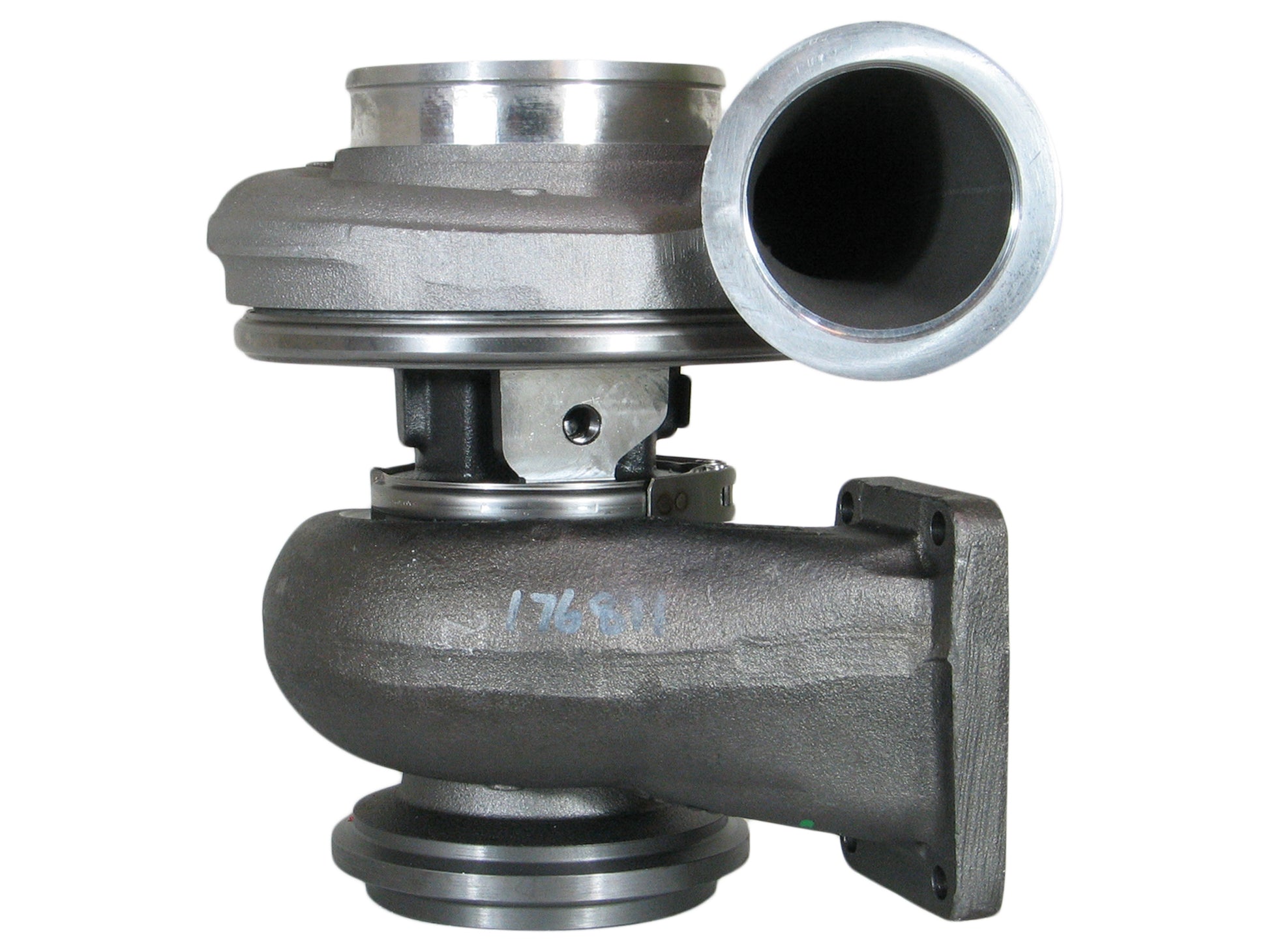

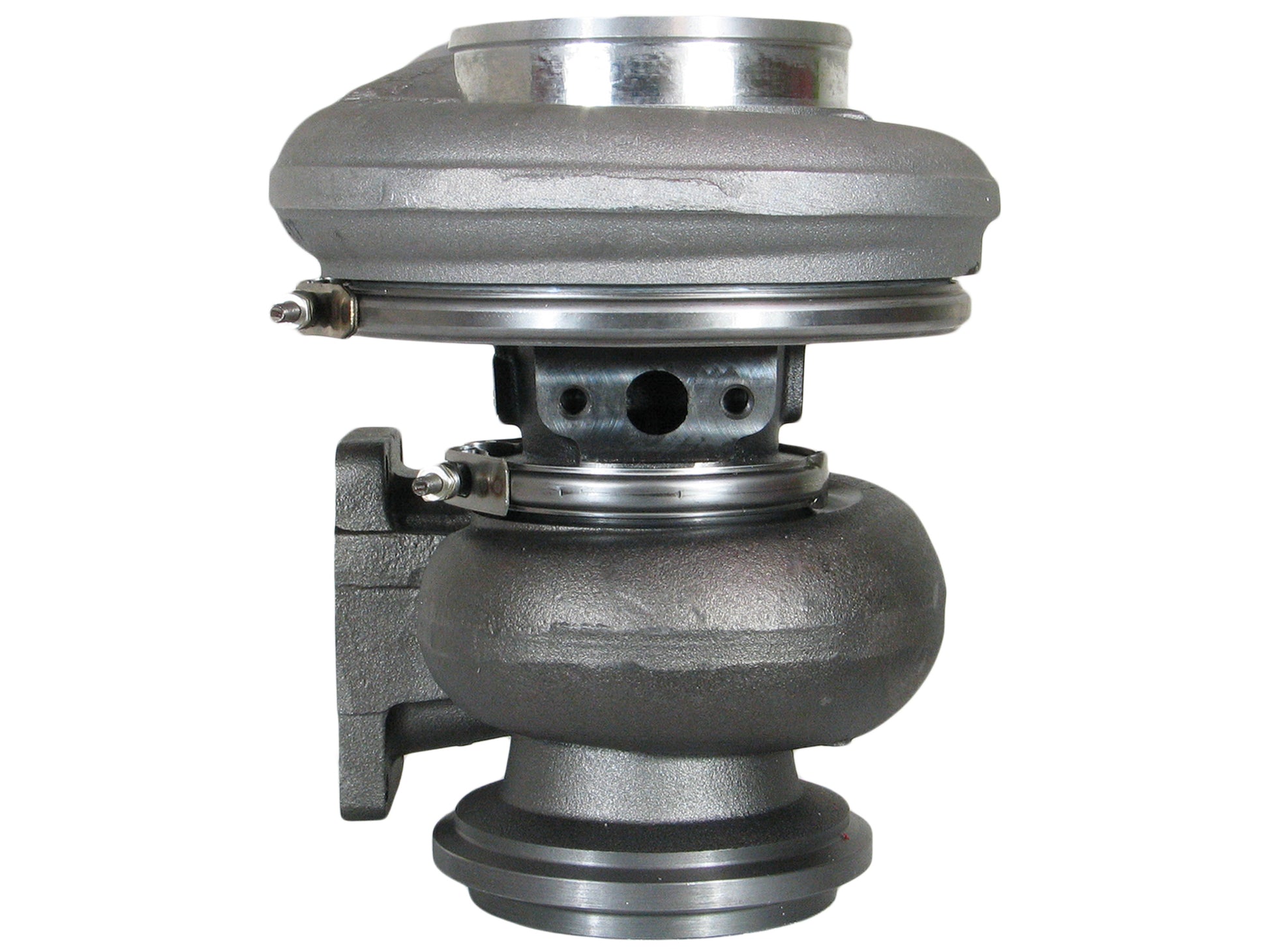

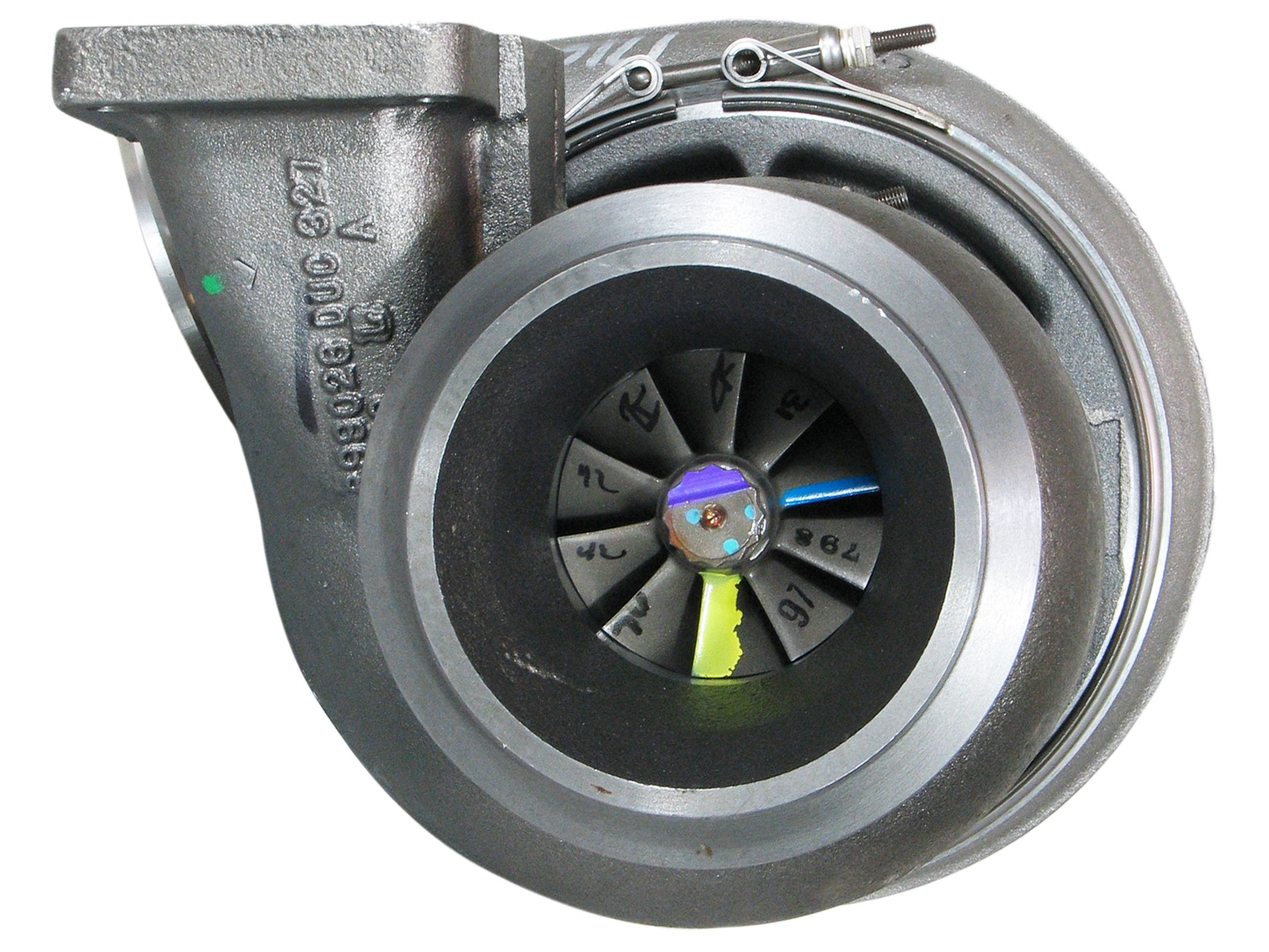

NEW OEM BorgWarner S400SX4 Performance Turbo Journal Bearing Twin Scroll 176806

BRAND NEW GENUINE BORGWARNER PERFORMANCE UPGRADE TURBOCHARGER

This is a BRAND NEW GENUINE BORGWARNER PERFORMANCE UPGRADE TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 176806
Turbo Model: S400SX, S400SX-100H51AGGM/1.1CJ1, S400SX4
Manufacturer: BorgWarner - 3K - Schwitzer, BWTS USA

Year: 2007-06
Power: 500-1050 HP

Bearing Housing: 176808
CHRA: 176807
Compressor Housing: 171687
Compressor Wheel (Hipped): 171691
Compressor Wheel Inducer: 2.94 in (74.56 mm)
Compressor Wheel Outside Diameter: 3.94 in (100.17 mm)
Gasket (Oil Outlet): 148062
Gasket (Turbine Inlet): 132040

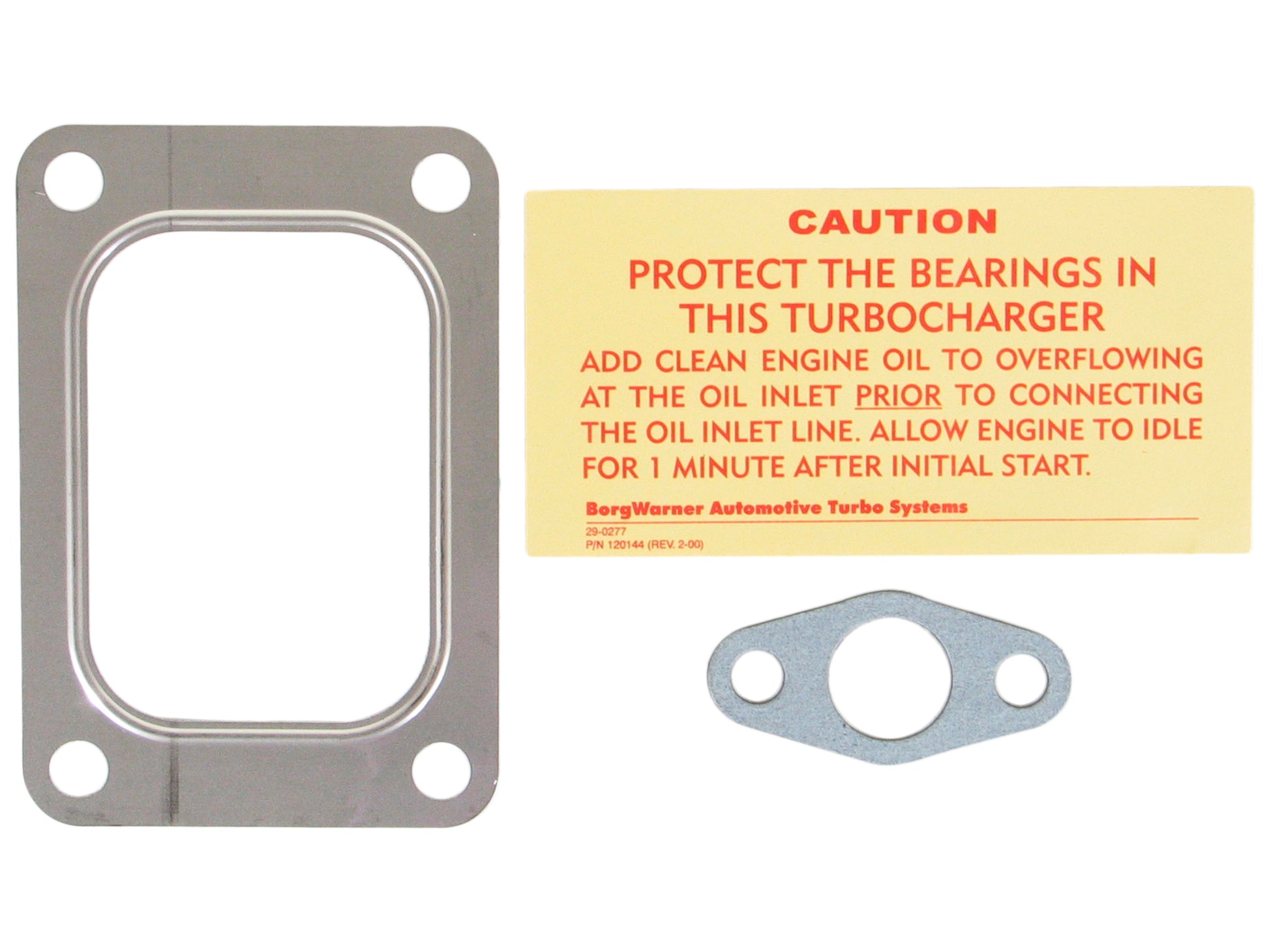

Gasket Kit: 318417
Heat Shield: 197394
Service Kit (360° Thrust Bearing): 14007110000
Service Kit (Standard): 318396
Turbine Housing A/R: 1.10
Turbine Housing Flange: T6 Inlet

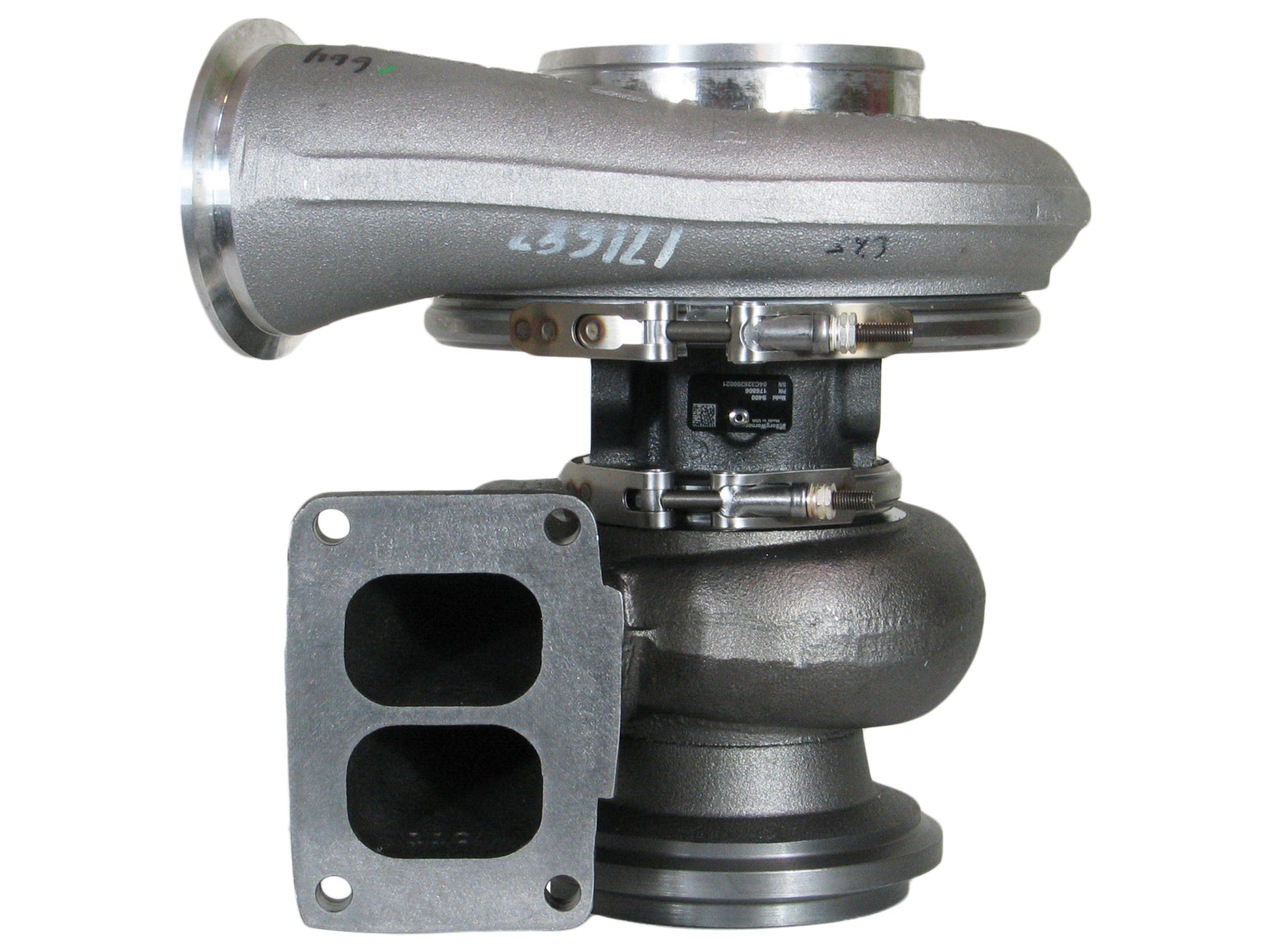

Turbine Housing Inlet Configuration: Volute, Twin Flow
Turbine Housing: 176811
Turbine Housing: 176811
Turbine Wheel Exducer: 2.92 in (74.29 mm)
Turbine Wheel Outside Diameter: 3.29 in (83.47 mm)
Turbine Wheel: 167798

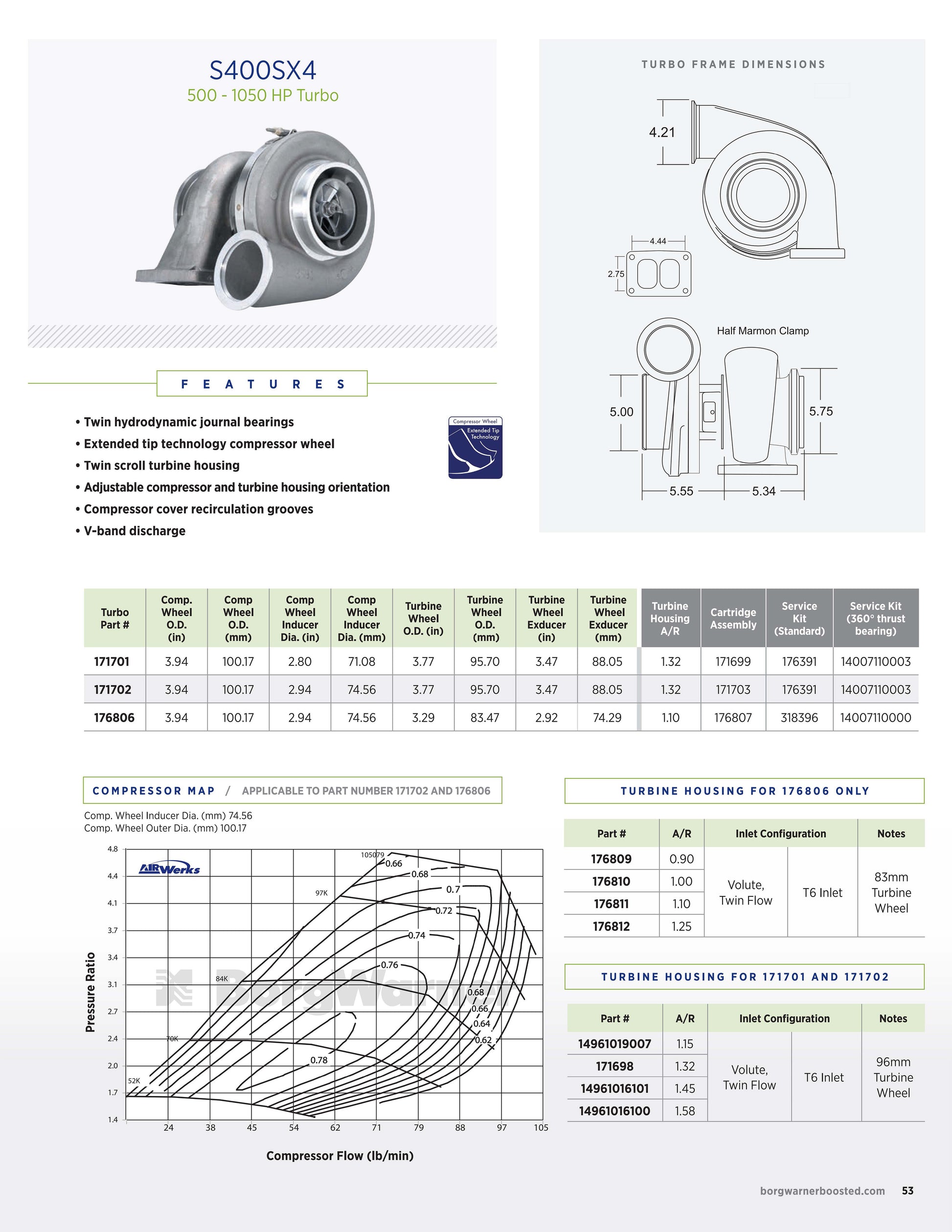

PRODUCT FEATURES:

- Twin hydrodynamic journal bearings.
- Extended tip technology compressor wheel.
- Twin scroll turbine housing.
- Adjustable compressor and turbine housing orientation.
- Compressor cover recirculation grooves.
- V-band discharge.

NOTE:

- AirWerk Series.
- Performance turbocharger only.

Application:
2007-06 Various

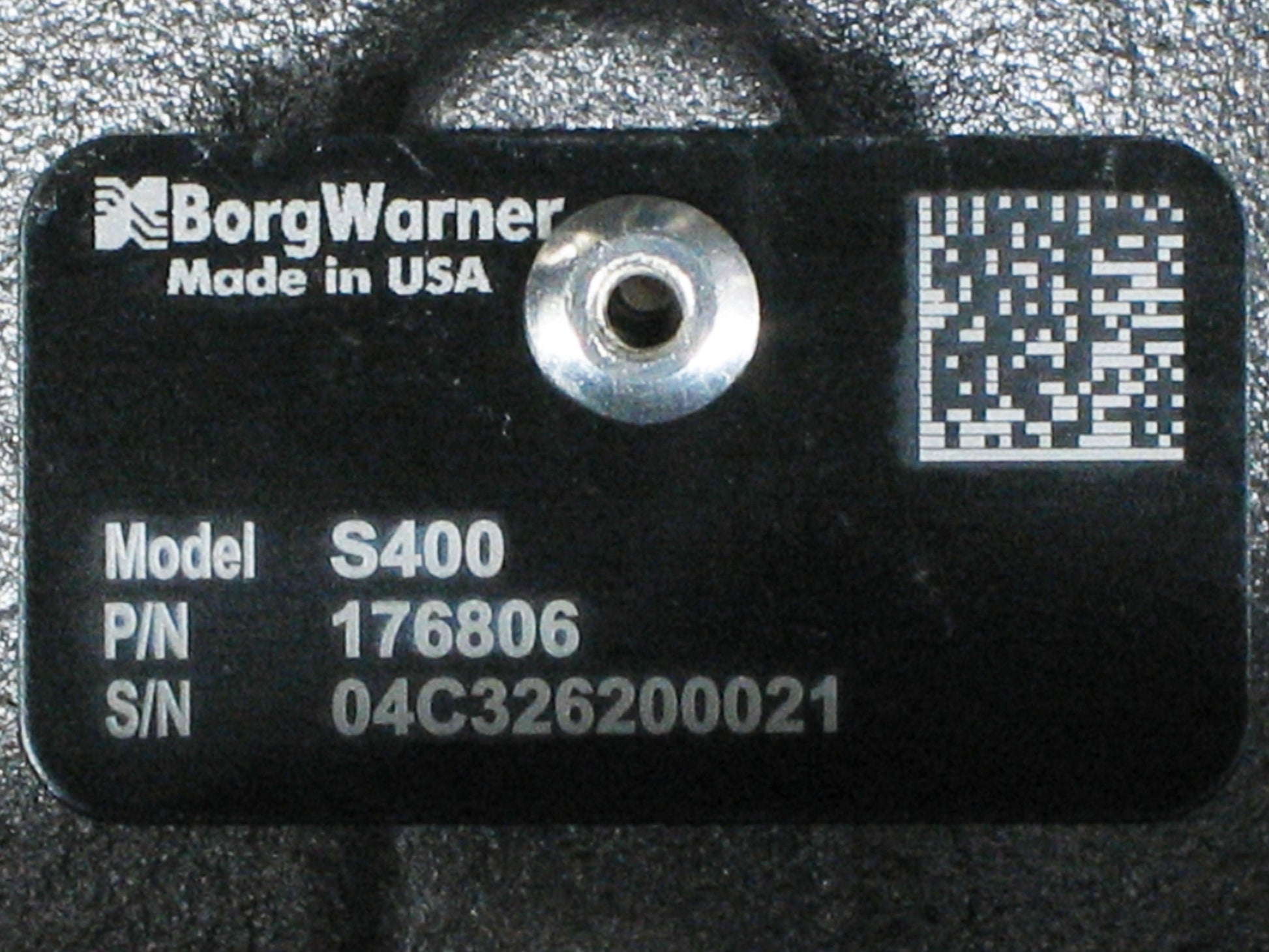

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
