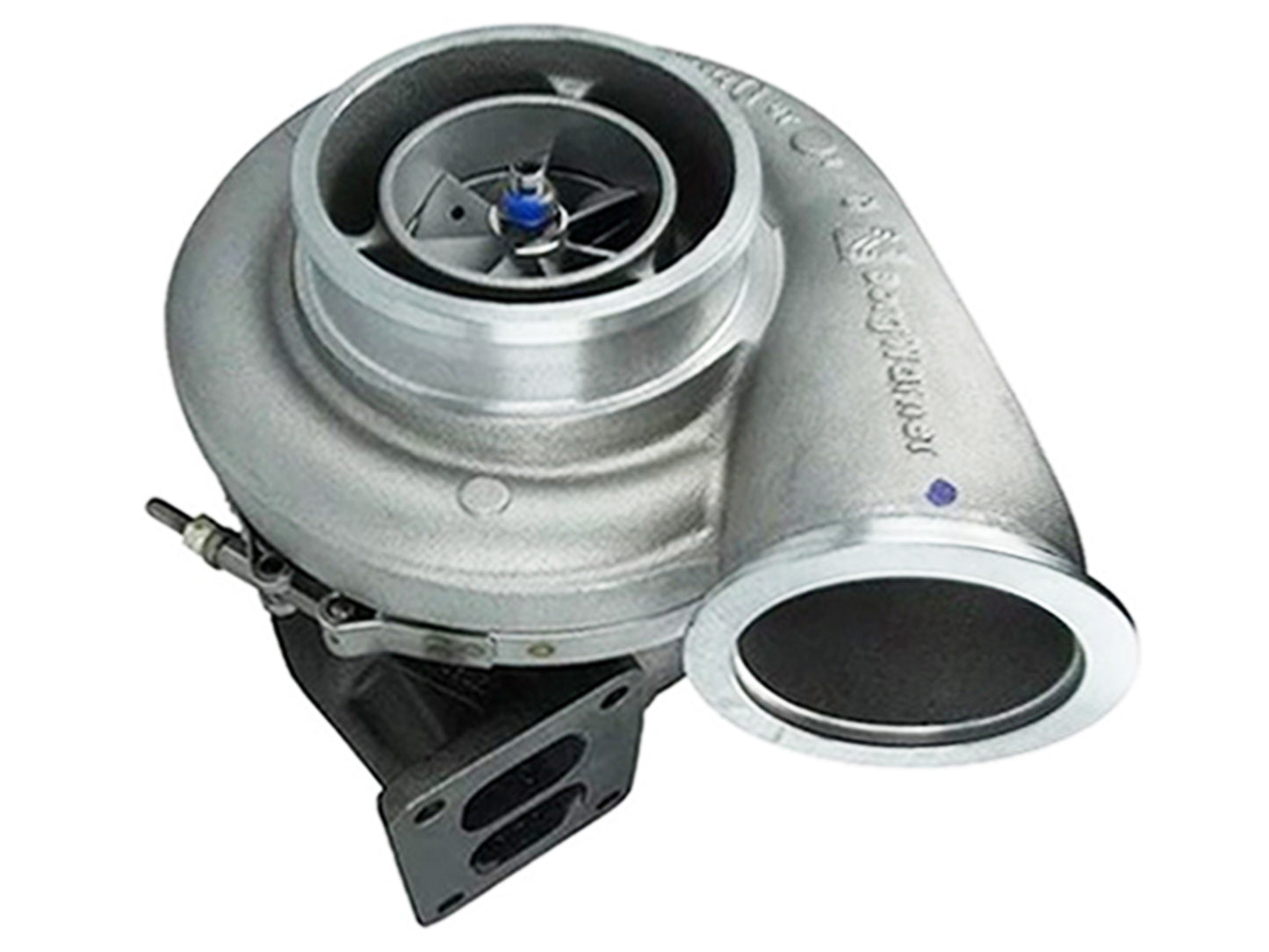

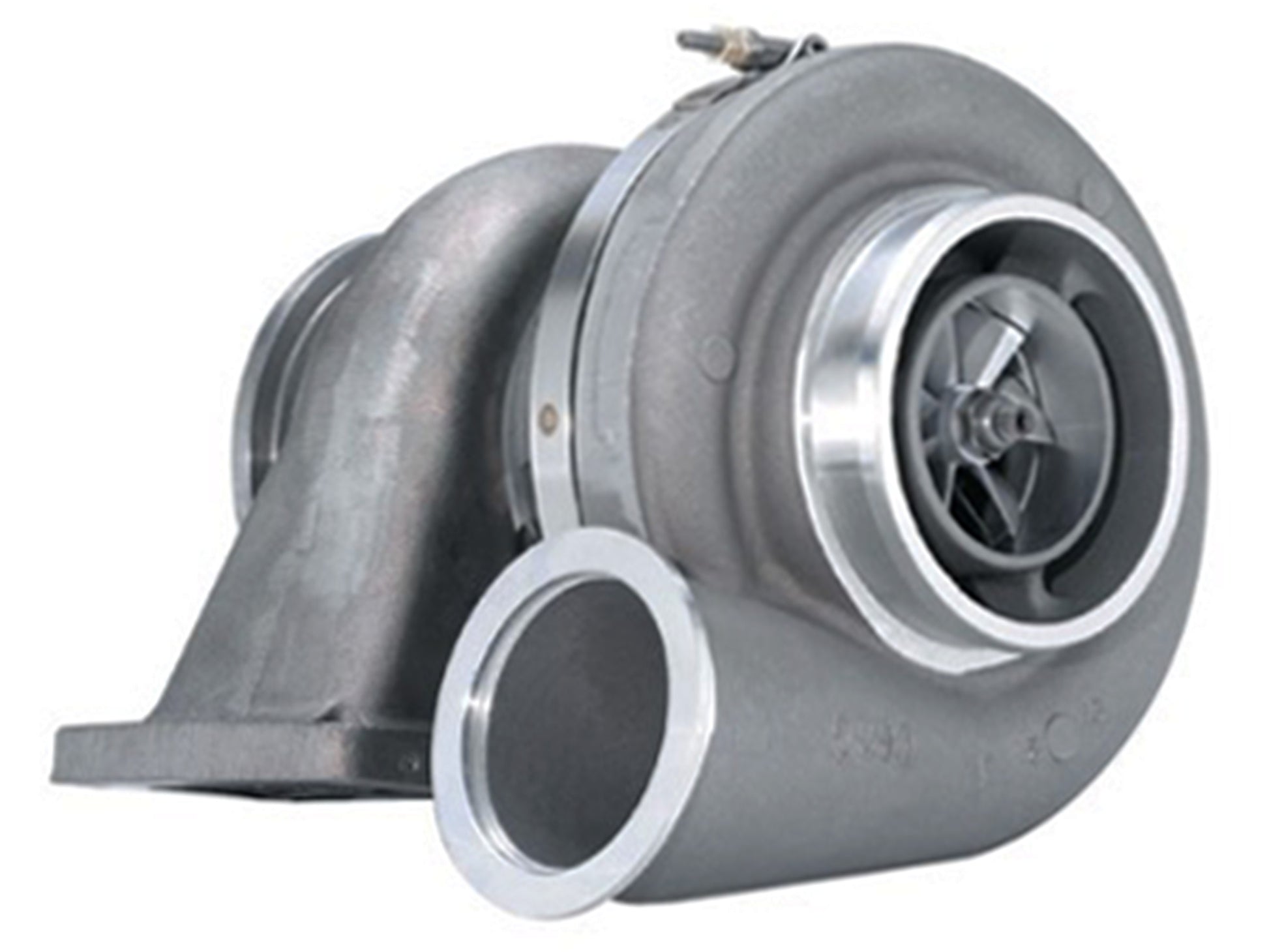

NEW OEM BorgWarner S400SX4 Performance Turbo Journal Bearing Twin Scroll 177101

BRAND NEW GENUINE BORGWARNER PERFORMANCE UPGRADE TURBOCHARGER

This is a BRAND NEW GENUINE BORGWARNER PERFORMANCE UPGRADE TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 177101
Turbo Model: S400SX, S400SX-100H51AGGM/1.1CJ1, S400SX3
Manufacturer: BorgWarner - 3K - Schwitzer, BWTS USA

Year: 2007-06
Power: 783 kW/1050 HP

Bearing Housing: 176808
CHRA: 176807
Compressor Housing: 171687
Compressor Wheel (Hipped): 171691

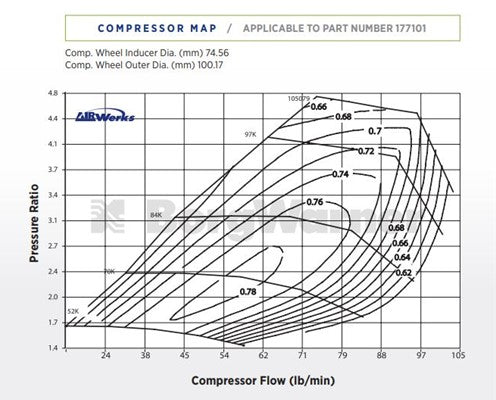

Compressor Wheel Inducer: 2.94 in (74.56 mm)
Compressor Wheel Outside Diameter: 3.94 in (100.17 mm)
Gasket (Oil Outlet): 148062
Gasket (Turbine Inlet, Twin Flow): 170335
Heat Shield: 197394
Service Kit (360° Thrust Bearing): 14007110000 (1400-711-0000)
Service Kit (Standard): 318396
Turbine Housing A/R: 1.10

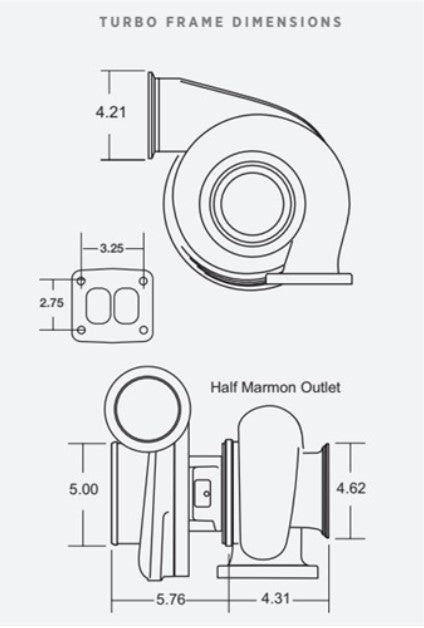

Turbine Housing Flange: T4 Inlet
Turbine Housing Inlet Configuration: Volute, Twin Flow
Turbine Housing: 177104
Turbine Housing: 177104
Turbine Wheel Exducer: 2.92 in (74.29 mm)
Turbine Wheel Outside Diameter: 3.29 in (83.47 mm)
Turbine Wheel: 167798

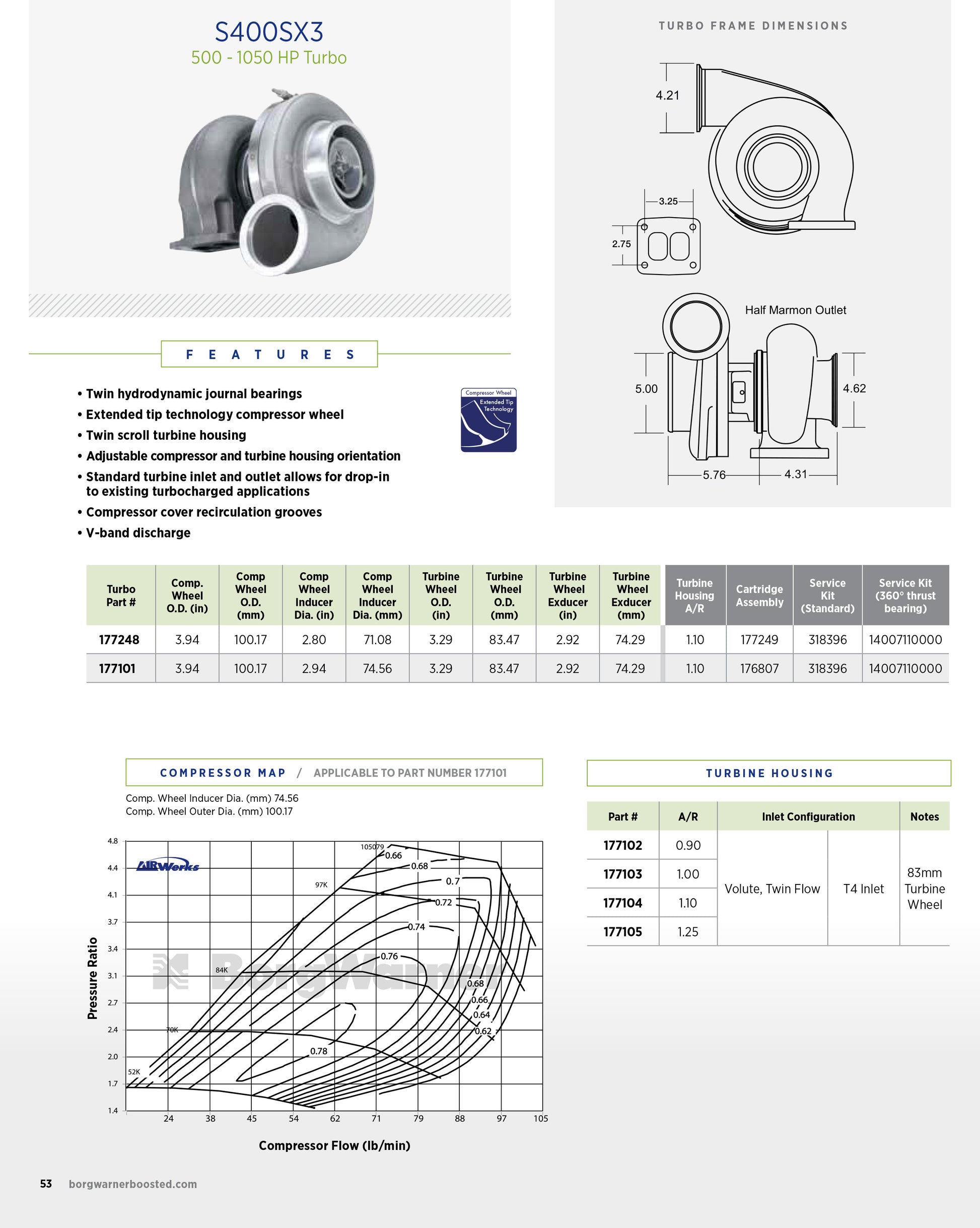

PRODUCT FEATURES:

- Twin Hydrodynamic journal bearings.
- Extended tip technology compressed wheel.

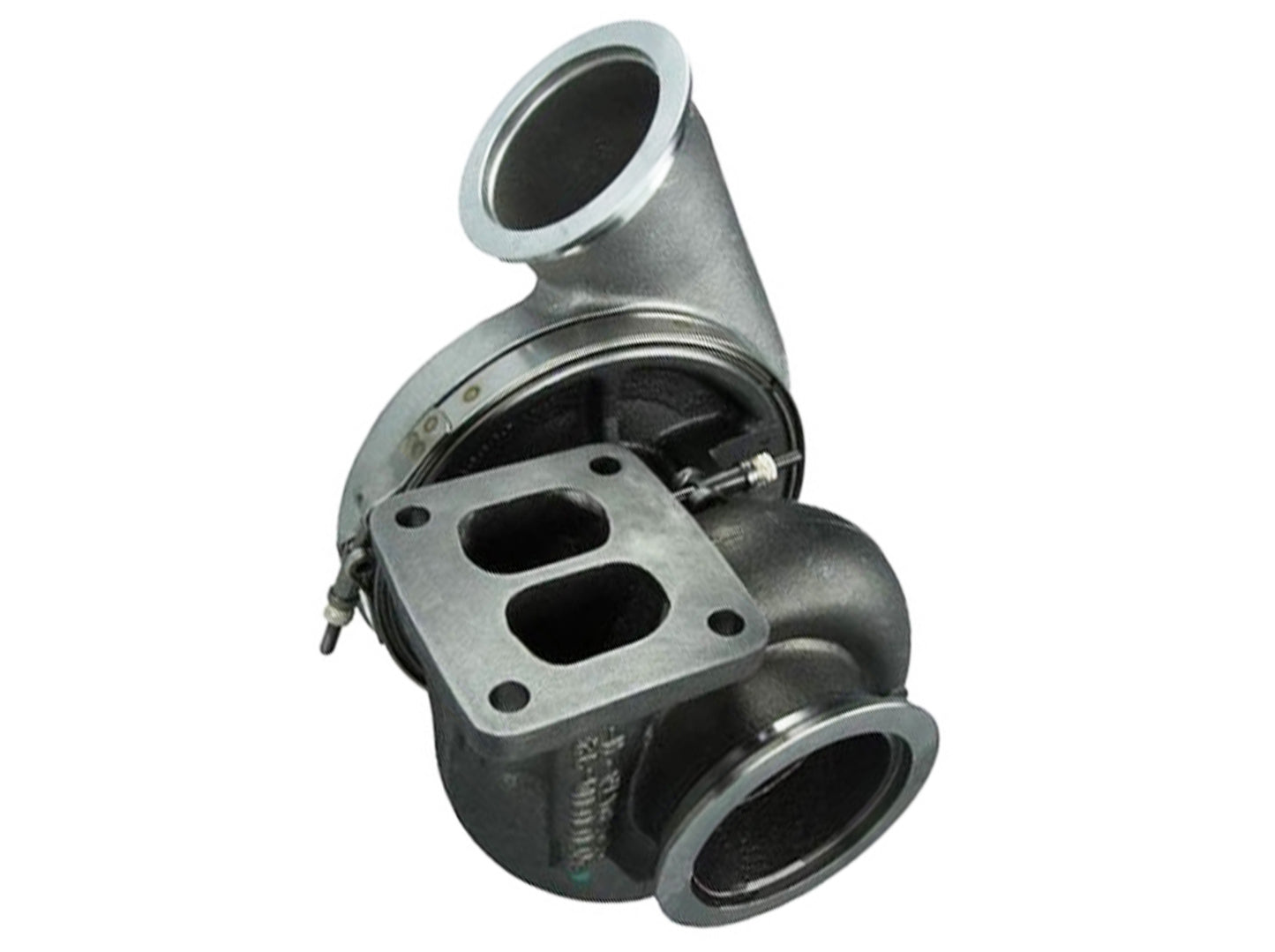

- Twin Scroll turbine housing.
- Adjustable compressor and turbine housing orientation.
- Standard turbine inlet and outlet allows for drop-in to existing turbocharged applications.
- Compressor cover recirculation grooves.
- V-band discharge.

NOTE:

- AirWerks Series.
- Performance turbocharger only.
- Other TH's available: 177102 (0.9 A/R), 177103 (1.0 A/R), 177104 (1.10 A/R), 177105 (1.25 A/R).

Application:
2007-06 Various

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
