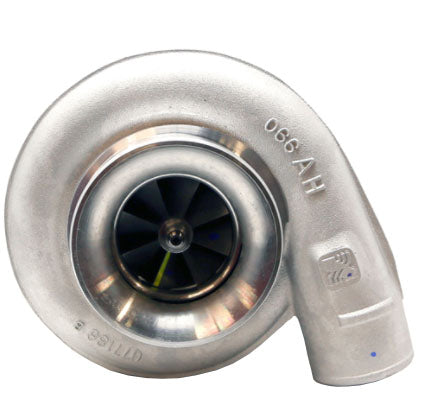

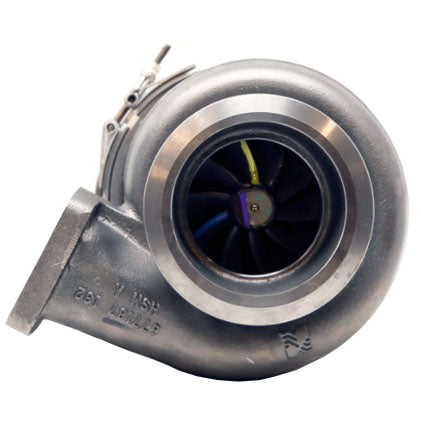

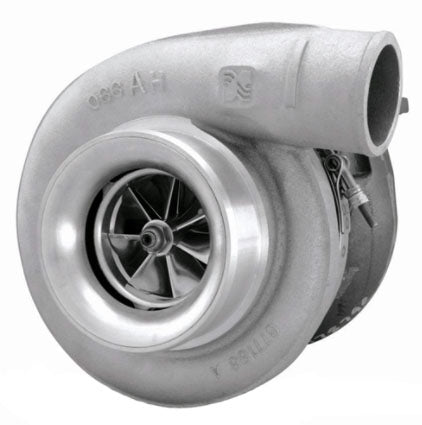

NEW BorgWarner S400 Turbo John Deere Agricultural Tractor 6125H 12.5L 177287
SKU: 177287This is a BRAND NEW GENUINE BORGWARNER TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

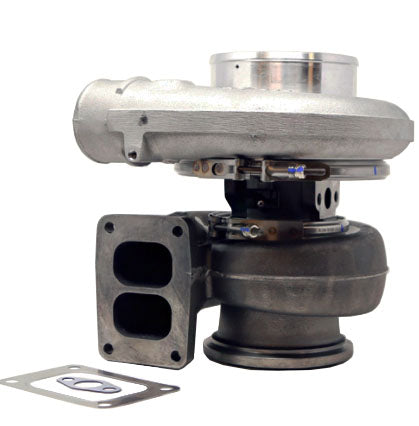

NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 177287
Interchangeable Number: 171558, 173342, 175252, 477287
OEM Number: RE506333, RE507021, RE508022, RE525341
Turbo Model: S400, S400-110H58U-AHM/1.32 96TM1, S400S058
Manufacturer: BorgWarner - 3K - Schwitzer, BWTS USA
Year: 2001-11
Engine: 6125, 6125H
Engine Manufacturer: John Deere
Displacement: 12.5L, 12500 ccm
Power: 410 kW/550 HP
Fuel: Diesel
Back Plate: 167783
Bearing Housing: 171695 (172540)(Oil Cooled)
CHRA: 176654
Compressor Cover: 179178
Compressor Wheel: 171691 (171984)(Ind. 80.3 mm, Exd. 109.73 mm, Trim 7.97, 7+7 (8+8) Blades, Super Back)
Gasket Kit: 318417
Heat Shield: 167789
Repair Kit (360° Thrust Bearing): 14007110003
Repair Kit (Standard): 176391 (318397)(1253400750)~
Turbine Housing A/R: 1.32
Turbine Housing Config: Volute, Twin Flow
Turbine Housing Flange: T6 Inlet
Turbine Housing: 171698
Turbine Wheel: 171689 (Ind. 95.7 mm, Exd. 88.05 mm, 10 Blades)
PRODUCT FEATURES:
- Twin hydrodynamic journal bearings.
- Extended tip technology compressor wheel.
- Twin scroll turbine housing.
- Adjustable compressor and turbine housing orientation.
- Compressor cover recirculation grooves.
Application:
2001-11 Deutz Industrial with 6125H Engine
2001-11 Deutz S650 Tractor, with 6125H Engine
2001-11 John Deere Agricultural, Industrial with 6125 Engine
John Deere 7500, 7700, & 7800 Forage Harvesters (Self-Propelled)
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
