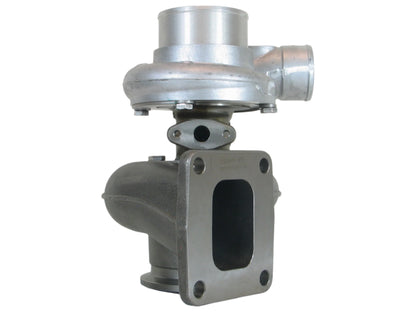

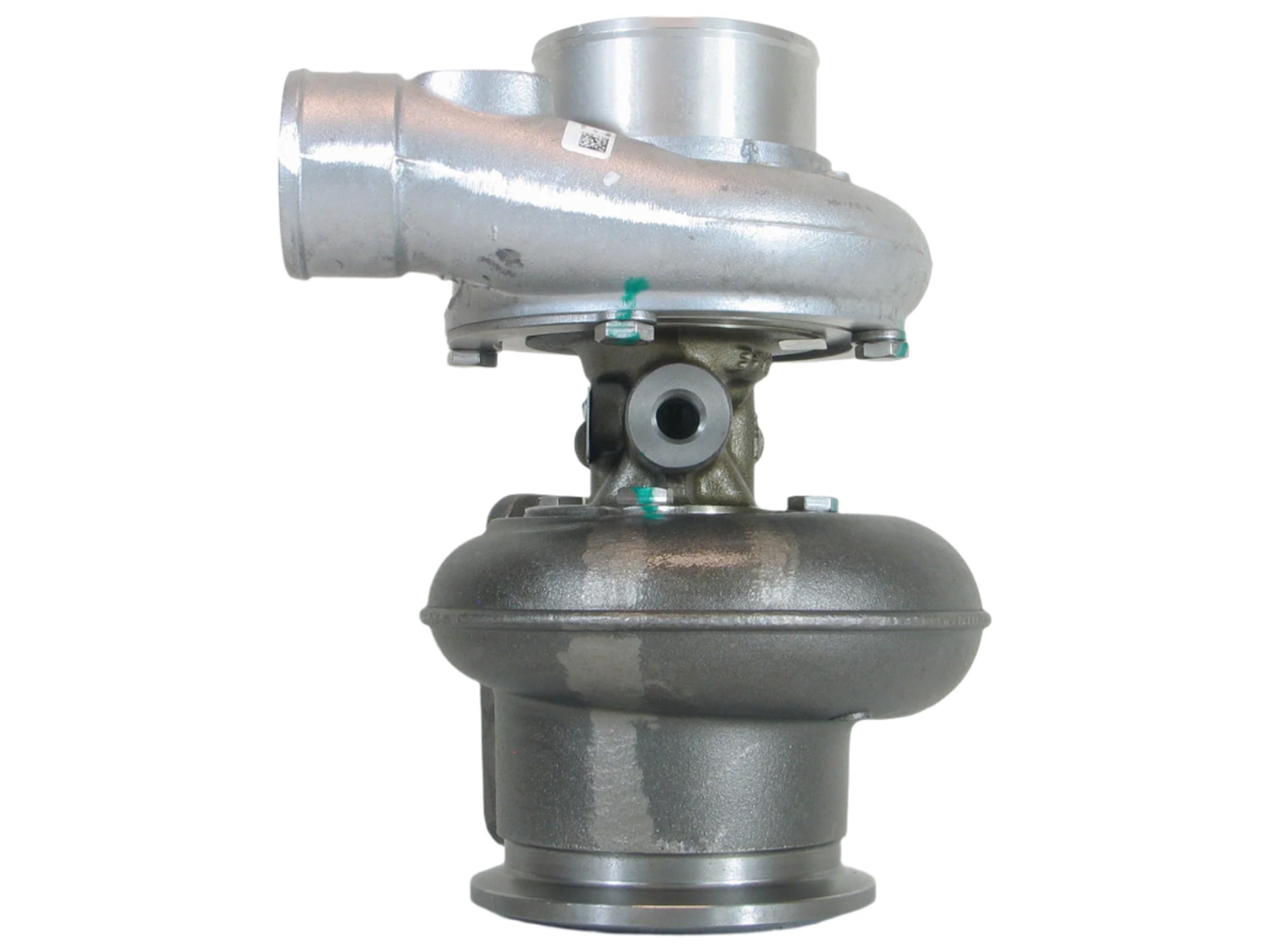

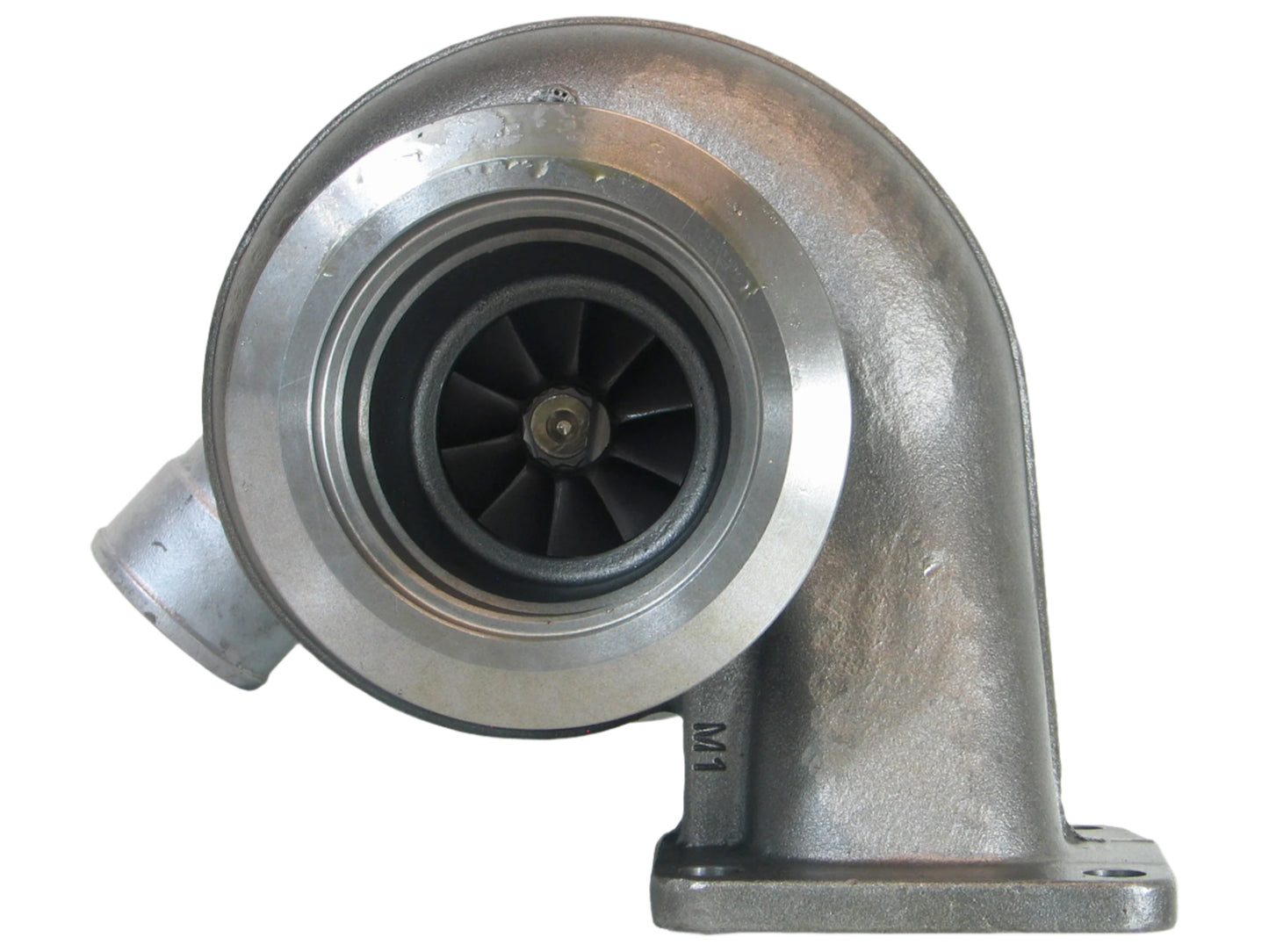

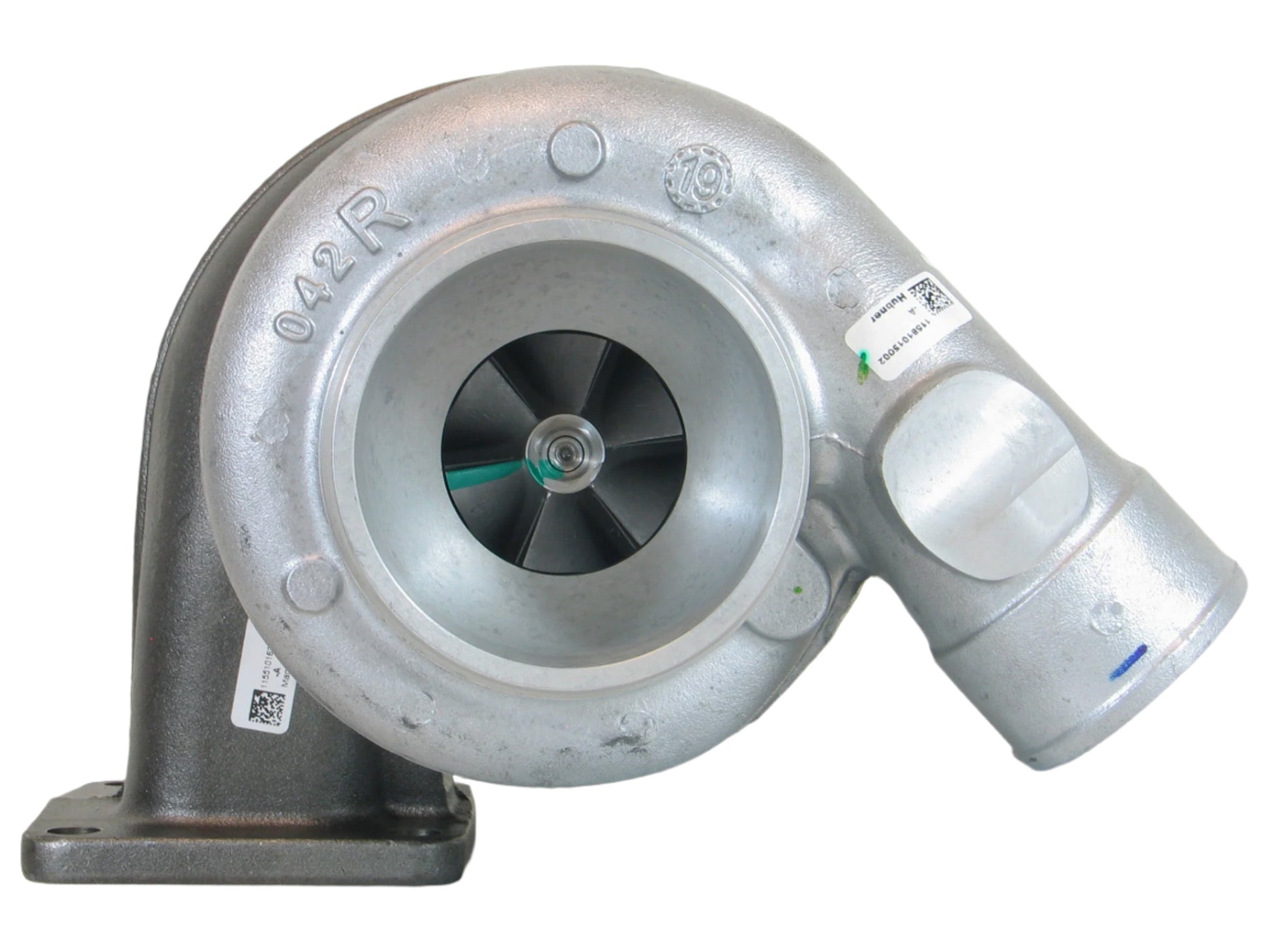

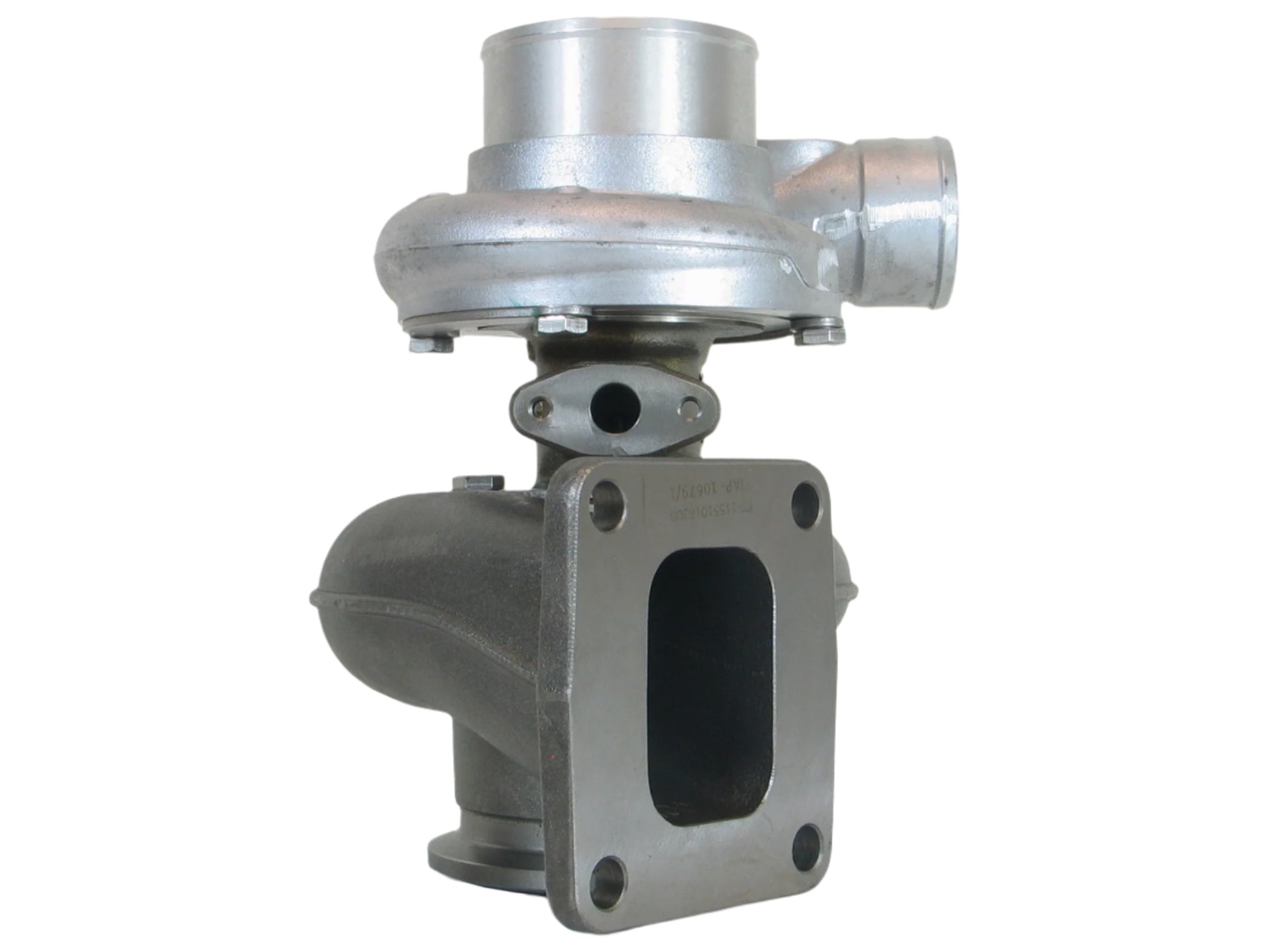

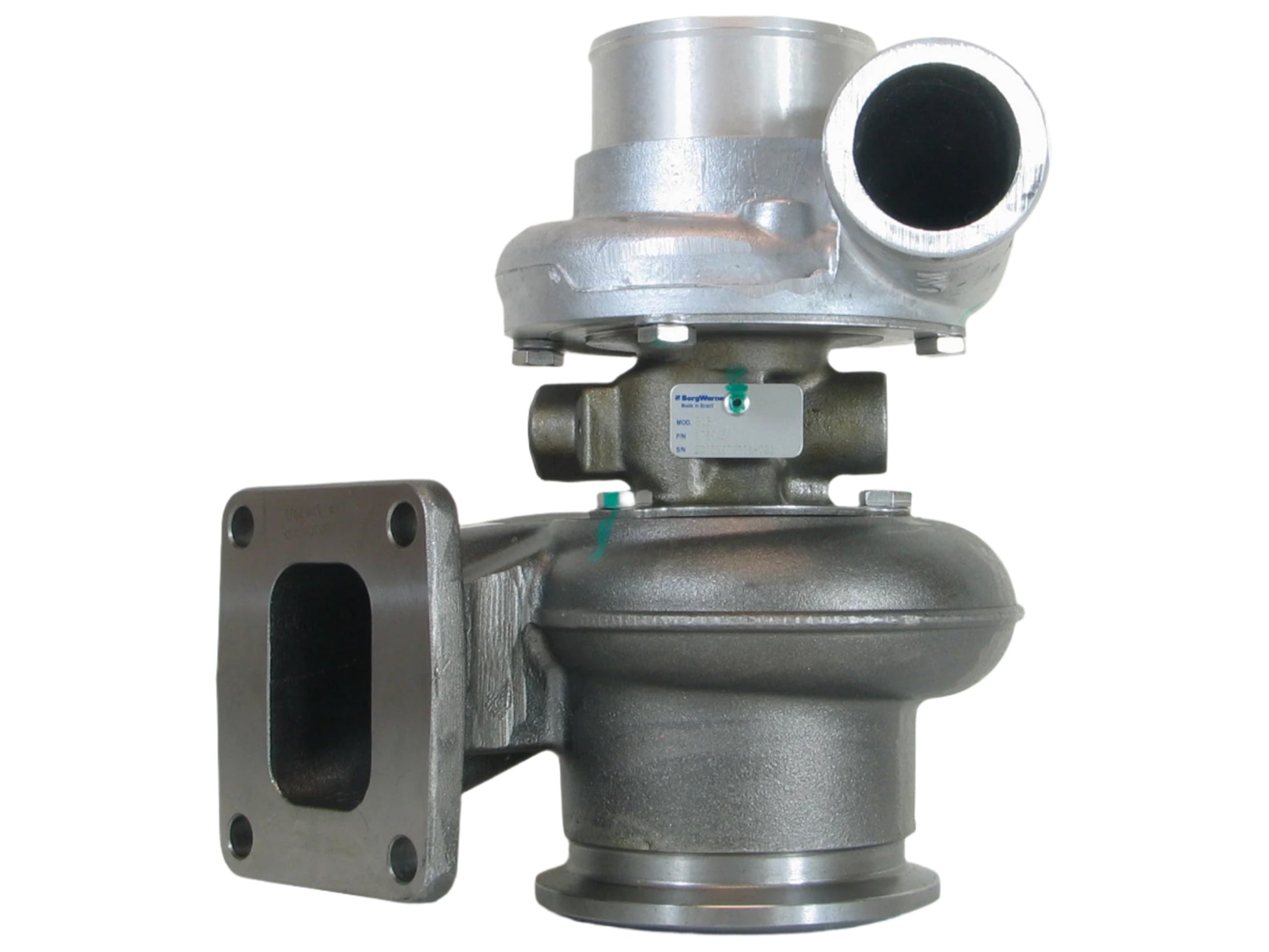

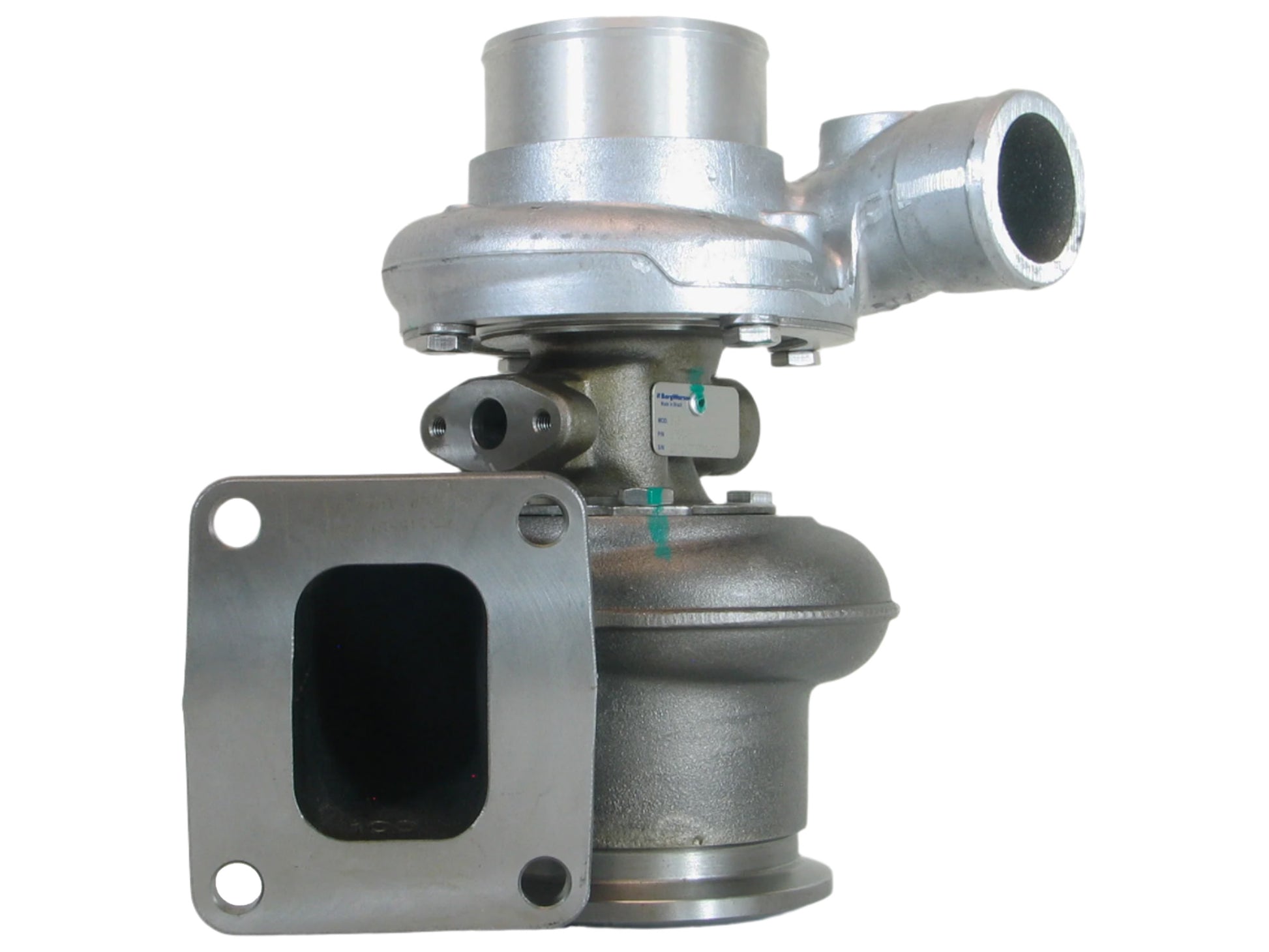

NEW BorgWarner S100 Turbo John Deere Agricultural 4045HT Excavator 4045H 178045

BRAND NEW GENUINE BORGWARNER TURBOCHARGER

This is a BRAND NEW GENUINE BORGWARNER TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 178045
Interchangeable Number: 173182, 173183, 173404, 173587, 173685, 173738, 174103, 174104, 175295, 175296, 175297, 175298, 175299, 175300, 318606, 318606R, 318616, 318626, 318770, 3990023031, 3990023112, 3990023186, 399023112, 418770, 466003-0003, 466003-5003, 466003-5003S, 473183, 478045
OEM Number: RE501155, RE505047, RE506802, RE508876, RE508968, RE508970, RE508975, RE509572, RE509640, RE509645, RE515927, RE515977, RE515981, RE516011, RE517786, RE518241, RE518463, RE518976, RE520459, RE520461, RE526871, RE526872, RE526873, RE59379, SE501155, SE501157, SE501671, SE501674
Turbo Model: S100
Manufacturer: BorgWarner - 3K - Schwitzer BWTS USA

Year: 2000-11
Engine: 4045, 4045H, 4045H275
Fuel: Diesel
Power: 75/85/86/104 kW, 100/116/117/141 HP
Speed: 2000/2300/2400/2500 RPM

Angle α (Compressor Housing): 78°
Angle β (Turbine Housing): 0°
Back Plate: 196872 (315910)(1252201300)(1800016064)
Bearing Housing: 318710 (Oil Cooled)
Compressor Wheel: 313257 (Ind. 43.28 mm, Exd. 57.98 mm, 6+6 Blades, Super Back)
Gasket Kit: 318418
Heat Shield: 311863 (1252201340)(2030016099)
Repair Kit: 318374 (312943, 313809, 315360)(1252201750)
Turbine Housing A/R: 9.0
Turbine Wheel: 318630 (Ind. 48.59 mm, Exd. 55.4 mm, 10 Blades)

NOTE:

- If original turbo has a 1.5" spacing oil drain tube and VOF (open volute) turbine inlet, use 178045. If it has a 2" spacing oil drain tube and VTF (divided volute) turbine inlet, use 318615. RE509555 is the correct oil drain for 178045.
- If the stock turbo has a 2" oil drain bolt spacing you will need RE509555 oil drain to go with 178045.
- Internal parts not interchangeable on some turbos.
- RE509555 oil drain pipe and 2 M6 X 1 metric bolts required on some turbos.

Application:
2000-11 John Deere Agricultural, Various with 4045HT Engine
2003-03 John Deere Excavator with 4045H Engine
John Deere 3800 Telescopic Handler, Telehandler
John Deere Genset
John Deere Timberjack

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
