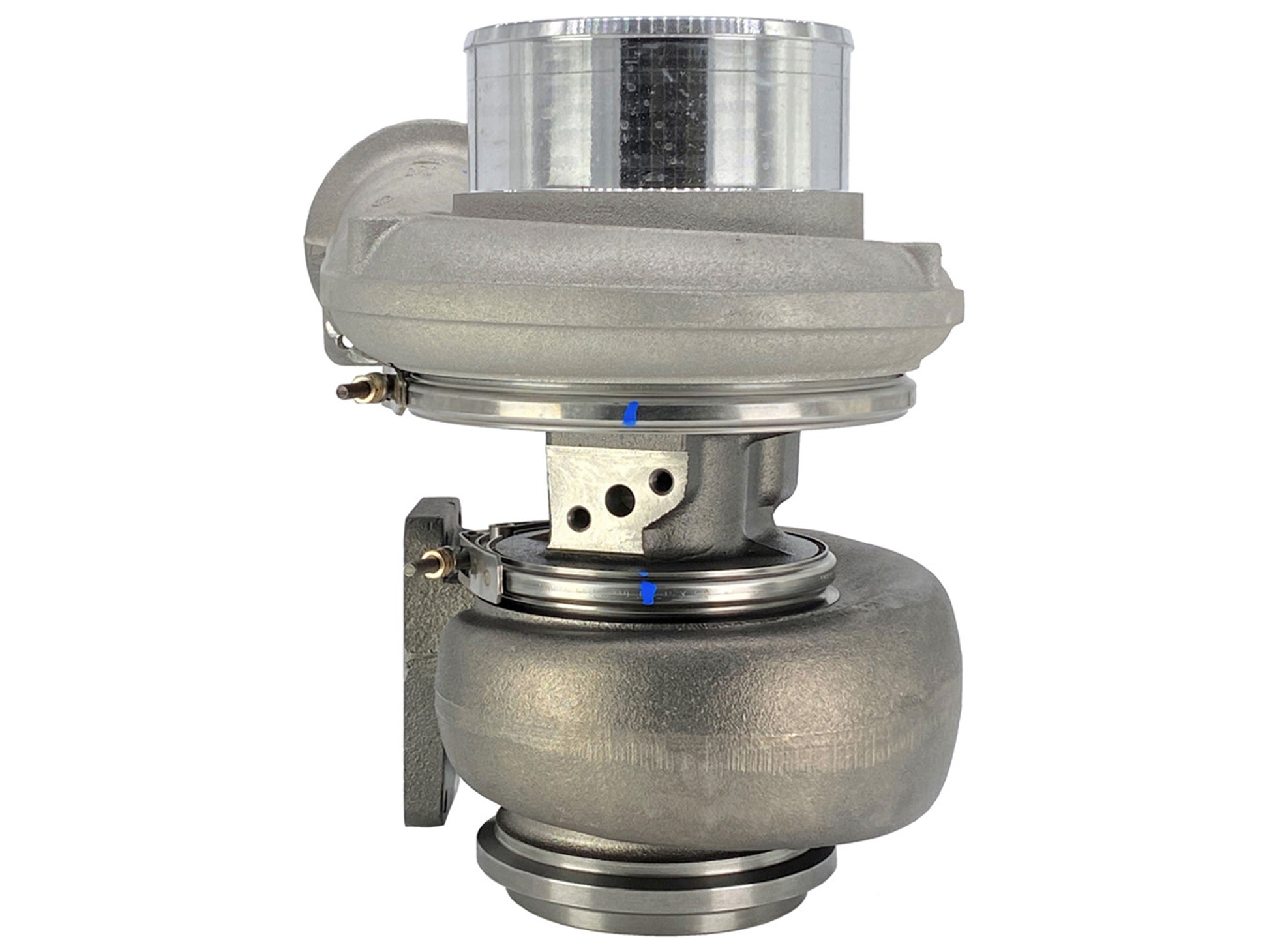

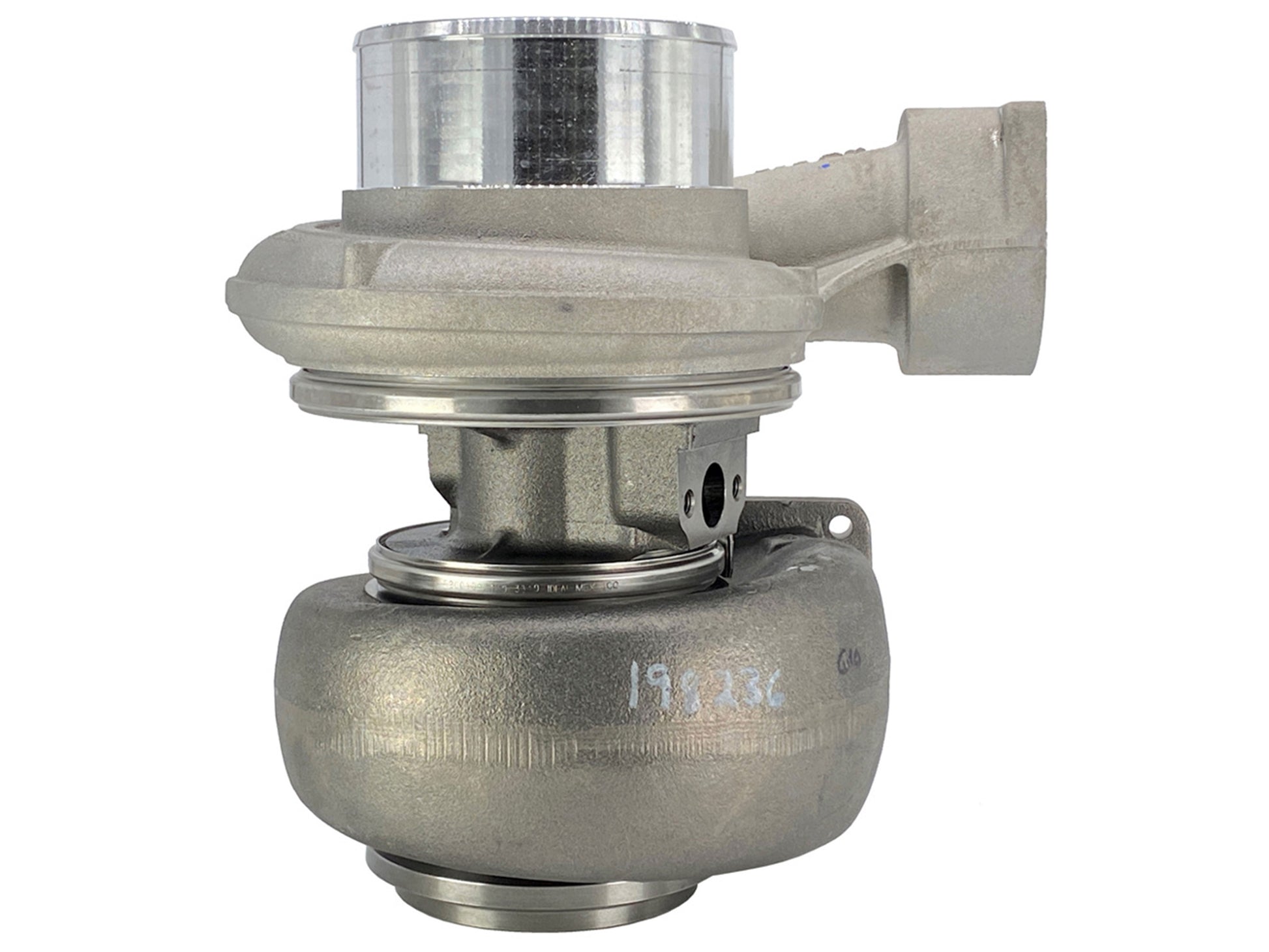

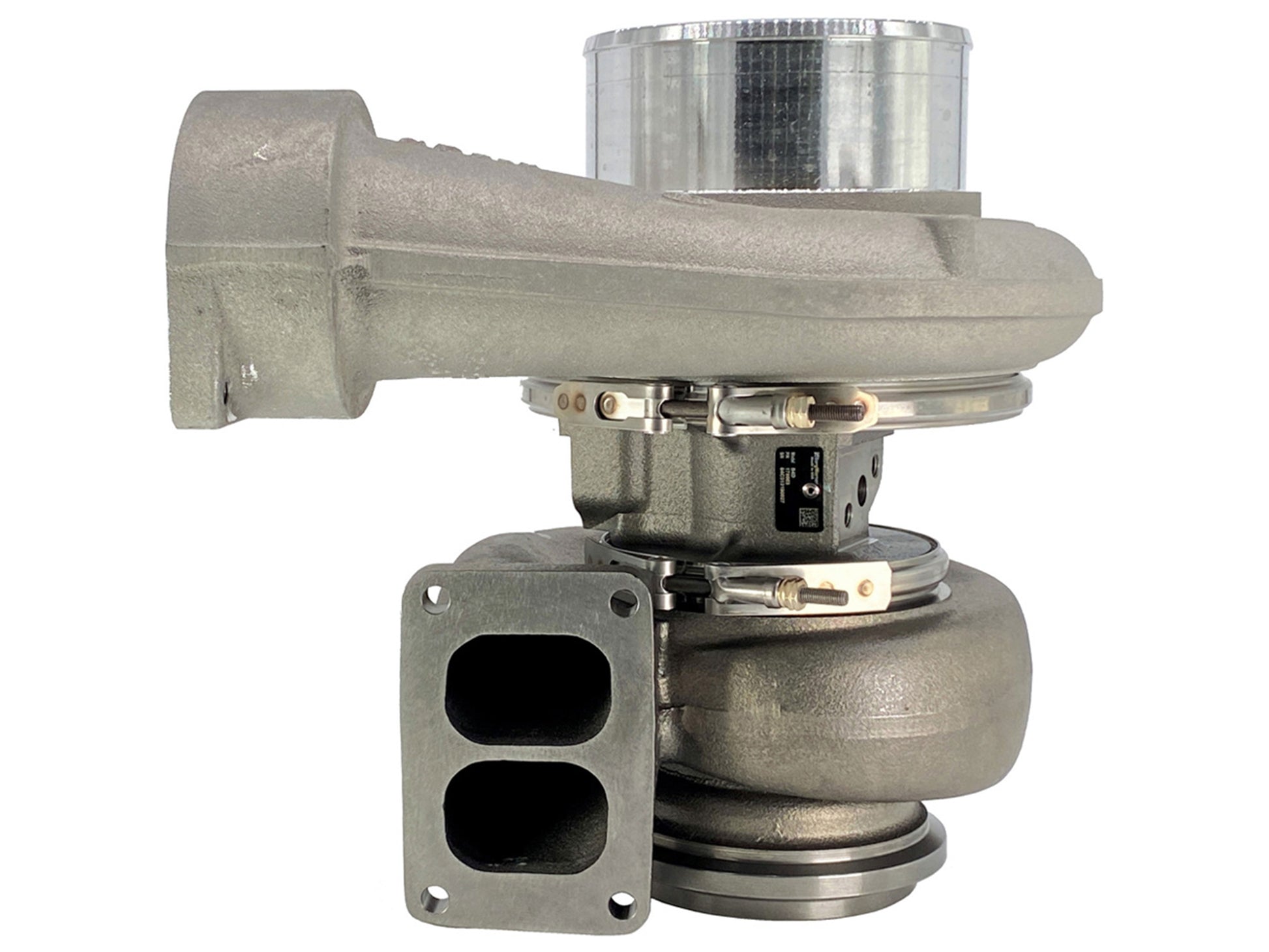

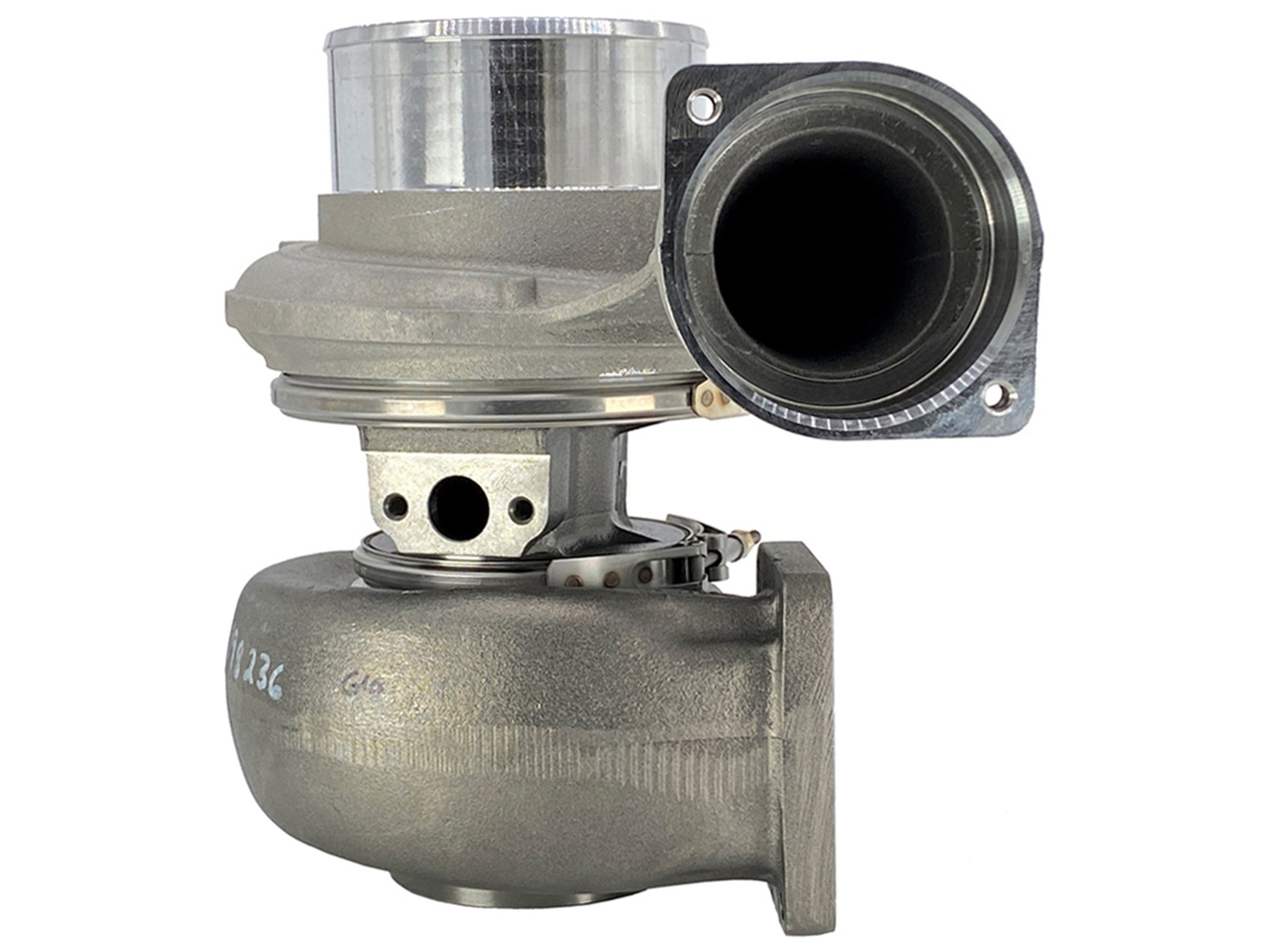

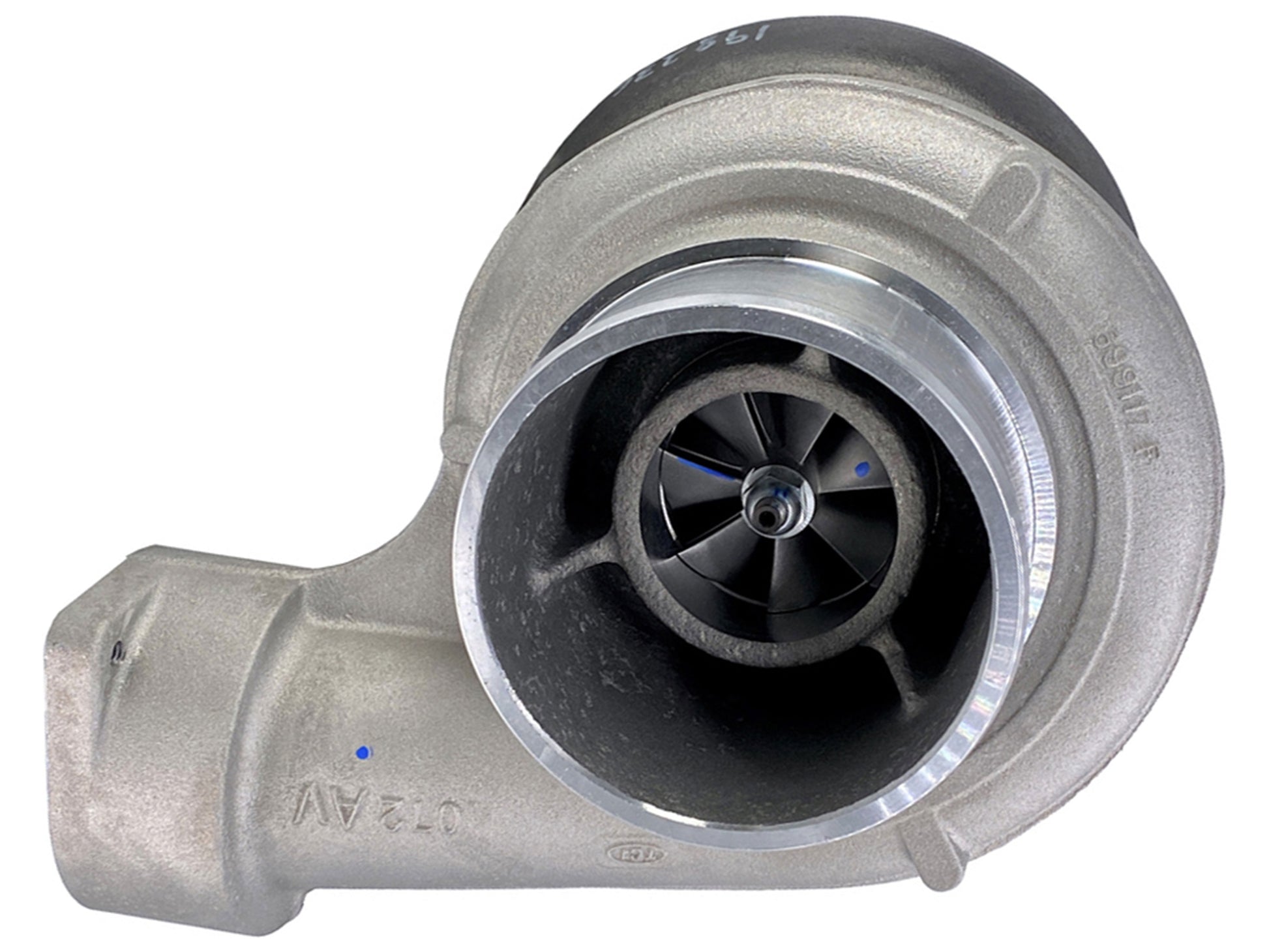

NEW BorgWarner S4DS025 Turbo Caterpillar Truck 3406B 3406C 14.6L Engine 178063SKU: 178063
This is a BRAND NEW GENUINE BORGWARNER TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 178063
Interchangeable Number: 178120, 198123, 199114, 199119, 466041-0001, 466041-5001, 466041-5001S, 466372-0002, 466372-5002, 466372-5002S, 466903-0001, 466903-5001, 466903-5001S
OEM Number: 0R-5733, 0R-6051, 0R-6053, 0R-6055, 0R-6167, 0R-6168, 0R-6169, 0R-6170, 0R-6558, 0R-6689, 0R-6783, 0R-6784, 0R-6955, 0R-6956, 0R-6957, 0R-6959, 0R-6960, 0R5733, 0R6051, 0R6053, 0R6055, 0R6167, 0R6168, 0R6169, 0R6170, 0R6558, 0R6689, 0R6783, 0R6784, 0R6955, 0R6956, 0R6957, 0R6959, 0R6960, 4P-2061, 4P-2458, 4P-2858, 4P2061, 4P2458, 4P2858, 7W-9568, 7W9568
Serial Number: 2EK1-1930, 8TC1413-14492
Turbo Model: S4DS025
Manufacturer: BorgWarner - 3K - Schwitzer, BWTS USA
Engine: 3406B, 3406C
Displacement: 14.6L, 14600 ccm
Power: 343 kW/460 HP
Prefix: 2EK, 4CK
Speed: 1800 RPM
Angle α (Compressor Housing): 292°
Angle ß (Turbine Housing): 82°
Back Plate: 197651 (51135, 5S4556, 142066, 49162-22500, 52321523000, 52321523001, 143044-0000)(1250403300)
Bearing Housing: 199143 (199144, 4P3627)
CHRA: 169415 (0R7195, 1412023, 178171)
Compressor Cover: 199117 (4P3625)
Compressor Wheel: 169413 (4P3624, 1412010)(Ind. 75.15 mm, Exd. 98.99 mm, Trim 10.34, 6+6 Blades)
Gasket (Oil Inlet): 129119 (210019, 201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 129120)(417378 Replaced By 420641)(1900000035)
Gasket (Oil Outlet): 210018 (210018-0000, 129120, 409267-0002, 201048, 157602, 3037537, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025)
Gasket (Turbine Inlet): 409038-0000 (132040, 52231083002)
Heat Shield: 187517 (4W7355)
Repair Kit: 318406 (318408)(311144)(1252419755)
Turbine Housing A/R: 1.72
Turbine Housing: 198236 (7E2907)
Turbine Wheel: 189553 (7W3842)
NOTE: Complete replacement turbo. Internal parts not interchangeable. Upgrade turbo for CAT 3406B and 3406C engine.
1990-02 Caterpillar Commercial Truck with 3406B Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
