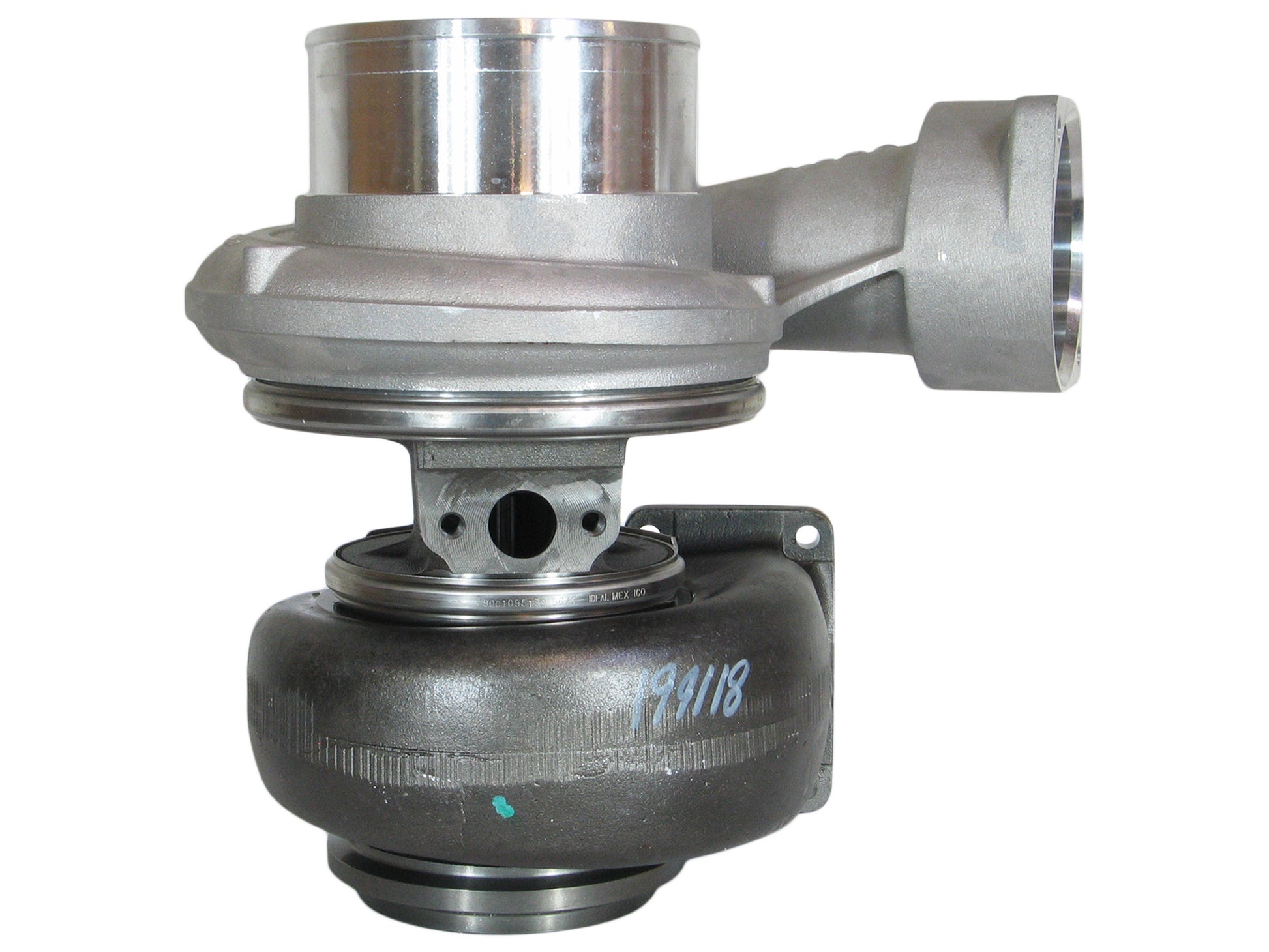

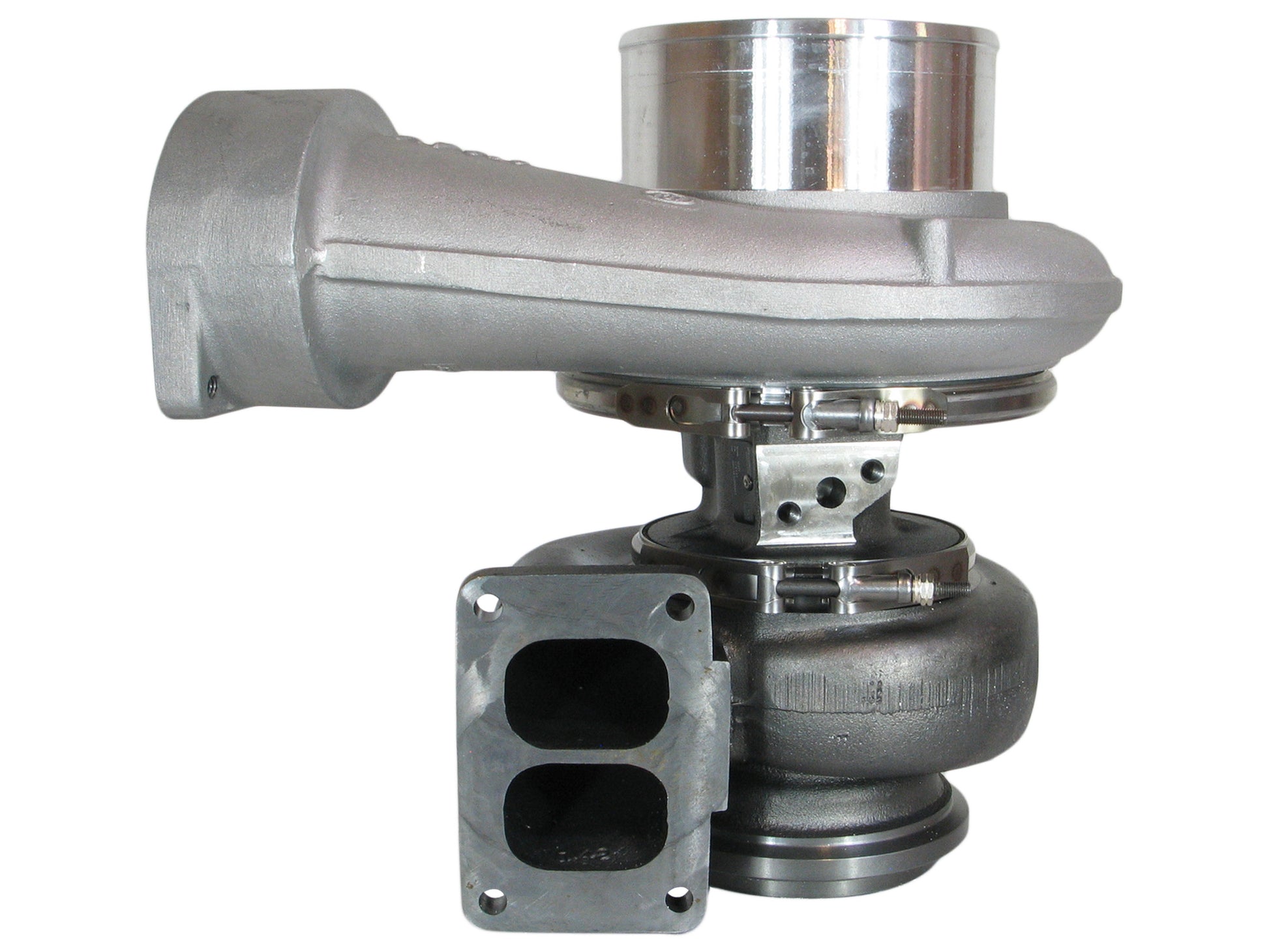

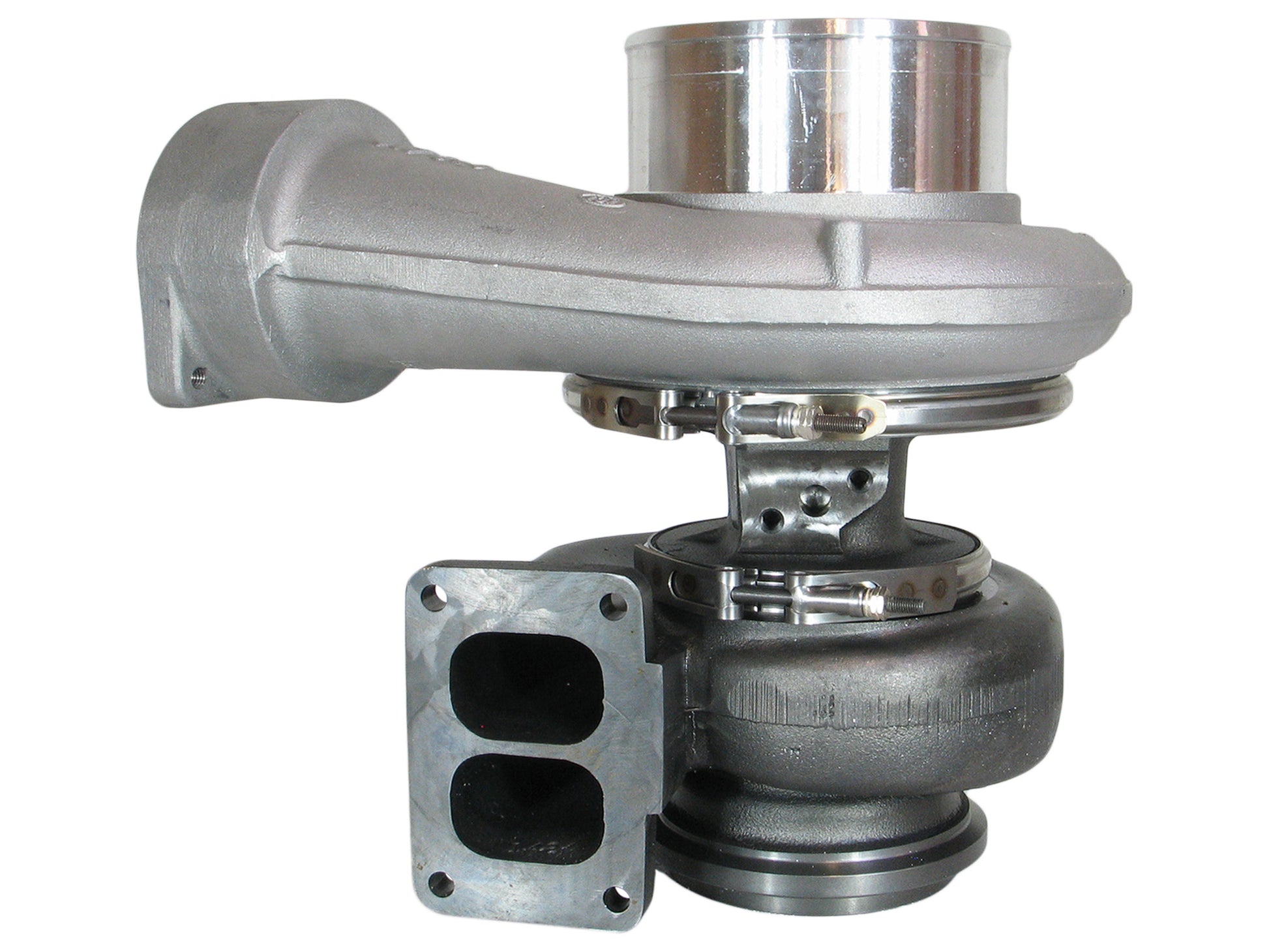

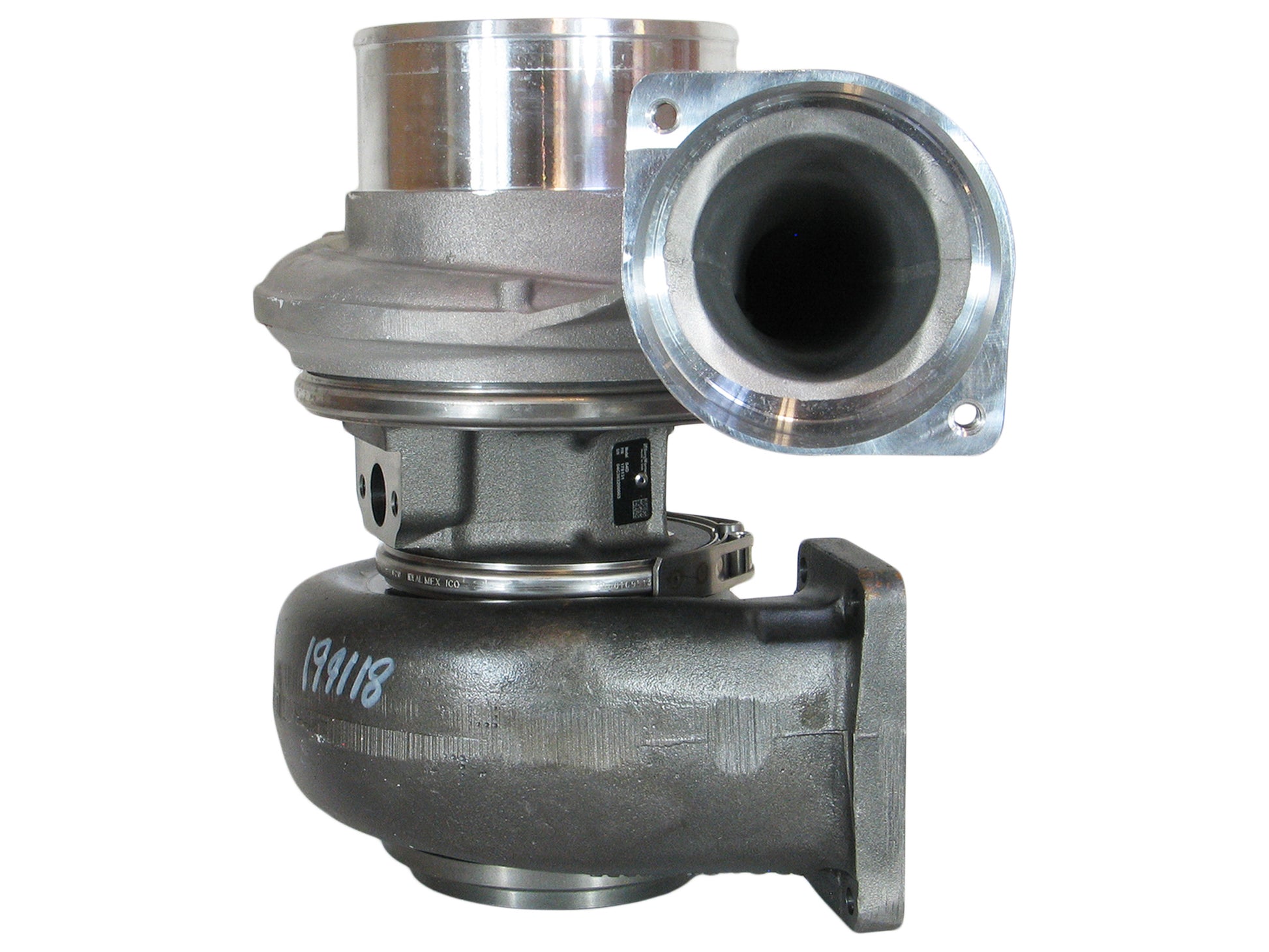

NEW OEM BorgWarner S4DS025 Turbo CAT Truck 3406 3406B Diesel Engine 14.6L 199114SKU: 178131
This is a BRAND NEW GENUINE BORGWARNER TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

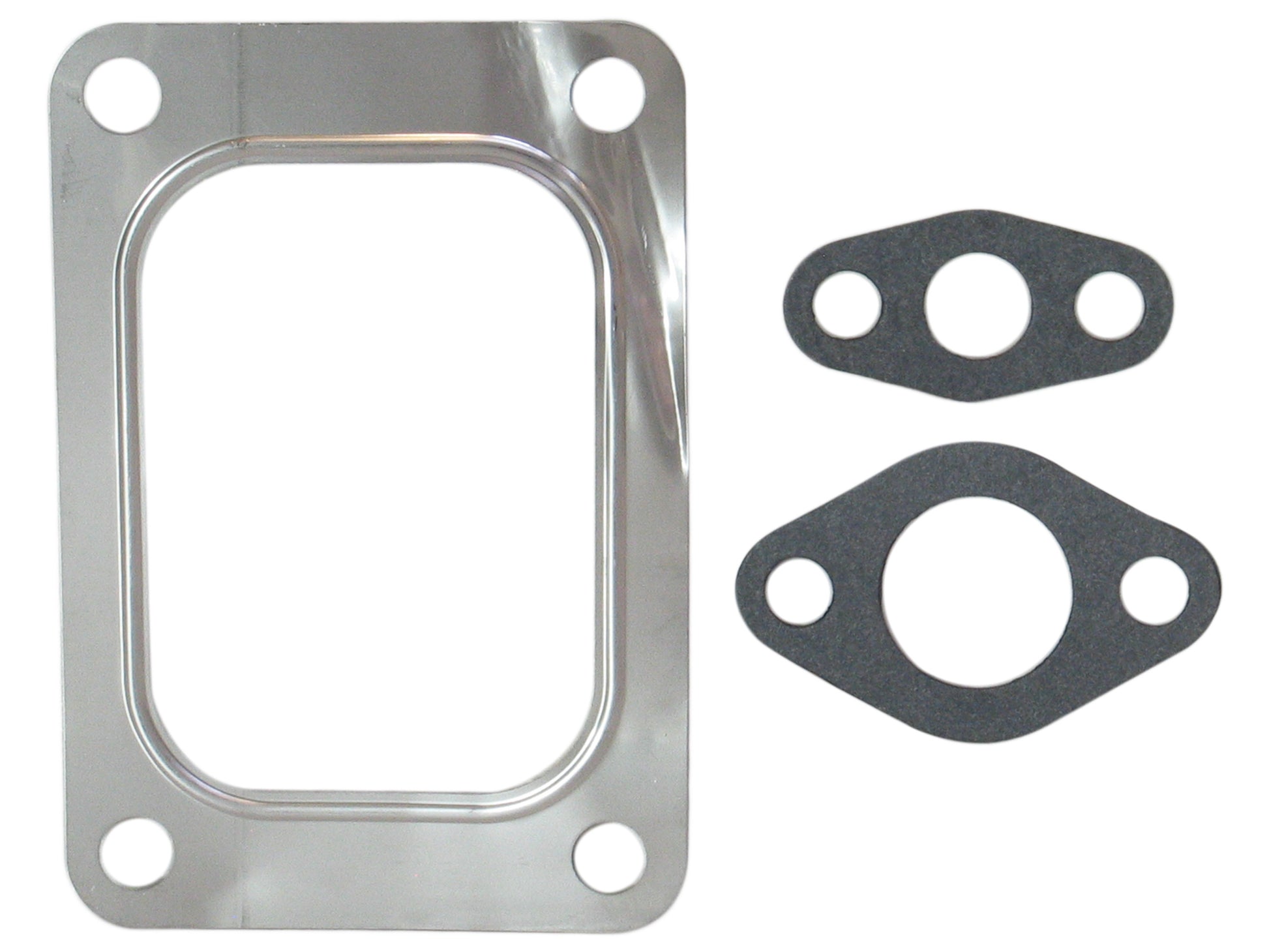

NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 199114
Interchangeable Number: 178131, 199114R, 465679-0001, 465679-5001, 465679-5001S, 466191-0002, 466191-5002, 466191-5002S, 466907-0001, 466907-5001, 466907-5001S
OEM Number: 0R6055, 0R-6055, 0R6167, 0R-6167, 0R6168, 0R-6168, 0R6959, 0R-6959, 1080010R, 478131, 499114, 4P2061, 4P-2061, 4P2062, 4P-2062, 9Y1907, 9Y-1907
Turbo Model: S4DS025
Manufacturer: BorgWarner - 3K - Schwitzer
Engine: 3406, 3406B
Displacement: 14.6L, 1400 ccm
Power: 261 kW/350 HP
Speed: 1800 RPM
Angle α (Compressor Housing): 292°
Angle β (Turbine Housing): 82°
Back Plate: 197651 (51135, 5S4556, 142066, 49162-22500, 52321523000, 52321523001, 143044-0000)(1250403300)
Bearing Housing: 199143 (199144, 4P3627)(Oil Cooled)
CHRA: 169415 (199115, 0R7195, 0R6172, 1412023, 178171, 478171, 469415, 4P2525)

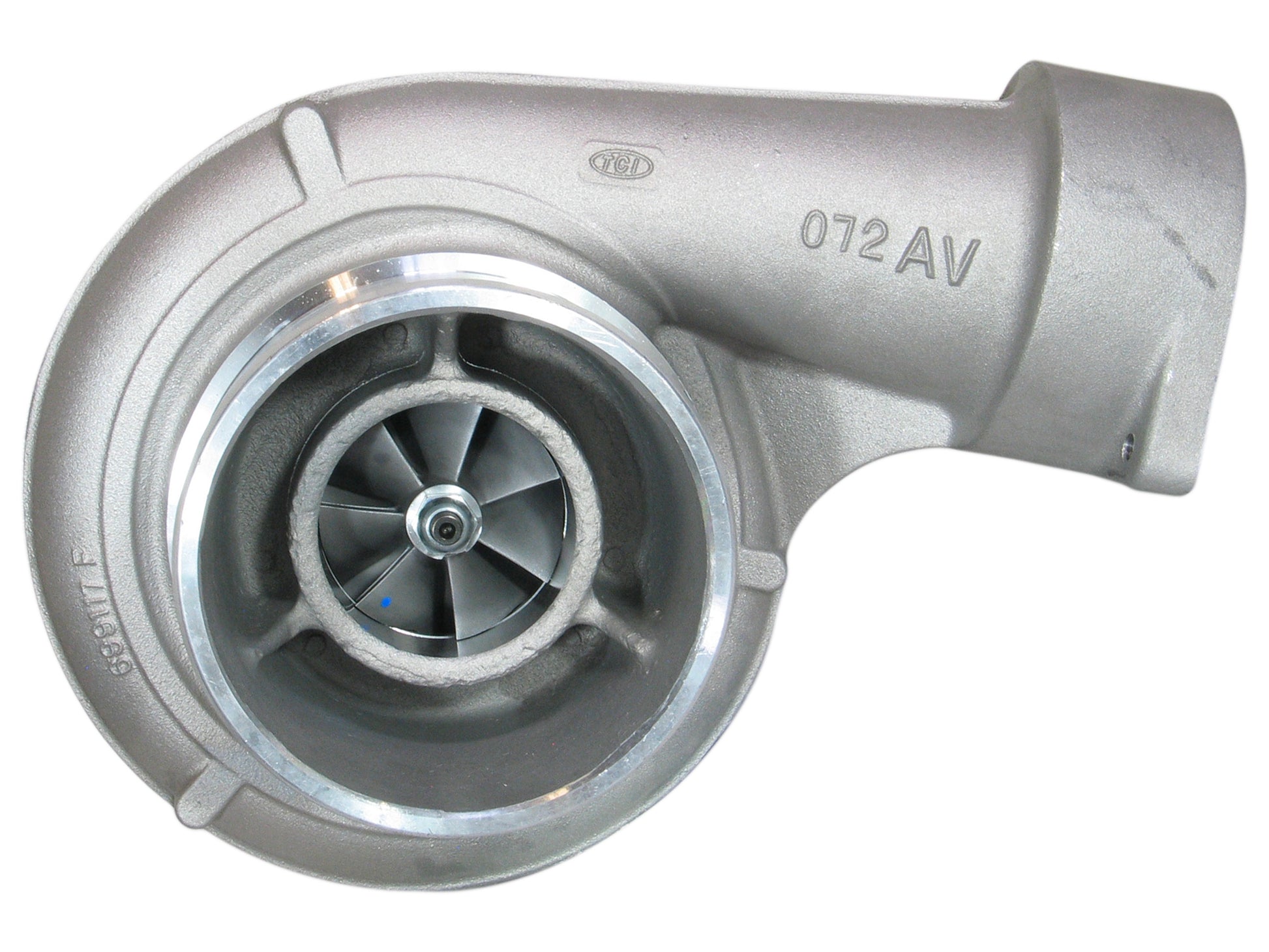

Compressor Cover: 199117 (4P3625)
Compressor Wheel: 169413 (4P3624, 1412010)(Ind. 75.15 mm, Exd. 98.99 mm, Trim 10.34, 6+6 Blades)
Gasket (Oil Inlet): 210019 (409266-0004, 210019-0000, 201049, 129119, 409266-0003)(Paper)
Gasket (Oil Outlet): 210018 (3519763, 129120, 210018-0000, 201048, 157602, 3037537)(Paper)
Gasket (Turbine Inlet): 409038-0000 (1S4295, 132040, 52231083002, 210835-0000, 9749, 7M7273, 7H1558, 8N2835)
Gasket Kit: 318417
Heat Shield: 187517 (4W7355)
Repair Kit: 318406 (318408)(311144)(1252419755)
Turbine Housing A/R: 1.42

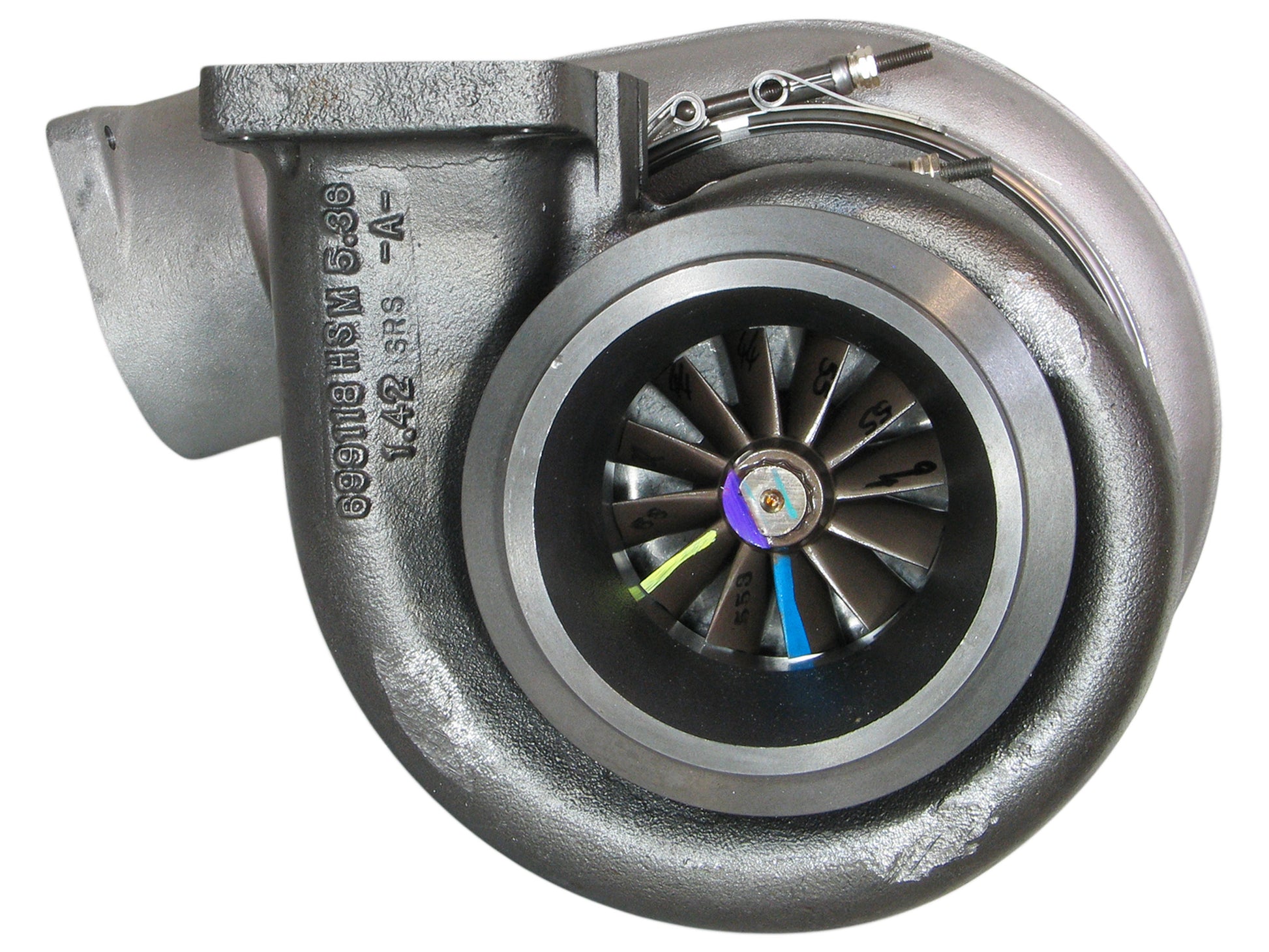

Turbine Housing: 199118 (4P3626)
Turbine Wheel: 189553 (7W3842)(6115014684685)(Ind. 84.9 mm, Exd. 96.4 mm, 12 Blades)
1990-02 Caterpillar Truck with 3406, 3406B Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
