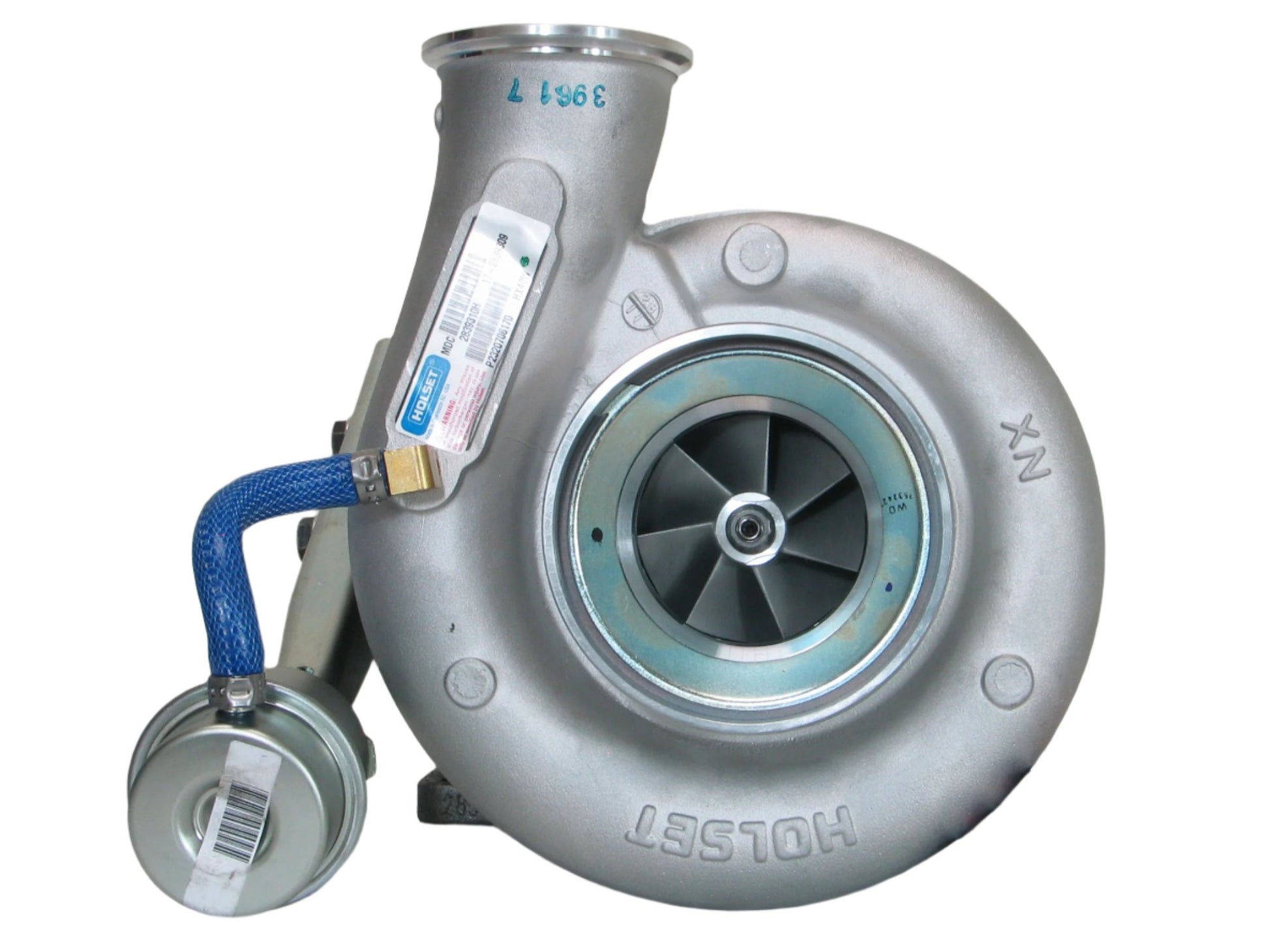

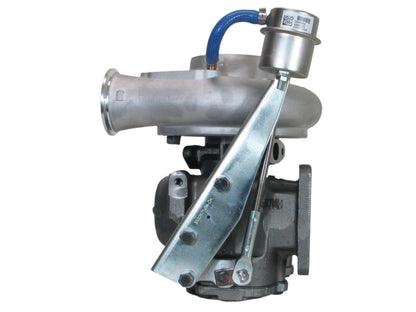

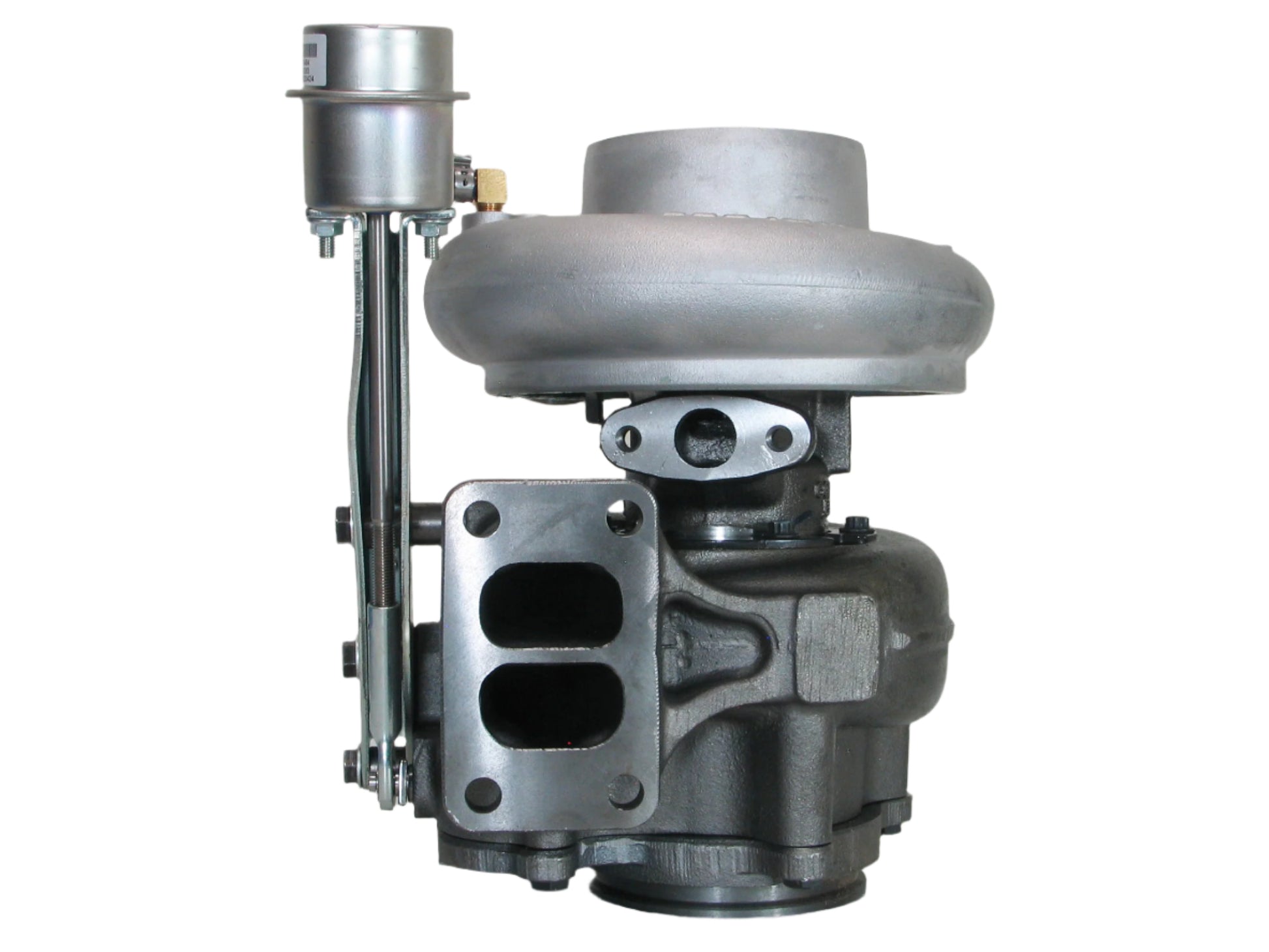

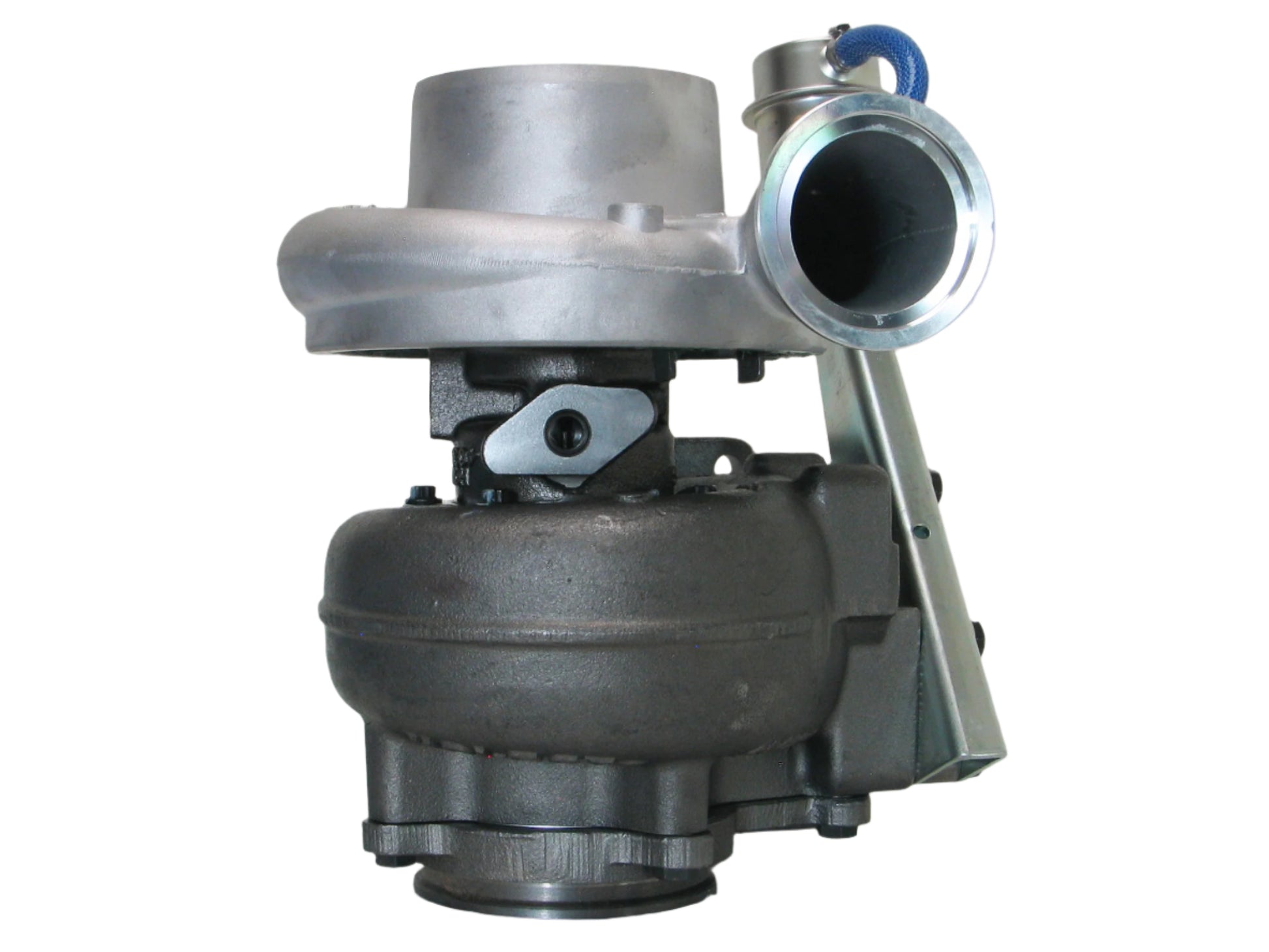

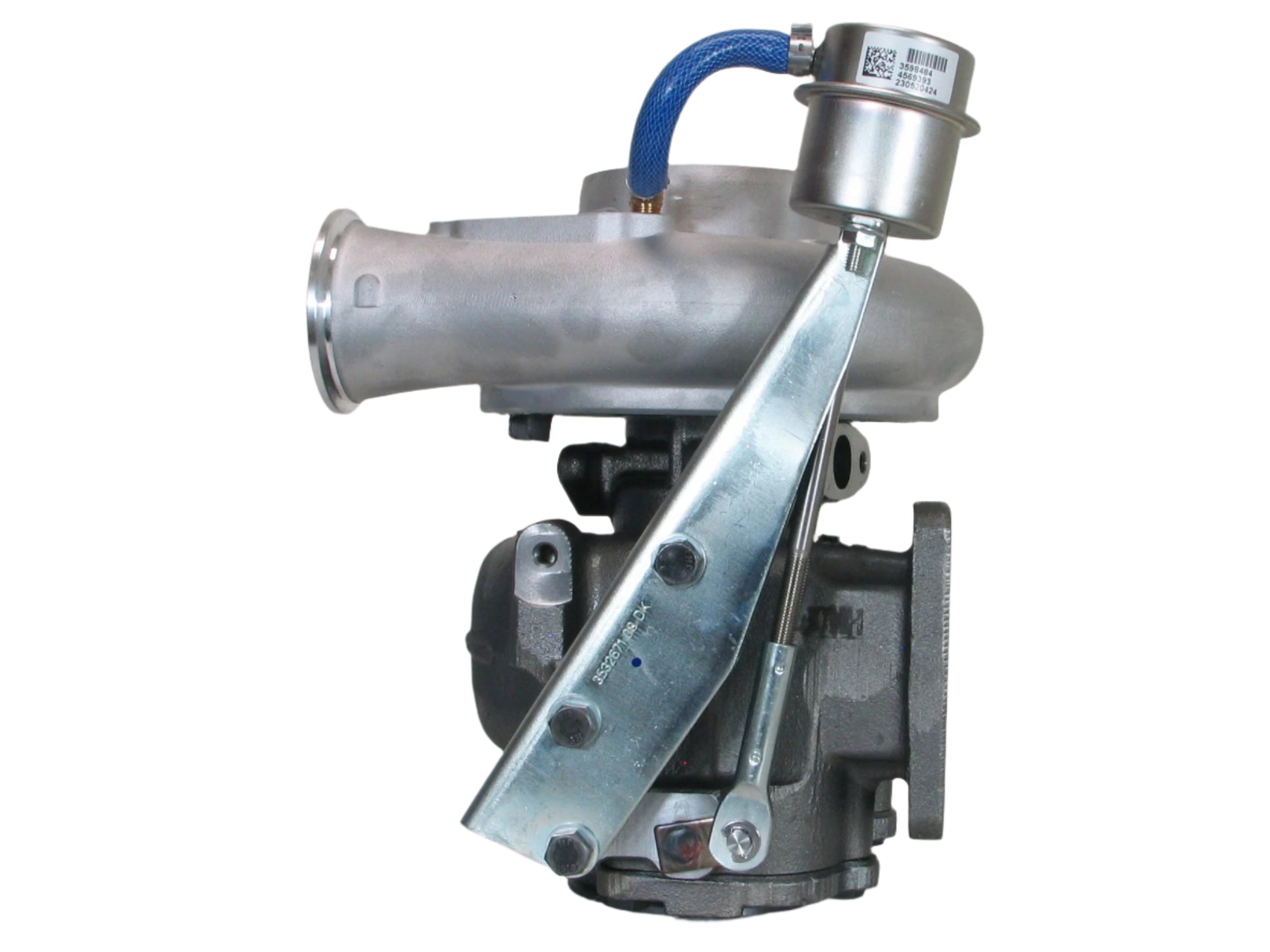

NEW Holset HX40W Turbo Industrial Cummins QSL 8.3L Diesel Engine 2839310 2839309

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 2839309
Interchangeable Number: 2839310H, 2881753RX, 2912185, 4037541, 4046098, 4089914, 5452078, 5452078NX, 5452078RX
OEM Number: 2839310, 2839311, 2839312, 2839313, 2840569, 2840571, 2881753, 4037511, 4037512, 4038117, 4044087, 84269951, 84269951R, 87355317
Turbo Model: HX40W
Manufacturer: Holset

Year: 2004-08
Engine: Pesagus QSL, QSL
Engine Manufacturer: Cummins
Displacement: 8.3L, 8300 ccm
Fuel: Diesel

Angle α (Compressor Housing): 255/265/277/299/325/345°
Angle β (Turbine Housing): 15°
Actuator Kit (Pneumatic): 3598471 (4030782, 4030782H)
Back Plate: 3530923 (3596448)(1154351300, 1800016009)
Bearing Housing: 3537112 (4038197, 3593878)(Oil Cooled)(1900011016B)
Bracket Kit: 4027136H
CHRA: 4031321 (4031321H, 4032234, 4032695, 4043363, 3769819H)
Compressor Housing: 3598995H
Compressor Wheel: 4035879 (3599016, 4035879, 4043377)(Ind. 60 mm, Exd. 86.05 mm, Trim 10.84, 7+7 Blades, Super Back)(1200016234)
Gasket (Oil Drain): 3519805H
Gasket (Oil Inlet): 409039-0000 (409039-0001, 210022-0000, 210019, 312617, 2405022, 7C7431)(1900000006)(Inox Steel)
Gasket (Oil Outlet): 210060 (2475013, 409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585)(Paper)

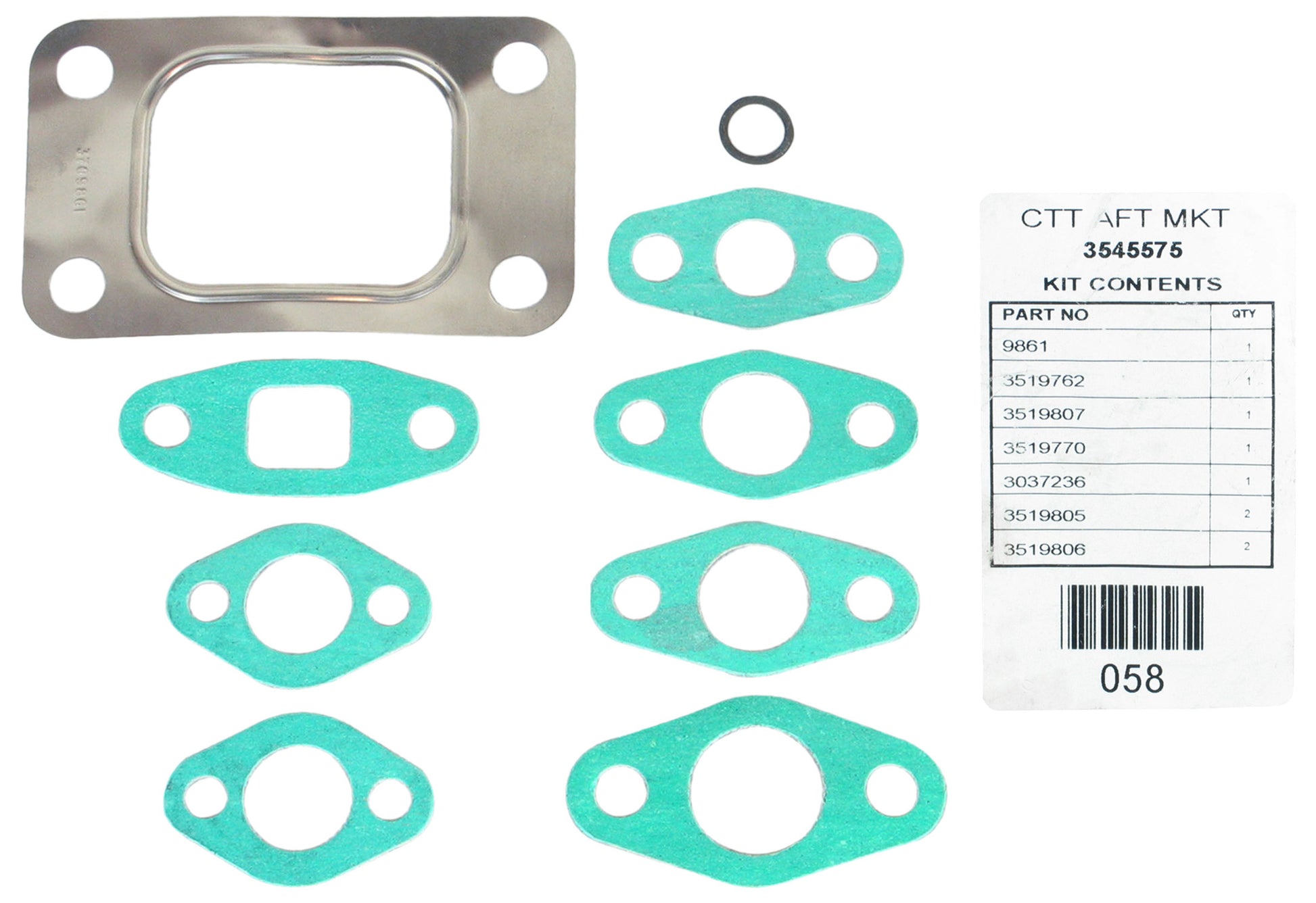

Gasket Kit: 3545575 (3545575H)(1900100057)
Heat Shield: 3519302 (1152301340, 2030016031)
Repair Kit (Major): 3575169 (4027448, 4027448H, 4032051H)(1153035750, 5000020021)
Repair Kit (Minor): 4031746H
Retaining Ring: 3533163H
Split Ring Seal (Compressor): 3758848H

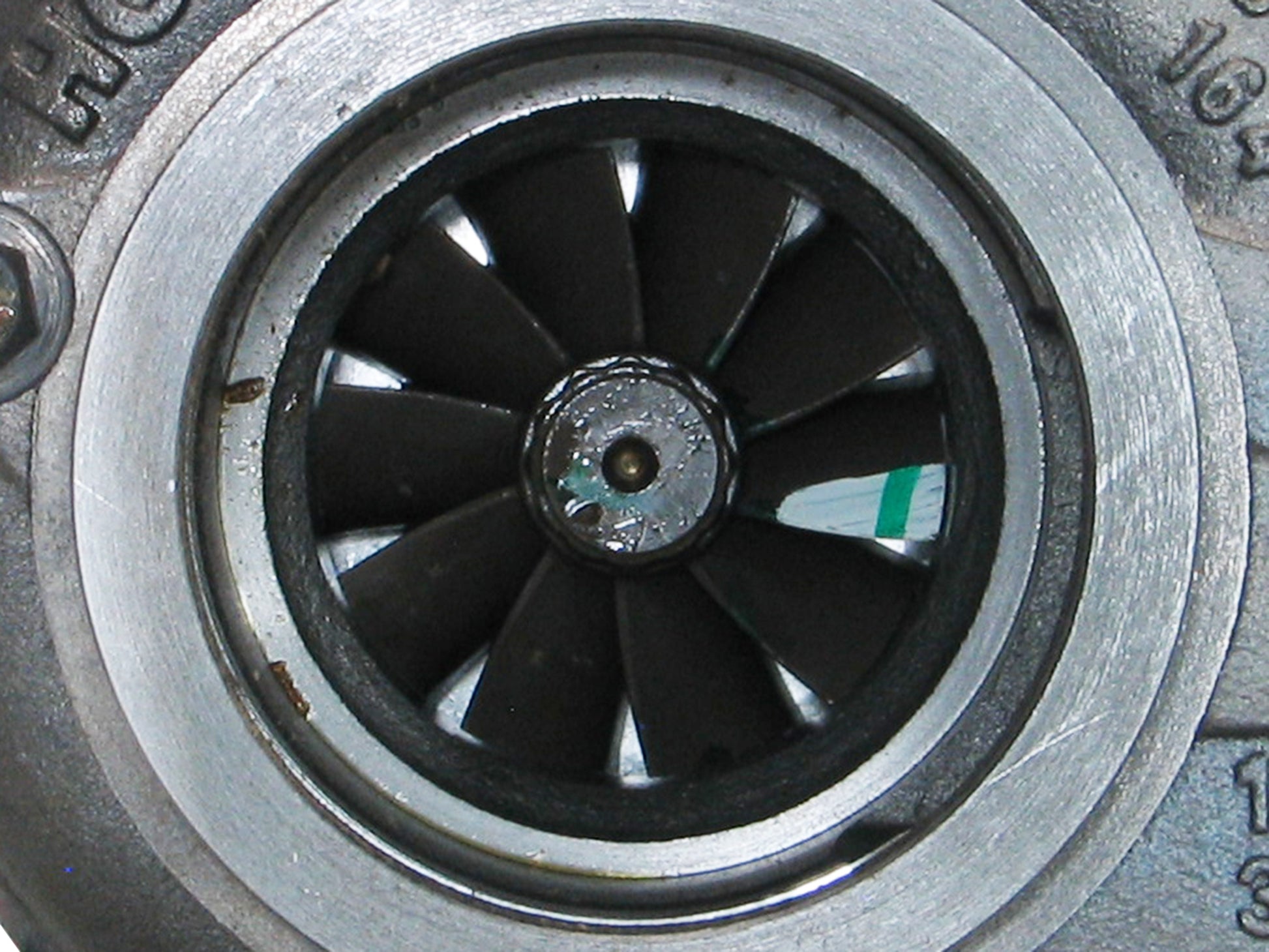

Turbine Wheel: 3596226 (3596226H, 4050572)(Ind. 76 mm, Exd. 64 mm, Trim 10.16, 10 Blades)(1100016180)
Turbocharger Kit: 2839310H

Application:
2004-08 Industrial with Cummins QSL Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
