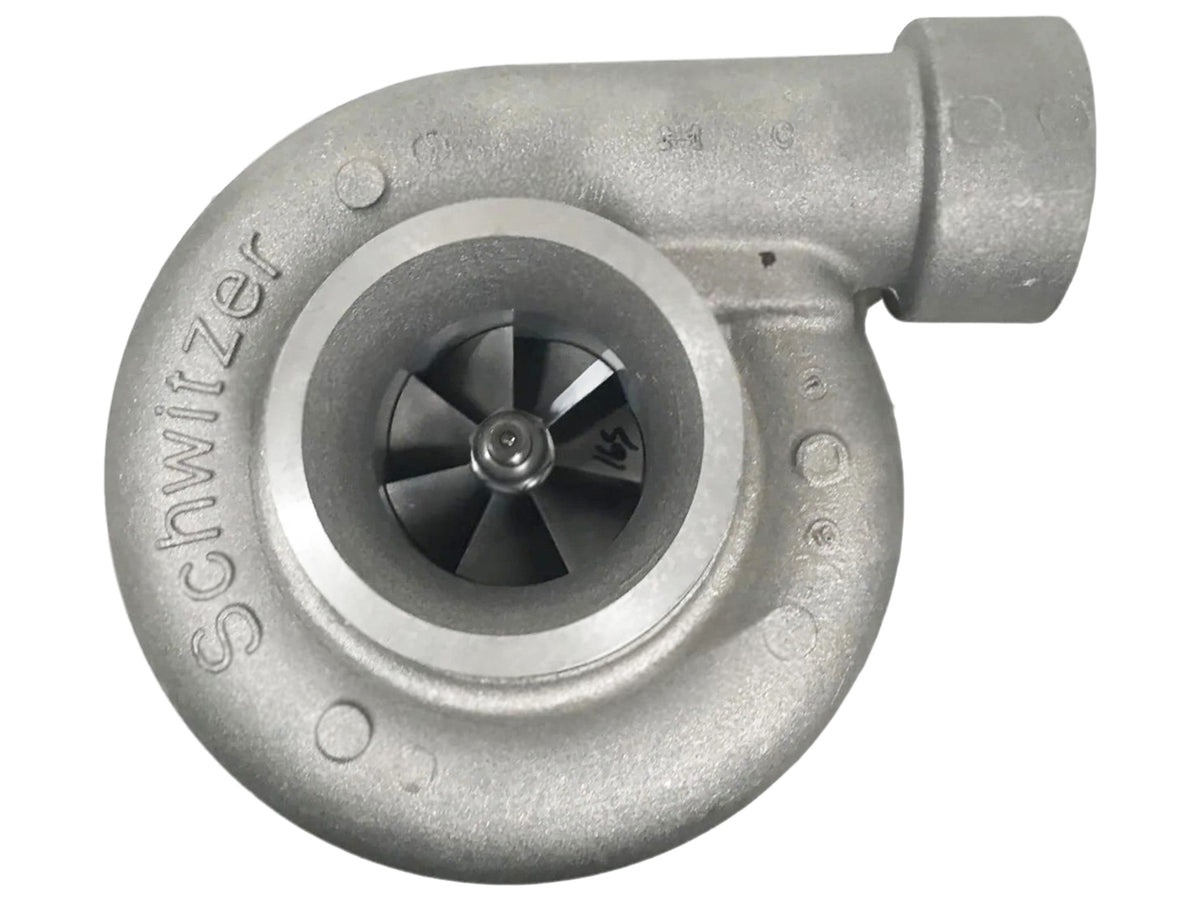

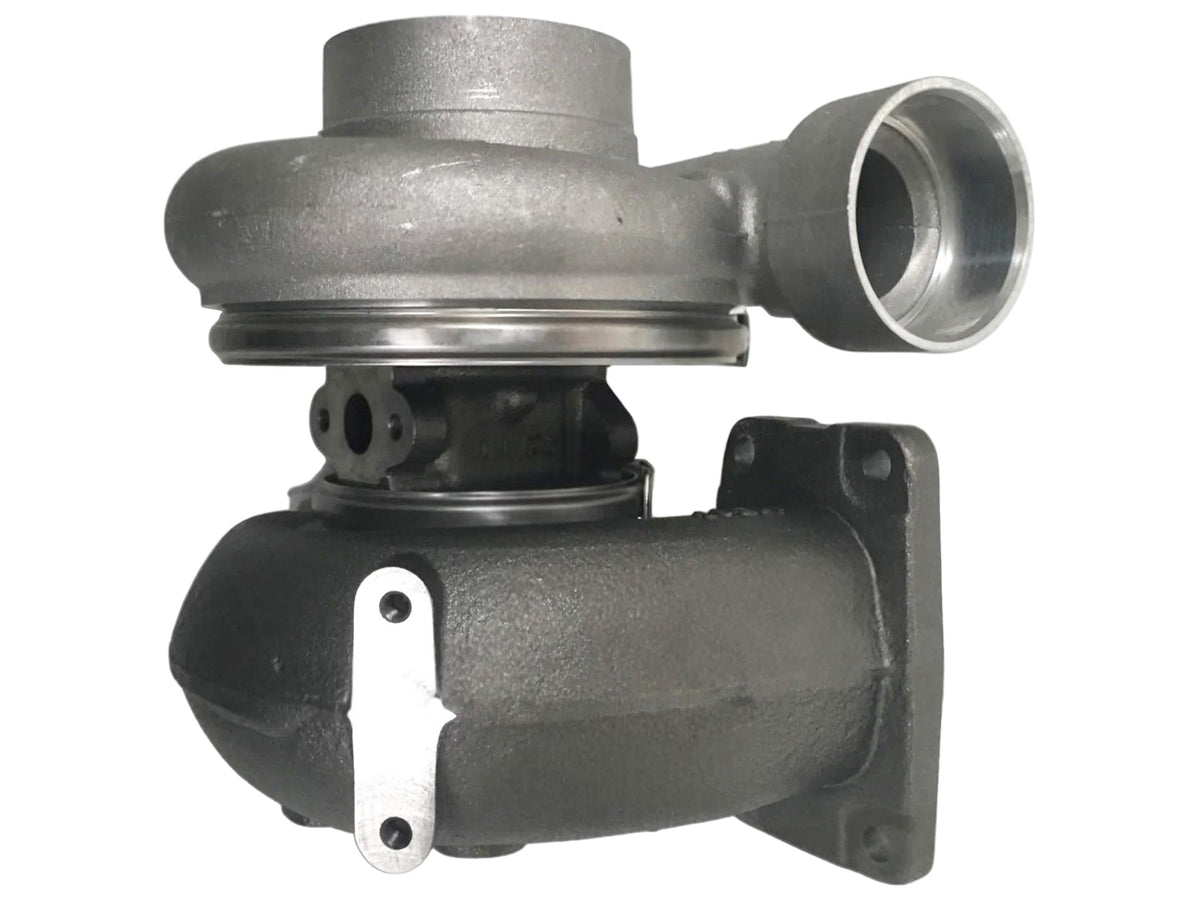

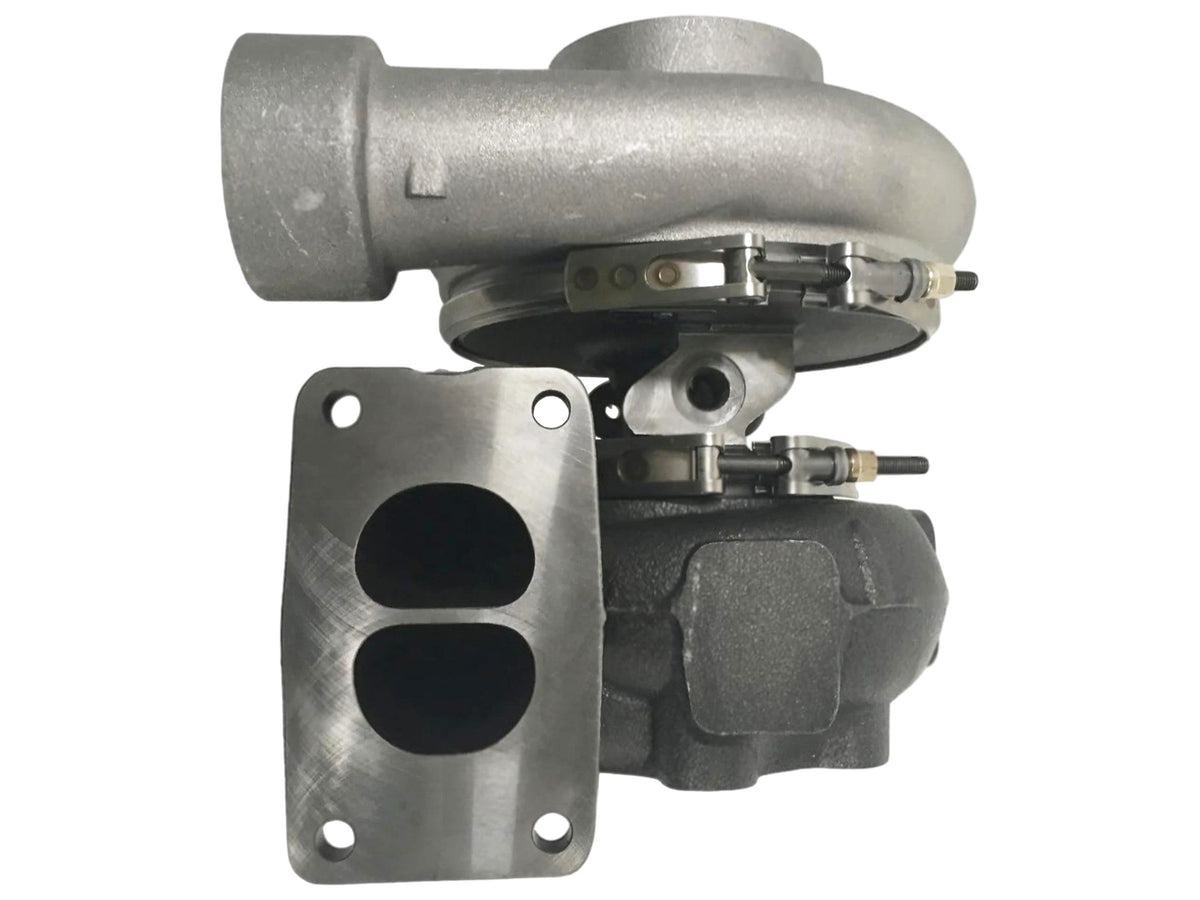

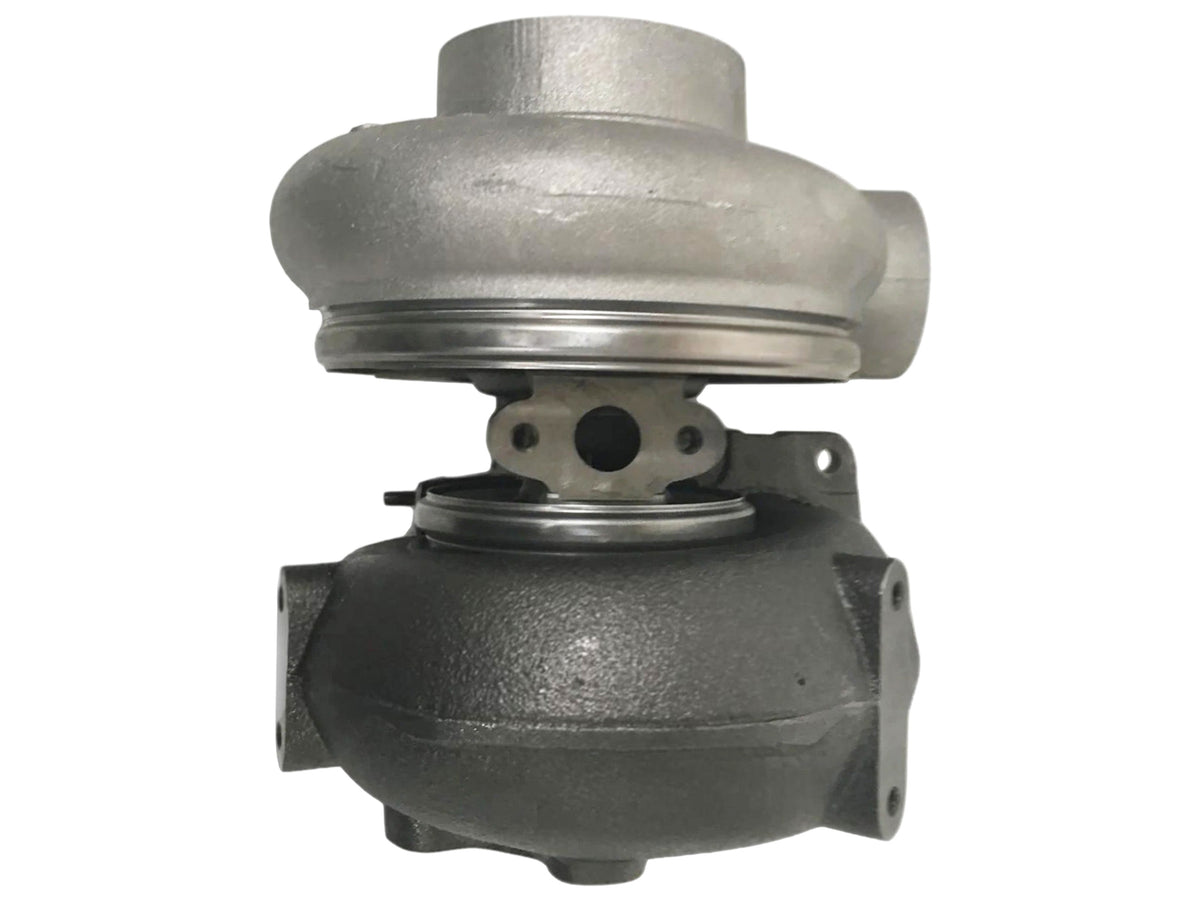

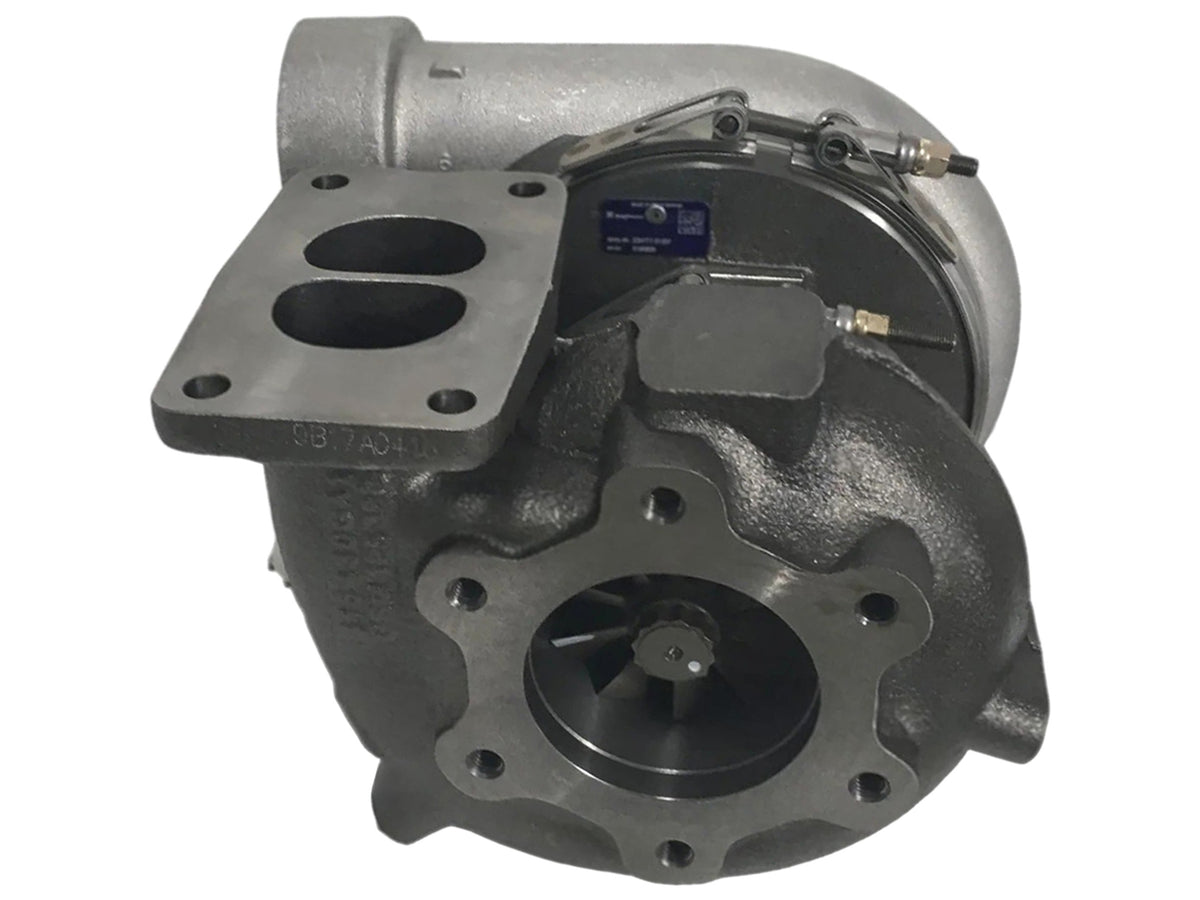

New BorgWarner S400 Turbo Mercedes Actros Truck 11.95L OM501LA Diesel 316699

BRAND NEW GENUINE BORGWARNER TURBOCHARGER

This is a BRAND NEW GENUINE BORGWARNER TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 316699
Interchangeable Number: 14839790000, 1483 979 0000, 1483-979-0000, 316429, 317405, 317762, 318052, 53319707100, 5331 970 7100, 5331-970-7100, 53319707104, 5331 970 7104, 5331-970-7104, 53319707127, 5331 970 7127, 5331-970-7127, 53319887100, 5331 988 7100, 5331-988-7100, 53319887104, 5331 988 7104, 5331-988-7104, 53319887127, 5331 988 7127, 5331-988-7127, 887393-0003, 887393-5003, 887393-5003S, 887393-5003Y
OEM Number: 0050967099, 0060966699, 0070964699, 0070964799, 0070966499, 0070967899, 0080960799, 0080965999, 50967099, 60966699, 70964699, 70966499, 70967899, 80960799, A0050967099, A0060966699, A0070964699, A0070964799, A0070966499, A0070967899, A0080960799, A0080965999
Turbo Model: S400
Brand: BorgWarner - 3K - Schwitzer

Engine: OM501LA, OM501LA Euro 3
Engine Manufacturer: Mercedes-Benz
Displacement: 11.95L, 11946 ccm, 6 Cylinders
Fuel: Diesel
Power: 315 kW/428 hp
Speed: 1800 rpm

Angle α (Compressor Housing): 0/23/54/62°
Angle β (Turbine Housing): 0/55°
Bearing Housing Insert: 316010
Bearing Housing: 317028
CHRA: 316700
Compressor Housing: 316424
Compressor Wheel: 169956 (Ind. 63.79 mm, Exd. 93.05 mm, 6+6 Blades)
Fitting Kit: 14007121000
Flinger Sleeve: 167781
Gasket (Oil Inlet): 147837
Gasket (Oil Outlet): 311585
Gasket (Turbine Inlet): 210648 (Inox Steel)
Gasket (Turbine Outlet): 210239 (Stainless Steel)
Heat Shield: 315964
Journal Bearing: 167787
O-Ring (Black): 151242
O-Ring: 146608
Oil Deflector: 167784
Piston Ring (Purple, Turbine Side): 315536
Piston Ring (Yellow): 167551
Repair Kit: 318396
Retaining Ring: 127305/167788
Shaft Nut (Left-Hand Thread): 167799
Spacer Sleeve: 167785
Thrust Bearing: 167786
Turbine Housing: 316431
Turbine Wheel: 167798/315273 (Ind. 83.6 mm, Exd. 74.4 mm, 6+6 Blades)(1253400435)
V-Band (Turbine Side): 194650
V-Band Nut: 130665/316328
V-Band: 194649

NOTE: Also for 230, 260, and 290 kW.

Application:
1997-14 Mercedes-Benz Actros Truck with 11.95L OM501LA Diesel Engine
1999-03 Mercedes-Benz Actros Truck (Euro 3) with 11.95L OM501LA Diesel Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
