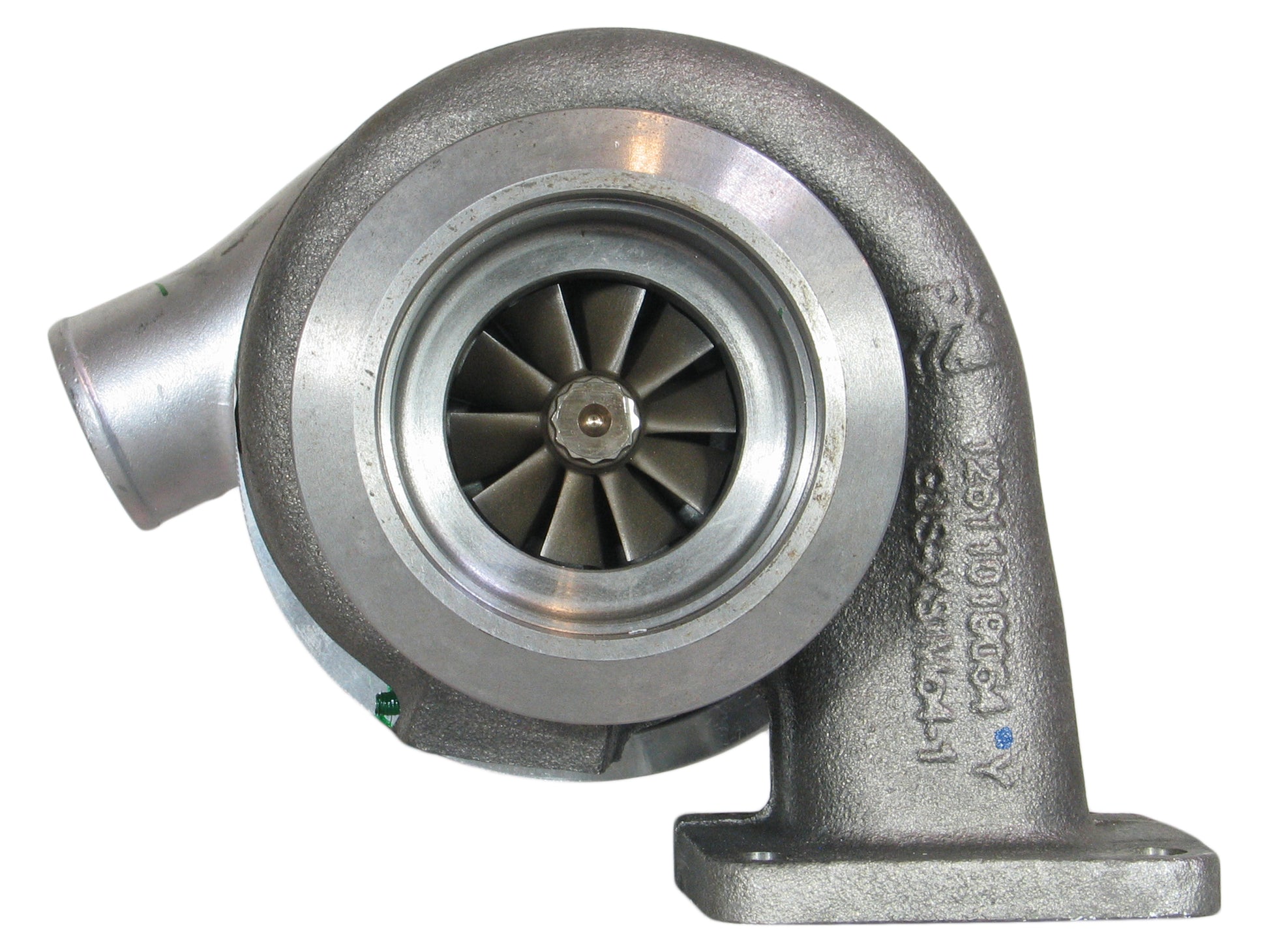

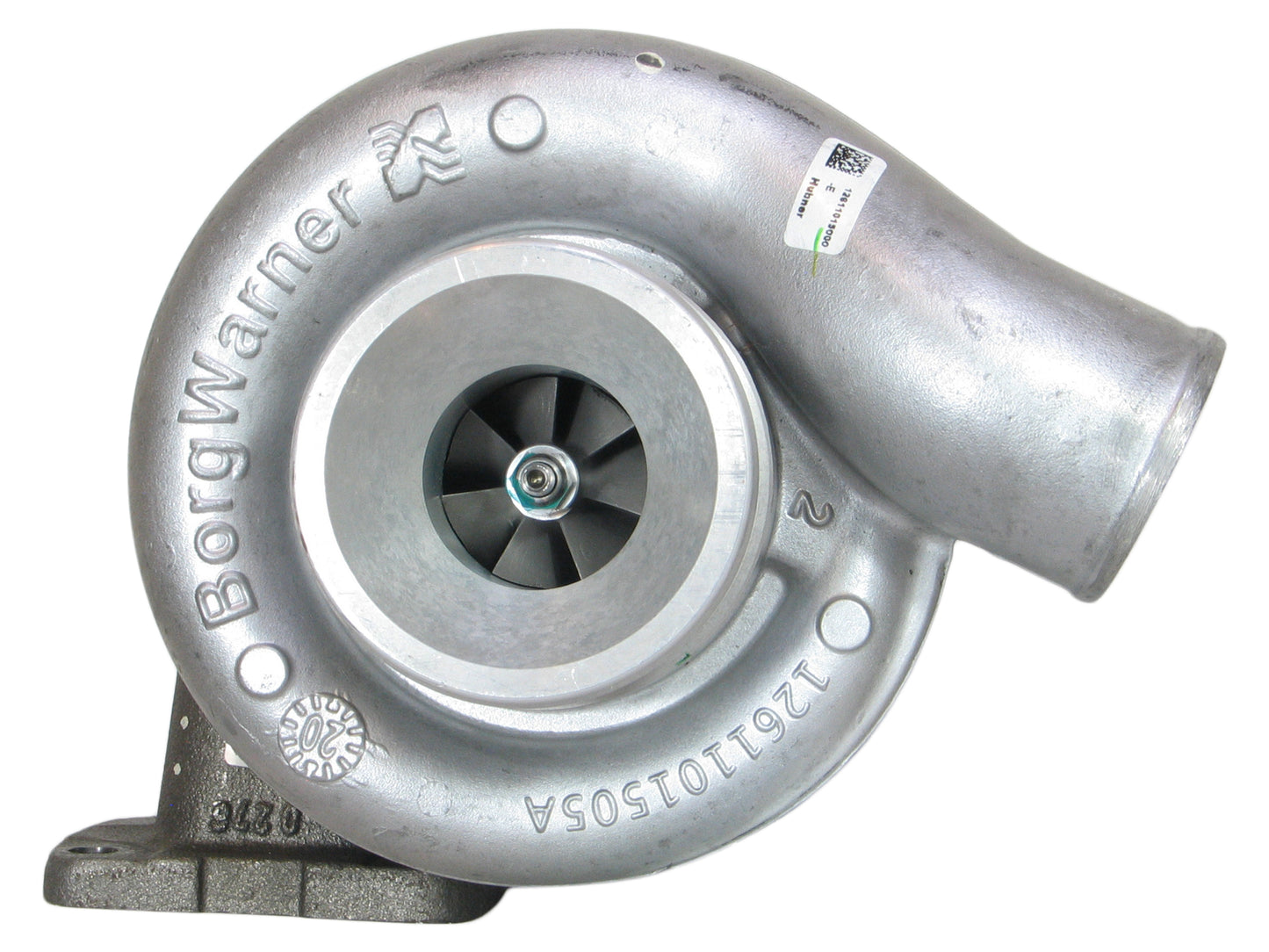

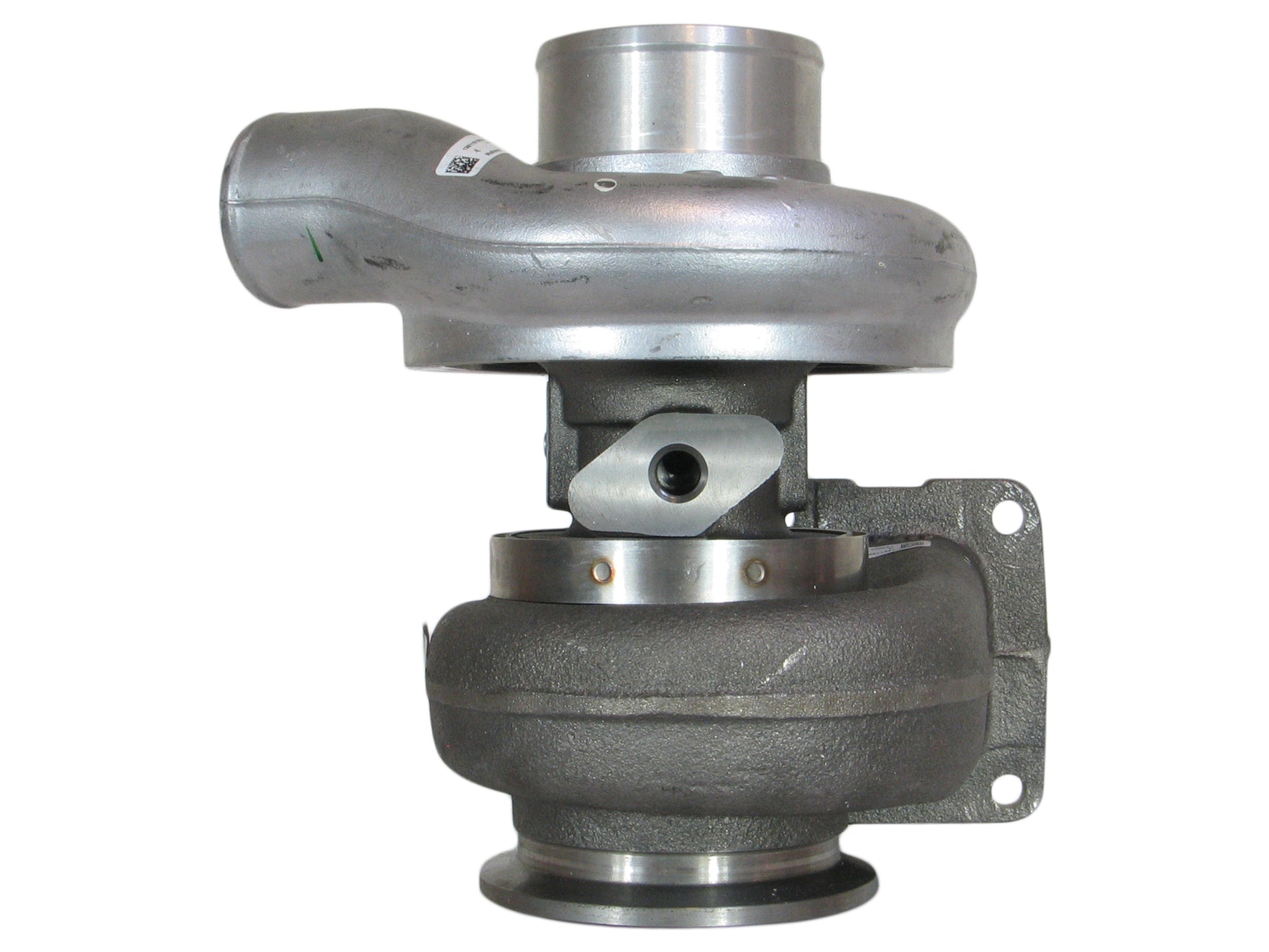

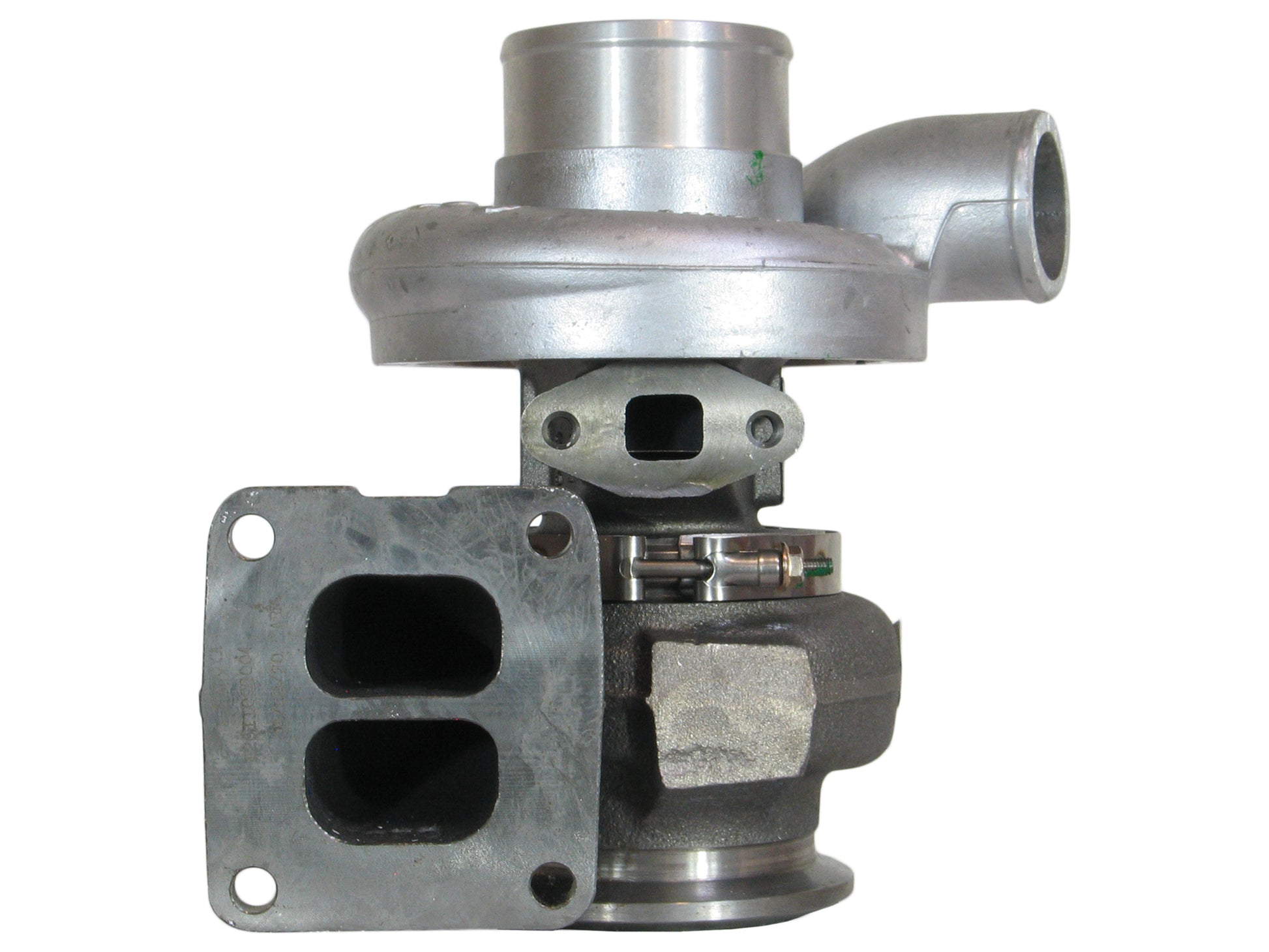

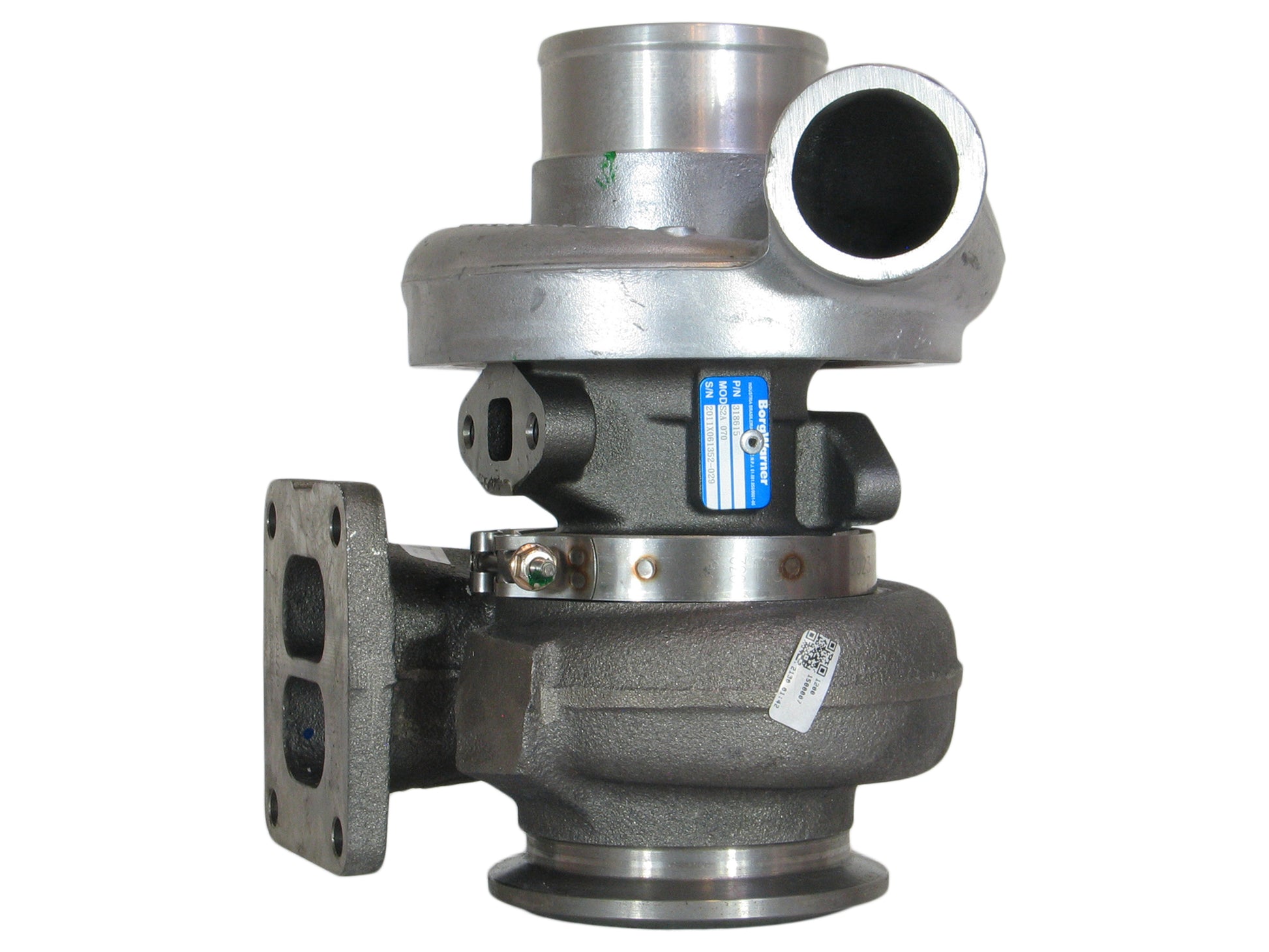

NEW OEM BorgWarner S2A Turbo John Deere Gen Set 4045 4045T 4.5L Diesel 318615SKU: 318615
This is a BRAND NEW GENUINE BORGWARNER TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 318615
Interchangeable Number: 174735, 318570, 318614, 3990015011, 3990023112, 418570, 471049-0001, 471049-5001, 471049-5001S, 471049-0002, 471049-5002, 471049-5002S, 471049-0003, 471049-5003, 471049-5003S, 471049-0004, 471049-5004, 471049-5004S, 471049-0006, 471049-5006, 471049-5006S, 471049-0008, 471049-5008, 471049-5008S
OEM Number: RE503097, RE508876, RE508877, RE508971, RE508973, RE509818, RE523366, RE526420, RE528772, RE529469, RE531983, RE532282, RE532290, RE533436, RE533442, RE536407, RE537049, RE537183, RE59379, RE59997, RE59999, RE60046, RE60069, RE60076, RE67647, RE70995
Turbo Model: S2A, S2A090
Manufacturer: BorgWarner - 3K - Schwitzer
Engine: 4045, 4045T
Displacement: 4.5L, 4500 ccm
Power: 83 kW/112 HP, 86 kW/115 HP, 102 kW/137 HP
Speed: 1500/2500 RPM
Angle α (Compressor Housing): 24°
Angle ß (Turbine Housing): 0°
Back Plate: 197340 (408045-0041)
Bearing Housing: 318609
Compressor Cover: 317367

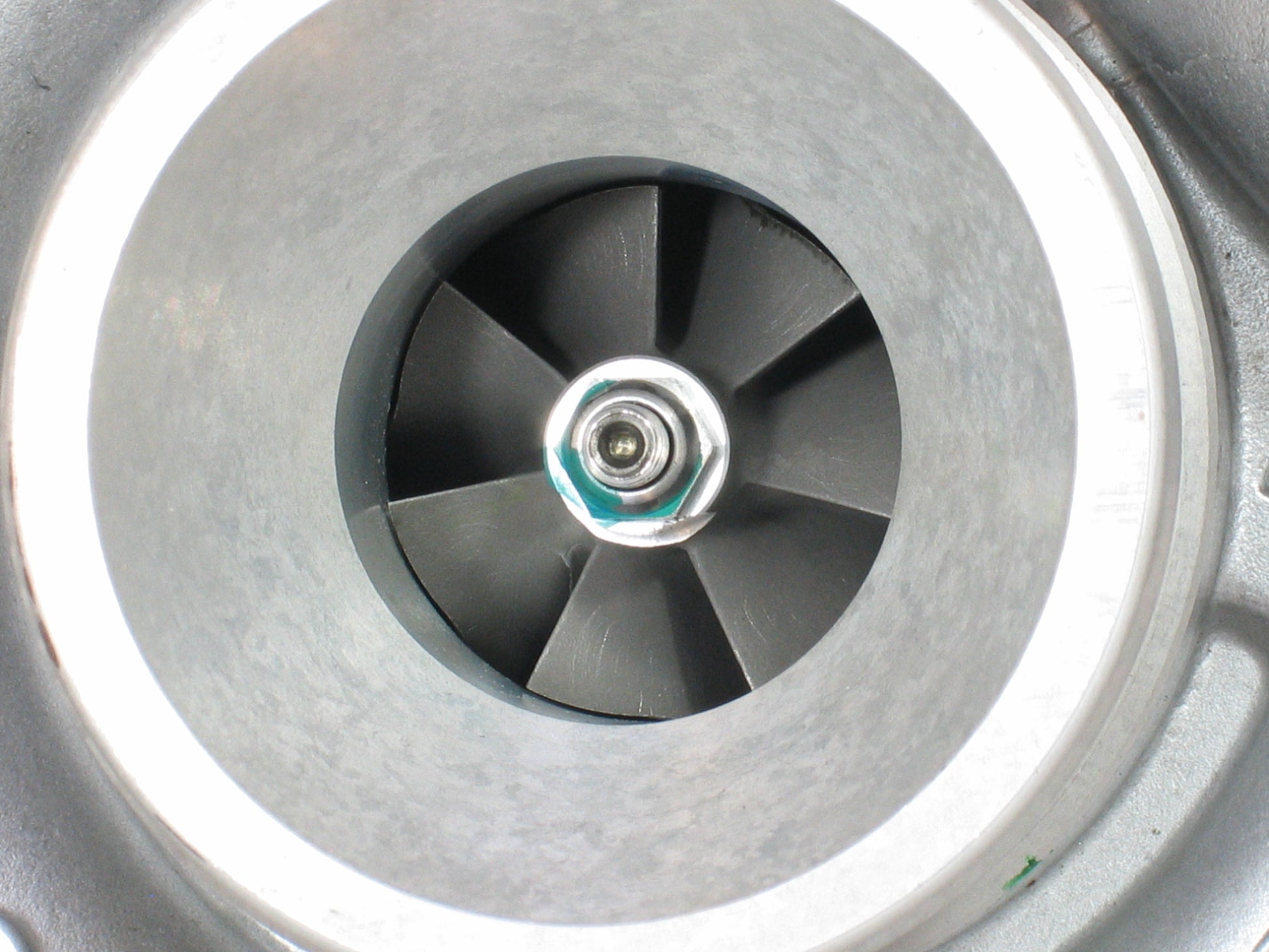

Compressor Wheel: 197611 (409096-0008)(Ind. 38.1 mm, Exd. 60.95 mm, Trim 8.48, 6+6 Blades, Billet)
Gasket (Oil Outlet): 210021 (148062, 210021-0000, 311496, 3519807, 409037-0000, 413671-0000)(1900000027)
Gasket (Turbine Inlet): 407294-0001 (310694, 312617)(303031063)
Gasket Kit: 318418
Heat Shield: 193975 (49168-18900, 193975)(1352346)
Repair Kit: 318477 (1252102750)
Turbine Housing: 318567
Turbine Wheel: 314653 (Ind. 52.8 mm, Exd. 61 mm, 10 Blades)(301030001, 1228000015)
NOTE: Internal parts not interchangeable.
2000-12 John Deere Industrial, Gen Set with 4045, 4045T Engine

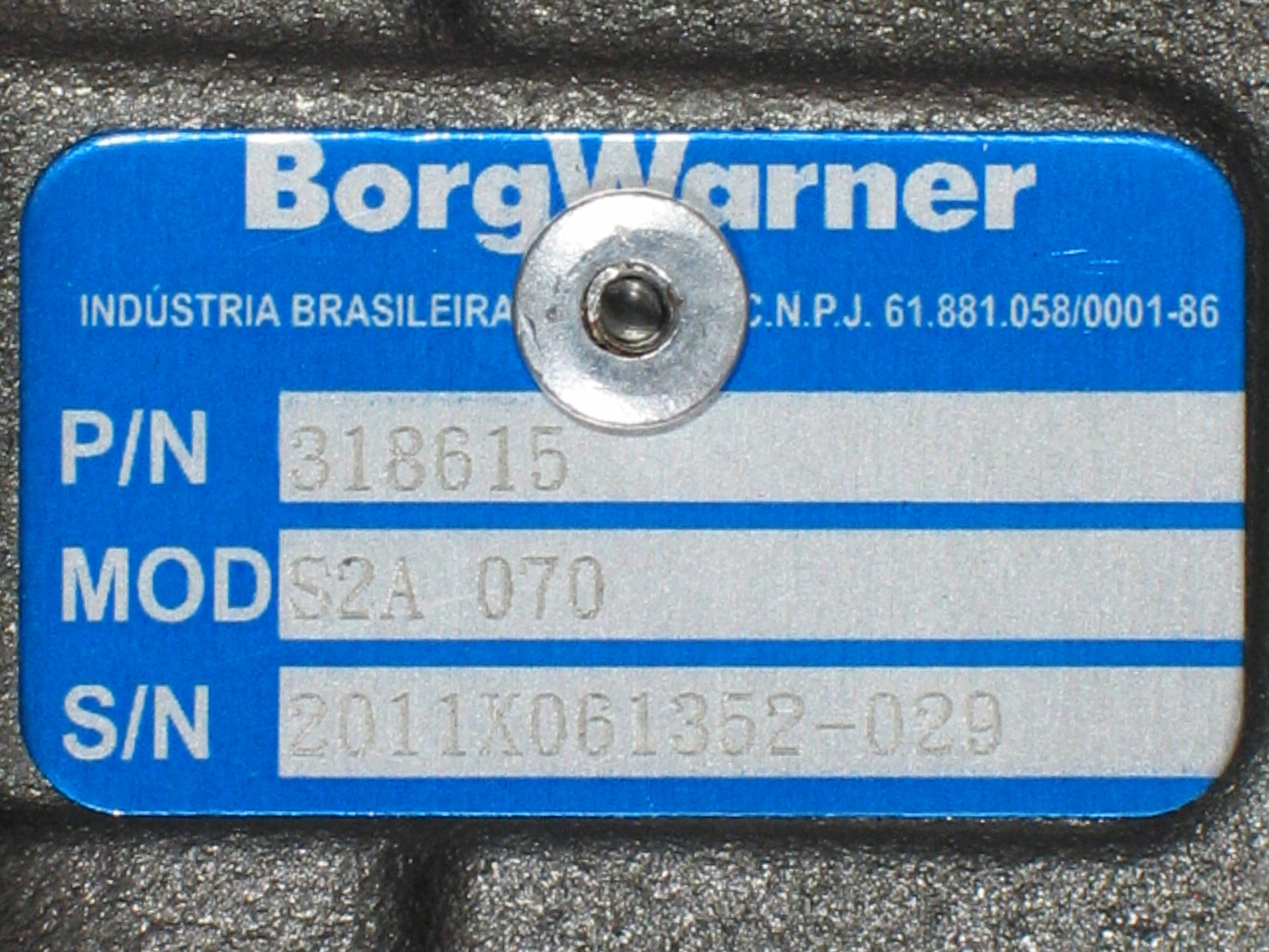

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
