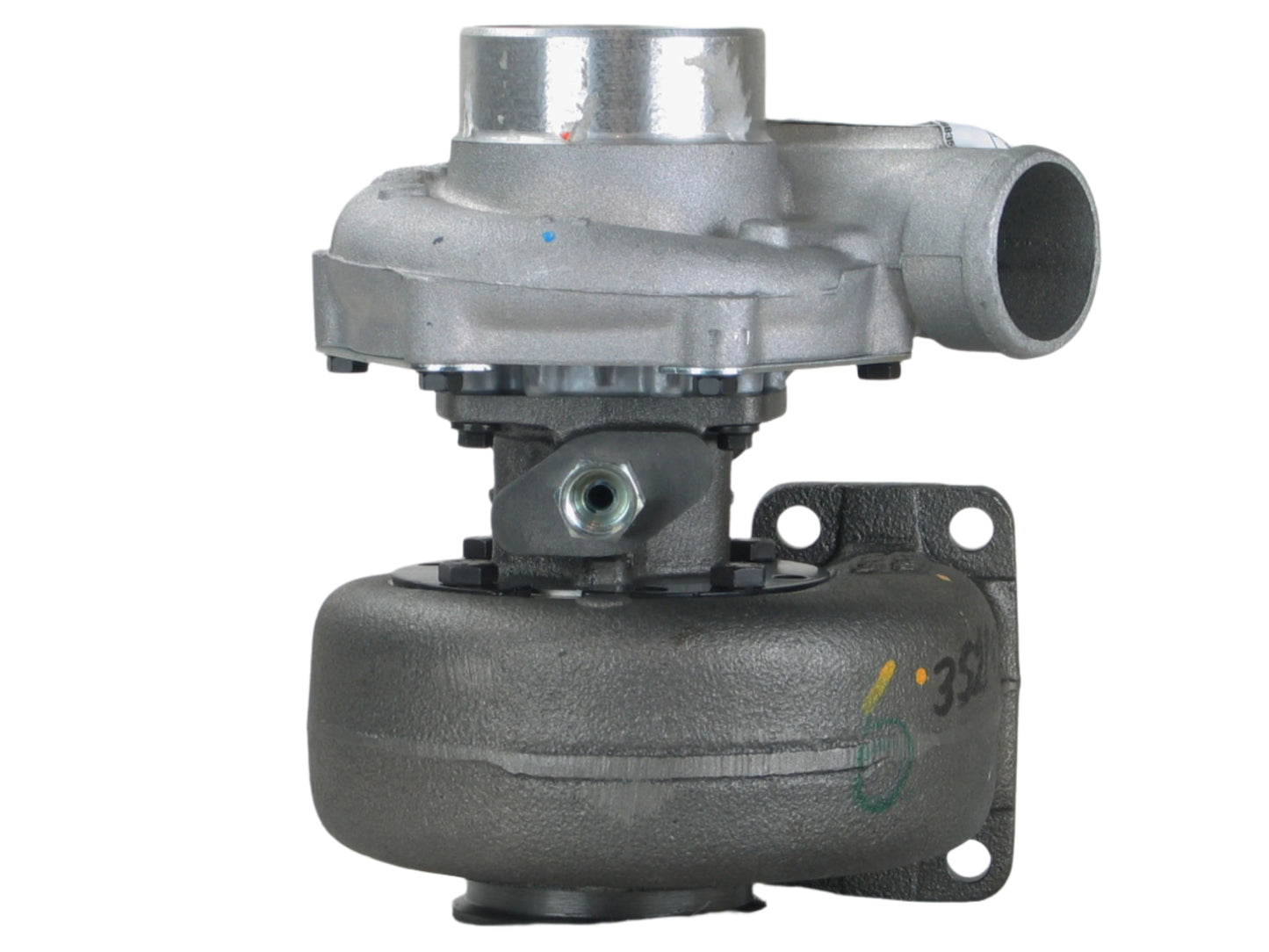

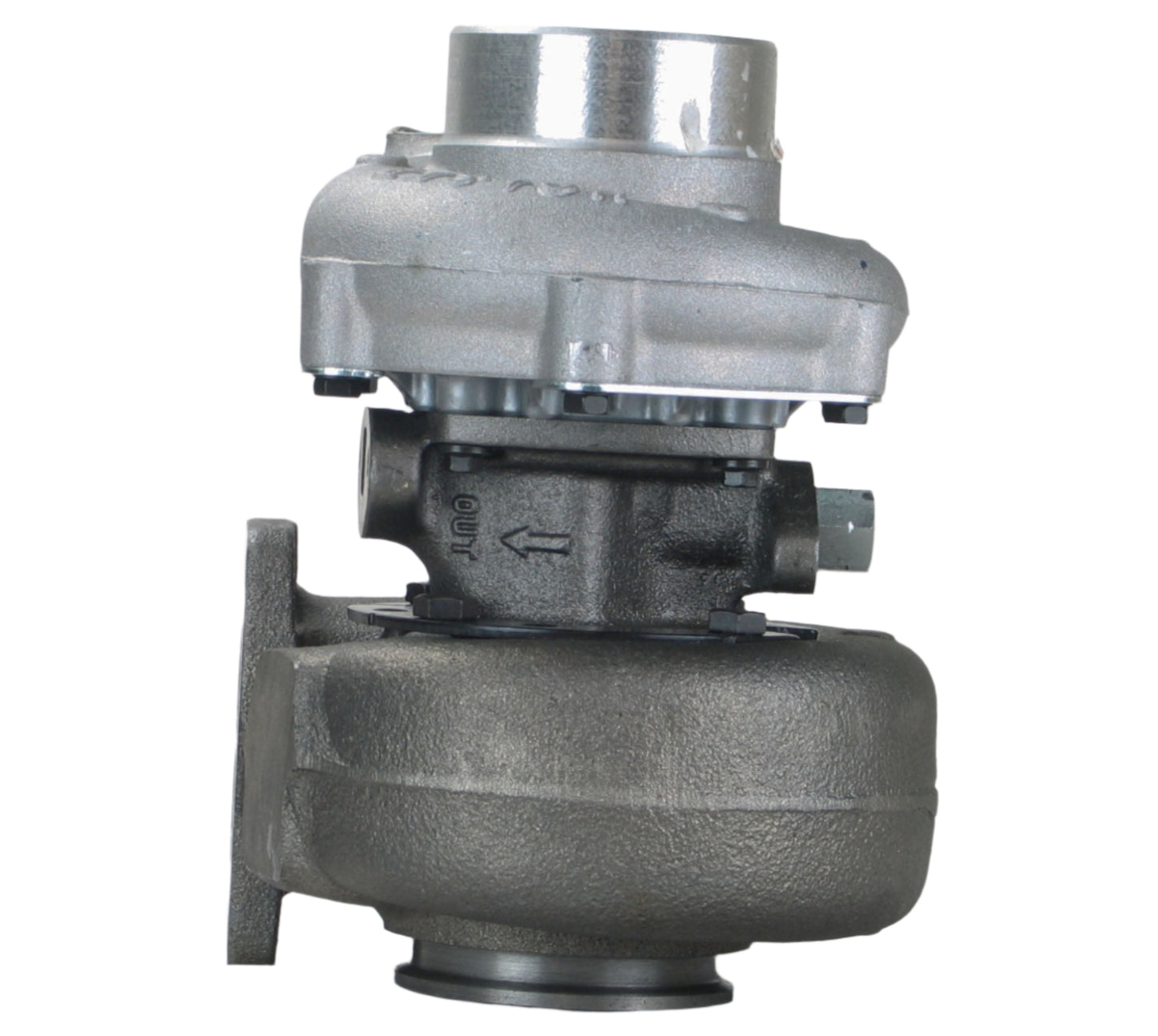

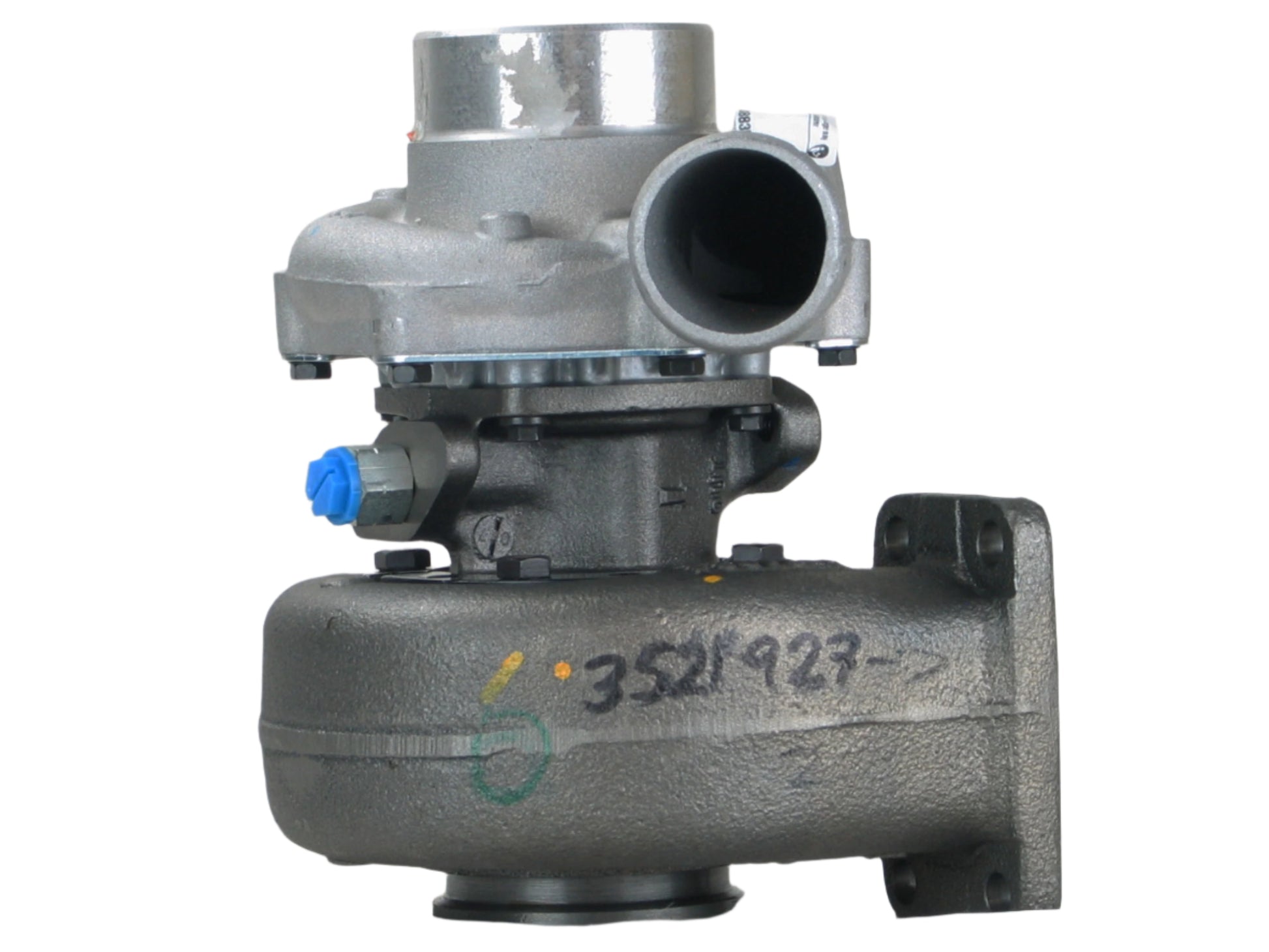

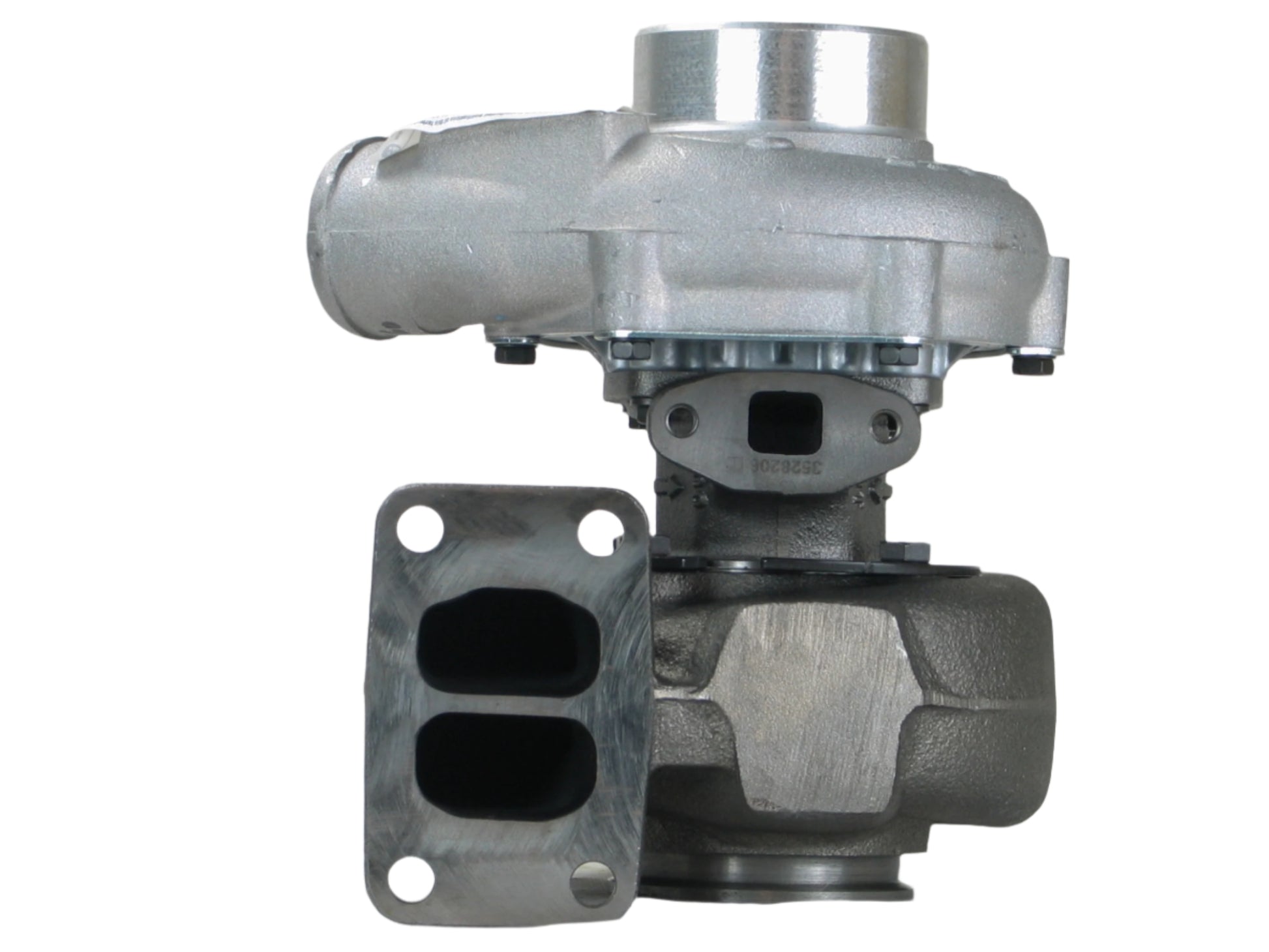

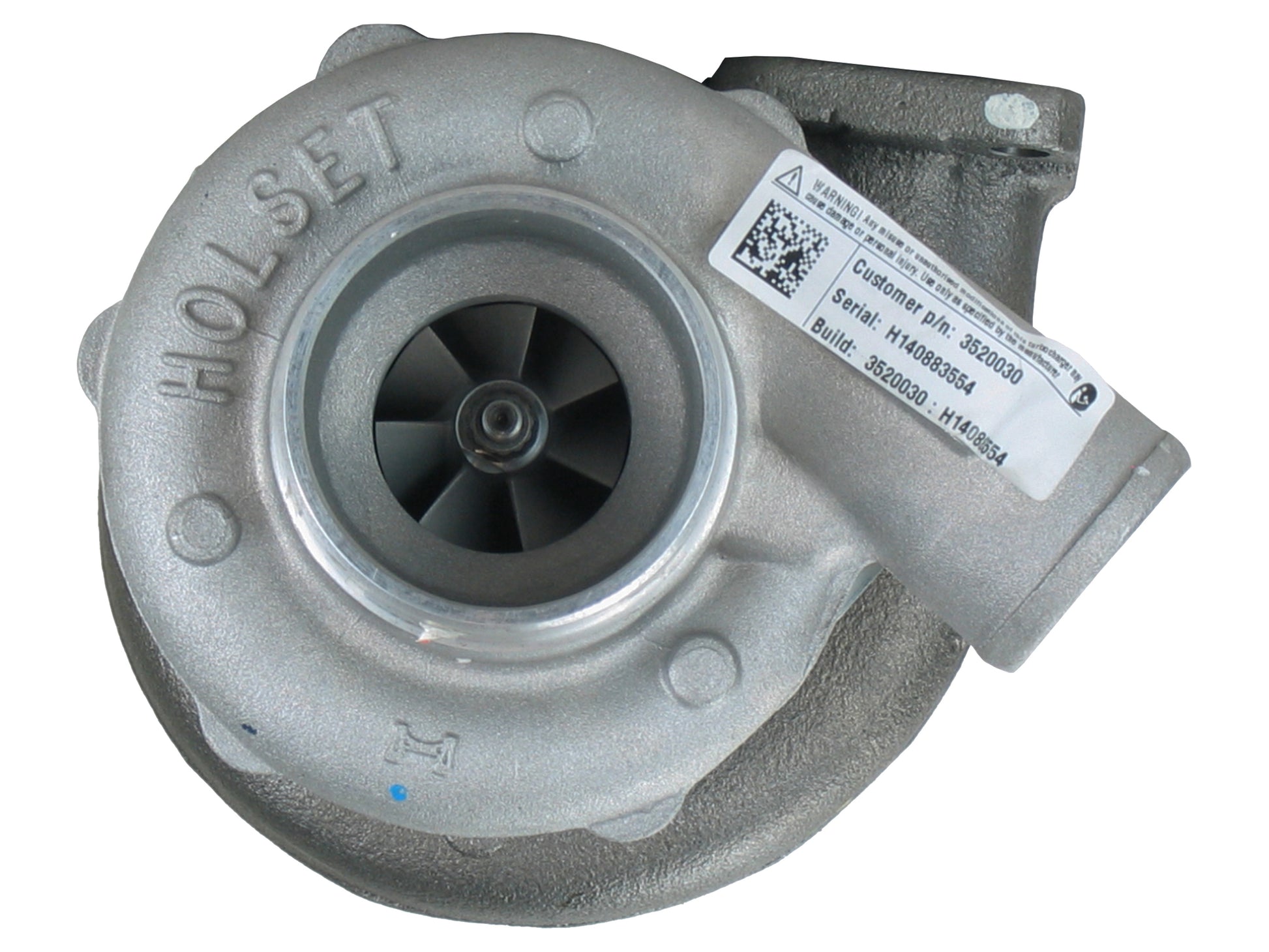

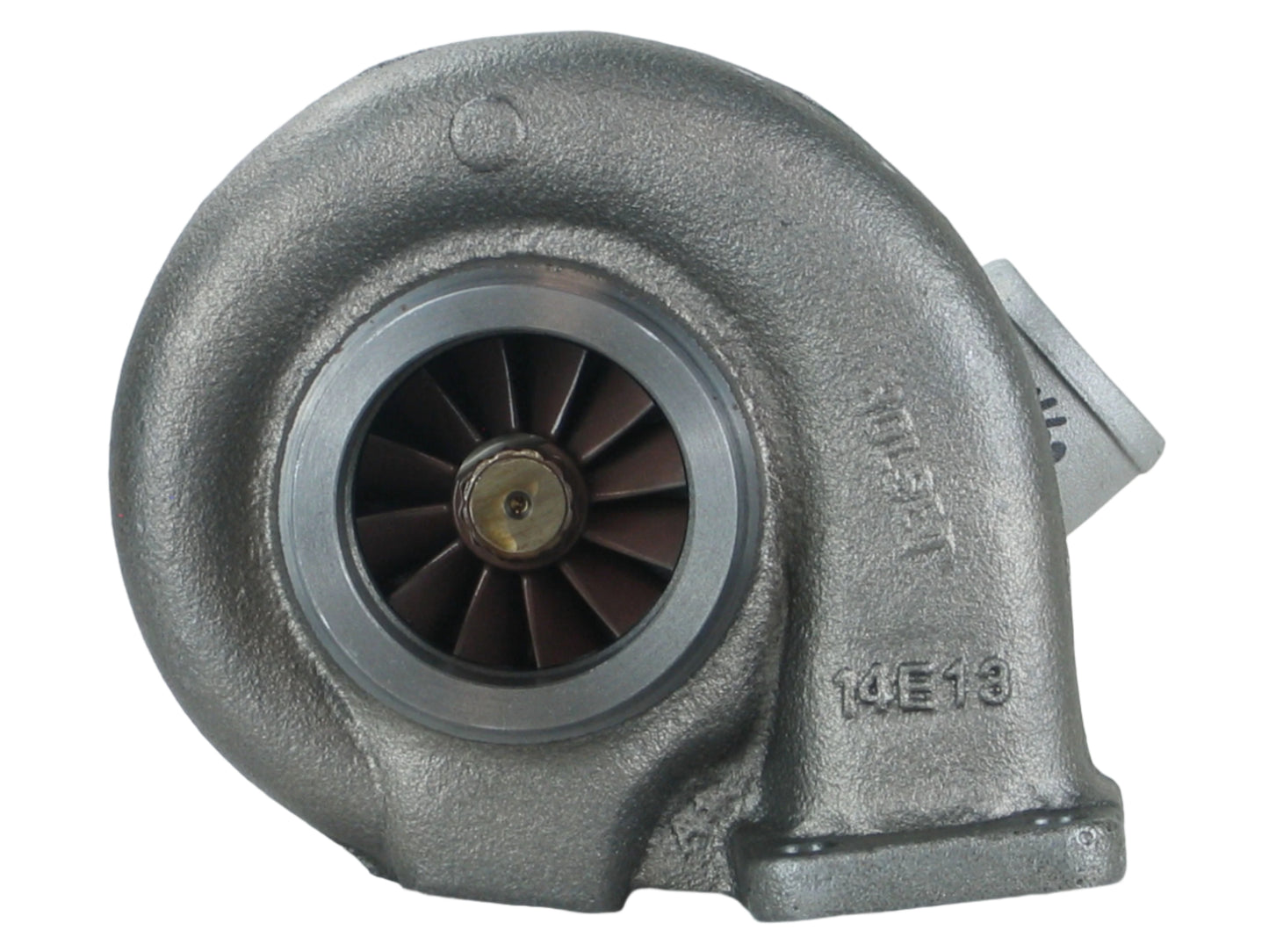

NEW OEM Holset H1C Turbocharger Industrial Cummins 4TA-390 Engine 3520030SKU: 3520030
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 3522900
Interchangeable Number: 3519287, 3520030, 3520030H, 3528743, 3528744, 3535381, J919130
OEM Number: 3802290, 3903666, 3903667, J906602, J908293, J919129, J919130, J919133, J919135, J919139
Turbo Model: H1C-7234Y/E16DA11, H1C
Engine: 4TA-390, 4BTA 3.9
Engine Manufacturer: Cummins
Displacement: 3.9L, 3900 ccm
Power: 390 HP
Angle α (Compressor Housing): 217°
Angle ß (Turbine Housing): 0°
Back Plate: 3534947
Bearing Housing: 3530591/3530592 (1152301450)
Compressor Cover: 3521848
Compressor Wheel: 3521863 (Ind. 42 mm, Exd. 73 mm, 8+8 Blades, Super back)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 409039-0000 (312617, 2405022, 7C7431)
Heat Shield: 3519302 (1152301750)
Repair Kit: 3545652/4027309 (1152301750)
Turbine Housing: 3521927
Turbine Wheel: 3519336 (Ind. 70 mm, Exd. 59 mm, 12 Blades)(1152301435)
1986-03 Agricultural, Industrial with Cummins 4TA-390 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
