NEW Holset HT3B Turbo Freightliner Truck Marine Cummins NTA855 N14 3522865

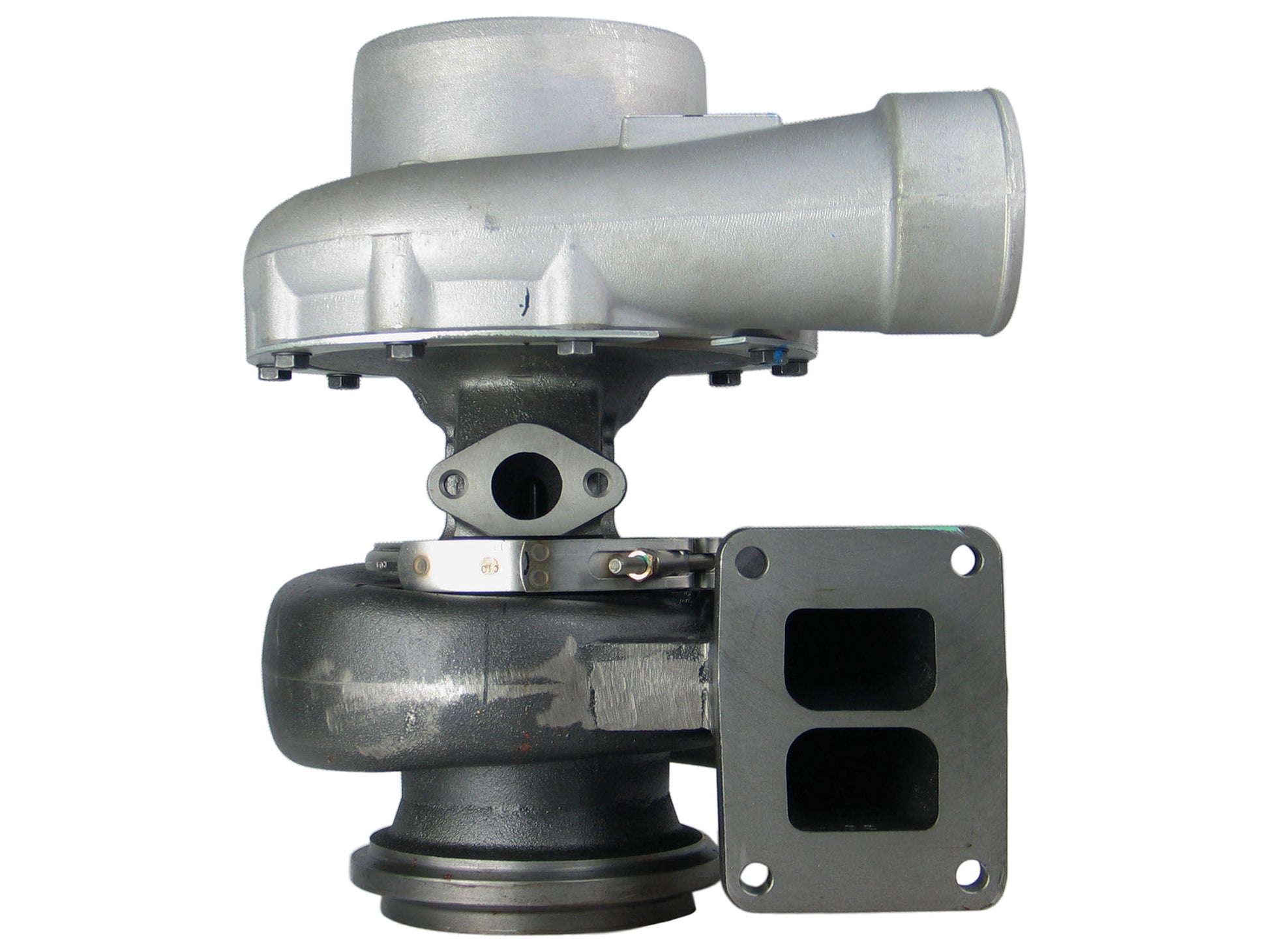

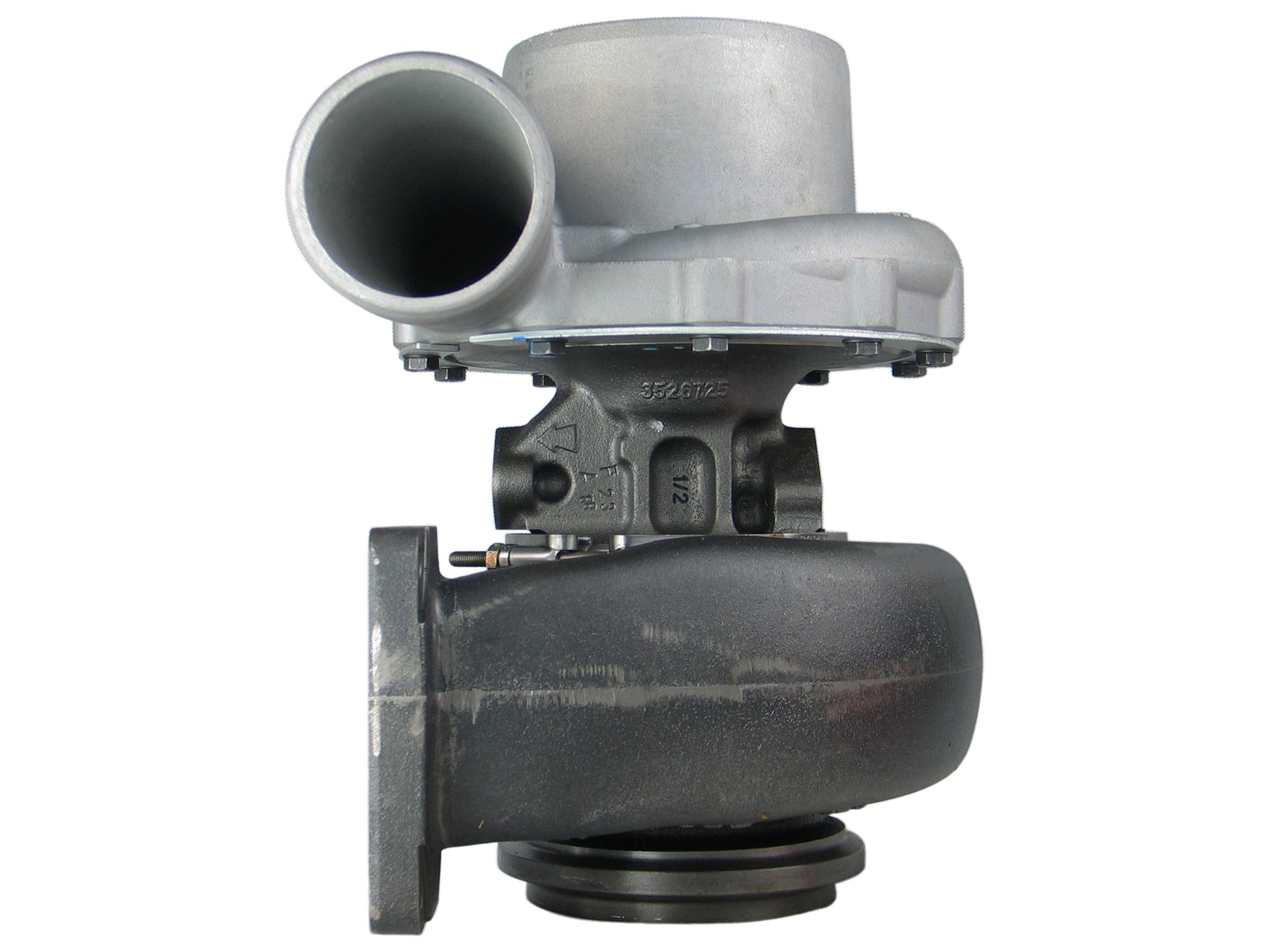

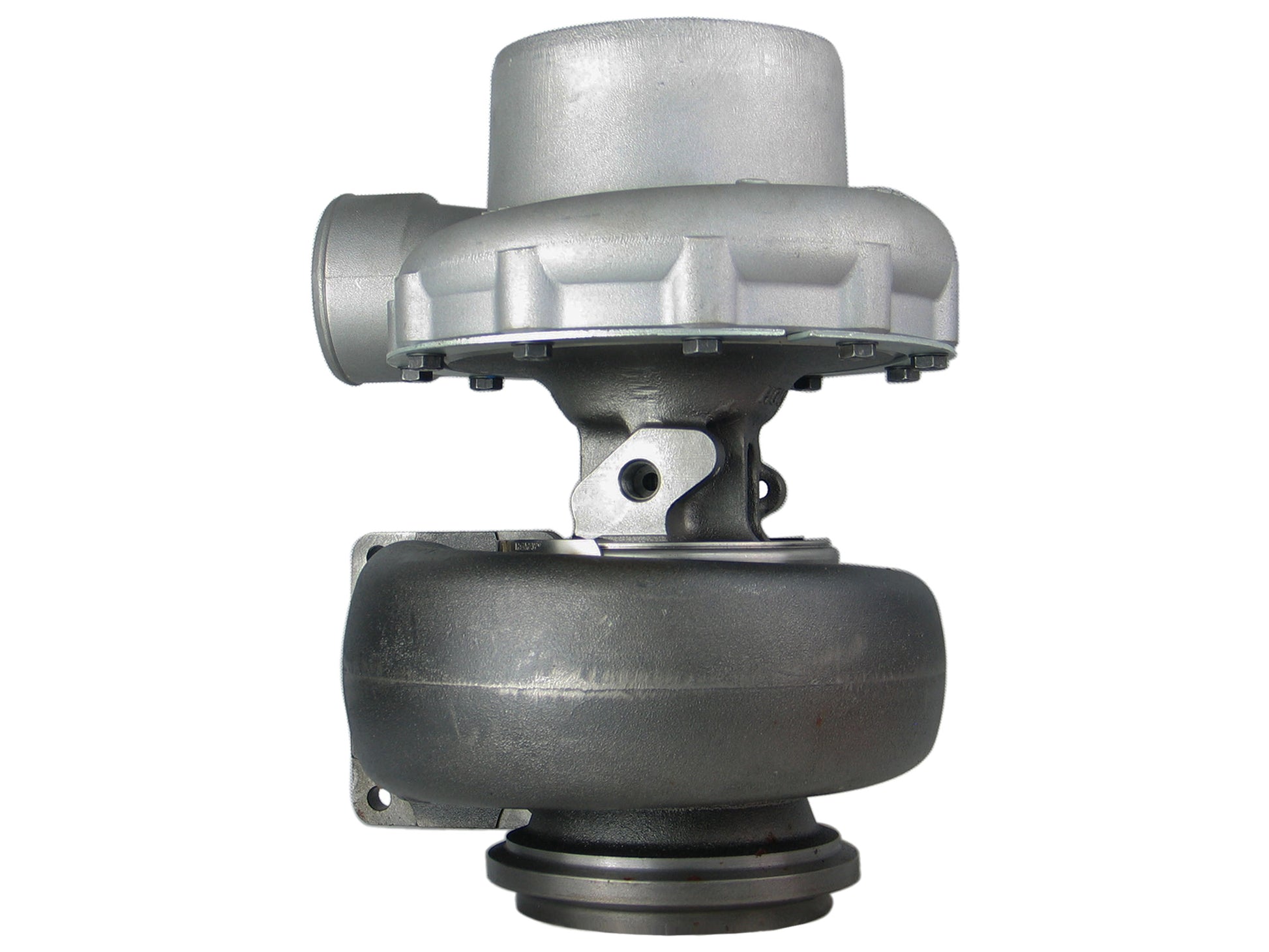

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 3522865
Interchangeable Number: 1080063R, 167713, 167715, 172035, 196389, 196441, 196441R, 196463, 196463R, 196800, 3023225, 3029514, 3032047RX, 3032049, 3032056, 3032059, 3520600, 3520699, 3521052, 3521053, 3521054, 3521055, 3521551, 3521830, 3522861, 3522867, 3522869, 3522869NX, 3522869RX, 3522870NX, 3522870RX, 3522871, 3522872H, 3522873, 3523272, 3523273H, 3523415, 3523822, 3524200, 3524200NX, 3524200RX, 3524202, 3524208, 3524557, 3525998, 3527046, 3527047, 3527048, 3529032, 3529035, 3529667, 3529778, 3532819, 3532820, 3776942H, 3801475, 3801475RX, 3801476, 3801476RX, 3801478, 3801478RX, 3801482RX, 3801597RX, 3801598, 3801598RX, 3801599, 3801599RX, 3801613, 3801613RX, 3801615, 380161500, 3801615H, 3801615NX, 3801615RX, 3801617NX, 3801617RX, 3801922, 3801950, 3801973, 3801973RX, 3803328, 3803405, 3803405H, 3803406H, 380367100, 3803671H, 3803671RX, 4033165H, 4033165HX, 403332600, 4033326H, 4033541H, 4033577H, 4033815, 4033815H, 496441
OEM Number: 144400-5000, 144400-5000S, 144401-0000, 144402-0000, 144402-9000, 144403-5000, 144403-5000S, 144404-0000, 144404-5000, 144404-9000, 150552-9000, 2836846, 2838232, 2839432, 2843730, 3522862, 3522866, 3522868, 3522870, 3522872, 3522874, 3523273, 3776942, 3792669, 3801482, 3801614, 3801616, 3801617, 3801918, 3803108, 3803199, 3803406, 3803670, 3803671, 4033165, 4033326, 4049440, 4049457, 5358801, KD6134ZL-111810000, KD6134ZL111810000, T9202-1118100-181, T92021118100181, T9600-1118100A-181, T96001118100A181, T9600-1118100A-181-C, T96001118100A181C, T9600-1118100A-CS-181, T96001118100ACS181
Turbo Model: HT3B, HT3B-0880A/X27K1
Manufacturer: Holset

Year: 1988-01
Engine: 6T, 855, N14, NT855-M, NTA855, NTA855-G7A, NTC-350, NTC320, NTCC350, VTA28
Engine Manufacturer: Cummins, CCEC (Chongqing Cummins Engine Company)
Displacement: 14.0L
Fuel: Diesel
Power: 350 HP
Speed: 900 RPM

Angle α (Compressor Housing): 350/360°
Angle β (Turbine Housing): 261/360°
Back Plate: 59618 (3500710, 3759618, 166084, 183472, 143144-0000)(1150704300)
Bearing Housing: 3522740 (352274000, 3522416)(196117)(Oil Cooled)
CHRA: 3811555 (3811555H, 4027924, 4027929, 167212, 196477)

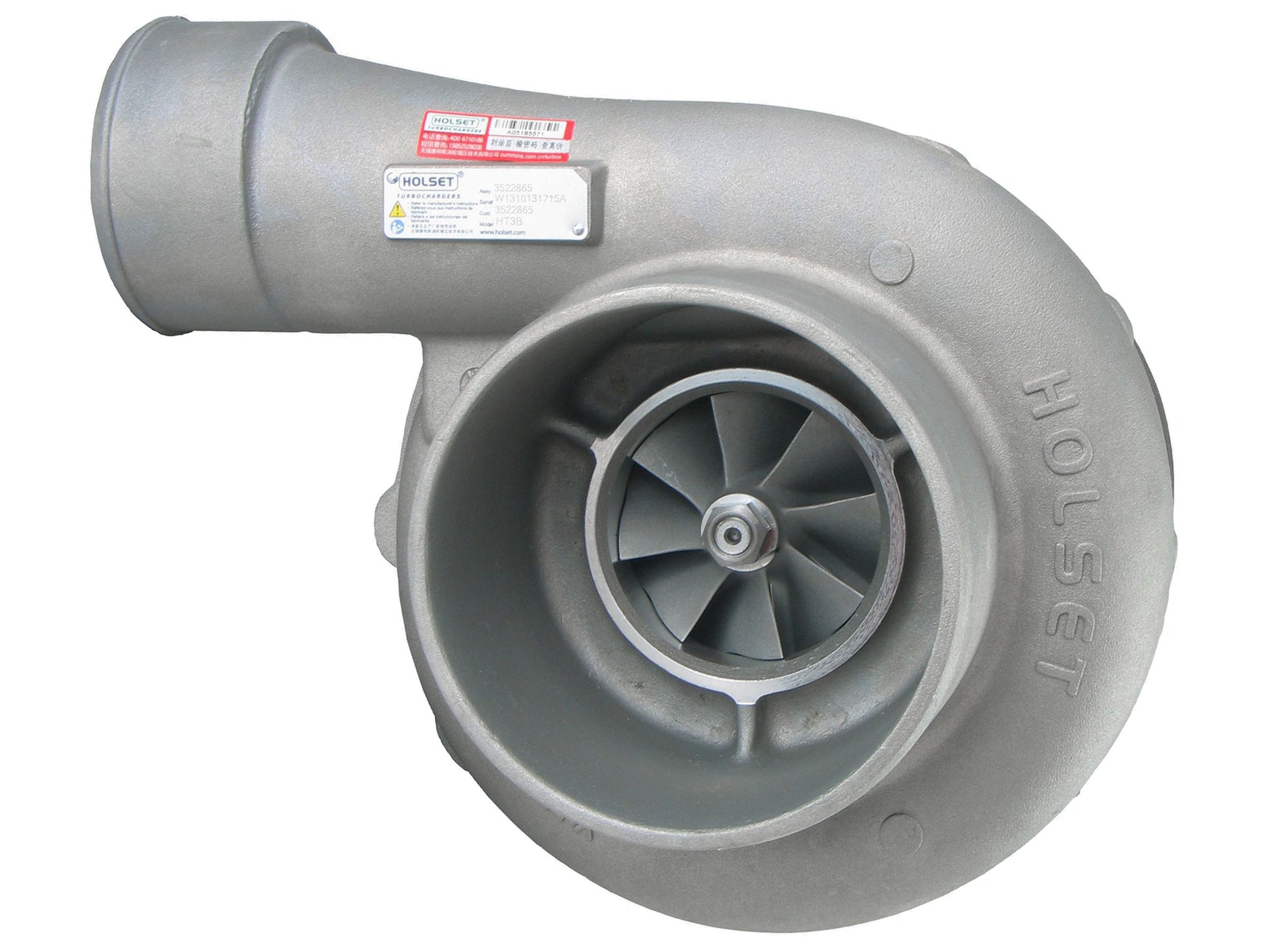

Compressor Wheel: 3527047 (3519489)(Ind. 73.5 mm, Exd. 108.38 mm, Trim 18.92, 8+8 Blades, Super Back)(1152304401, 1200030106)
Gasket Kit: 4032504 (4032504H, 3534521, 3580526, 318417, 173035)
Heat Shield: 3519155 (3758538, 375853800)
Repair Kit (Major): 3545669 (3545669H, 3801523, 3801523H, 318352, 3575230)(1152304750, 1153060752)
Turbine Housing: 3519351 (3519351H)

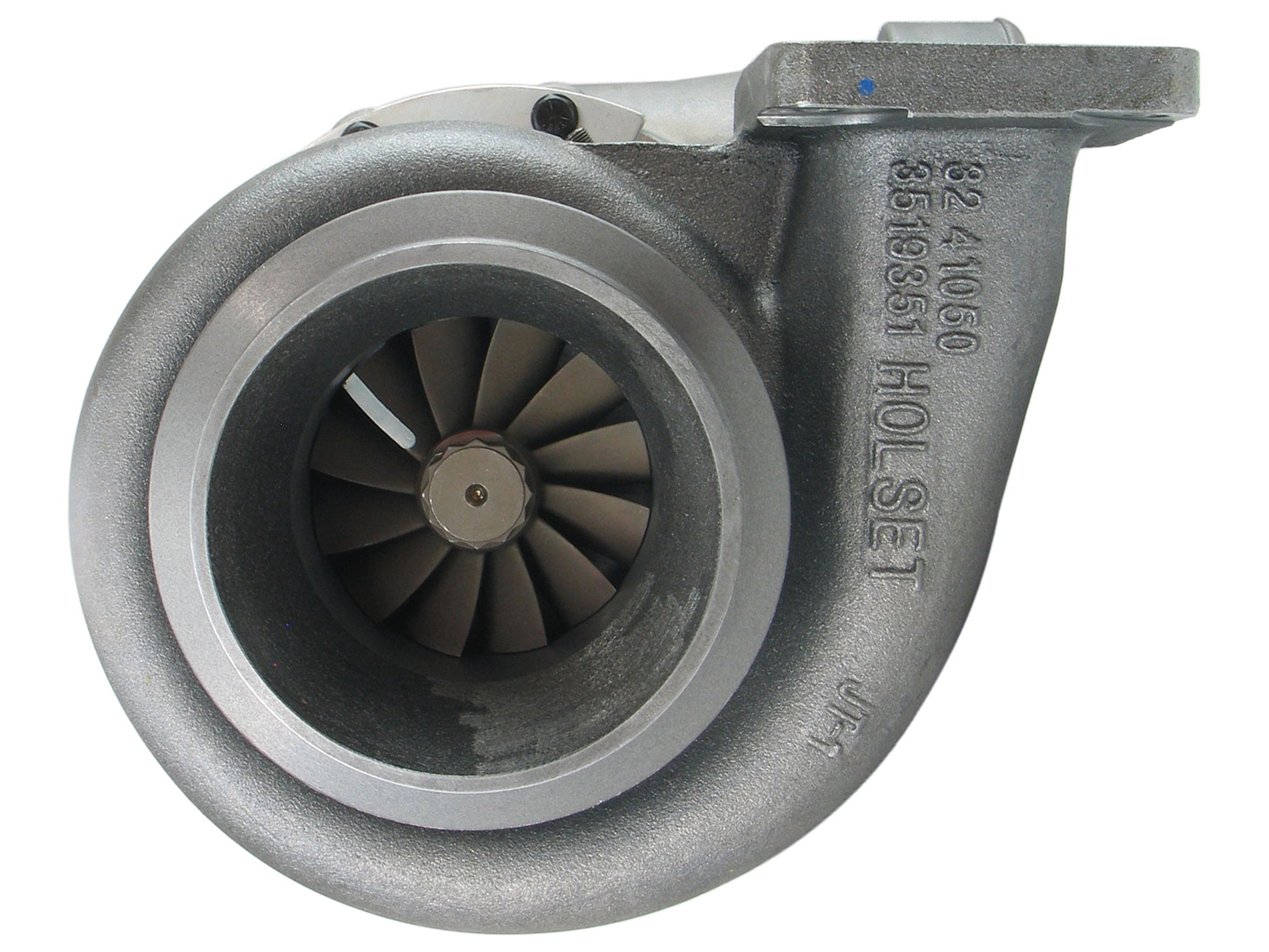

Turbine Wheel: 3594952 (3594952H, 3522075, 196370)(Ind. 97 mm, Exd. 86.4 mm, Trim 17.14, 12 Blades)(1152304435, 1100030011)
Turbocharger Kit: 4033326H

Application:
1985-95 Freightliner FLC120 with Cummins Big Cam NTC-350 Engine
1988-01 Marine with CCEC NTA855 Engine
1988-01 Truck with Cummins NTA855, N14 Engine
1988-01 Various with Cummins NTA855 Engine
Various with Cummins 855, NT855-M, NTA855-G7A, NTC320Engine
Yulin Diesel Genset, Various with Cummins VTA28 Engine
Yulin Diesel Marine with Cummins 6T Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
