NEW OEM Holset H1C Turbo Marine Truck Cummins 4BT 6BT 6BTA 5.9L 3523245 3533729

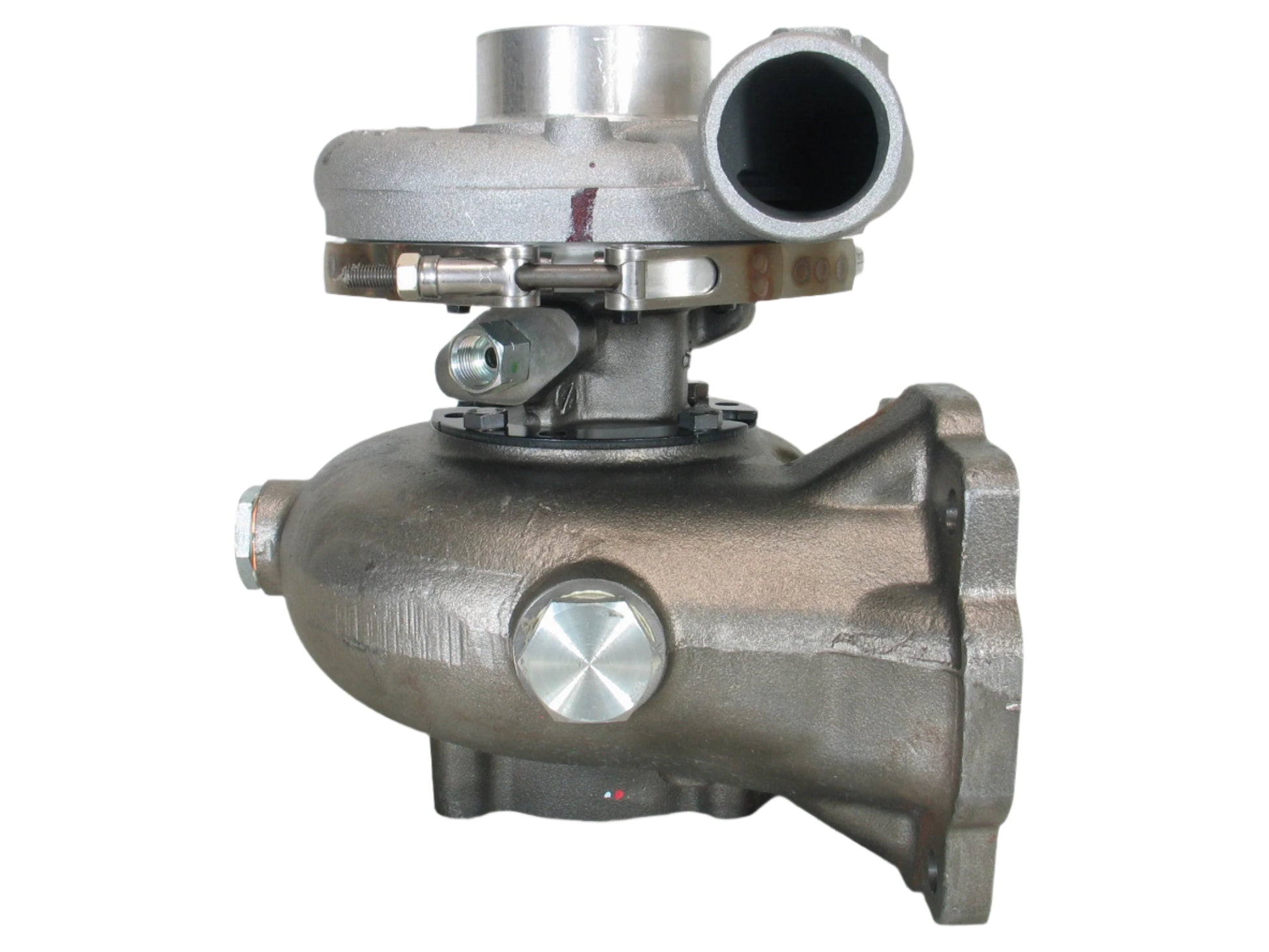

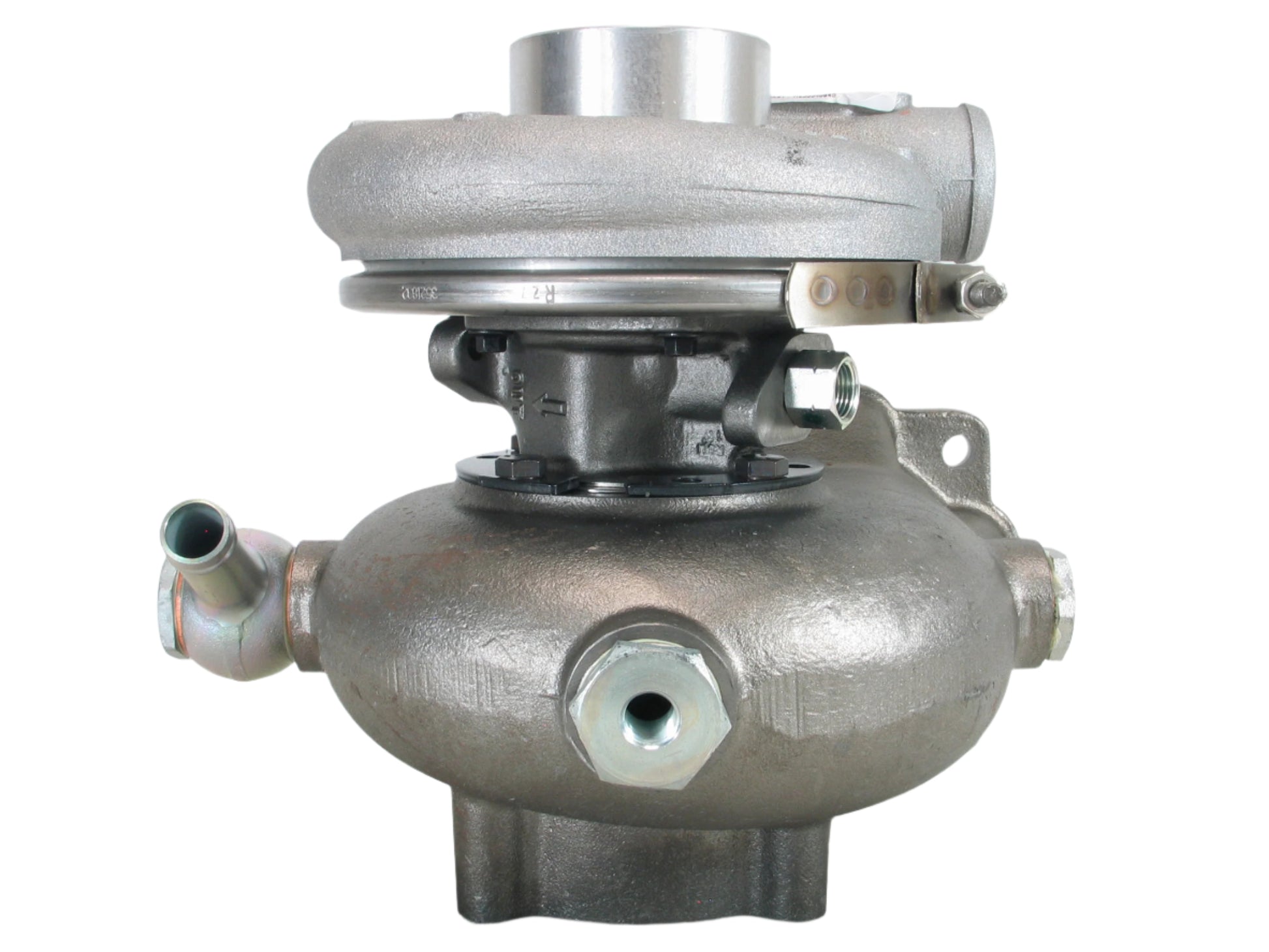

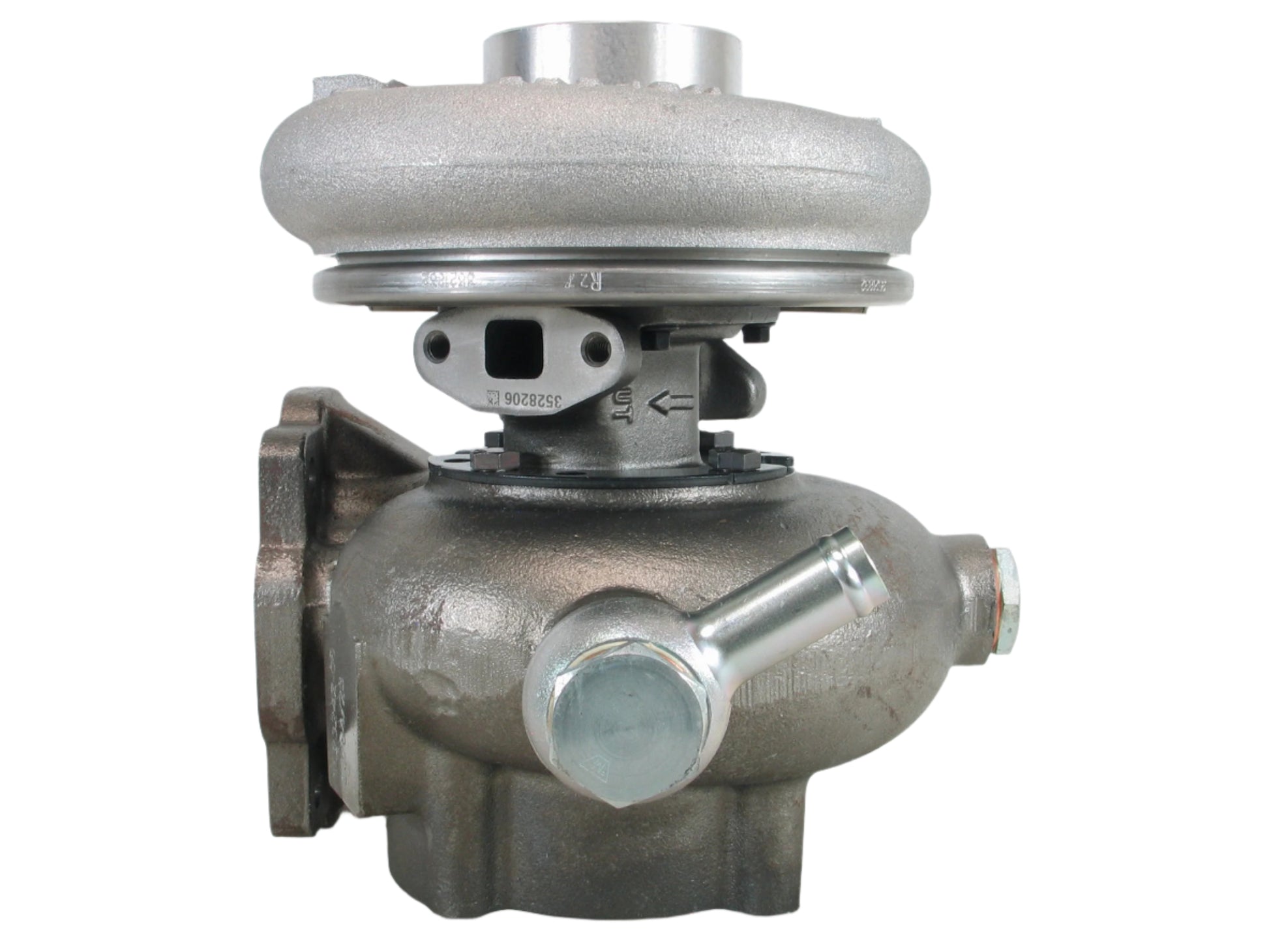

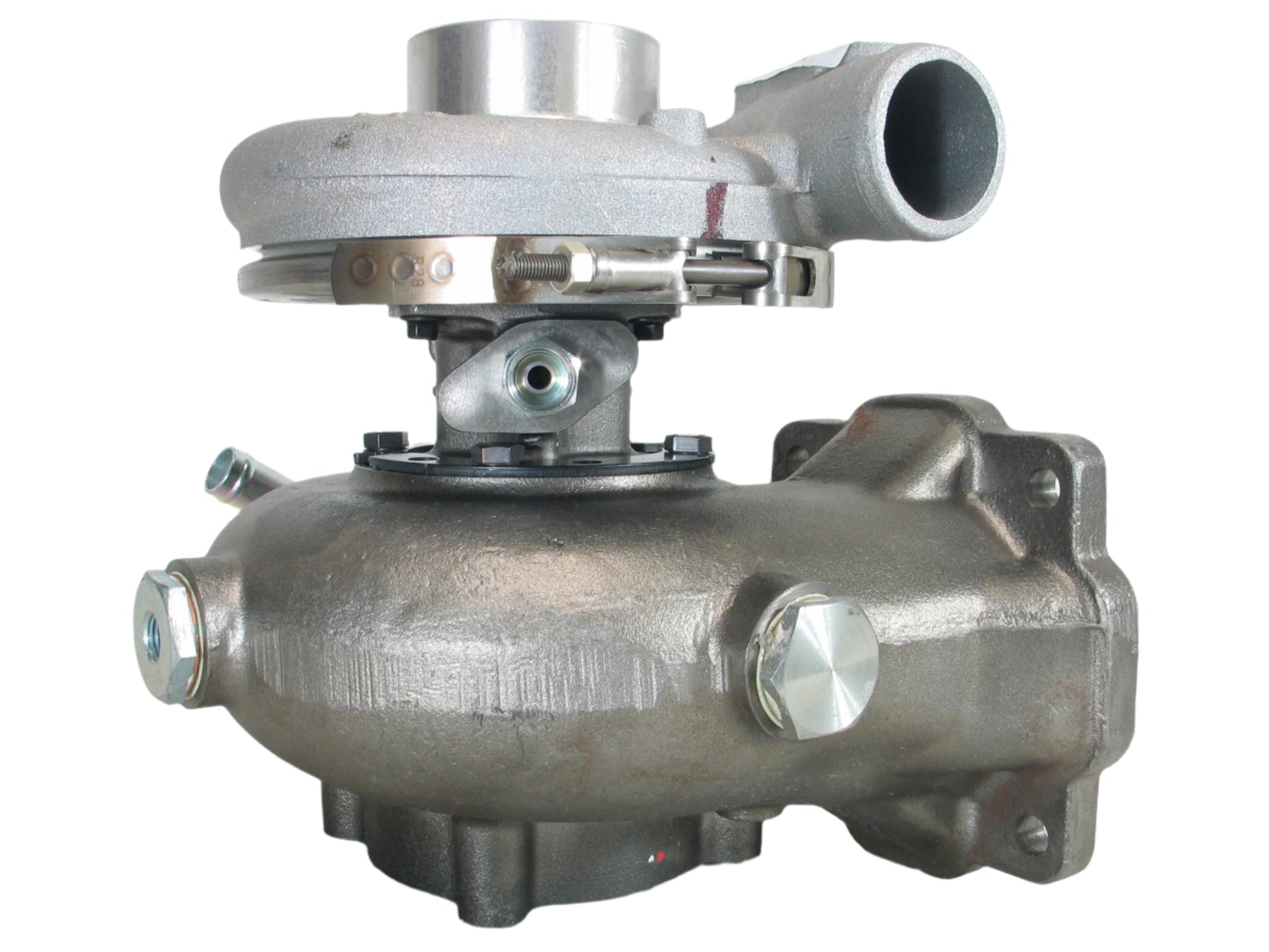

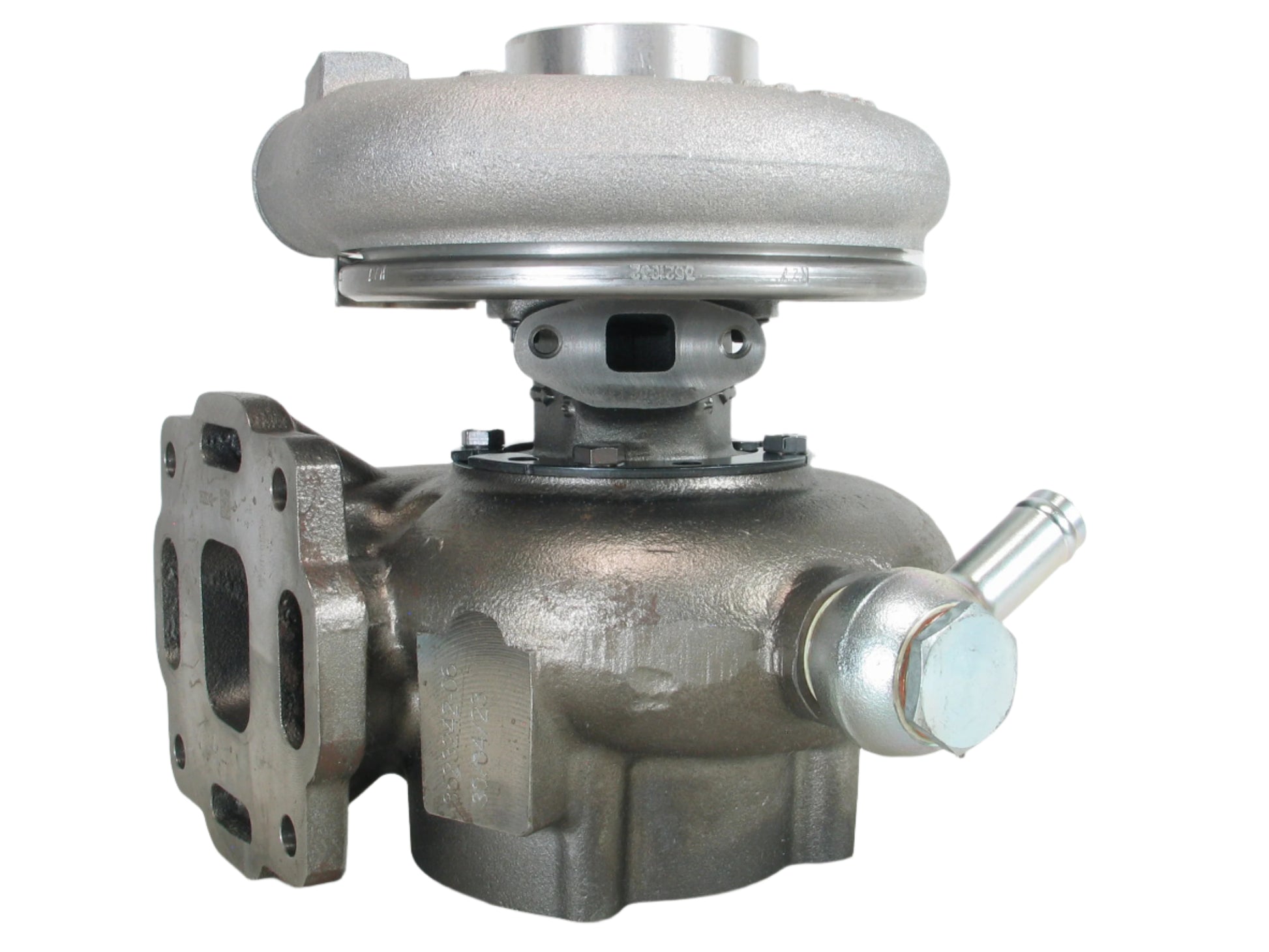

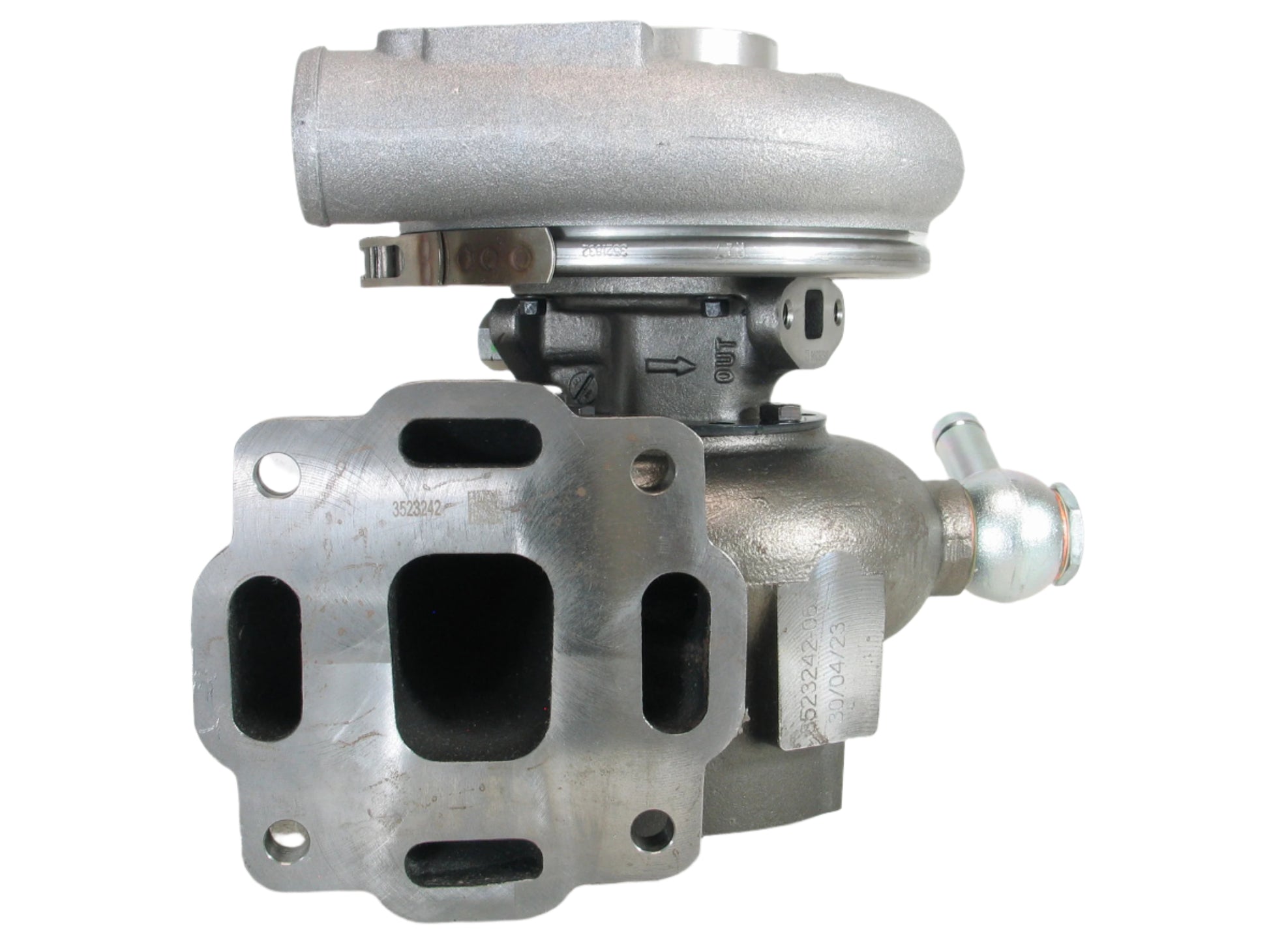

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 3533729
Interchangeable Number: 3523244, 3523245H, 3523294, 3528745, 3528747, 3530734, 3531032H, 3532205, 3534371, 3534372H, 3802111, 3802291RX, 3802588RX, 3912972, 3919149, 3926199
OEM Number: 3523245, 3528746, 3528748, 3530740, 3531032, 3533730, 3533731, 3534372, 3535428, 3802291, 3802588
Turbo Model: H1C, H1C-8243AF/J13S5
Manufacturer: Holset

Year: 1985-10
Engine: 4BT, 6BT, 6BTA, 6L
Engine Manufacturer: Cummins, CDC (Consolidated Diesel Company)
Displacement: 5.9L, 5900 ccm
Fuel: Diesel
Power: 300 HP

Angle α (Compressor Housing): 199.5/241°
Angle β (Turbine Housing): 301/360°
Back Plate: 3534947 (166537)(3522801)(1300016005)
Bearing Housing: 3502500 (3500592, 3530592, 3520574, 3530591)(Oil Cooled)(1152301450, 1900011017)
CHRA: 3545699 (3545699H)

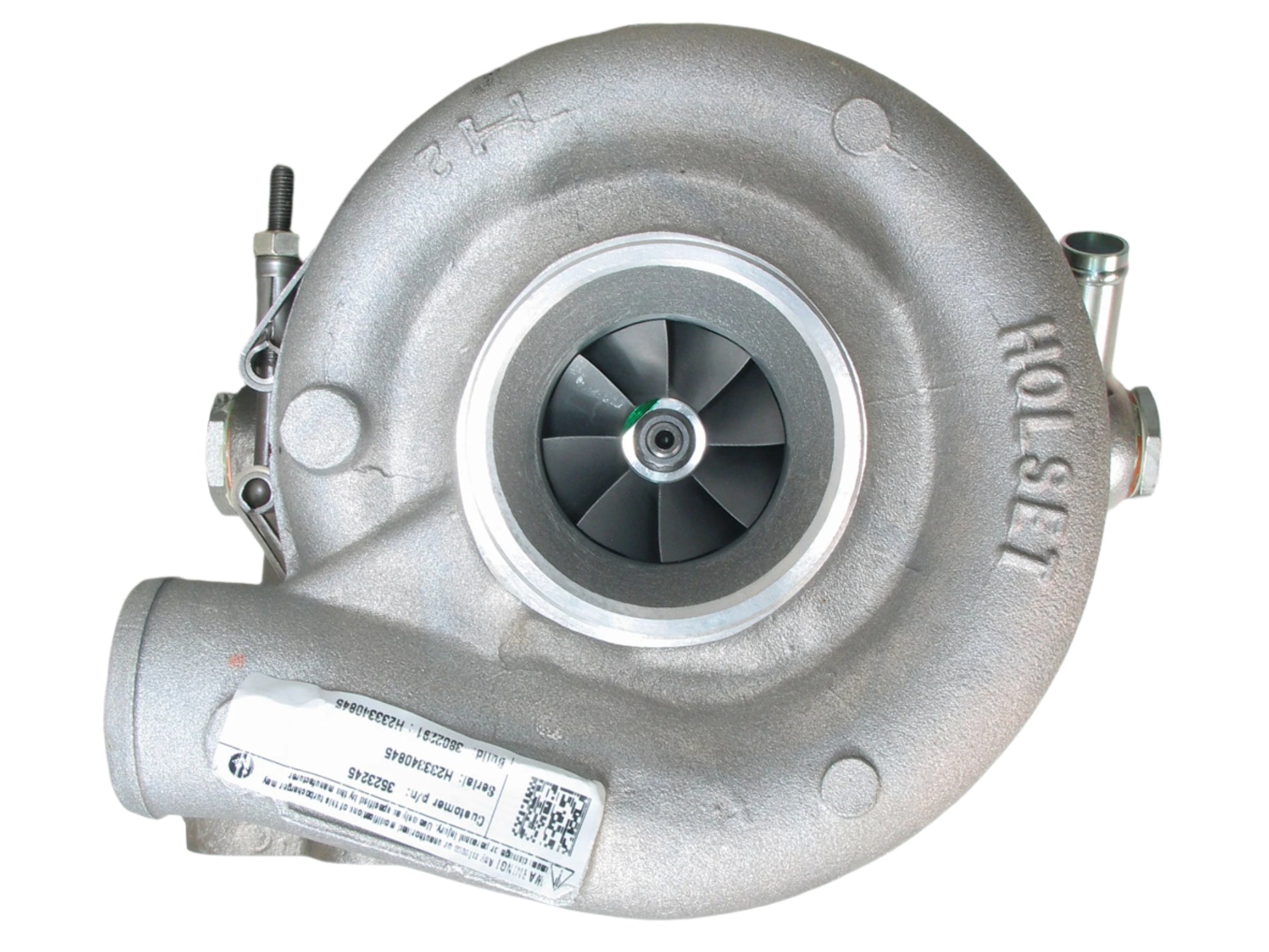

Compressor Wheel: 3503798 (3521711, 3599639)(Ind. 49.98 mm, Exd. 82.04 mm, Trim 9.95, 8+8 Blades, Super Back)(1152301400, 1200016055)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 409039-0000 (312617, 2405022, 7C7431)

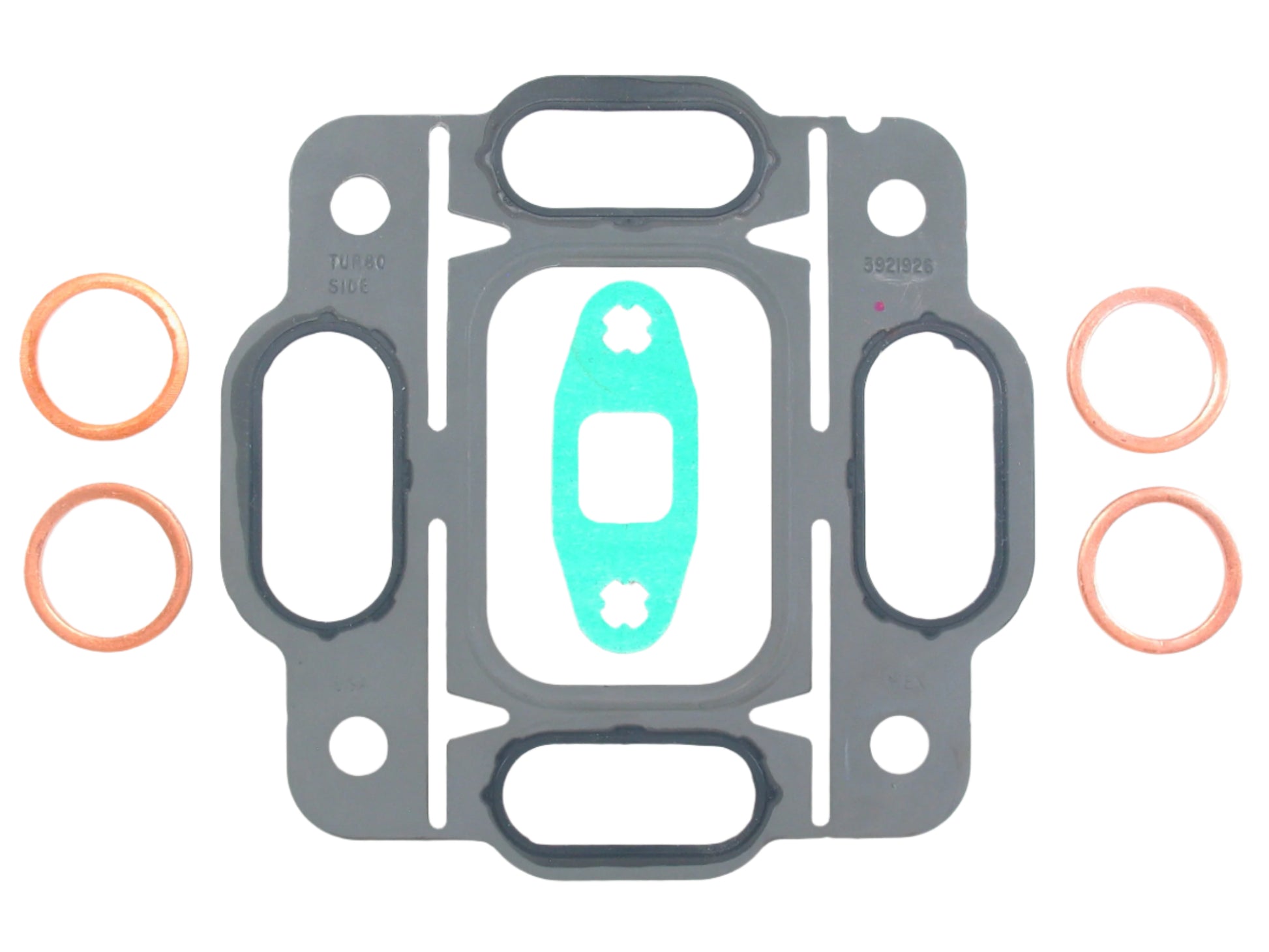

Gasket Kit: 3545769
Heat Shield: 3519302 (194149) (2030016031, 1152301340)
Repair Kit: 3545652 (3802148, 4027309)(1152301750, 5000020014)
Rotor Assembly: 3545526
Turbine Housing: Water Cooled

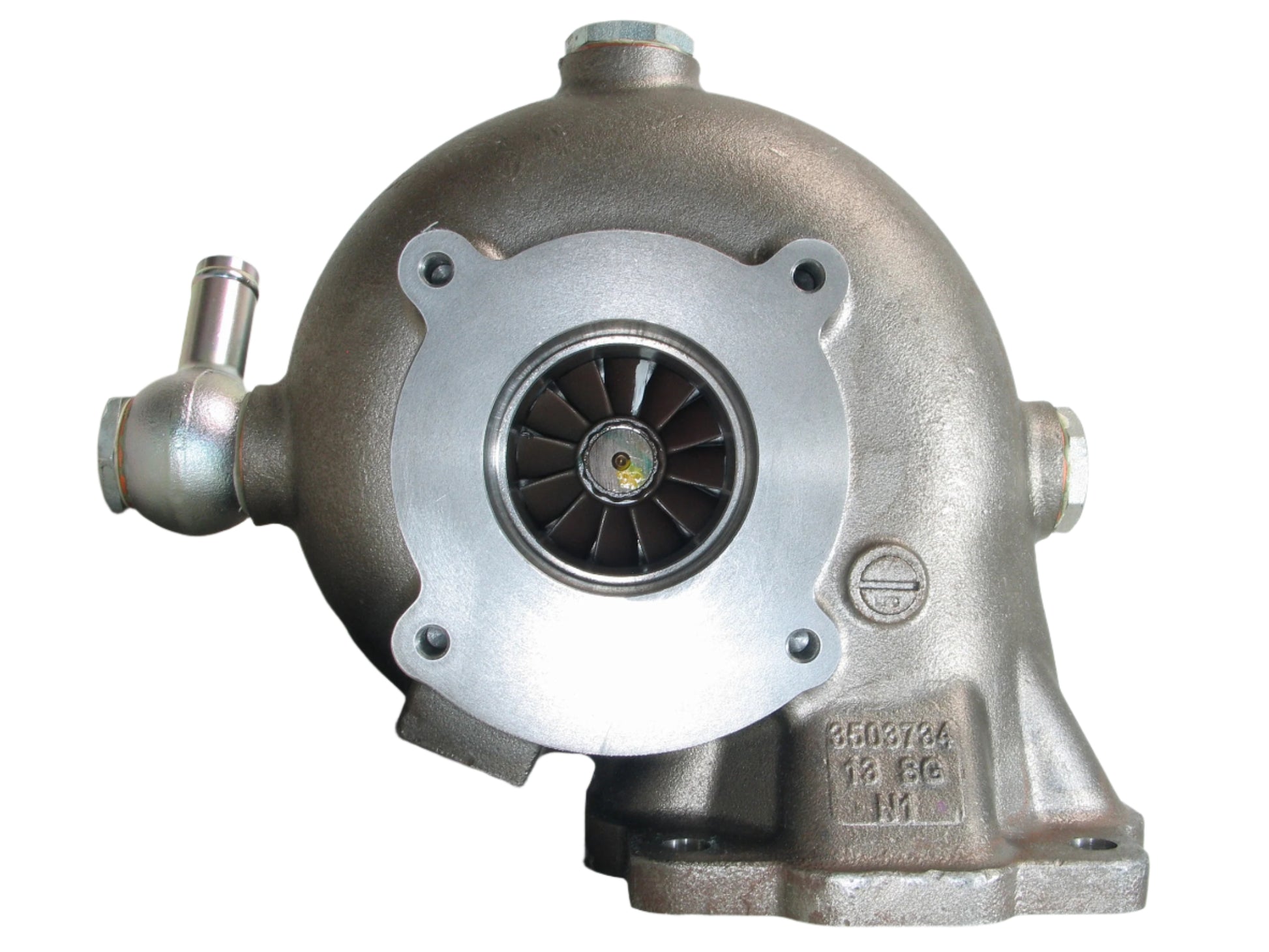

Turbine Wheel: 3503798 (Ind. 70 mm, Exd. 57 mm, Trim 10.69, 12 Blades)

Application:
1985-10 Marine, Truck with Cummins 4BT, 6BT Engine
1993-09 Marine with Cummins 6BT Engine
Various with Cummins 6BTA Engine

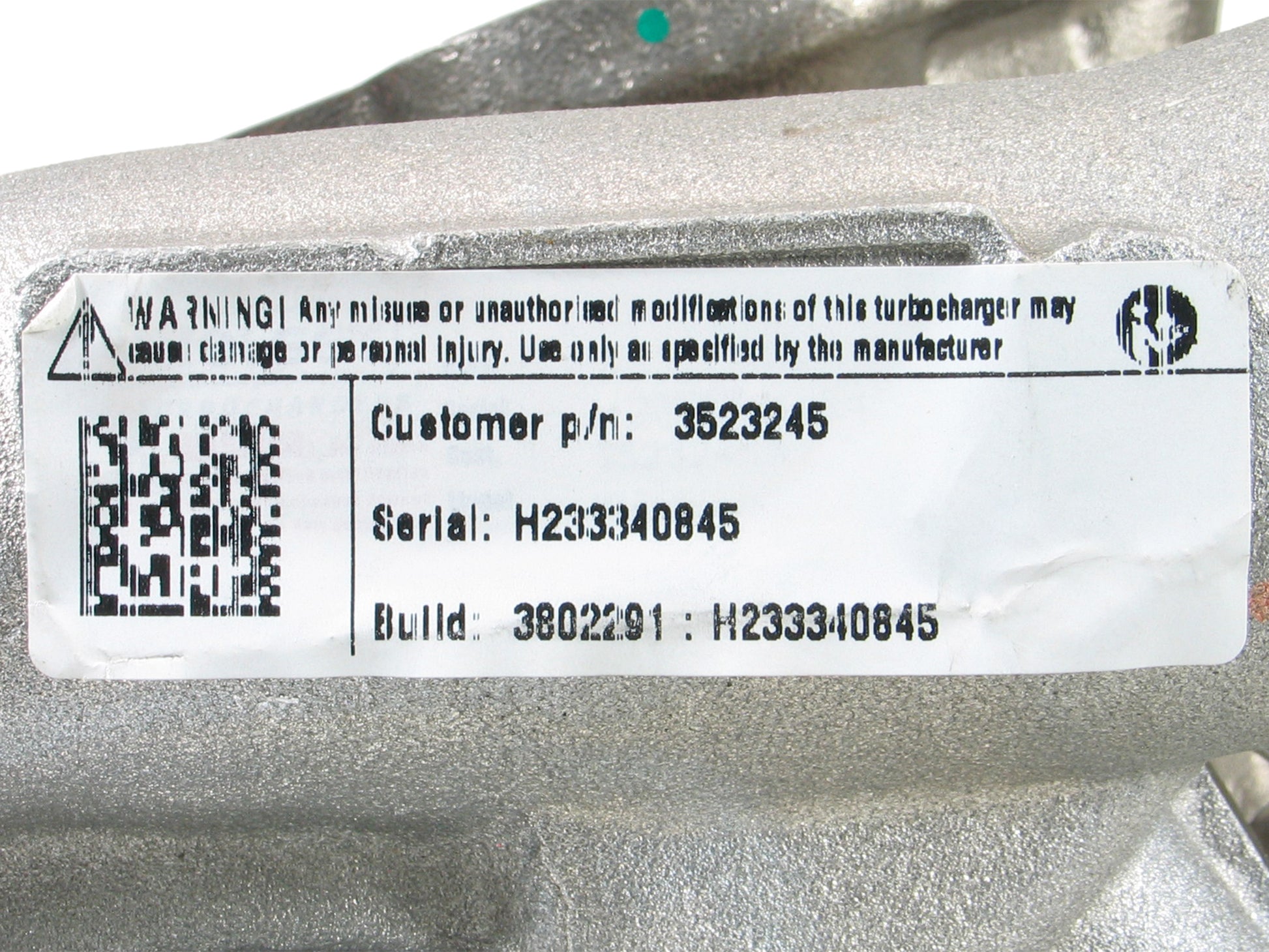

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
